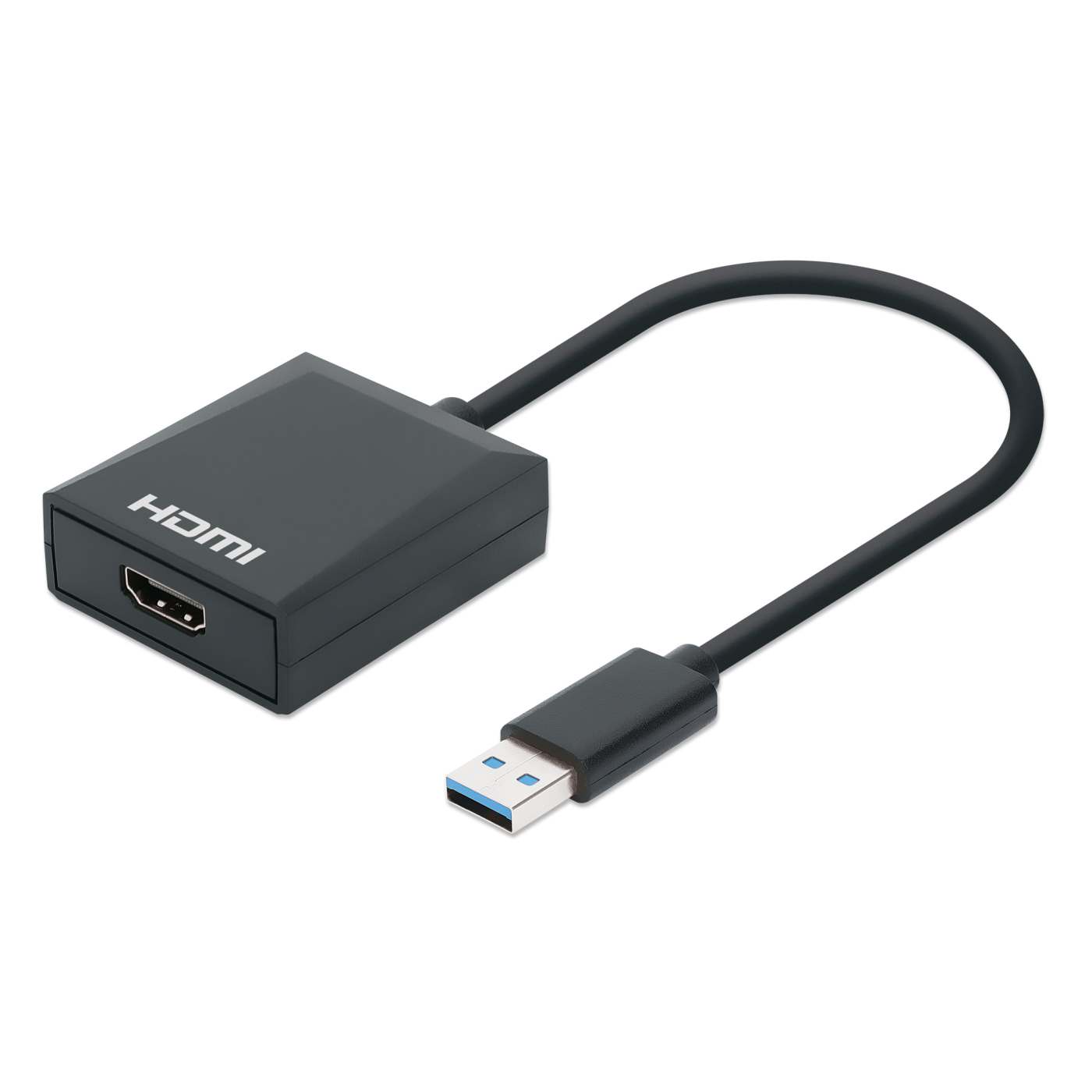

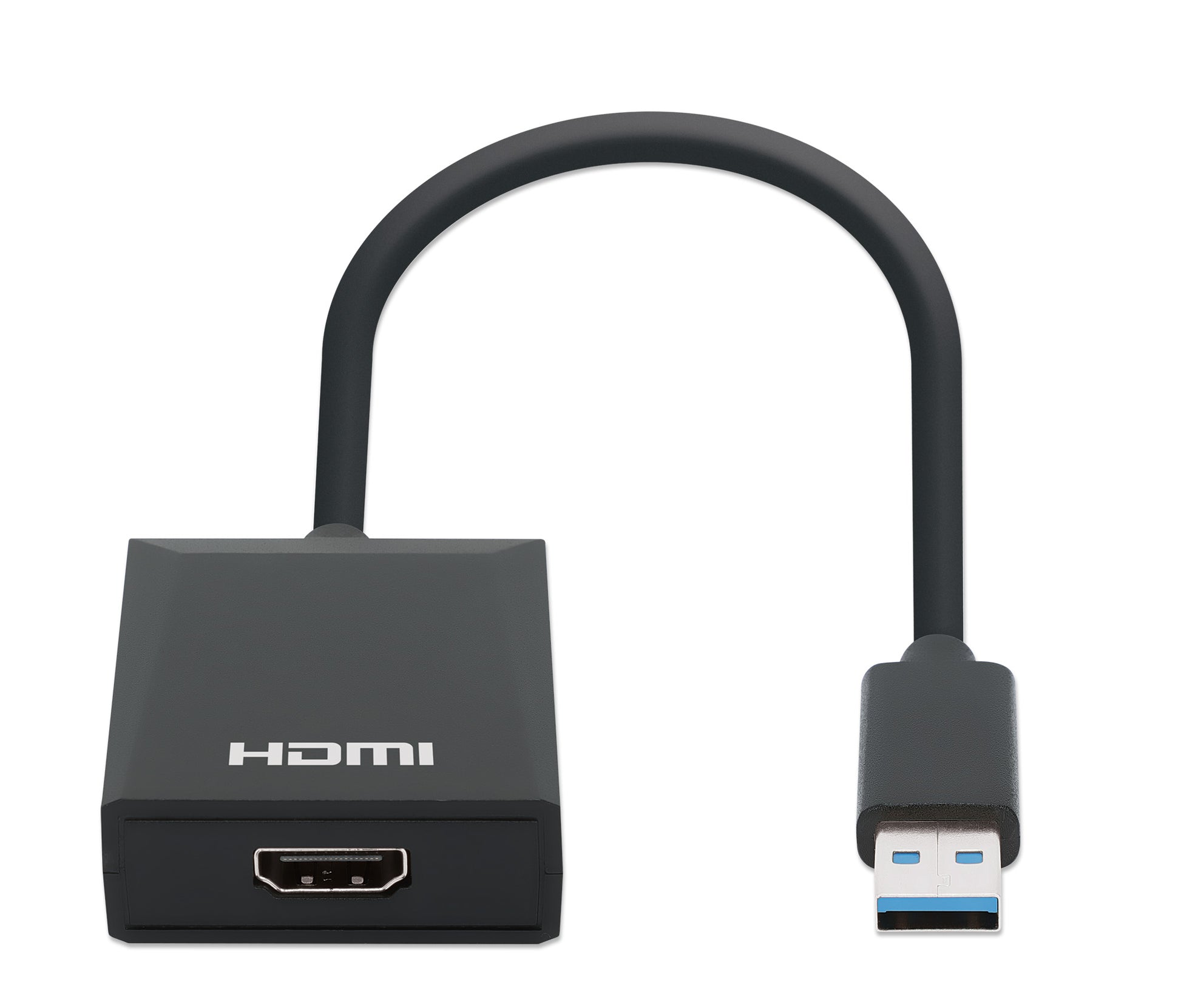

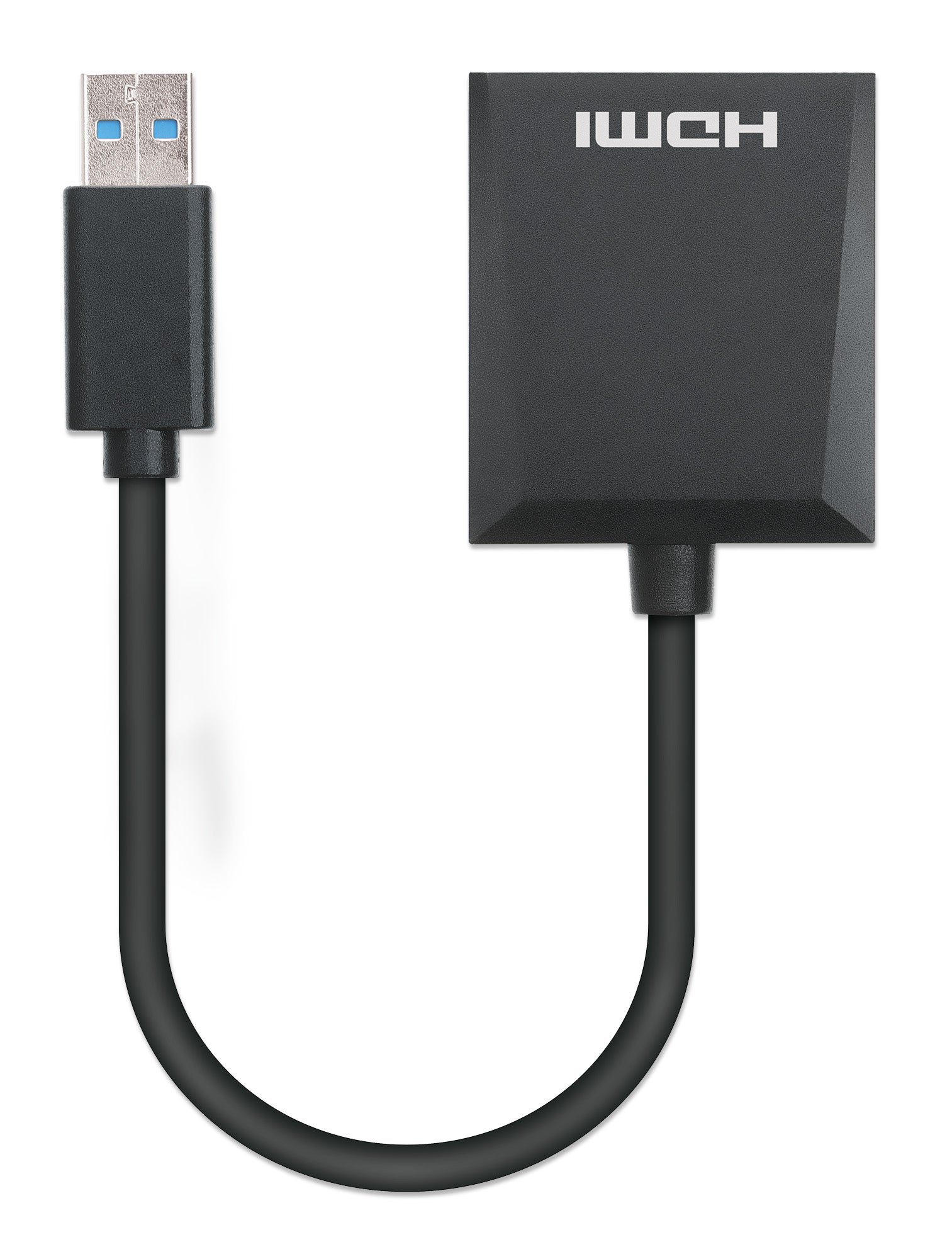

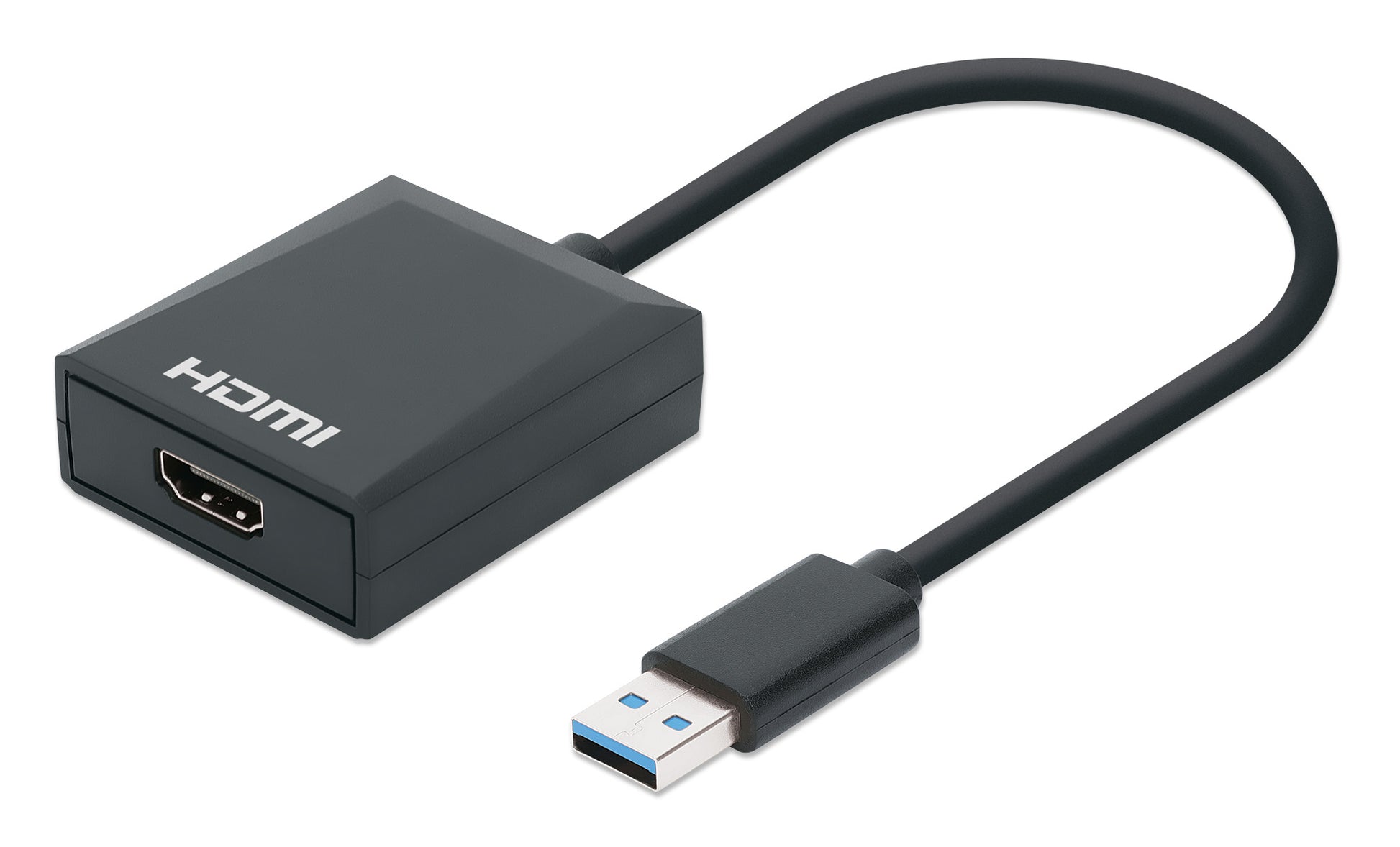

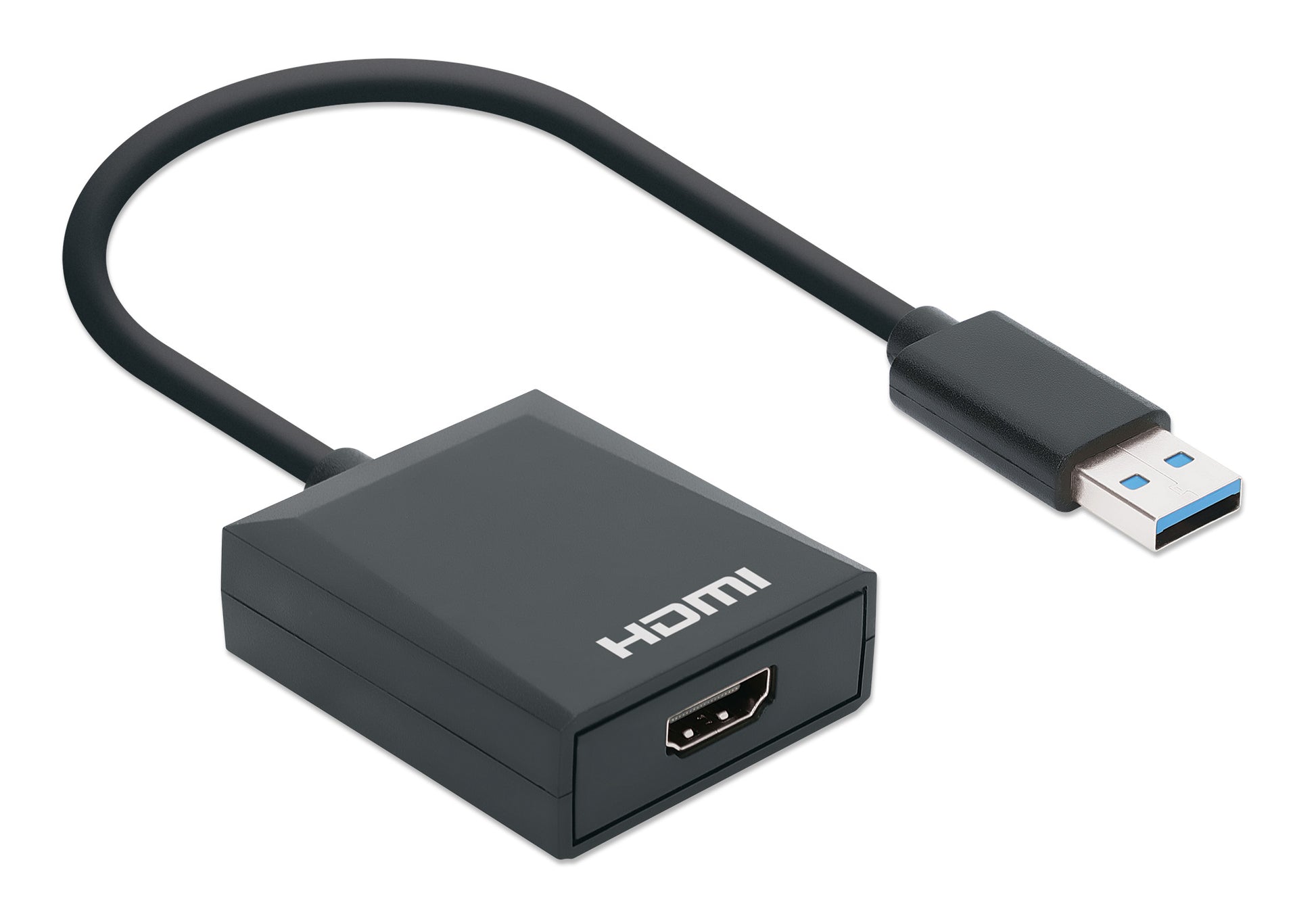

1080p USB-A to HDMI Adapter

1080p USB-A to HDMI Adapter

USB 3.0 (USB 3.2 Gen 1) Type-A Male to HDMI Female Converter, 1080p@60Hz, Black

Part-No.: 153690

Highlights

  • Easily connects a USB-A device to an HDMI display
  • Resolutions up to Full HD 1080p@60Hz (1980×1080)
  • Converts a USB 3.2 Gen 1 (formerly USB 3.0) signal into an HDMI signal with video and audio
[ view high resolution images ] View full details

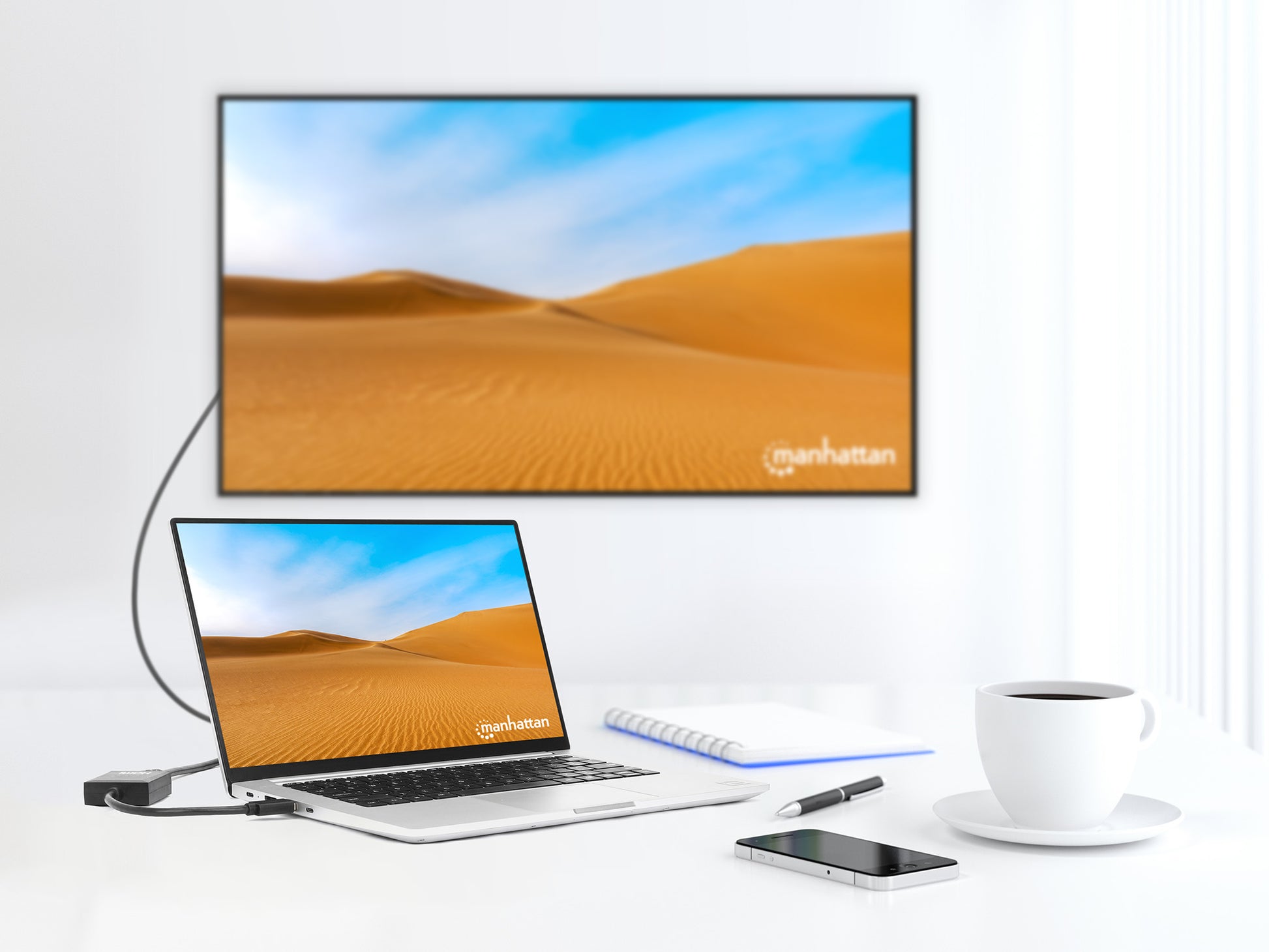

USB 3.0 to HDMI Adapter / Converter to connect your laptop, MacBook®, Ultrabook or Desktop PC to an HDMI monitor, TV or projector

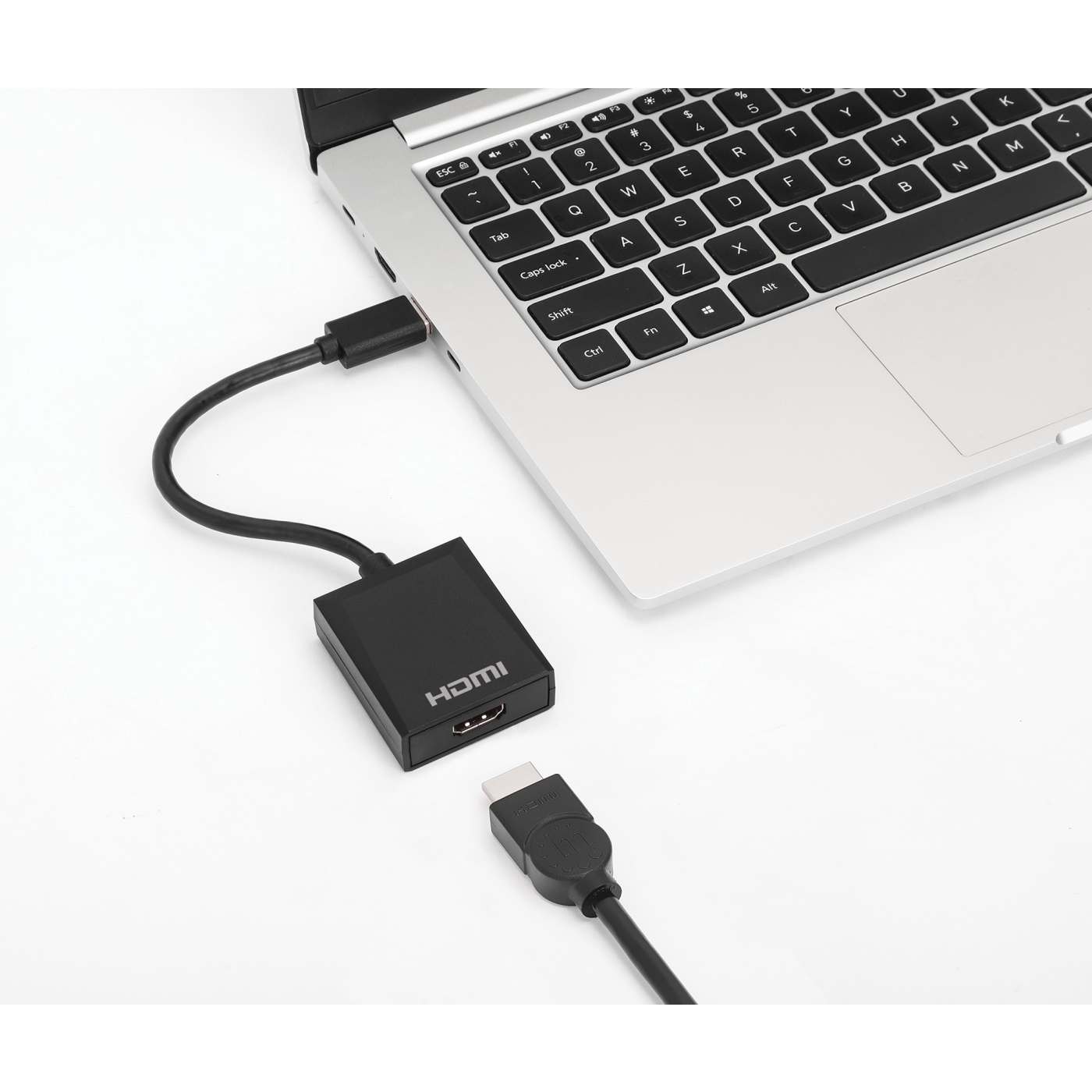

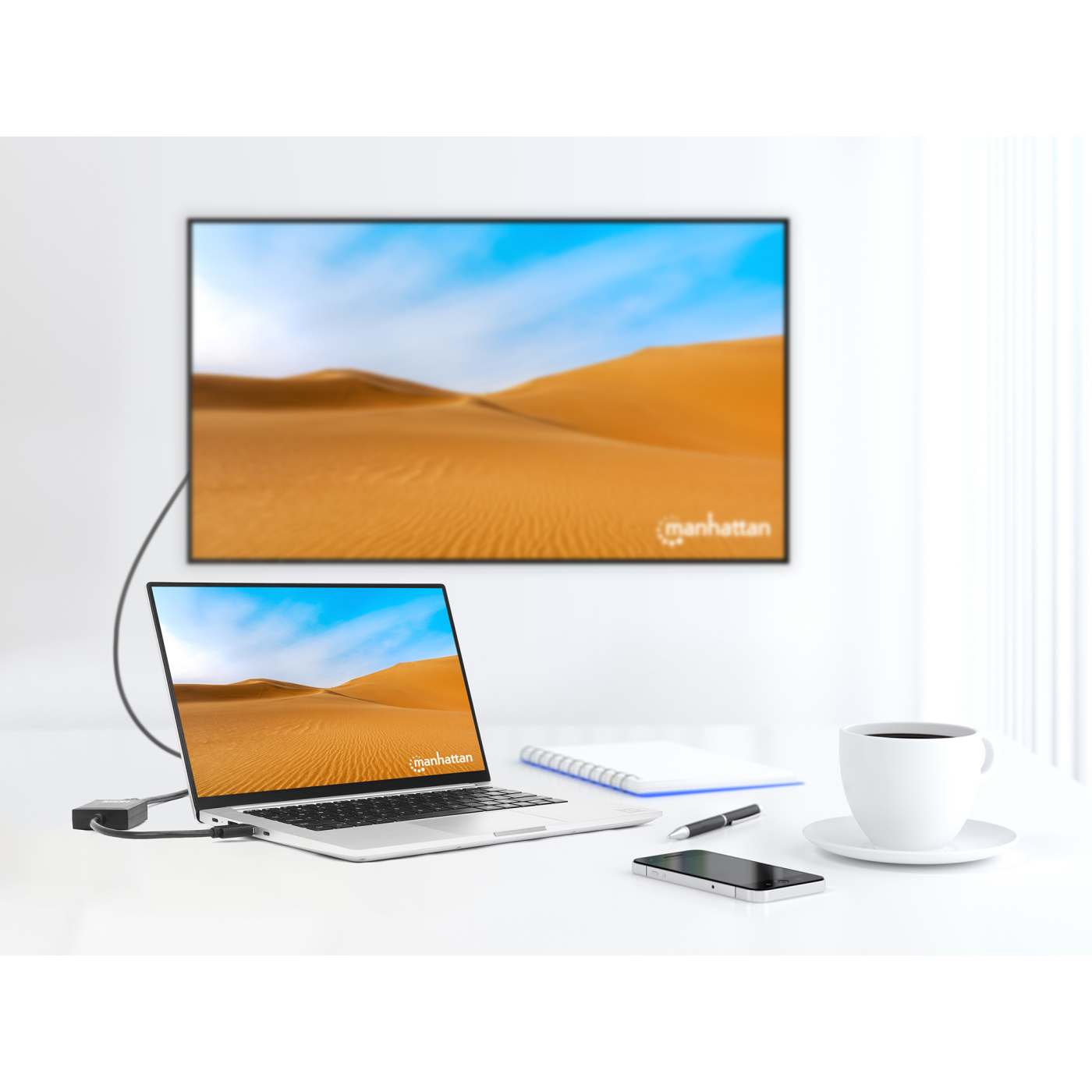

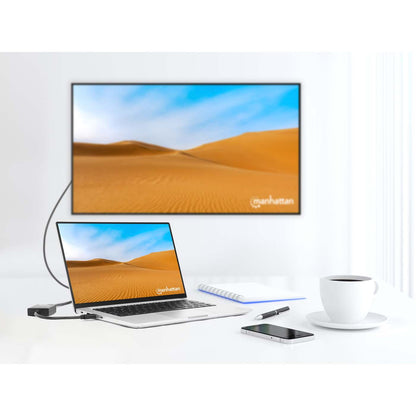

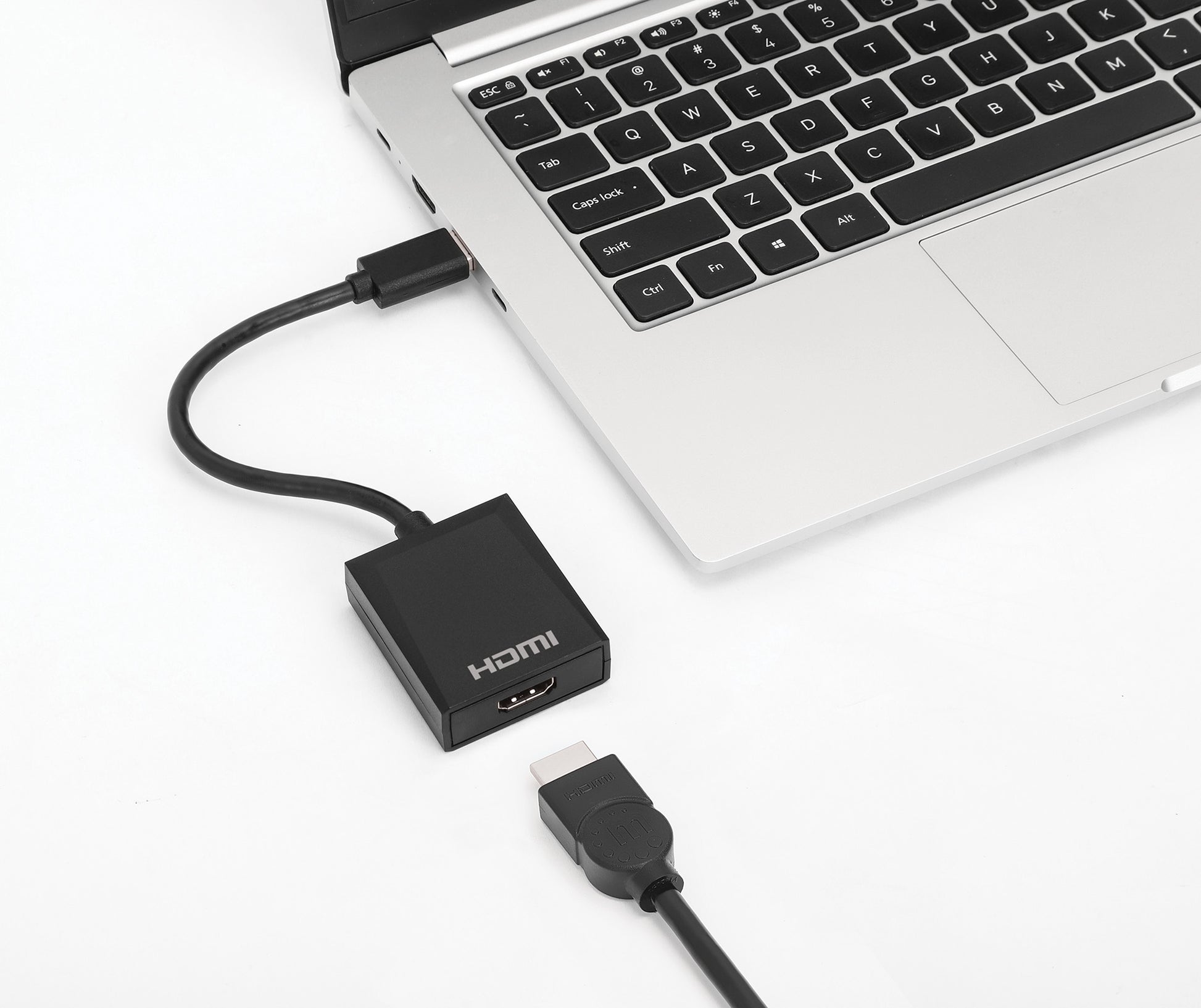

The Manhattan USB-A to HDMI Adapter lets you connect your laptop or desktop computer to an HDMI monitor, TV or projector through a single USB Type-A port. Add a display in mirror mode for larger screen space, or add it in extend mode for more productivity with multitasking. It provides a cost-effective and convenient way to expand the video capabilities of your Mac® or PC. This product works like an external graphics card, so adding a second adapter lets you connect a second display.

An HDMI adapter that's made to go with you

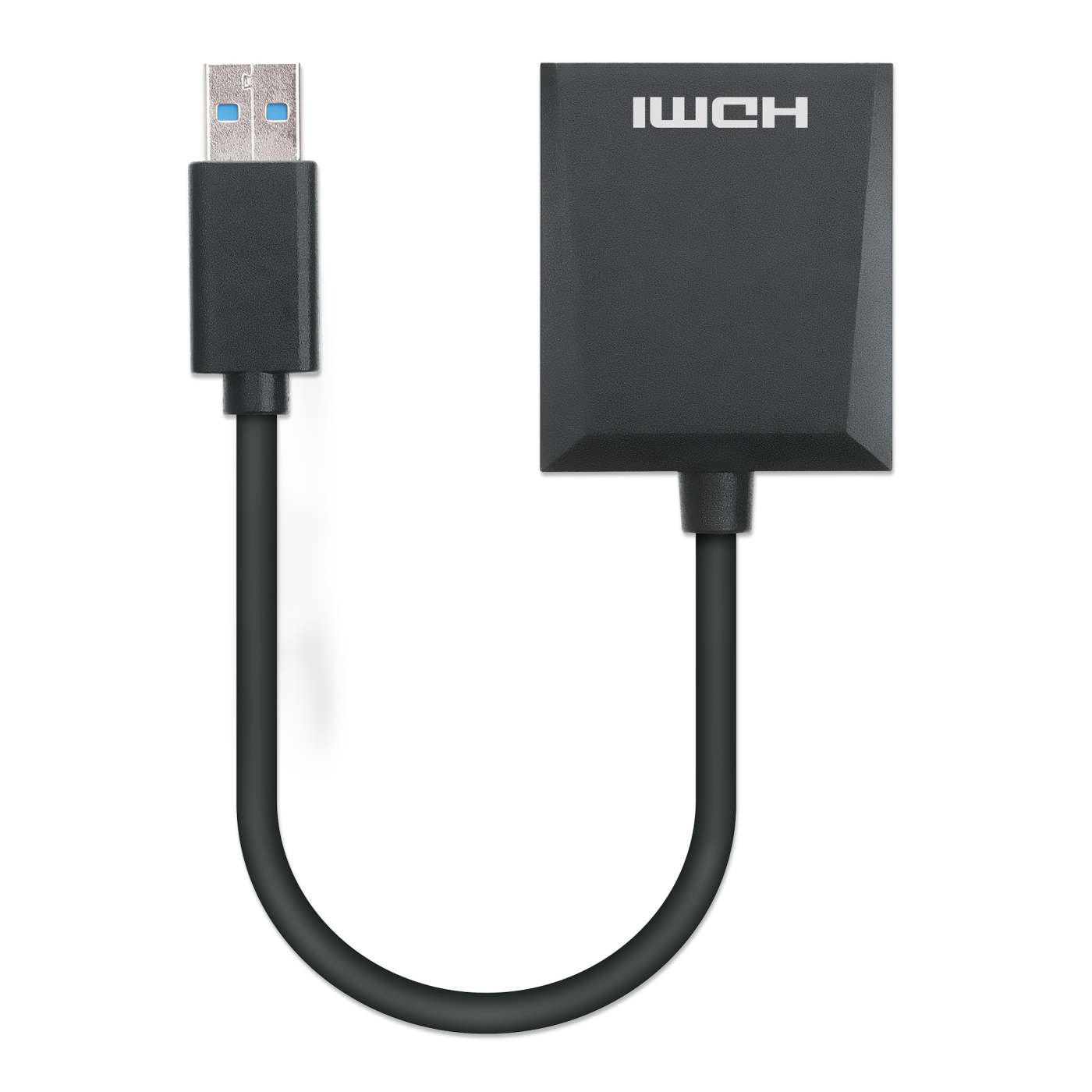

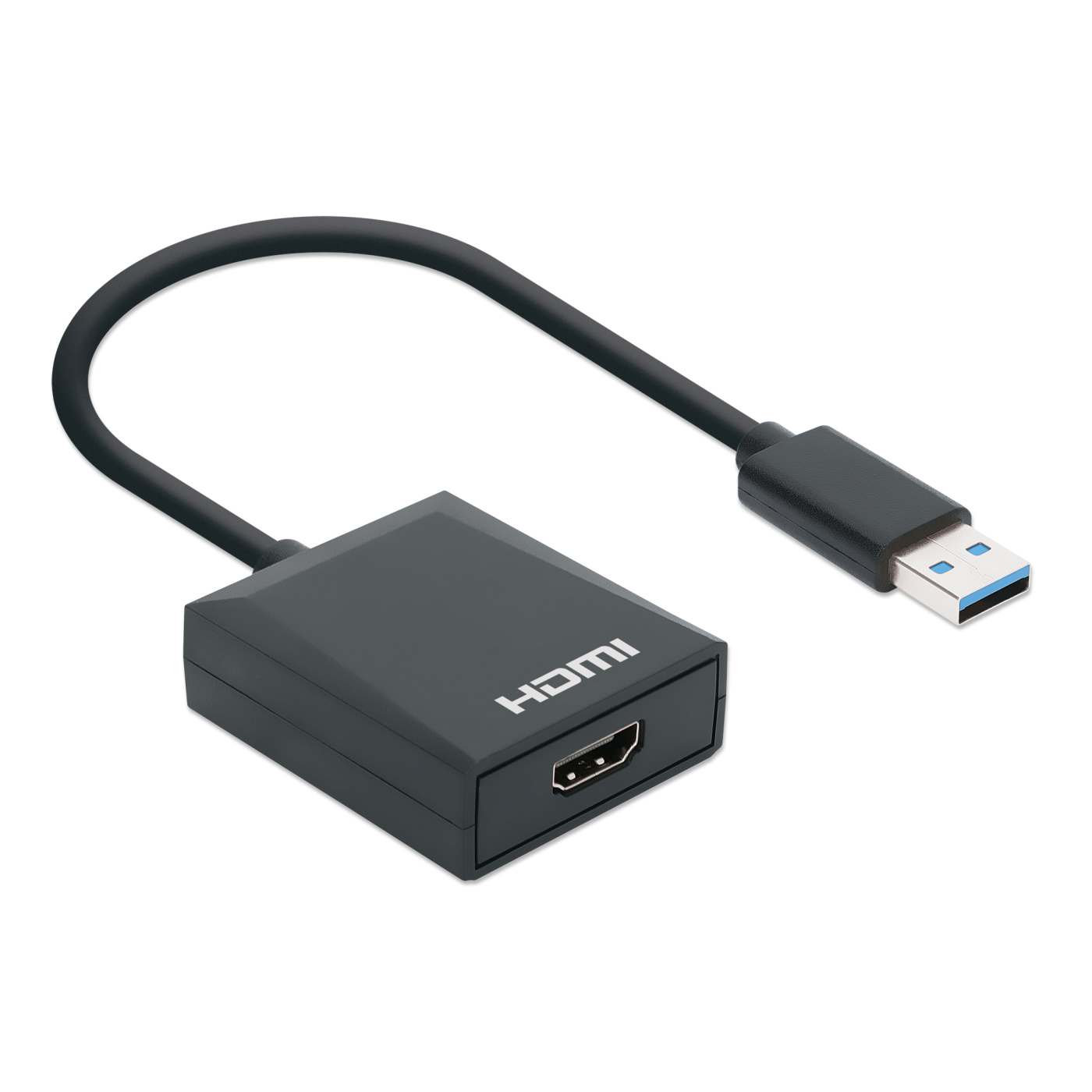

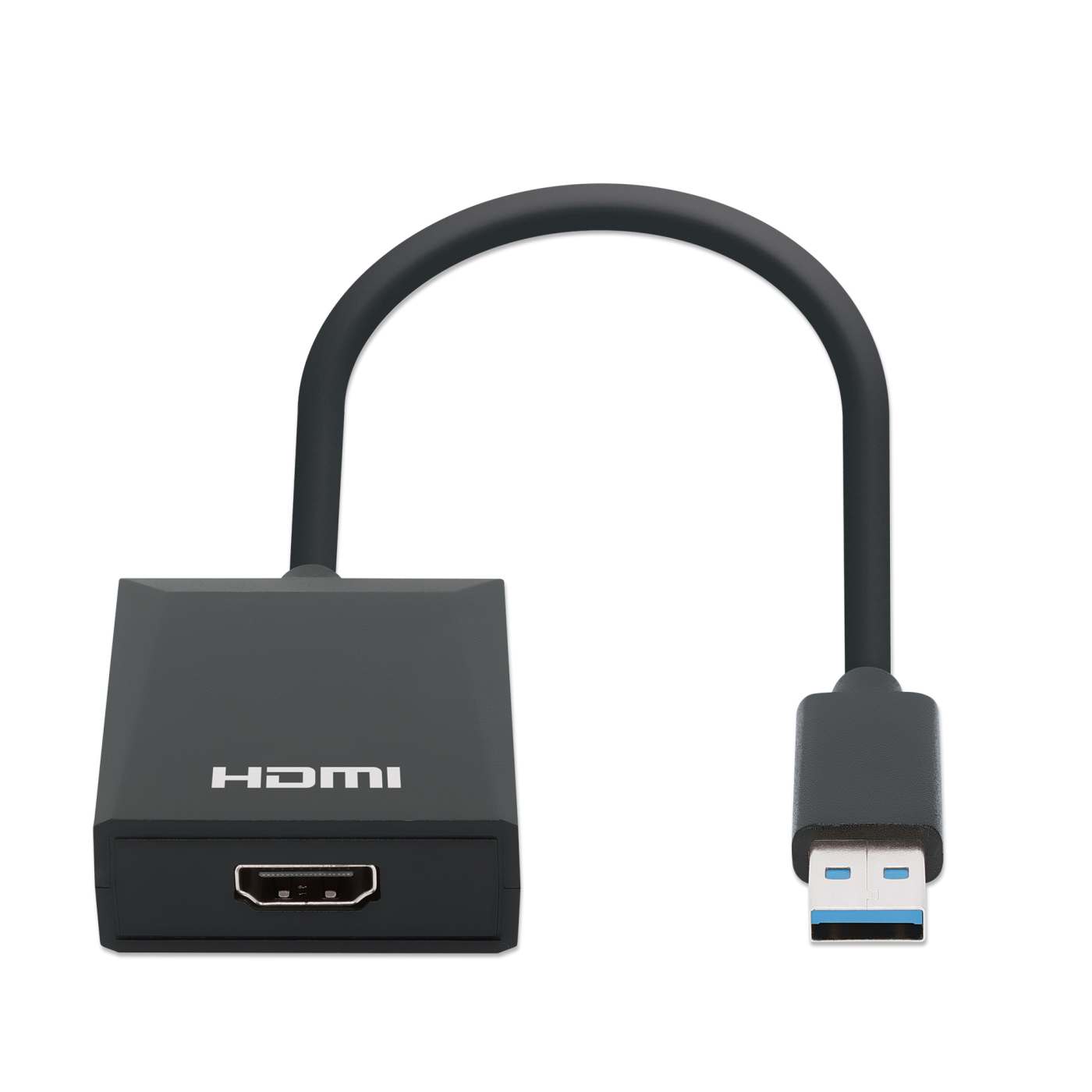

The very compact housing makes this USB to HDMI Adapter the perfect travel companion. With a footprint of only 52 x 45 x 16 mm (2.05 x 1.77 x 0.63 in.), it's small enough to fit in an outer notebook bag pocket so you can create a mini-workstation for your laptop where ever you're going.

  • Easily connects a USB-A device to an HDMI display
  • Resolutions up to Full HD 1080p@60Hz (1980×1080)
  • Converts a USB 3.2 Gen 1 (formerly USB 3.0) signal into an HDMI signal with video and audio
  • Ideal for connecting an HDMI display to a PC or laptop that doesn't have an HDMI port or for adding a display if the HDMI port is already in use

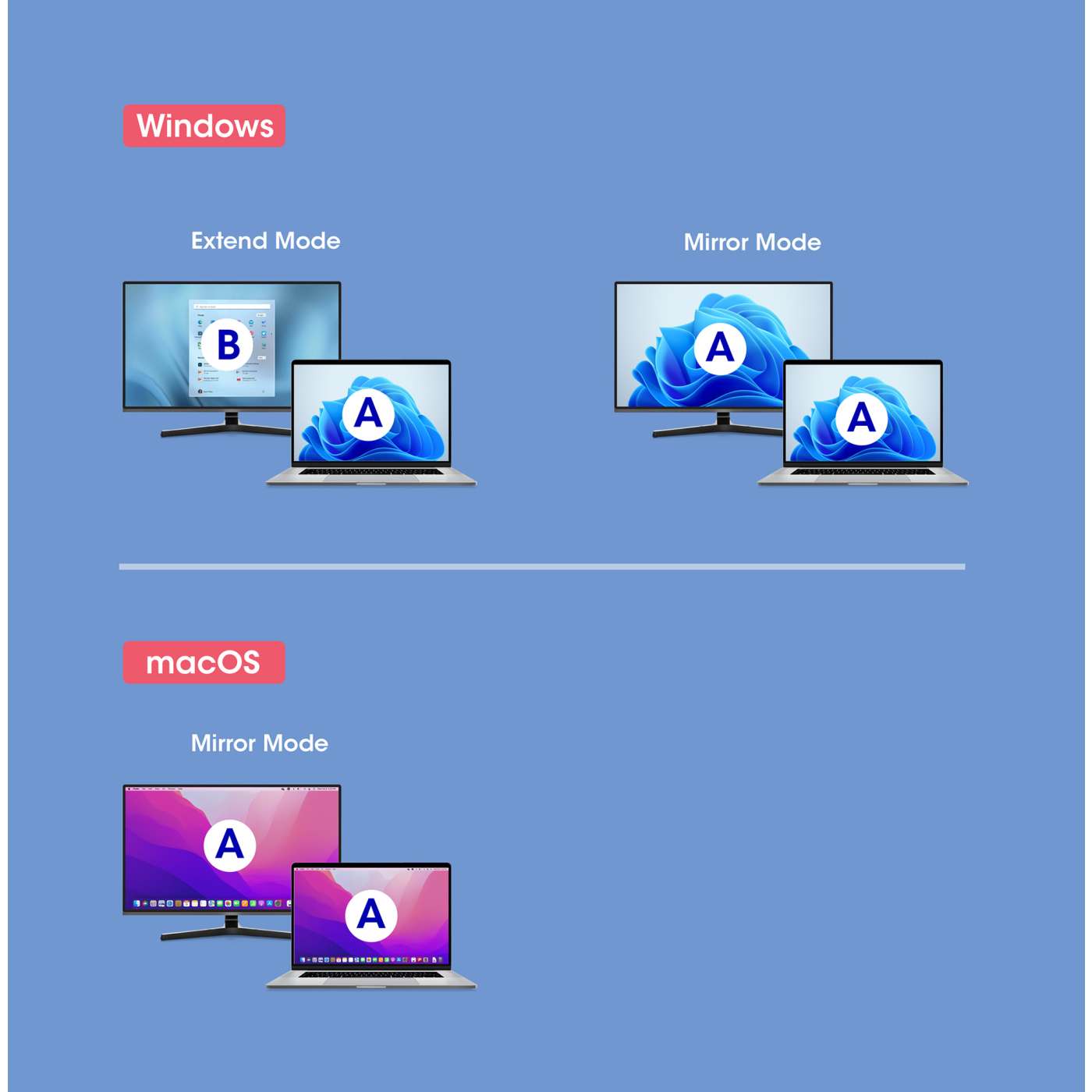

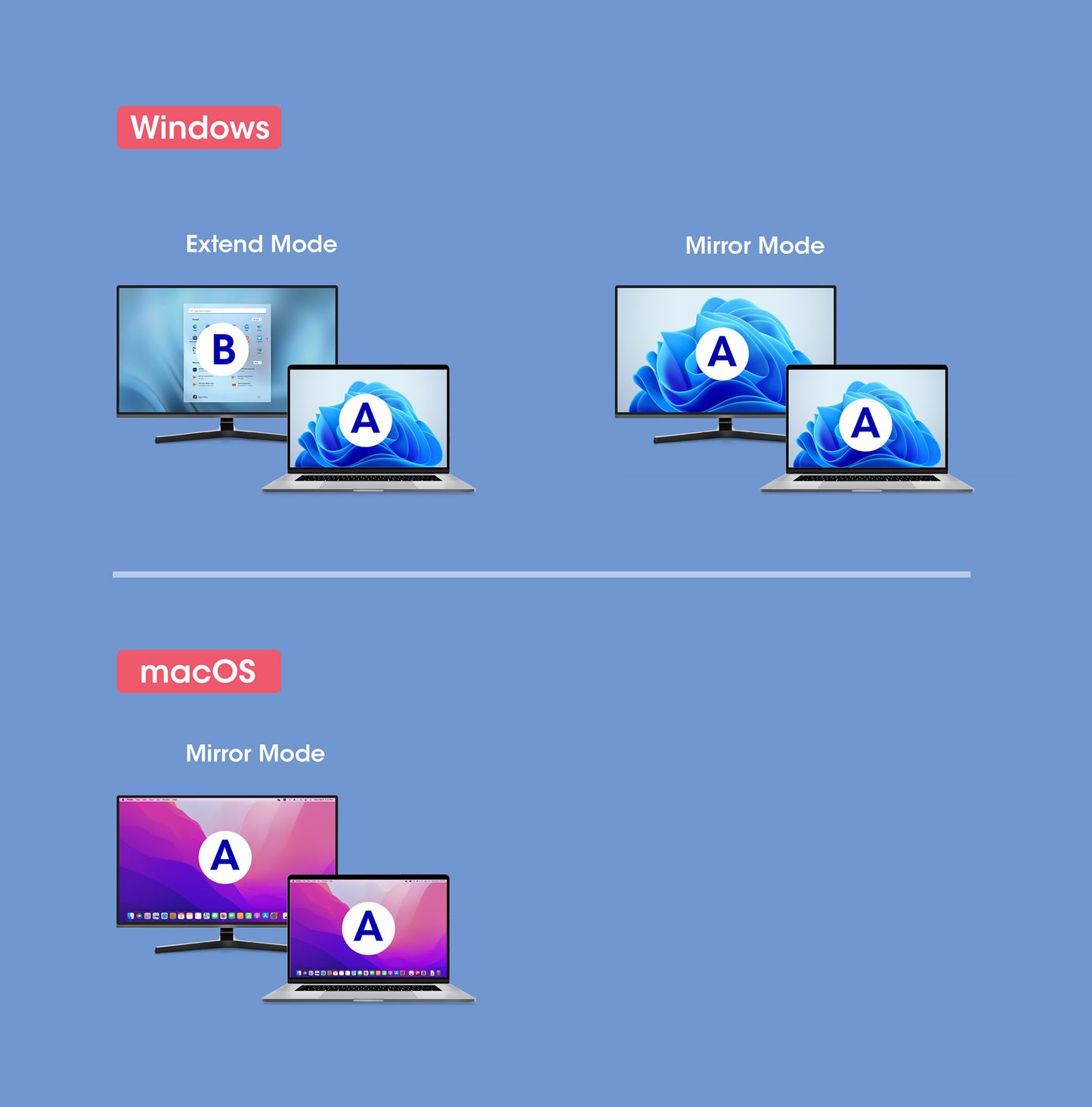

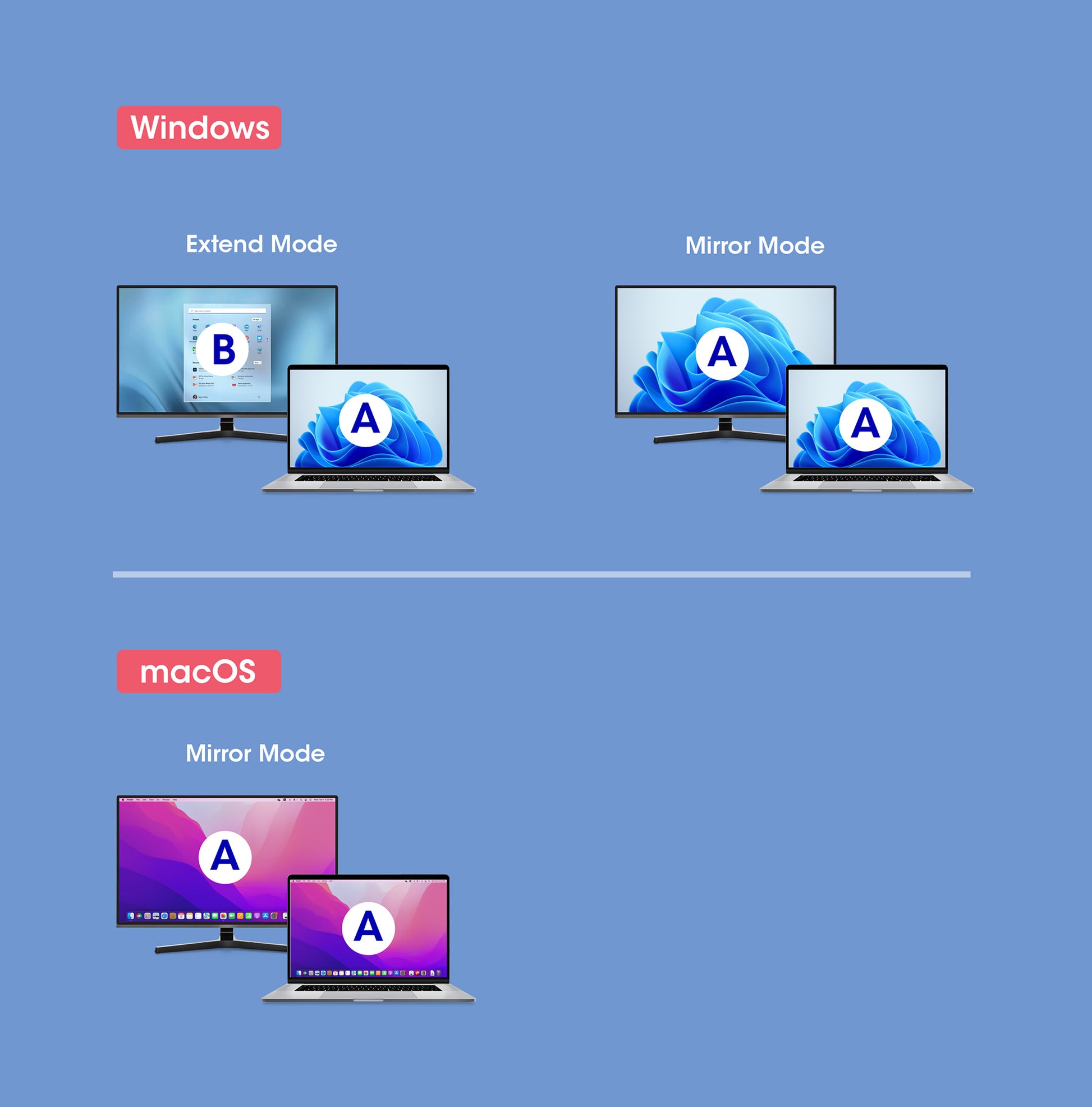

  • Supports display modes Extended or Mirror on Windows®, and Mirror on Mac®
  • Serves as an external graphics card, which allows adding up to two external displays to your system (requires one adapter per display)
  • Built-in, sturdy 15 cm (6 in.) cable
  • Bus powered: no external power supply needed
  • Backward compatible with USB 2.0
  • Portable, compact, lightweight design that easily fits into laptop bag pockets
  • HDCP 1.4 compliant
  • Plug-and-play installation; Windows®, and macOS® compatible
  • Three-year warranty

    Standards and Certifications
  • USB 3.2 Gen 1
  • HDCP 1.4
  • CE
  • FCC
  • RoHS
  • REACH
  • UKCA

    Connections
  • One USB-A 9-pin, male
  • One HDMI 19-pin, female

    Physical
  • Dimensions (L x W x H): 234 x 45 x 16 mm (9.21 x 1.77 x 0.63 in.)
  • Net weight: 36 g (1.27 oz.)
  • Gross weight: 64 g (2.26 oz.)
  • Cable length: 15 cm (6 in.)
  • Cable diameter: 28 AWG
  • Plastic housing

    Operating Environment
  • Operation temperature: -20 - 45°C (-4 - 113°F)
  • Storage temperature: -20 - 80°C (14 - 176°F)
  • Humidity (noncondensing): 5 - 90% RH

    System Requirements
  • Windows 10 and above, macOS 10.14 and above or Android 5.1 and above

    Package Contents
  • USB-A to HDMI Adapter
  • Instructions

    This product is part of a group; the complete list of variations follows:
  • #153690 - USB-A to HDMI
  • #151788 - USB-C to HDMI, 4K@30Hz
  • #153416 - USB-C to HDMI, 4K@60Hz, PD Port

  • Additional SKUs

    • EAN: 0766623153690
    • UPC: 766623153690

  • Physical Specifications

    • Product net weight: 0.04 kg
    • Product gross weight: 0.06 kg
    • Dimensions: 234 (L) x 45 (W) x 16 (H) [mm]
    • Packaging type: Retail Box
    • Packaging dimensions: 175 x 90 x 25 [mm]
    • Master Carton Quantity: 60
    • Master Carton Weight: 4.11 kg
    • Master Carton Dimensions: 400 x 370 x 200 [mm]

  • Datasheet

  • Driver
    • Driver for Windows and macOS, Dec 17, 2024     » Download


  • Manual
    • Quick Instruction Guide     » Download
