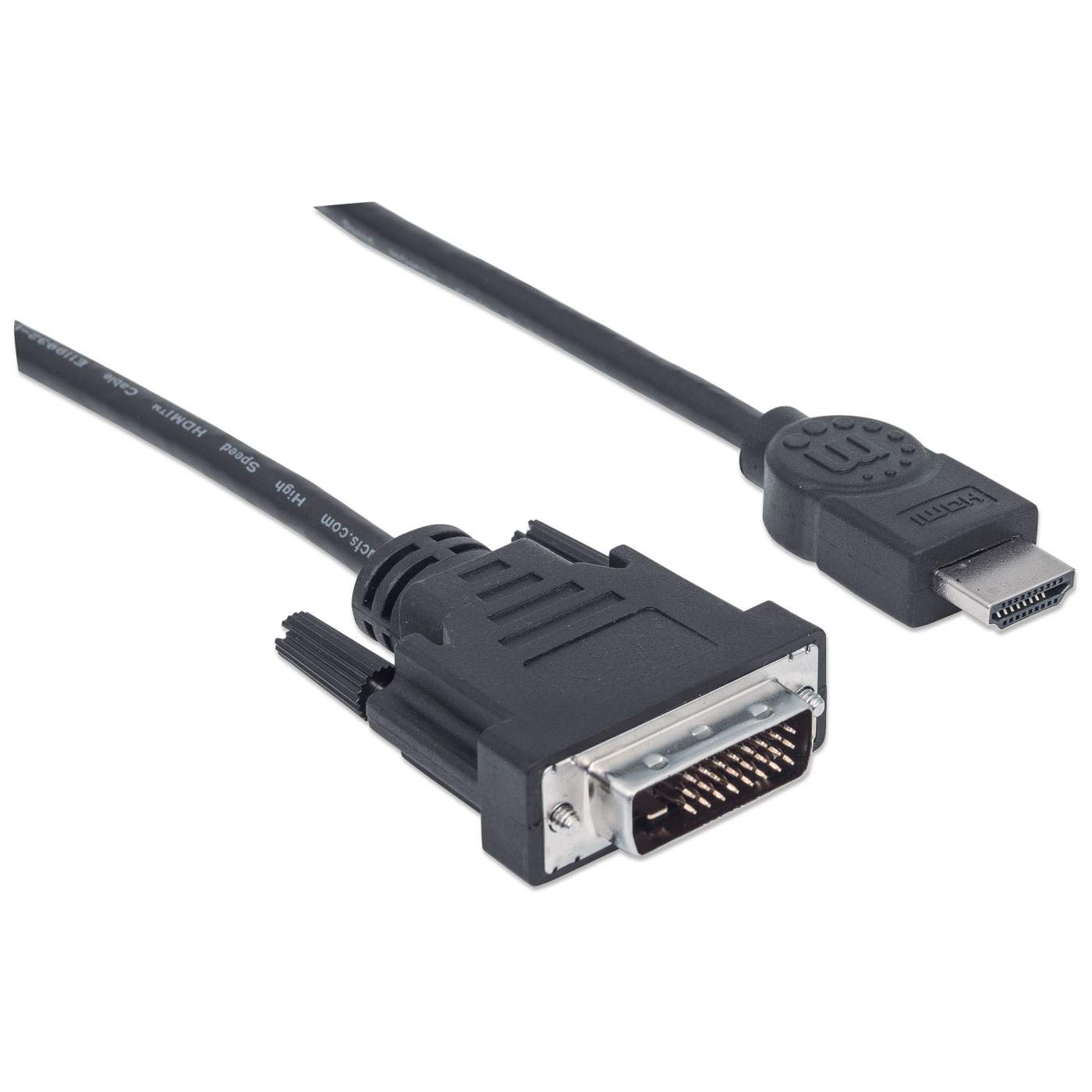

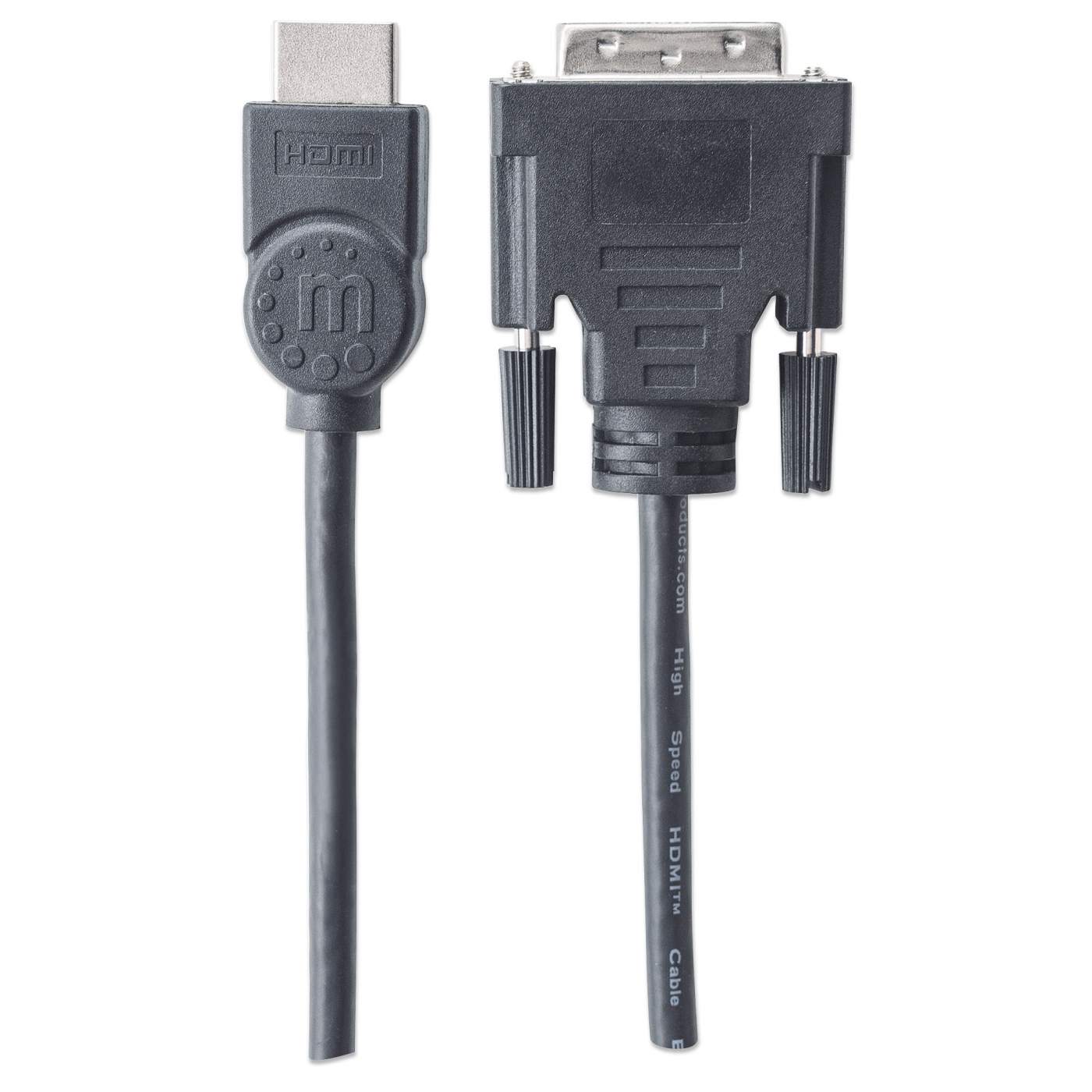

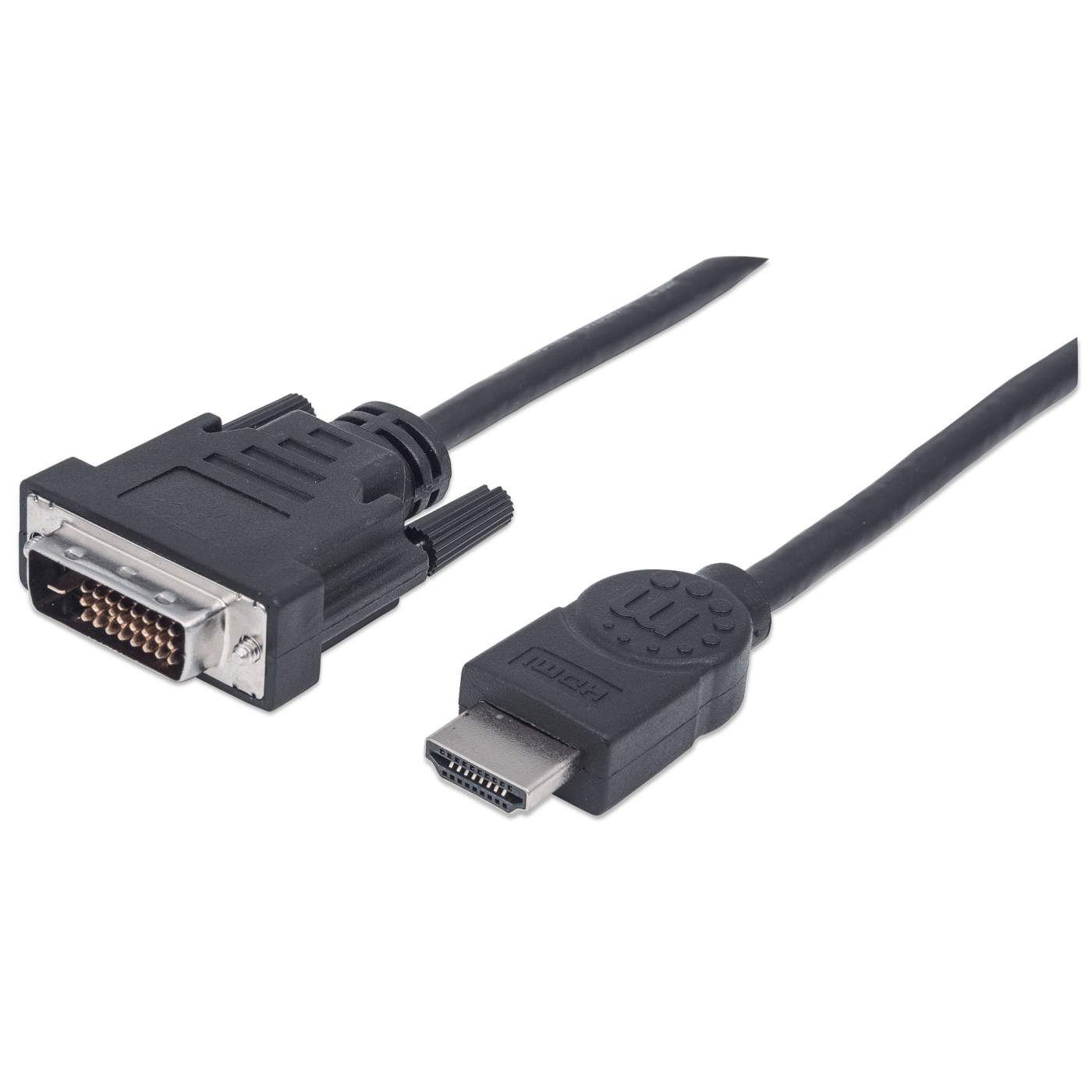

HDMI to DVI Adapter Cable – Connect HDMI sources to DVI monitors and more
The Manhattan HDMI to DVI Cable is engineered and constructed of quality materials to deliver dependable transmissions in digital video applications. Full foil and braided shielding, molded boots with strain relief and a protective PVC jacket help provide maximum conductivity and clear, crisp signal transmissions without EMI problems.
- Easily connects an HDMI source to a DVI display, monitor or projector
- HDMI 19-pin male to DVI-D 24+1 dual-link male
- Supports HD (720p, 1080i and 1080p@60Hz), enhanced (480p) and standard (NTSC or PAL) video formats
- Compatible with DVI-I and DVI-D interfaces
- Foil and braid double shielding to reduce EMI and other interference sources
- Molded PVC boot with strain relief
- HDCP 2.2 compliant
- Lifetime warranty
- Standards and Certifications
- CE
- RoHS
- UL
General
- 1080p, 1080i, 720p, 480p, 4:3 NTSC/PAL at 60 Hz resolution
- HDCP 2.2 support
Connectors

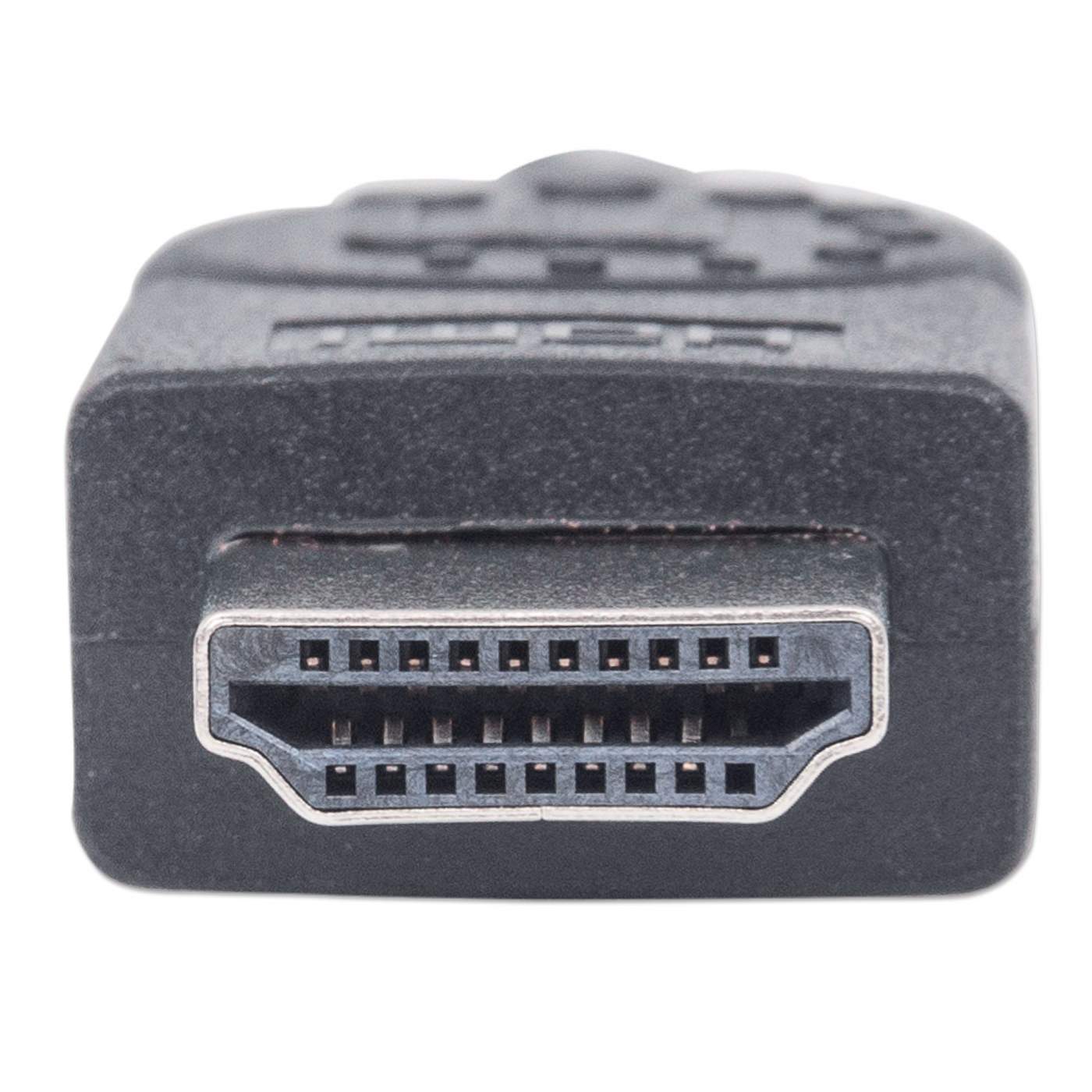

- One HDMI 19-pin male

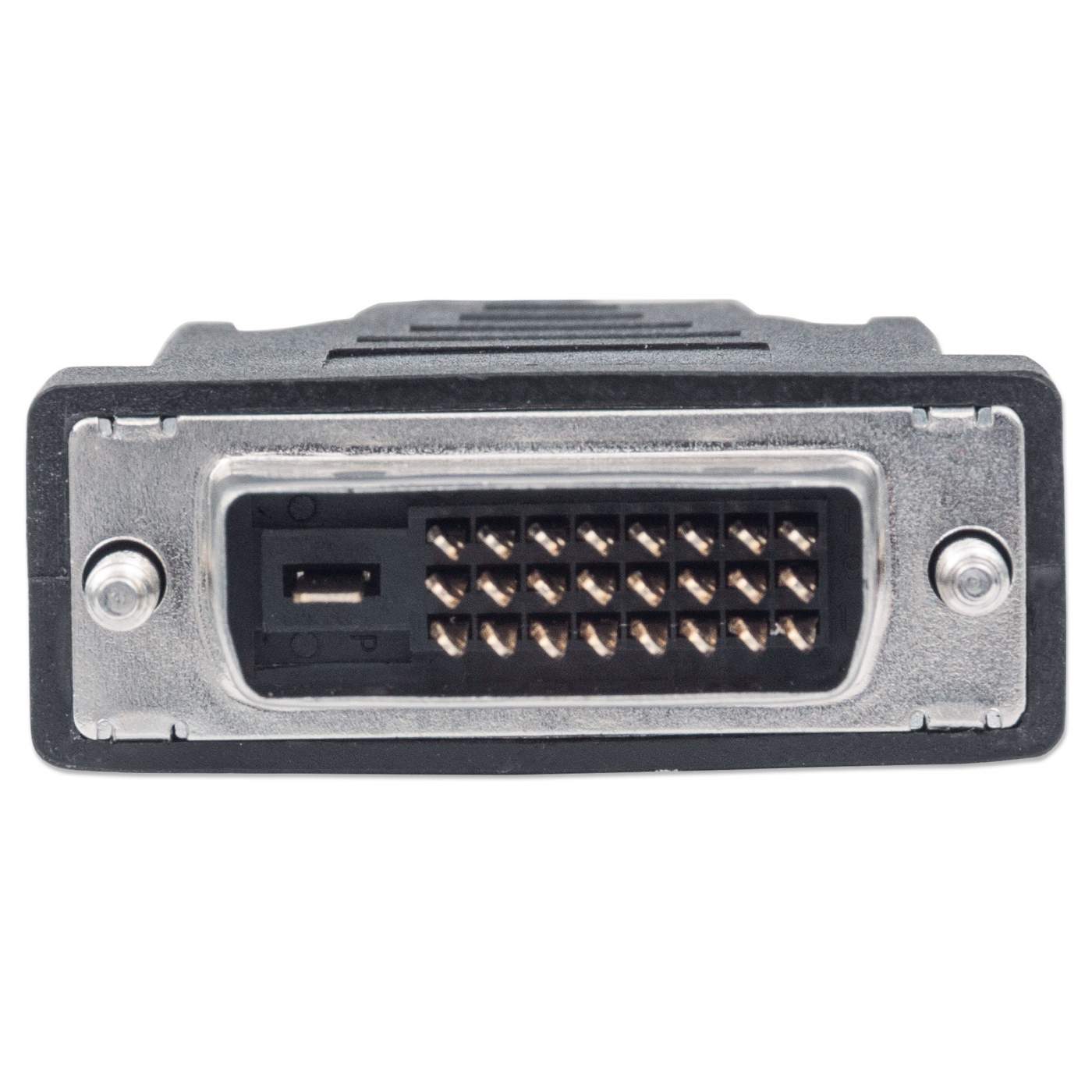

- One DVI-D 24+1-pin male
- Nickel-plated contacts
Cable
- 30 AWG
- Double shielding: aluminum foil and Mylar braid
- Length: 2 m (7 ft.)
- Current rating: 0.5 A DC
- Withstanding voltage: 300 V DC
- Insulation resistance: 10 MΩ
- Conductive resistance: 1 Ω
- Thermal plastic casing
Package Contents
- 1080p@60Hz HDMI to DVI Adapter Cable
Additional SKUs
- EAN: 0766623355742
- UPC: 766623355742
Physical Specifications
- Product net weight: 0.1 kg
- Product gross weight: 0.1 kg
- Dimensions: 2 (L) x 0.038 (W) x 0.015 (H) [m]
- Packaging type: Bag
- Packaging dimensions: 127 x 213 x 15 [mm]
- Master Carton Quantity: 80
- Master Carton Weight: 9.00 kg
- Master Carton Dimensions: 400 x 400 x 230 [mm]
- Datasheet
- Datasheet » Download
