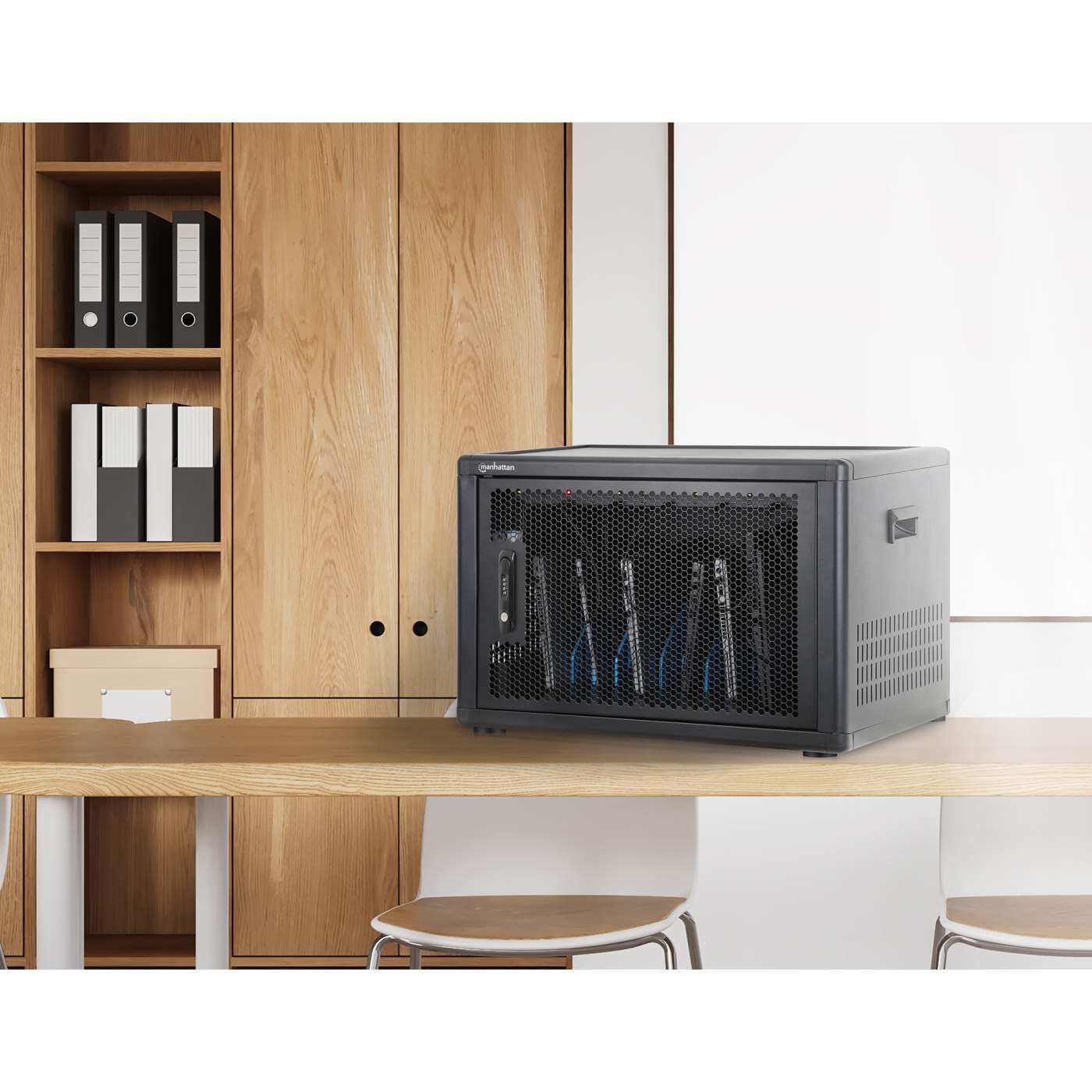

USB-C Charging Cabinet for Schools and Hospitality without the Need for AC Adapters or Wall Chargers
Charging, storing, and protecting portable devices is easy with the reliable Manhattan 12-Port USB-C Charging Cabinet. It’s the ideal solution for laptops, tablets, and other devices up to 16 inch in schools, restaurants, gyms, doctor’s offices, universities, hotels, offices, and more, so you can efficiently assist your students, guests, patients, customers, and patrons.
Fast and Powerful USB-C PD Charging with Maximum Device Safety

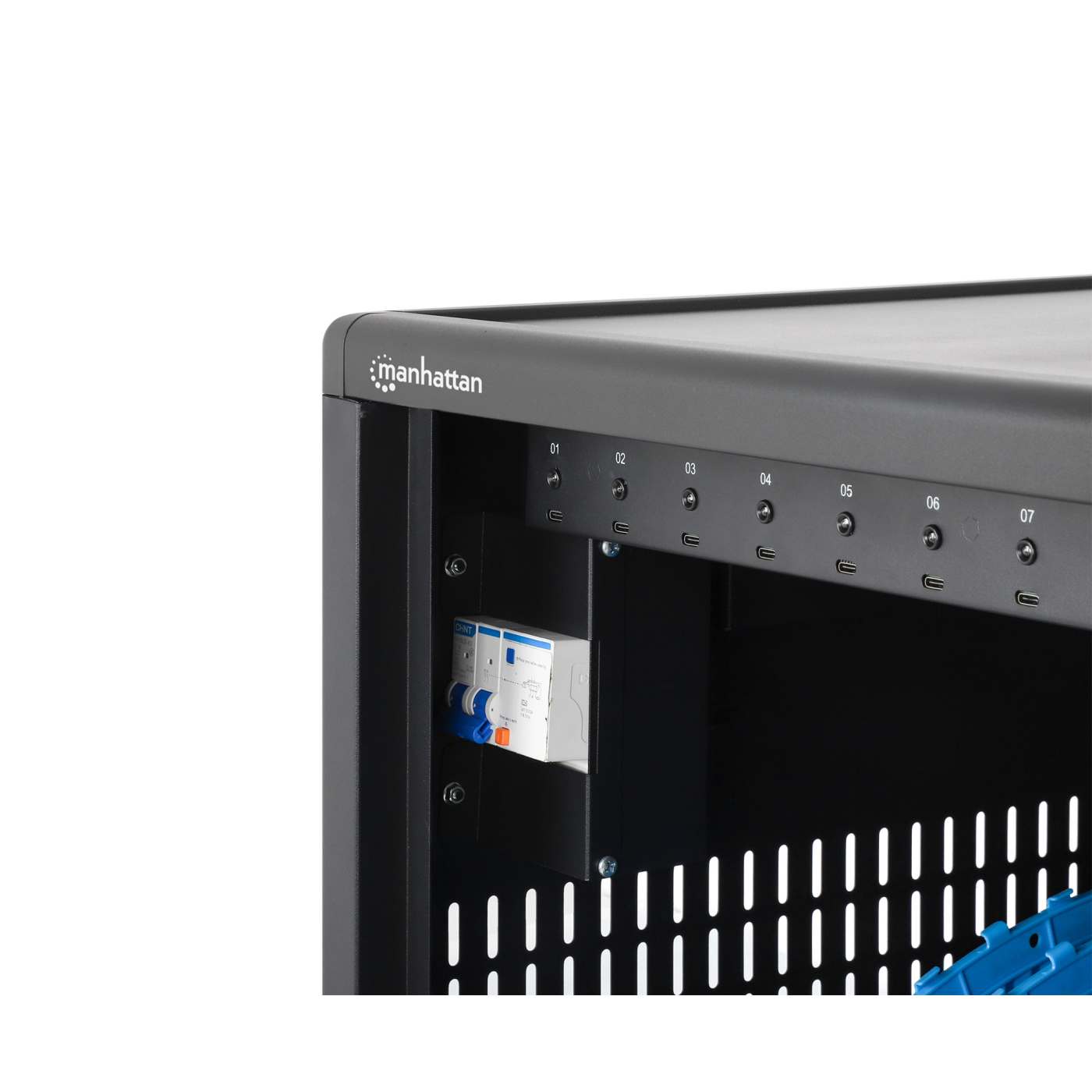

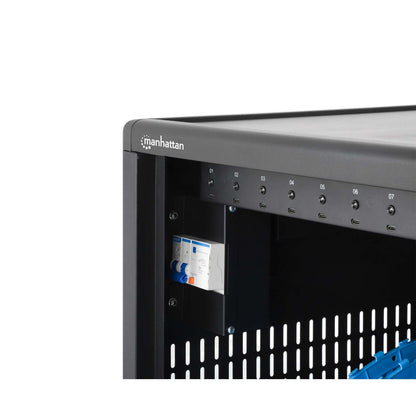

Each of the twelve USB-C Power Delivery ports delivers up to 65 watts of fast, intelligent charging - no bulky power adapters or wall chargers needed. With a total power output of 780 watts, the cabinet ensures that every device receives optimal power for quick, efficient charging.
Lockable with Key or Pin Code

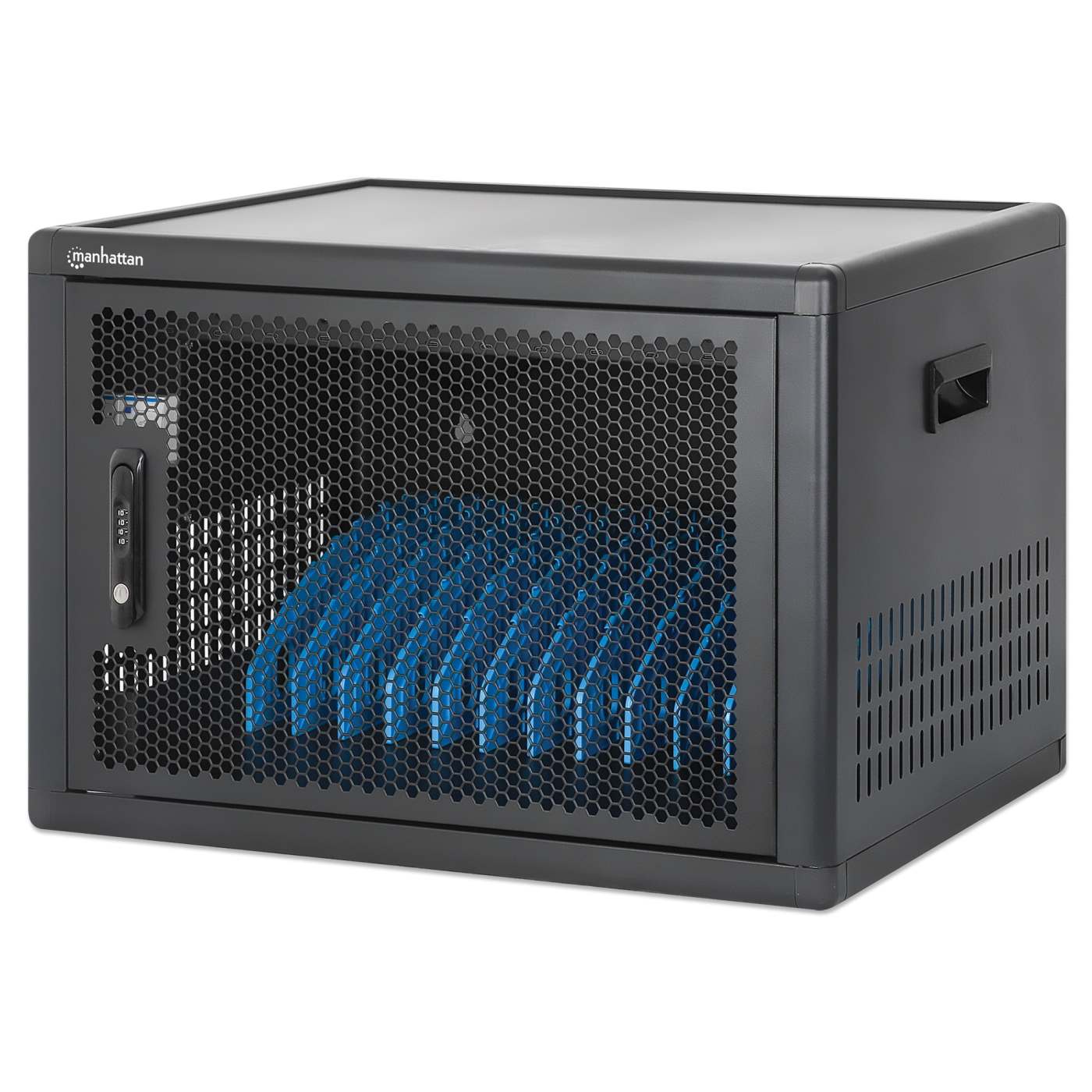

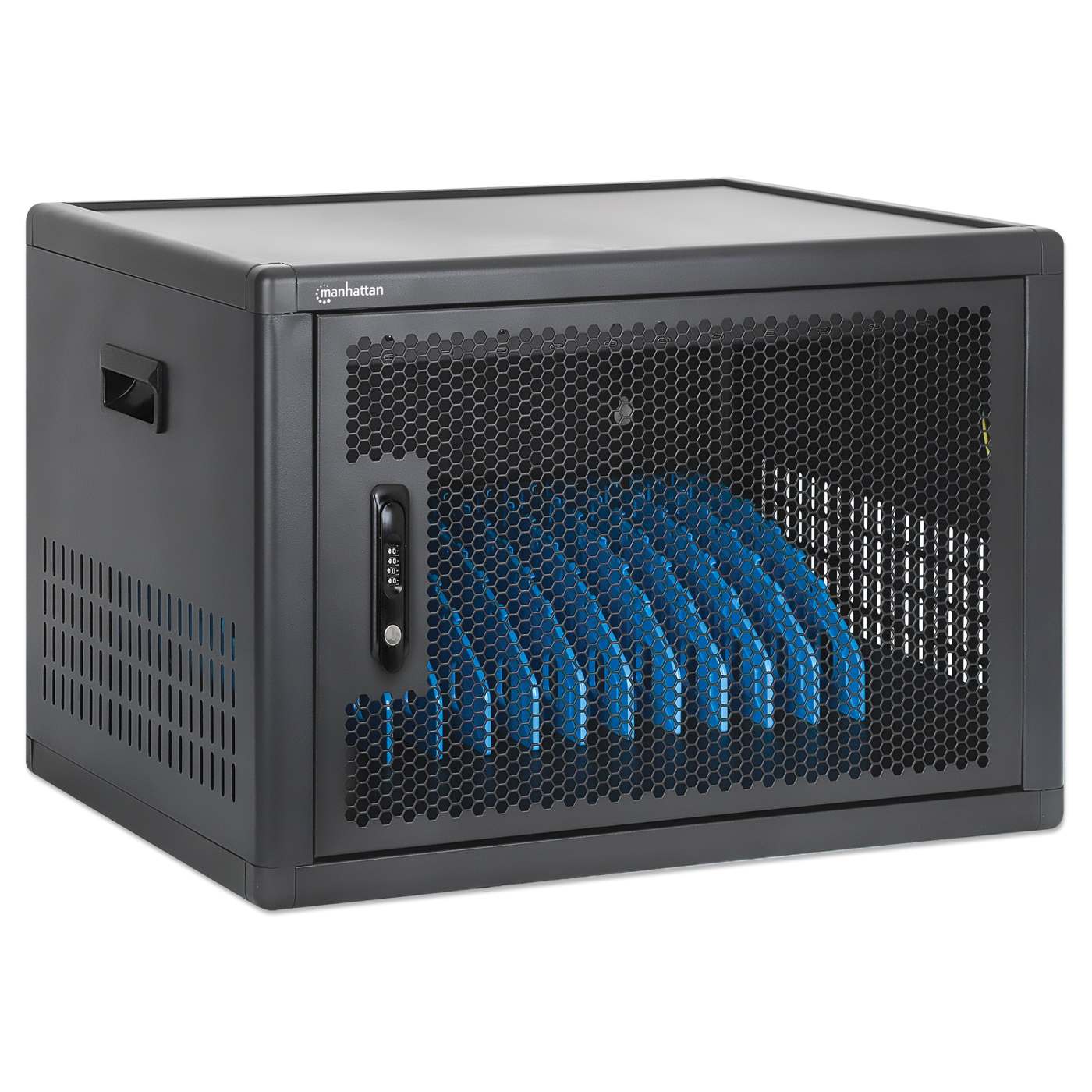

The sturdy, durable steel housing offers a visible sign of professional device management and protection. The security lock can be opened with a four-digit combination or the two included keys.

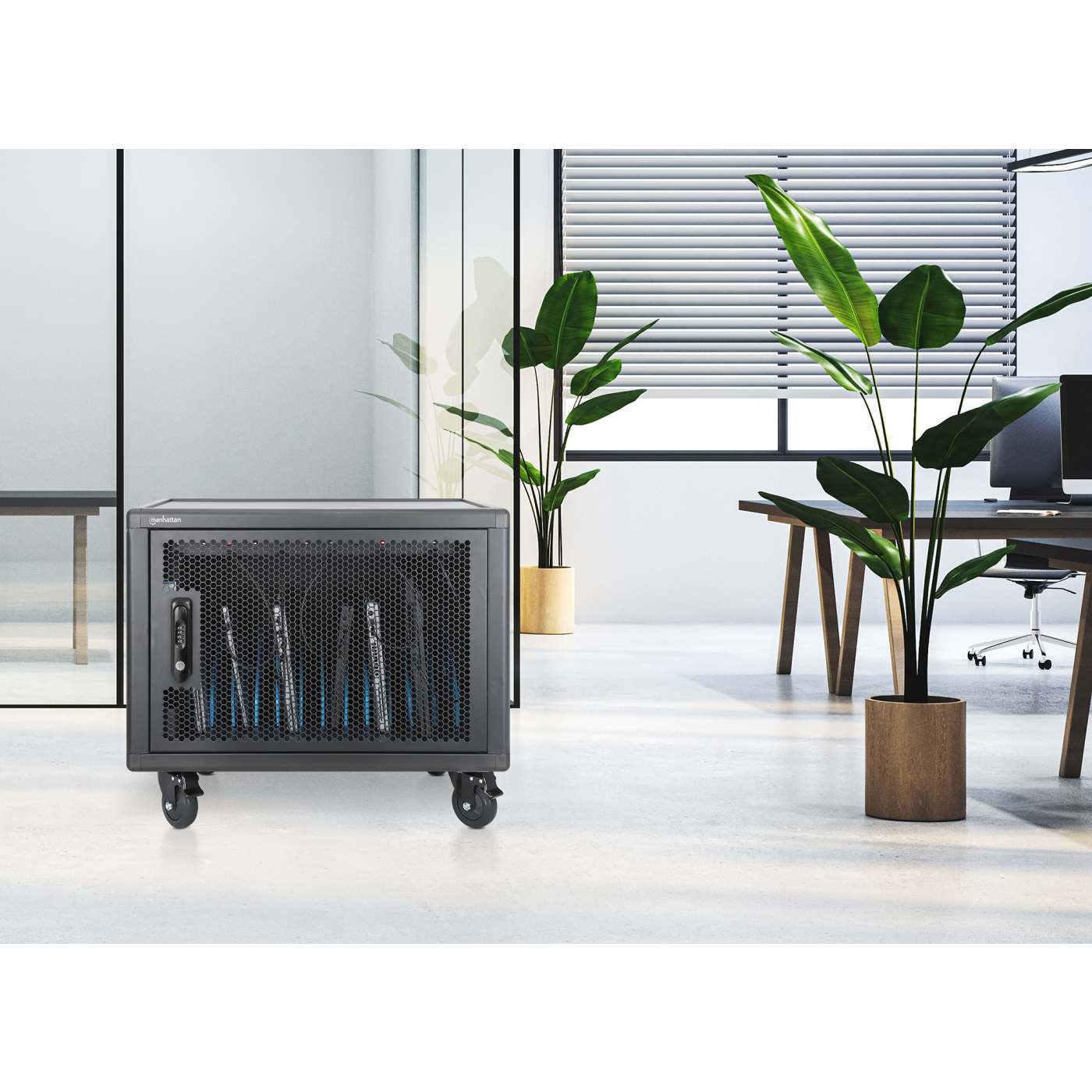

Usable as Stationary Charging Cabinet or Mobile Charging Cart

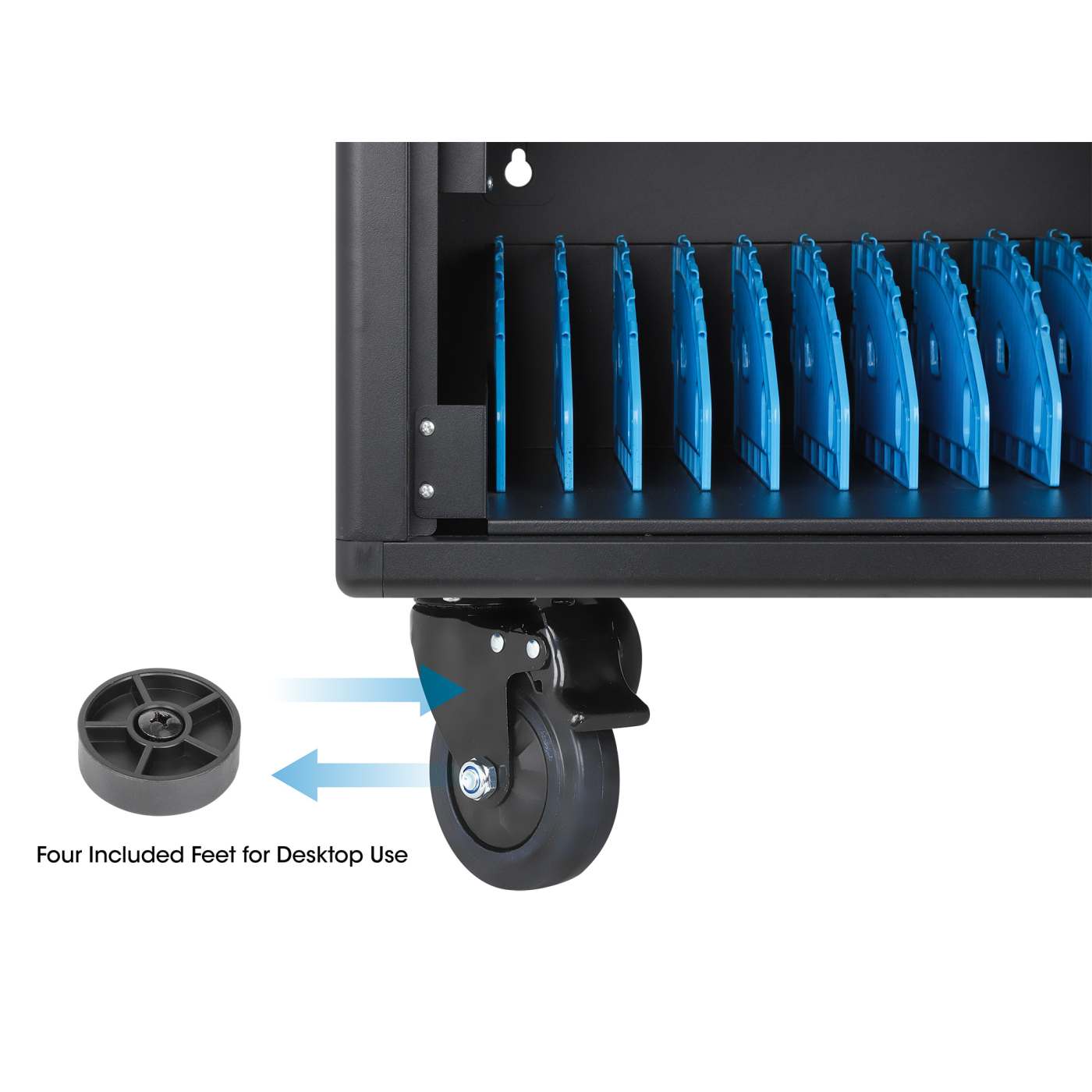

Optional heavy-duty casters (included) let you turn the cabinet into a charging cart to roll it where you need it. Wheel locks let you quickly secure it in place.
Organized and Versatile - with USB-C Charging Cables Included

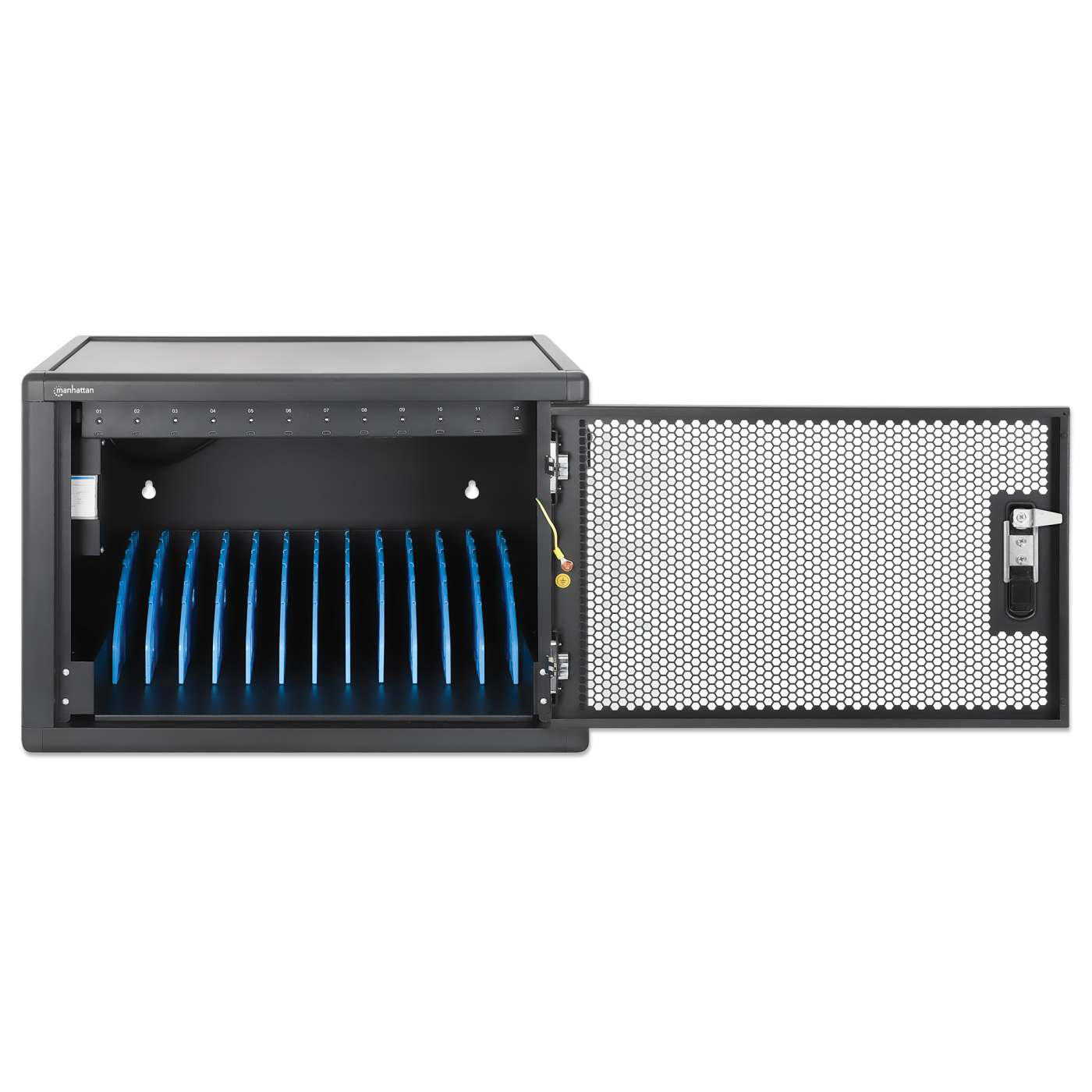

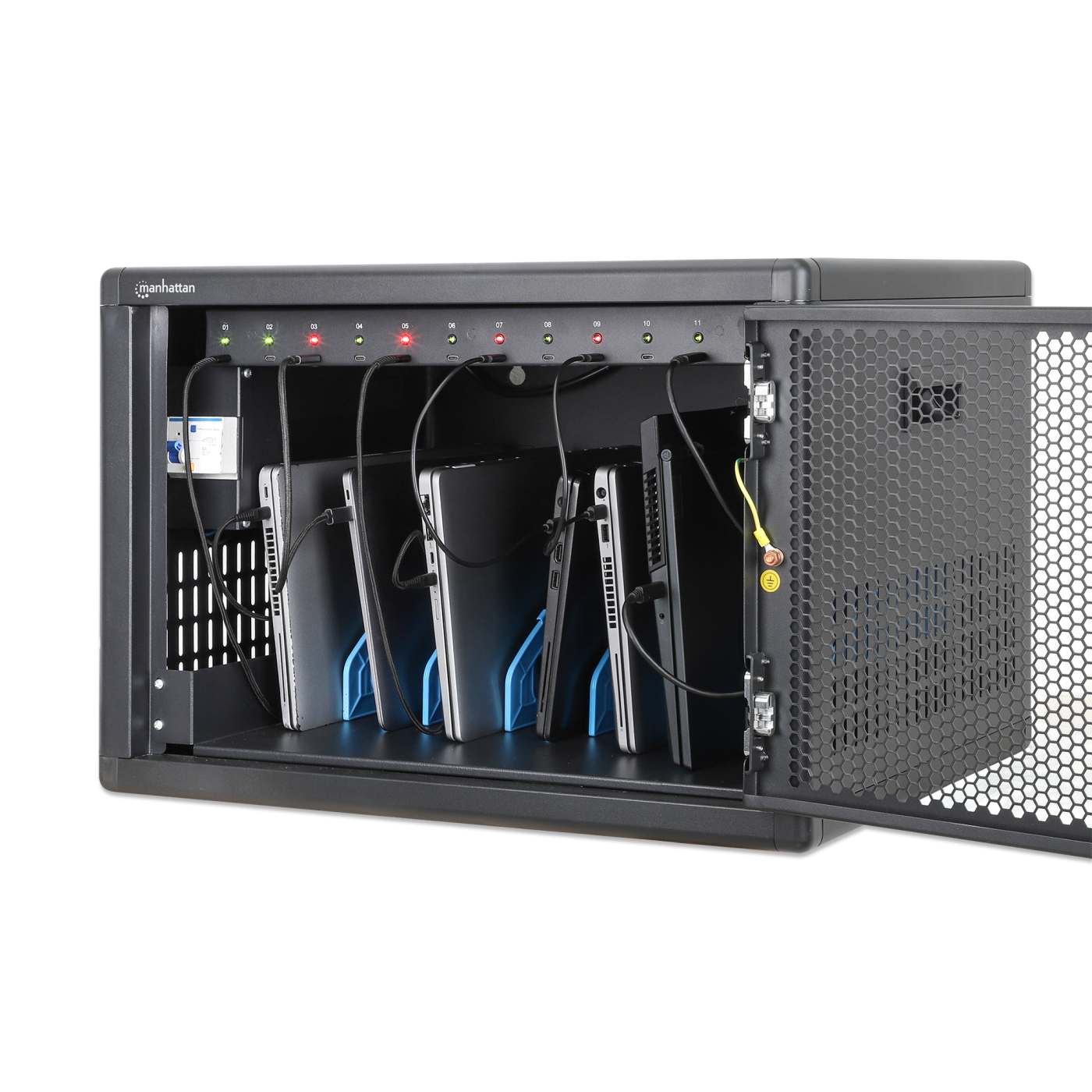

Keep your devices organized in the bay slots that offer plenty of space (395 x 32.5 x 290 mm each), even for bulky cases. The built-in cable-management clips on the bay dividers let you structure your charging cables for better organization and a cleaner look. 12 USB-C charging cables come included with the product so you are set with everything you need.

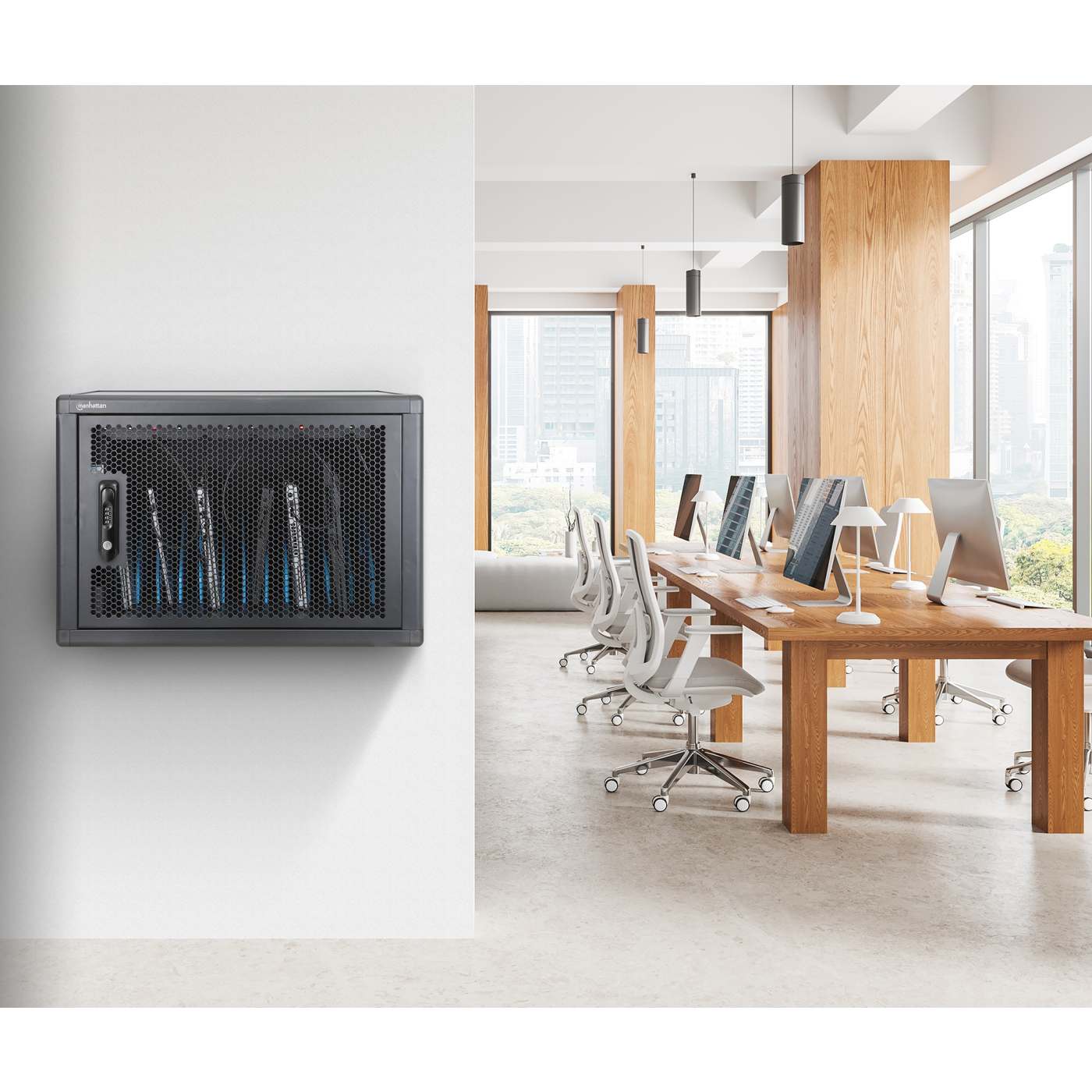

Wall-mountable
To prevent theft or if you struggle with a small location, simply mount the cabinet to the wall via the holes on the back. All required mounting hardware is included.
- Safely stores and charges laptops, tablets, iPads®, MacBooks®, Chromebooks, phones, and other devices up to 16"
- USB-C Power Delivery fast-charging ports with up to 65 W per port and 780 W total; no AC adapters or wall chargers required
- Protection against overload, overcurrent, short circuit, and voltage spikes
- Twelve spacious device slots, 395 (D) x 32.5 (W) x 290 (H) mm each, with cable management built into the dividers
- Twelve USB-C to USB-C charging cables included
- Sturdy, secure metal housing with up to 2 mm thick steel and powder coating

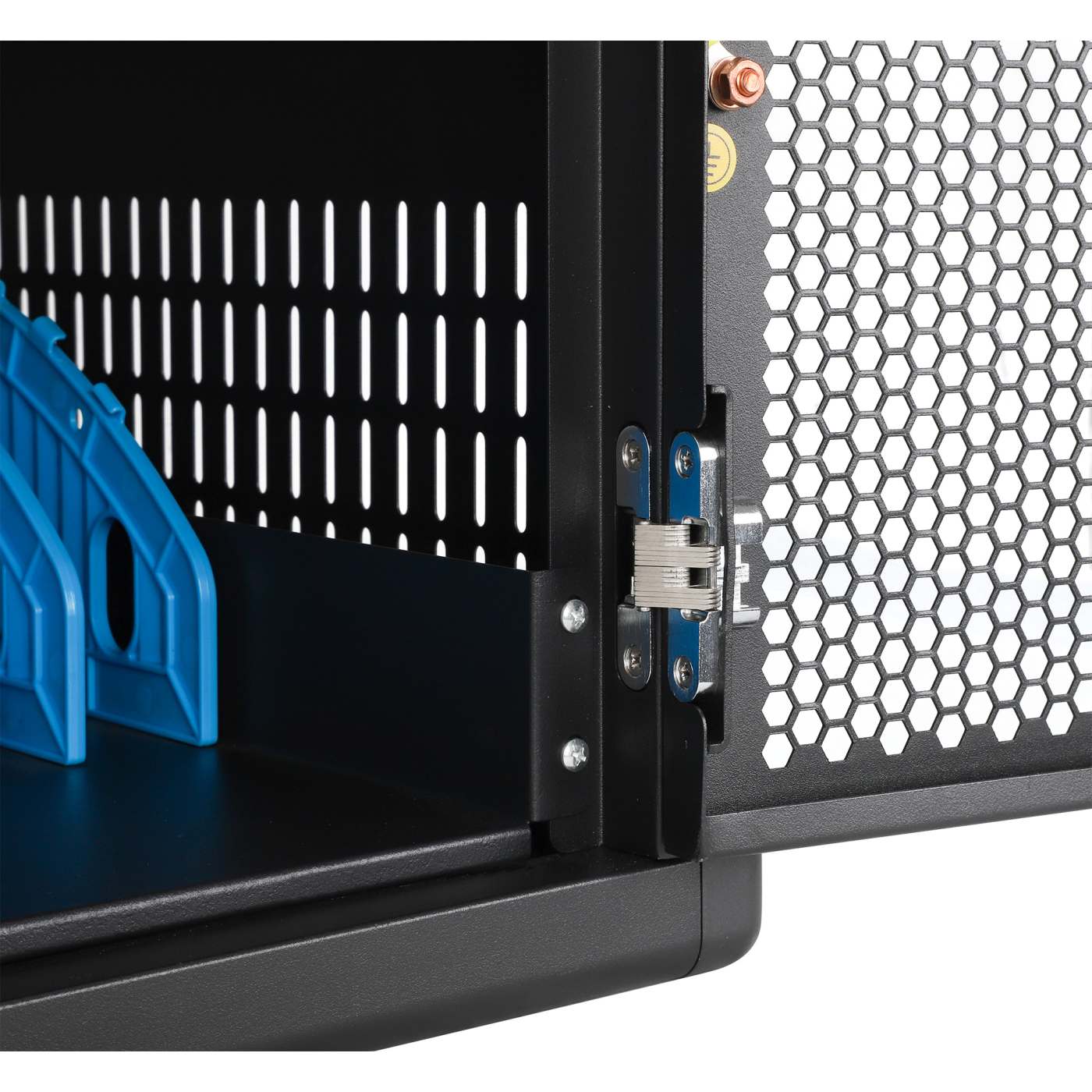

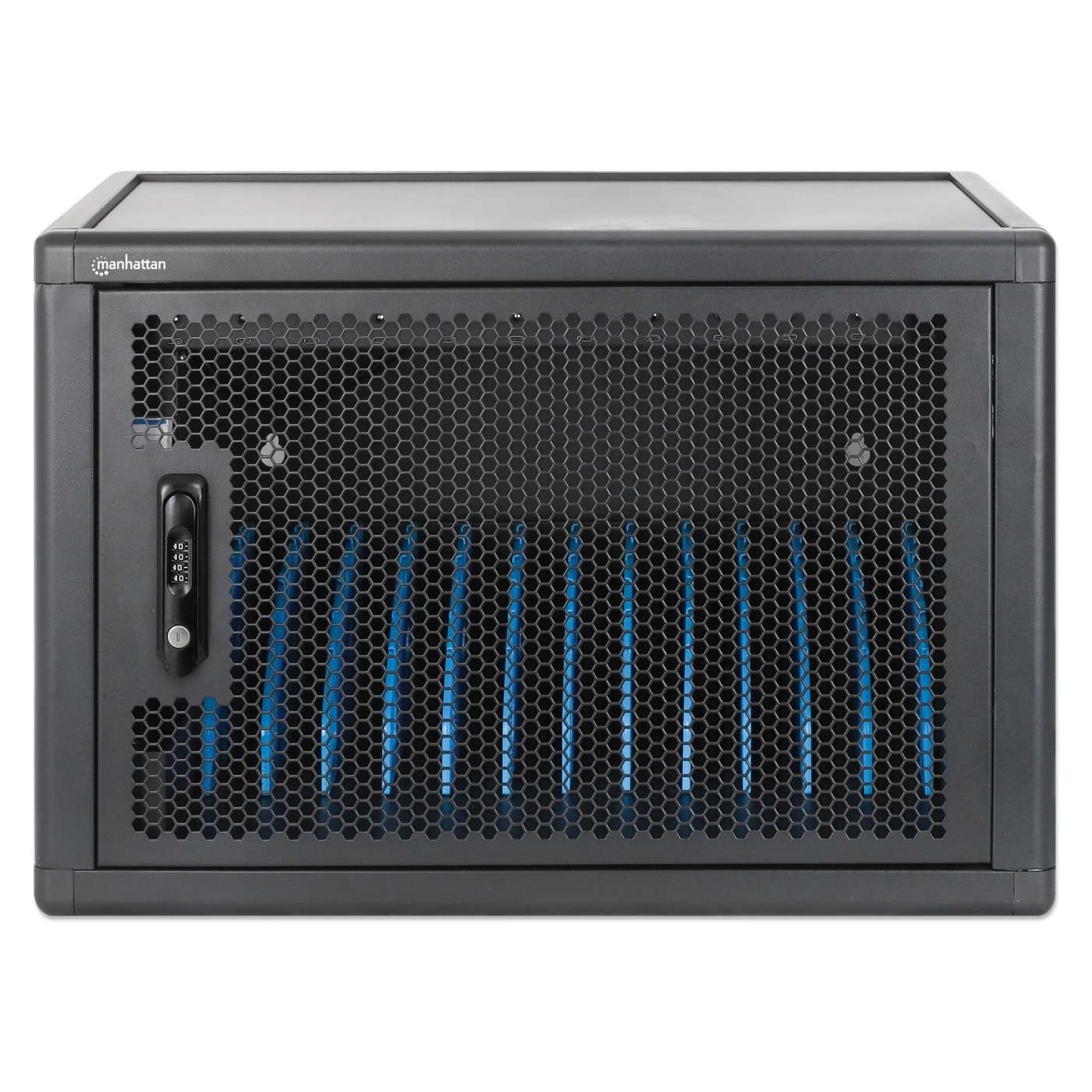

- Perforated steel front door with swing handle and three-point door lock; lockable with included keys or four-digit combination

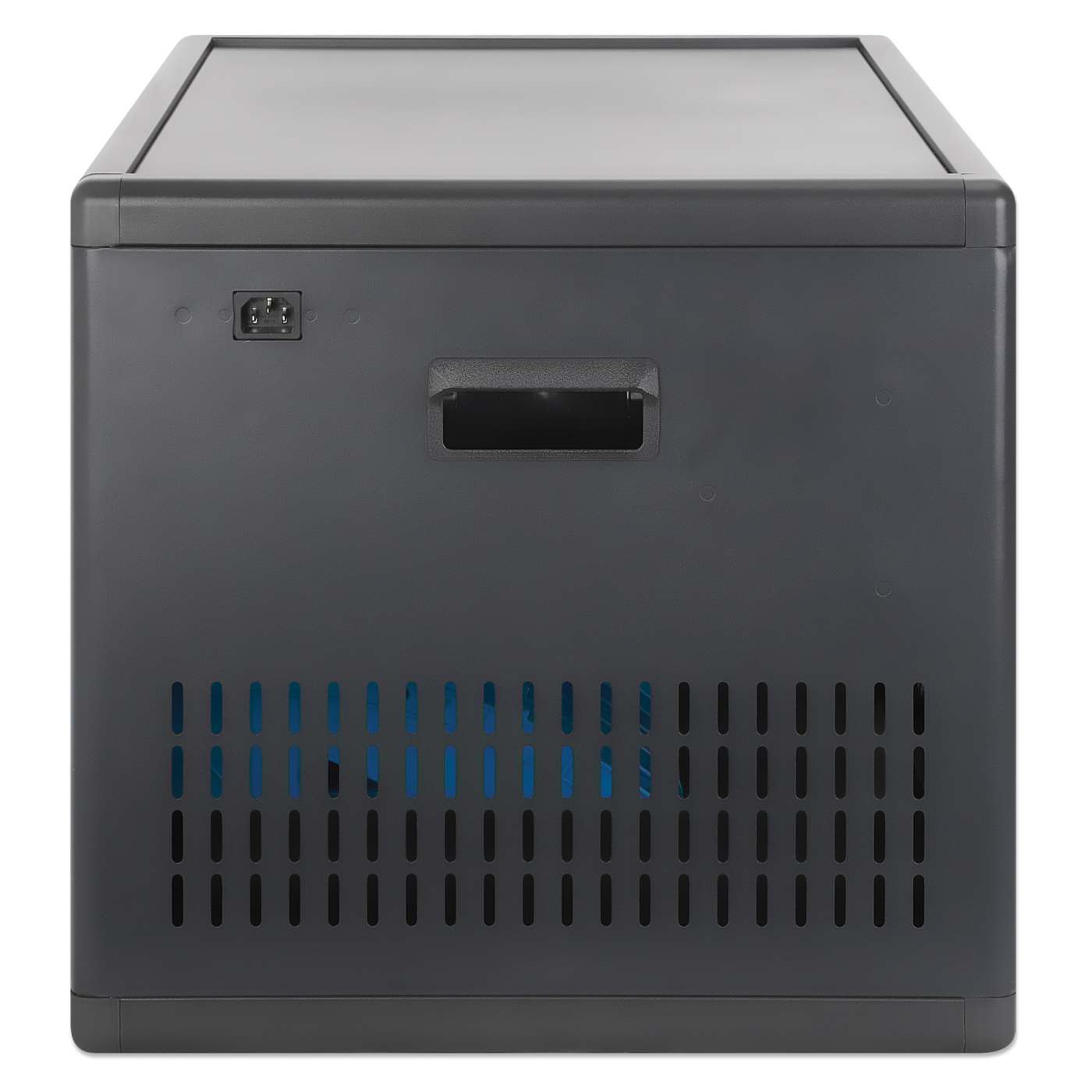

- Built-in handles for easy lifting and four attachable heavy-duty casters, two with brakes, for maximum mobility

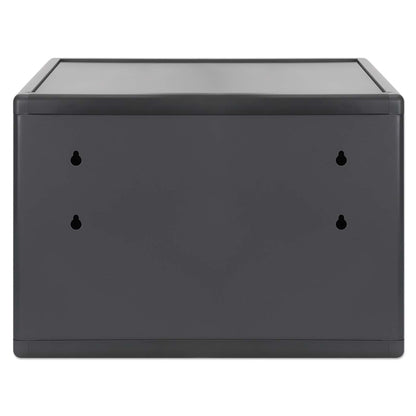

- Built-in wall-mounting holes on the back to install the cabinet, save space and prevent theft - all mounting hardware included
- Round edges to avoid injuries in busy environments
- Two power cables included with C13 to EU and to UK plugs, 2 m
- Earthing kit included to protect equipment from external electrical surges
- For indoor use only
- Not stackable
- Three-year warranty
- Standards and Certifications
- CE
- RoHS
- REACH
- UKCA
- PD 3.0
Electrical
- AC input: 220.0 - 240.0 V; 10.0 A; 50 - 60 Hz; IEC 60320 C14
- Operating voltage: 230.0 V
- Maximum load: 780.0 W
- Built-in PSUs: 2 x 500.0 W
- Voltage/current/power settings
- USB-C PD output (65.0 W max.per port):
- 5.0 V / 3.5 A / 17.5 W
- 9.0 V / 3.5 A / 31.5 W
- 12.0 V / 3.5 A / 42.0 W
- 15.0 V / 3.5 A / 52.5 W
- 20.0 V / 3.25 A / 65.0 W
- Overload protection: 10.0 A maximum load current
Protection Characteristics
- Short-circuit (SCP) with auto-recovery mode
- Overvoltage (OVP) with auto-recovery mode
- Overcurrent (OCP) - current limit: 150% (max)
Physical
- Materials: cold-rolled, powder-coated steel, flame retardant ABS plastic, and aluminum frame
- Perforated steel front door
- External unit dimensions (D x W x H): 440 x 600 x 410 mm
- External unit dimensions with mounted casters (D x W x H): 440 x 600 x 538 mm
- Internal device bay dimensions (D x W x H) (12): 395 x 32.5 x 290 mm
- Device size compatibility: Suitable for most 16" laptops; please check your device’s dimensions before use
- AC power cable length: 2 m
- Cable type: H05VV-F 3G 1.5 mm²
- Net weight: 25 kg
- Gross weight: 28 kg
- Caster details
- Wheel materials: TPR
- Wheel diameter: 100 mm
- Caster width: 26 mm
- Caster height: 128 mm
- Plate size: 92.5 x 62.5 mm
- Hole spacing: 75 x 45 mm
- Bracket thickness: up to 3 mm
- Load capacity: 100 kg
Environment
- Operation temperature: 0 - 45°C
- Storage temperature: -15 - 45°C
- Humidity (non-condensing): 20 - 80%

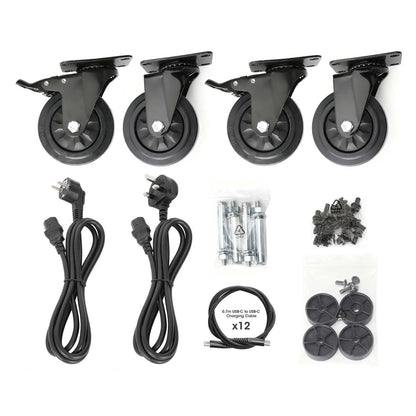

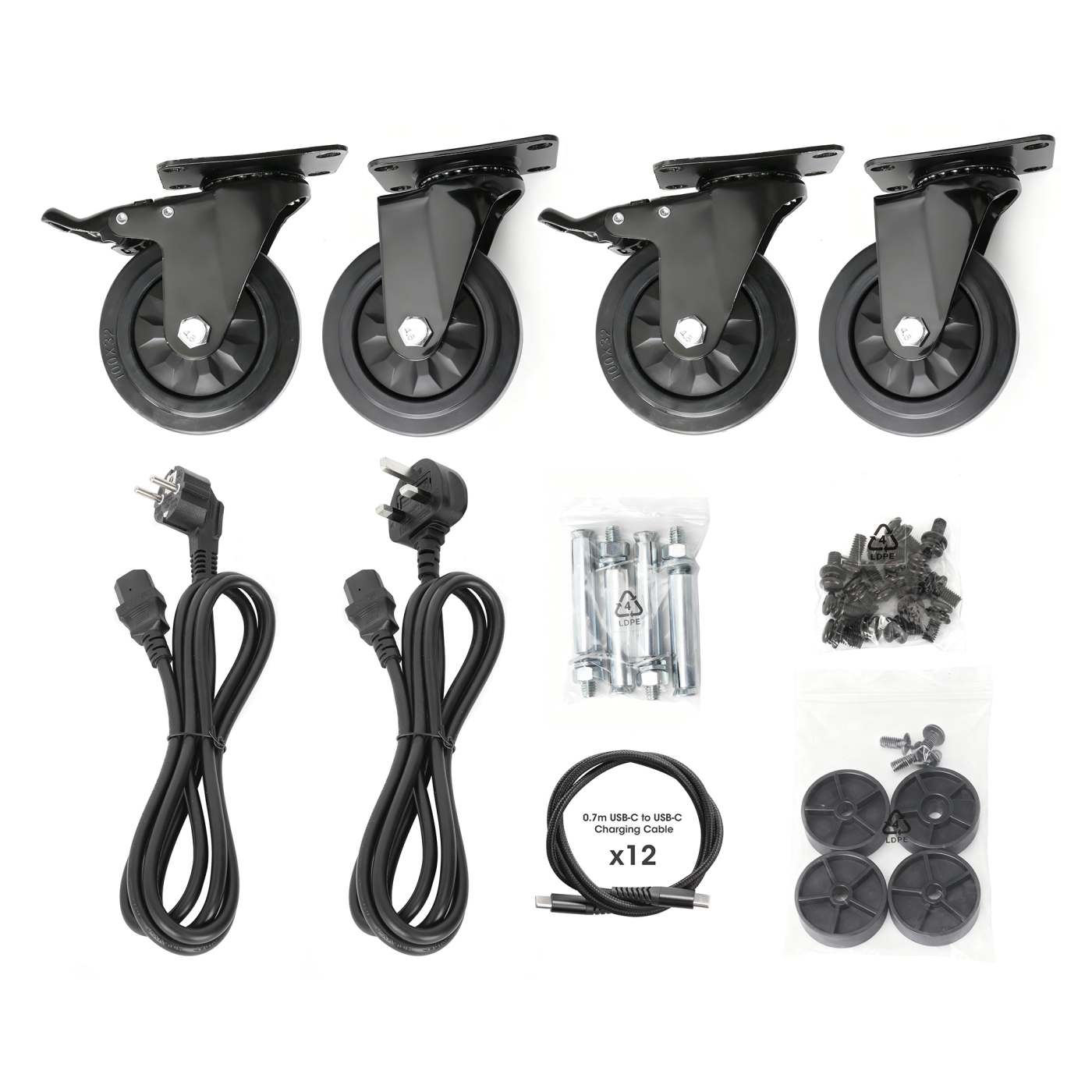

Package Contents
- 12-Port USB-C Desktop Charging Cabinet - 780 W
- Two AC Power cables, 2 m, C13 to EU and UK plug
- Two door keys
- 12 charging cables, USB-C male to USB-C male, 0.7 m
- Wall mounting installation hardware
- Grounding cable
- Documentation
Additional SKUs
- EAN: 0766623181266
- UPC: 766623181266
Physical Specifications
- Product net weight: 25 kg
- Product gross weight: 28 kg
- Dimensions: 440 (L) x 600 (W) x 410 (H) [mm]
- Packaging type: Brown Box
- Packaging dimensions: 645 x 495 x 454 [mm]
- Master Carton Quantity: 1
- Master Carton Weight: 28.00 kg
- Master Carton Dimensions: 645 x 495 x 454 [mm]
