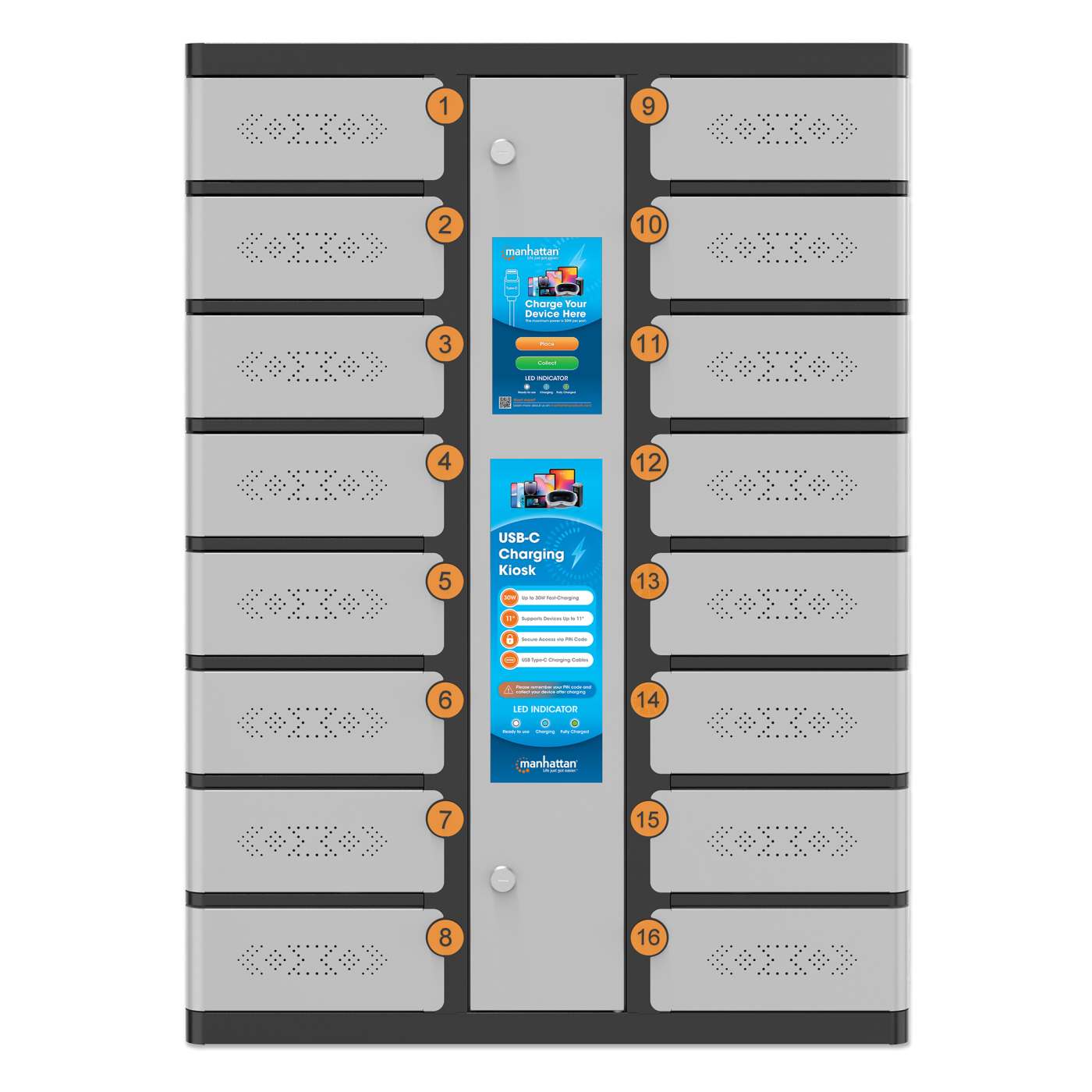

16-Compartment USB-C Self-Service Charging Kiosk for Phones, Tablets, iPads and with PIN-Locked Compartments and Fast Charging up to 30W

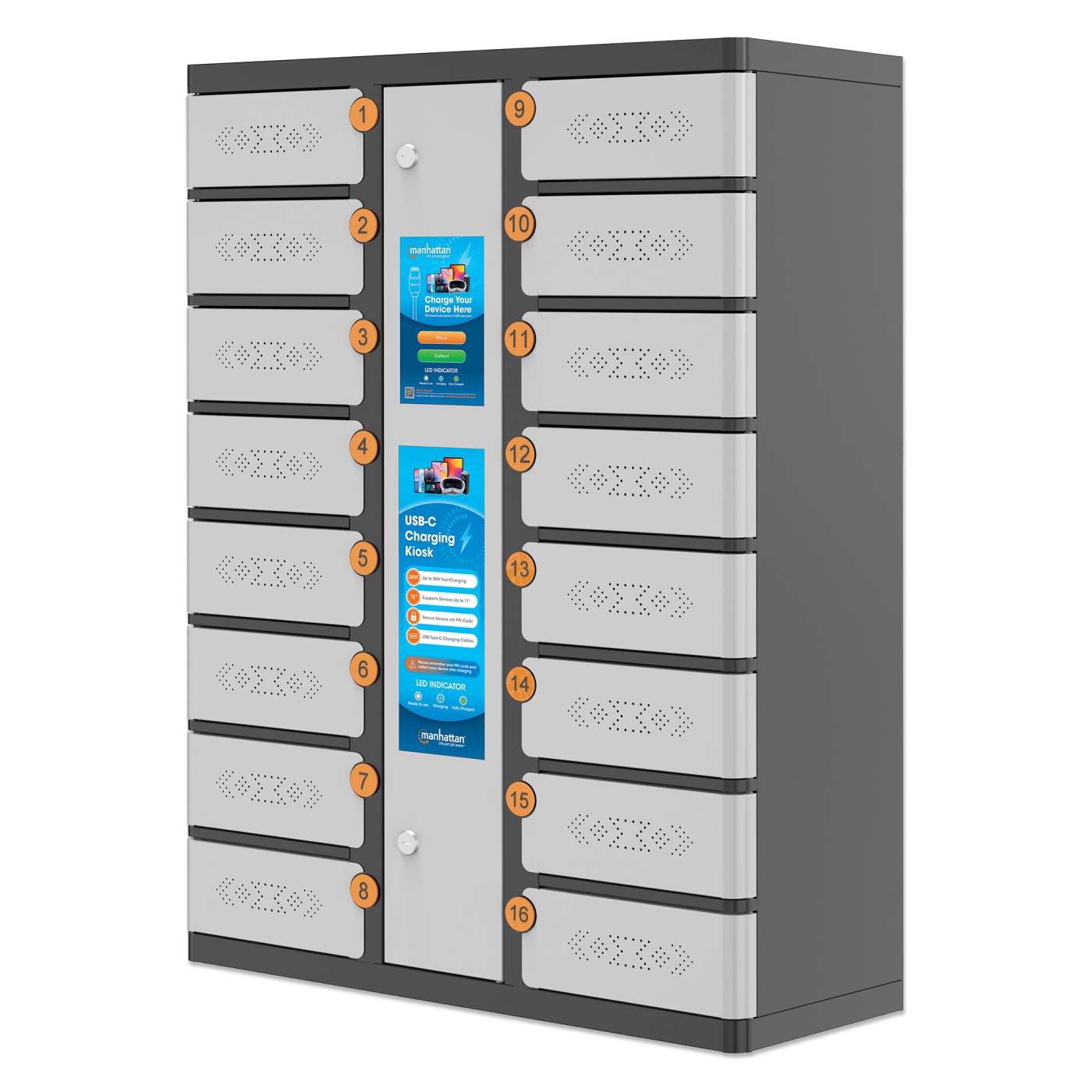

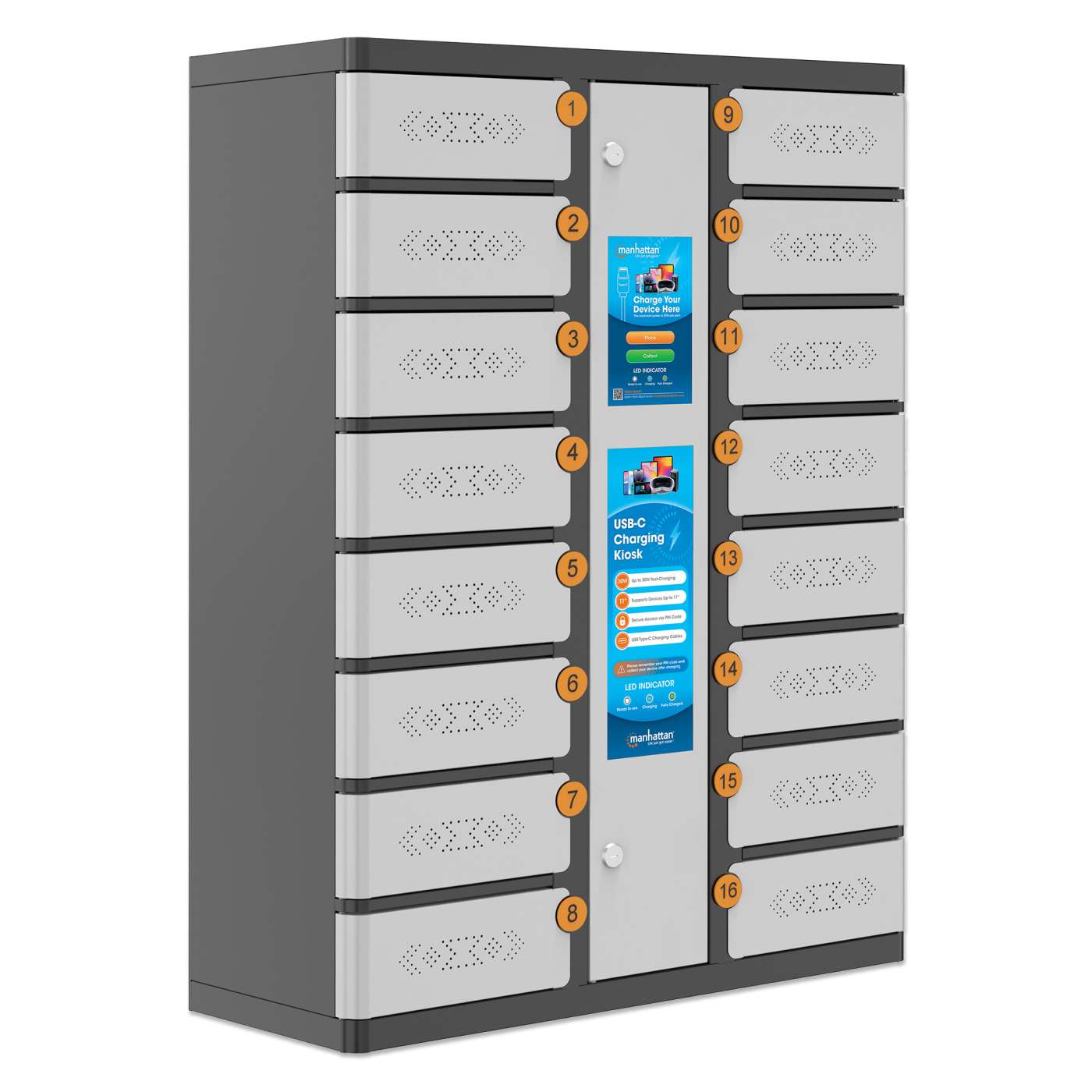

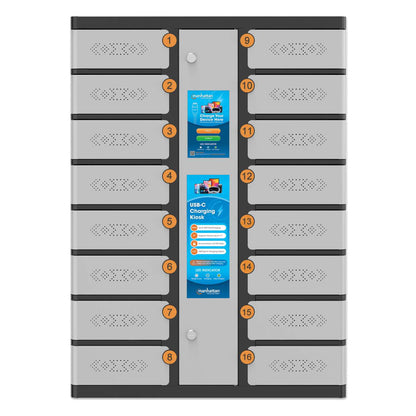

This USB-C Charging Kiosk from Manhattan offers a smart and efficient way to charge and store multiple devices in one central location. Designed for shared workspaces, lobbies, universities, schools, libraries, restaurants, and other public areas, it provides sixteen PIN-secured compartments for tablets, phones, and other devices up to 11". Each user simply places their device inside, closes the door, and sets a personal 1-6 digit PIN for secure, self-service charging.
Powerful Charging Performance
With a total power of 500 W, the kiosk delivers up to 30W per compartment. Each compartment features both a USB-C Power Delivery cable, supporting fast charging for iPads®, Samsung® Galaxy Tabs, iPhones®, and other USB-C enabled devices - no separate AC adapters required.
Safe, Smart, and User-Friendly Design
A bright touchscreen interface on the front guides users through placing and retrieving their devices. LED indicators show charging progress at a glance - blue when charging and green when fully charged. Built-in protection against overload, overcurrent, short circuit, and voltage spikes ensures reliable performance and device safety around the clock.

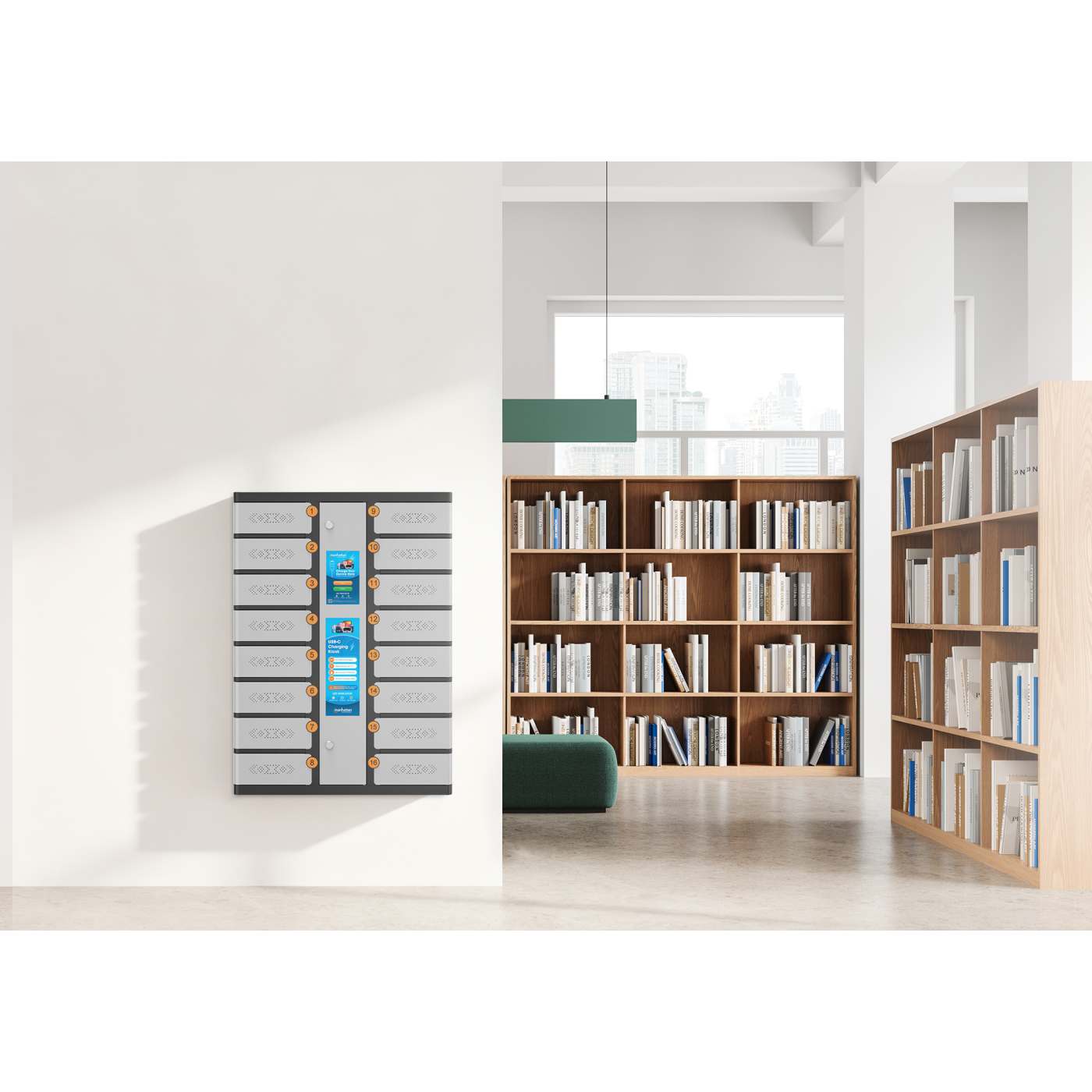

Versatile Installation Options

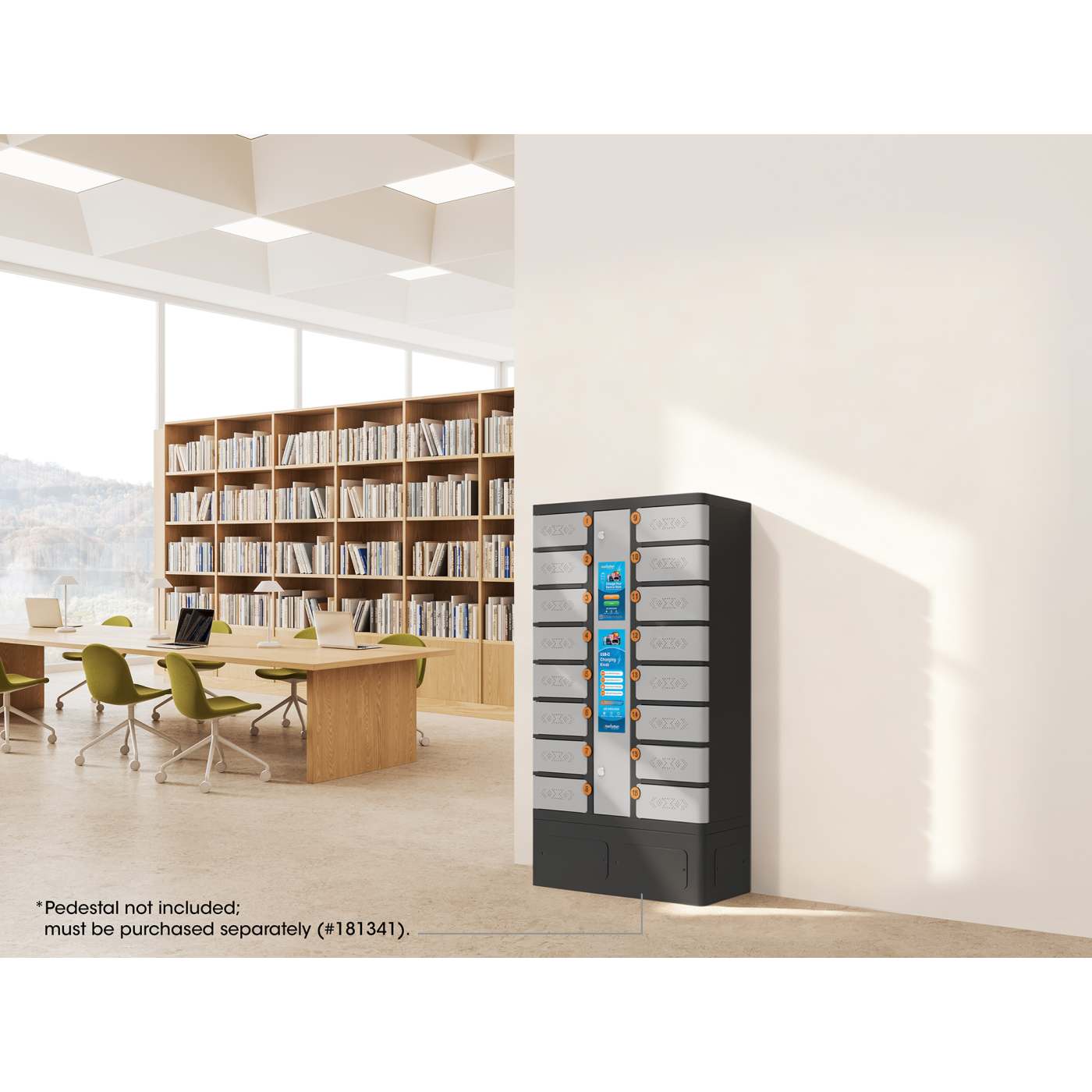

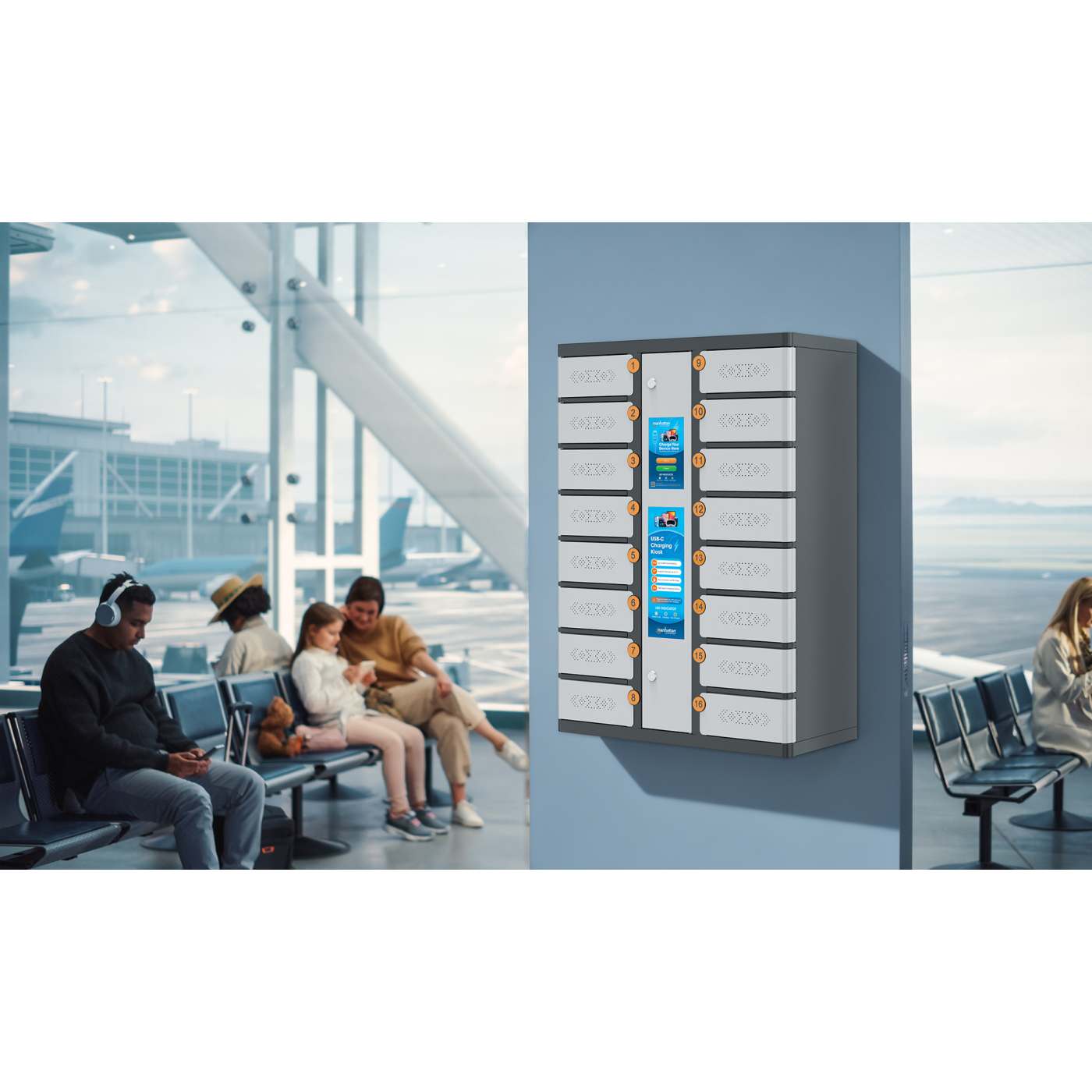

The charging kiosk can be mounted on a wall to save floor space and prevent theft, with all necessary mounting hardware included. It also includes four threaded mounting points on the base for attaching an optional pedestal (available separately, model #181341). Non-slip rubber feet allow secure placement on tables and other surfaces.
Built to Last
Constructed from durable steel with smooth, rounded edges for user safety, the kiosk combines robust build quality with a sleek gray finish that fits seamlessly into any professional environment. Two power cables (C13 to EU and to UK, each 2 m) are included for flexible installation across regions.

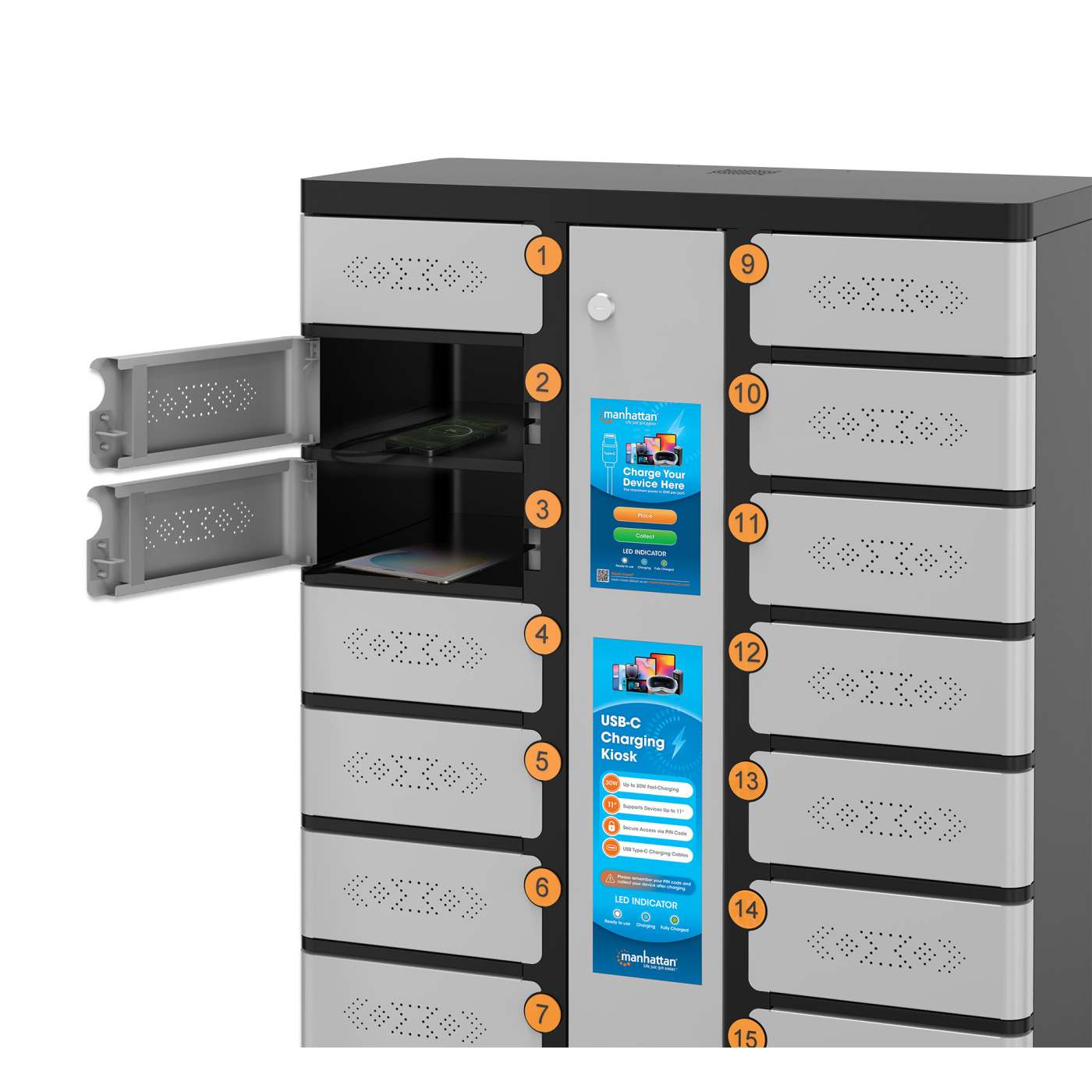

- Safely stores and charges phones, tablets, iPads®, and other devices up to 11"
- Sixteen USB-C Power Delivery cables included for fast-charging with up to 30 W per compartment; no AC adapters or wall chargers required
- Touchscreen access for placing and retrieving devices; create a personal 1-6 digit PIN to lock and unlock your compartment

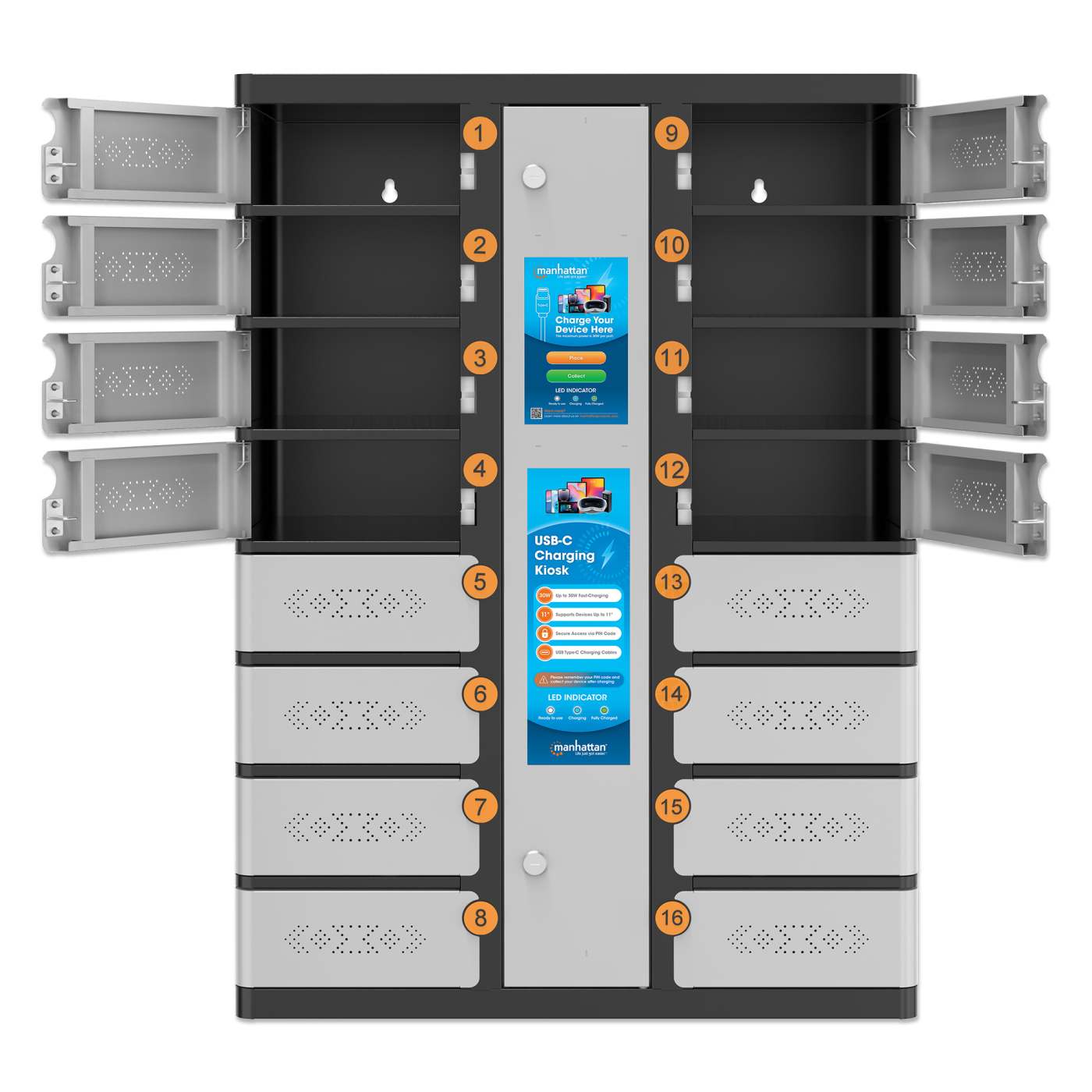

- Sixteen spacious device compartments, 328 (D) x 220 (W) x 100 (H) mm each
- Ideal for office lobbies, break rooms, shared workspaces, schools, universitites, libraries, hotels, lounges, restaurants, cafés, gyms, and more public areas
- Protection against overload, overcurrent, short circuit, and voltage spikes
- Status LEDs indicate charging progress with blue for charging and green for fully charged

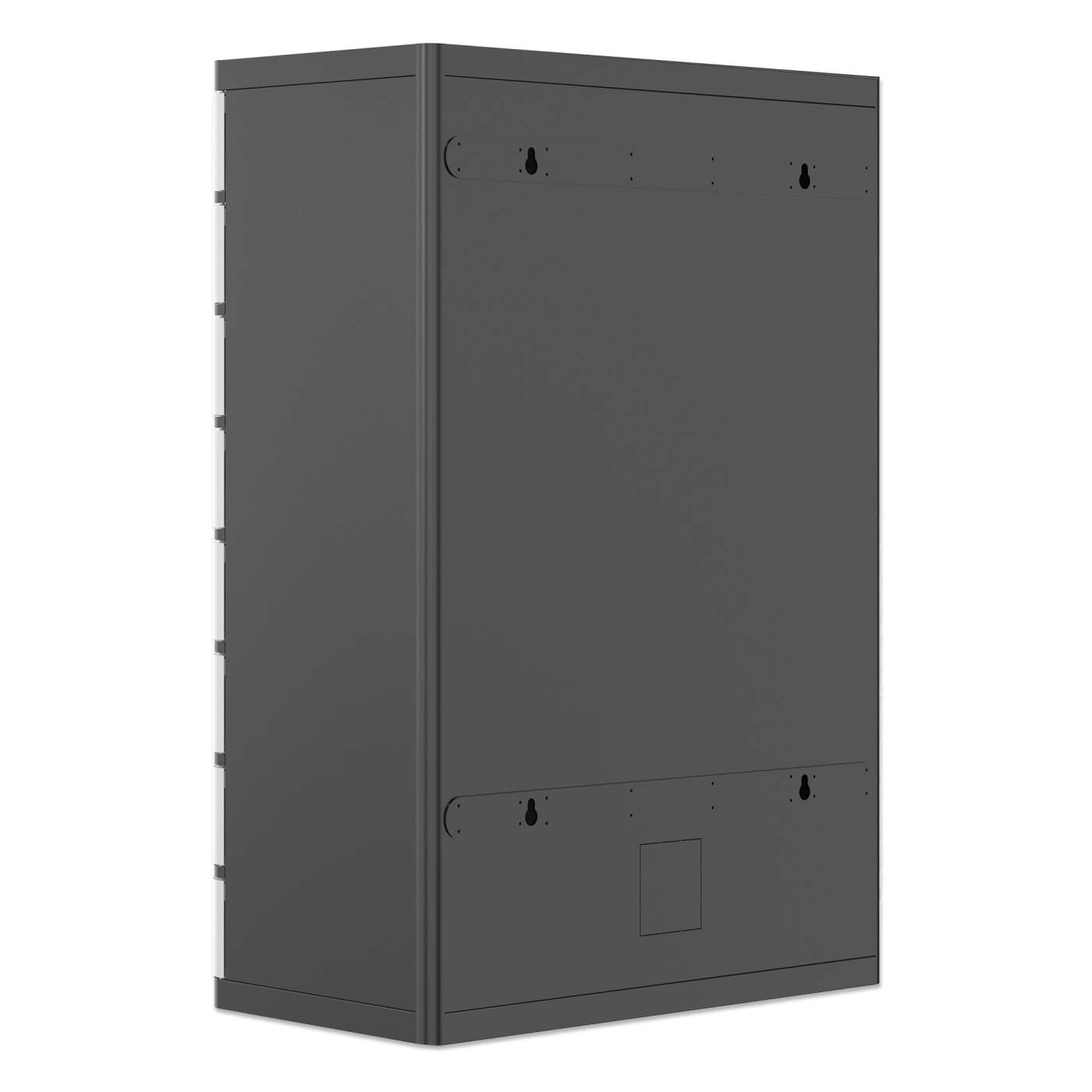

- Built-in wall-mounting holes on the back to install the cabinet, save space and prevent theft - all mounting hardware included
- Four threaded mounting points on the base for attaching an optional pedestal (available separately, model #181341)
- Lockable side door with included keys for access to electronics and charging connections
- Integrated fan and ventilation slots for maximum airflow and cooling efficiency
- Round edges to avoid injuries in busy environments
- Rubber feet for non-slip desktop use
- Two power cables included with C13 to EU and to UK plugs, 2 m
- For indoor use only
- Not stackable
- Three-year warranty
- Standards and Certifications
- CE
- RoHS
- REACH
- UKCA
- PD 3.0
- QC 3.0
Electrical
- AC input: 220.0 - 240.0 V; 10.0 A; 50 - 60 Hz; IEC 60320 C14
- Operating voltage: 230.0 V
- Built-in PSU: 1 x 500.0 W
- Maximum load: 480.0 W for up to 30 W per compartment
- Voltage/current/power settings
- USB-C PD output (30.0 W max.per port):
- 5.0 V / 3.0 A / 15.0 W
- 9.0 V / 3.0 A / 27.0 W
- 12.0 V / 2.5 A / 30.0 W
- 15.0 V / 2.0 A / 30.0 W
- Overload protection: 10.0 A maximum load current
Protection Characteristics
- Short-circuit (SCP) with auto-recovery mode
- Overvoltage (OVP) with auto-recovery mode
- Overcurrent (OCP) - current limit: 150% (max)
Physical
- Materials: cold-rolled, powder-coated steel and flame retardant ABS plastic
- External unit dimensions (D x W x H): 331 x 670 x 937 mm
- Internal device compartment dimensions (D x W x H) (16): 328 x 220 x 100 mm
- AC power cable length: 2 m
- Cable type: H05VV-F 3G 1.5 mm²
- Net weight: 43.3 kg
- Gross weight: 51 kg
Environment
- Operation temperature: 0 - 45°C
- Storage temperature: -15 - 45°C
- Humidity (non-condensing): 20 - 80%
Package Contents
- 16-Compartment USB-C Charging Kiosk - 500 W
- Two AC Power cables, 2 m, C13 to EU and UK plug
- Four door keys (two key rings with two keys each)
- 16 charging cables, USB-C male to USB-C male
- Wall-mounting hardware: four M8x60mm screws
- Four rubber feet
- Documentation
Additional SKUs
- EAN: 0766623181334
- UPC: 766623181334
Physical Specifications
- Product net weight: 43.3 kg
- Product gross weight: 51 kg
- Dimensions: 331 (L) x 670 (W) x 937 (H) [mm]
- Packaging type: Brown Box
- Packaging dimensions: 730 x 991 x 506 [mm]
- Master Carton Quantity: 1
- Master Carton Weight: 48.00 kg
- Master Carton Dimensions: 730 x 991 x 390 [mm]
