DisplayPort 4K Dual-Monitor KVM Switch for Seamless Control and Enhanced Productivity
The Manhattan 2-Port DisplayPort Dual-Monitor KVM Switch is a great solution for professionals and IT administrators who need to manage two computers from a single workstation. With support for two DisplayPort monitors, one USB keyboard, and one USB mouse, this versatile switch streamlines your setup for maximum efficiency.
Sharp 4K Resolution
Work with clear visuals in resolutions up to Ultra-High-Definition (UHD) 4K@60Hz (3840 × 2160), ensuring excellent image clarity for detailed work such as medical imaging, multimedia design, or digital signage control. The switch is compliant with the DisplayPort 1.2 specification, delivering smooth performance and sharp detail.
Effortless Switching for Seamless Control
Switch between your connected devices easily using the front-panel push buttons or convenient keyboard hot keys - ensuring a smooth and efficient workflow without disruptions.
Enhanced Audio for Immersive Experiences
Enjoy high-quality audio with full support for Dolby True HD, DTS HD Master Audio, and 3.5 mm stereo connections for both speakers and microphones - ideal for video conferencing, multimedia editing, or entertainment setups.
Versatile Connectivity for Increased Productivity
The integrated USB 2.0 hub ports (480 Mbps) provide additional connectivity for essential peripherals such as storage drives, printers, and scanners, ensuring you stay productive without extra clutter.
Designed for Reliability and Convenience
With a sturdy metal housing and a compact desktop design, this KVM switch is built for durability and space efficiency. Its robust construction ensures stable performance in demanding environments like IT workspaces, digital signage setups, or server rooms.
Wide Compatibility for Seamless Integration
This KVM switch works with popular operating systems including Windows, macOS, and Linux, making it a versatile choice for multi-platform environments. With 21.6 Gbps bandwidth, it handles high-performance tasks with ease.

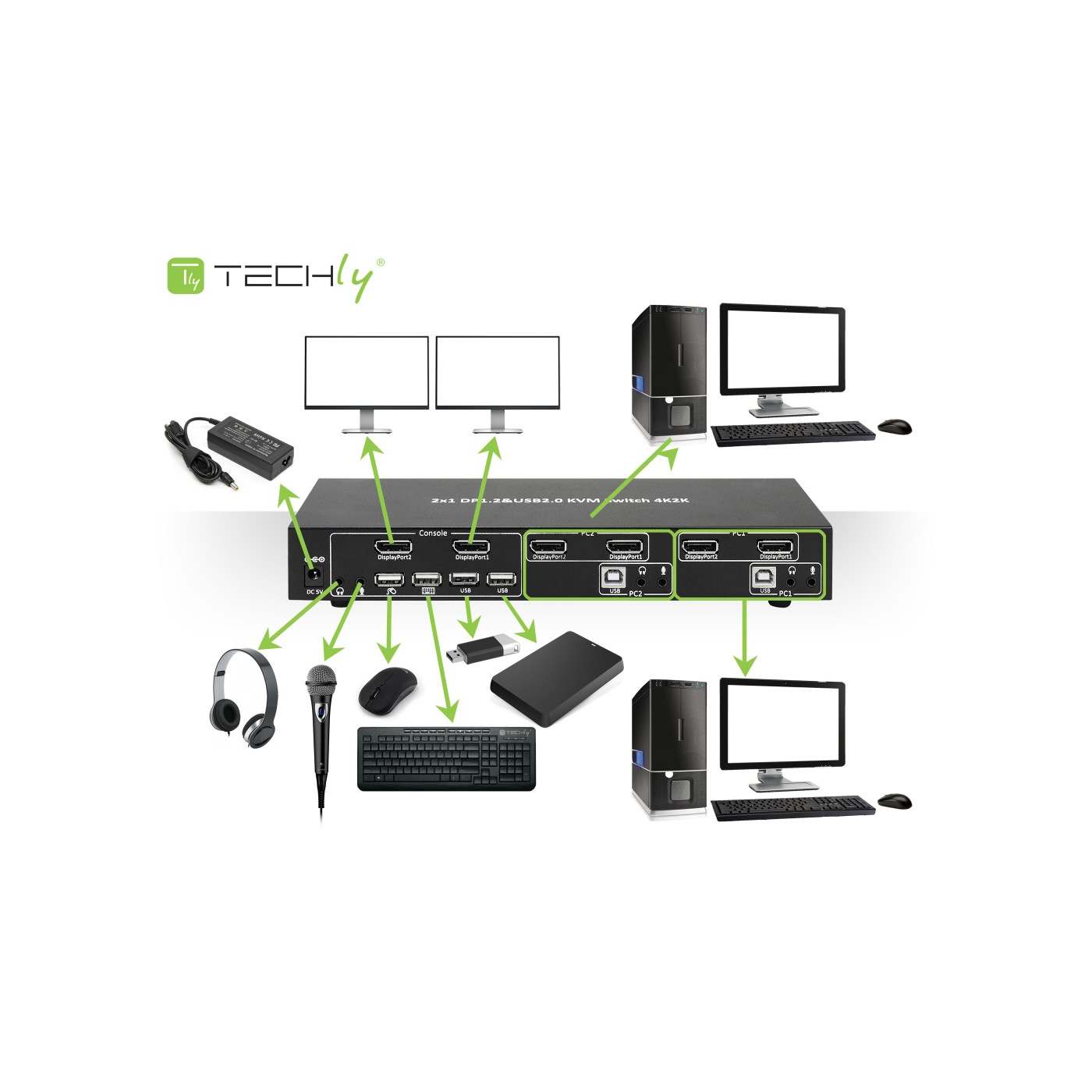

- Controls two DisplayPort and USB equipped computers from a single keyboard, mouse, and up to two monitors

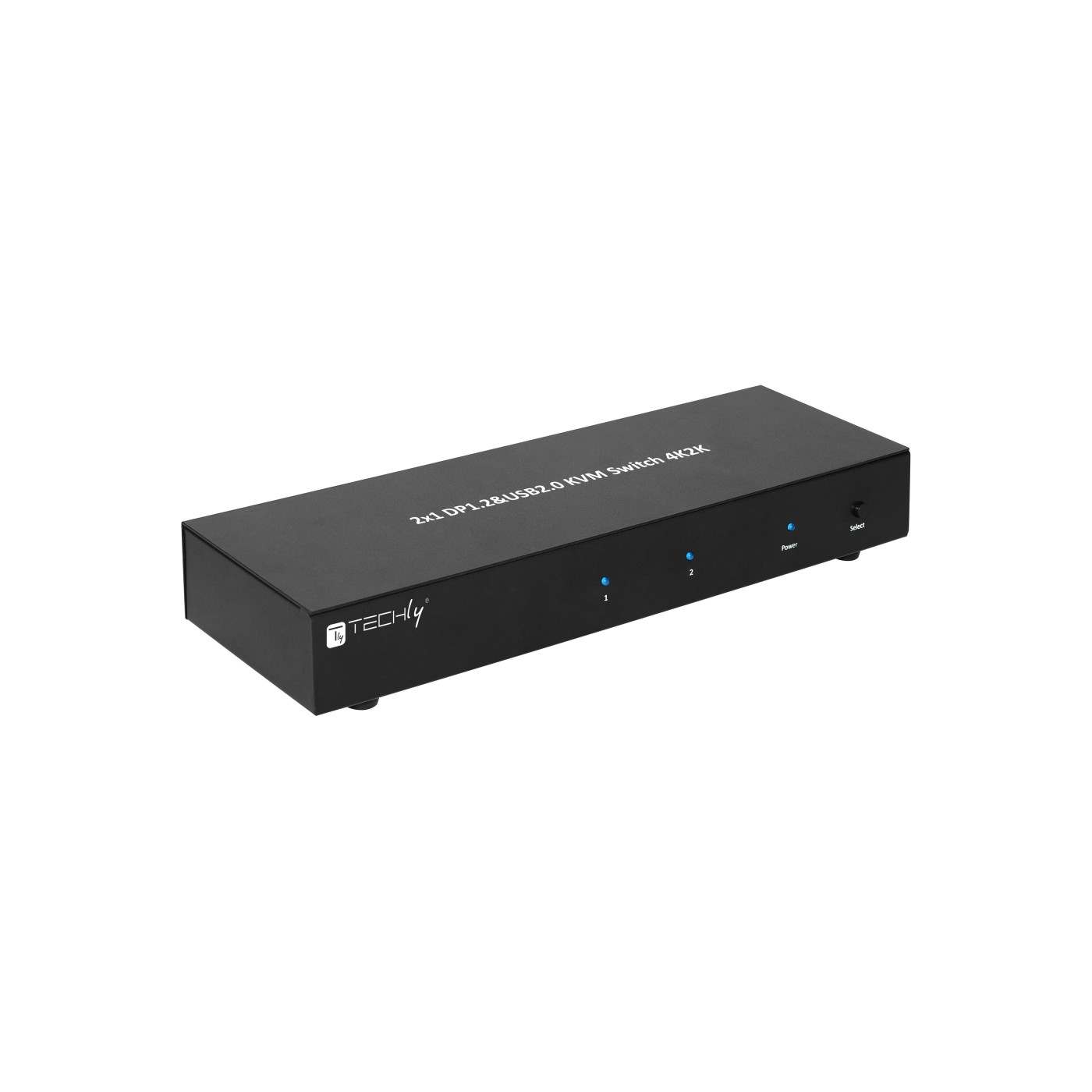

- Switching via front-panel push button or keyboard hot keys
- Resolutions up to Ultra-High-Definition (UHD) 4K@60Hz (3840 × 2160)
- Two additional USB 2.0 Type-A hub ports with 480 Mbps to connect storage drives, printers, scanners, and more
- Compliant with DisplayPort 1.2 specification
- Full stereo audio support through 3.5 mm speaker and microphone connections
- Digital audio support with Dolby True HD and DTS HD Master Audio
- Ideal for IT admins managing two systems during maintenance tasks, digital signage server control, medical imaging, multimedia design and more
- Compatible with Windows®, macOS®, and Linux®
- Up to 21.6 Gbps bandwidth

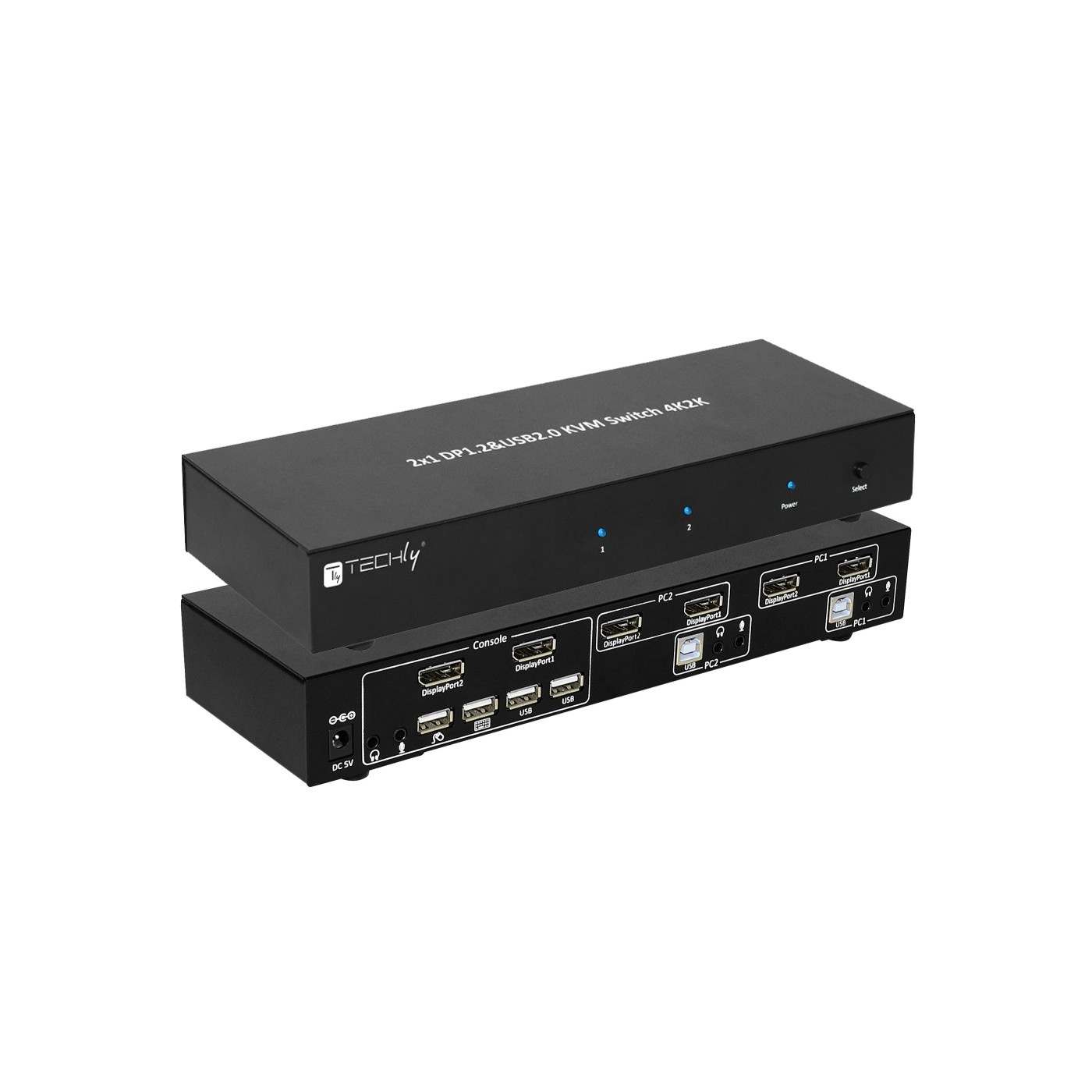

- Compact desktop format with rugged metal housing
- Three-year warranty
- Standards and Certifications
- DP 1.2
- CE
- FCC
- RoHS
- REACH
- UKCA

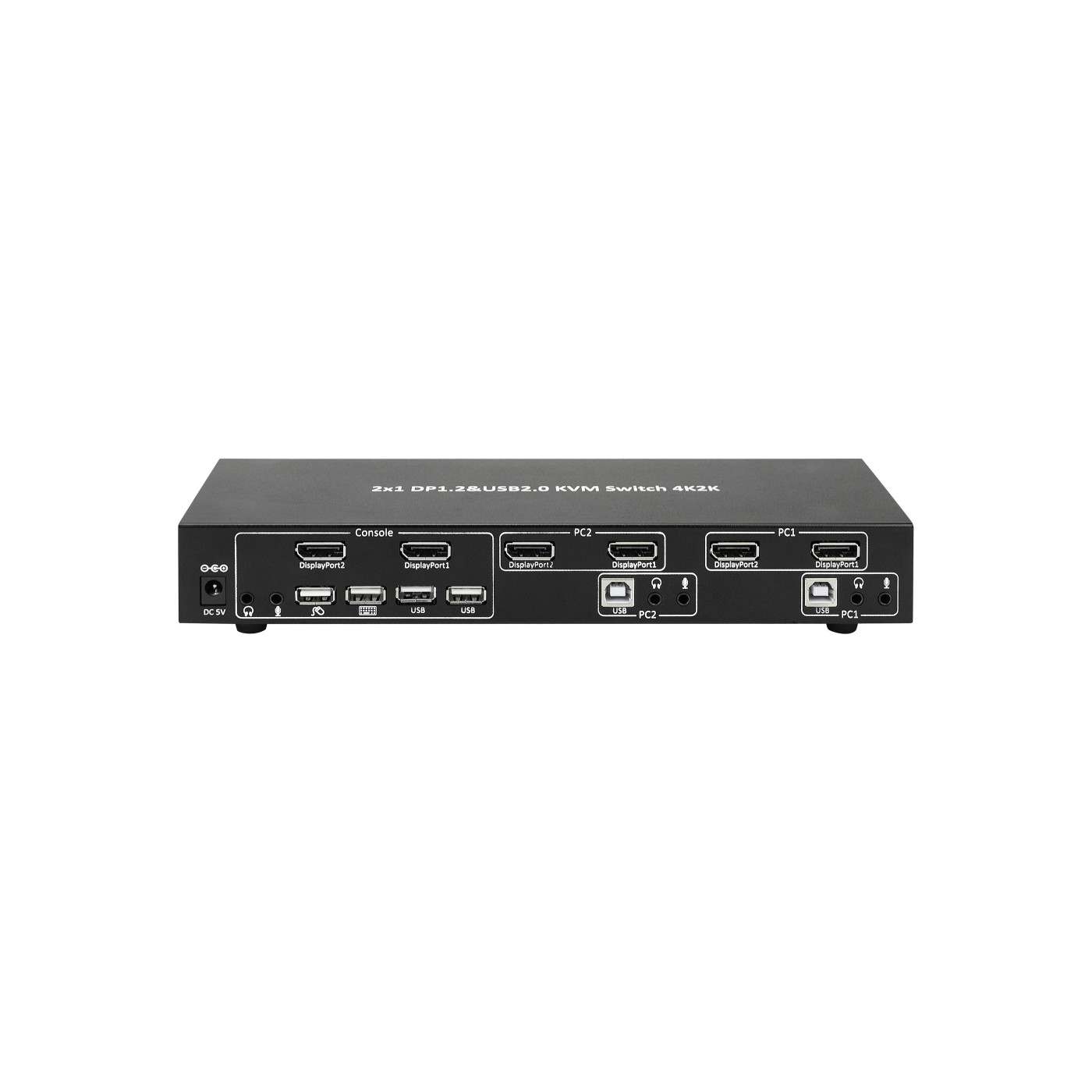

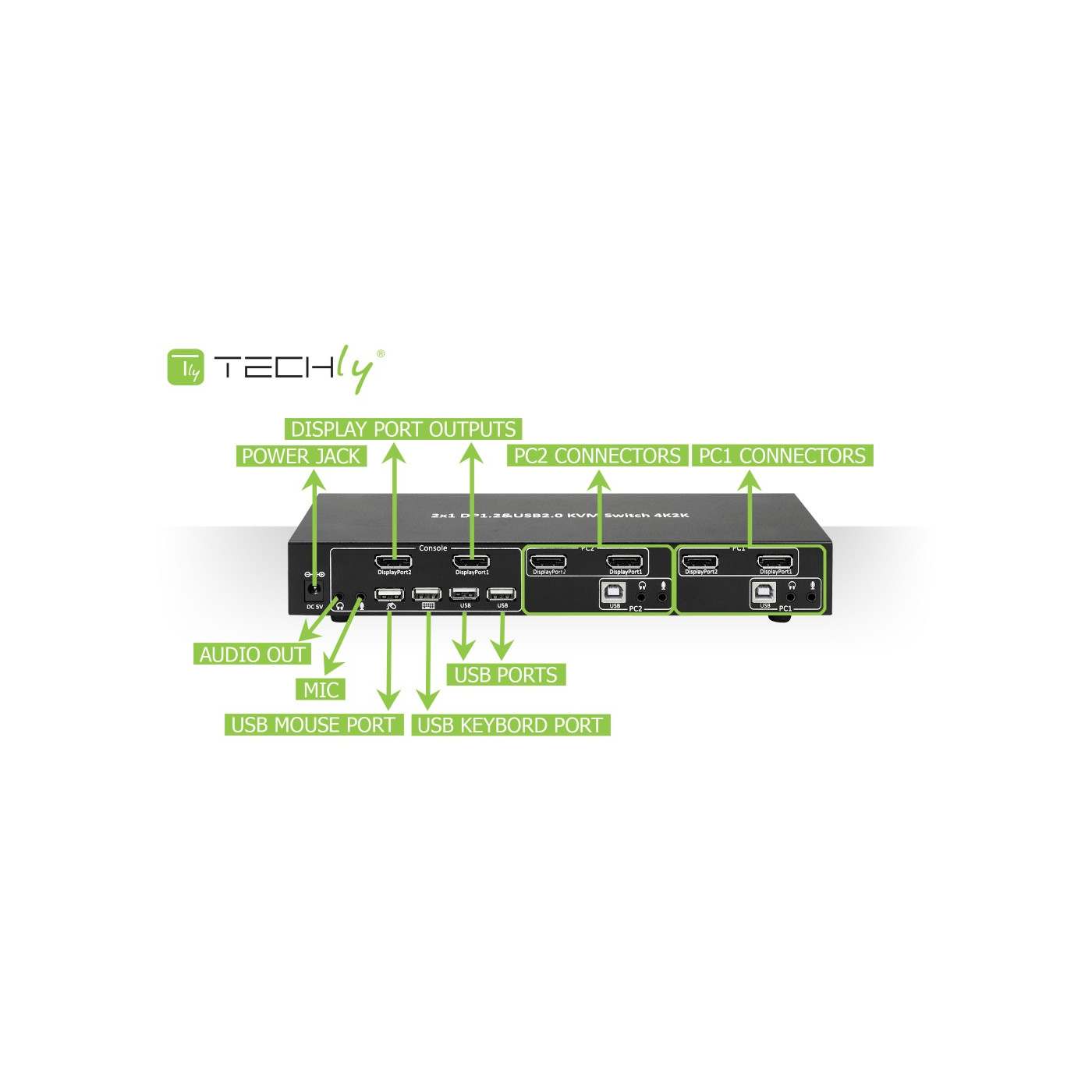

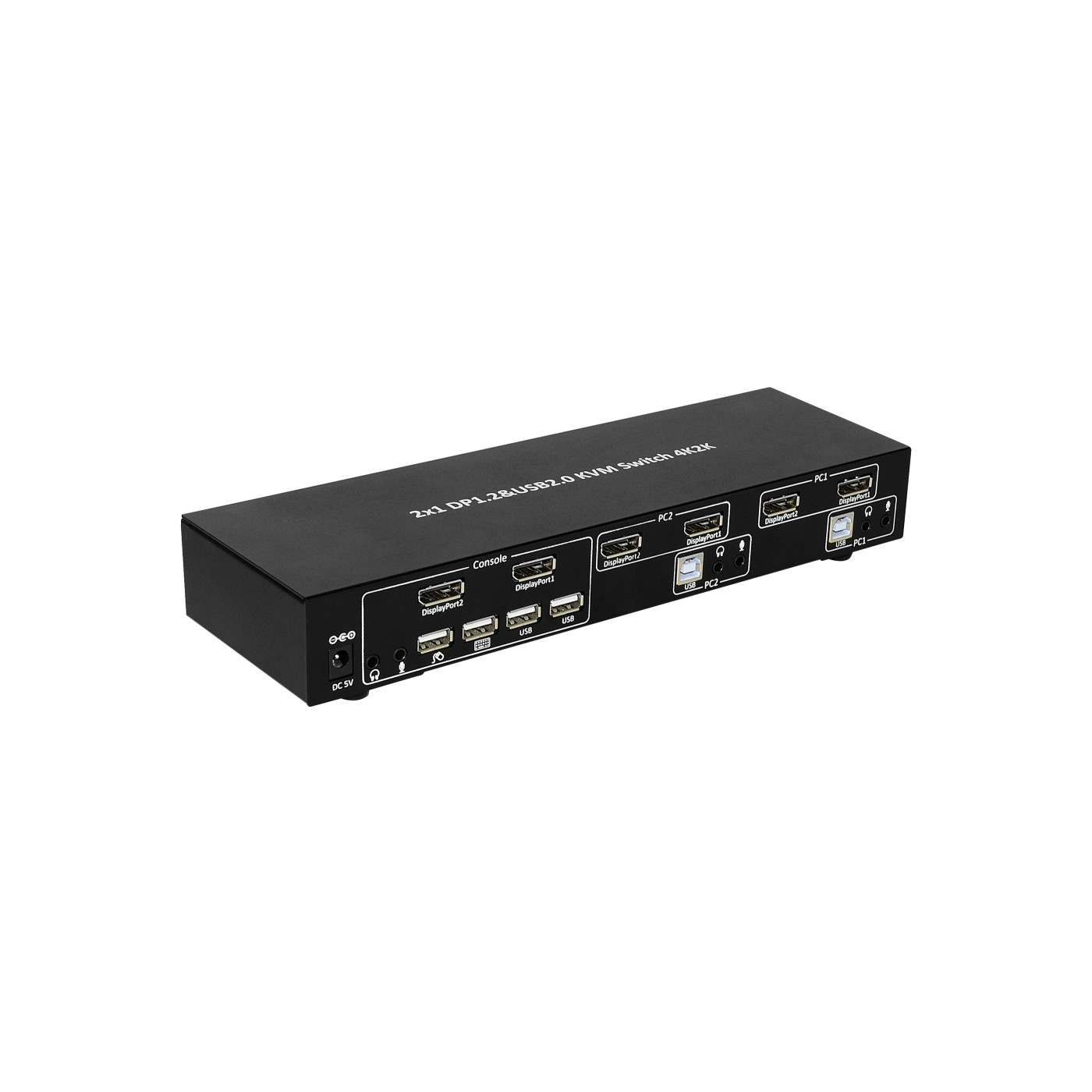

Connections
- Console ports
- 2 x DisplayPort 20-pin, female (for monitor)
- 2 x USB-A 4-pin, female (for mouse and keyboard)
- 2 x 3.5 mm stereo, female (for microphone/speaker audio)
- 2 x USB-A 4-pin, female, 480 Mbps (for peripherals)
- Computer/host ports
- 2 x DisplayPort 20-pin, female
- 2 x USB-B 4-pin, female
- 4 x 3.5 mm stereo, female
- Other
- 1 x 5.0 V DC / 2.0 A power jack

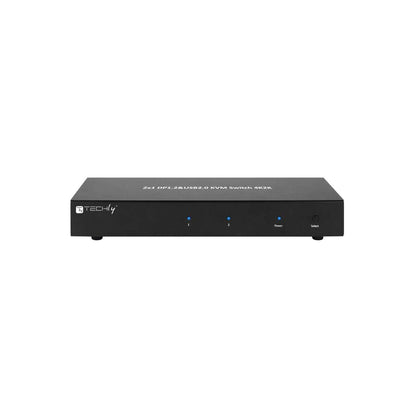

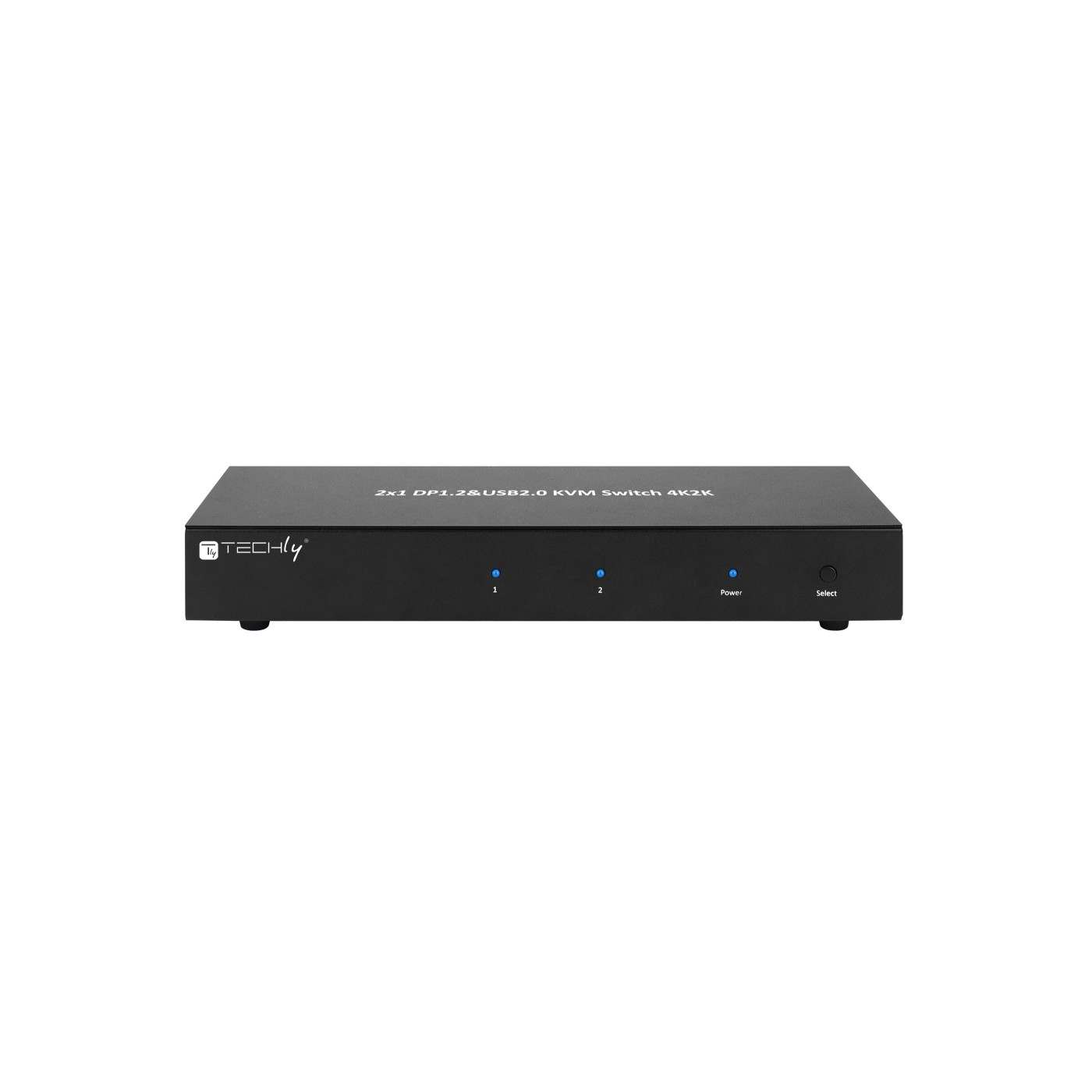

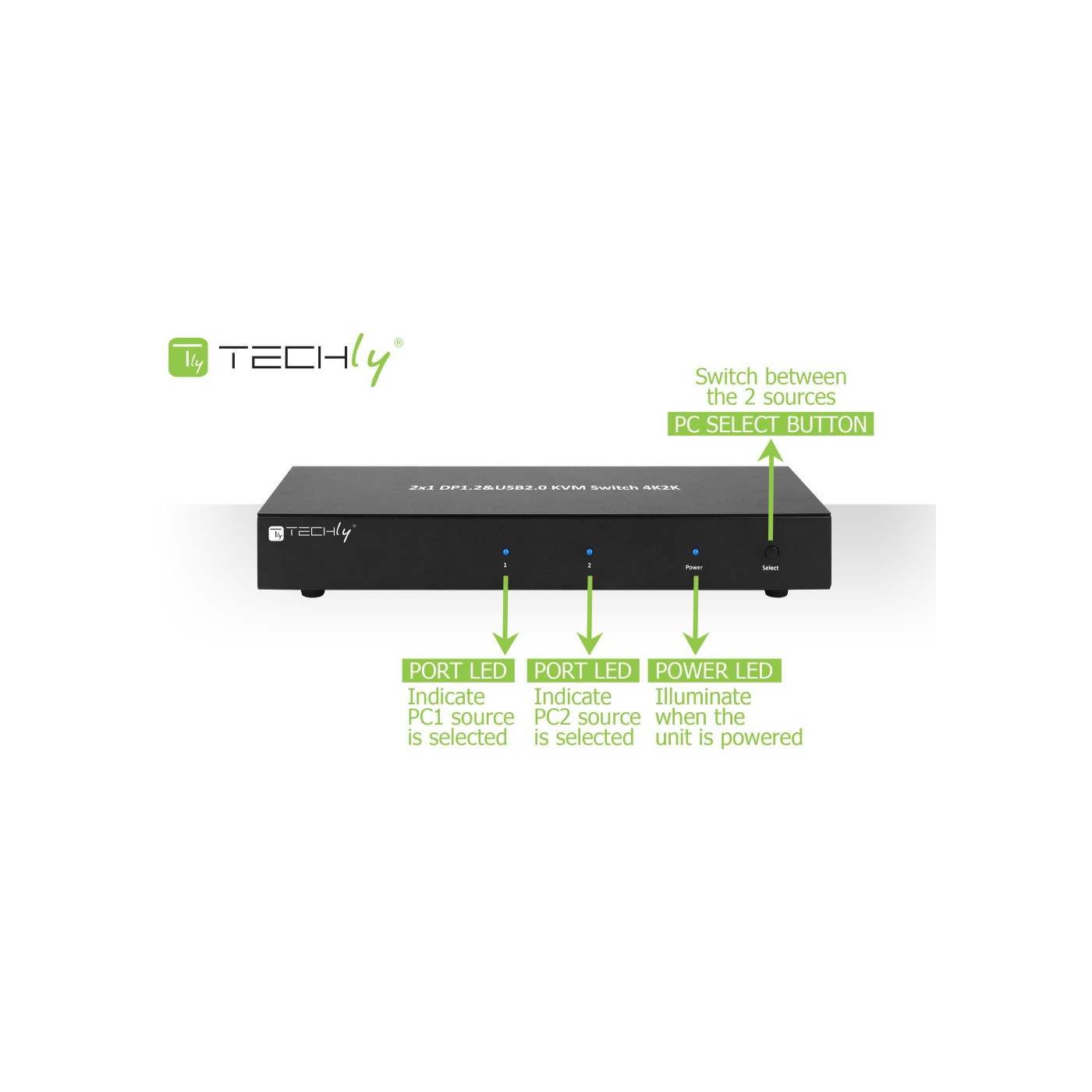

LEDs
- 1
- 2
- Power
Physical
- Metal housing
- Dimensions (L x W x H): 185 x 79 x 29 mm
- Net weight: 800 g
- Gross weight: 1.011 kg
System Requirements
- Windows, macOS or Linux
Package Contents
- 2-Port DisplayPort1.2 Dual-Monitor KVM Switch
- DC Power adapter, 5.0 V DC / 2.0 A
- Instructions
Note:
- Mac computers can only be controlled with a standard PC mouse and keyboard, not with Mac peripherals
Additional SKUs
- Amazon ASIN: B0FHR49681
- EAN: 0766623154406
- UPC: 766623154406
Physical Specifications
- Product net weight: 0.8 kg
- Product gross weight: 1.01 kg
- Dimensions: 185 (L) x 79 (W) x 29 (H) [mm]
- Packaging type: Retail Box
- Packaging dimensions: 0 x 0 x 0 [mm]
