Quickly connect more USB Type-A peripherals to type-C devices

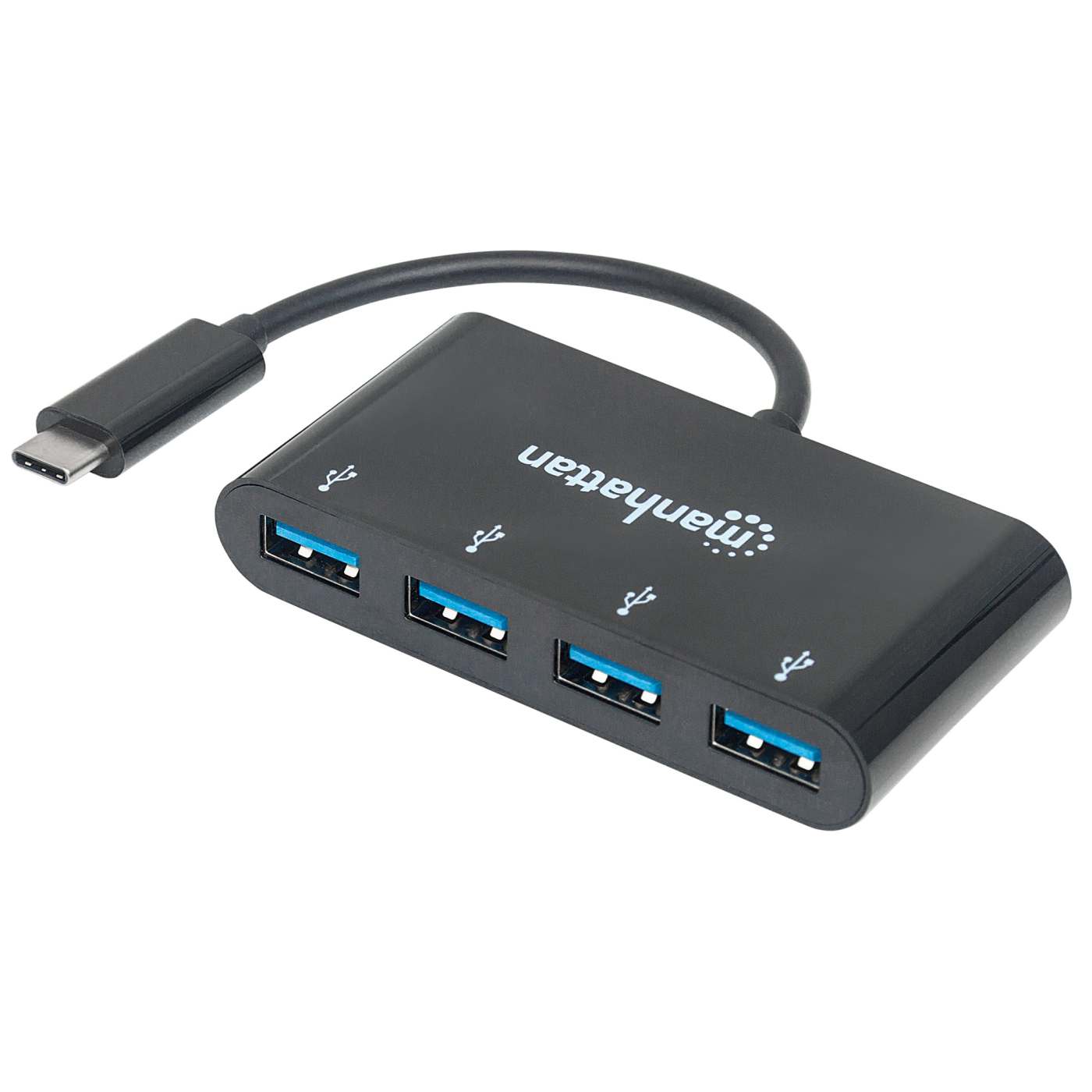

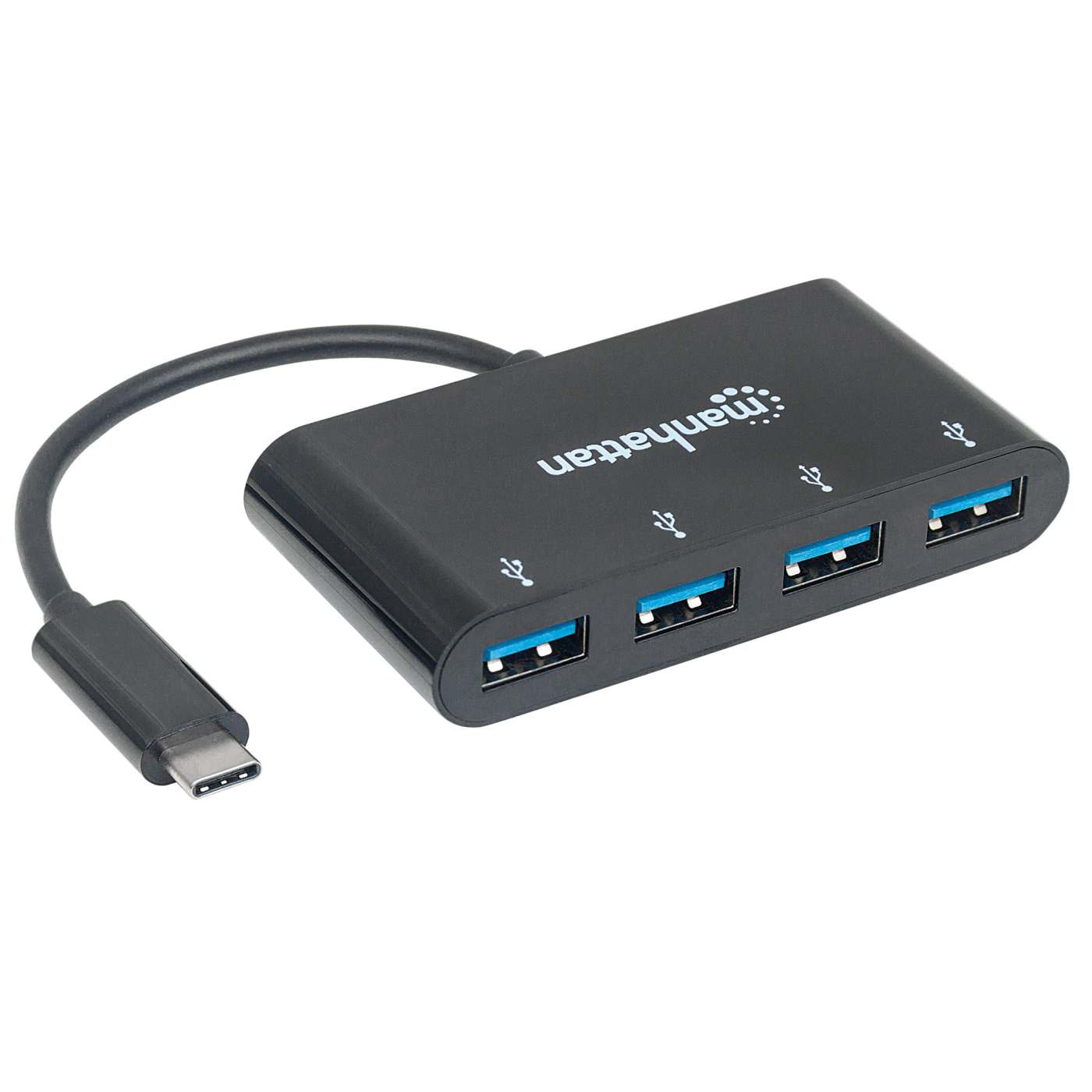

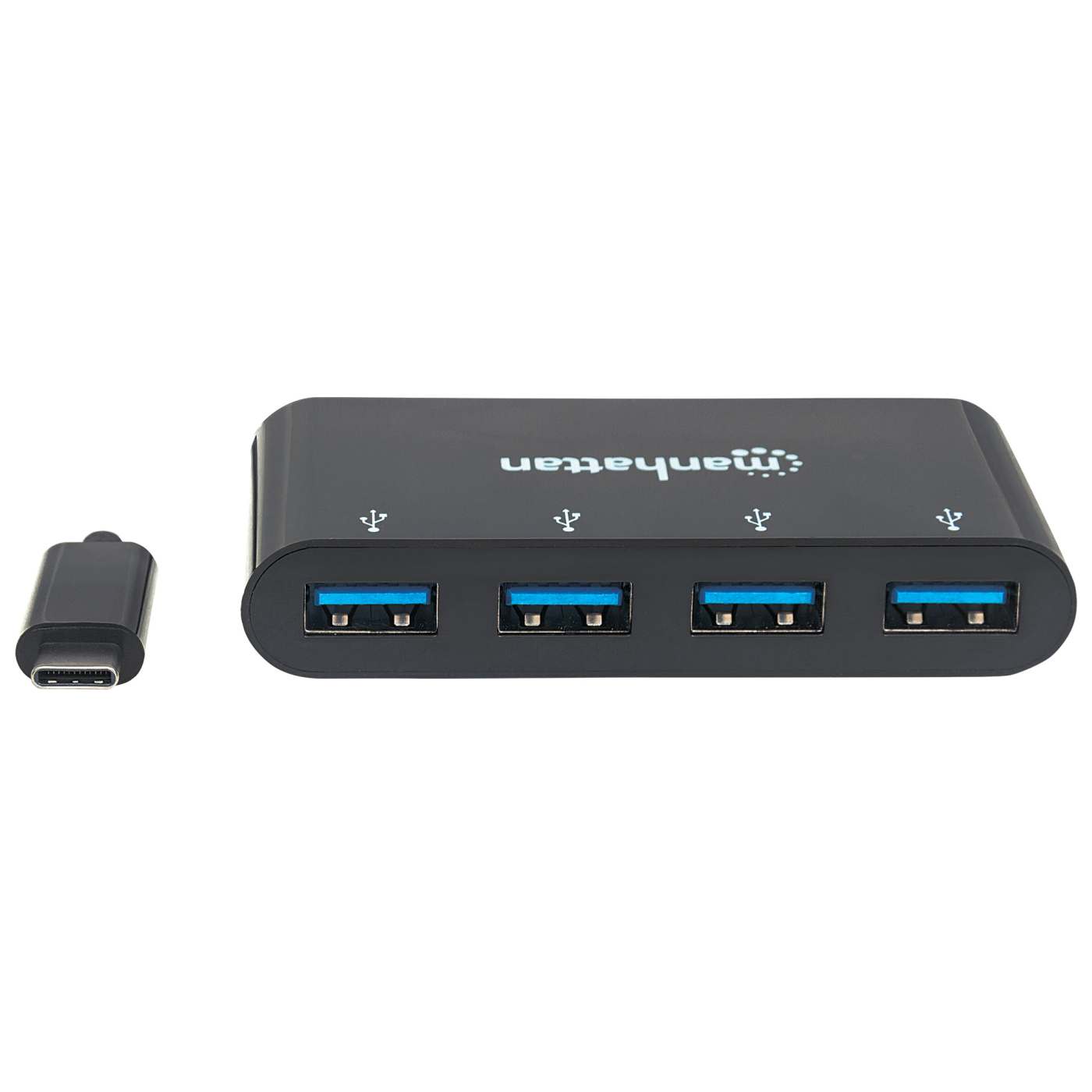

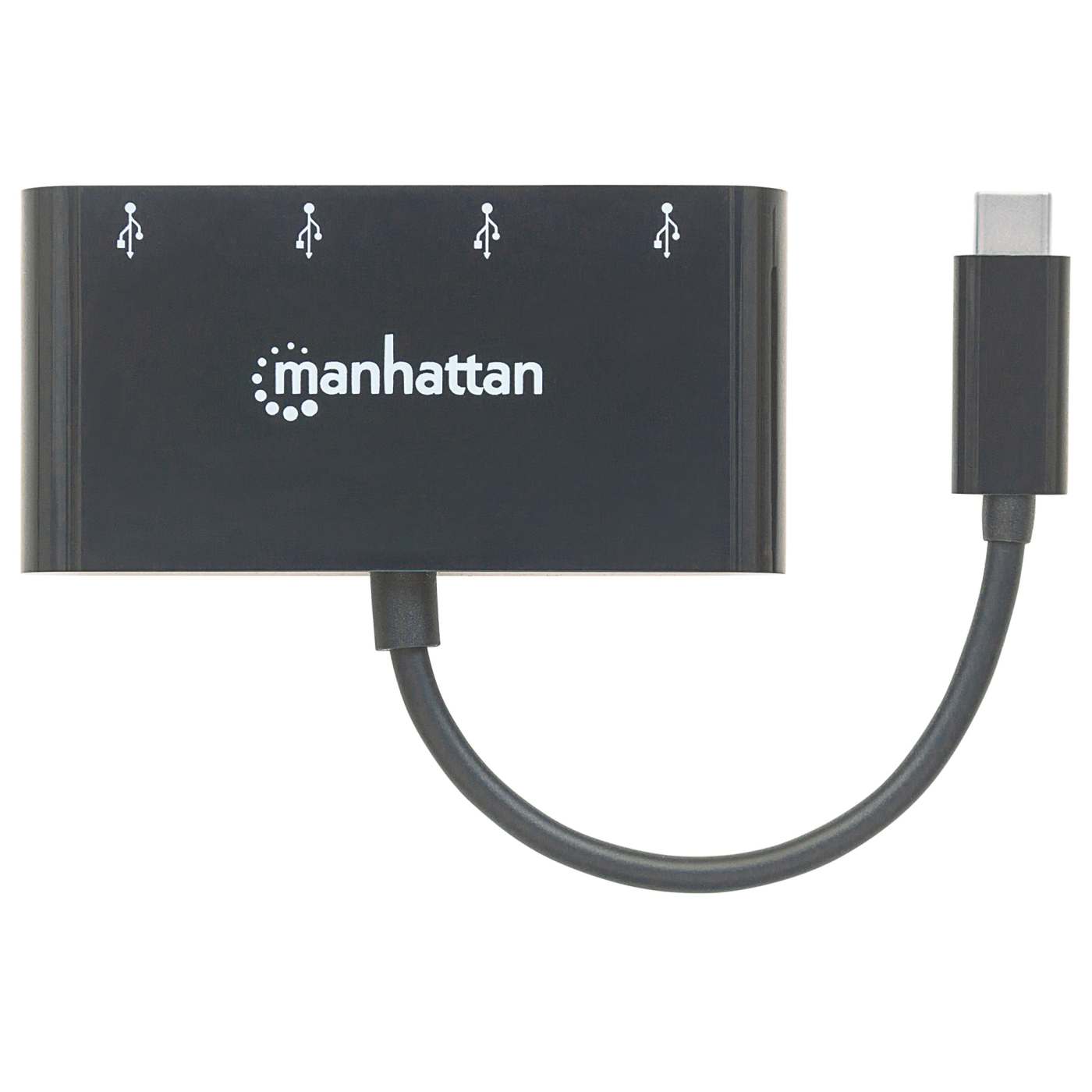

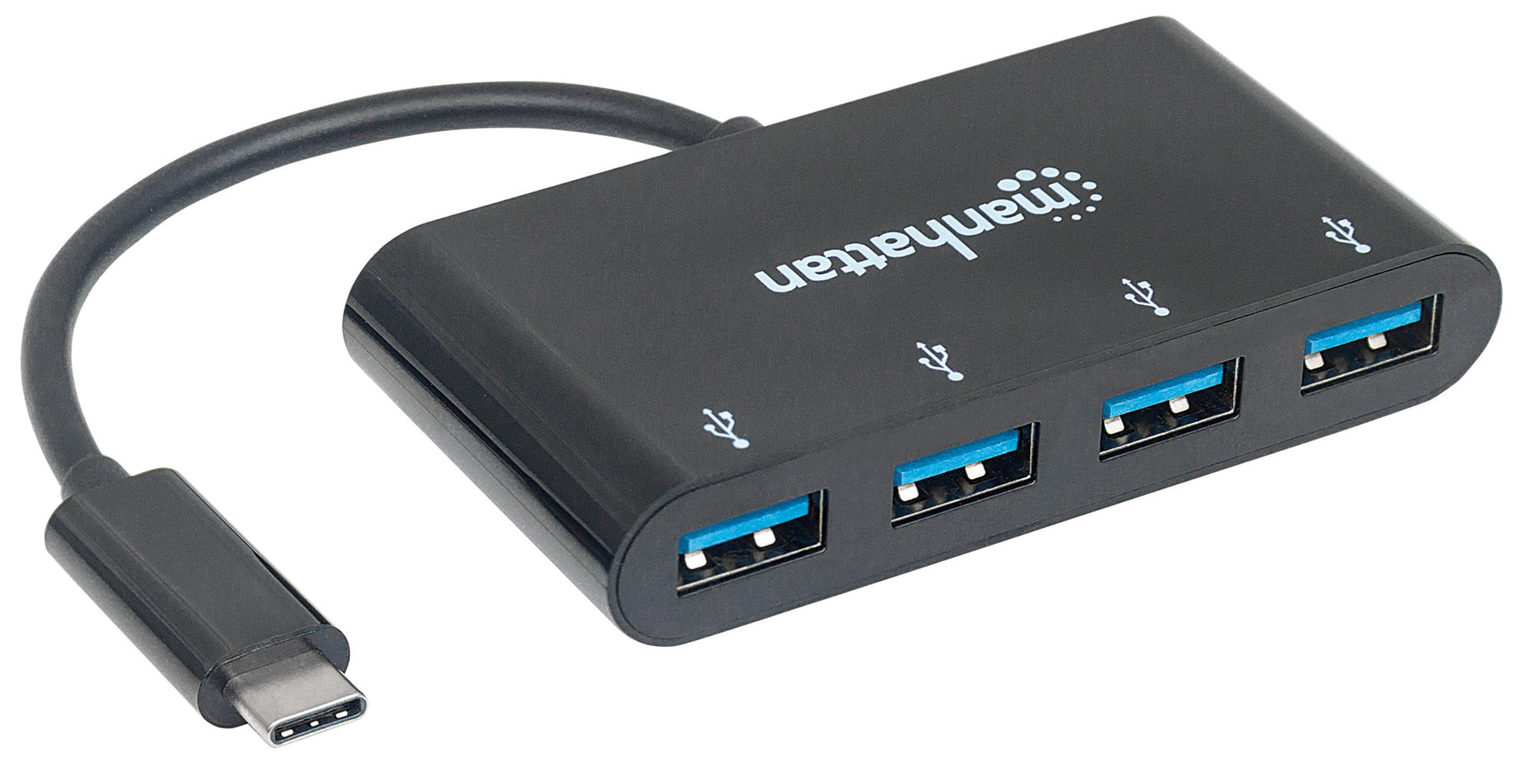

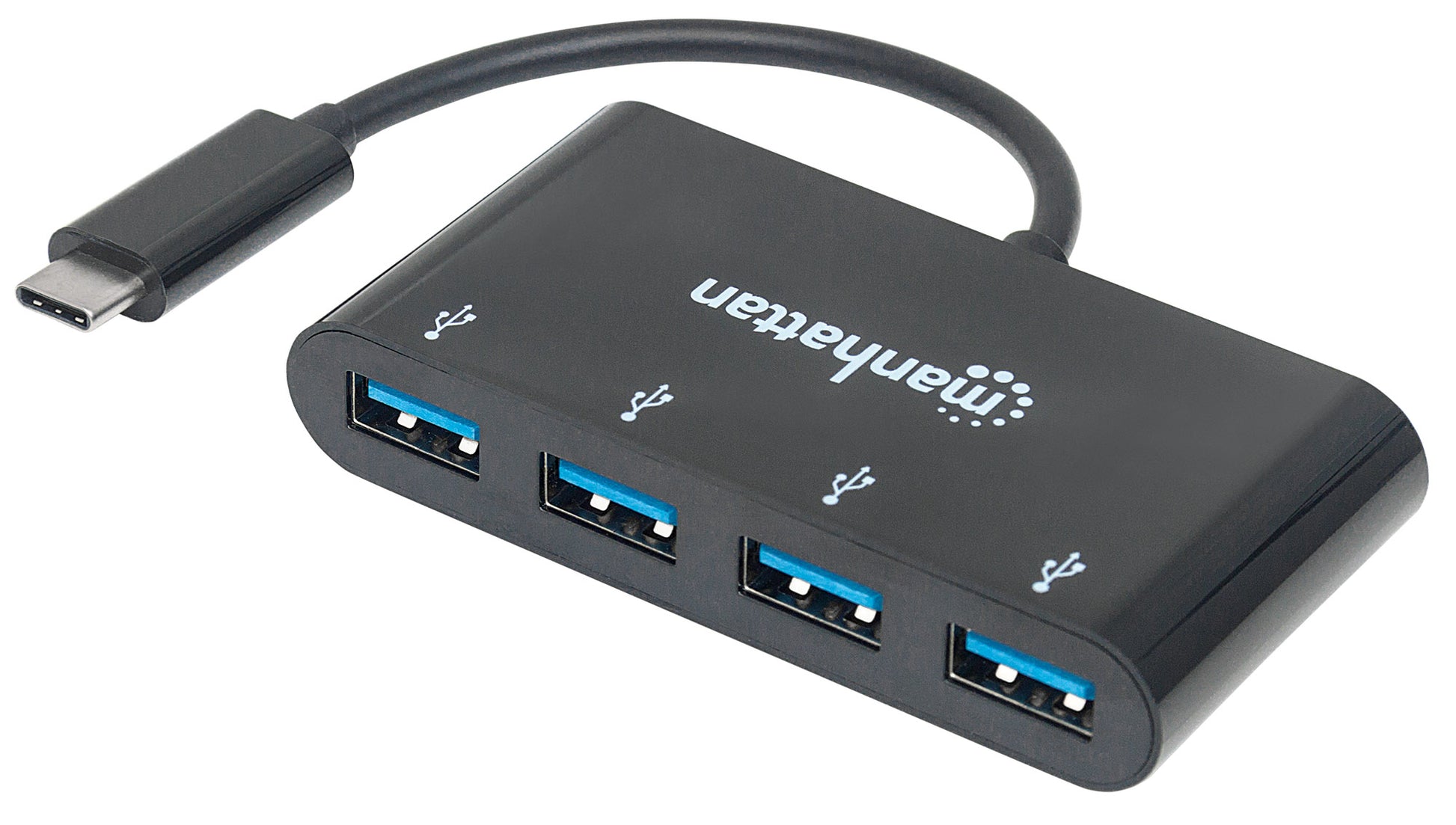

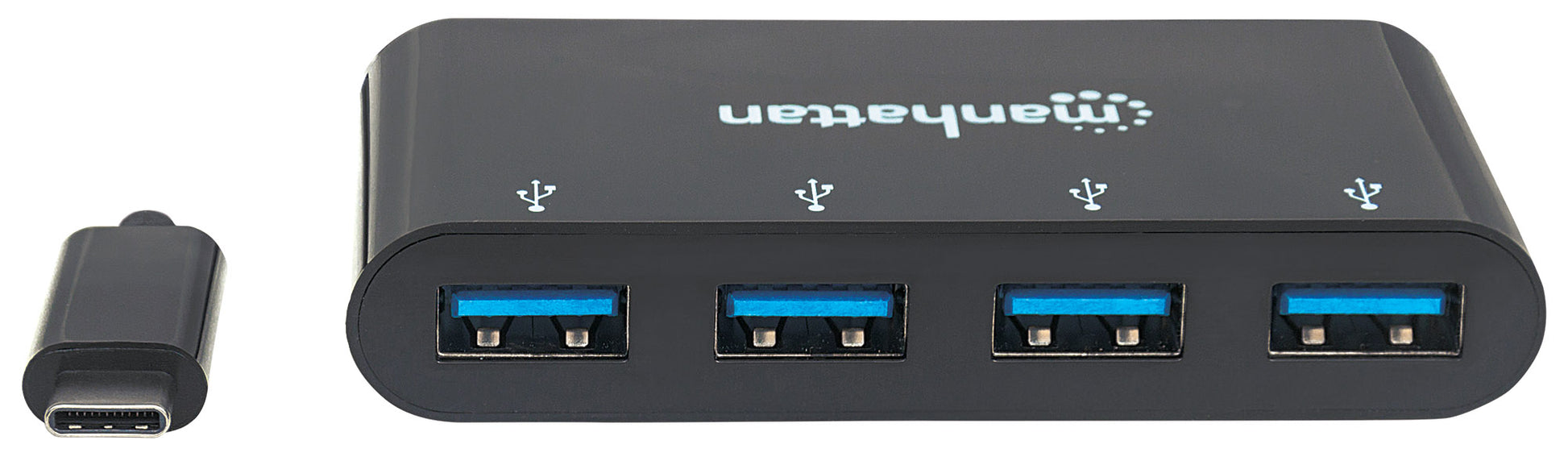

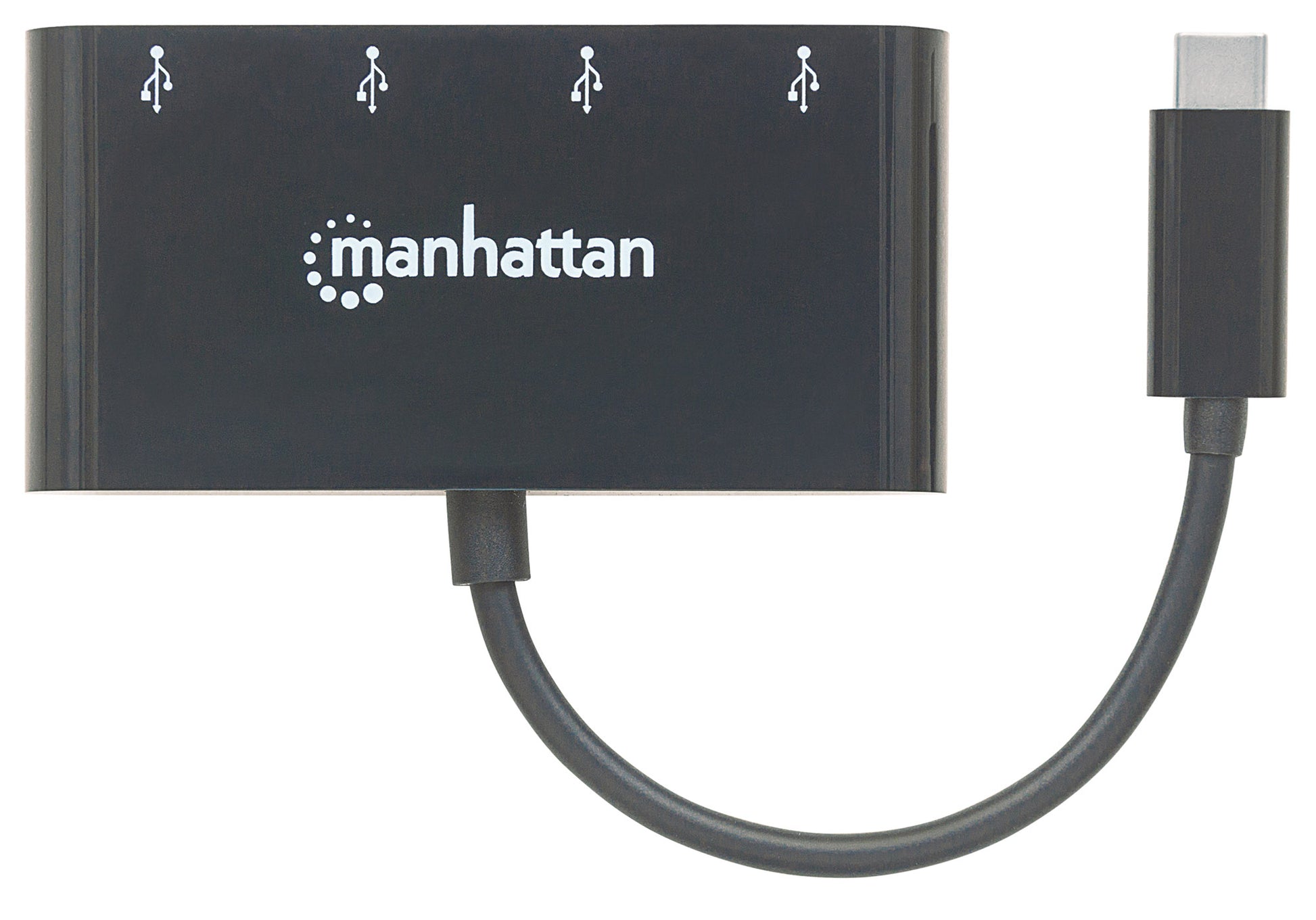

The Manhattan 4-Port USB 3.0 Type-C Hub easily adds four SuperSpeed Type-A ports to any USB type-C compatible device, expanding connectivity for keyboards, mice, external memory and other peripherals. Its SuperSpeed ports are backward compatible to support older devices, provide data transfer speeds up to 5 Gbps for external storage, printing and other activities, and capable of charging and powering at 5V/1A output.
Easy to add connectivity
A durable case, compact size and bus-power make it easily transportable to add USB connectivity almost anywhere. Installation is simple with Plug and Play and hot-swappable capabilities, and a built-in USB cable quickly connects the Manhattan 4-Port USB 3.0 Type-C Hub to any USB-C port.
- Connects type-C device to four SuperSpeed USB type-A ports for additional peripherals
- USB-A ports support SuperSpeed (5Gbps) data transmission, charging up to 5V/1A
- Overcurrent protection; hot-swappable
- Plug and play
- Three-Year Warranty
- Standards and Certifications
- USB 3.2 Gen 1
- FCC
- CE
- RoHS
- REACH
- UKCA
General
- Data transfer speeds: 5 Gbps
- 1 upstream port with built-in cable, standard-C male
- 4 downstream ports, standard-A female
- Up to 1A total power output
- Bus powered
- Overcurrent protection
Connections
- USB type-C, 24-pin, male
- (4) USB type-A, 4-pin, female
Physical
- 24-AWG cable gauge
- Cable Length: 20 cm (8 in.)
- Withstanding voltage: 300 VDC
- Insulation resistance: 10 MΩ
- Conductive resistance: 5 Ω
- Housing: ABS plastic
- Dimensions: 89 x 38 x 10 mm (3.5 x 1.5 x 0.4 in.)
- Weight: 31 g (1.1 oz.)
- Shielded
Operating Environment
- Operation Temperature: 32 ~ 104°F (0 ~ 40°C)
- Storage Temperature: -4 ~ 140°F (-20 ~ 60°C)
- Humidity (noncondensing): 5 ~ 90%
System Requirements
- Windows XP/Vista/7/8.1/10/11 or Linux or Mac 9.x/10.x or above
Package Contents
- 4-Port USB 3.0 Type-C Hub
- Quick Instruction Guide
Additional SKUs
- Amazon ASIN: B01LZQJEFC
- EAN: 0766623162746
- UPC: 766623162746
- ALSO: 2650898
- API: 219873
Physical Specifications
- Product net weight: 0.03 kg
- Product gross weight: 0.07 kg
- Dimensions: 89 (L) x 38 (W) x 10 (H) [mm]
- Packaging dimensions: 175 x 125 x 20 [mm]
- Master Carton Quantity: 60
- Master Carton Weight: 4.26 kg
- Master Carton Dimensions: 400 x 370 x 200 [mm]
