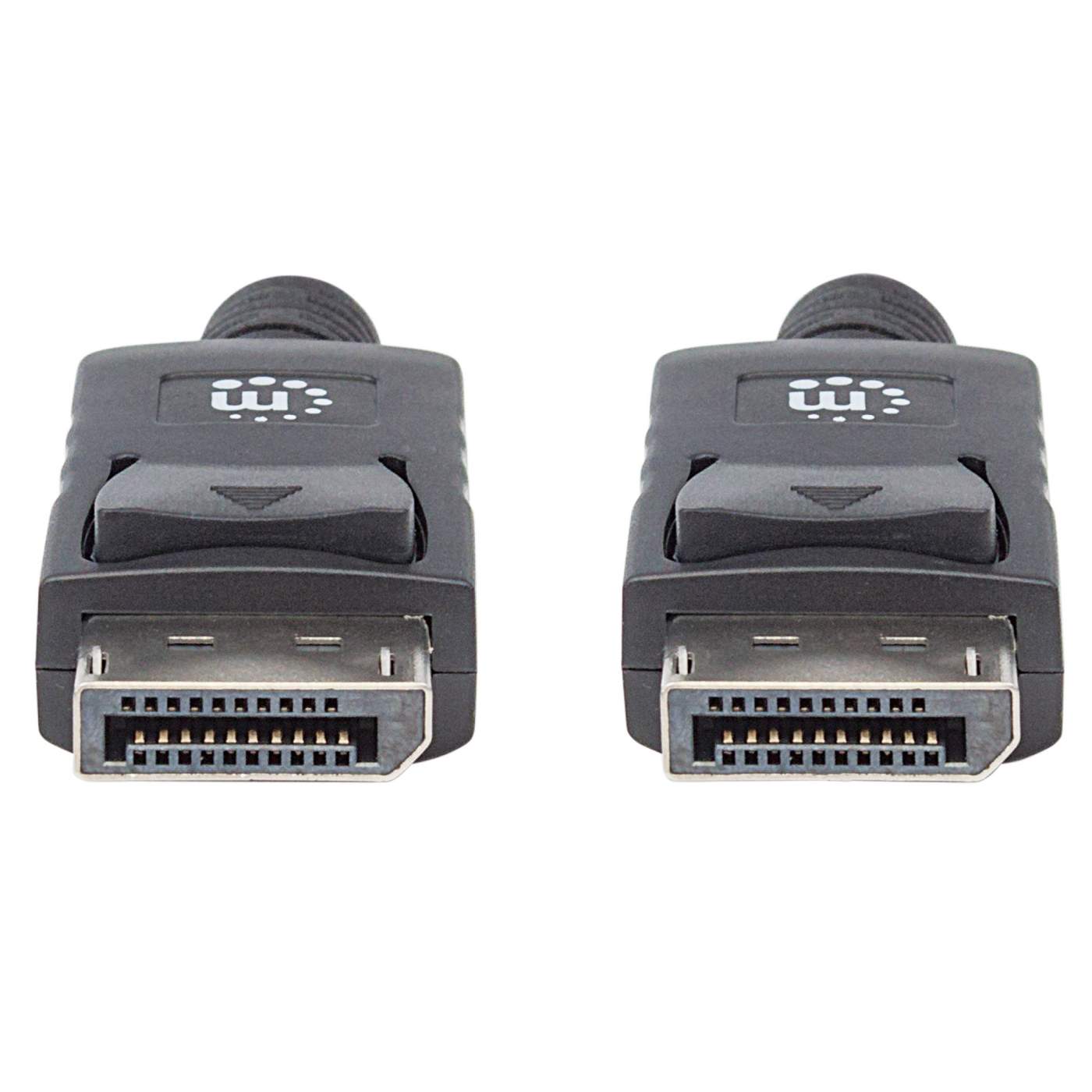

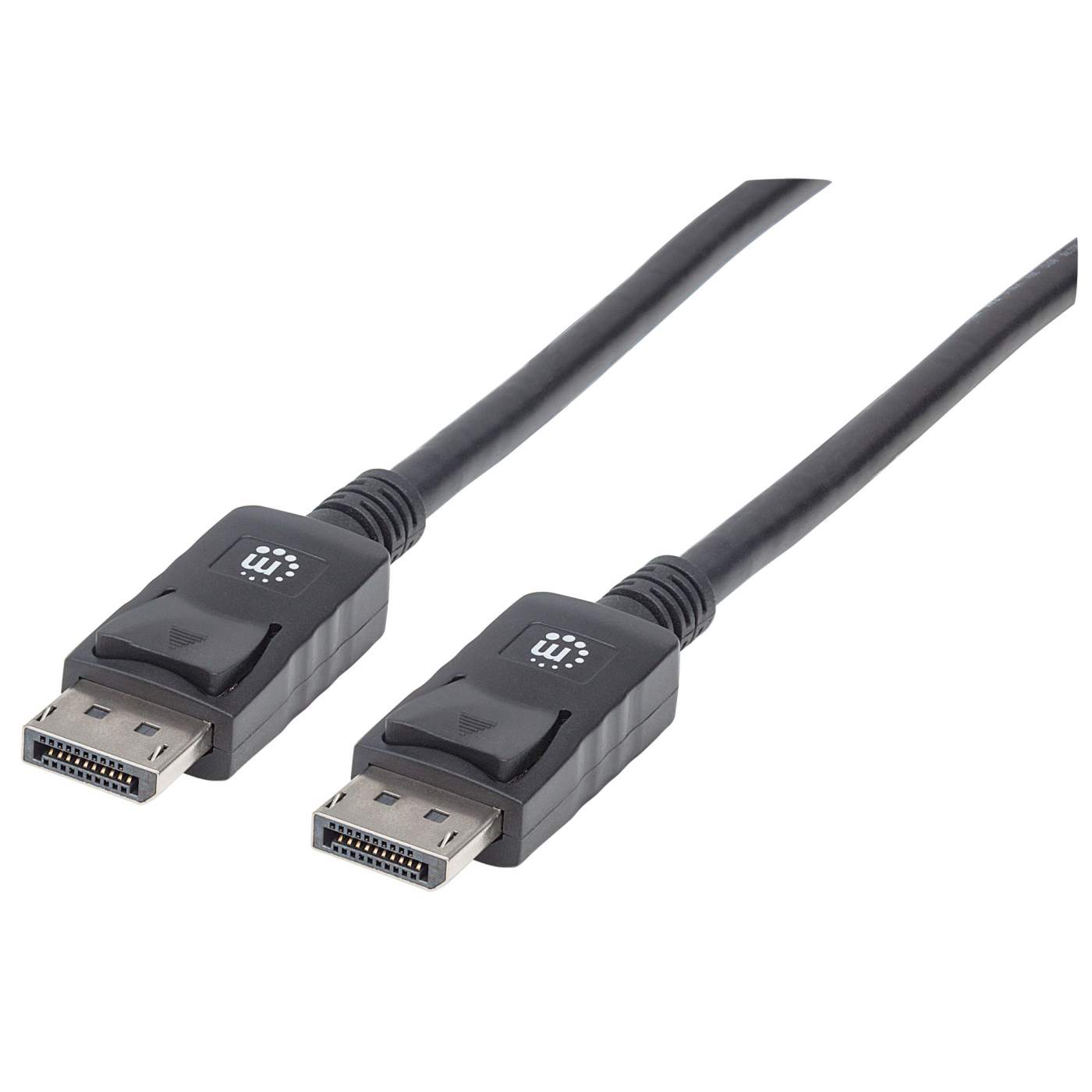

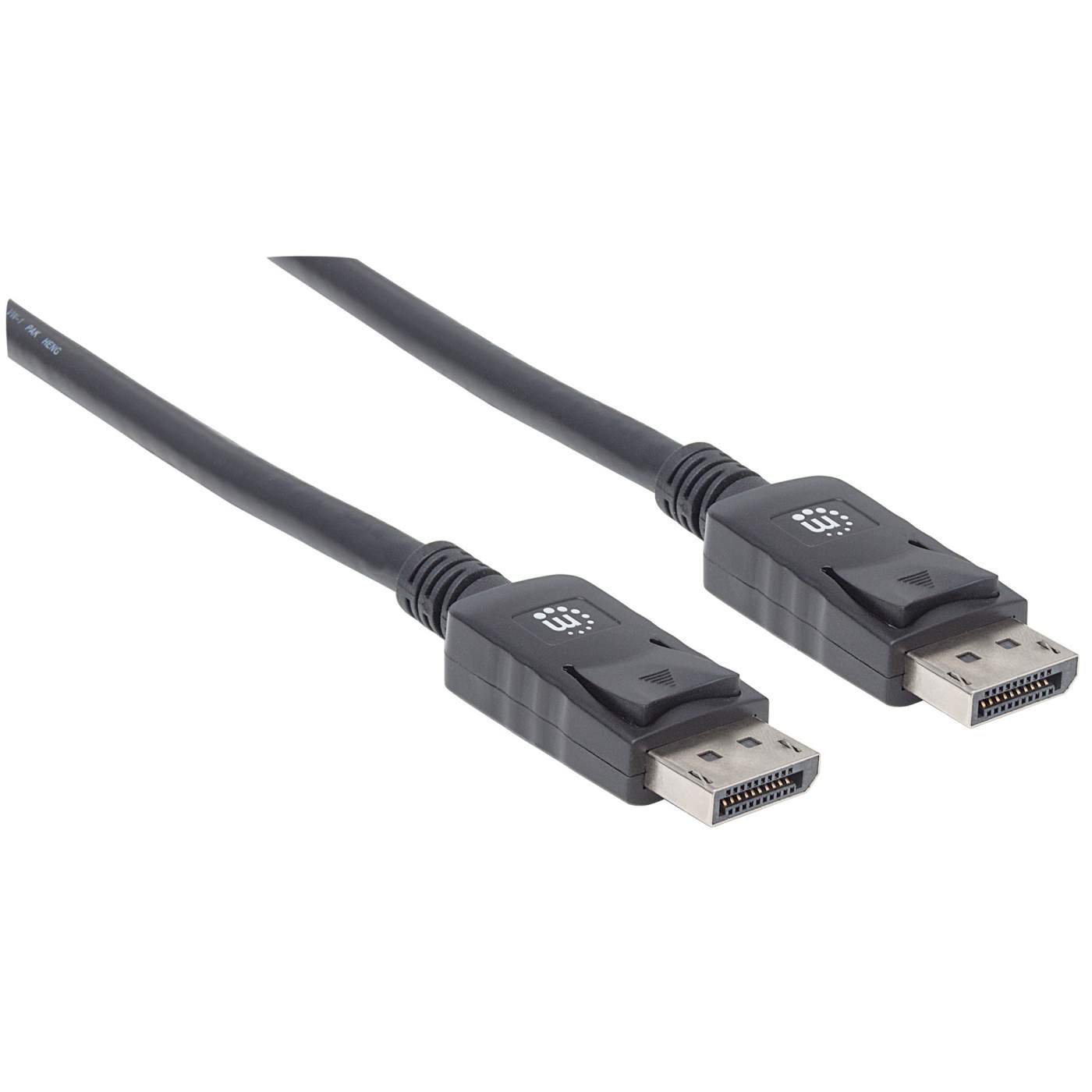

4K@60Hz DisplayPort Monitor Cable

DisplayPort Male / DisplayPort Male, 3 m (10 ft.), Black

Part-No.: 307093

Highlights

  • DisplayPort 20-pin male to DisplayPort 20-pin male latching connections
  • Delivers high-bandwidth, digital audio/visual signals from PC to display and other DisplayPort-enabled devices — up to 4K@60Hz resolution
  • Fully shielded to reduce EMI and other interference sources


High-definition performance for personal computing

Manhattan DisplayPort Cables provide a single-cable solution that delivers both high-definition digital audio and video signals between desktop and notebook computers and an output device. With 17.28 Gbps bandwidth (HBR2), Deep Color and 24-bit, 8-channel uncompressed audio capability, the 20-pin connector is small, compact and ideal for use with DisplayPort-equipped computers, flat-panel displays, slim-profile devices and many consumer electronics including Blu-ray players and game consoles. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections help Manhattan DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.

  • DisplayPort 20-pin male to DisplayPort 20-pin male latching connections
  • Delivers high-bandwidth, digital audio/visual signals from PC to display and other DisplayPort-enabled devices — up to 4K@60Hz resolution
  • Fully shielded to reduce EMI and other interference sources
  • Plug and play for box-to-box applications
  • Molded PVC boot
  • Lifetime Warranty

    Standards and Certifications
  • UL 20276
  • DisplayPort 1.2

    Connectors
  • DisplayPort 20-pin male with latches (2)
  • Nickel plated
  • Molded PVC boot

    Cable
  • 28 AWG connectors
  • Shielding: aluminum and Mylar braid
  • Withstanding voltage: 300 VDC
  • Insulation resistance: 5 MΩ
  • Contact resistance: 10 Ω
  • PVC jacket

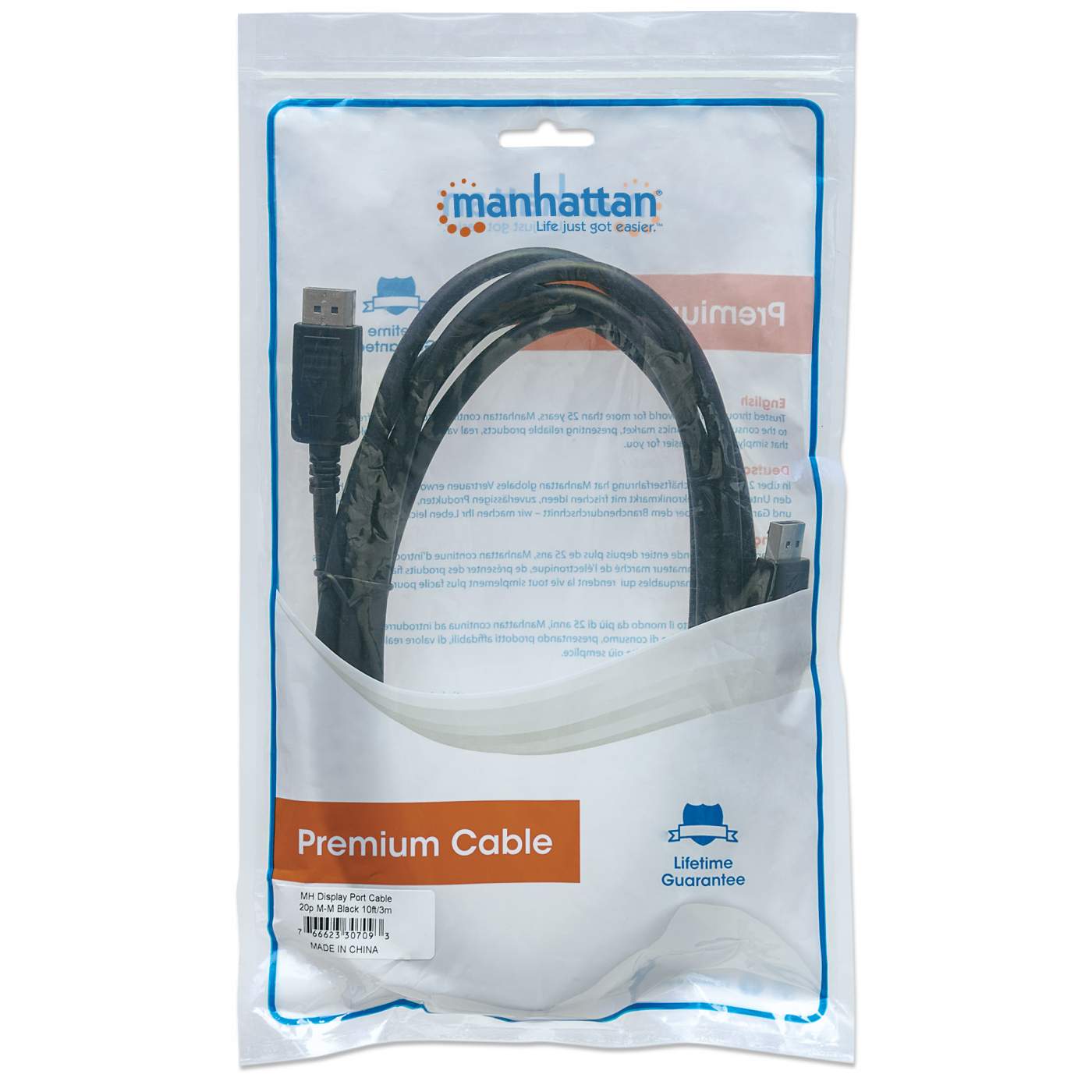

    Package Contents
  • 4K@60Hz DisplayPort Monitor Cable

  • Additional SKUs

    • Amazon ASIN: B001RAZPE8
    • EAN: 0766623307093
    • UPC: 766623307093
    • ALSO: 1756591
    • API: 77272

  • Physical Specifications

    • Weight: 0.3 kg
    • Dimensions: 3 m
    • Packaging: Bag
    • Carton Quantity: 40
    • Carton Weight: 9.00 kg

  • Datasheet


  • Manual

    • RoHS2 Compliance     » Download
