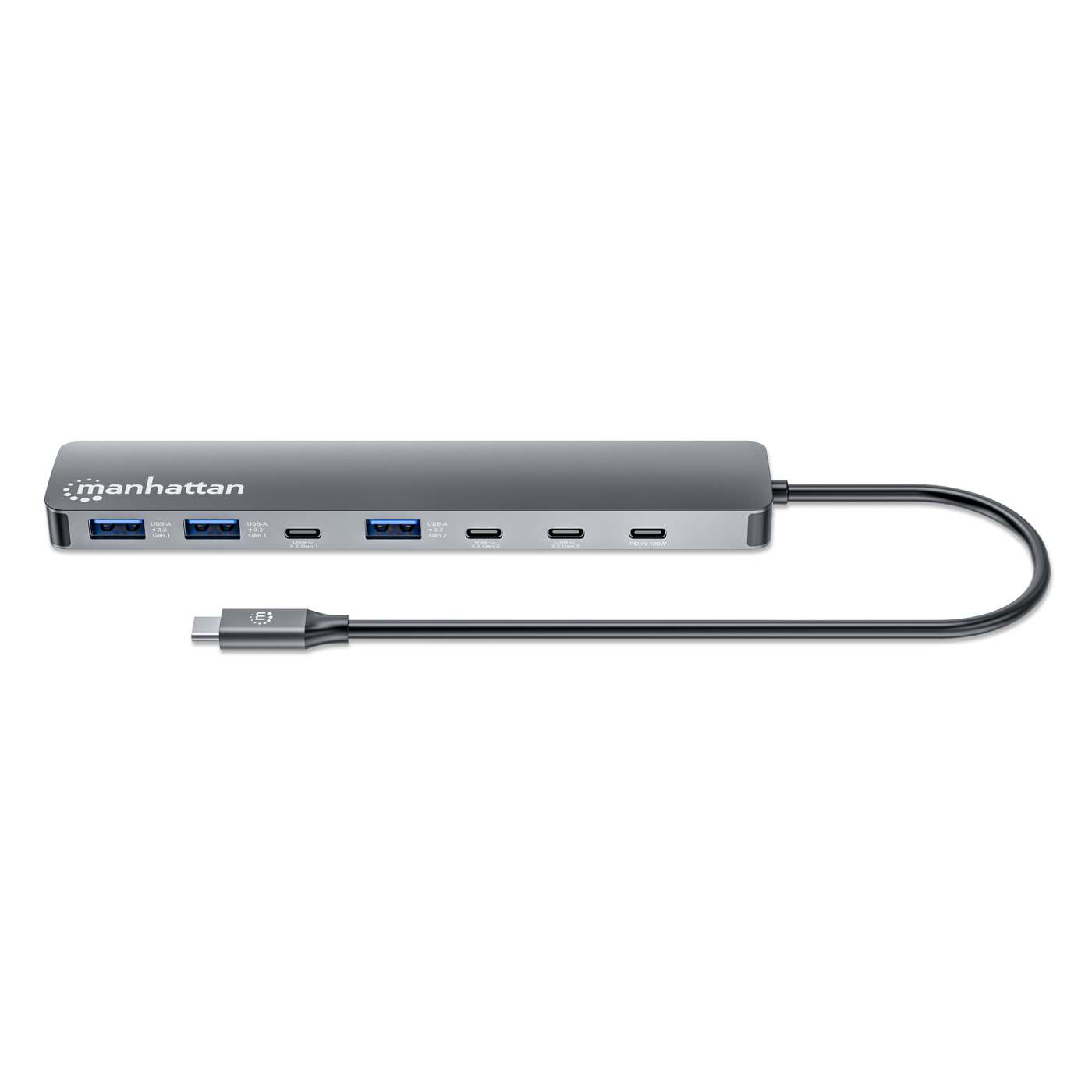

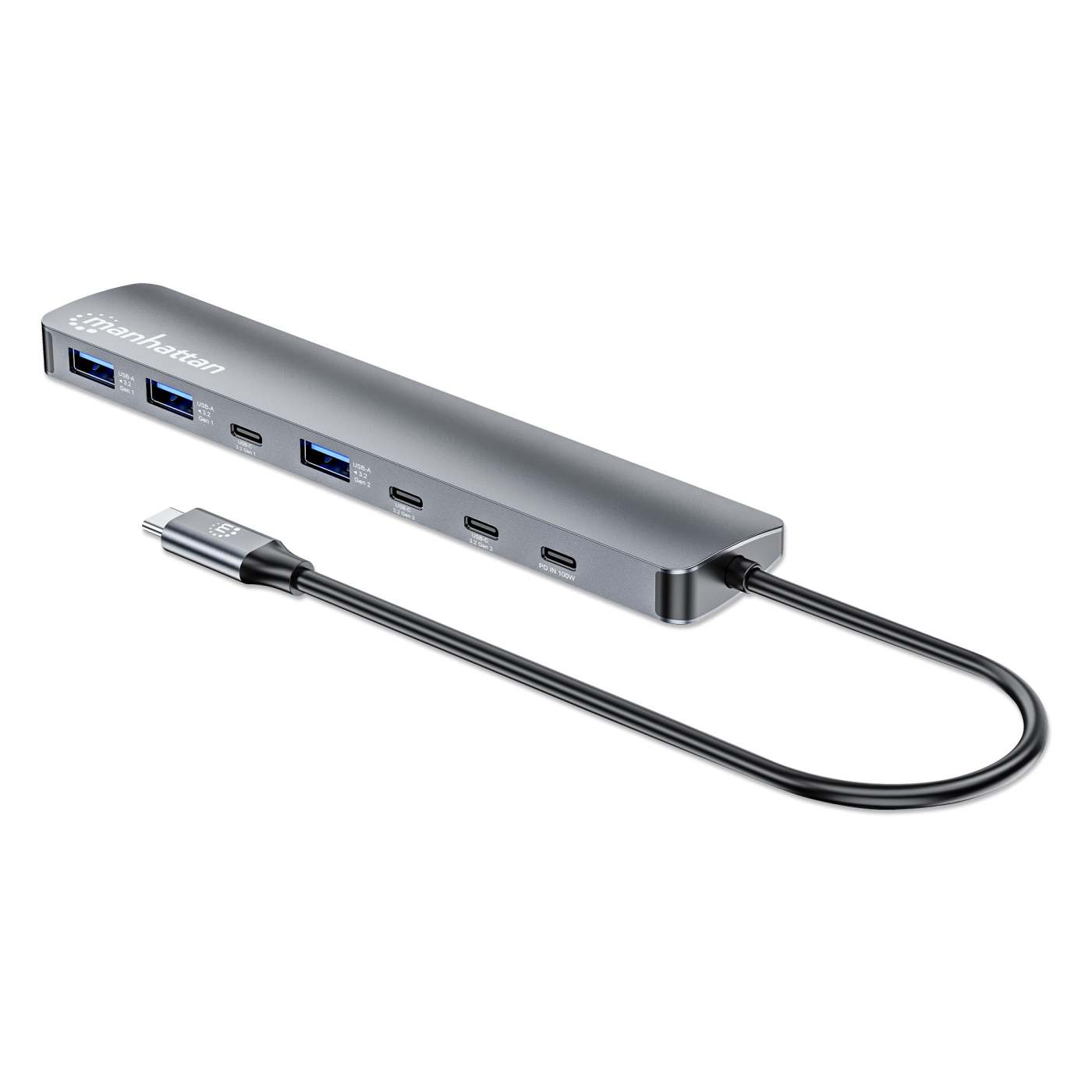

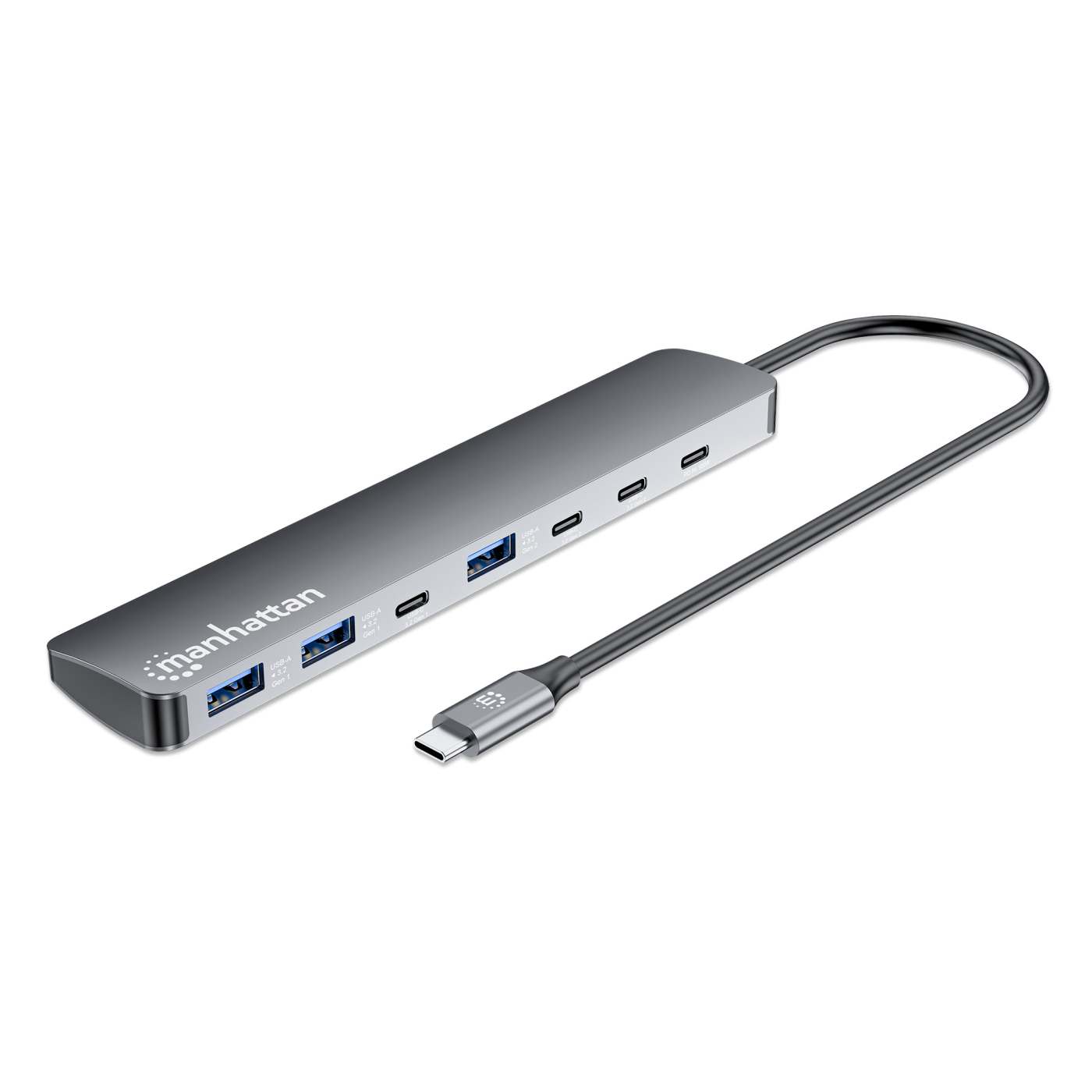

7-Port 10G PD Hub with 3 USB Type-C and 3 USB Type-A Data Ports to Add Ultra-Fast USB Connectivity and 100 W Charging to Your Laptop
Maximize your connectivity with the Manhattan 7-Port 10G USB-C / USB-A Hub, designed to boost your productivity with super-fast data transfers, versatile connections, and powerful charging capabilities - all in one sleek, portable design.

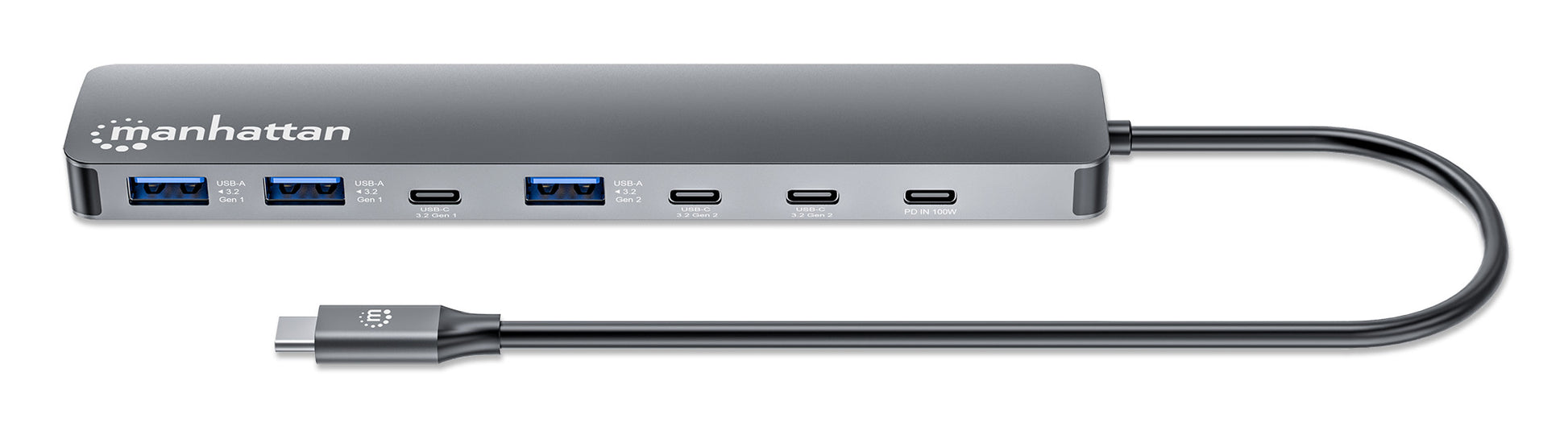

Versatile Port Extension

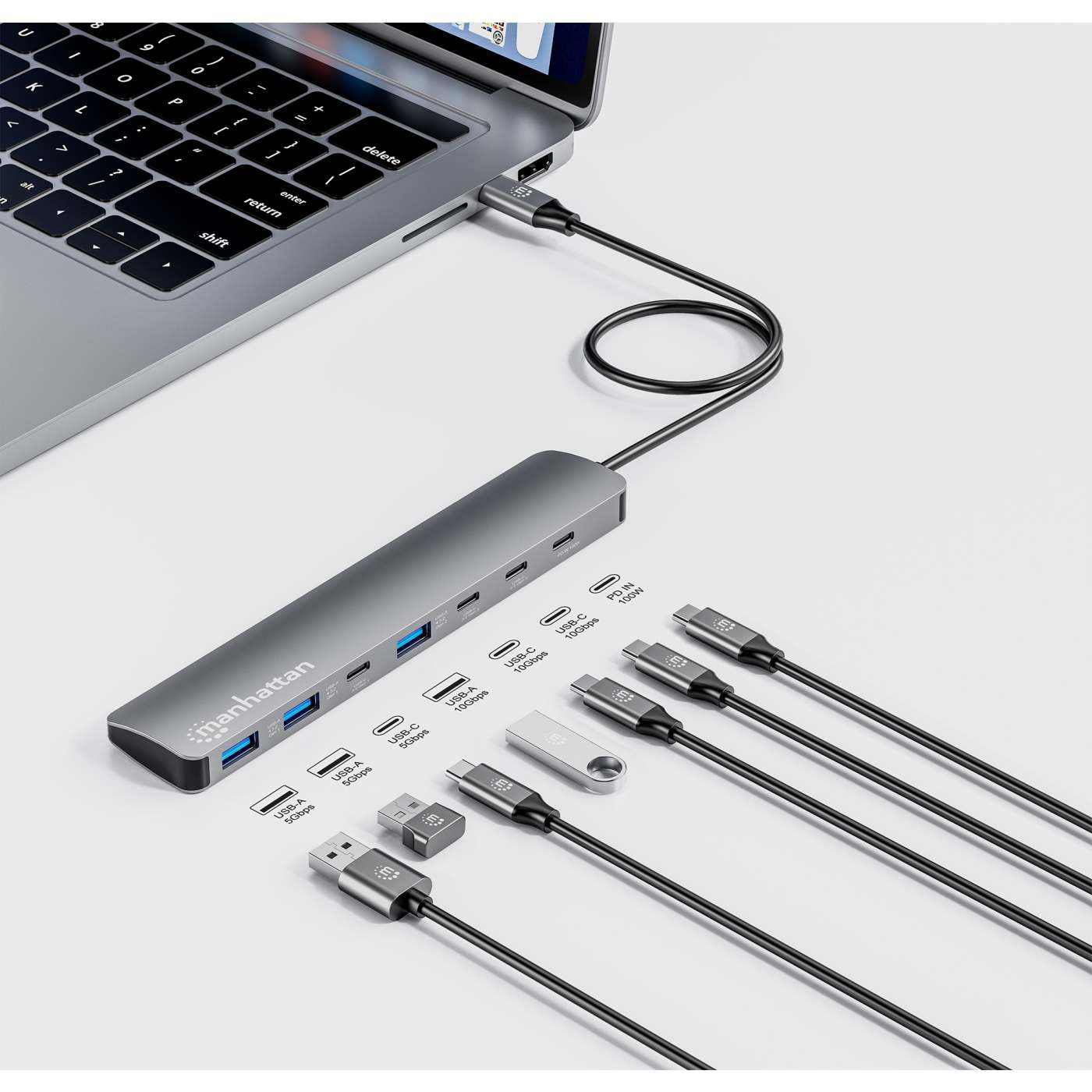

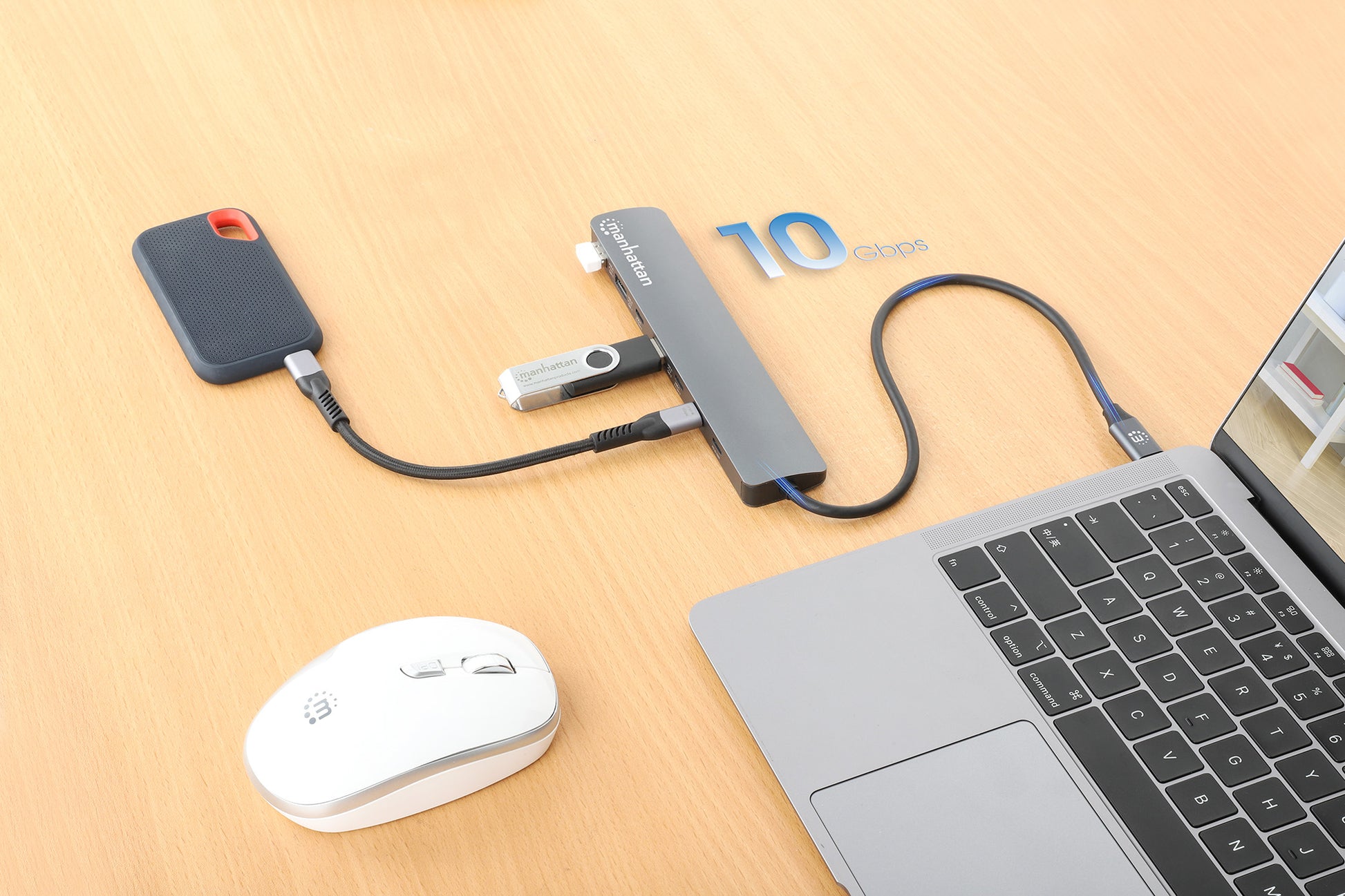

Equipped with three USB-C ports and three USB-A ports, this hub gives you the flexibility to connect a wide range of devices. Plug in your external SSDs, card readers, and Ethernet adapters via USB-C, while still connecting your essential peripherals like mice, keyboards, and flash drives through the USB-A ports.
Blazing-Fast 10G Performance

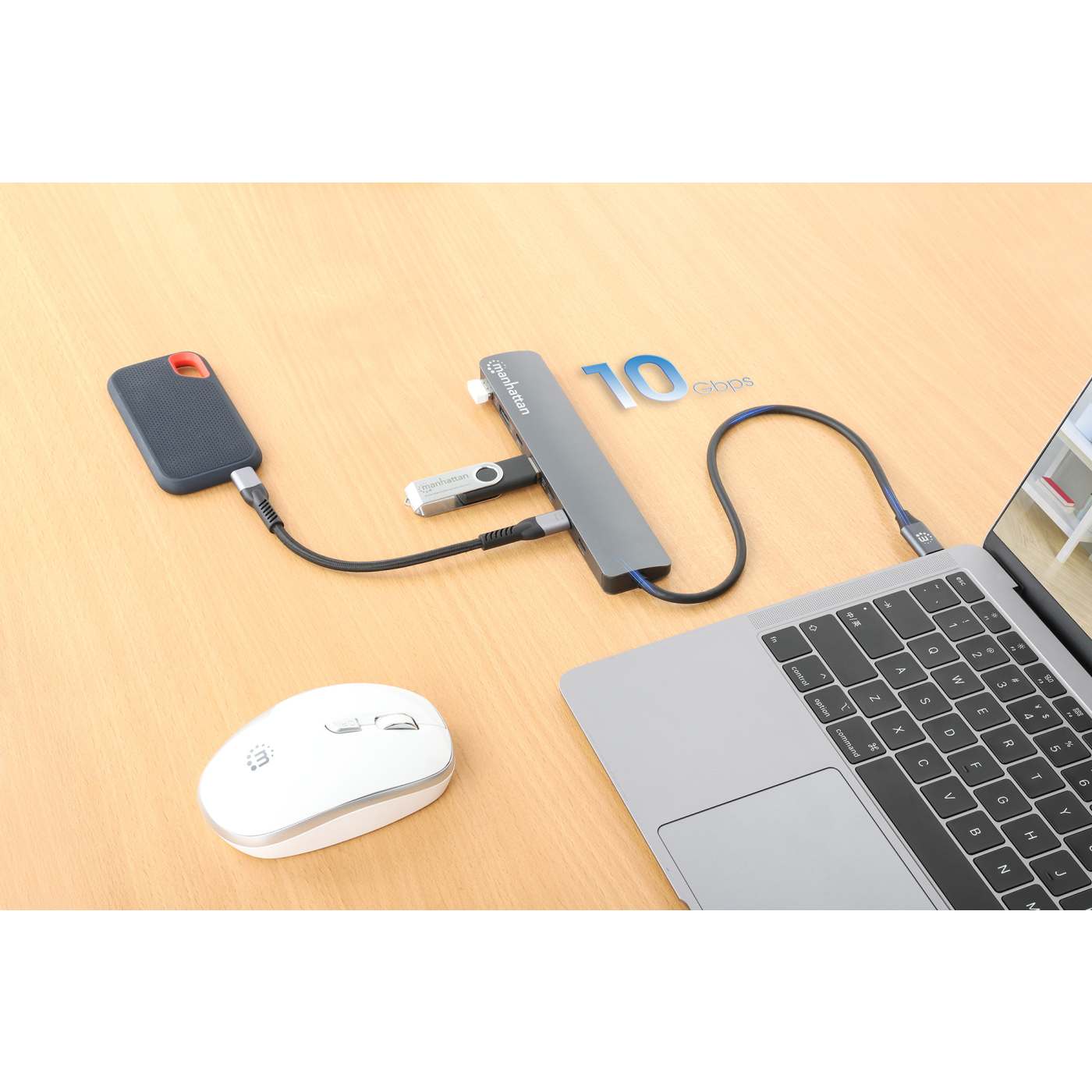

One USB-A and two USB-C ports support USB 3.2 Gen 2 SuperSpeed+ technology, delivering transfer rates up to 10 Gbps - perfect for moving large files, backing up data, or connecting high-performance peripherals without delays. One USB-C and two USB-A ports support USB 3.2 Gen 1 SuperSpeed technology, delivering transfer rates up to 5 Gbps.

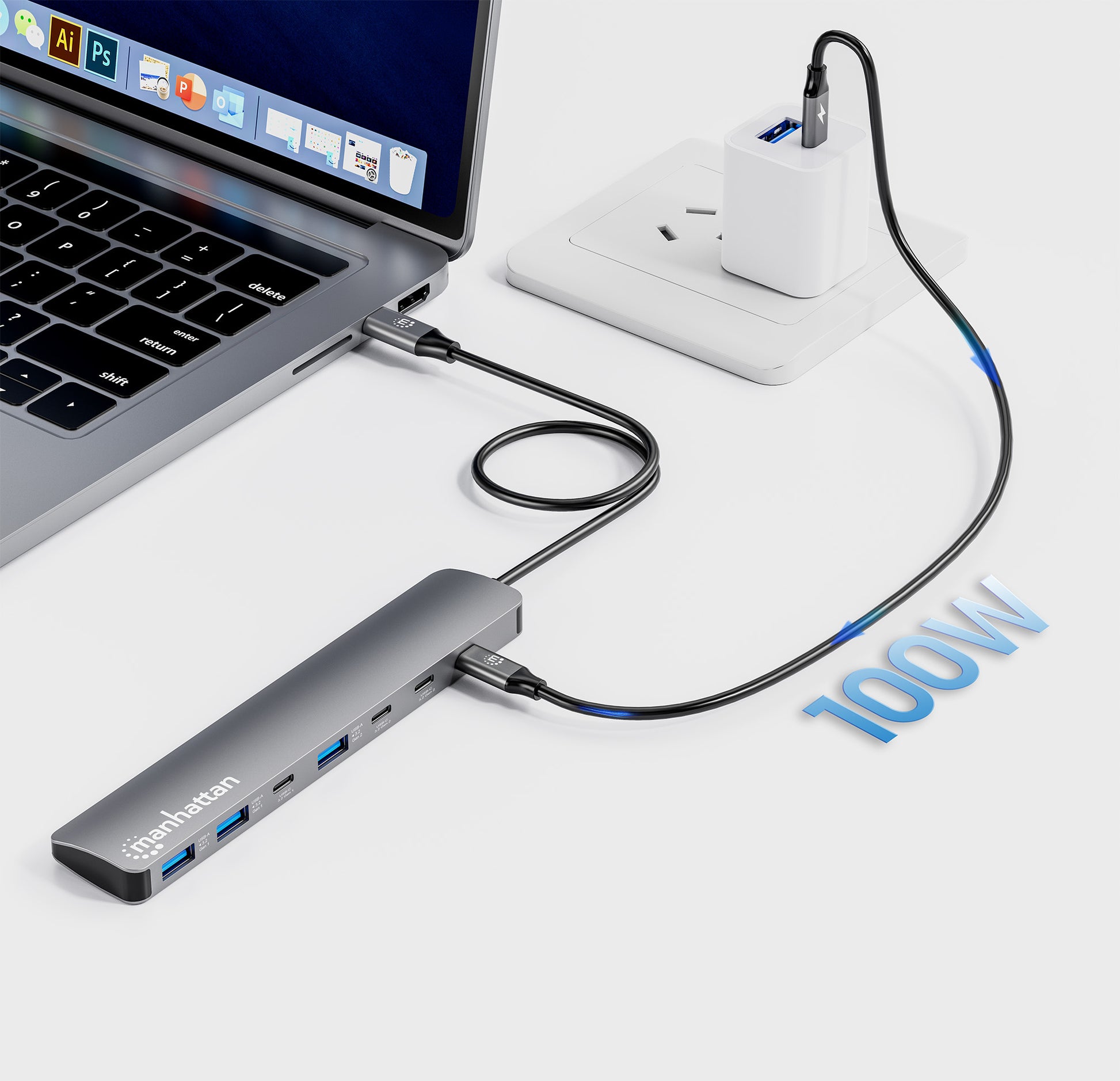

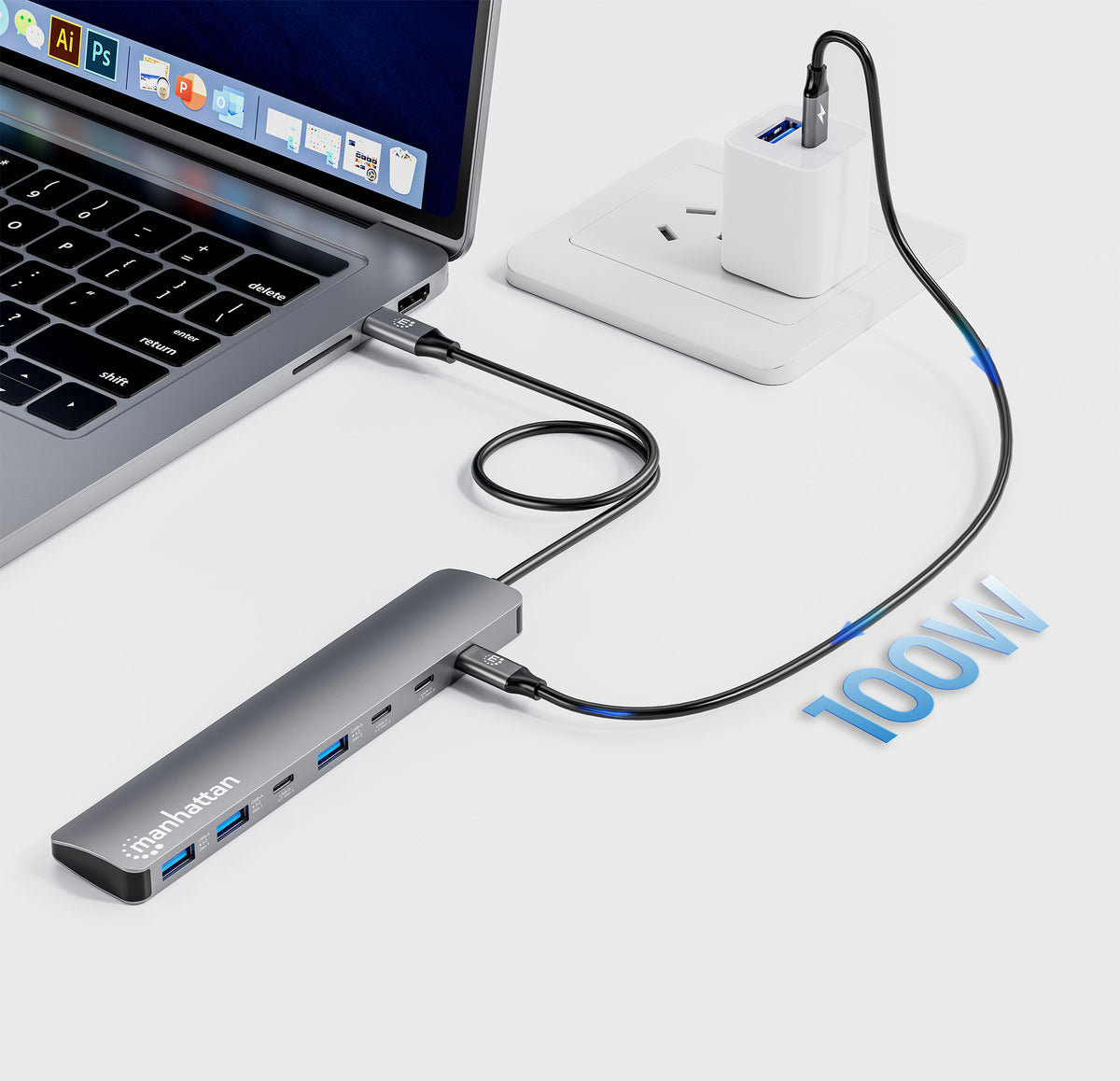

Power Your Laptop While You Work

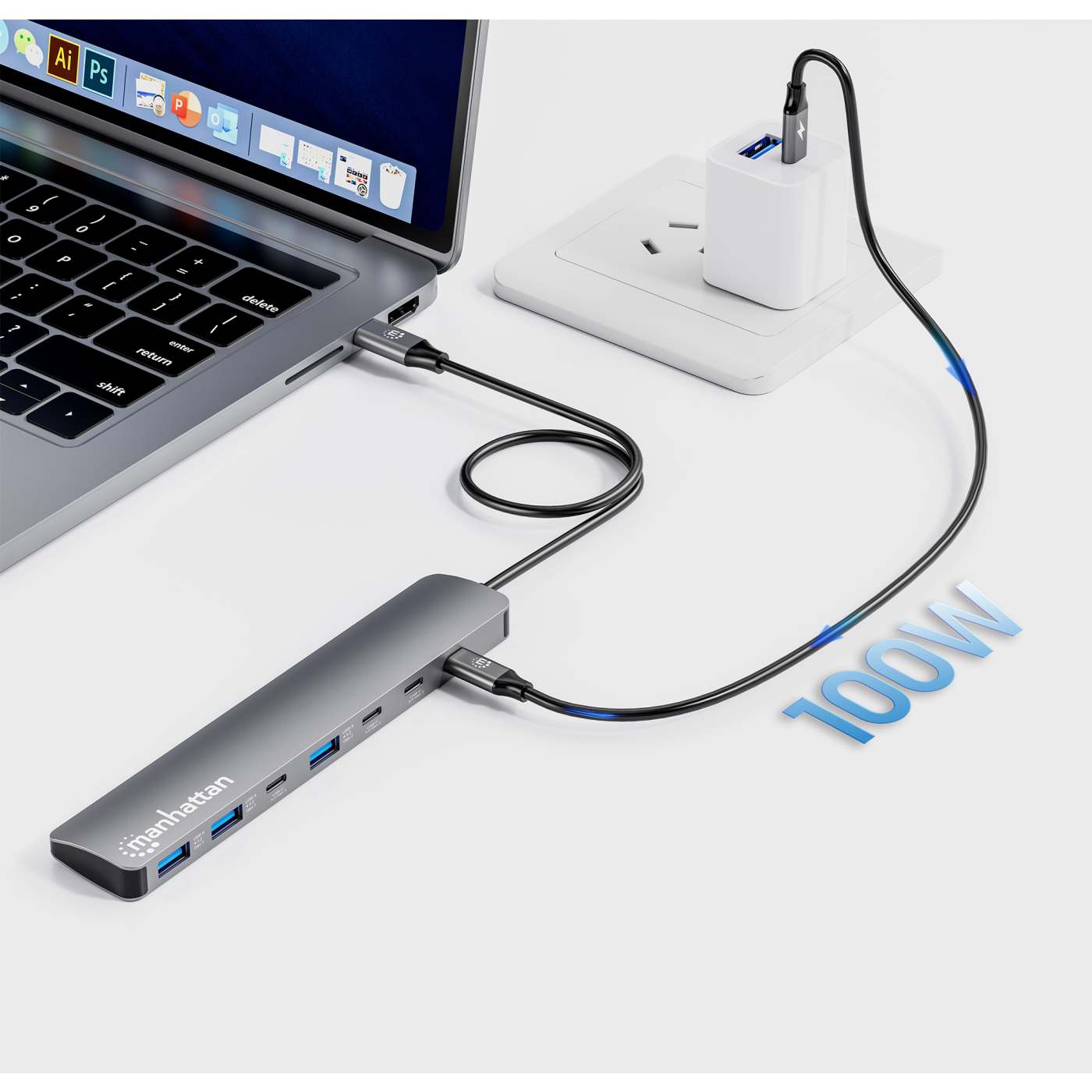

Stay powered up with USB Power Delivery (PD) support. Simply connect your PD charger (available from Manhattan) to deliver up to 100 W of charging power, keeping your laptop, MacBook®, or Surface® device ready for action.
Plug-and-Play Simplicity
Forget about complicated setups - this hub offers plug-and-play installation with no drivers required. It’s compatible with Windows®, macOS®, Linux®, and Chrome OS™, ensuring seamless integration with your devices.
Designed for Convenience

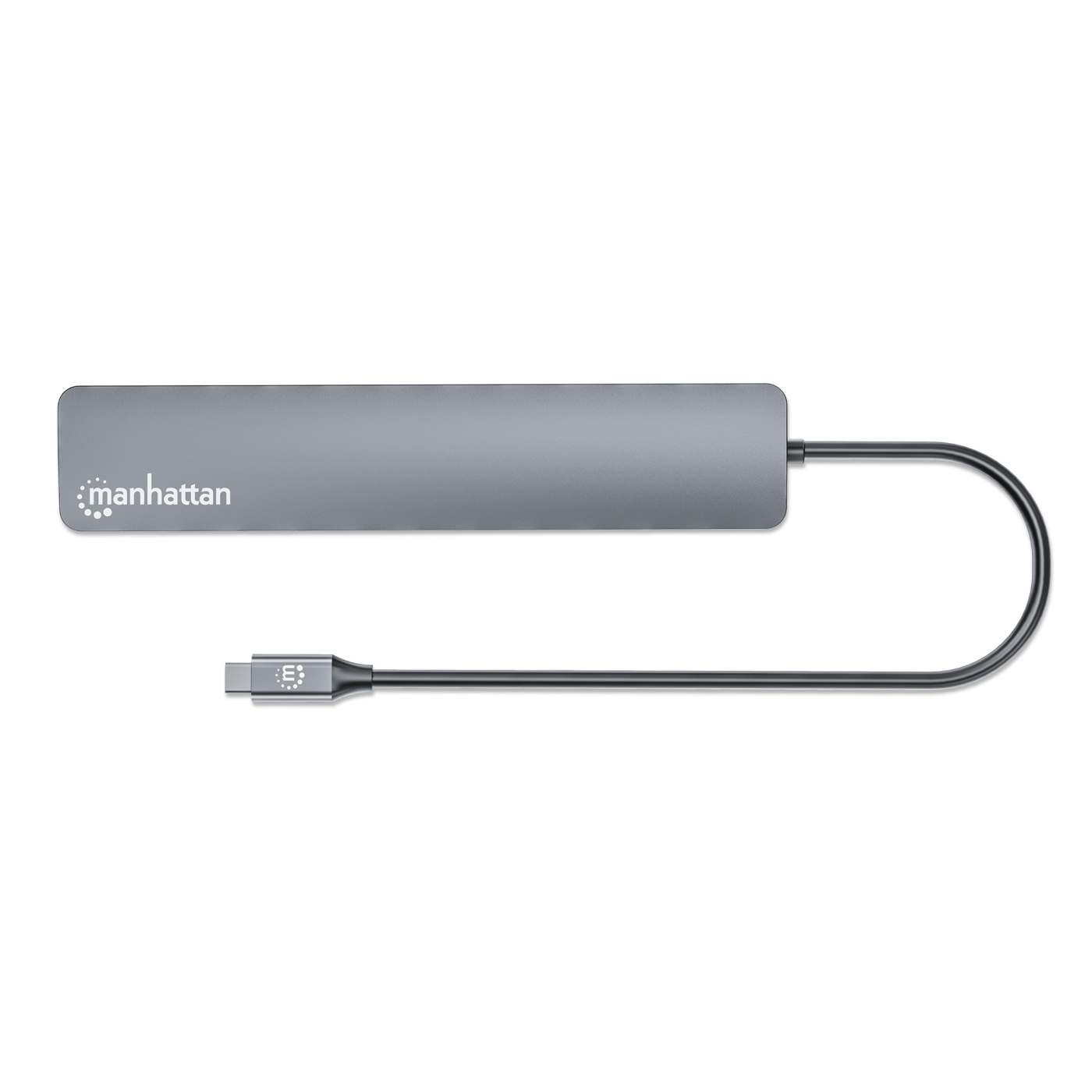

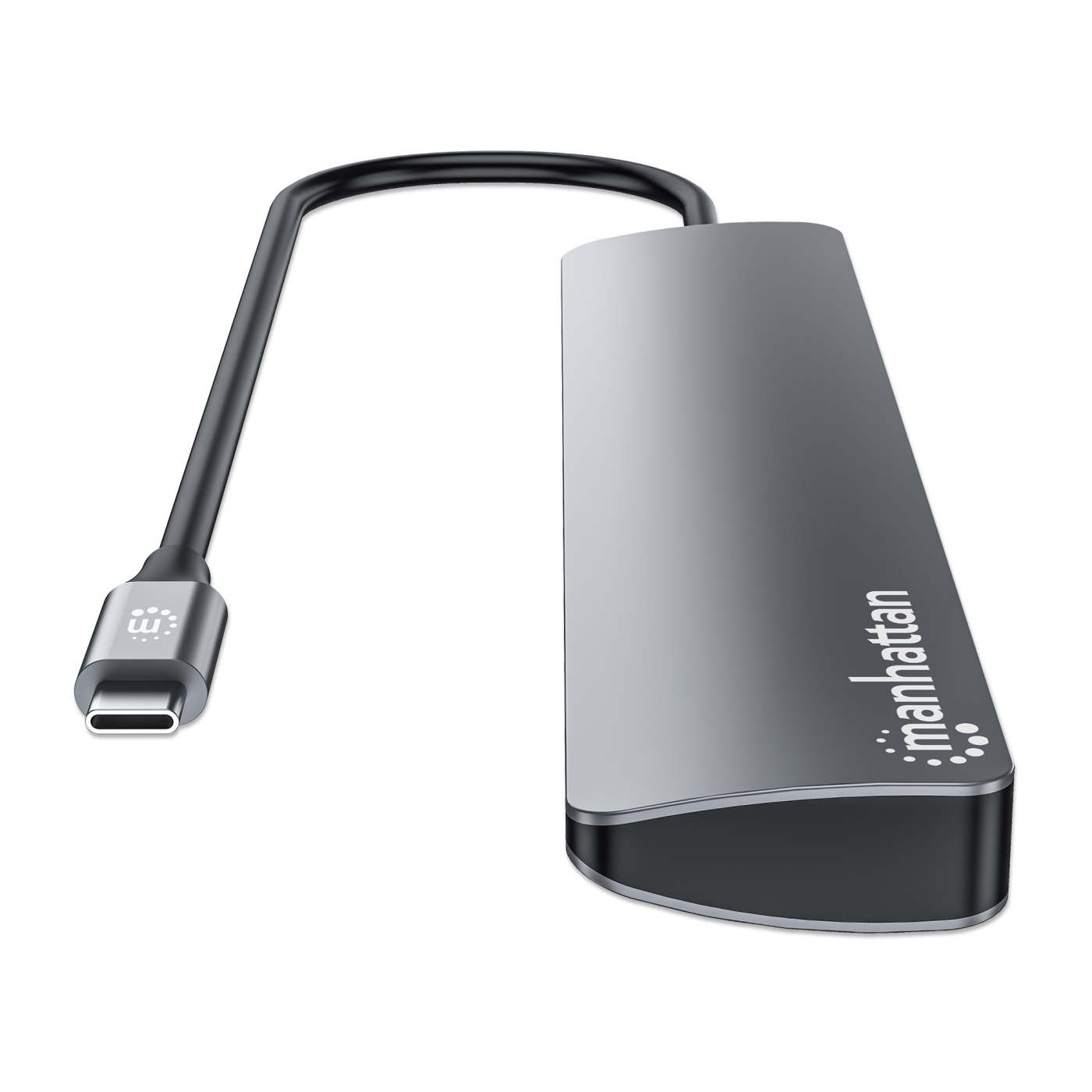

The hub’s sturdy 30 cm (1 ft.) built-in cable provides optimal reach for desktop setups, while its sleek aluminum housing offers durability and style. The compact and lightweight design easily fits into your laptop bag, making it perfect for travel or hybrid work environments.
Built for Performance and Protection
With Hot Swapping support and bus-powered functionality, this hub adapts to your workflow. For additional flexibility, the optional USB-C charging port supports PD functionality when an external charger is connected.

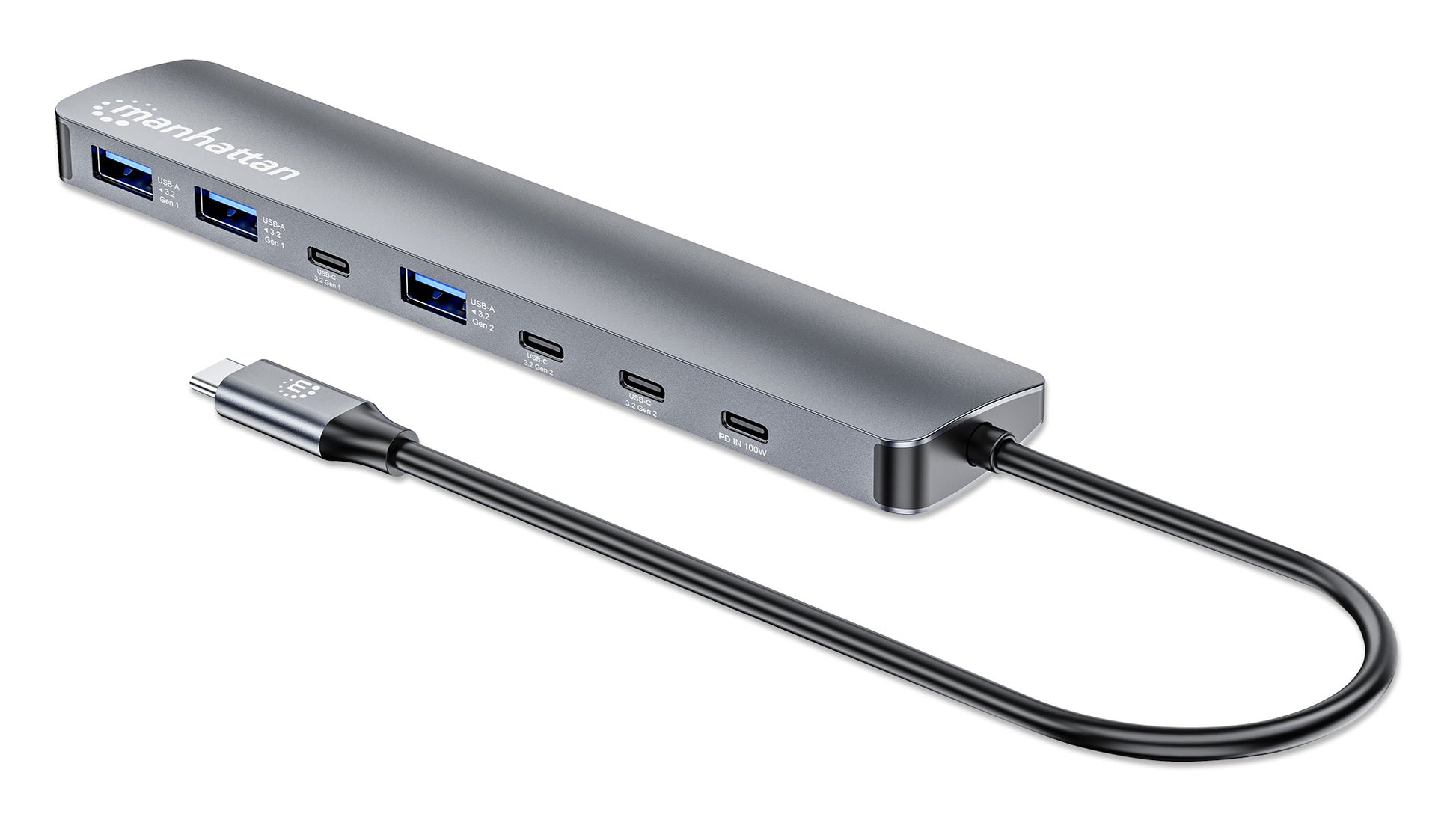

- Adds three USB-C ports to connect external SSDs, card readers, Ethernet adapters, and more
- Adds three USB-A ports to connect mice, keyboards, flash drives, and more
- Charges your laptop with via USB-C Power Delivery (PD) port up to 100 W; requires an external PD charger - available from Manhattan

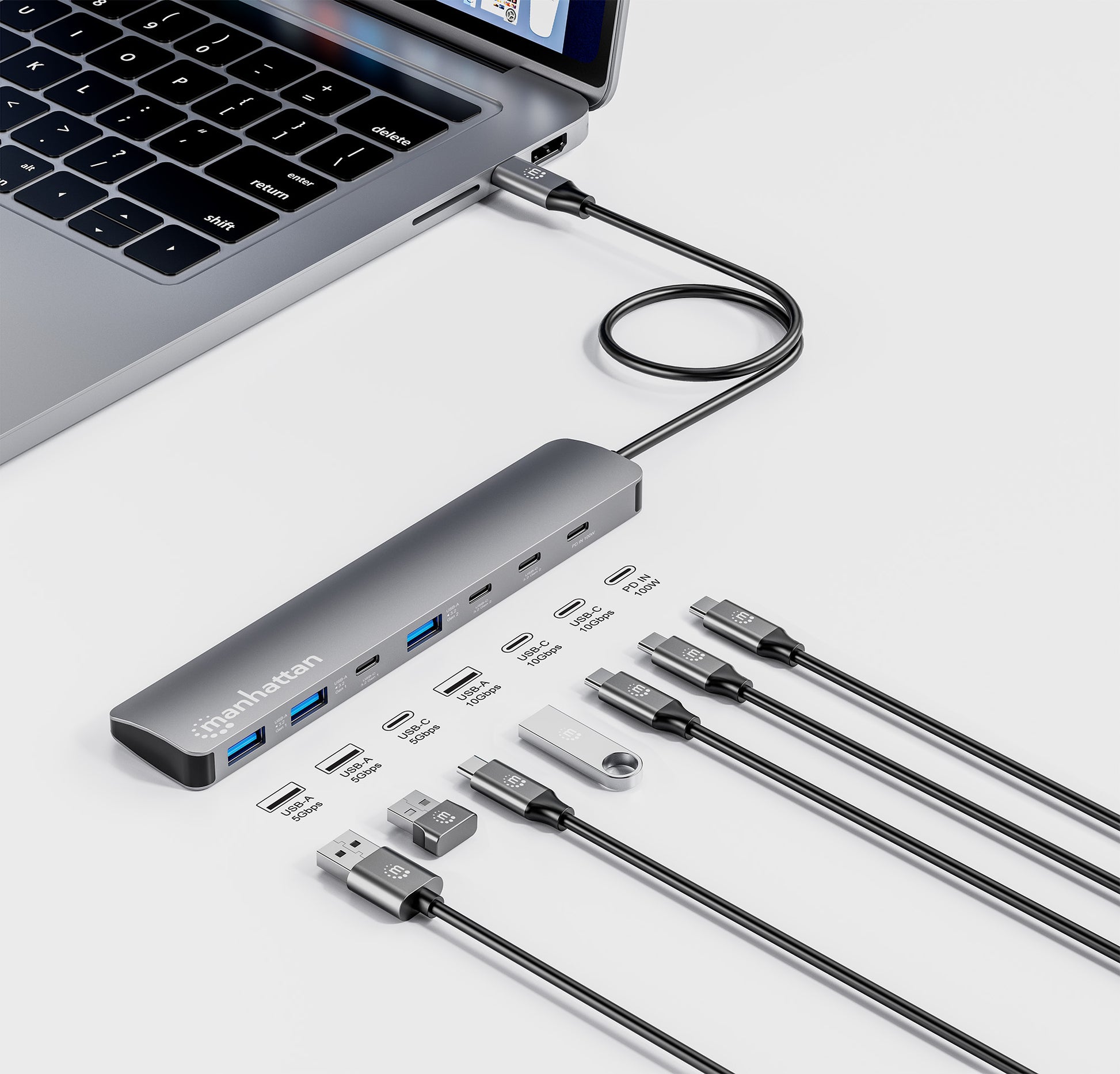

- One USB-A and two USB-C ports with transfer rates up to 10 Gbps; one USB-C and two USB-A ports with transfer rates up to 5 Gbps
- Great for desktop PCs, Ultrabooks™, laptops, Chromebooks™, MacBooks®, Surface® devices and more
- Compatible with Windows®, macOS®, Linux® and Chrome OS™
- Plug-and-play installation; no configuration or drivers required
- Bus powered, USB-C charging port optional for PD functionality
- Supports Hot Swapping
- Built-in, sturdy 30 cm (1 ft.) cable
- Sleek aluminum housing with small footprint, great for desktop placement and travel
- Portable, compact and lightweight design that easily fits into laptop bag pockets
- Three-year warranty
- Standards and Certifications
- USB 3.2 Gen 2
- PD 3.0
- CE
- FCC
- RoHS
- REACH
- UKCA
General
- Data transfer speeds: up to 10 Gbps
- USB port charging power output (non-PD): 4.5 W (5.0 V at 0.9 A) max.
- Withstanding voltage: 300.0 V DC
- Insulation resistance: 10 MΩ
- Conductive resistance: 5 Ω
- USB-C PD charging port: 100.0 W (20.0 V at 5.0 A) max.
- Voltage/current settings (maximum):
- 5.0 V / 3.0 A
- 9.0 V / 3.0 A
- 12.0 V / 3.0 A
- 15.0 V / 3.0 A
- 19.0 V / 5.0 A
- 20.0 V / 5.0 A
Connections
- One USB-C 24-pin, male
- Three USB-C 24-pin, female (2 x 10 Gbps, 1 x 5 Gbps)
- One USB-C 16-pin, female (Power Delivery)
- Three USB-A 9-pin, female (1 x 10 Gbps, 2 x 5 Gbps)
Physical
- Dimensions (L x W x H): 169 x 34 x 13 mm (6.65 x 1.34 x 0.51 in.)
- Net weight: 74 g (0.16 lbs.)
- Gross weight: 100 g (0.22 lbs.)
- Cable length: 30 cm (1 ft.)
- Cable OD: 4.5 mm (0.18 in.)
- Housing: aluminum
Operating Environment
- Operation Temperature: 0 - 50°C (32 – 122°F)
- Storage Temperature: -20 - 60°C (-4 – 140°F)
- Humidity (non-condensing): 0 - 85%
System Requirements
- Windows XP/Vista/7/8.1/10/11, Linux, Chrome OS or macOS
Package Contents
- 7-Port 10G PD Hub with 3 USB Type-C, 3 USB Type-A, 1 USB Type-C PD Port
- Instructions
Additional SKUs
- Amazon ASIN: B0FHQNQ2WL
- EAN: 0766623181167
- UPC: 766623181167
Physical Specifications
- Product net weight: 0.07 kg
- Product gross weight: 0.1 kg
- Dimensions: 169 (L) x 34 (W) x 13 (H) [mm]
- Packaging type: Retail Hanging Box
- Packaging dimensions: 225 x 85 x 18 [mm]
- Master Carton Quantity: 50
- Master Carton Weight: 5.51 kg
- Master Carton Dimensions: 500 x 237 x 200 [mm]
