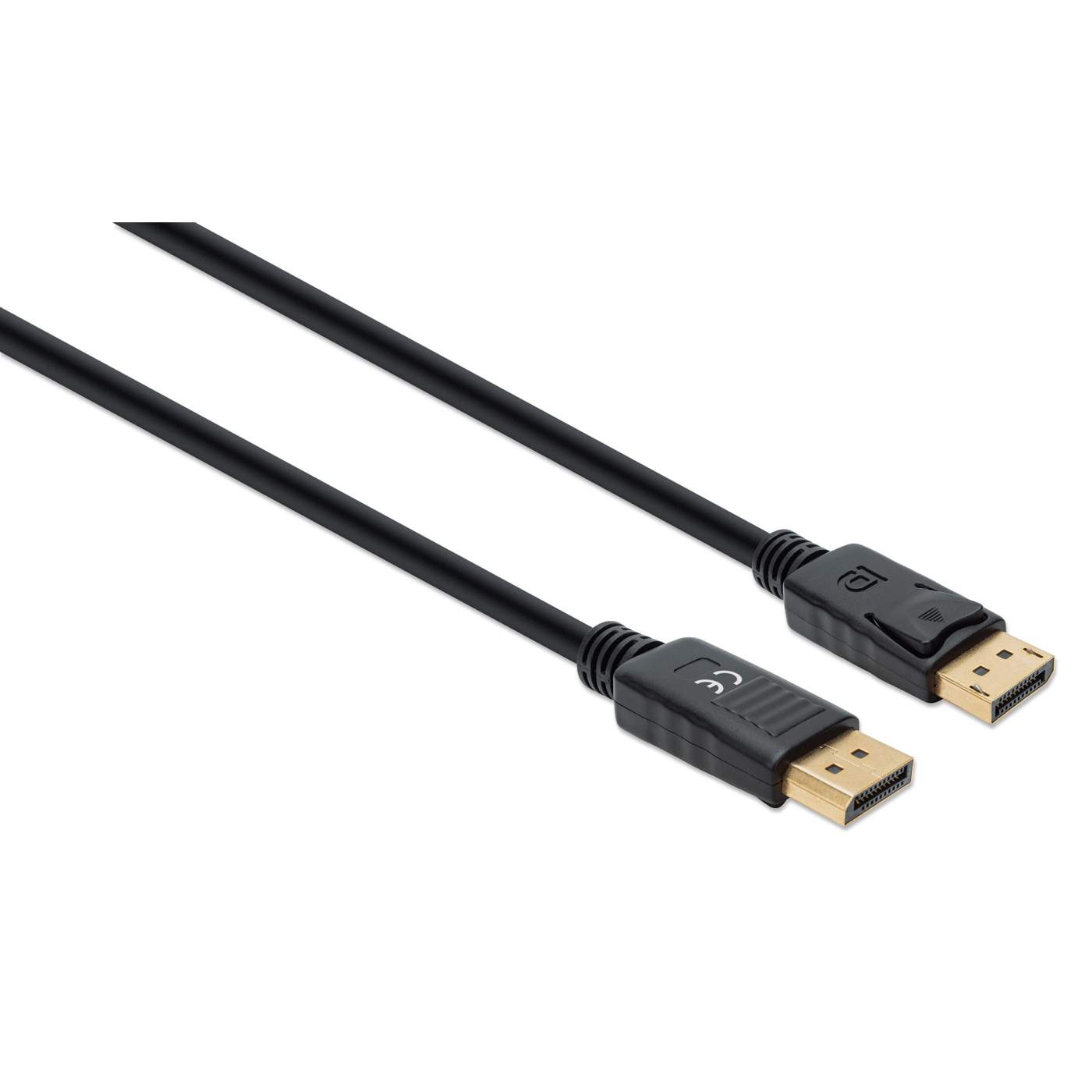

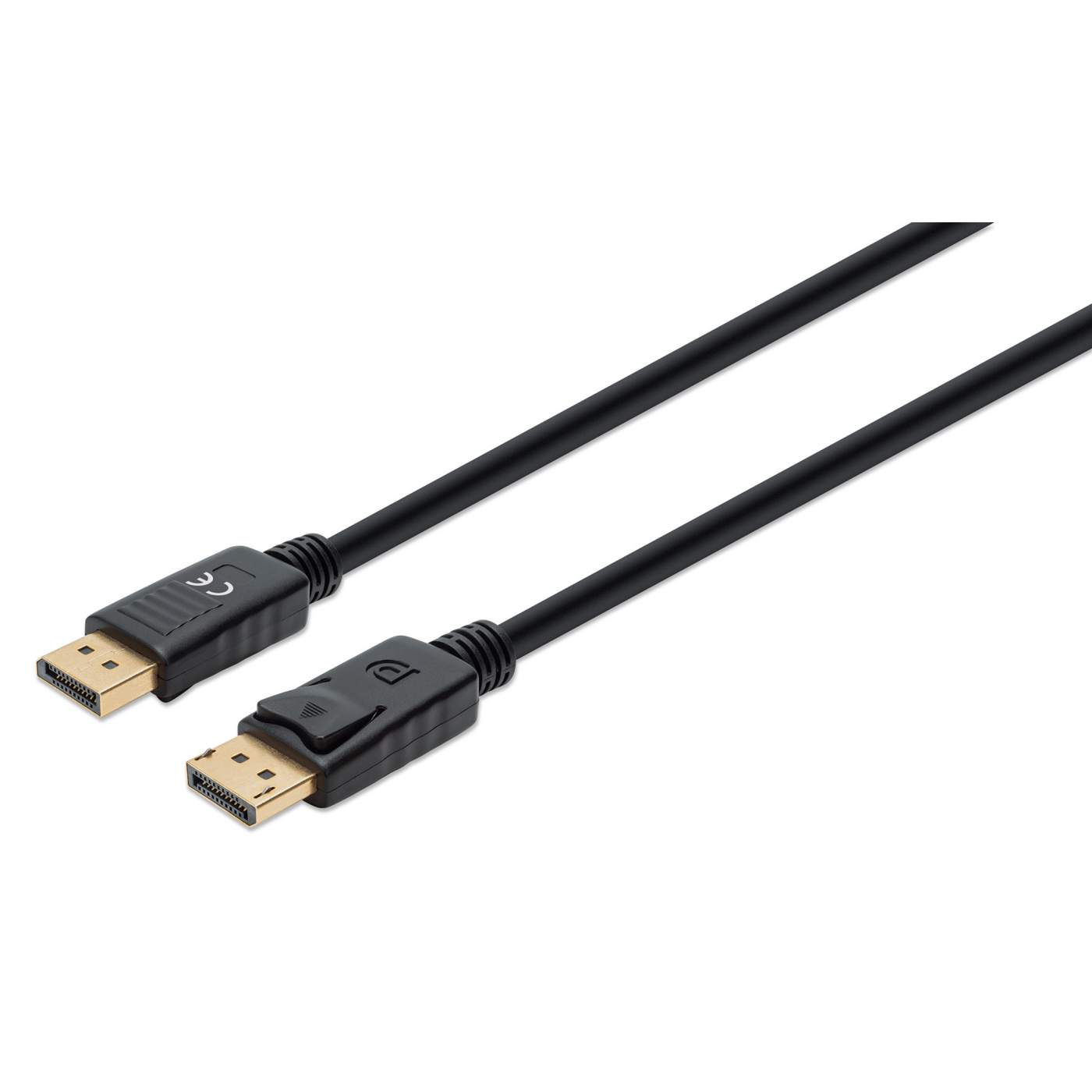

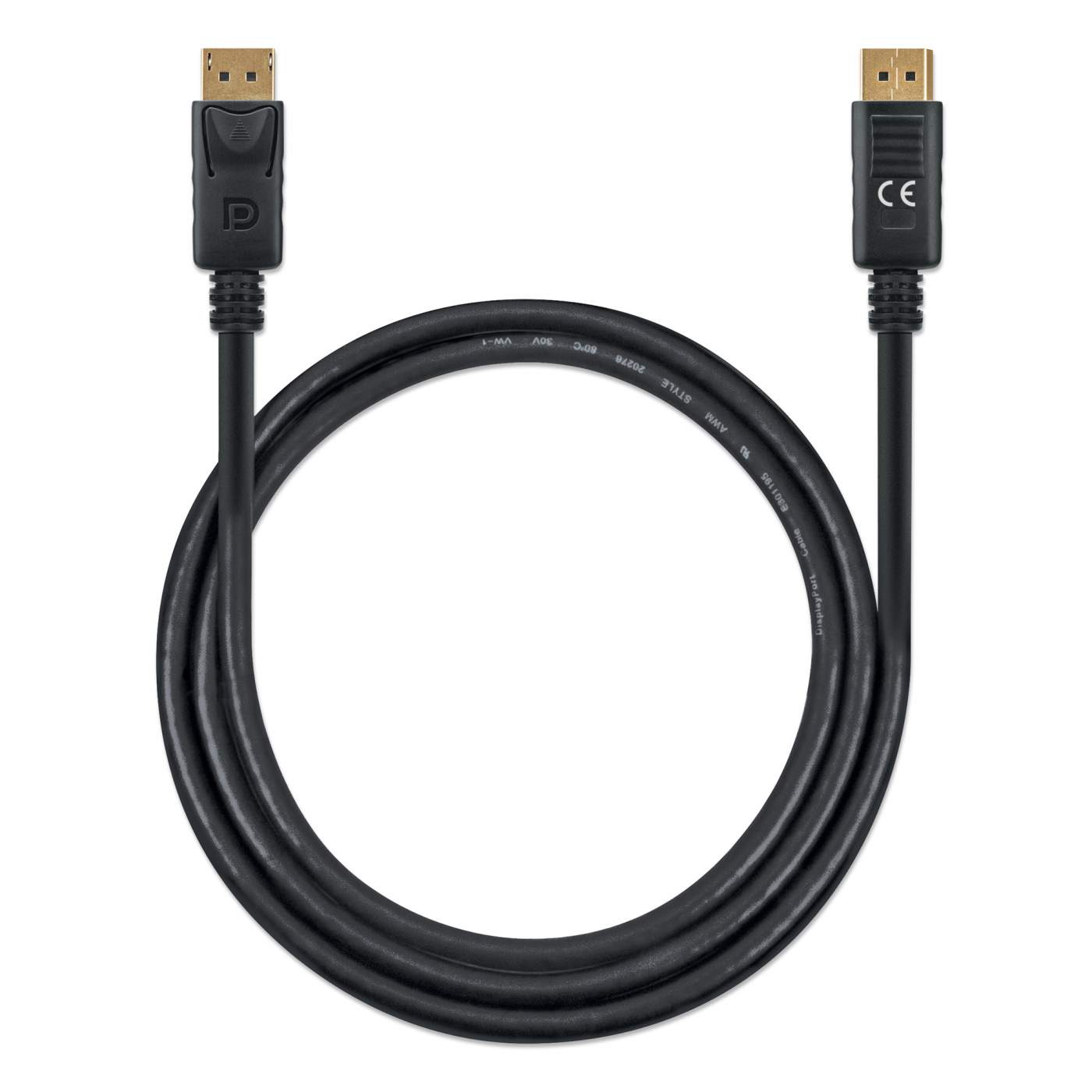

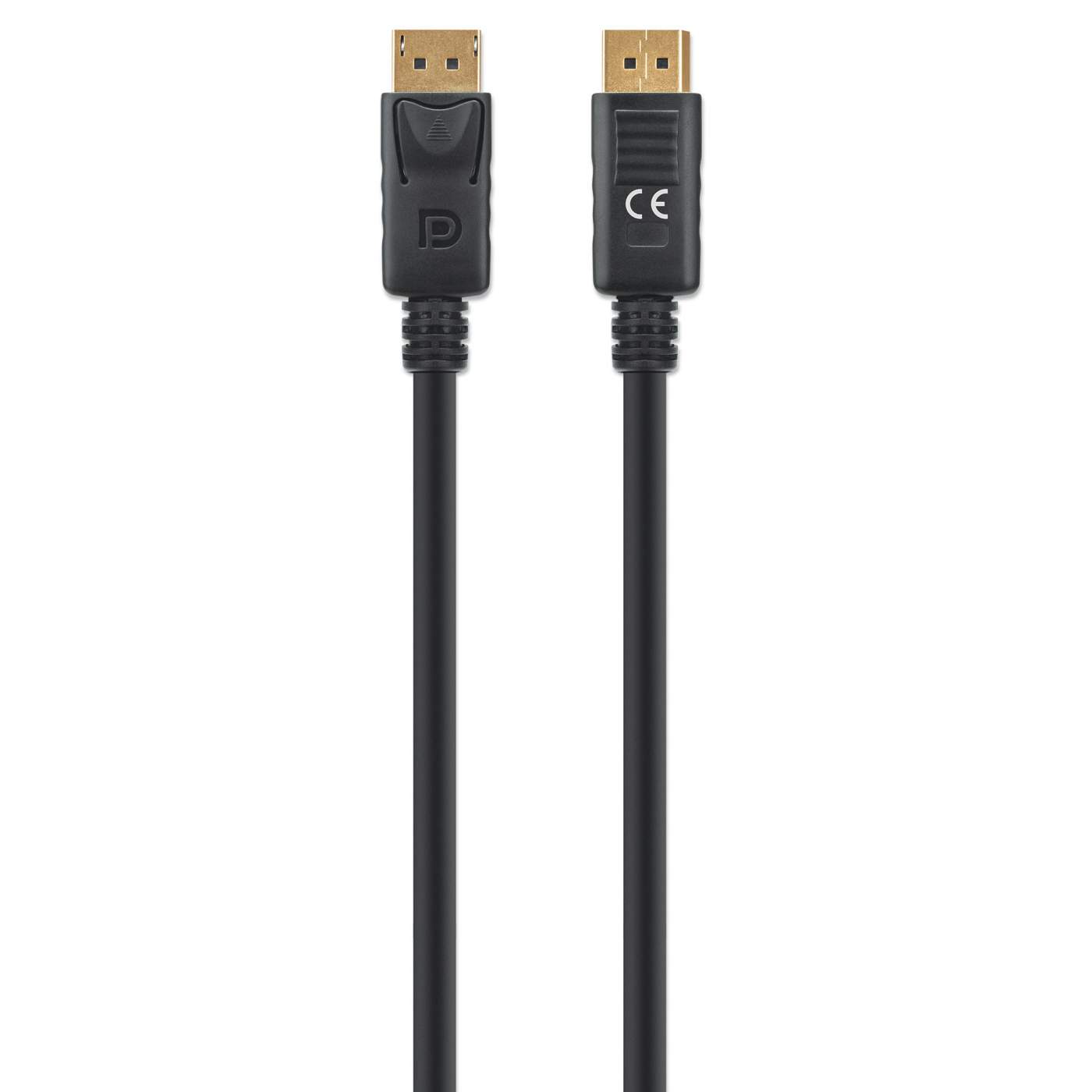

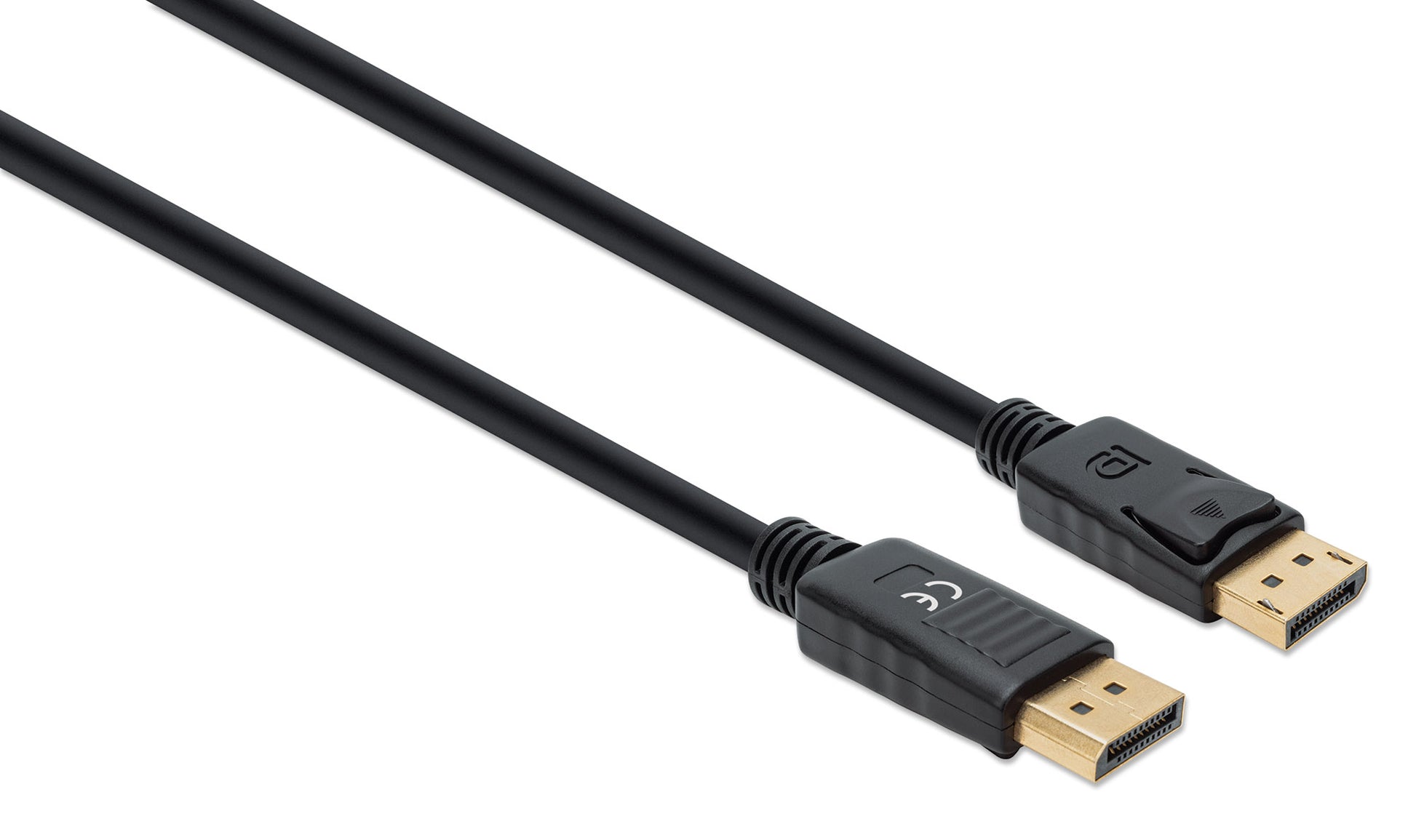

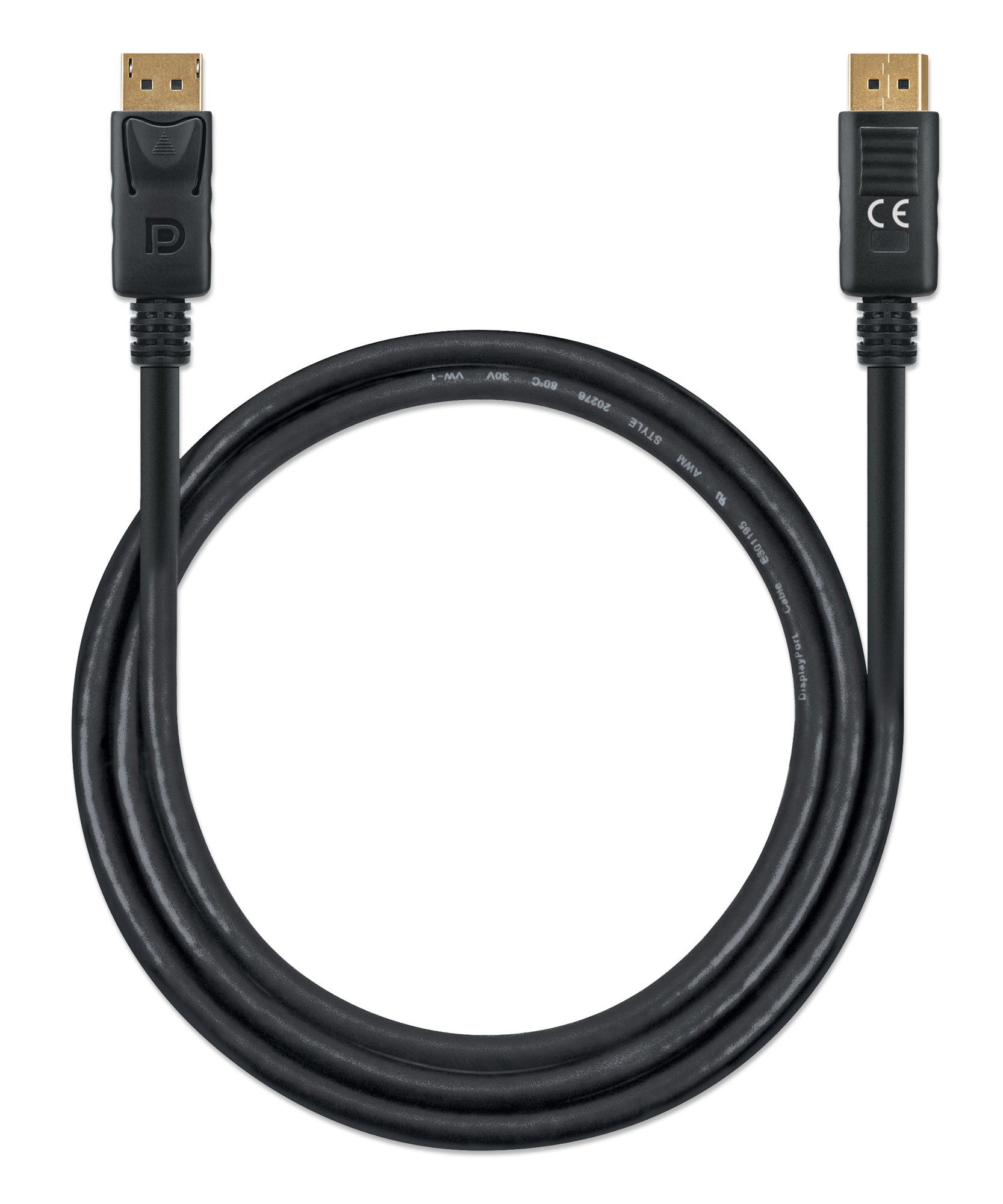

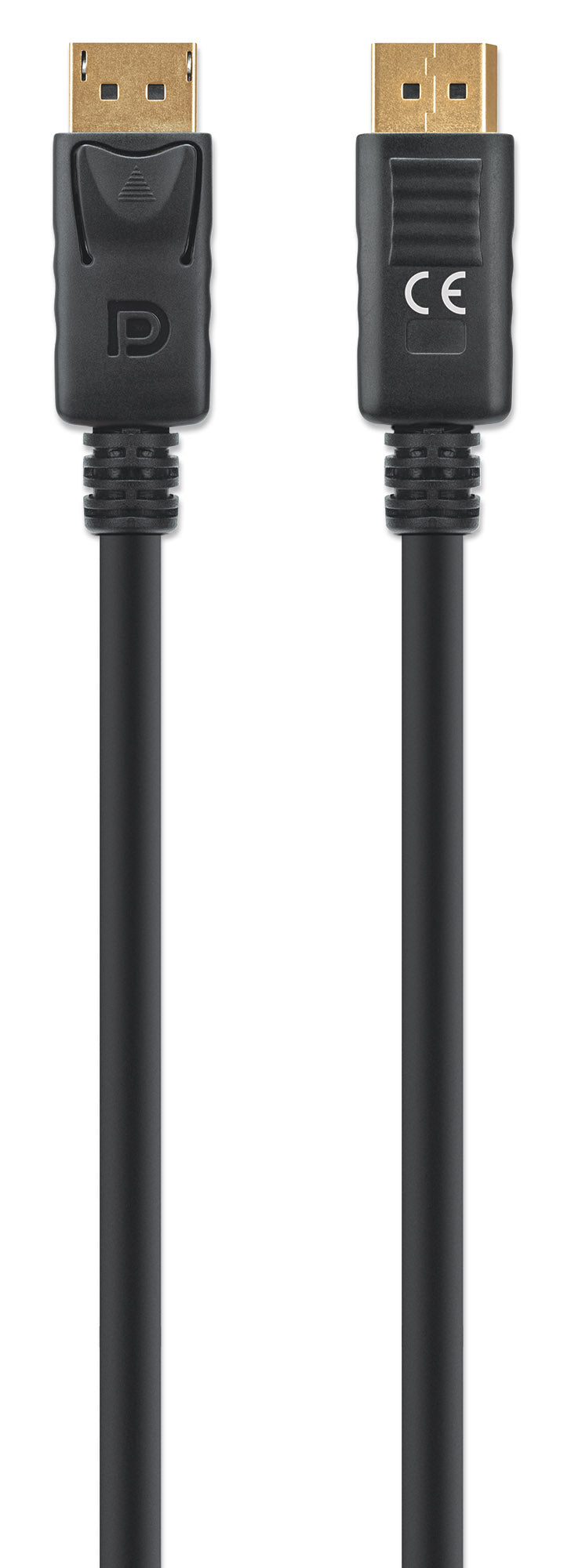

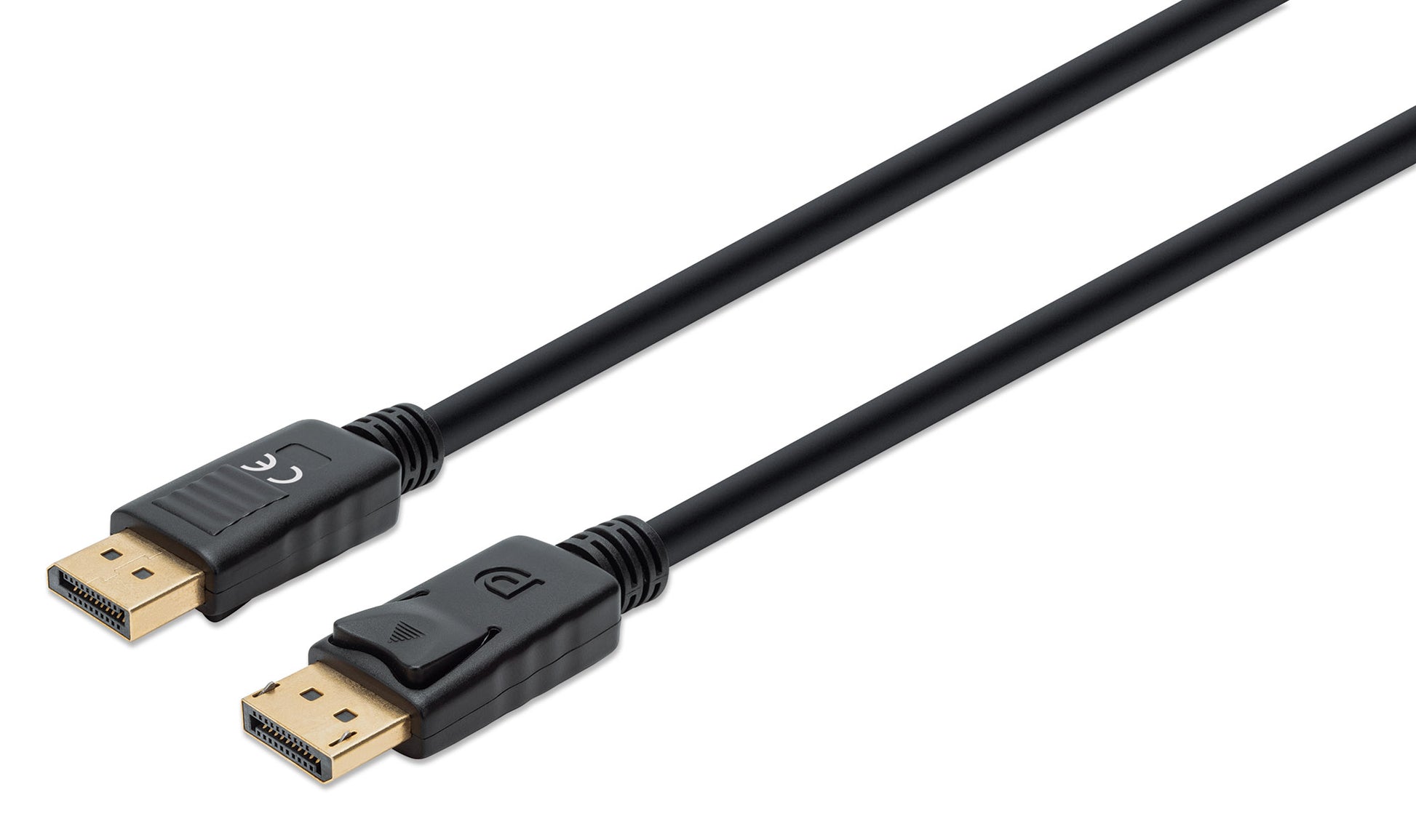

8K@60Hz DisplayPort 1.4 Cable

DisplayPort Male to Male, 1 m (3 ft.), Supports 4K@120Hz, HDR, Gold-plated Contacts, PVC Jacket with Latches, Black

Part-No.: 355568

Highlights

  • DisplayPort 20-pin male to DisplayPort 20-pin male latching connections
  • DisplayPort 1.4 with state-of-the art, future-proof features for high-end gaming and AV applications
  • Supports resolutions 8K@60Hz, 4K@120Hz, 1440p@144Hz (UWQHD), 1440p@165Hz (WQHD) and 1080p@240Hz

DisplayPort Cable featuring future-proof 8K@60Hz for high-end gaming and AV applications

The Manhattan DisplayPort Monitor Cable makes you ready for even the most demanding graphic challenges in gaming, digital signage and other high-end AV applications. Its superior DisplayPort 1.4 standard delivers images in brilliant 8K (7680 x 4320) at rapid 60 Hz or 4K UHD at blazing fast 120 Hz with HDR for perfect contrast and colors. The triple shielding and gold-plated contacts provide maximum conductivity as well as crisp, clear signal transmissions with zero EMI interference.



  • DisplayPort 20-pin male to DisplayPort 20-pin male latching connections
  • DisplayPort 1.4 with state-of-the art, future-proof features for high-end gaming and AV applications
  • Supports resolutions 8K@60Hz, 4K@120Hz, 1440p@144Hz (UWQHD), 1440p@165Hz (WQHD) and 1080p@240Hz
  • HDR for superior contrast and brilliant colors
  • Supports Dolby Vision™ and Dolby Atmos®
  • Up to 32.4 Gbps bandwidth
  • Gold-plated contacts for corrosion-free connections
  • Triple shielded to reduce EMI and other interference sources
  • Unwired Pin 20 to prevent short circuits
  • Supports Multi-Stream Transport (MST) to daisy-chain multiple displays
  • Uncompressed 32-channel audio
  • Fully compliant with DisplayPort High Bit Rate 3 (HBR3)
  • Display Stream Compression 1.2 (DSC) for maximum resolution output
  • Lifetime warranty

    Standards and Certifications
  • DisplayPort v1.4
  • CE
  • RoHS

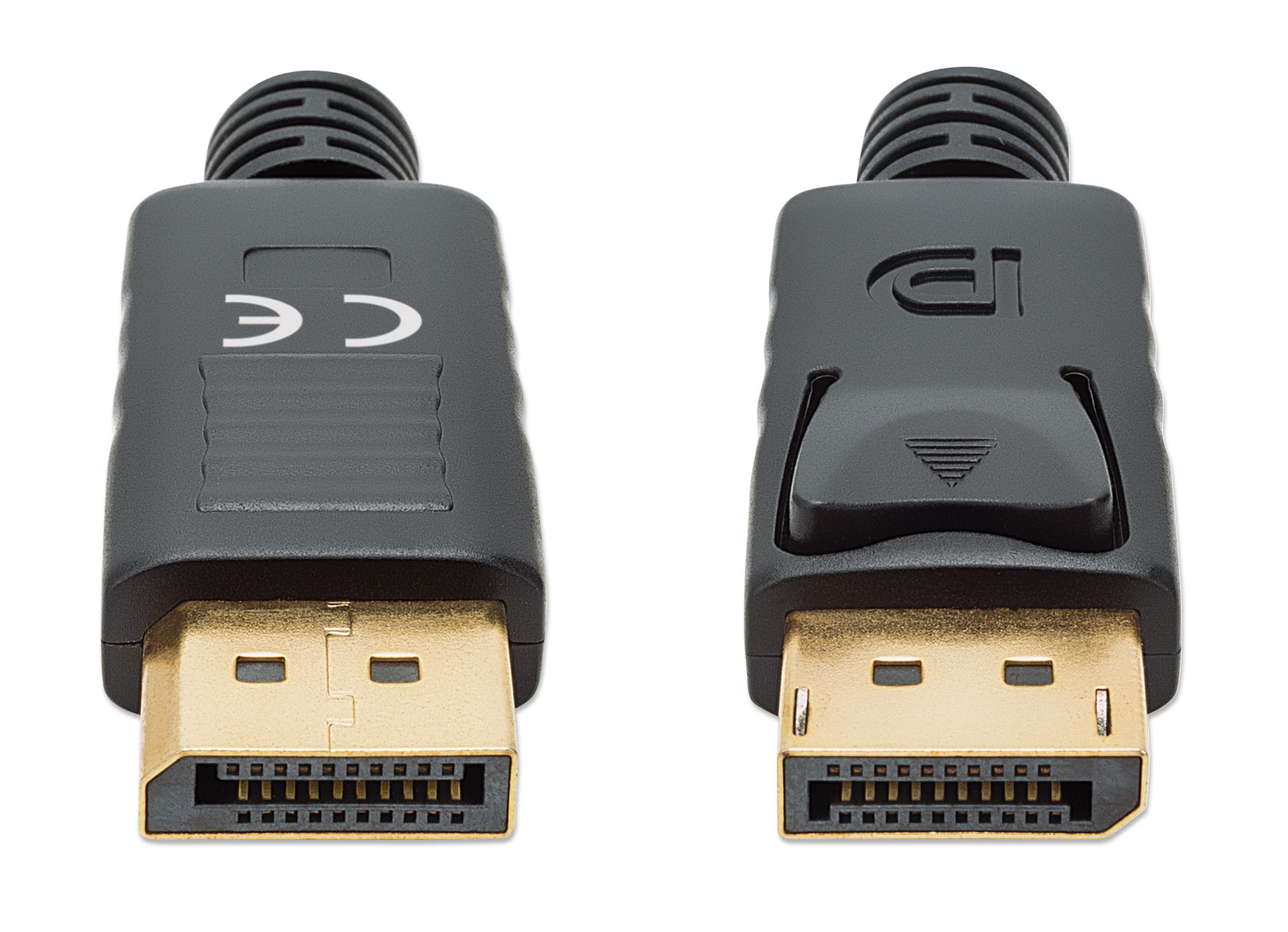

    Connectors

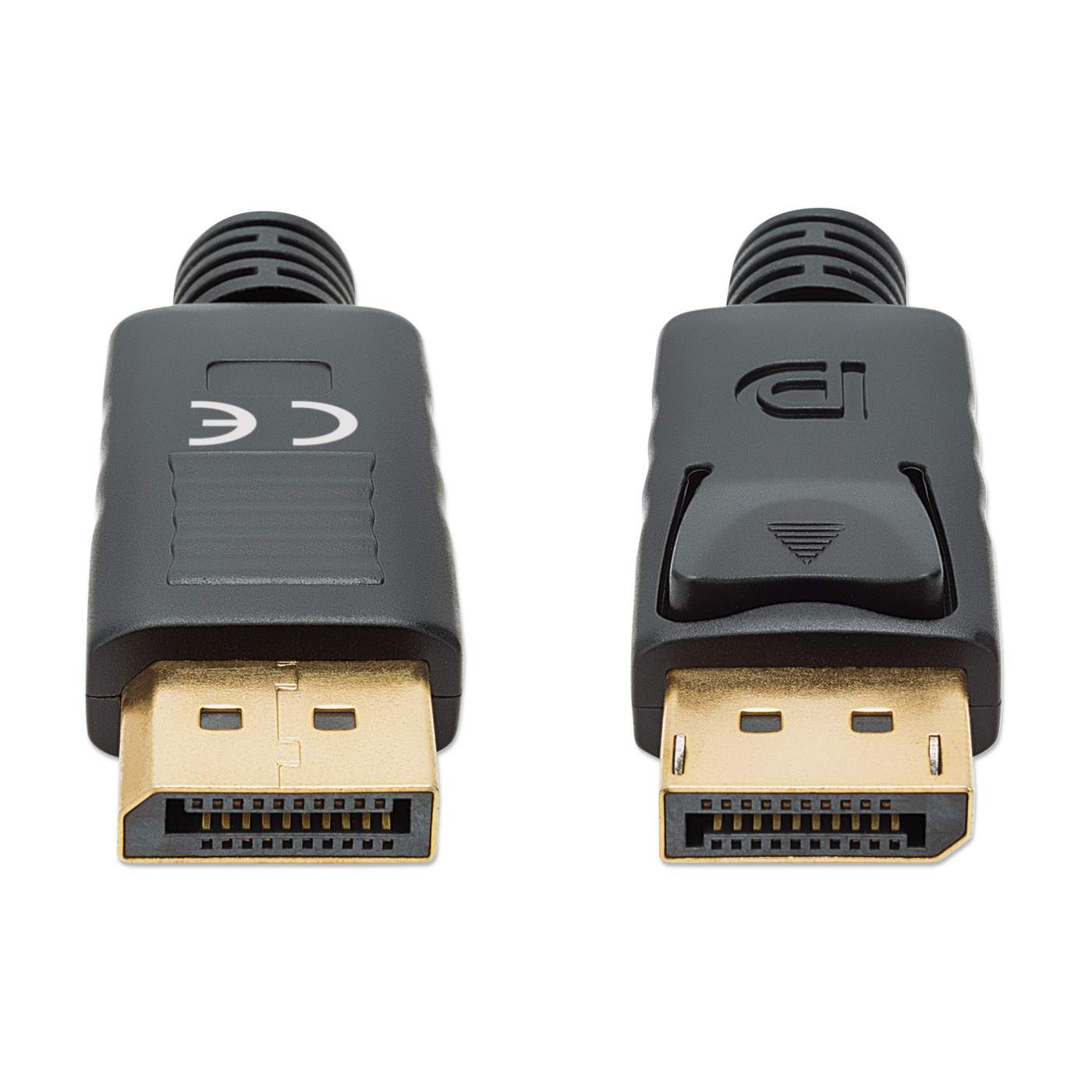

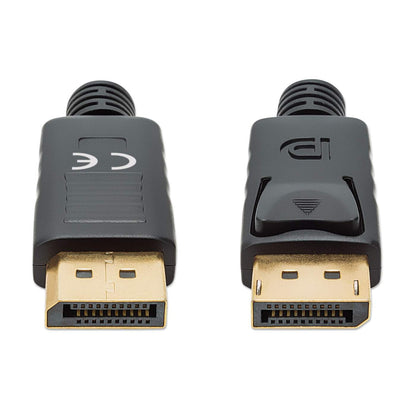

  • Two DisplayPort 20-pin males with latches
  • 19 conductors
  • Gold-plated contacts
  • ABS shell housing

    Cable
  • 28 AWG
  • Triple shielding: aluminum and Mylar braid
  • Withstanding voltage: 300 VDC
  • Insulation resistance: 5 MΩ
  • Contact resistance: 10 Ω
  • PVC jacket
  • Length: 1 m (3 ft.)
  • Weight: 69 g (2.43 oz.)

    Operating Environment
  • Operation temperature: 0 - 40°C (32 - 104°F)
  • Storage temperature: -20 - 60°C (-4 - 140°F)
  • Humidity (noncondensing): 0 - 96%

    Package Contents
  • 8K@60Hz DisplayPort 1.4 Cable

  • Additional SKUs

    • EAN: 0766623355568
    • UPC: 766623355568

  • Physical Specifications

    • Weight: 0.07 kg
    • Dimensions: 1 (L) x 0.02 (W) x 0.01 (H) [m]
    • Packaging: Bag
    • Carton Quantity: 100
    • Carton Weight: 7.50 kg

  • Datasheet
