Mini DisplayPort to DisplayPort 1.4 Cable, 8K60/4K120 Hz for High-End Gaming, AV Applications, and Creative Professionals
Experience ultra-high-resolution visuals and next-level audio with the 8K@60Hz Mini DisplayPort to DisplayPort 1.4 Cable - an excellent connection for high-end gaming, professional AV setups, and multi-monitor workflows. With support for resolutions up to 8K@60Hz, 4K@120Hz, and 1080p@240Hz, this 3-meter cable ensures your content looks razor-sharp and plays ultra-smooth.
Versatile Compatibility in a Compact Form
The compact Mini DisplayPort form factor makes this cable ideal for connecting to specialized monitors, KVM switches, docking stations, and legacy devices like older laptops, MacBooks®, iMacs® and MS Surface Pros. Whether you're creating a multi-monitor workstation with MST or simply connecting a high-res display, this 3-meter cable offers the flexibility and performance you need.
Reliable Build for Secure, Interference-Free Performance
Engineered for DisplayPort 1.4 with HBR3, DSC 1.2, and a 32.4 Gbps bandwidth, it delivers full compatibility with cutting-edge features like HDR, Dolby Vision™, Dolby Atmos®, 4:4:4 chroma subsampling, and uncompressed 32-channel audio — all with support for Multi-Stream Transport (MST) to daisy-chain multiple displays.Built to last and perform, it features gold-plated contacts for corrosion resistance, triple shielding to reduce electromagnetic interference, and an unwired Pin 20 to prevent power-related short circuits. The latching DisplayPort connector ensures a secure fit during intense use. Whether you're connecting a Mini DisplayPort laptop to a high-resolution monitor, or creating a powerful workstation setup, this cable combines reliability, clarity, and raw bandwidth - fully UL approved for peace of mind.

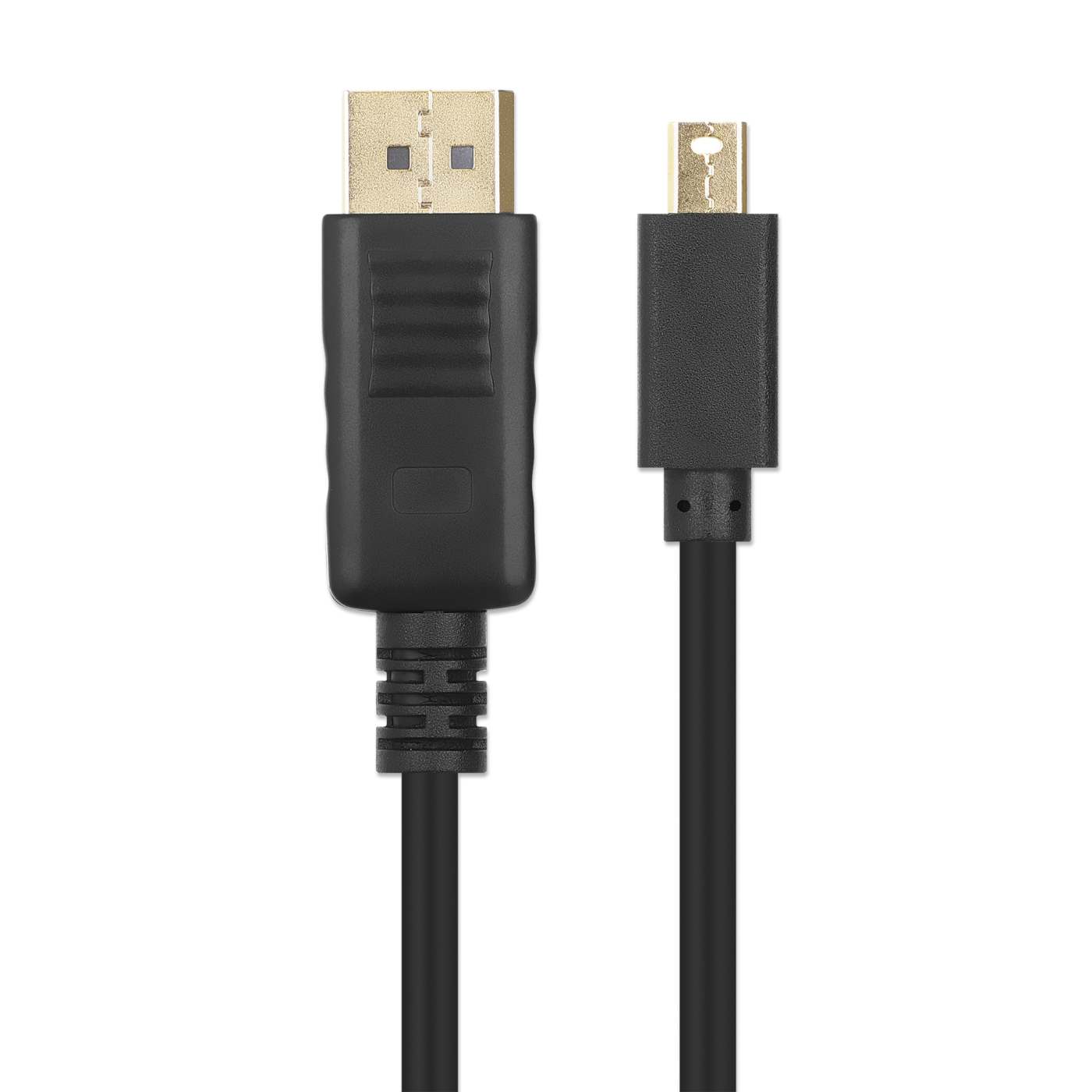

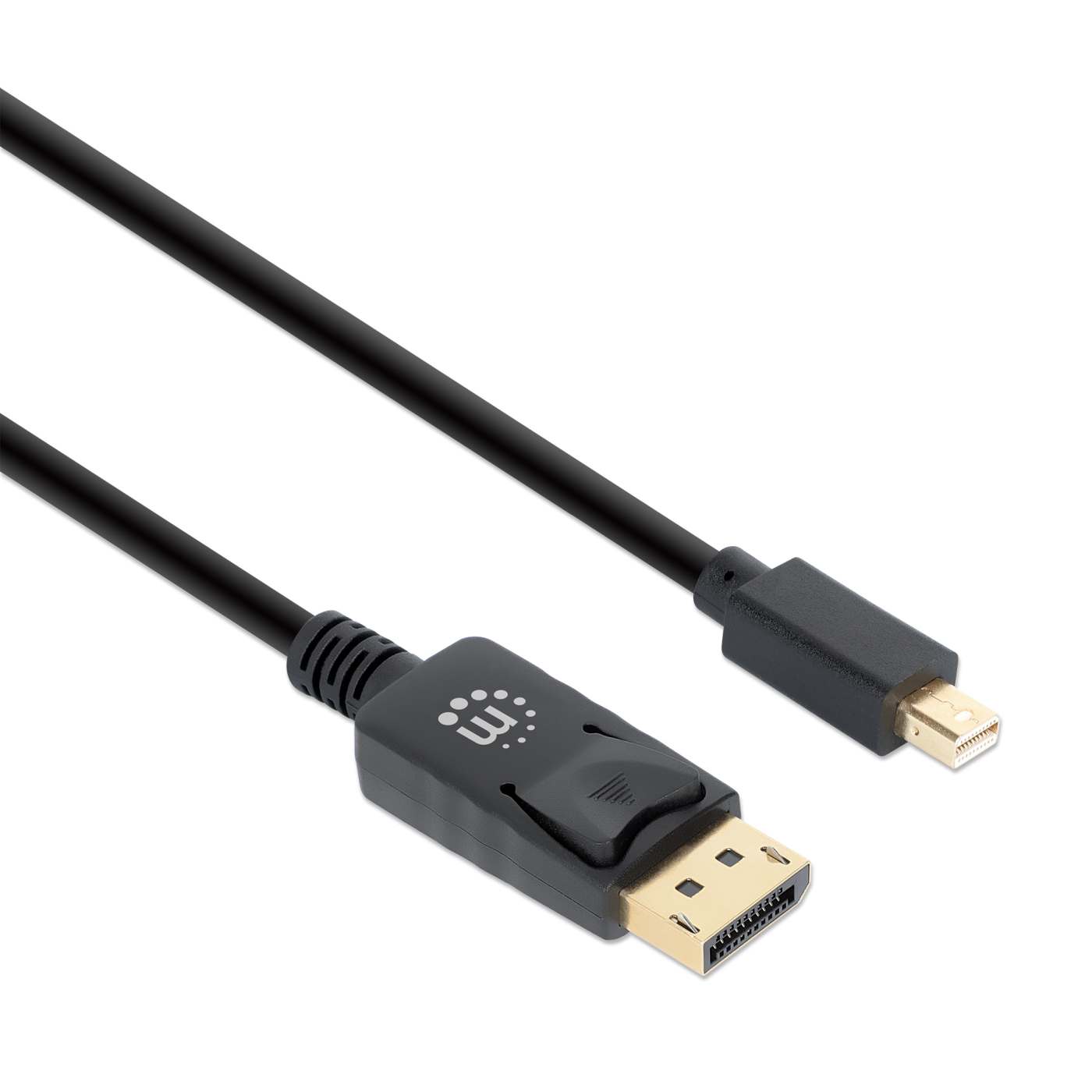

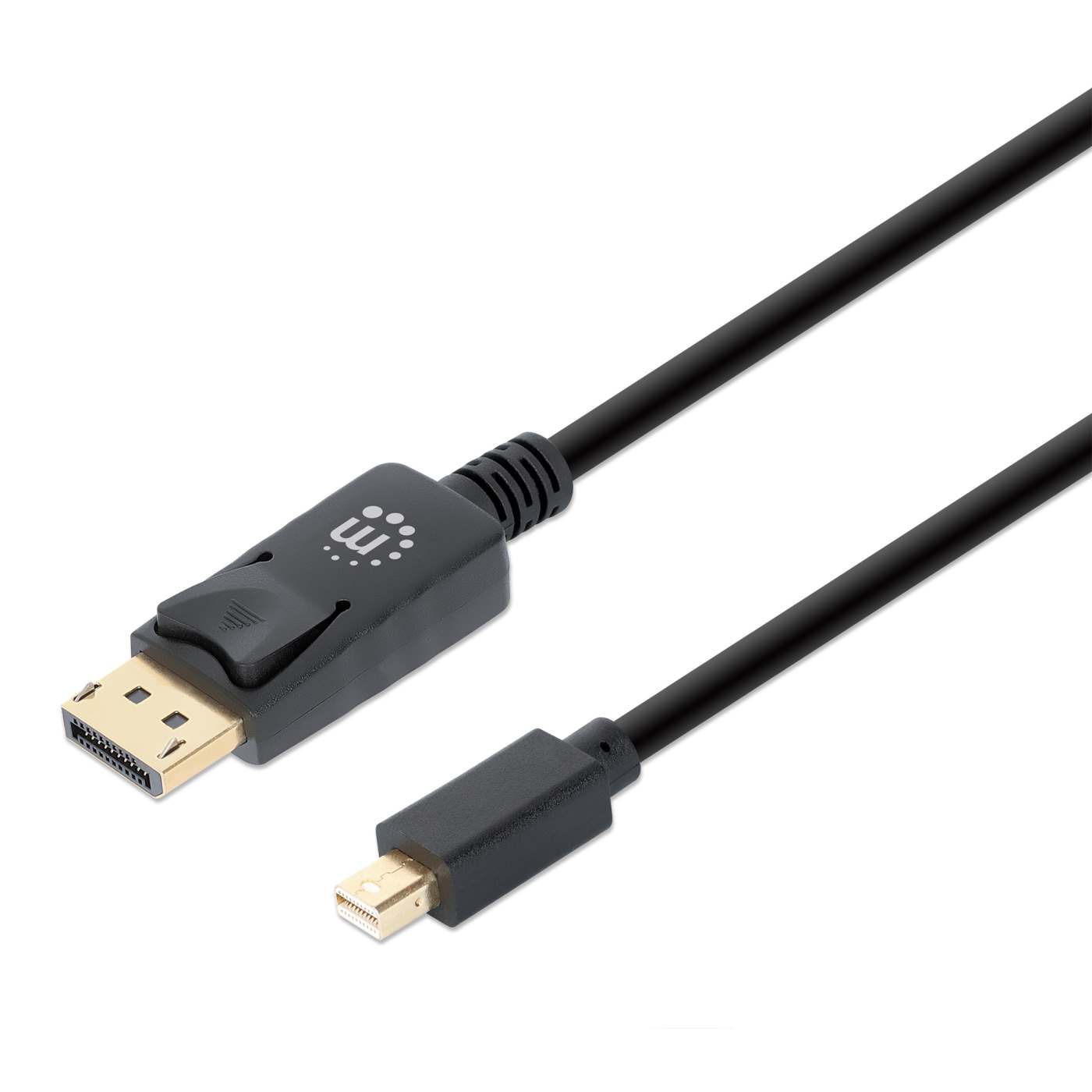

- Mini DisplayPort 20-pin male to DisplayPort 20-pin male, DP with latching connection
- DisplayPort 1.4 with top-tier features for high-end gaming and AV applications
- Mini DisplayPort form factor compatible with specialized monitors, KVM switches, docking stations, and legacy devices like older laptops, MacBooks®, iMacs, and Surface Pros
- Supports resolutions 8K@60Hz, 4K@120Hz, 1440p@144Hz (UWQHD), 1440p@165Hz (WQHD) and 1080p@240Hz
- HDR for superior contrast and brilliant colors
- Supports Dolby Vision™ and Dolby Atmos®
- Up to 32.4 Gbps bandwidth
- Gold-plated contacts for corrosion-free connections
- Triple shielded to reduce EMI and other interference sources
- 4:4:4 chroma subsampling
- Unwired Pin 20 to prevent short circuits
- Supports Multi-Stream Transport (MST) to daisy-chain multiple displays
- Uncompressed 32-channel audio
- Fully compliant with DisplayPort High Bit Rate 3 (HBR3)
- Display Stream Compression 1.2 (DSC) for maximum resolution output
- UL approved
- HDCP 2.2 compliant
- Lifetime warranty
- Standards and Certifications
- DisplayPort v1.4
- CE
- UKCA
- RoHS
- REACH
- FCC
- UL
- HDCP 2.2
Connectors

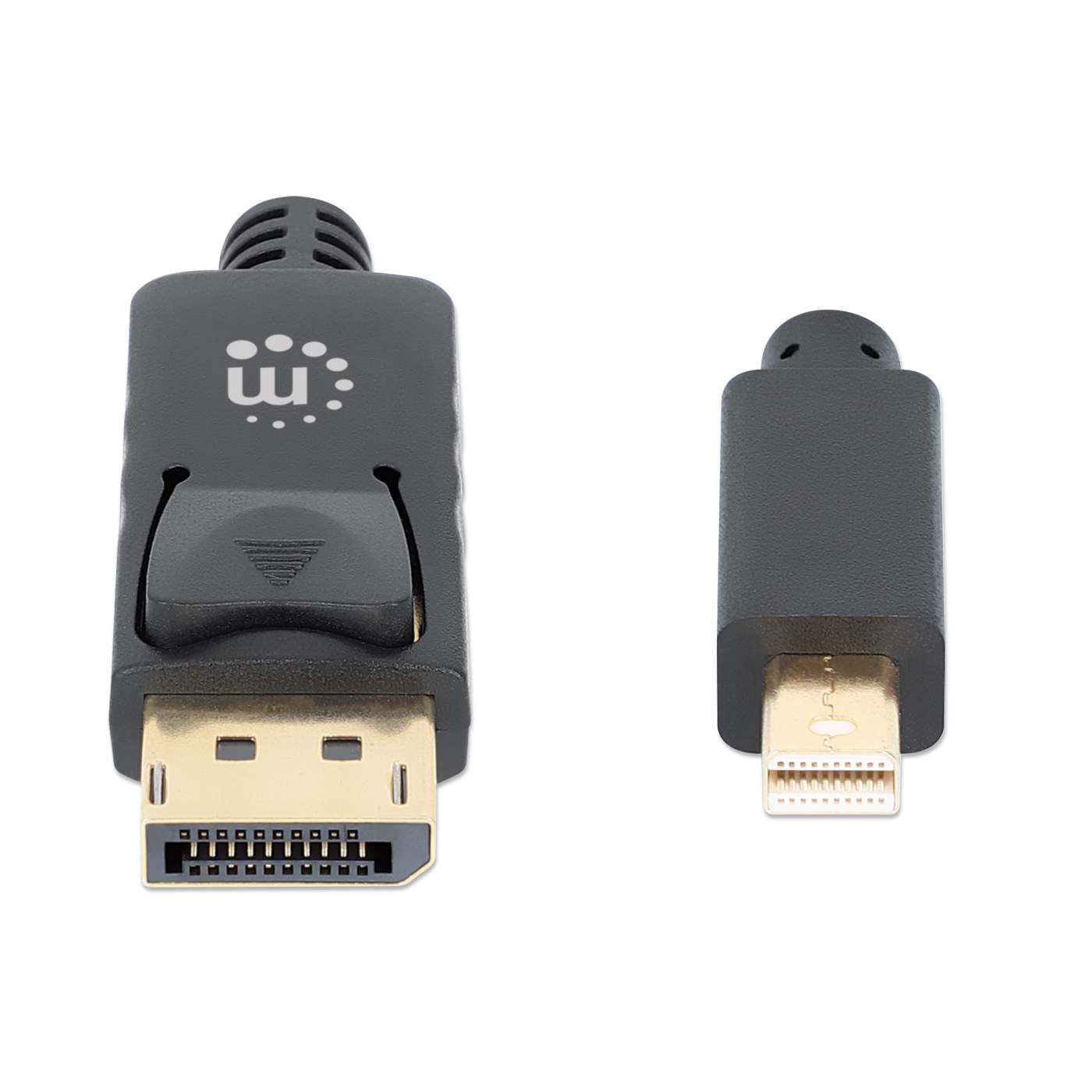

- One Mini DisplayPort 20-pin male
- One DisplayPort 20-pin male with latch
- 19 conductors
- Gold-plated contacts
- ABS shell housing
Cable
- 32 AWG
- Triple shielding: 1x braid, 2 x aluminum foil
- Withstanding voltage: 300 VDC
- Insulation resistance: 5 MΩ
- Contact resistance: 10 Ω
- PVC jacket
- Length: 3 m (10 ft.)
- Outer diameter (OD): 5.5 mm (0.22 in.)
- Net weight: 110 g (0.24 lbs.)
- Gross weight: 120 g (0.26 lbs.)
Operating Environment
- Operation temperature: 0 - 85°C (32 - 185°F)
- Storage temperature: -20 - 85°C (-4 - 185°F)
- Humidity (noncondensing): 0 - 96%
Package Contents
- Mini DisplayPort to DisplayPort 1.4 Cable, 8K60/4K120 Hz
Additional SKUs
- Amazon ASIN: B0FHRJ479H
- EAN: 0766623355827
- UPC: 766623355827
Physical Specifications
- Product net weight: 0.11 kg
- Product gross weight: 0.12 kg
- Dimensions: 3 (L) x 0.02 (W) x 0.01 (H) [m]
- Packaging type: Bag
- Packaging dimensions: 190 x 310 x 20 [mm]
- Master Carton Quantity: 60
- Master Carton Weight: 8.20 kg
- Master Carton Dimensions: 440 x 330 x 220 [mm]
- Datasheet
- Datasheet » Download
