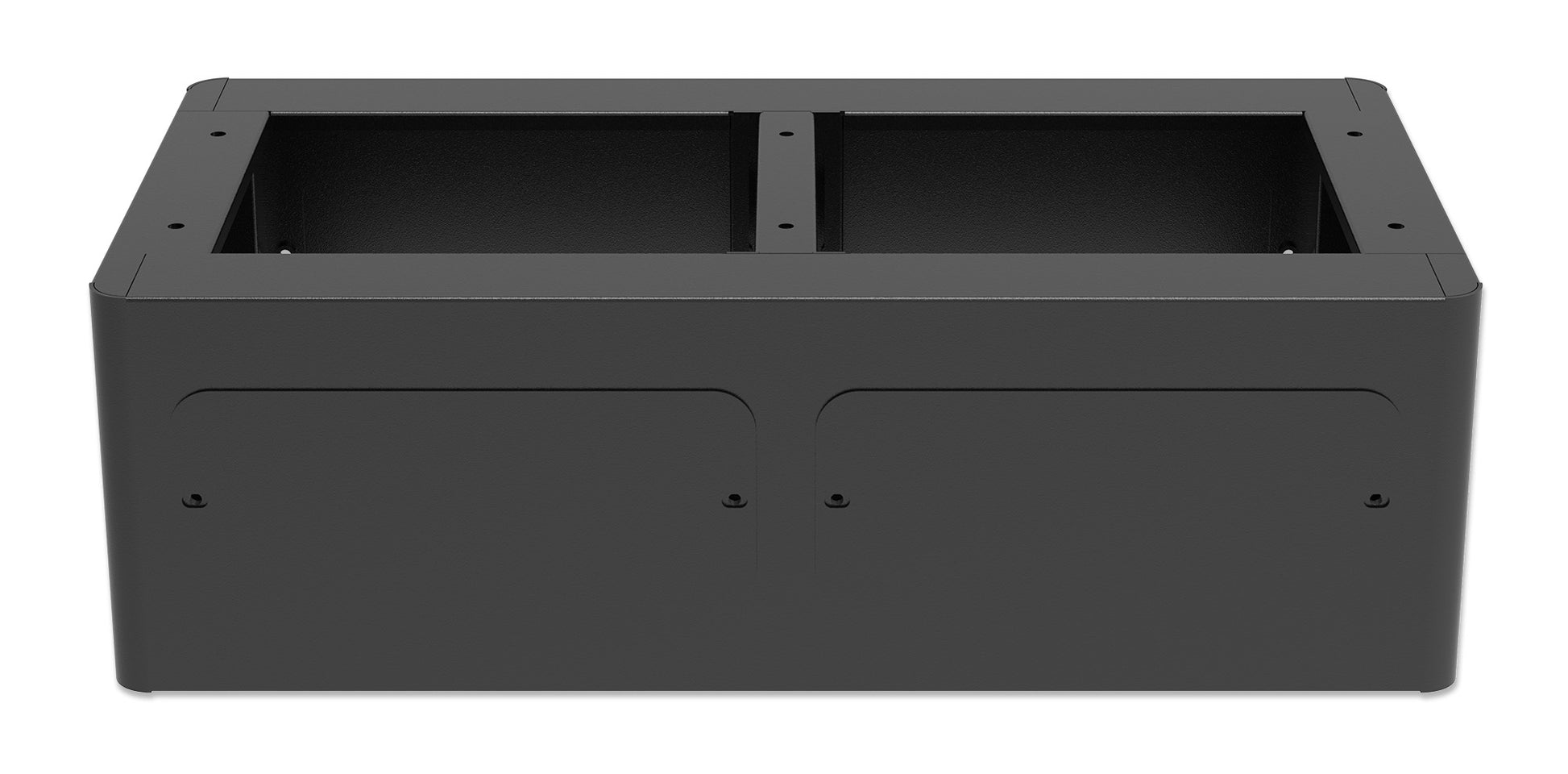

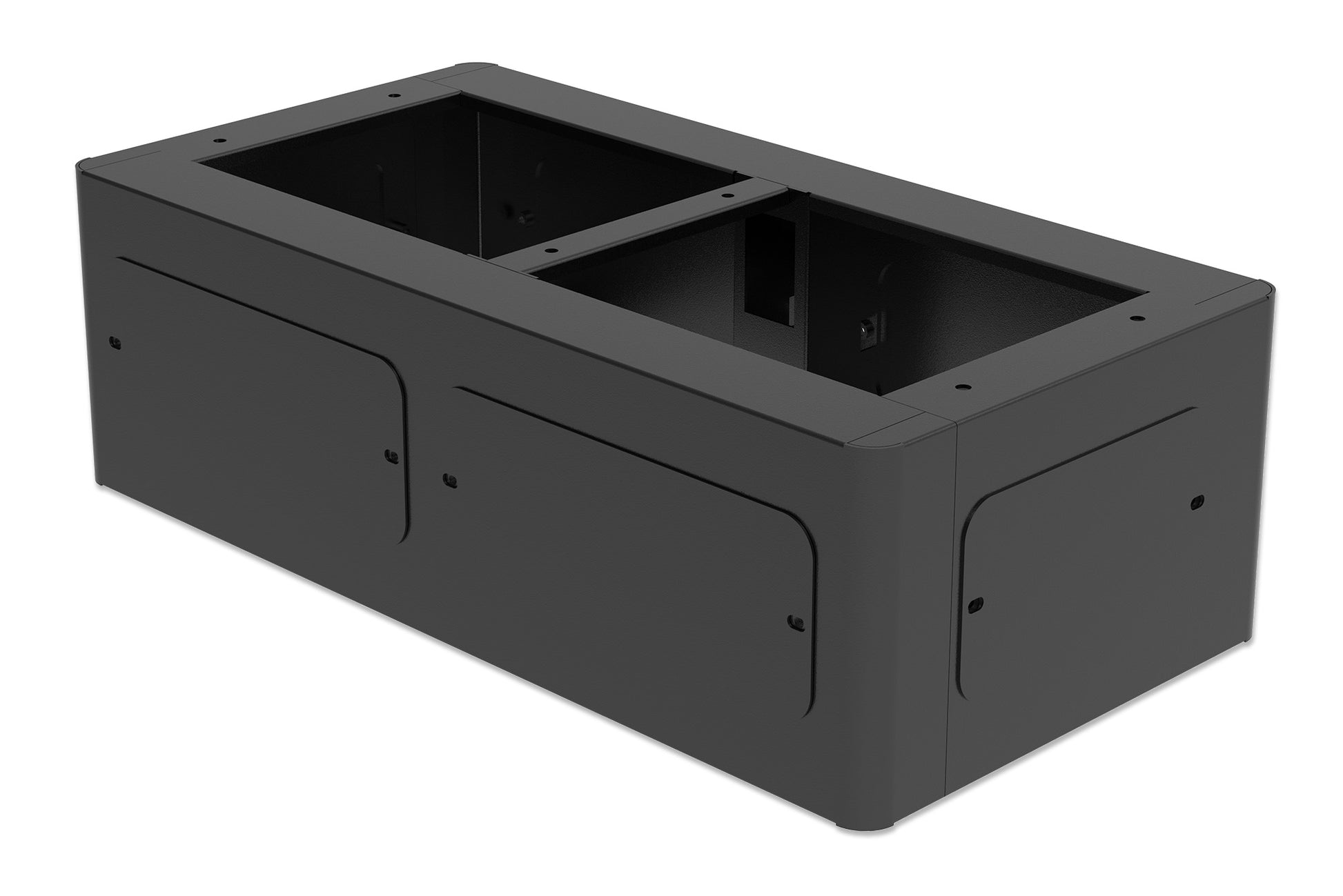

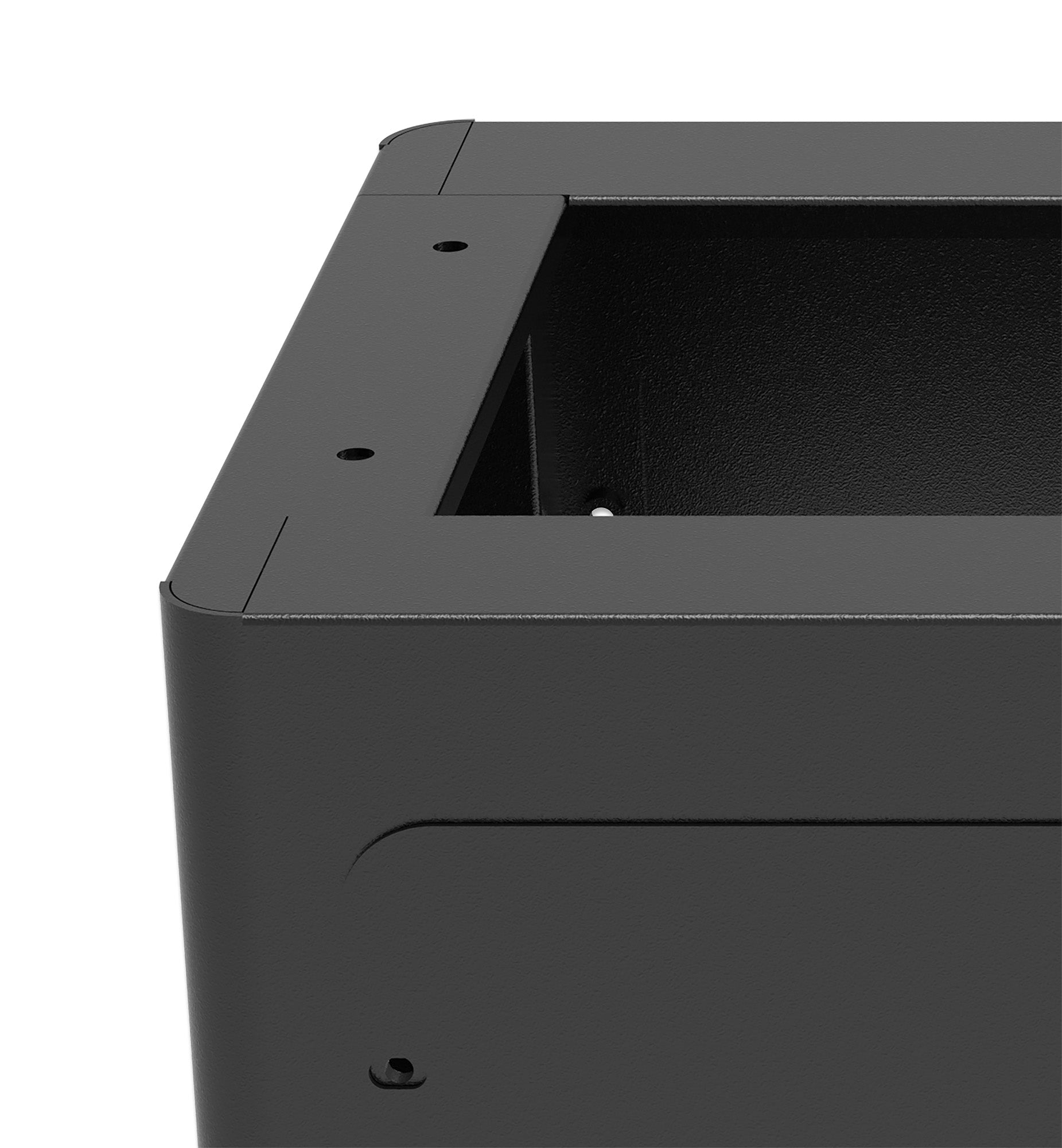

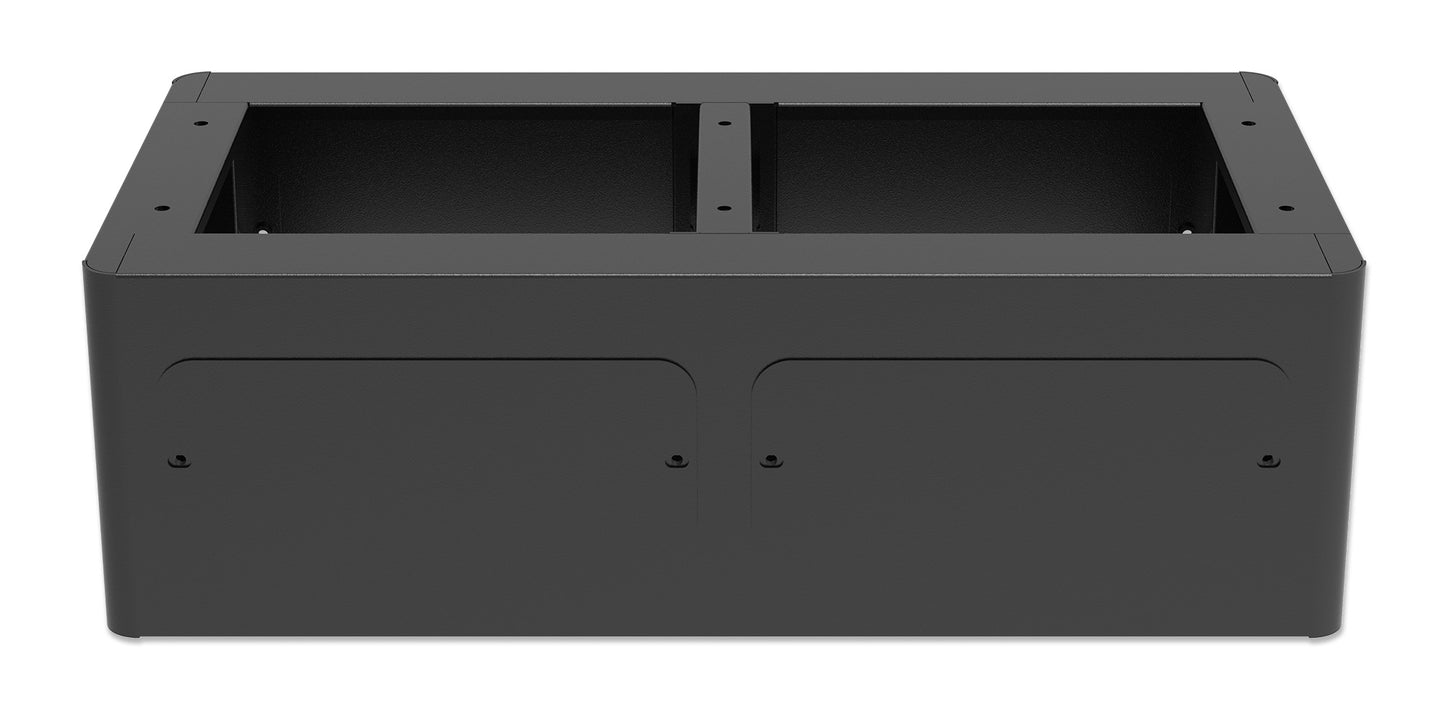

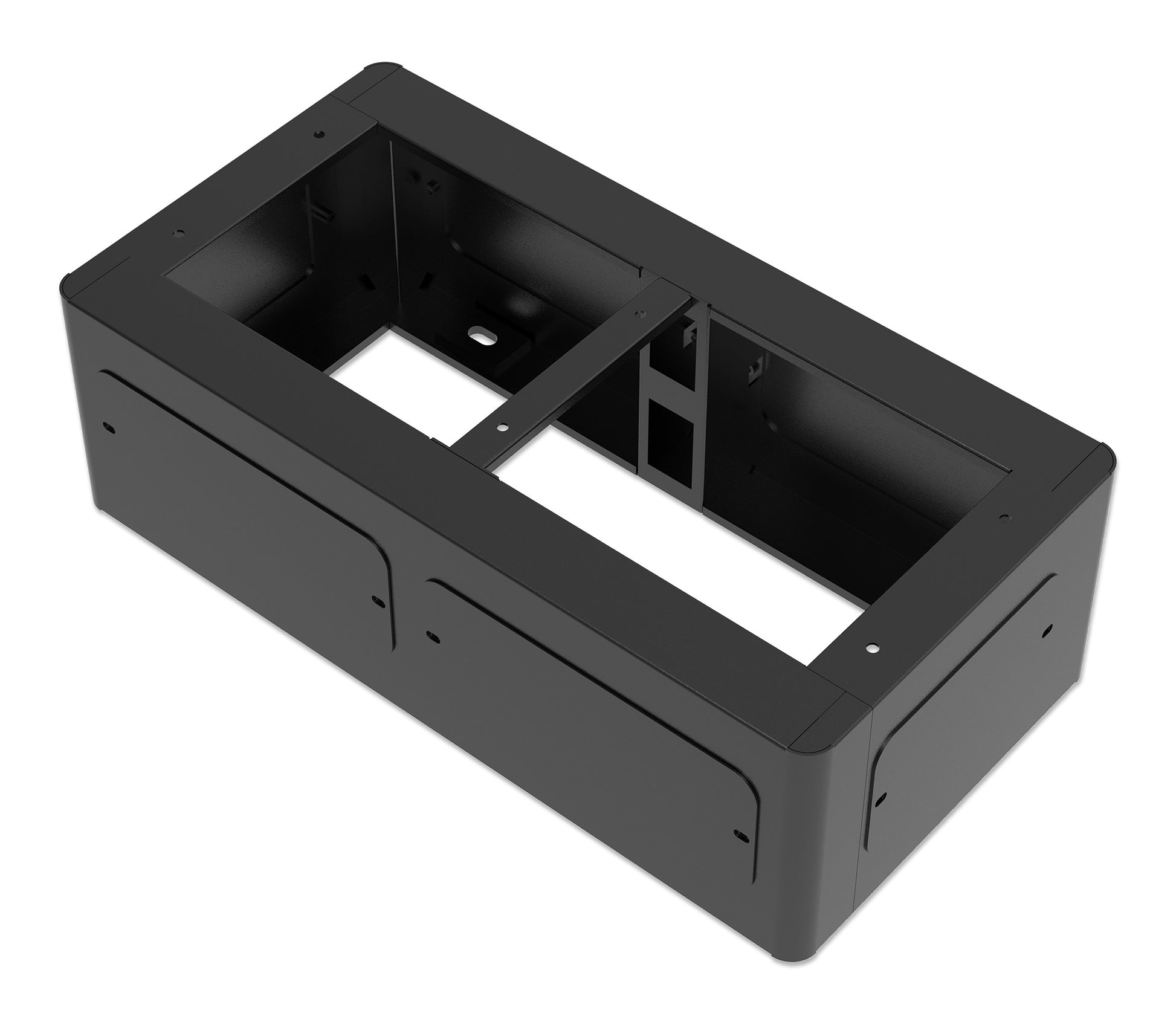

A Strong, Secure Base for Your Charging Kiosk

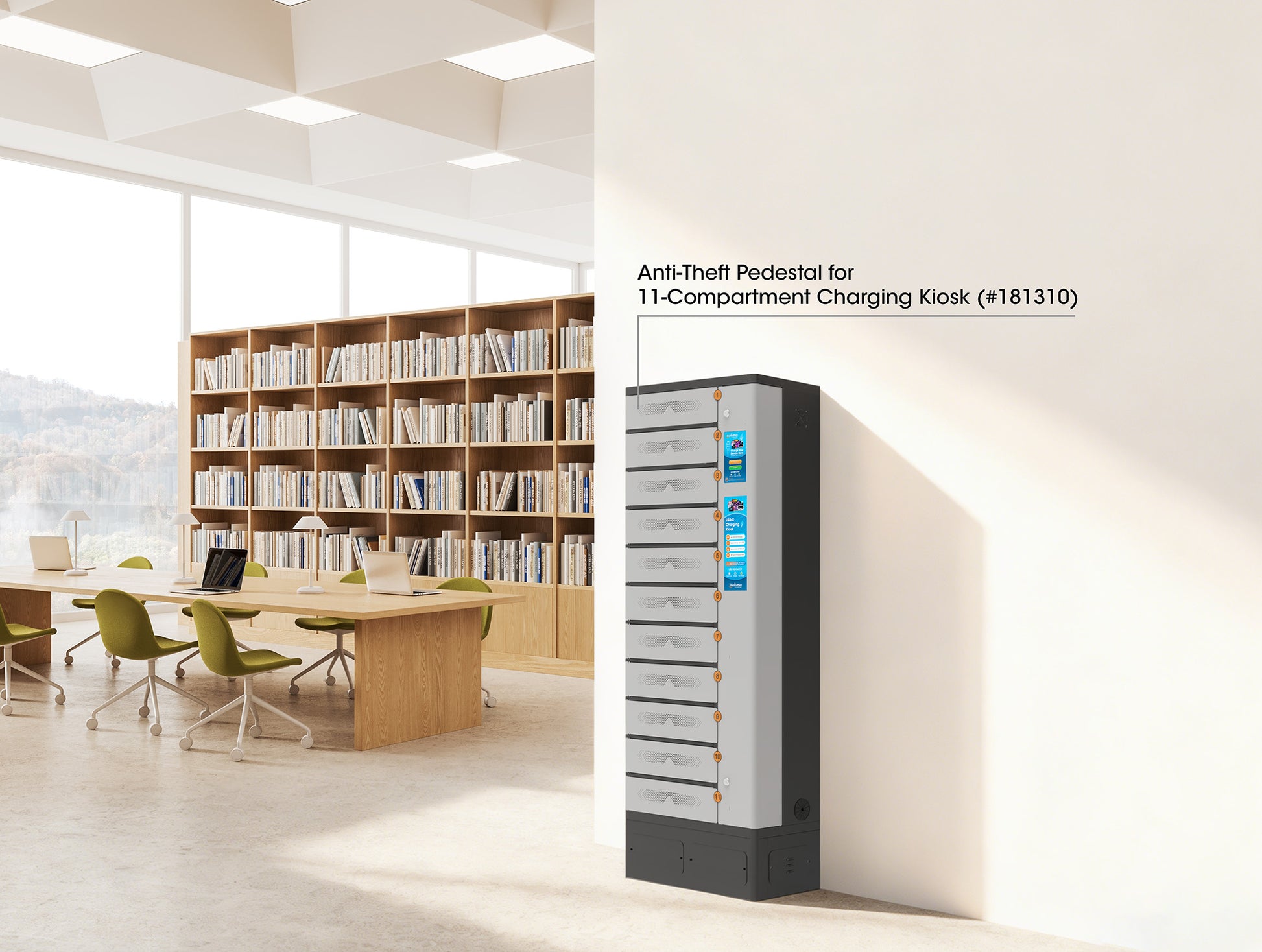

The Anti-Theft Pedestal for the Manhattan 11-Compartment USB-C Charging Kiosk (#181310) provides a stable, elevated base designed for high-traffic environments. With its solid steel construction and 200 mm height, it positions the kiosk at a more comfortable operating level and creates a safer, more accessible charging experience for users.
Enhanced Stability and Theft Protection

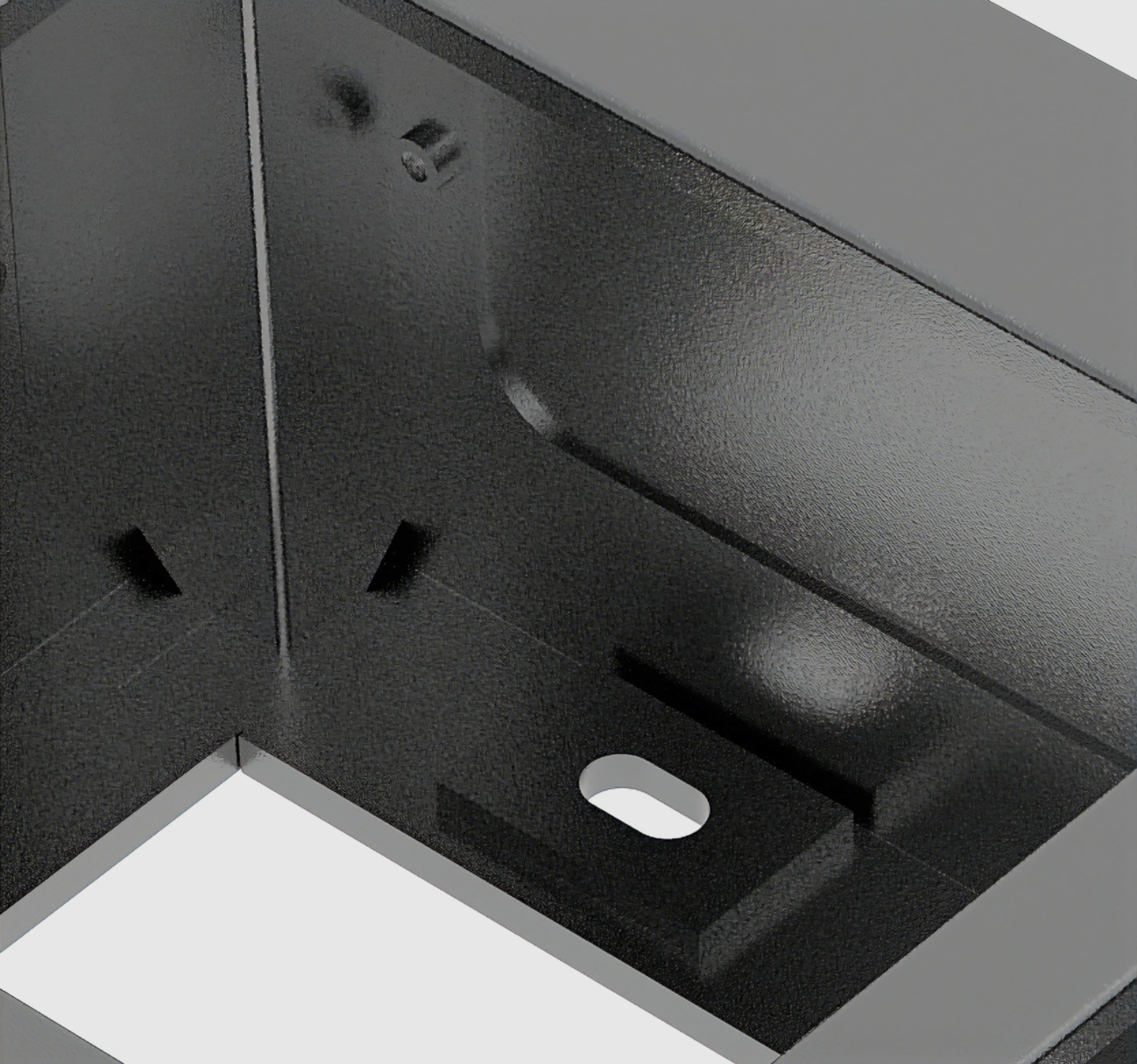

Engineered for permanent floor installation, the pedestal includes heavy-duty expansion anchors that secure the kiosk in a 4-point configuration. This robust mounting method greatly reduces the risk of tipping, shifting, or unauthorized removal, making it an ideal choice for schools, libraries, offices, hospitality spaces, and other public installations that demand reliable security.
Clean Cable Management for a Professional Appearance

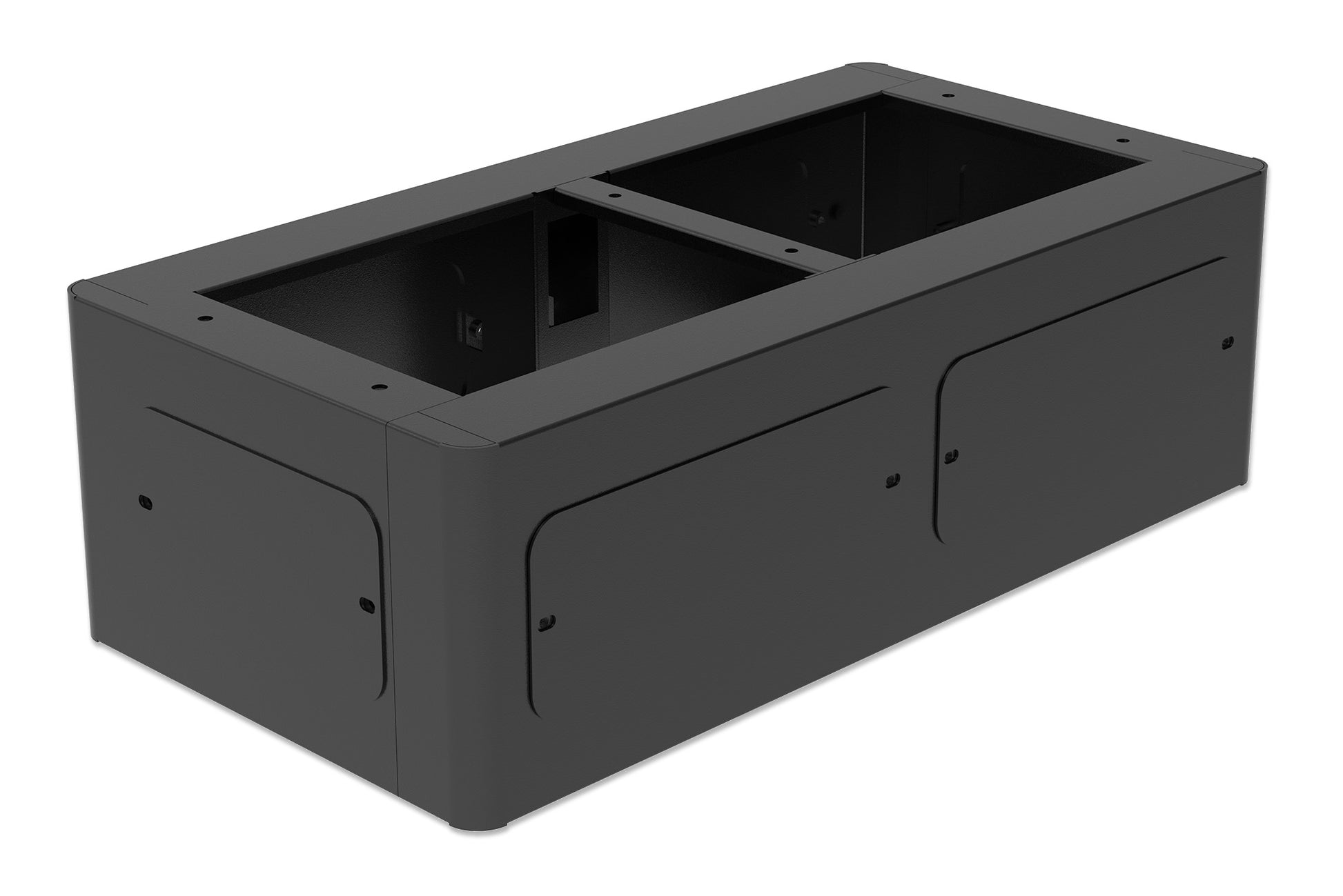

To support neat and discreet installations, the pedestal offers cable openings with cover plates on all sides. The power cable can be routed through the base and directly into the kiosk, ensuring a streamlined, clutter-free presentation that suits modern interior spaces.
Built to Withstand Everyday Use
The weight-enhanced design reinforces the kiosk’s footprint, providing additional stability and minimizing accidental movement. Its sturdy steel materials protect the lower section of the cabinet from routine wear, including contact with cleaning equipment, foot traffic, and minor bumps common in busy shared environments.
- Provides secure floor mounting for the Manhattan 11-Compartment USB-C Charging Kiosk - 500 W (#181310)
- Heavy-duty expansion anchors for stable 4-point floor installation and enhanced theft protection
- Cable openings with cover plates on all sides for clean cable management and a professional appearance
- Raised operating height makes compartments easier to access
- Weight-enhanced base reduces tipping and accidental movement
- Protects the lower section of the cabinet from cleaning equipment, foot traffic, dirt, and minor impacts
- Ideal for high-traffic environments like schools, libraries, universities, hospitality spaces, and other public areas
- Sturdy, high-quality, cold-rolled SPCC steel construction with antistatic powder coating
- Lifetime warranty
- Standards and Certifications
- RoHS
- REACH
Physical
- Material: powder-coated steel
- External unit dimensions (D x W x H): 330 x 640 x 200 mm
- Net weight: 11.4 kg
- Gross weight: 12.5 kg
Environment
- Operation temperature: 0 - 45°C
- Storage temperature: -15 - 45°C
- Humidity (non-condensing): 20 - 80%
Package Contents
- Pedestal for Charging Kiosk #181310
- Six M6x16 mm tri-combo screws (for mounting the charging kiosk to the base)
- Four M10x100 mm expansion anchors (for mounting the base to the floor)
- Instructions
Additional SKUs
- EAN: 0766623181303
- UPC: 766623181303
Physical Specifications
- Product net weight: 11.4 kg
- Product gross weight: 12.5 kg
- Dimensions: 330 (L) x 640 (W) x 200 (H) [mm]
- Packaging type: Brown Box
- Packaging dimensions: 673 x 373 x 230 [mm]
- Master Carton Quantity: 1
- Master Carton Weight: 12.50 kg
- Master Carton Dimensions: 673 x 373 x 230 [mm]
