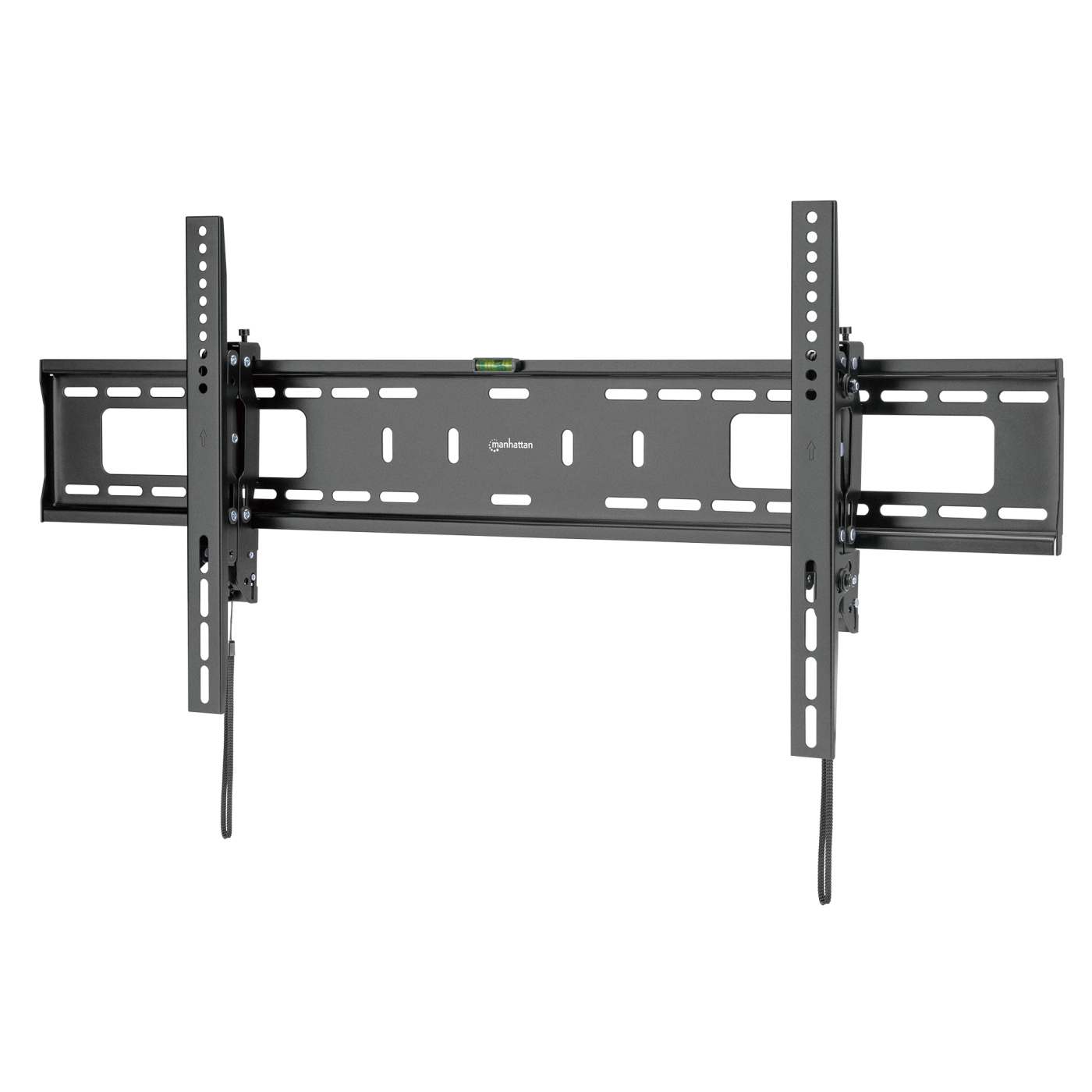

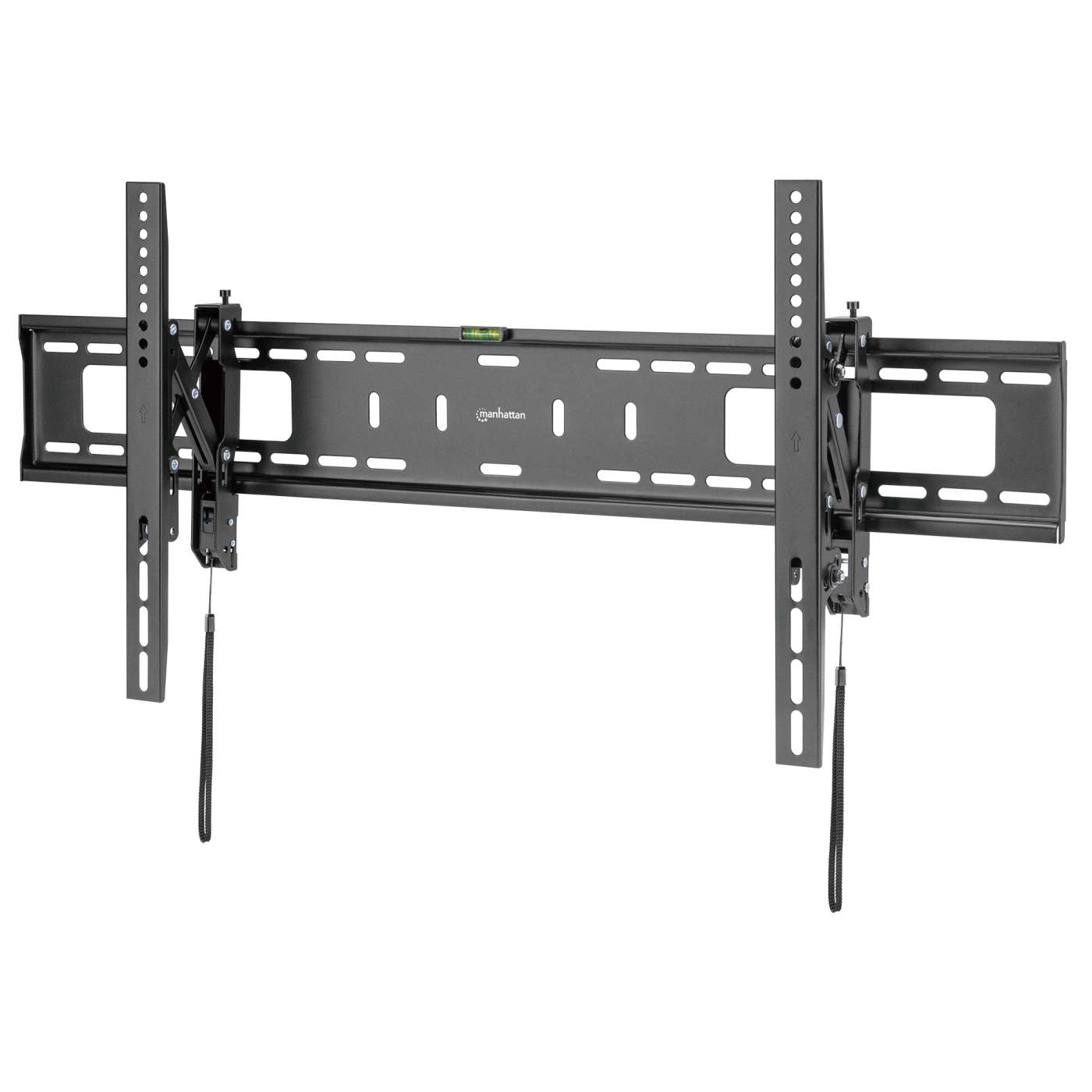

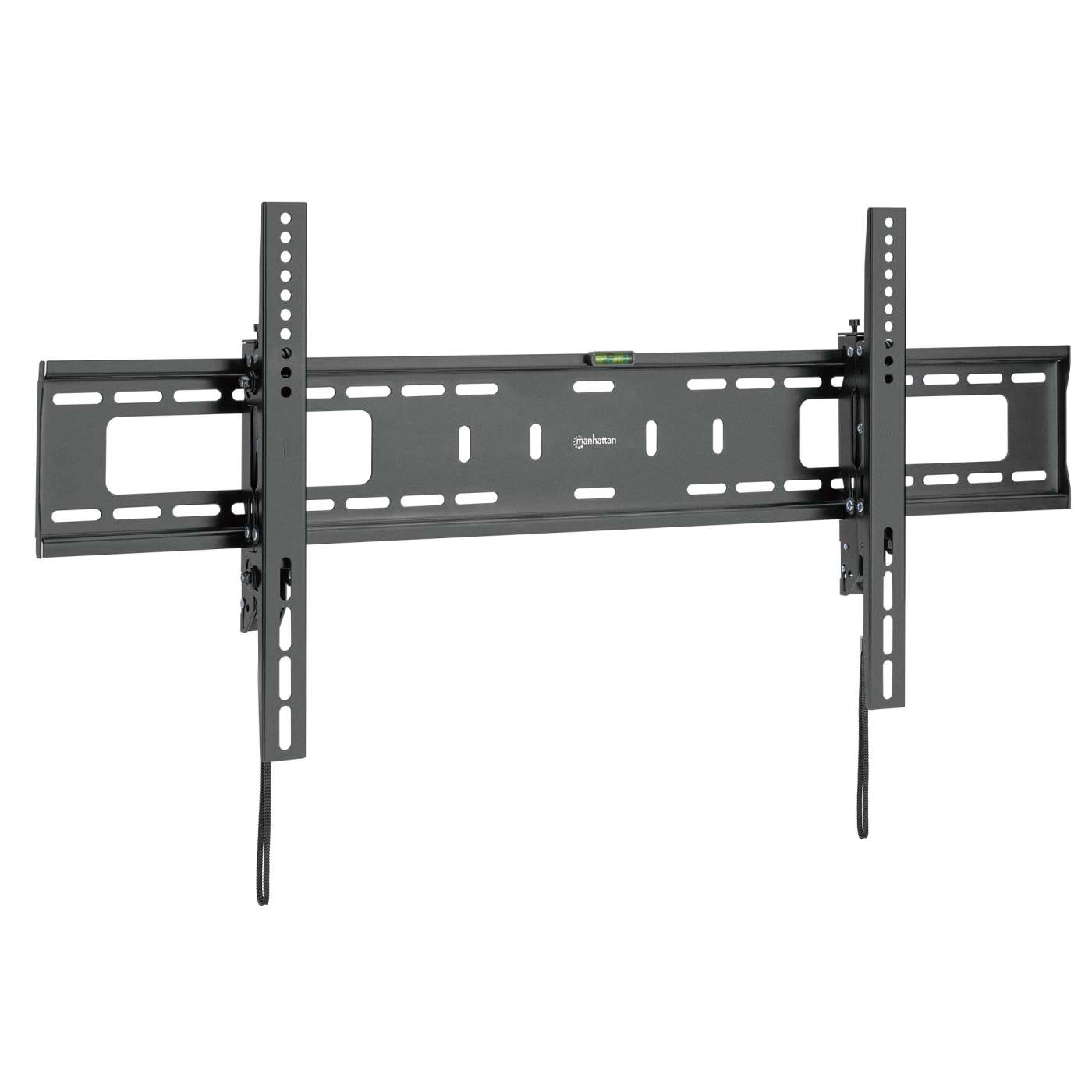

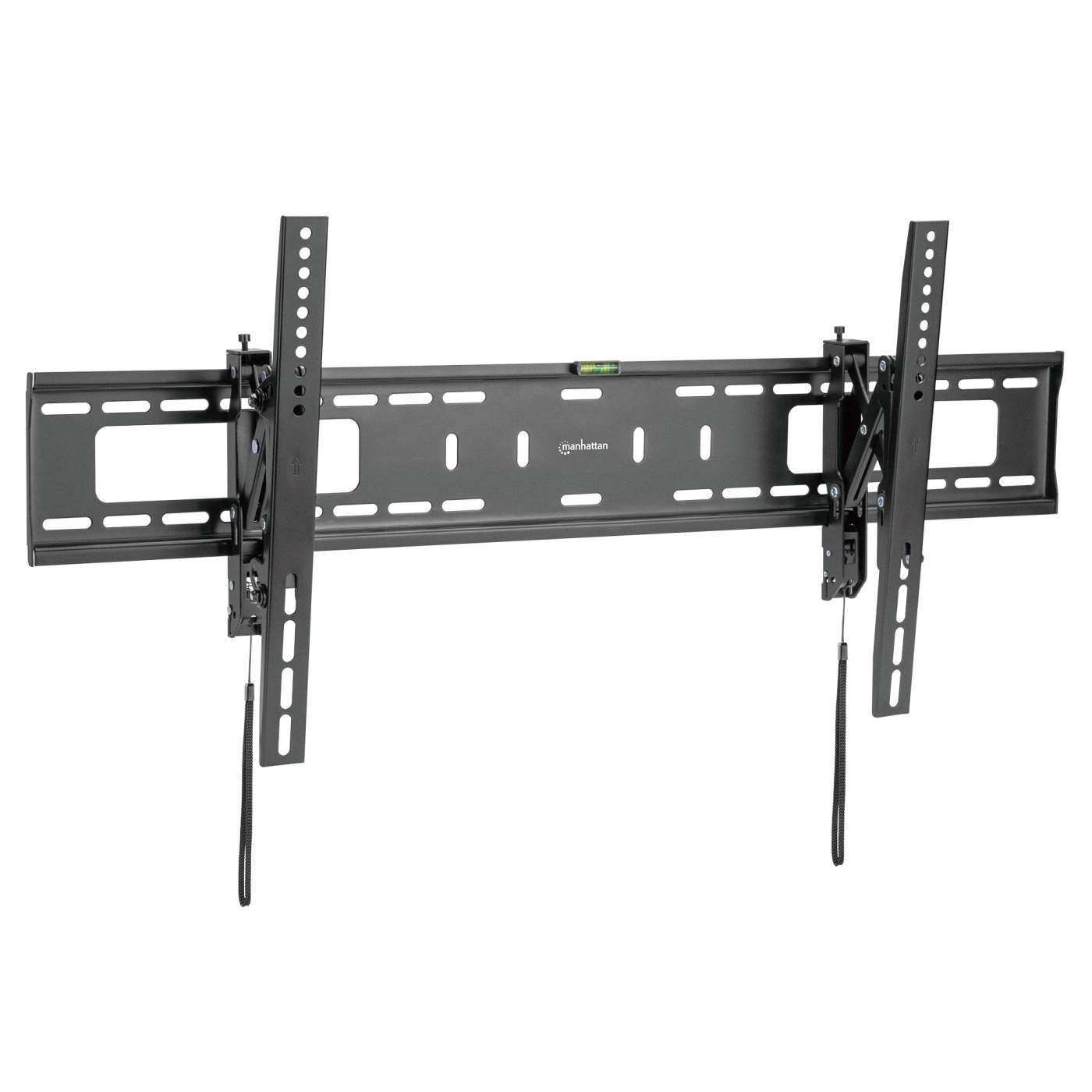

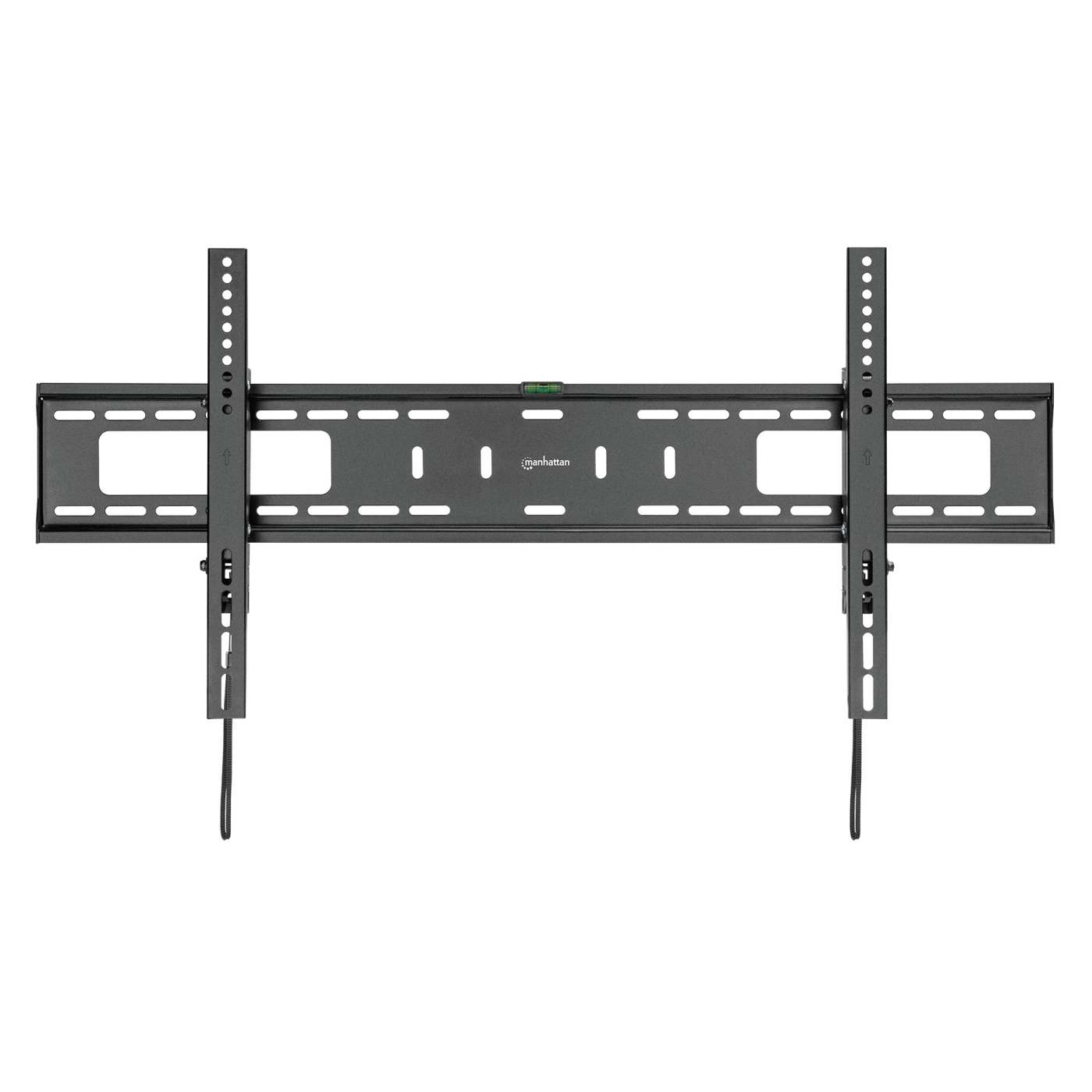

Adjustable, Secure TV Wall Bracket that Extends for Easy Cabling

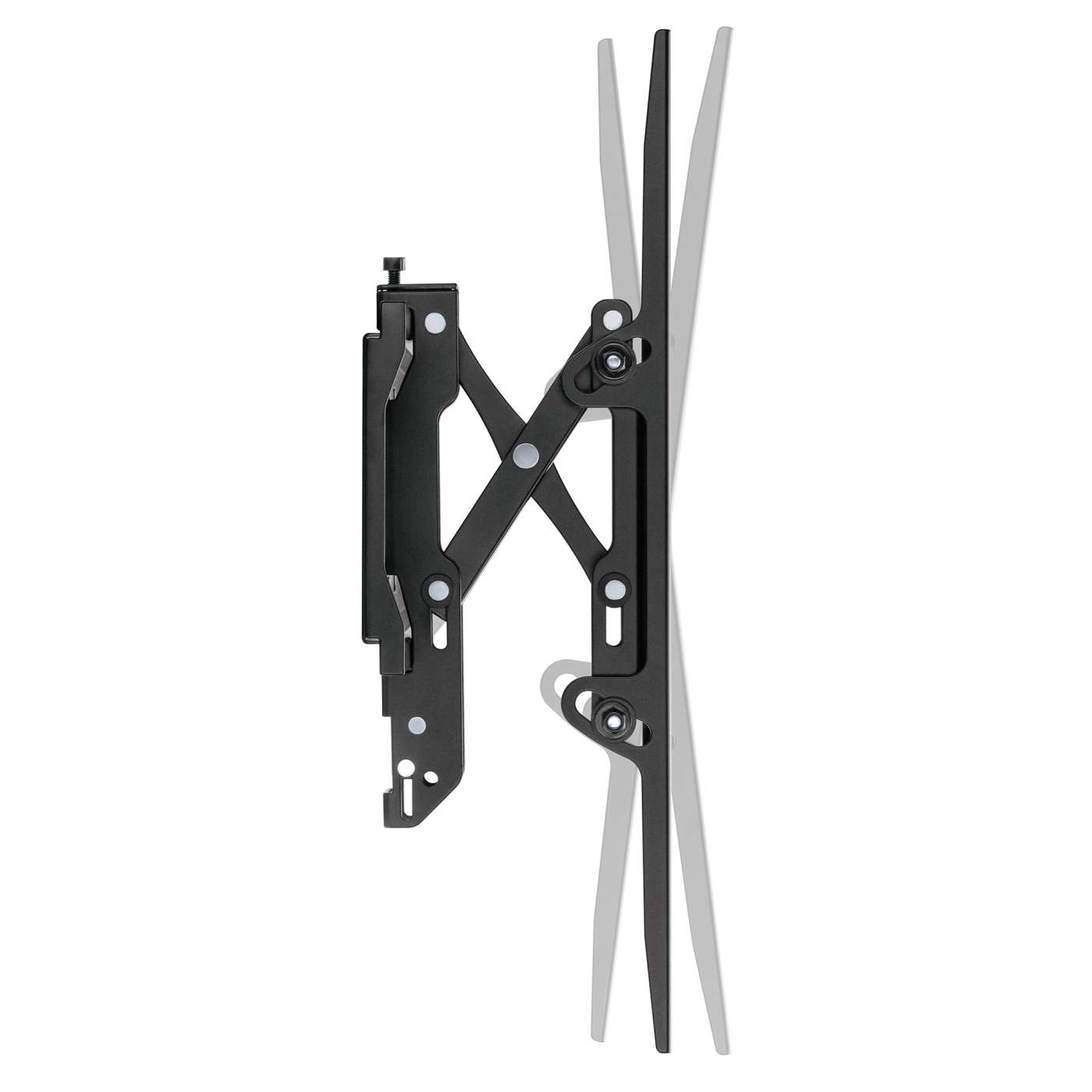

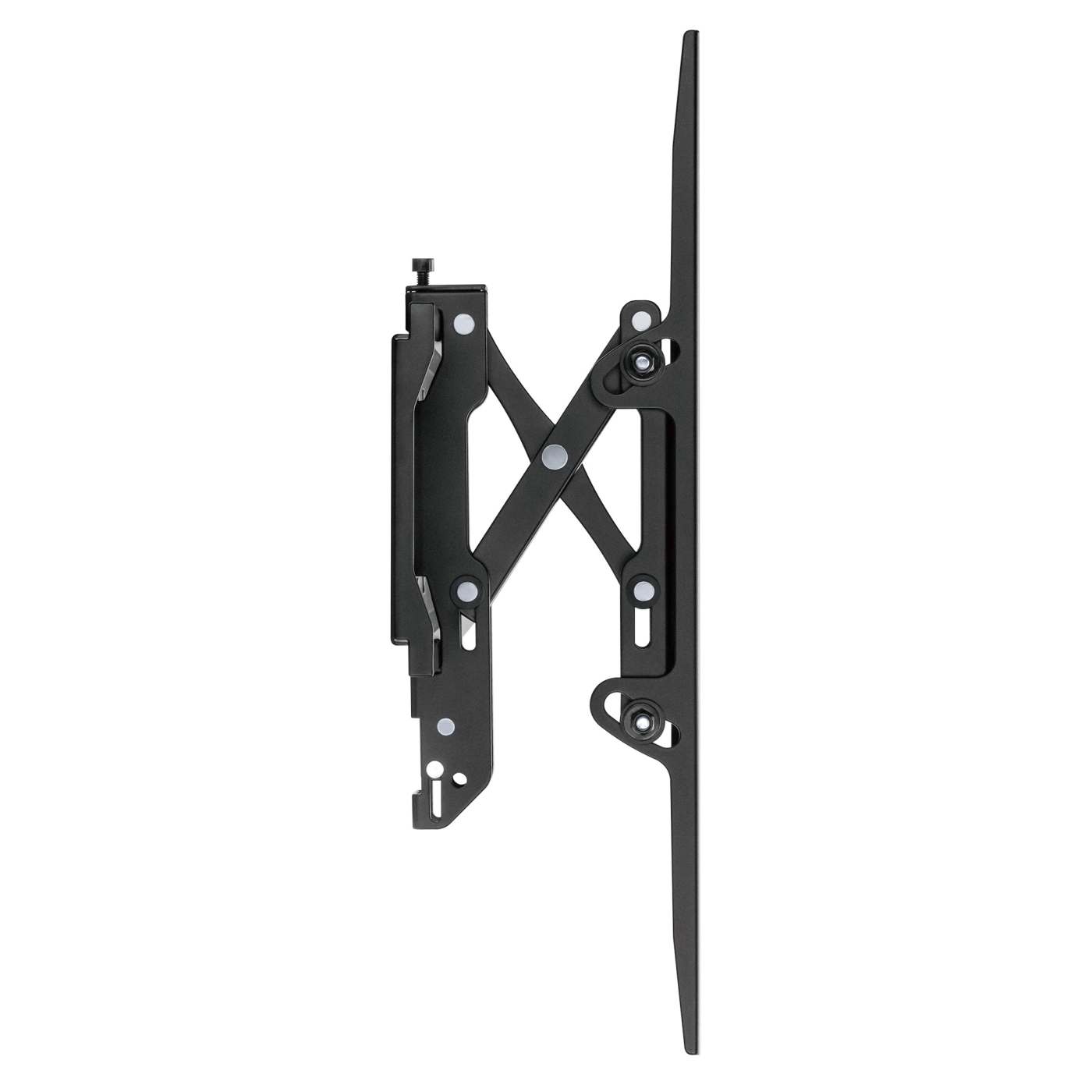

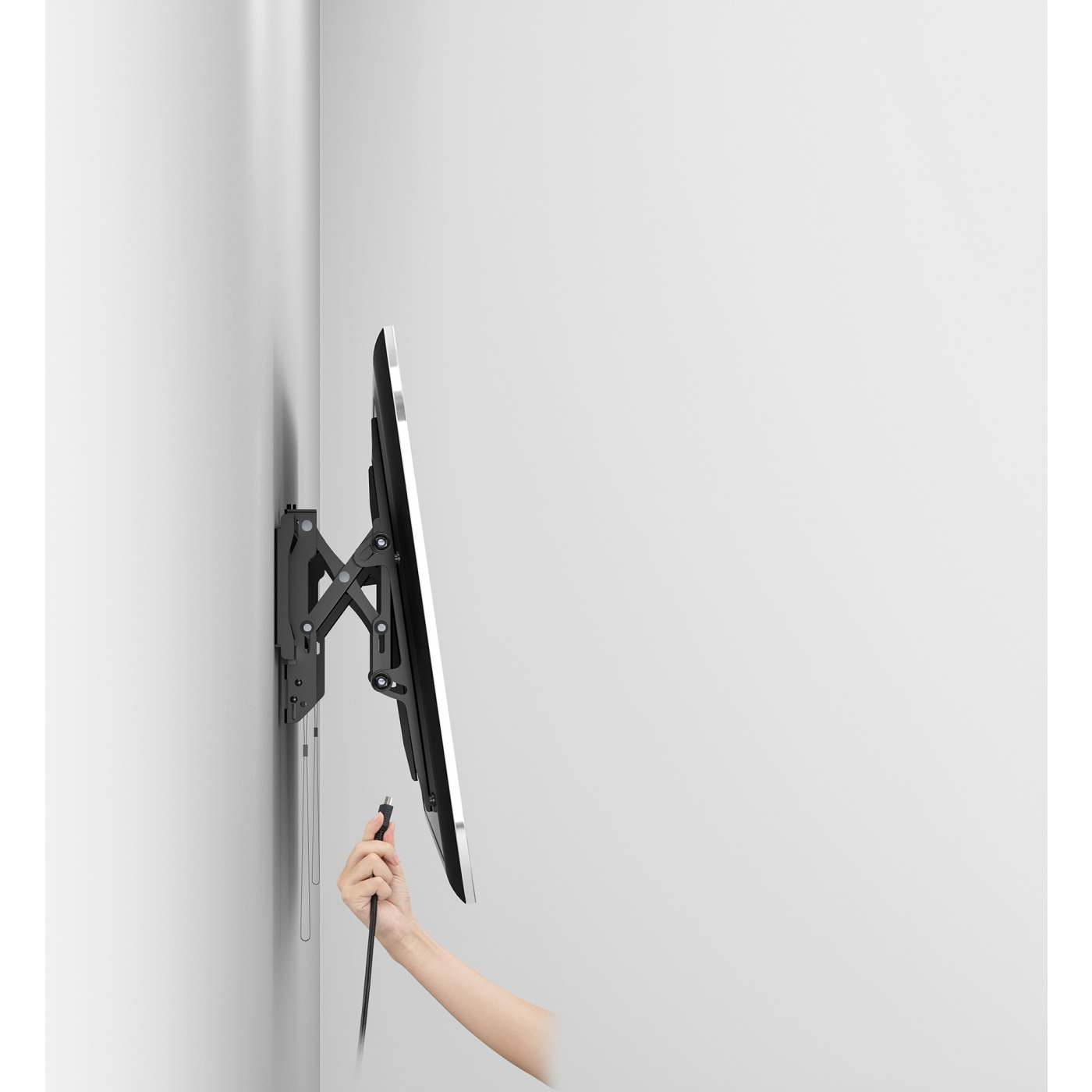

This TV Wall Mount from Manhattan is your convenient solution to safely hold your flat or curved 43" to 90" display up to 75 kg (165 lbs.). Mount your screen just 75 mm (3 in.) from the wall for a sleek, modern look. Need easier access to your cables? Its innovative design allows an optional extension of an additional 60 mm (2.4 in.), making it easier than ever to manage your cabling without hassle.
Optimal Viewing Angles

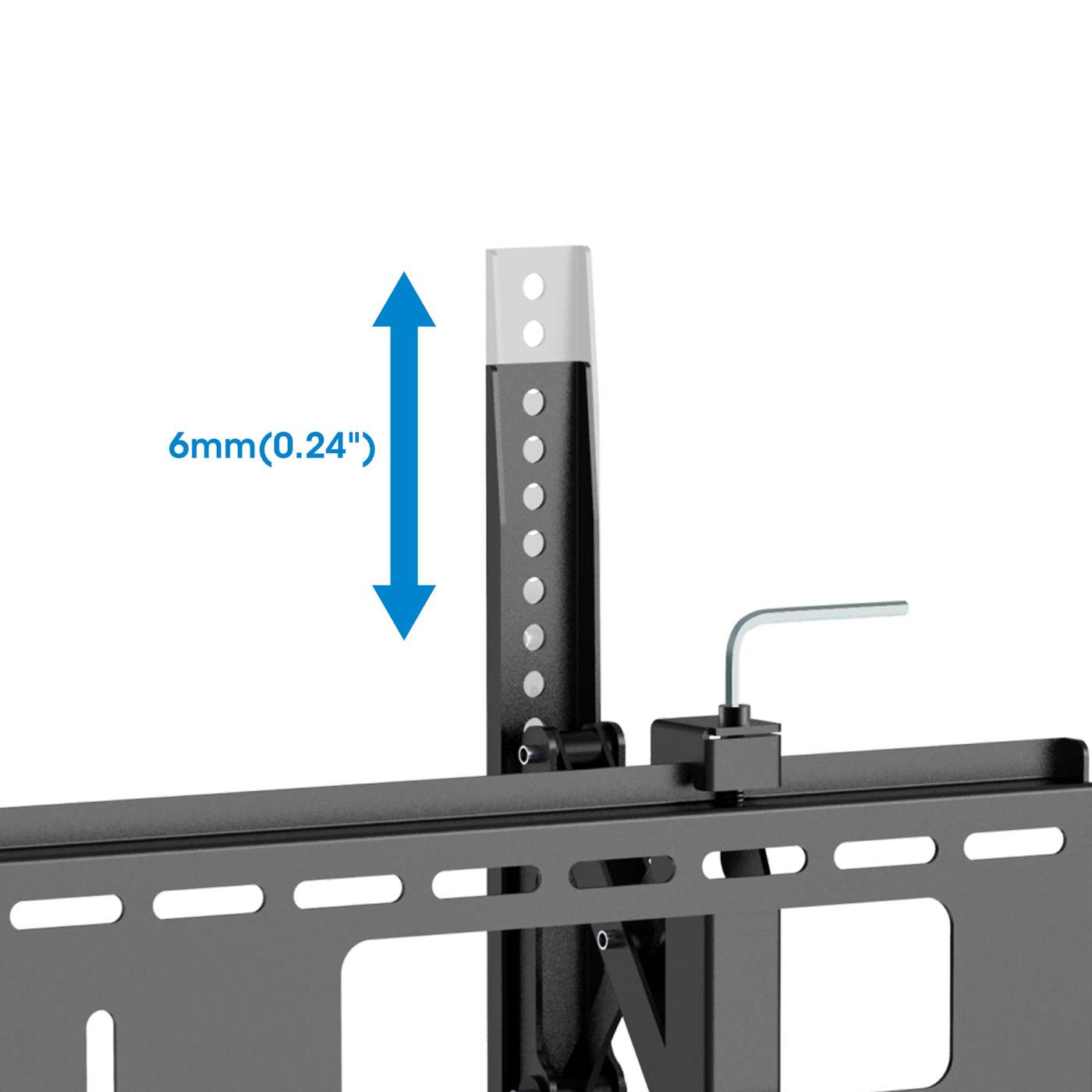

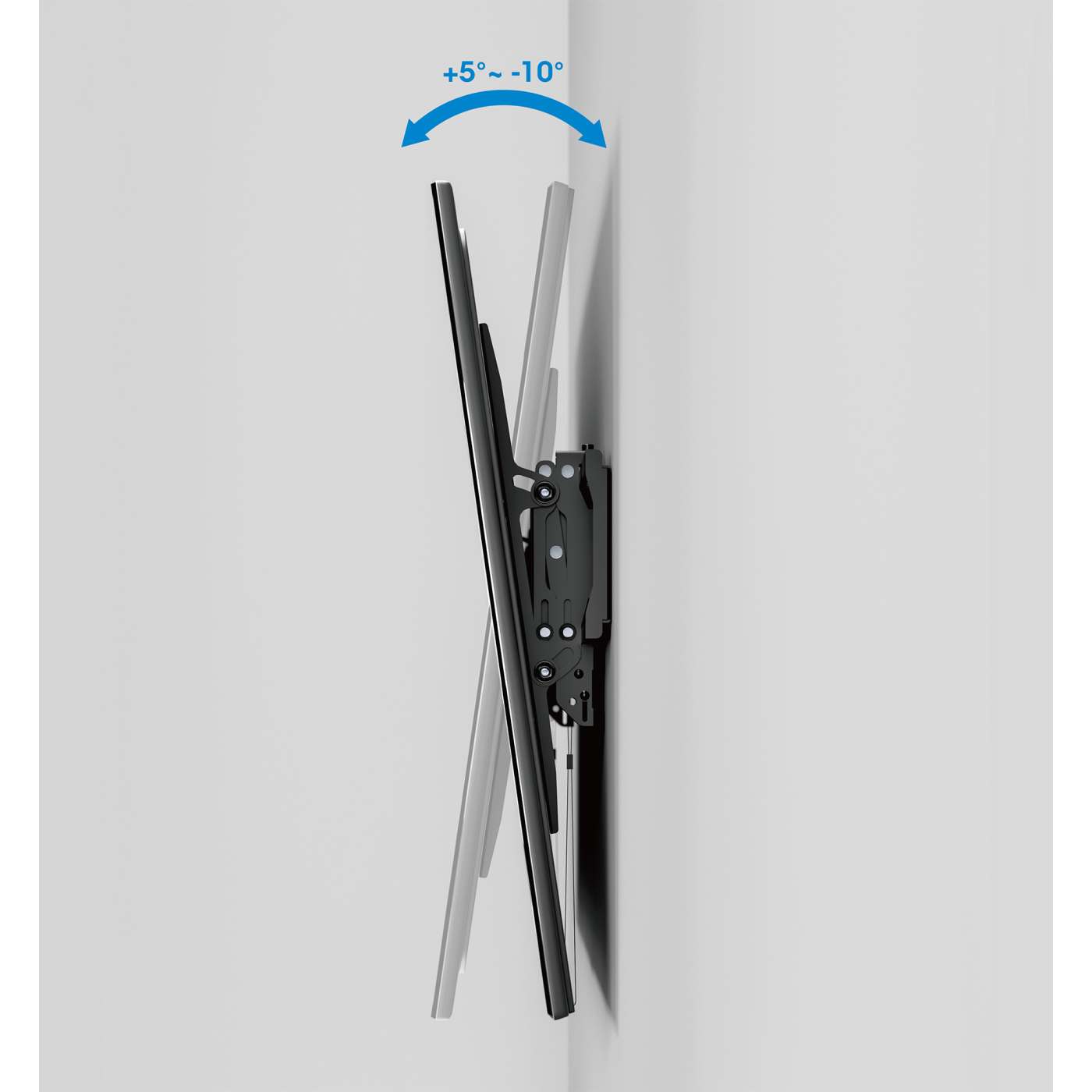

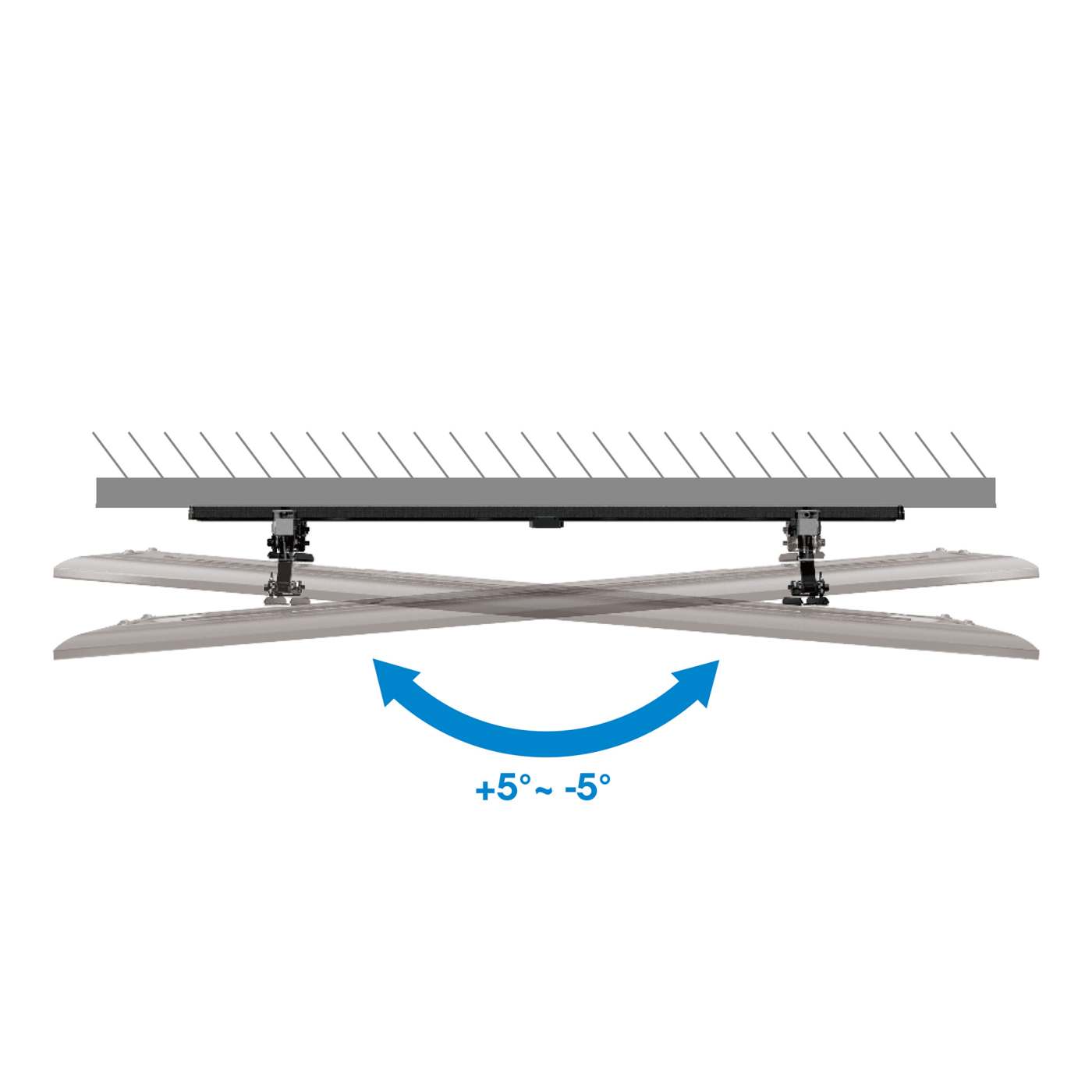

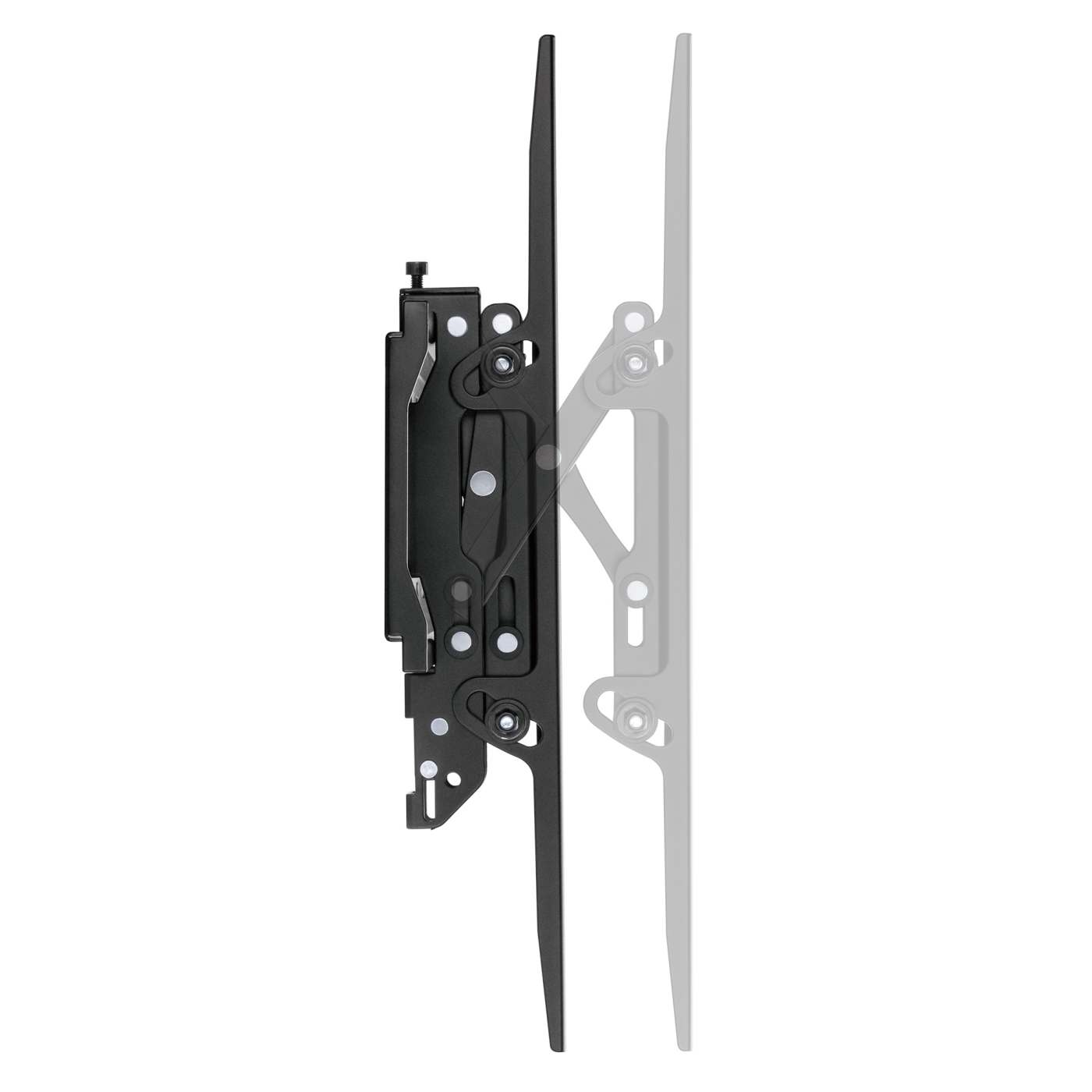

Achieve the perfect view with a versatile +5 to -10° tool-free tilt, +/-5° swivel, and +/-6 mm post-installation leveling adjustment.
Robust and Reliable Construction
Constructed with heavy-duty, 2 mm thick reinforced steel and a durable powder coating, this mount provides strength and reliability.
Precision Installation Made Simple
Included is an attachable bubble level for perfect alignment during installation. The snap-in spring locks with release cords make mounting or removing your TV a breeze, adding an extra layer of safety and ease.

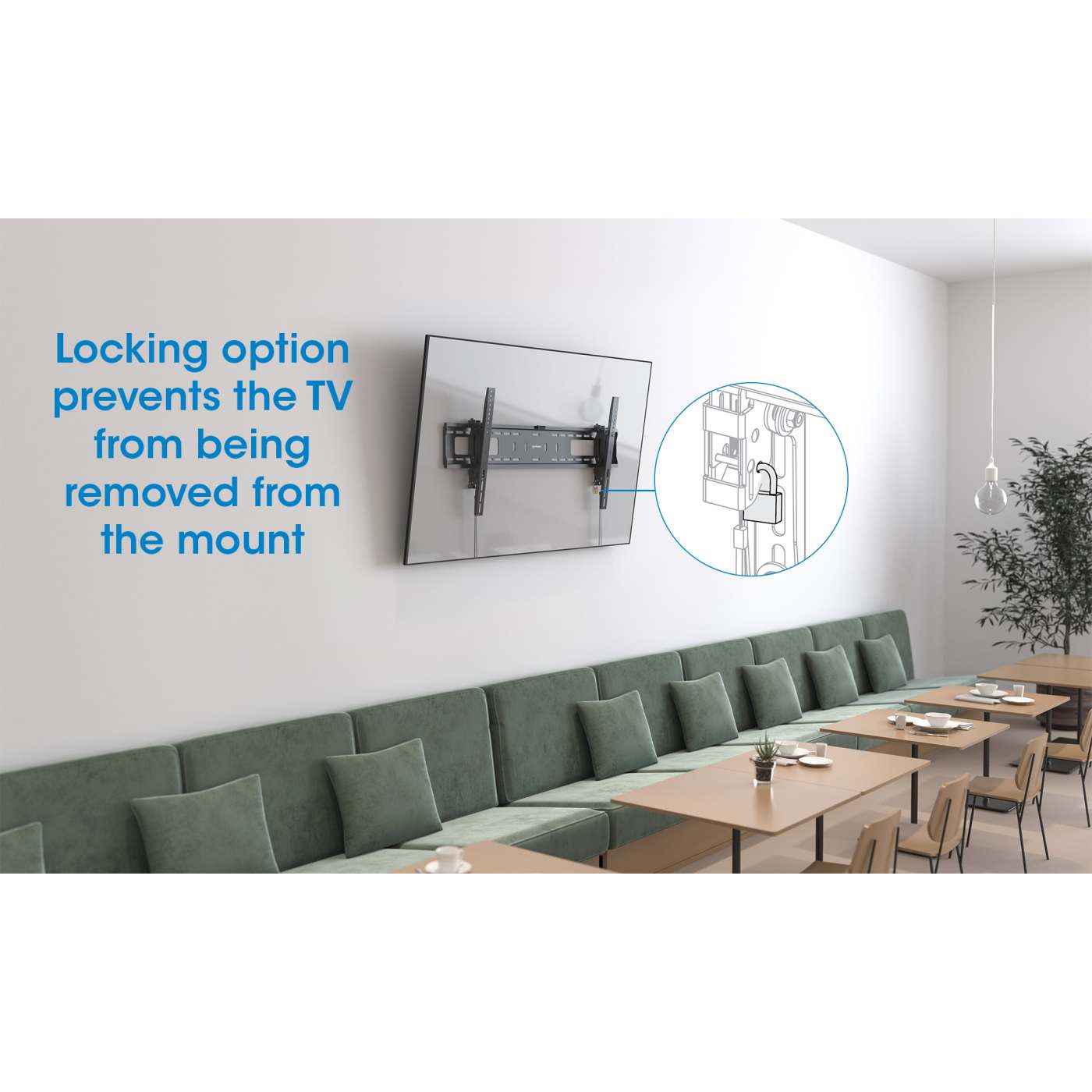

Enhanced Security Protects from Theft

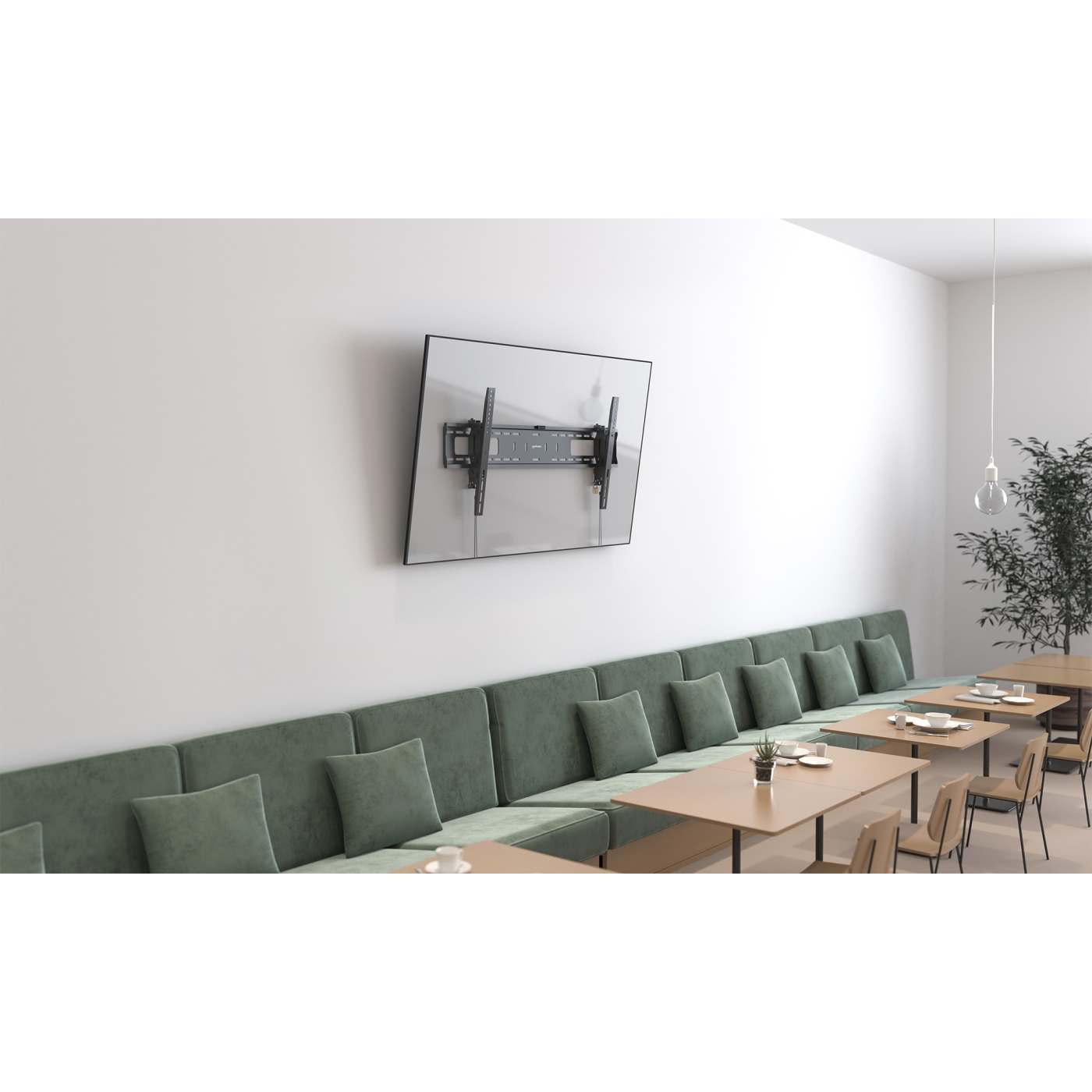

Ideal for public or commercial spaces, the anti-theft locking option (padlock required, not included) prevents the TV from being removed from the mount, perfect for digital signage or any setting where additional protection is desired, like office, hospitality or classroom.
- Supports one flat or curved 43" to 90" TV up to 75 kg (165 lbs.)
- Optimized views with +5 to -10° tool-free tilt, +/-5° swivel, and +/-6 mm post-installation leveling adjustment
- Holds TV 75 mm (3 in.) from wall and optionally extends additional 60 mm (2.4 in.) for easier access to cabling
- Heavy-duty construction with 2 mm thick reinforced steel and powder coating
- Includes attachable bubble level
- Snap-in spring locks with release cords for easy installation or removal and additional safety
- Anti-theft locking option secures the TV to the mount - ideal for digital signage (requires padlock, not included)
- Meets VESA standards 200x200 to 800x400 e.g. 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 600x400, 800x400
- Lifetime warranty
- General
- Designed for most 43" to 90" flat and curved screens
- Weight capacity: 75 kg (165 lbs.)
- Tilt: +5/-10°
- Swivel: +/-5°
- Post-leveling adjustment: +/-6 mm

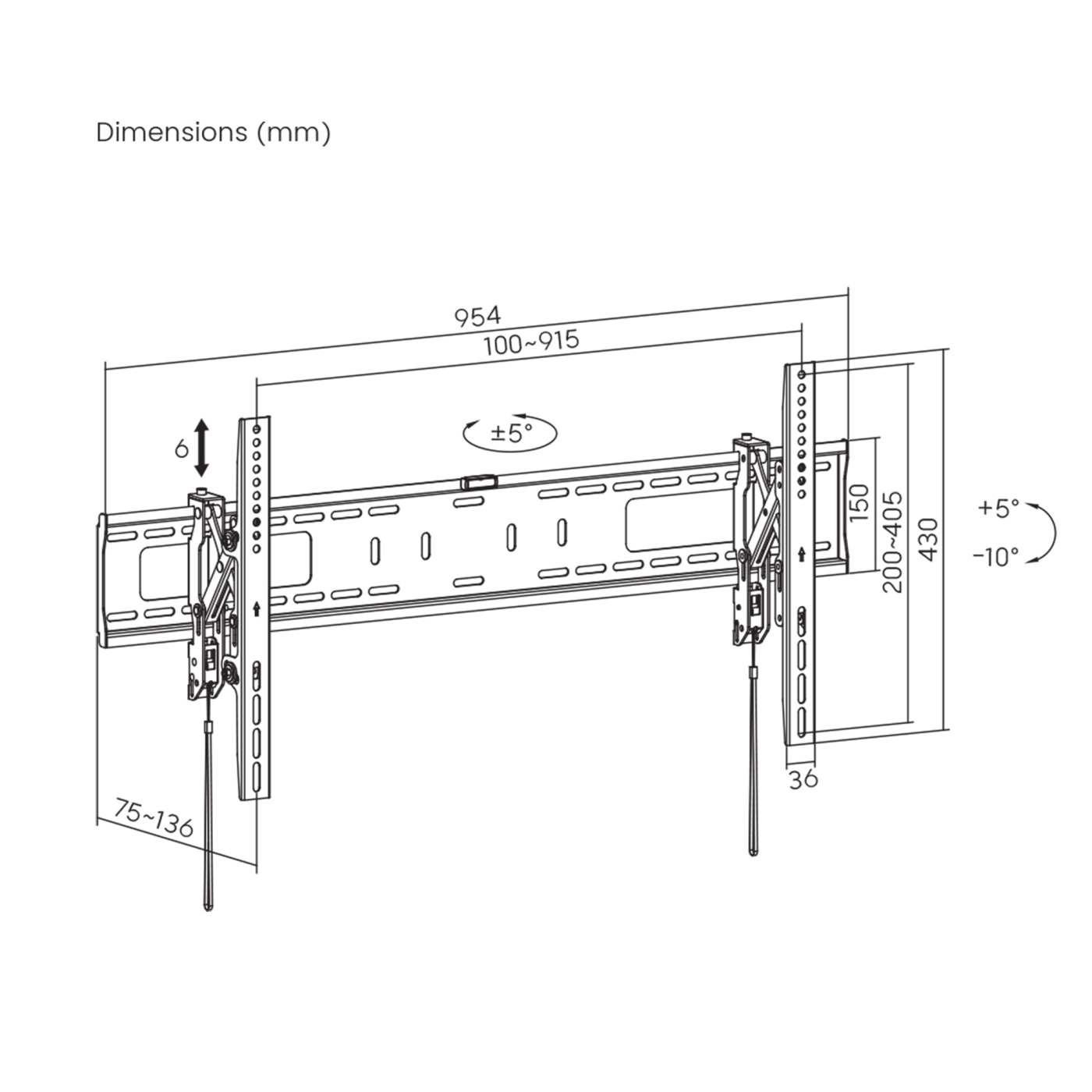

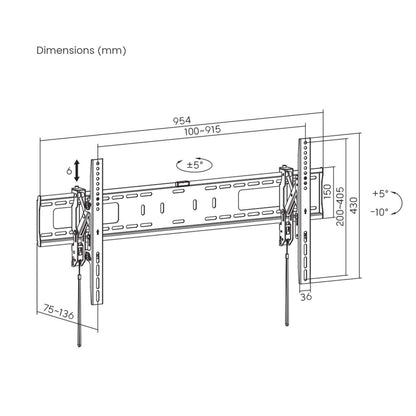

- Dimensions (L x W x H): 136 x 954 x 430 mm (5.35 x 37.56 x 16.93 in.)
- Wall extension: 75 to 136 mm (2.94 to 5.34 in.)
- Net weight: 4.21 kg (9.28 lbs.)
- Gross weight: 4.65 kg (10.25 lbs.)
- Material: steel
- VESA standards: 200x200 to 800x400 e.g. 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 600x400, 800x400
Package Contents
- Anti-Theft Tilting TV Wall Mount with Extension
- Attachable bubble level
- Installation hardware with instructions
Additional SKUs
- Amazon ASIN: B0DMFQTX2N
- EAN: 0766623461863
- UPC: 766623461863
Physical Specifications
- Product net weight: 4.21 kg
- Product gross weight: 4.65 kg
- Dimensions: 136 (L) x 954 (W) x 430 (H) [mm]

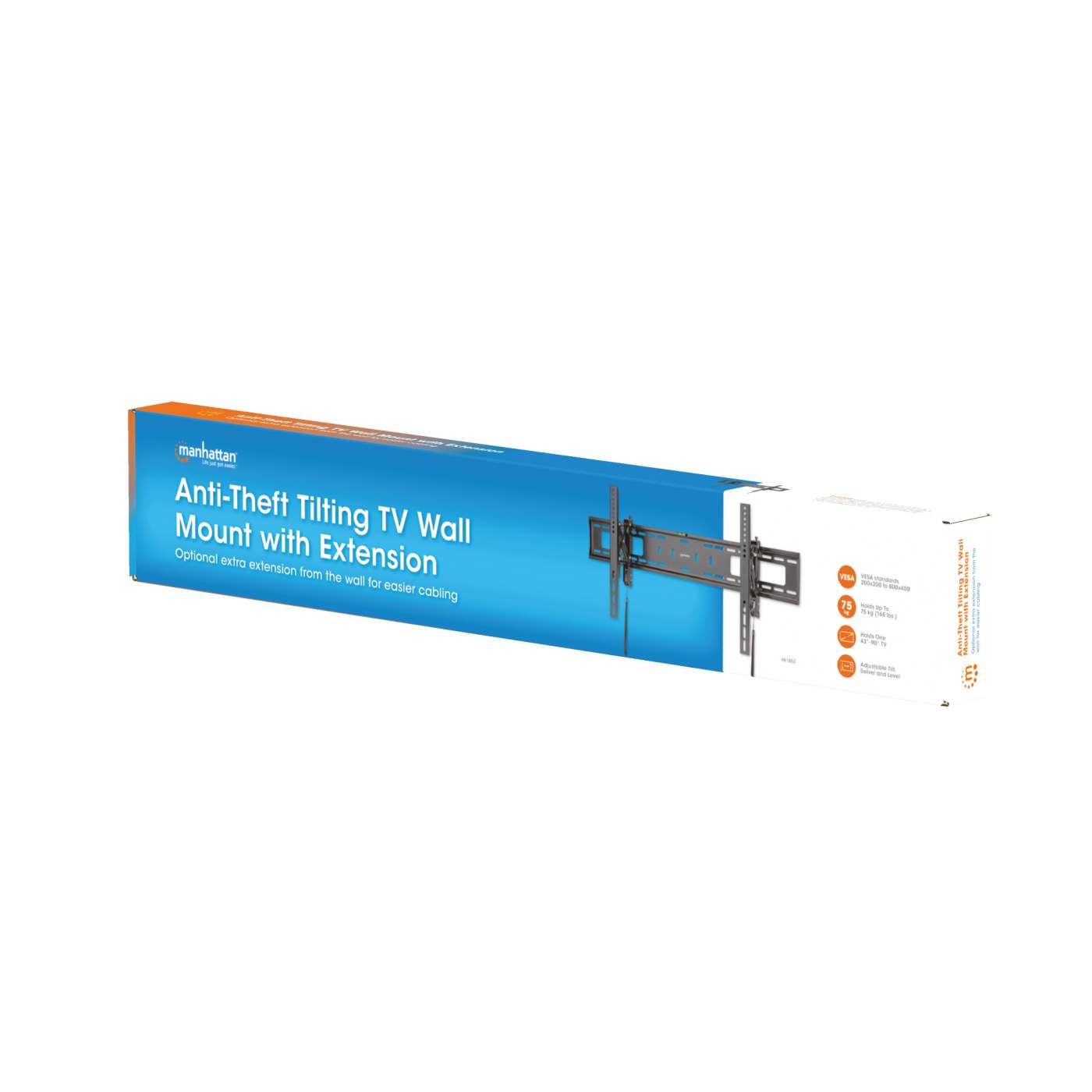

- Packaging type: Retail Box
- Packaging dimensions: 980 x 165 x 57 [mm]
- Master Carton Quantity: 4
- Master Carton Weight: 19.50 kg
- Master Carton Dimensions: 995 x 340 x 135 [mm]
