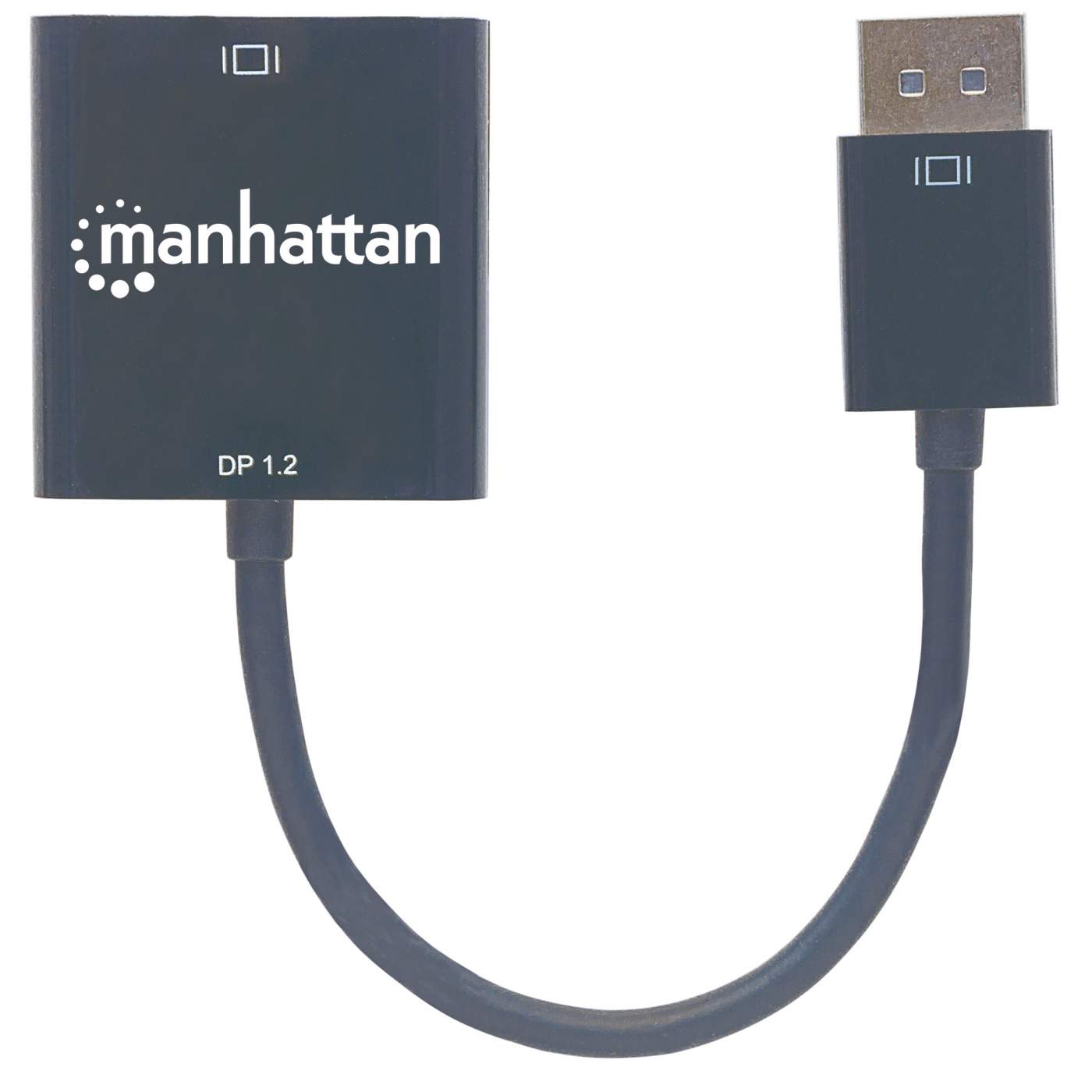

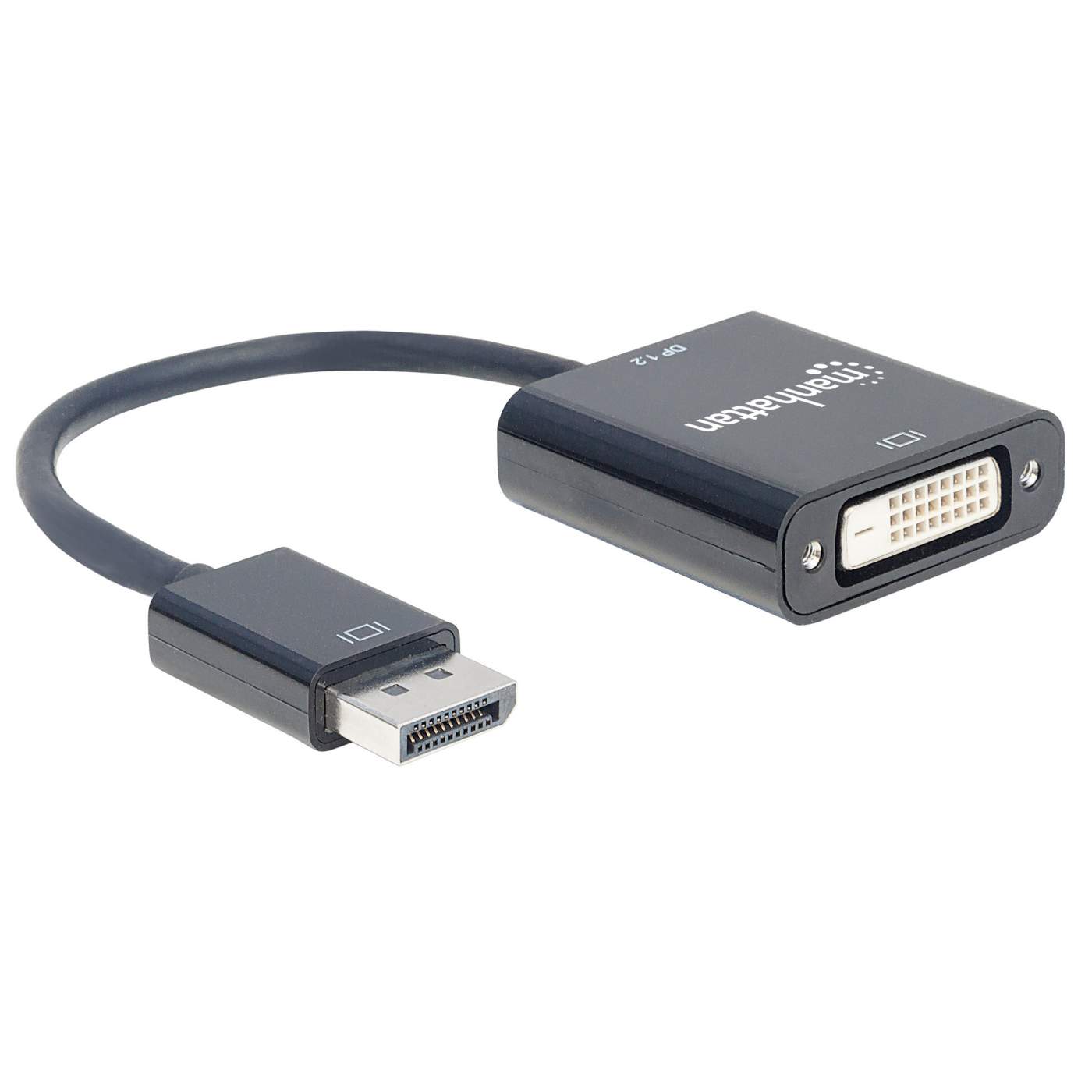

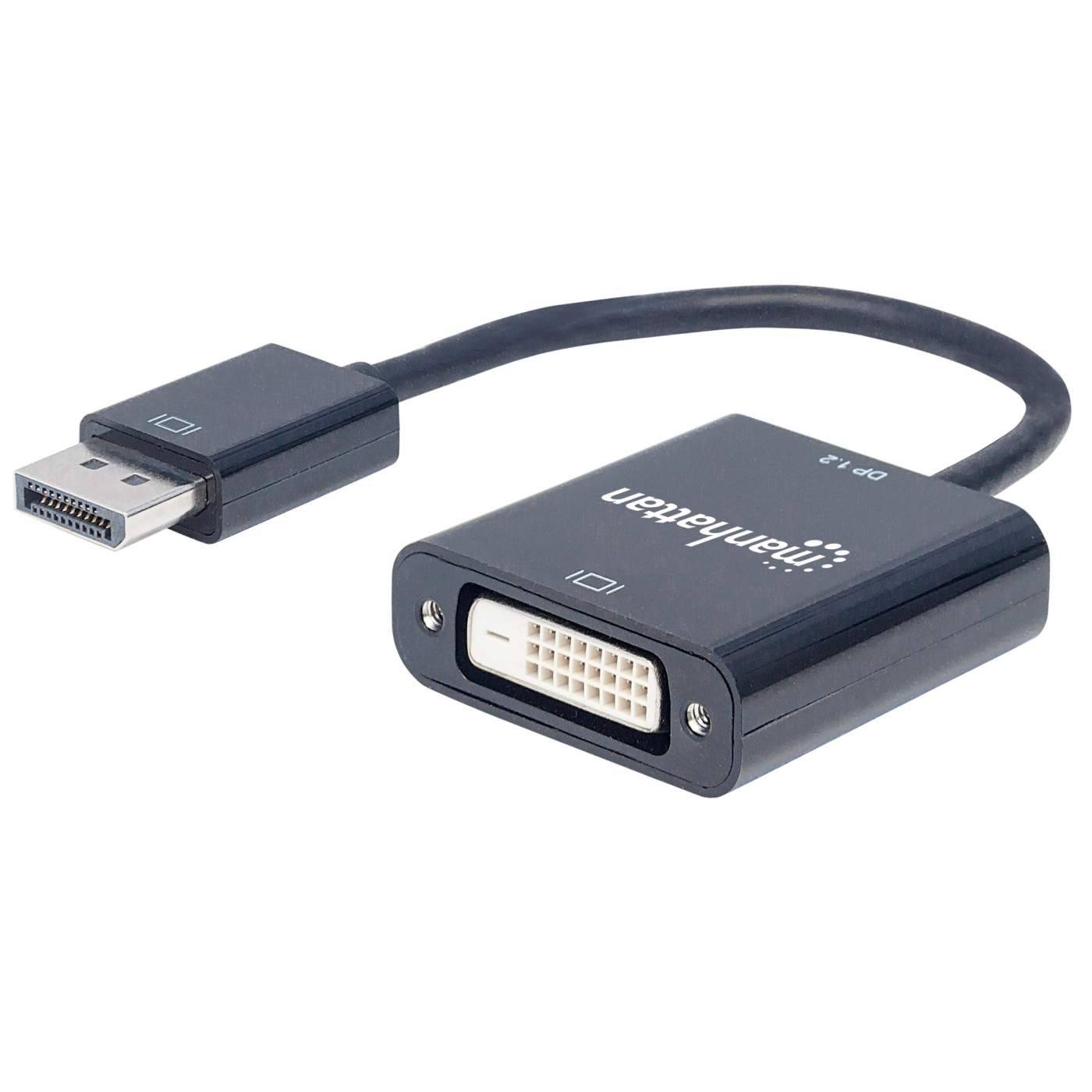

DisplayPort 1.2a to DVI-D Adapter

DisplayPort 1.2a Male to DVI-D Female, Active, 23 cm (9 in.), Black

Part-No.: 152228

Highlights

  • Actively converts a DisplayPort signal to a DVI-D dual-link signal
  • Delivers a high-quality digital video signal – ideal for using a new DisplayPort source with an existing DVI-D display
  • Supports Deep Color, high-bandwidth 10.8 Gbps applications and resolutions up to 1920x1200@60Hz

Future arrivals:

#
Quantity
Arrival Date
1
540
2021-04-09


Easily connect a DisplayPort source to an DVI-D display

The Manhattan DisplayPort Adapter helps establish a fast, simple and convenient link between newer DisplayPort-equipped sources and existing DVI-D displays. The Manhattan DisplayPort Adapter is easy and quick to install. No complicated configuration or setup is required, which helps fully realize the investment, value and service life of DVI-D displays. Its all-in-one design is a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and workspaces neat and orderly.

  • Actively converts a DisplayPort signal to a DVI-D dual-link signal
  • Delivers a high-quality digital video signal – ideal for using a new DisplayPort source with an existing DVI-D display
  • Supports Deep Color, high-bandwidth 10.8 Gbps applications and resolutions up to 1920x1200@60Hz
  • Integrated cable design relieves port pressure; built-in screw holes secure cable connection
  • Compatible with surround and multidisplay modes, nVidia® and AMD® Eyefinity, and with D++ (dual mode graphics cards)
  • Three-Year Warranty

    Standards and certifications
  • Displayport 1.2a
  • HDCP

    General
  • 8-bit and 10-bit Deep Color support
  • 10.8 Gbps bandwidth
  • Auxiliary channel support, 1 Mbps
  • One-lane, one-direction, four-line connection support
  • Active

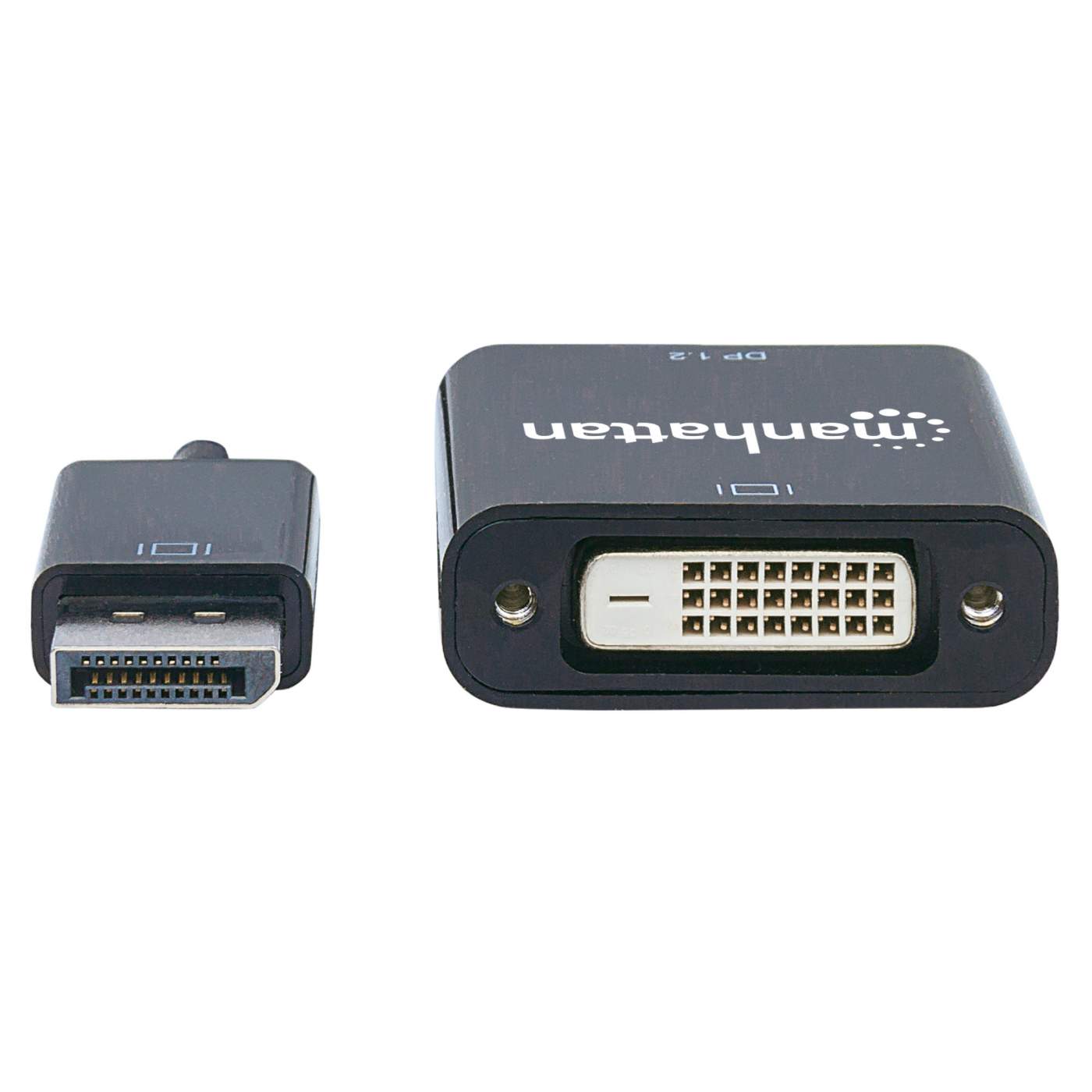

    Connectors
  • DisplayPort 20-pin male
  • DVI-D 24+1-pin female
  • Gold-plated contacts
  • ABS boots, built-in PVC strain relief

    Physical
  • Length: 23 x 4 x 1.5 cm (9 x 1.7 x 0.6 in.)
  • Weight: 4 g (0.9 oz.)

    Operating Environment
  • Operation Temperature: 0 - 50°C (32 - 122°F)
  • Storage Temperature: -10 - 80°C (14 - 176°F)
  • Humidity (noncondensing): 0 - 96%

    Package contents
  • DisplayPort 1.2a to DVI-D Adapter

  • Additional SKUs

    • Amazon ASIN: B01N8XVFSG
    • EAN: 0766623152228
    • UPC: 766623152228
    • ALSO: 2867351
    • API: 239942

  • Physical Specifications

    • Weight: 0.04 kg
    • Dimensions: 230 (L) x 42 (W) x 15 (H) [mm]
    • Packaging: Bag
    • Carton Quantity: 180
    • Carton Weight: 8.20 kg

  • Datasheet
