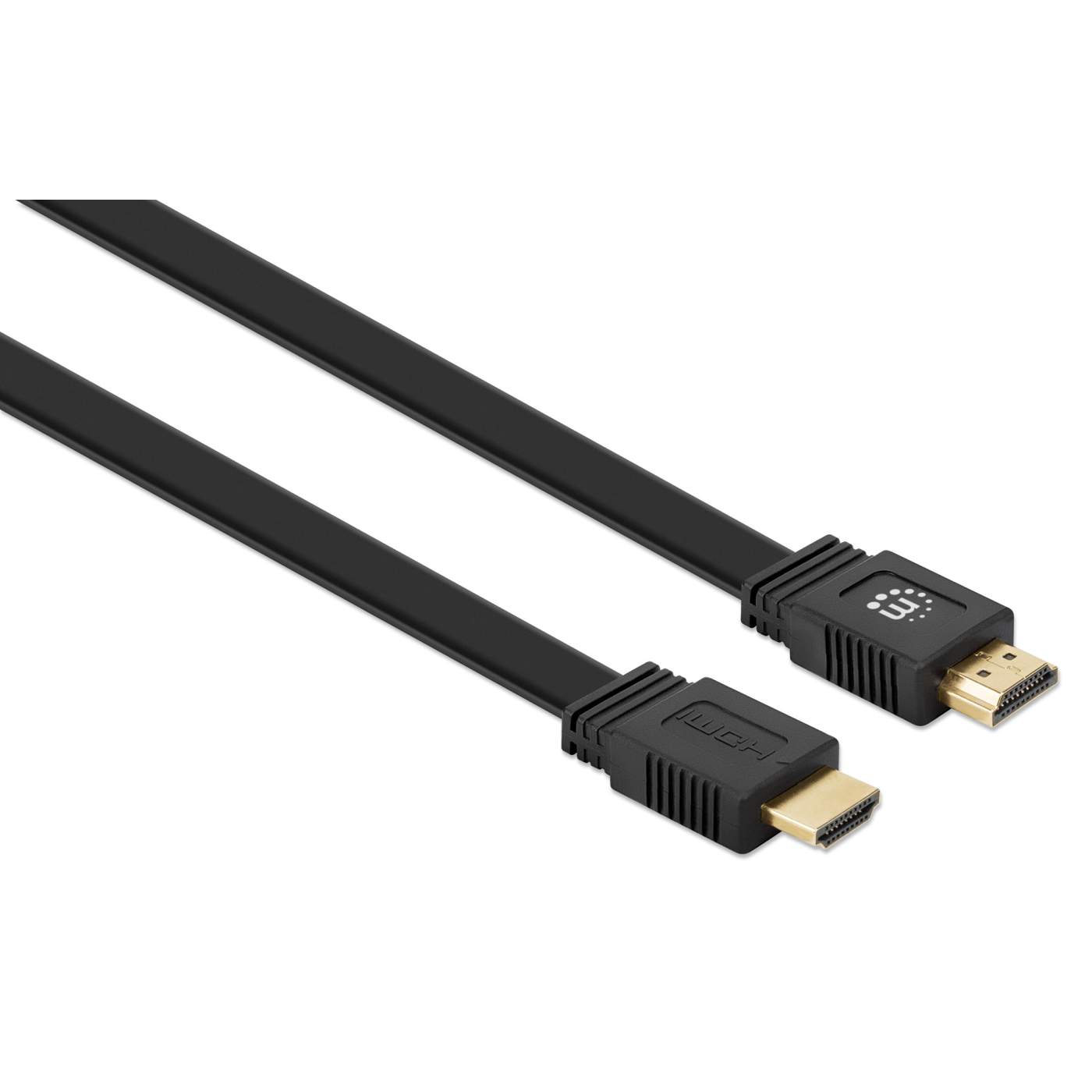

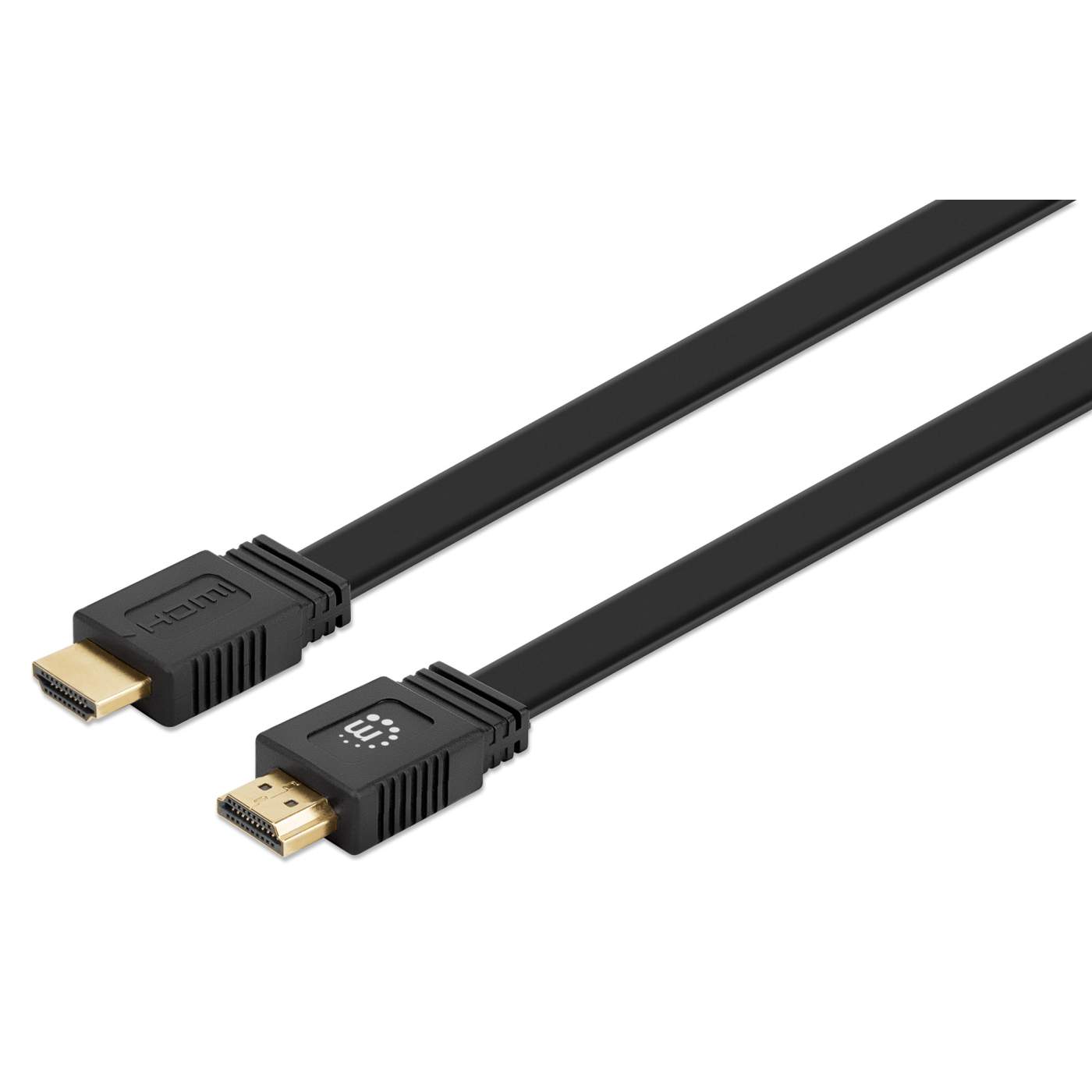

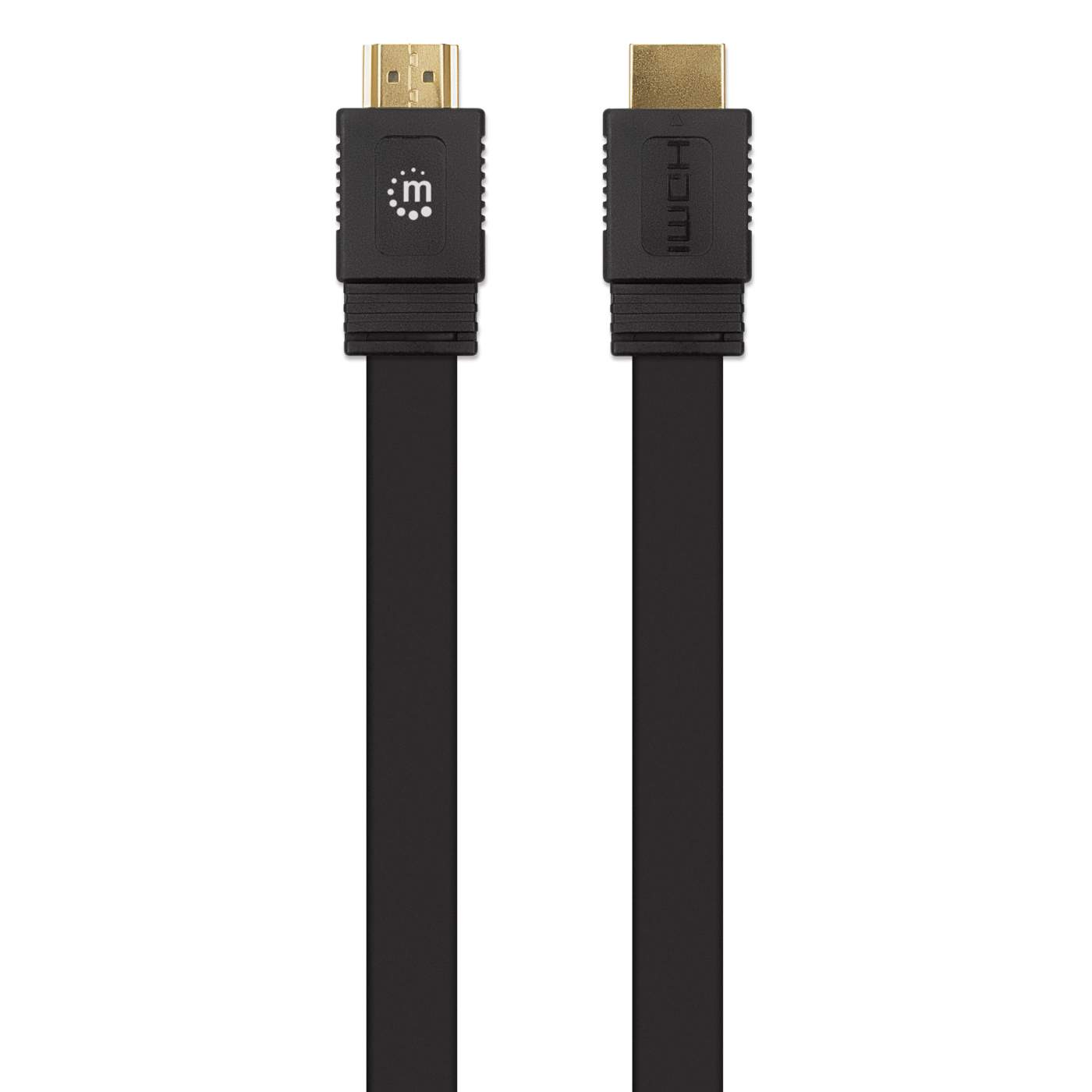

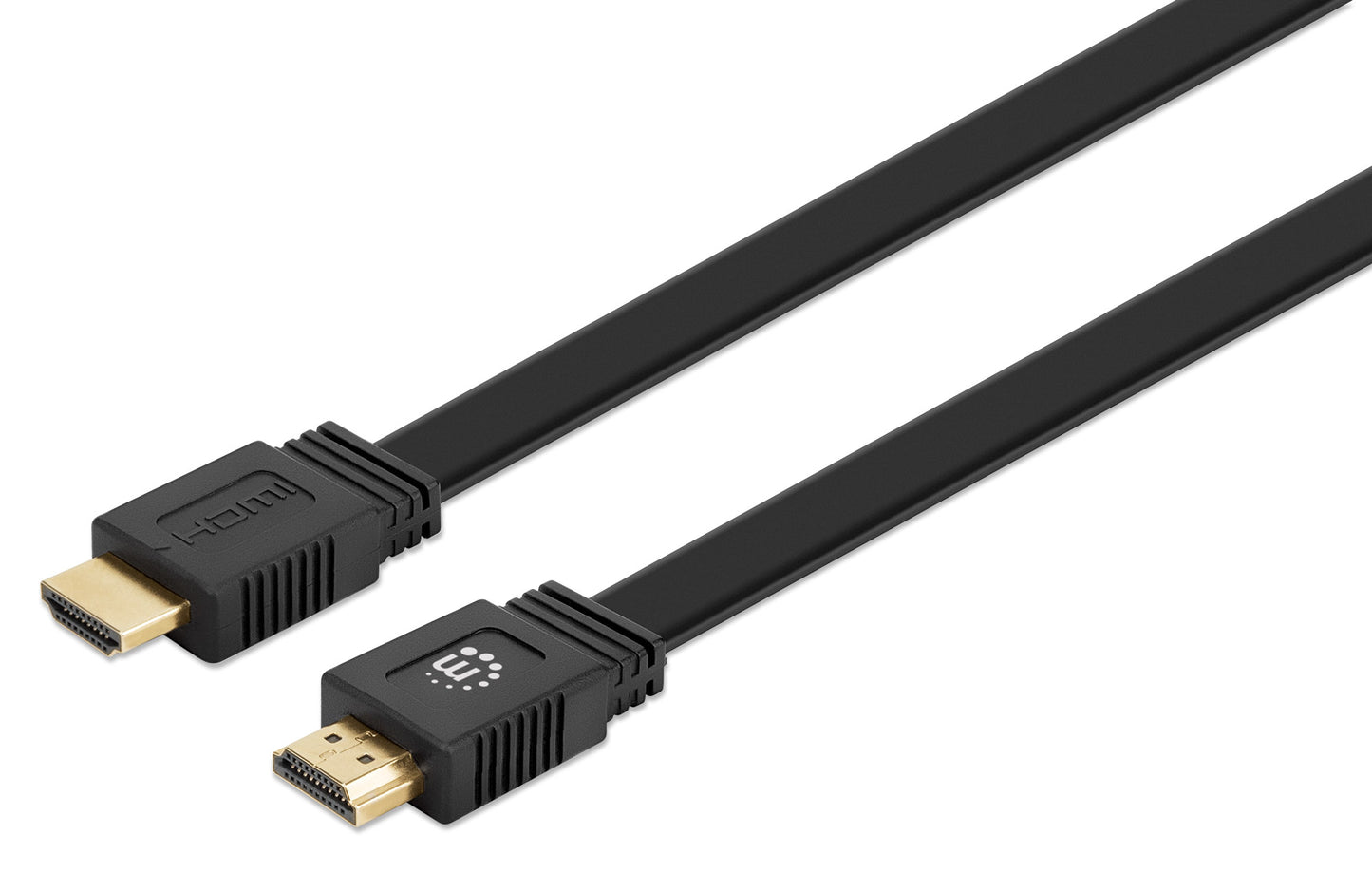

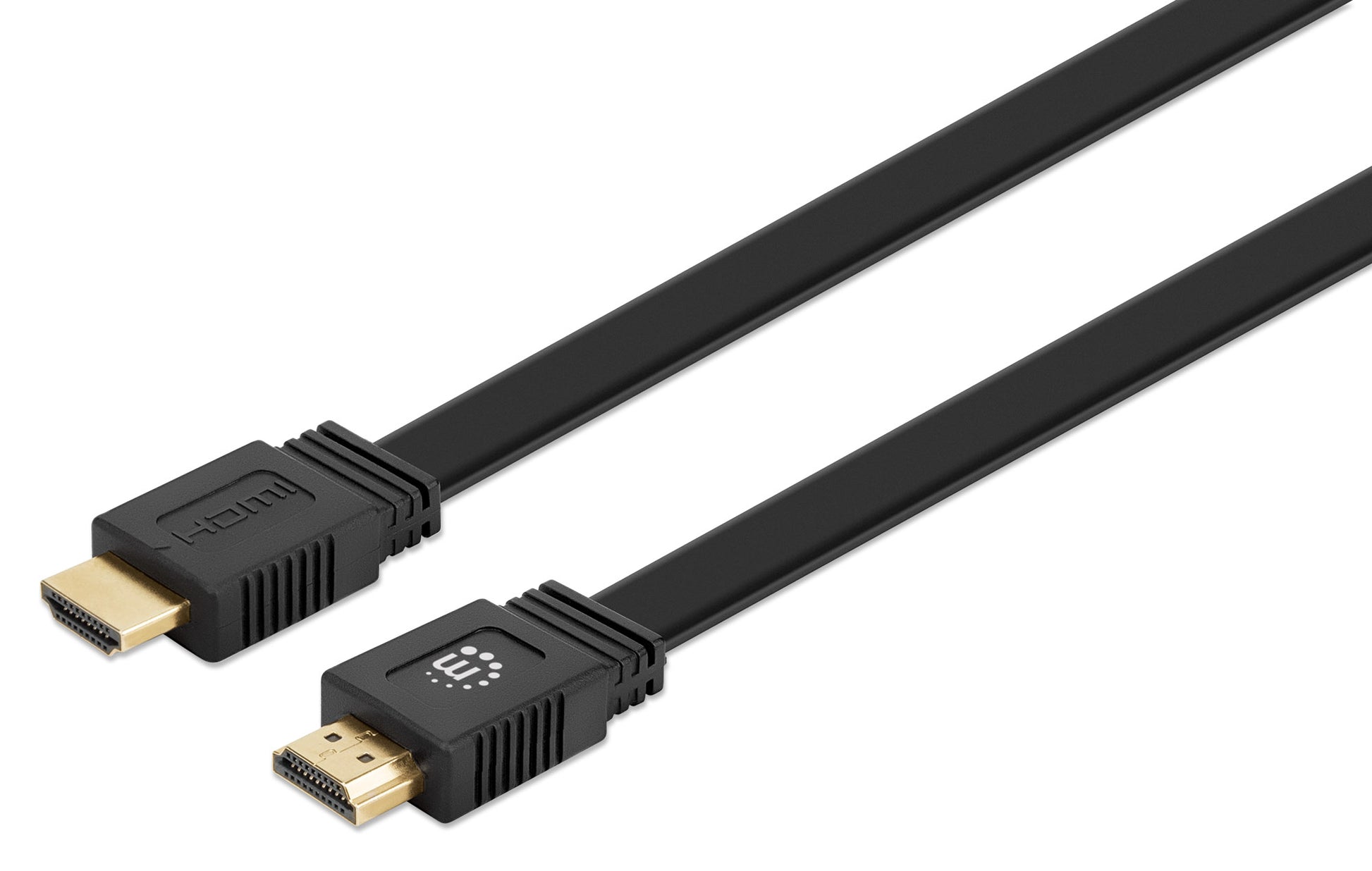

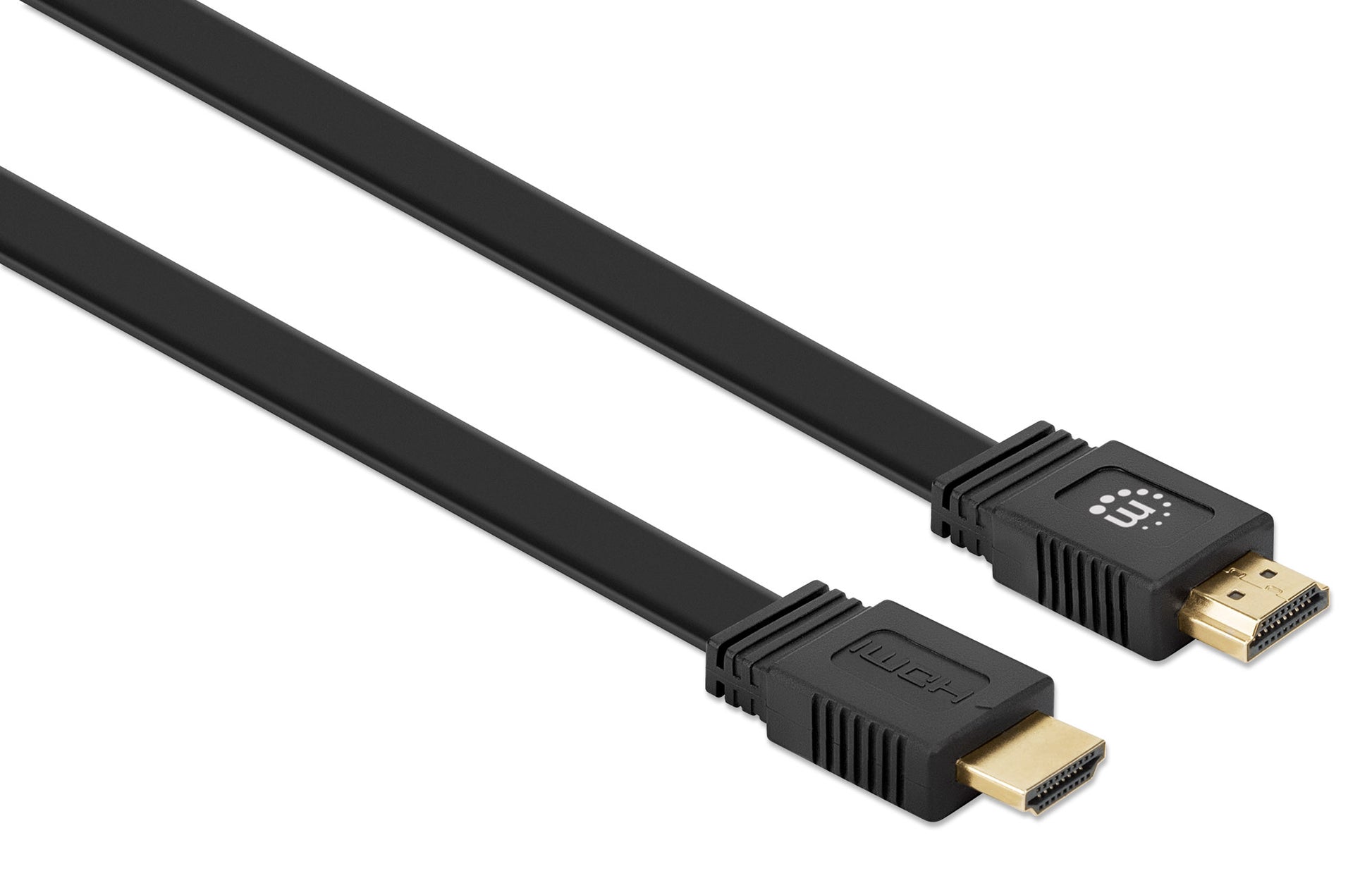

Flat High Speed HDMI Cable with Ethernet

4K@60Hz UHD, HDMI Male to Male, 10 m (30 ft.), HDR, HEC, ARC, Gold-plated Contacts, Black

Part-No.: 355643

Highlights

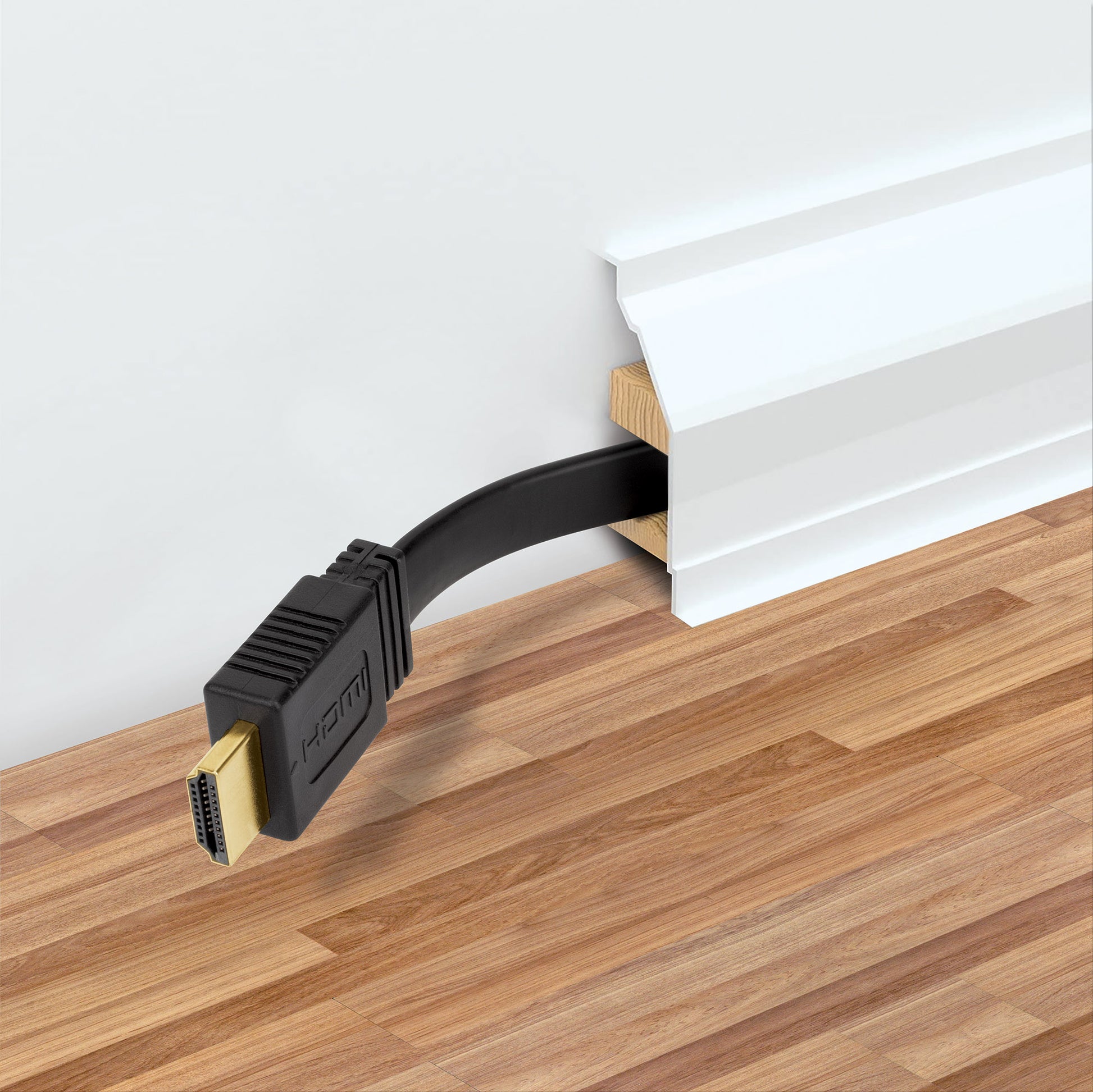

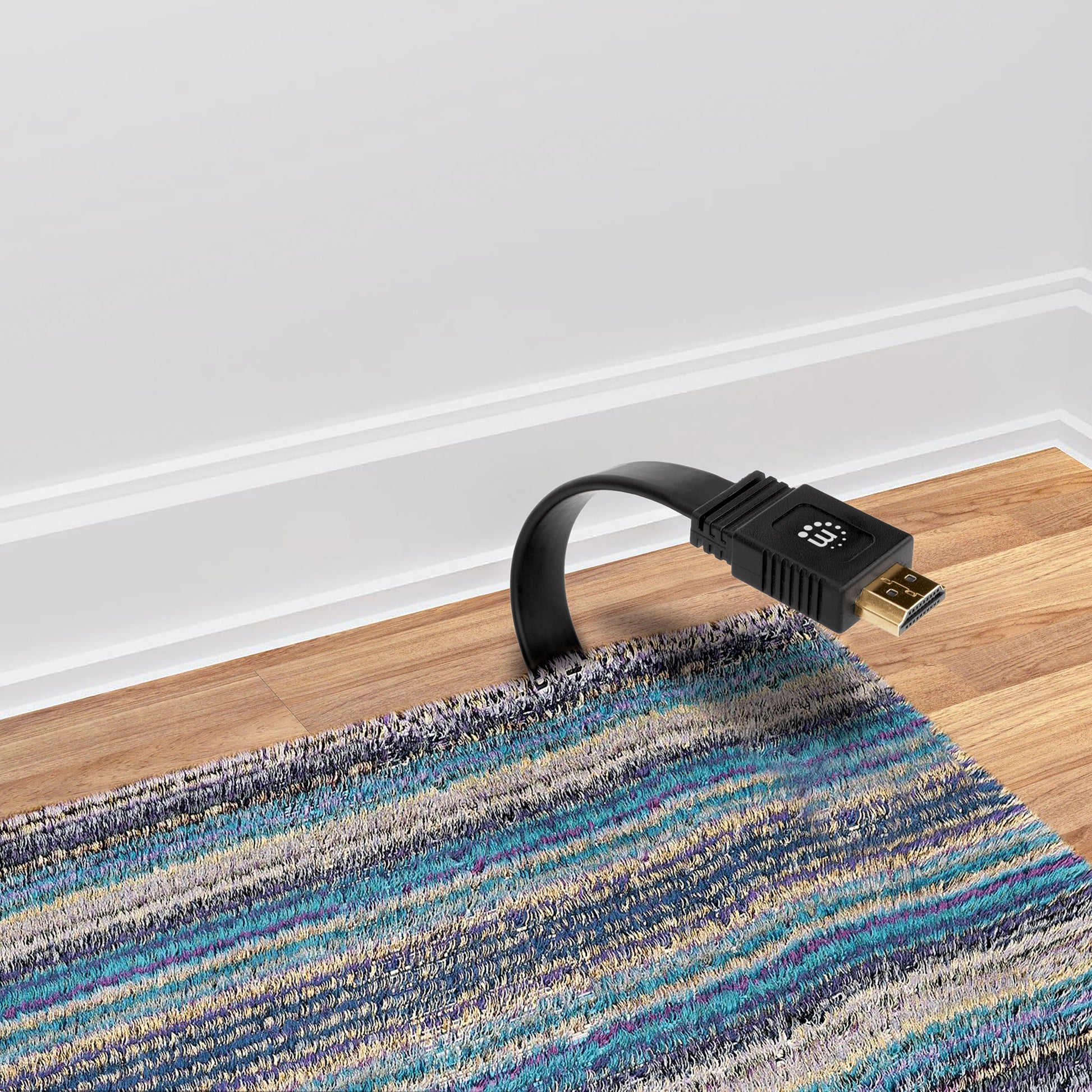

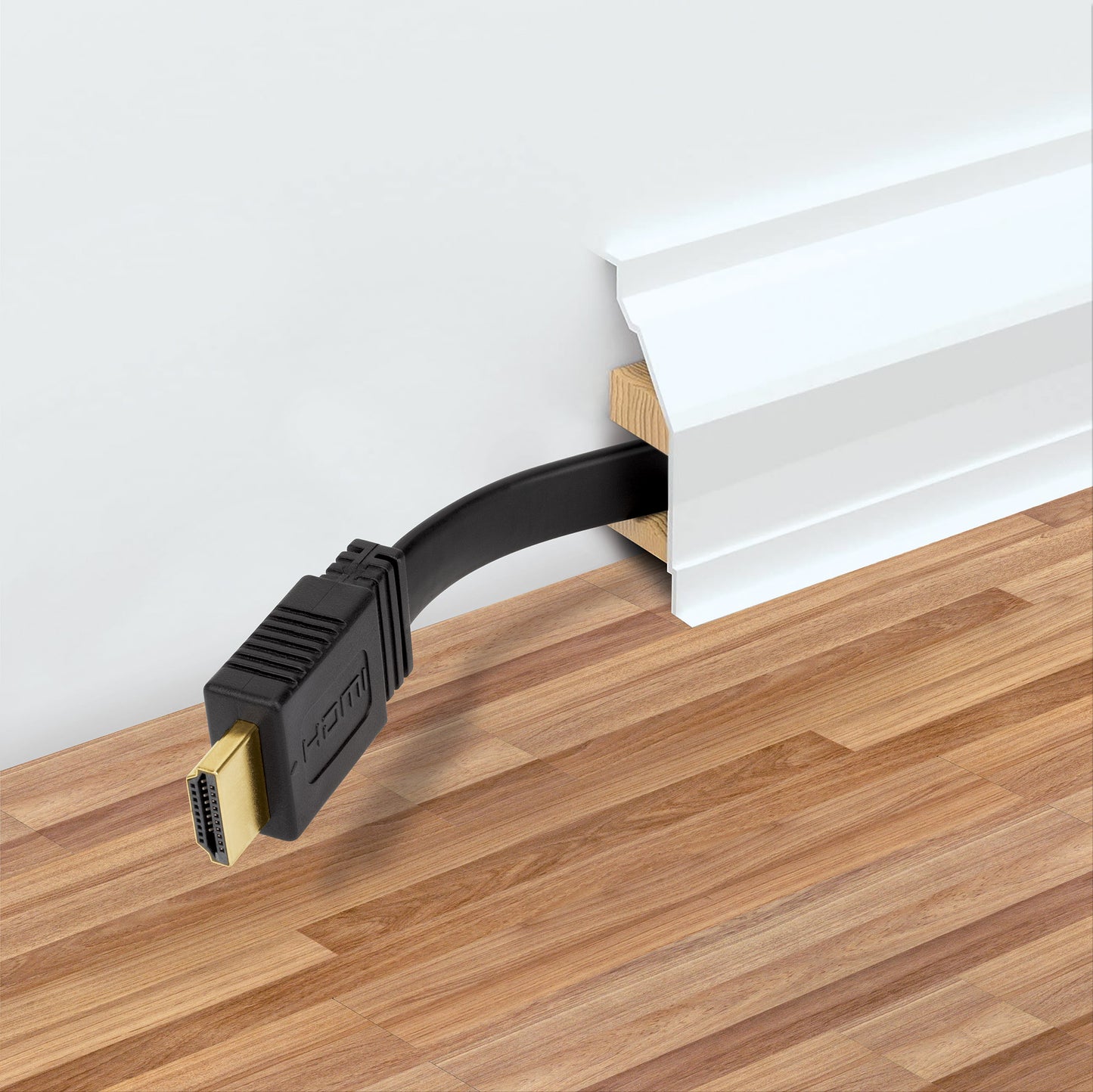

  • Flat, tangle-resistant design, ideal for installations in walls, under carpets or along baseboards
  • Supports Ultra-High-Definition (UHD) 4K@60Hz
  • Gold-plated contacts for corrosion-free connections


Flat HDMI Cable - Enjoy Ultra-High-Definition (UHD) performance with a low-profile, installation-friendly design

HDMI is the gold standard for delivering the highest-quality audio and video signals over a single cable, from an AV source to your display or projector. The flat, tangle-resistant design of the Manhattan Flat High Speed HDMI Cable with Ethernet is ideal for installations in walls, under carpets or along baseboards. The cable's unique design also makes it easy to roll up or out without worrying about snags and tangles. Gold-plated contacts and double shielding (aluminum foil and Mylar braid) provide maximum signal integrity for a resolution up to 4K60 in Dolby Vision™ and Dolby Atmos® with zero EMI interference. Expanded features include an Audio Return Channel to allow your TV's audio to transmit through your audio system without a separate cable. It includes Internet connectivity for home entertainment devices thanks to the integrated HDMI Ethernet Channel (HEC). Use it with most every HDMI device - TVs, projectors, monitors, notebooks, PCs, AV receivers, streaming boxes, game consoles, PlayStation® (PS4/PS5), Xbox® (One/One X/Series S/Series X), Blu-ray players and more.

  • Flat, tangle-resistant design, ideal for installations in walls, under carpets or along baseboards
  • Supports Ultra-High-Definition (UHD) 4K@60Hz
  • Gold-plated contacts for corrosion-free connections
  • High Dynamic Range (HDR) for superior contrast and brilliant colors
  • Supports Dolby Vision™ and Dolby Atmos®
  • Foil and braid double shielding to reduce EMI and other interference sources
  • Audio Return Channel (ARC) to allow TV's audio to transmit through your audio system without a separate audio cable
  • HDMI Consumer Electronics Control (CEC) so one remote can be used with all compatible HDMI devices
  • HDMI Ethernet Channel (HEC) to add network connectivity to an HDMI link without a separate Ethernet cable
  • Compatible with every HDMI device - TVs, projectors, monitors, notebooks, PCs, AV receivers, streaming boxes, game consoles, PlayStation® (PS4/PS5), Xbox® (One/Series S/Series X), Blu-ray players and more
  • HDCP 2.2 compliant
  • Supports 3D video and Deep Color up to 48 bits per pixel
  • Supports uncompressed LPCM, DTS Digital, DTS-HD Master Audio, Dolby TrueHD audio, four audio streams and 32-channel audio
  • Lifetime warranty

    Standards and Certifications
  • CE
  • RoHS
  • FCC
  • UL

    General
  • 4K (3840 × 2160) at 60 Hz resolution
  • HDCP 2.2 support
  • CEC support
  • HDR support
  • ARC support

    Connectors

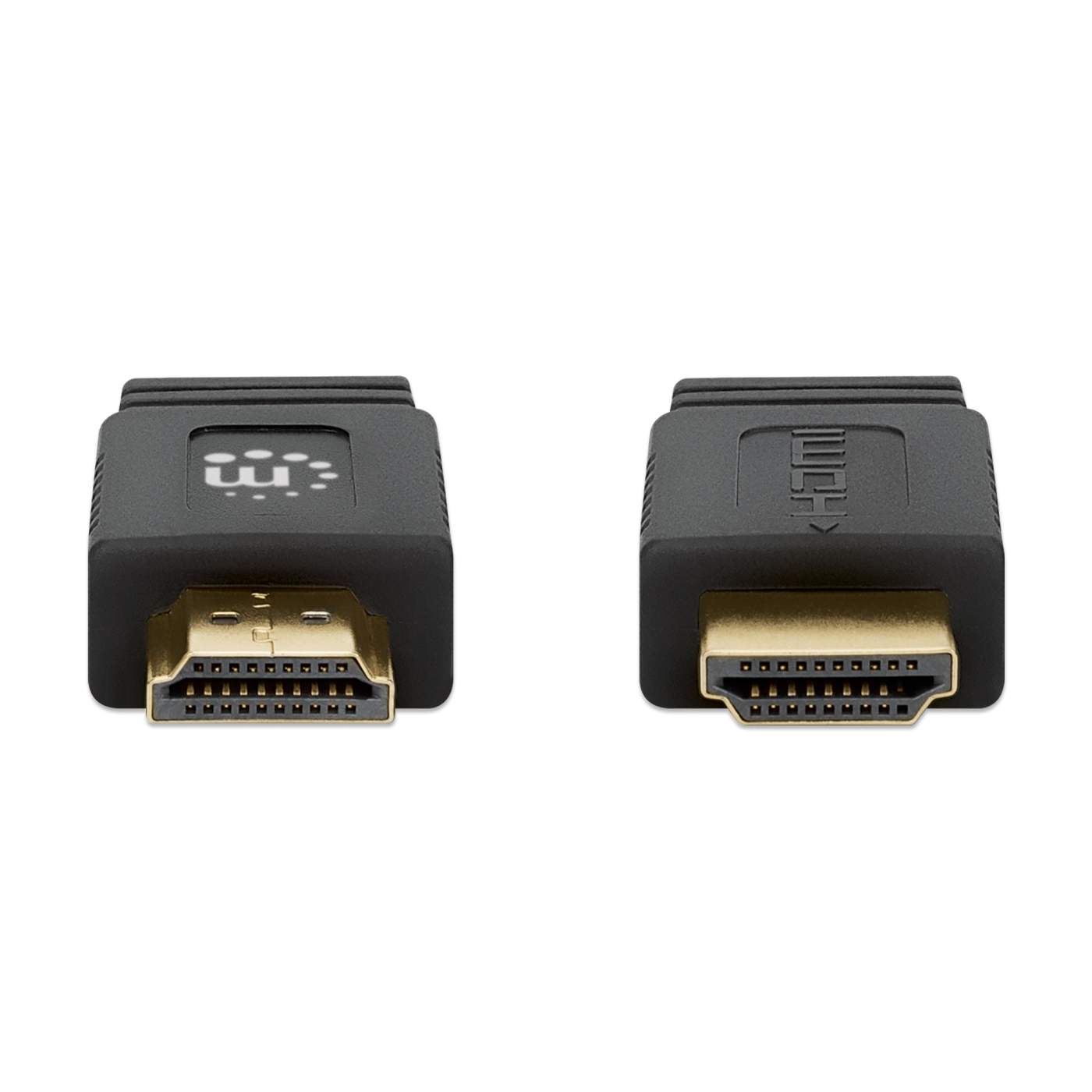

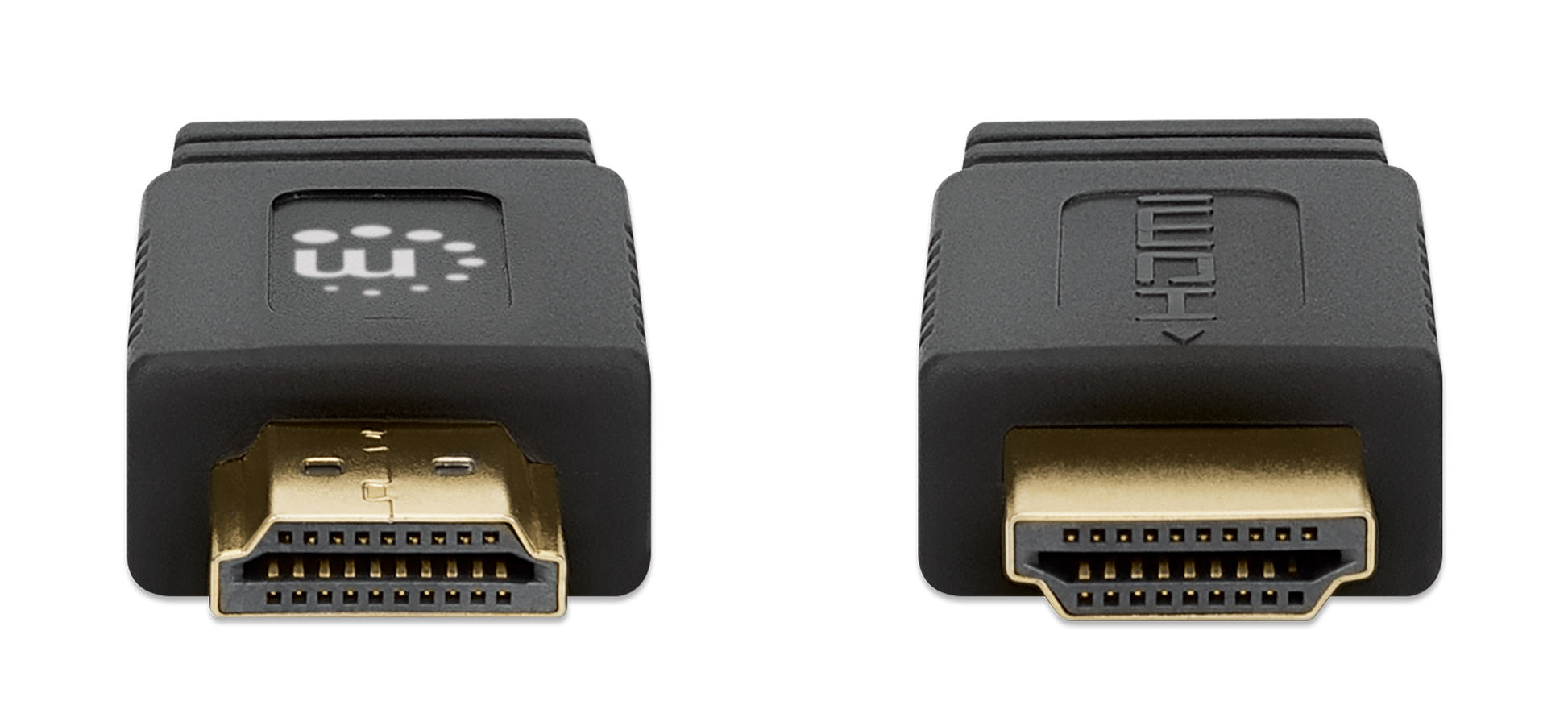

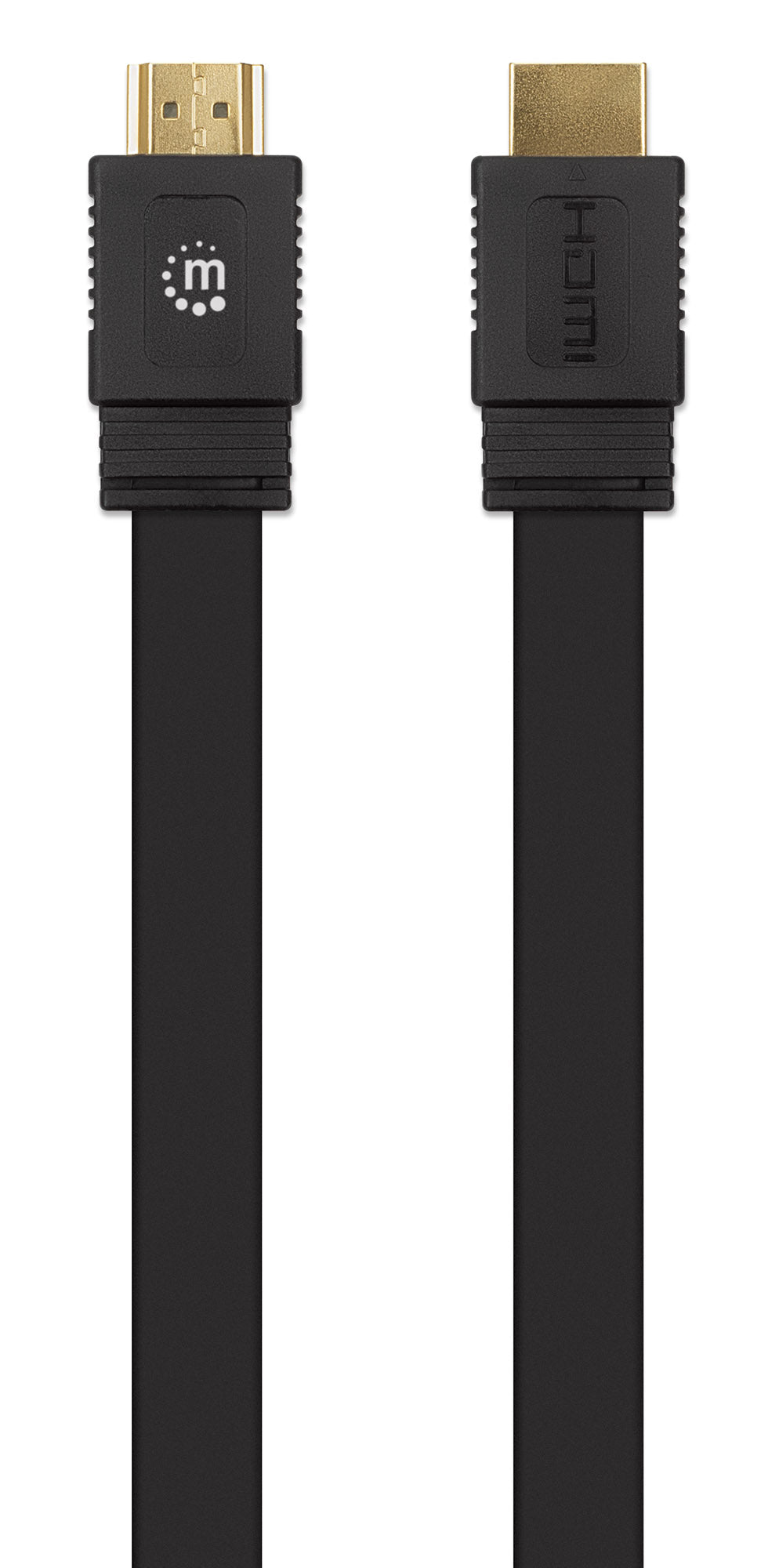

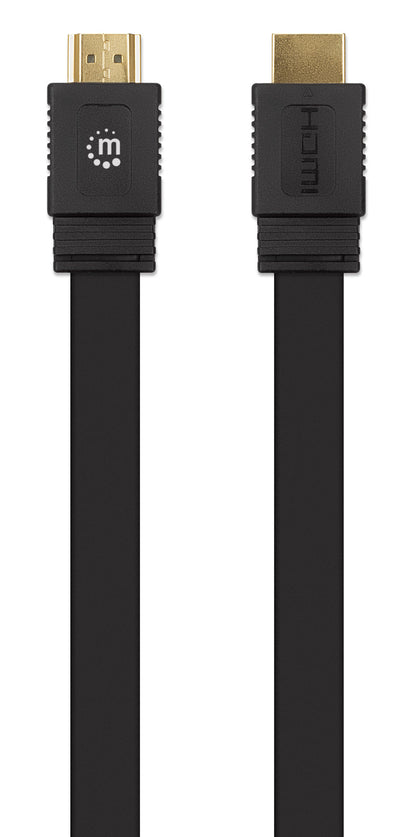

  • Two HDMI 19-pin male
  • Gold-plated contacts

    Cable
  • 28 AWG
  • Double shielding: aluminum foil and Mylar braid
  • Withstanding voltage: 300 VDC
  • Insulation resistance: 5 MΩ
  • Contact resistance: 10 Ω
  • PVC jacket
  • Length: 10 m (30 ft.)
  • Other dimensions: 13 mm ± 0.2 mm (width), 3.5 ± 0.2 mm (height)
  • Weight: 850 g (29.98 oz.)

    Operating Environment
  • Operation temperature: 0 - 40°C (32 - 104°F)
  • Storage temperature: -20 - 60°C (-4 - 140°F)
  • Humidity (noncondensing): 0 - 96%

    Package Contents
  • Flat High Speed HDMI Cable with Ethernet

  • Additional SKUs

    • EAN: 0766623355643
    • UPC: 766623355643

  • Physical Specifications

    • Weight: 0.85 kg
    • Dimensions: 10 (L) x 0.013 (W) x 0.003 (H) [m]

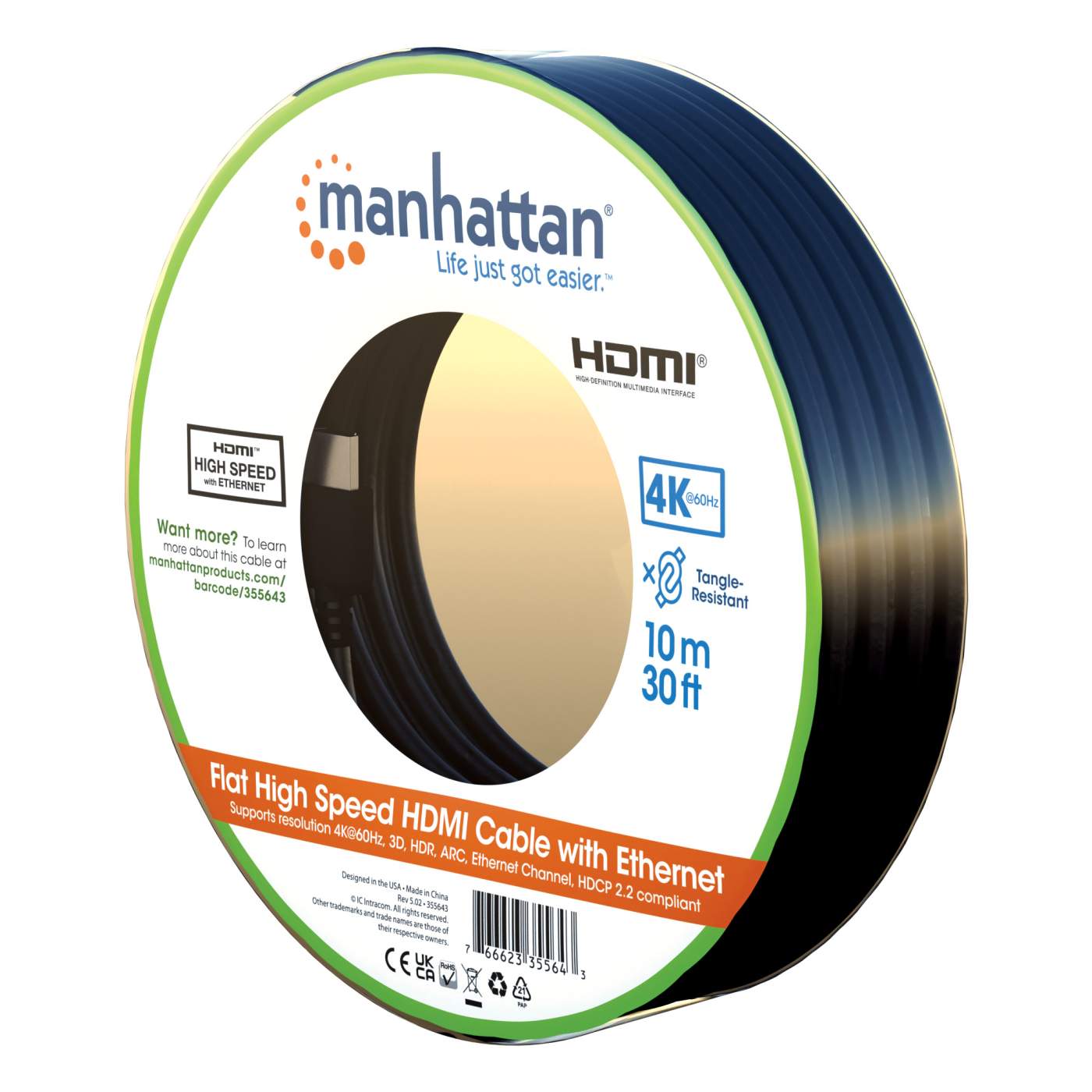

    • Packaging: Bag
    • Carton Quantity: 25
    • Carton Weight: 24.80 kg

  • Datasheet

    • Datasheet     » Download

    • Declaration of Conformity     » Download
