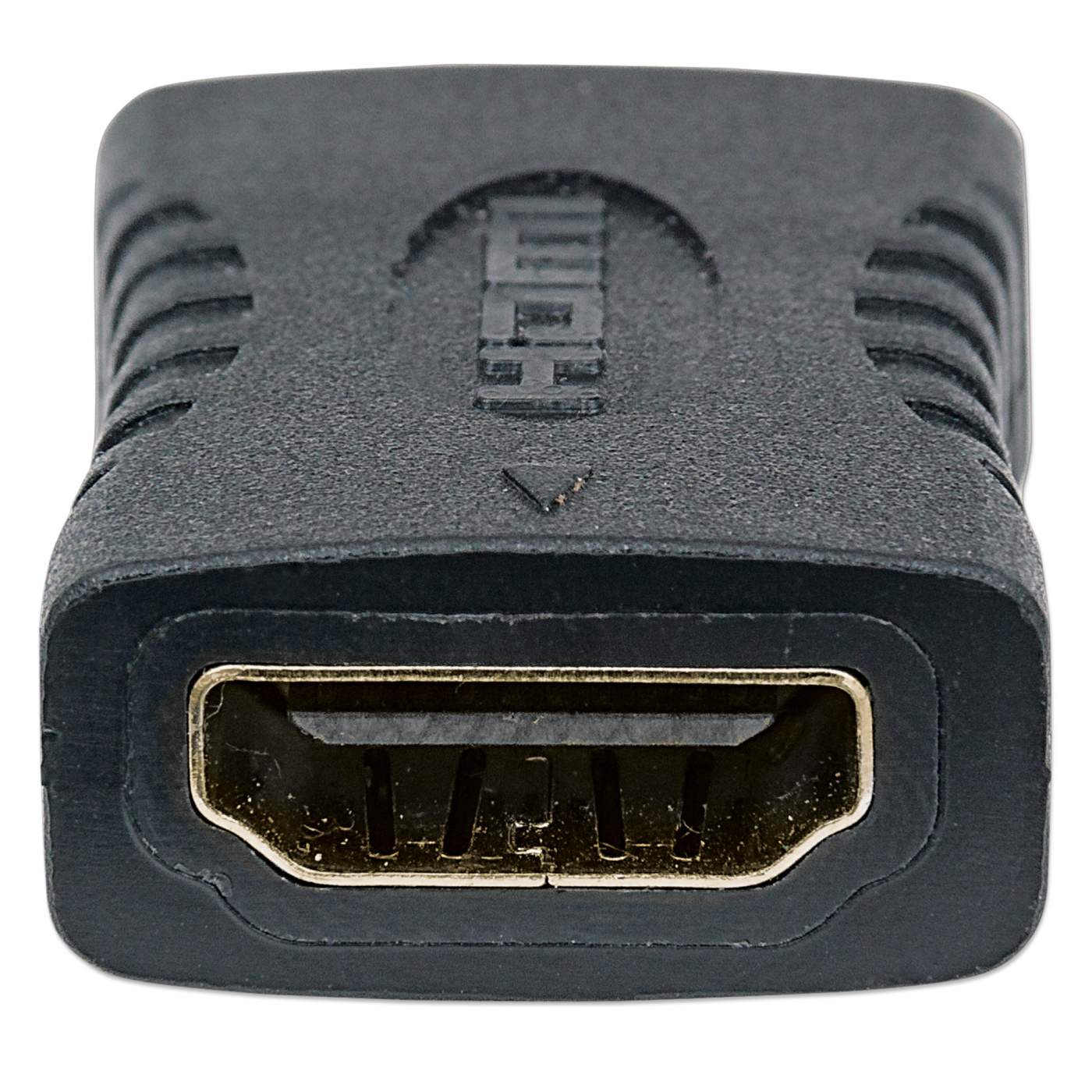

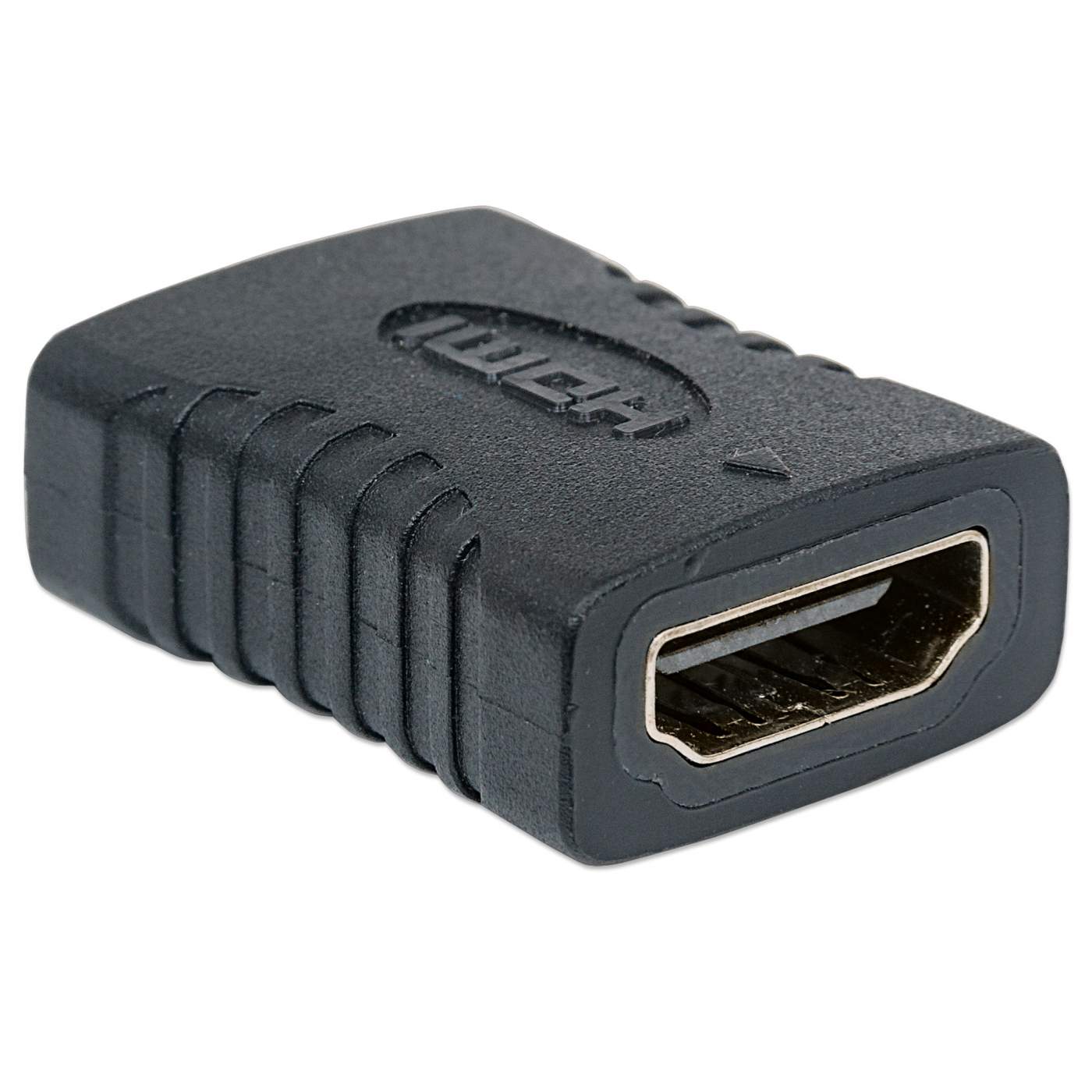

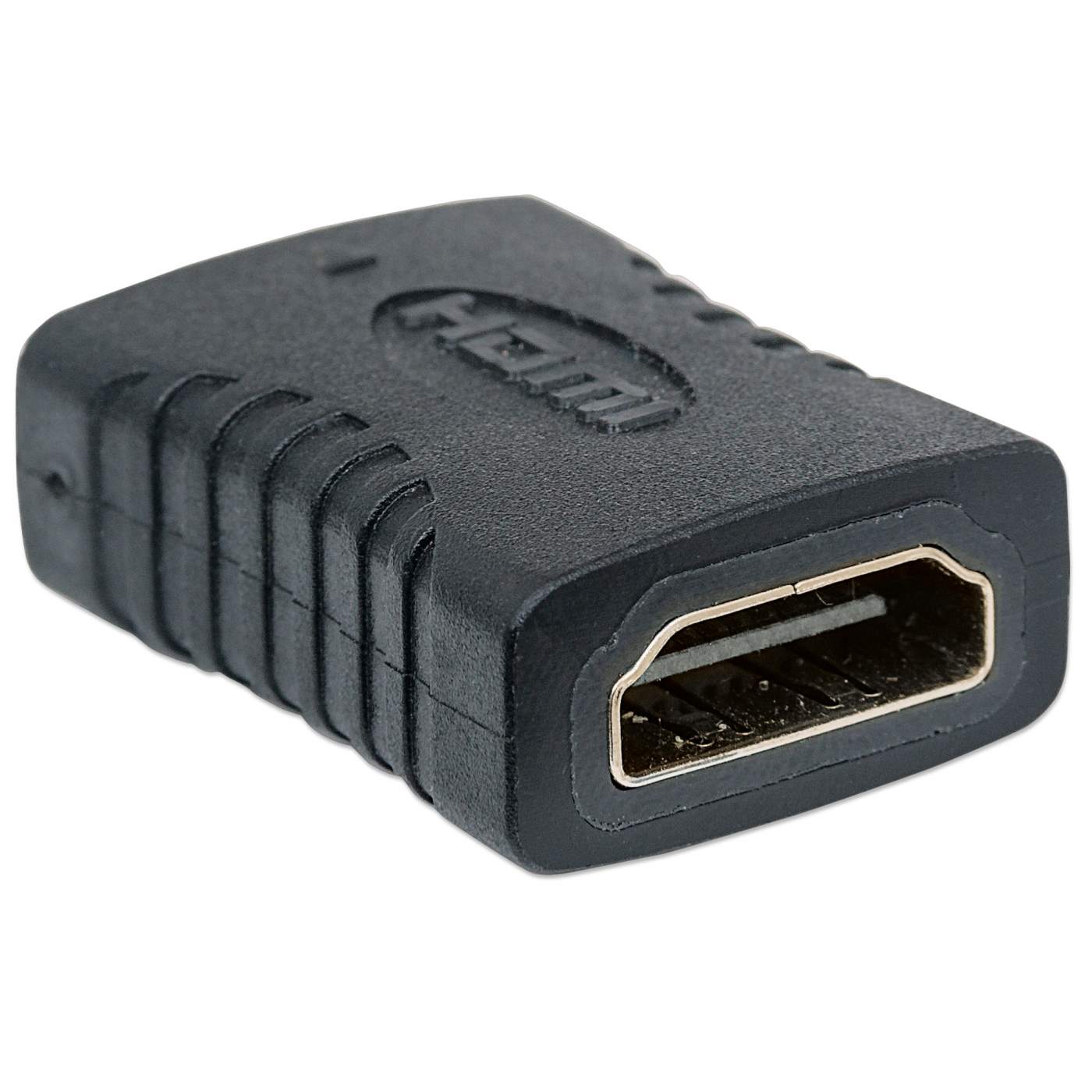

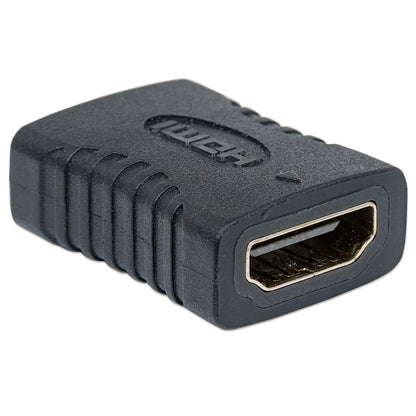

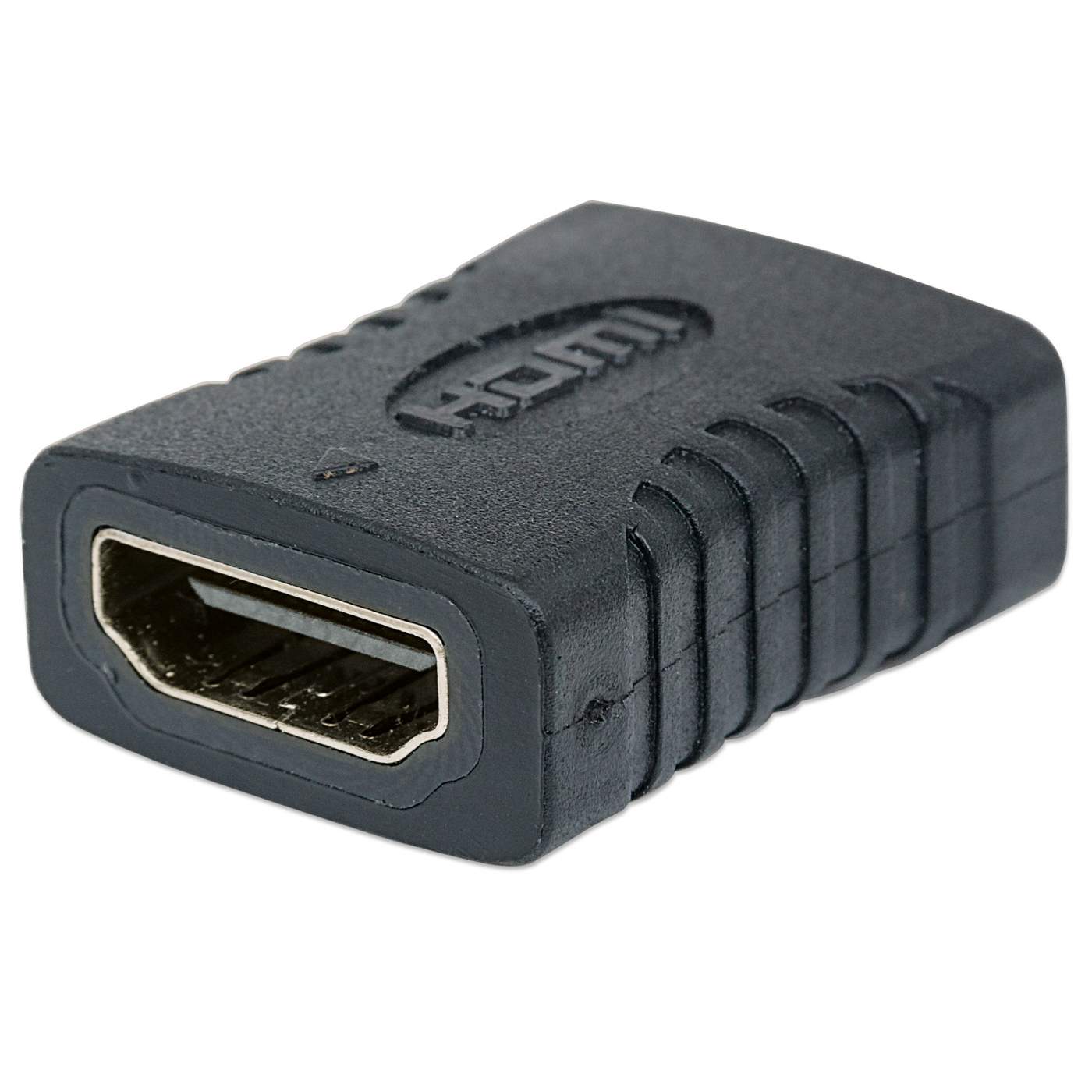

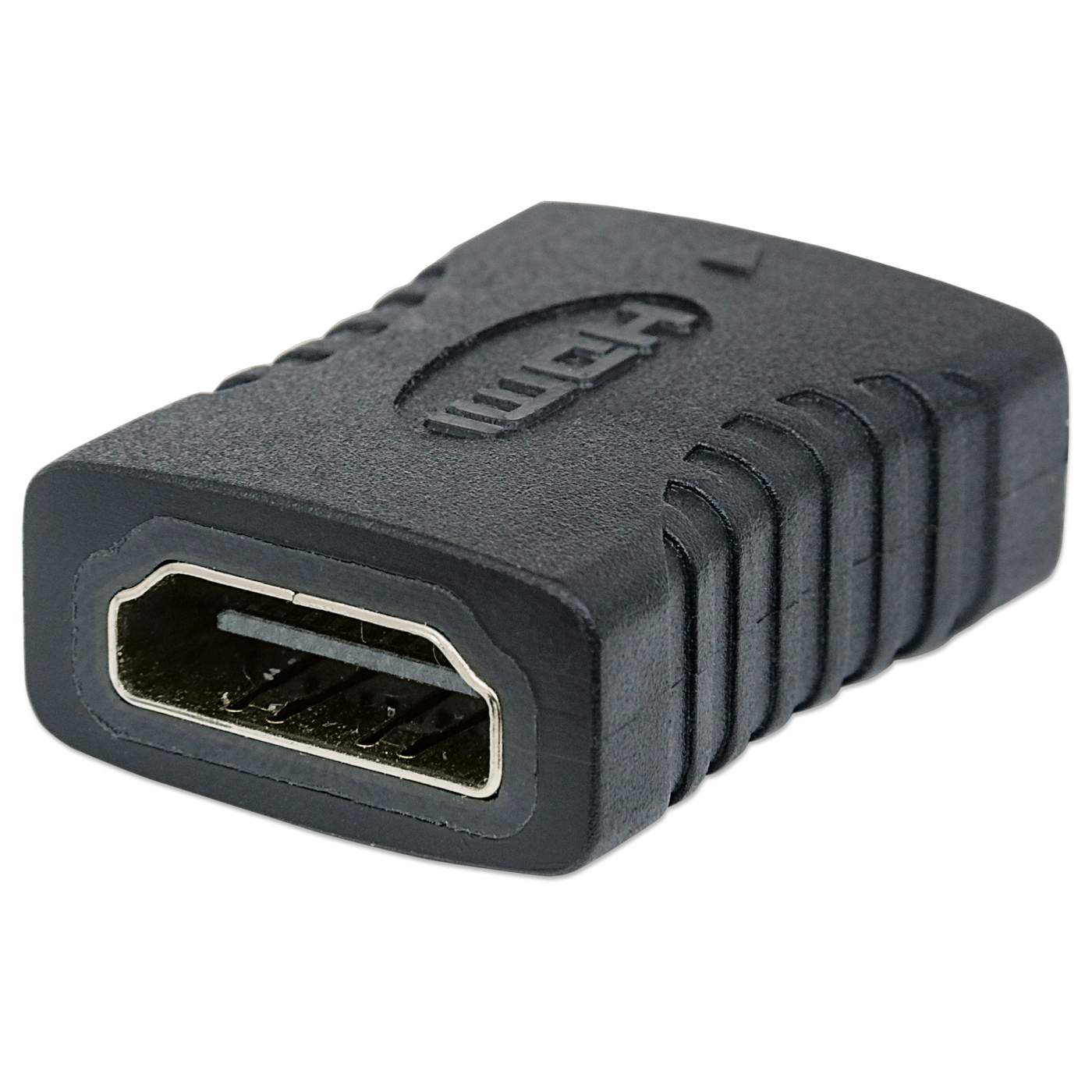

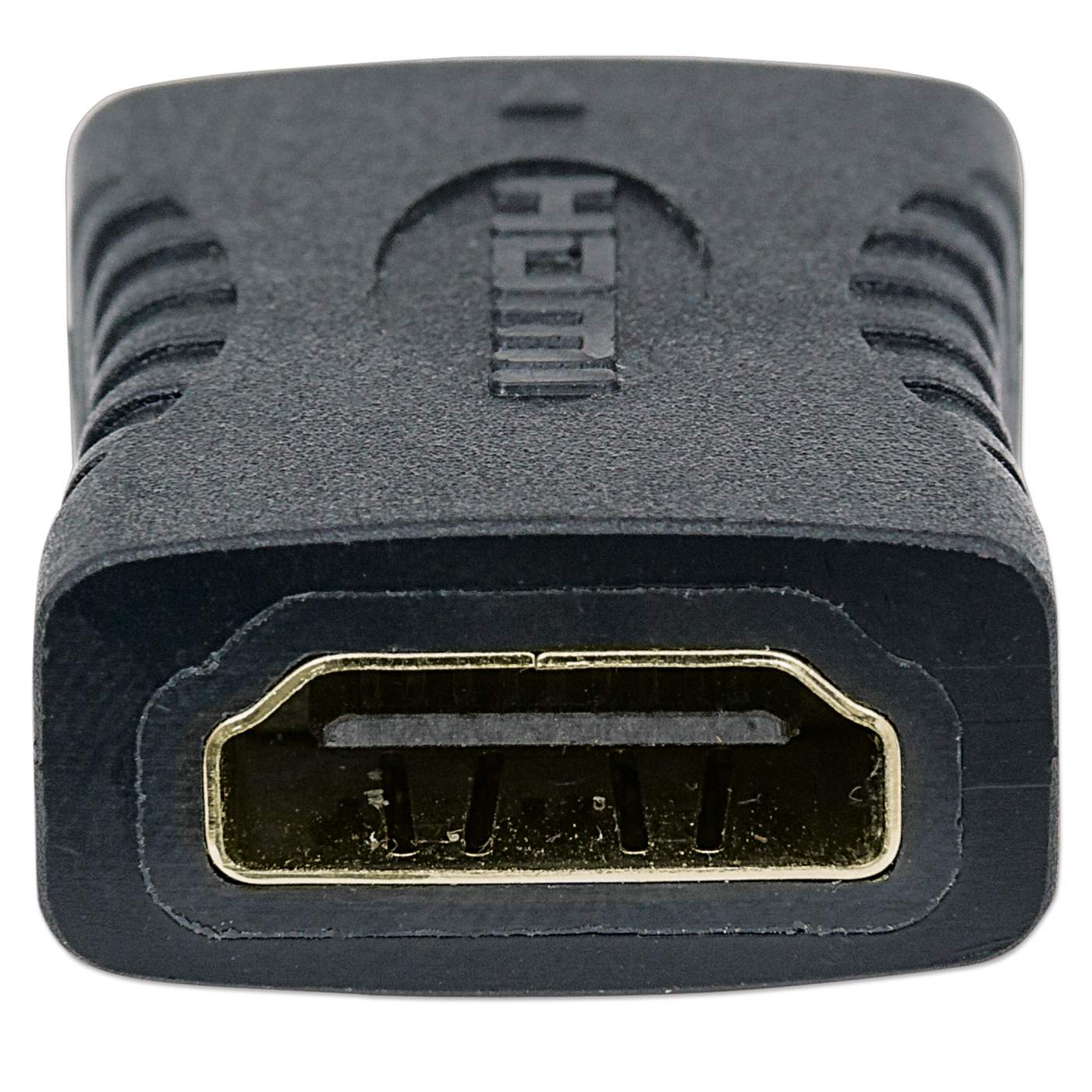

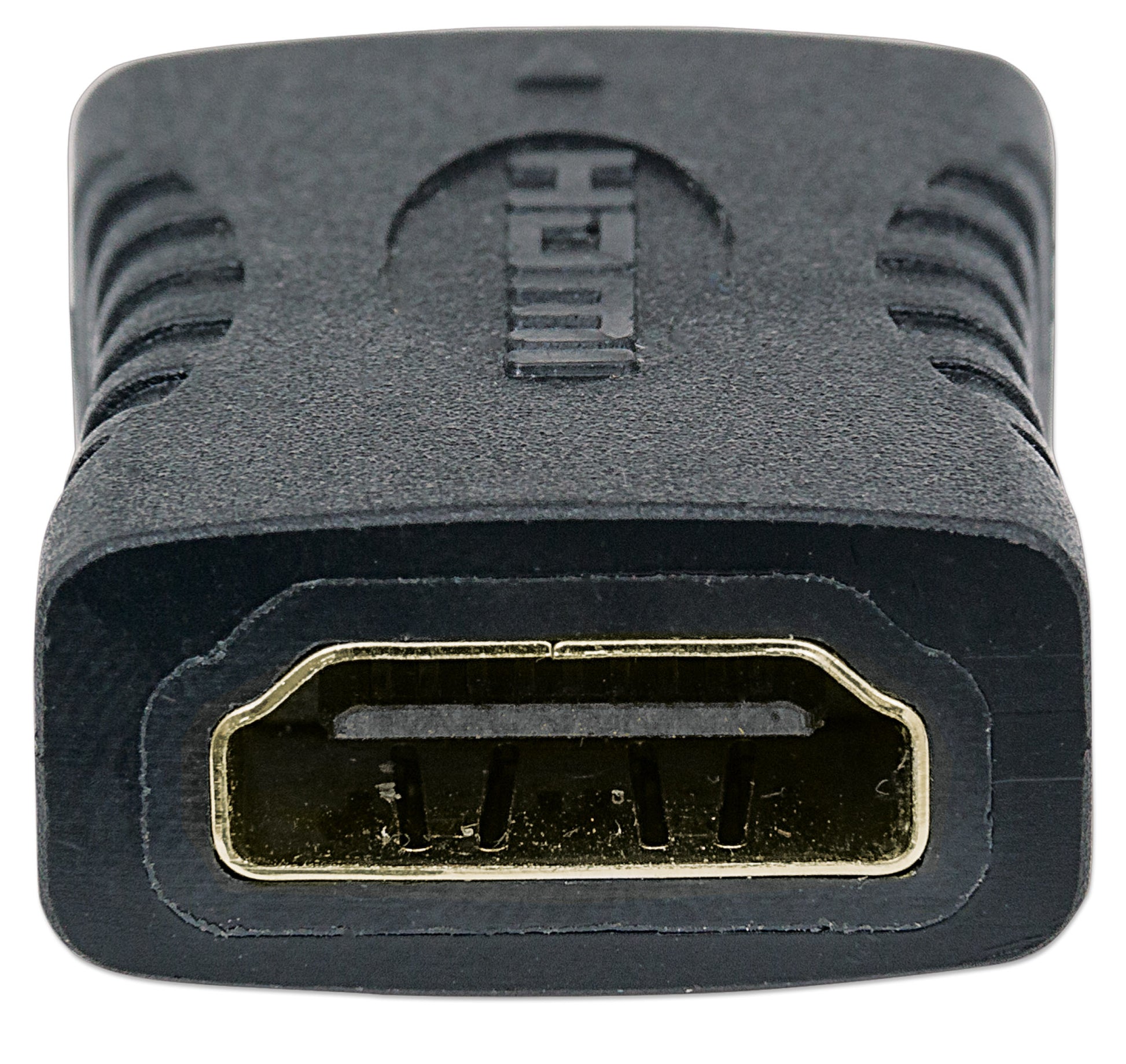

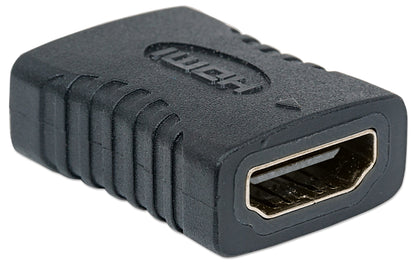

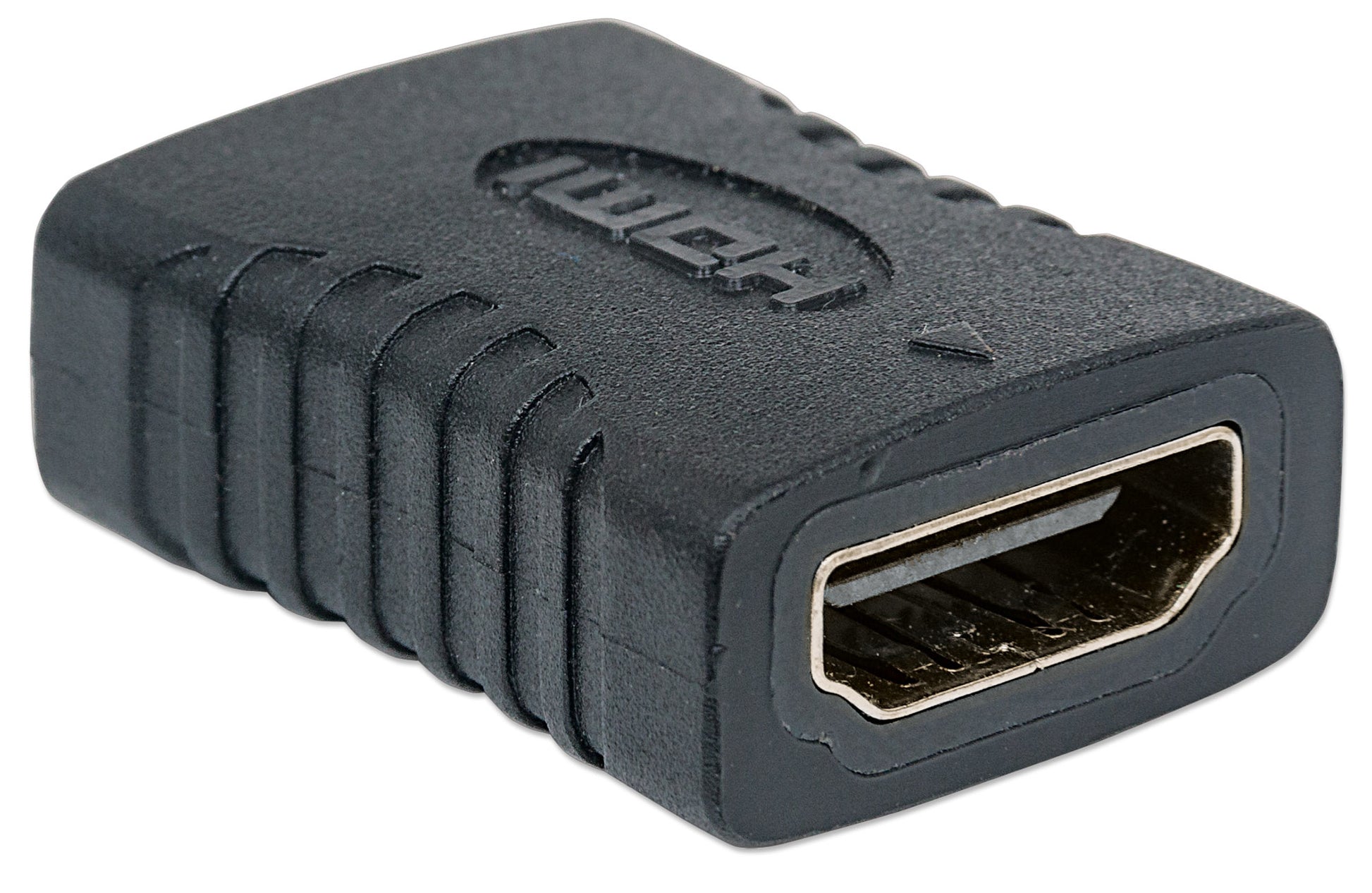

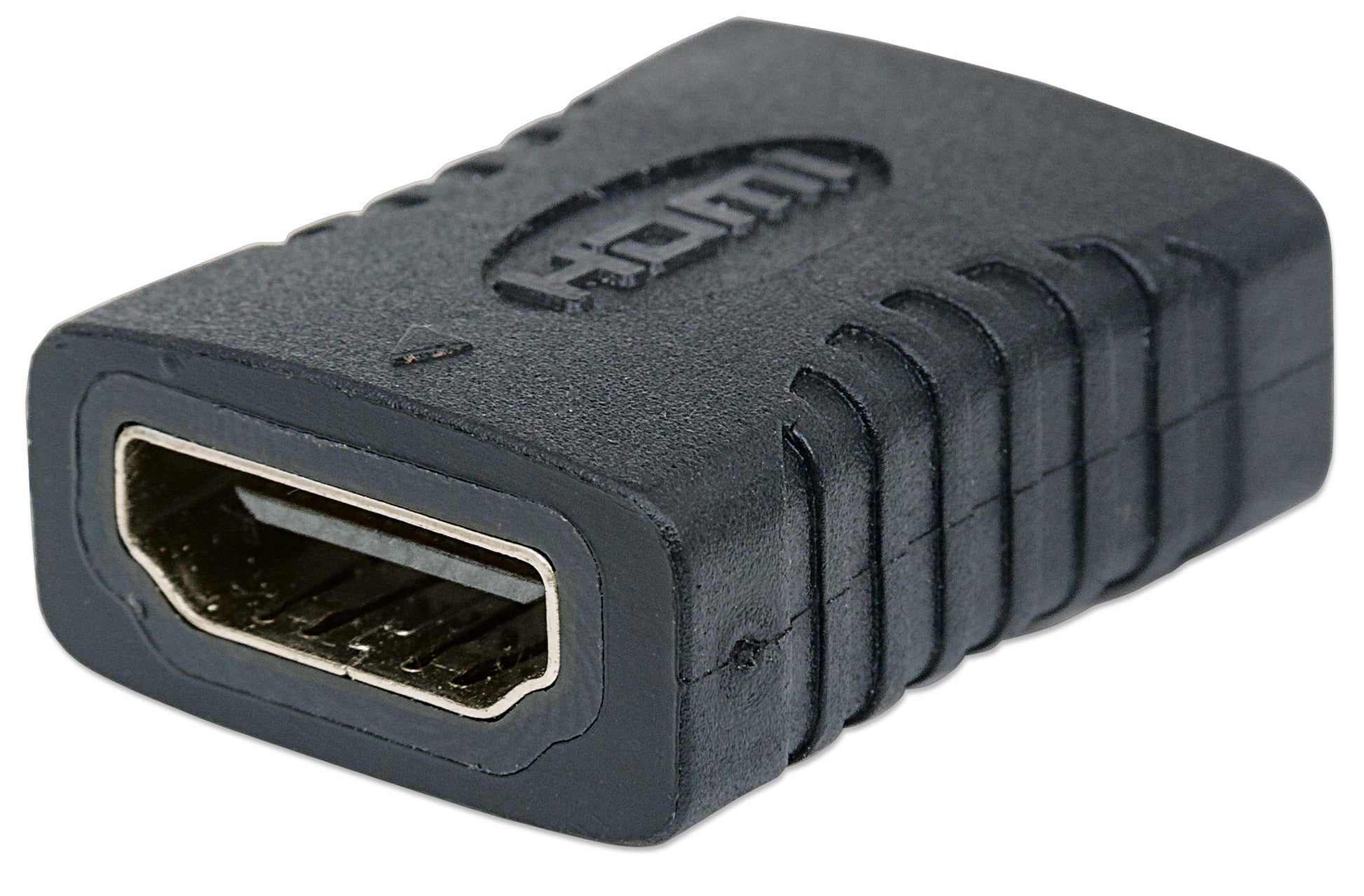

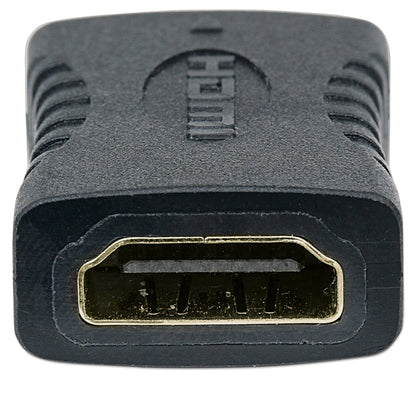

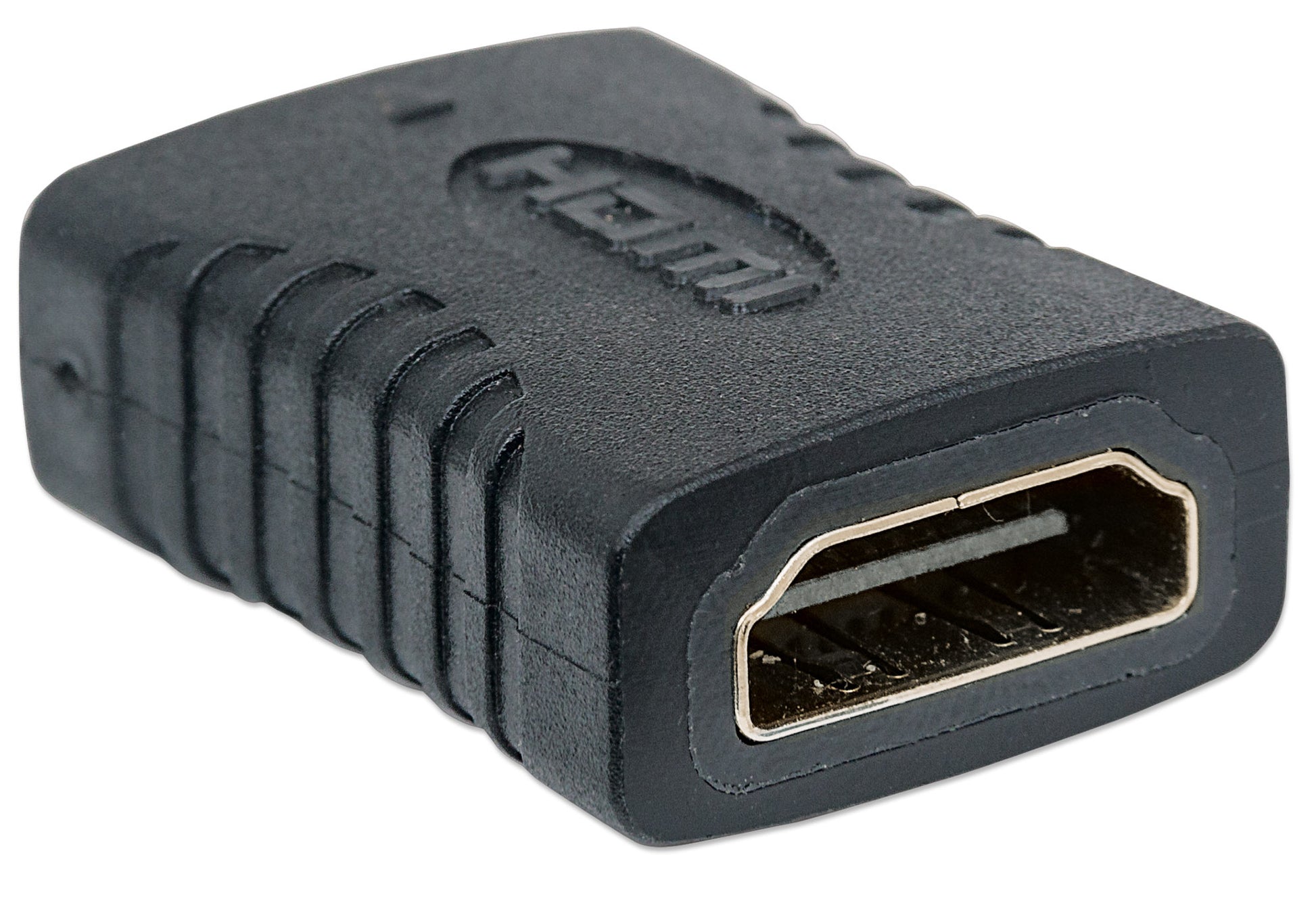

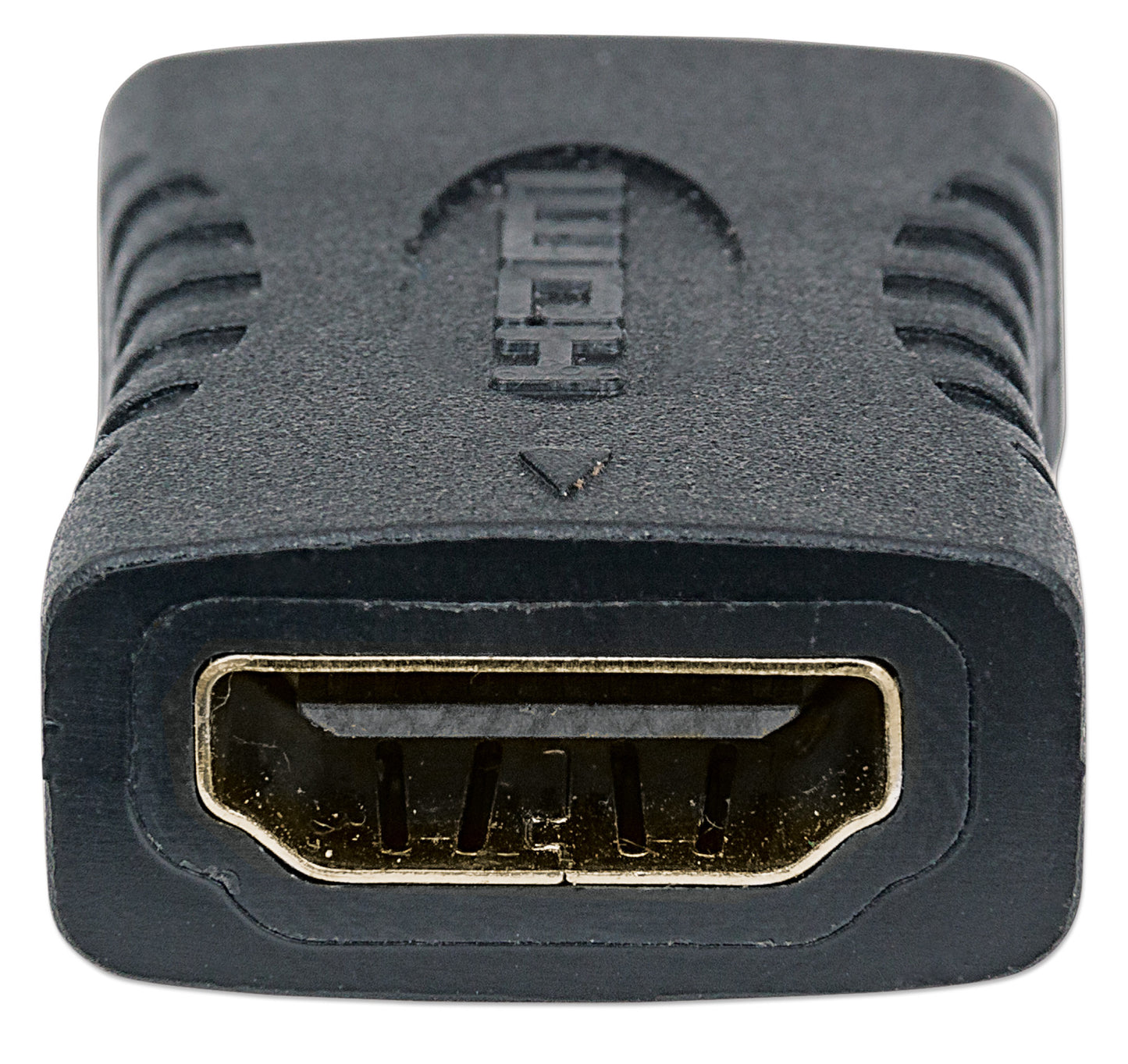

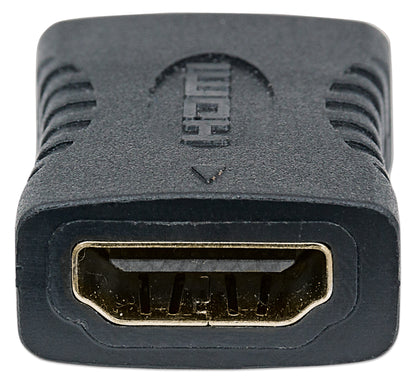

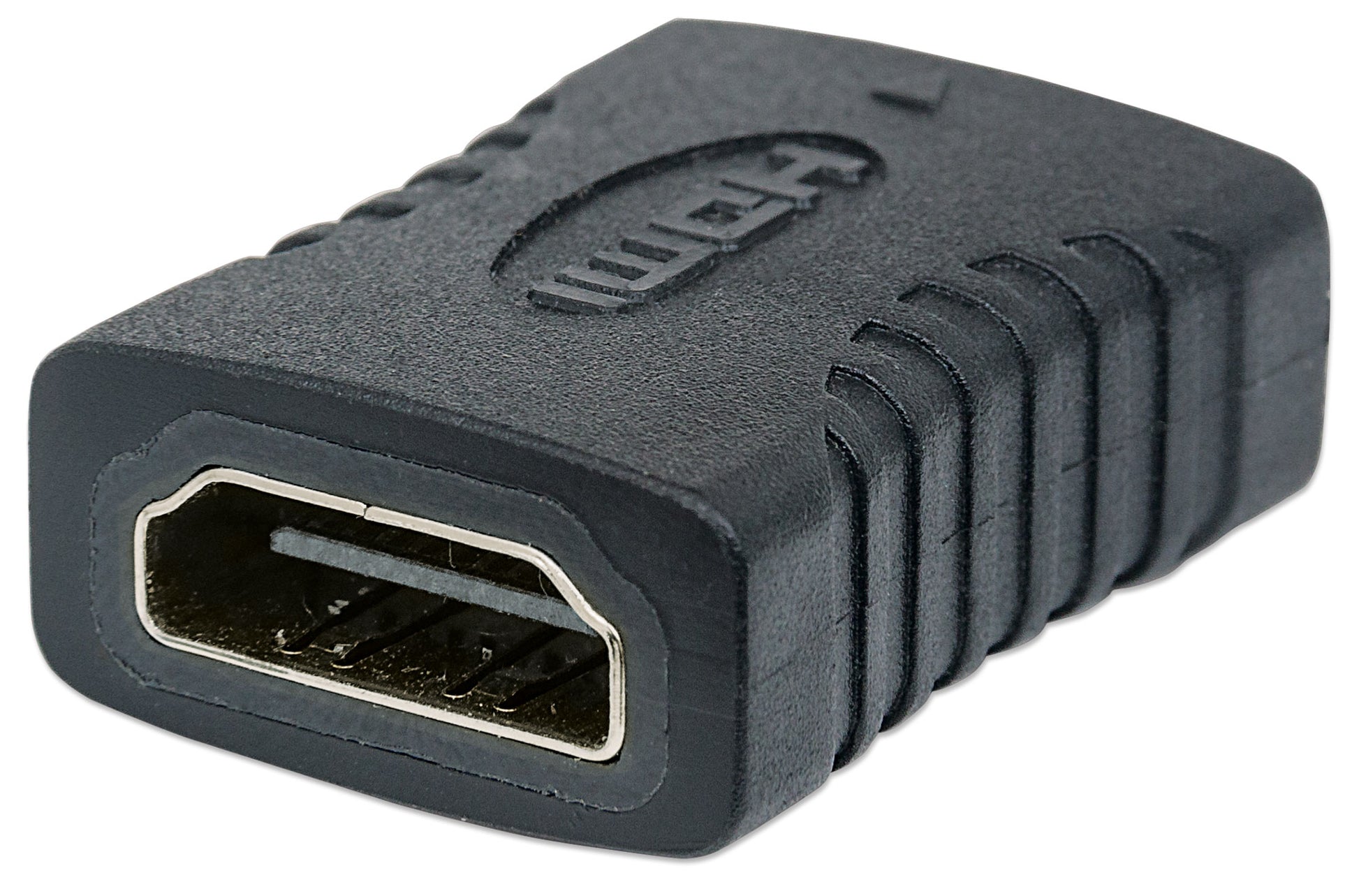

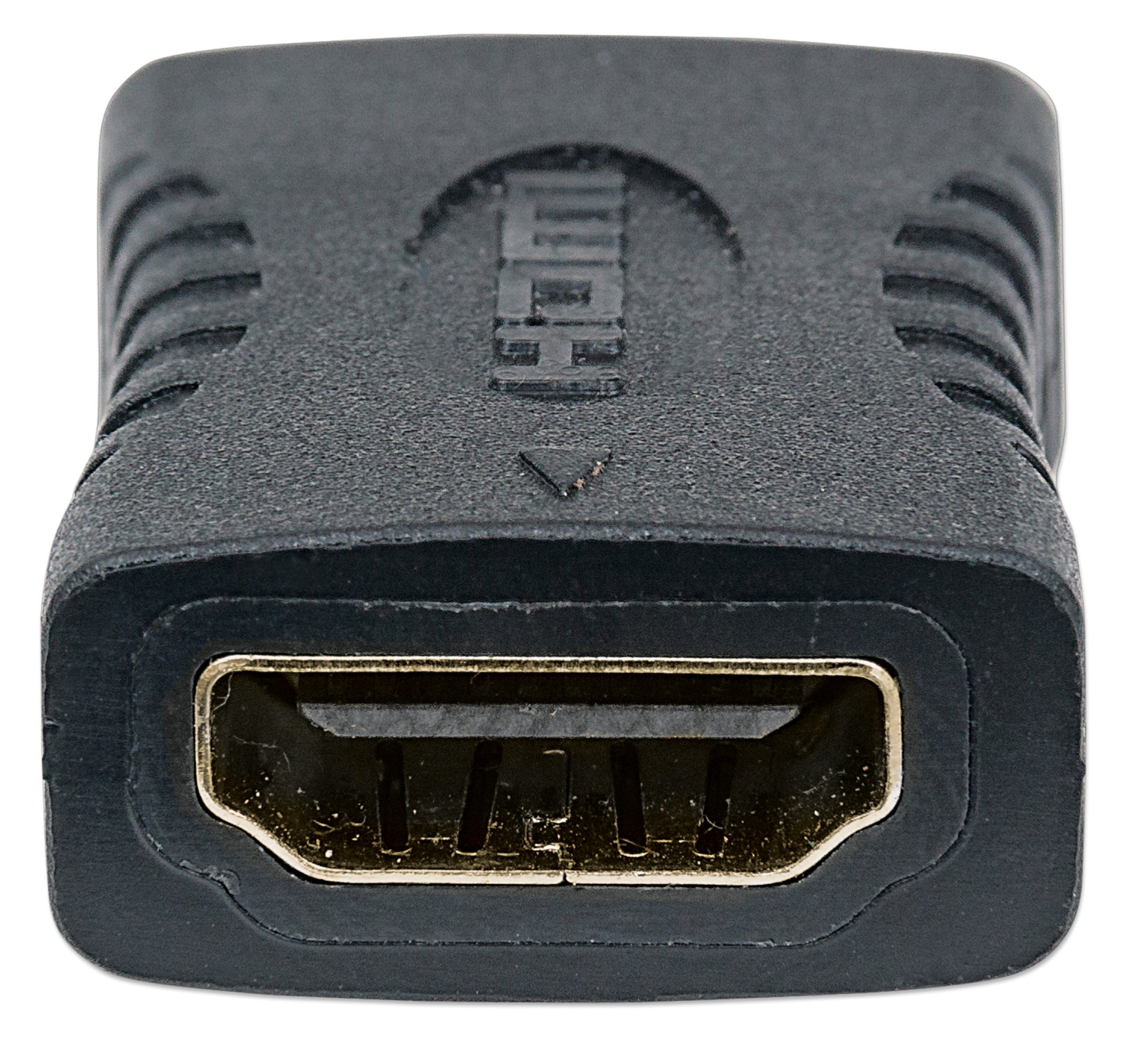

HDMI Coupler

HDMI Coupler

HDMI A Female to A Female, straight connection

Part-No.: 353465

Highlights

  • Connects 2 HDMI cables
  • Supports 4K@60Hz resolution
  • Straight, passive coupling connects 2 cables to overcome distance limitations
[ view high resolution images ]
View full details

Easily connect two HDMI cables to work over greater distances.
The Manhattan HDMI Adapter is ideal for joining two HDMI cables to give additional length to a cable, passively. This HDMI Coupler allows 4K resolution and a bandwidth of 10.2 Gbps at 340 MHz.

  • Connects 2 HDMI cables
  • Supports 4K@60Hz resolution
  • Straight, passive coupling connects 2 cables to overcome distance limitations
  • Gold-plated contacts for best performance
  • Intended for use with Manhattan HDMI cables
  • Using HDMI cables up to 5 m (16 ft.) on each side of the coupler is ideal for maintaining signal quality and reliable performance
  • Lifetime Warranty

    Standards and Certifications
  • RoHS2
  • ISO 9002

    General:
  • Bandwidth: 10.2 Gbps
  • 340 MHz
  • Meets or exceeds existing HDMI standards
  • Length: 3 cm (1.1 in.)

    Connectors
  • HDMI A female, 19-pin gold-plated
  • HDMI A female, 19-pin gold-plated

    Electrical
  • Current rating: 0.5 ADC
  • Withstanding voltage: 300 VDC
  • Insulation resistance: 5 MΩ
  • Conductive resistance: 2 Ω

    General
  • Length (overall): 28.5 x 11.2 x 22 mm (1.1 x 0.4 x 0.9 in.)
  • Weight: 10 g (0.35 oz.)
  • Molded PVC

    Package Contents
  • HDMI Adapter, A to A

  • Additional SKUs

    • Amazon ASIN: B013J7LJNM
    • EAN: 0766623353465
    • UPC: 766623353465
    • ALSO: 2430525
    • API: 179365

  • Physical Specifications

    • Product net weight: 0.01 kg
    • Product gross weight: 0.01 kg
    • Dimensions: 28.5 (L) x 11.2 (W) x 22 (H) [mm]

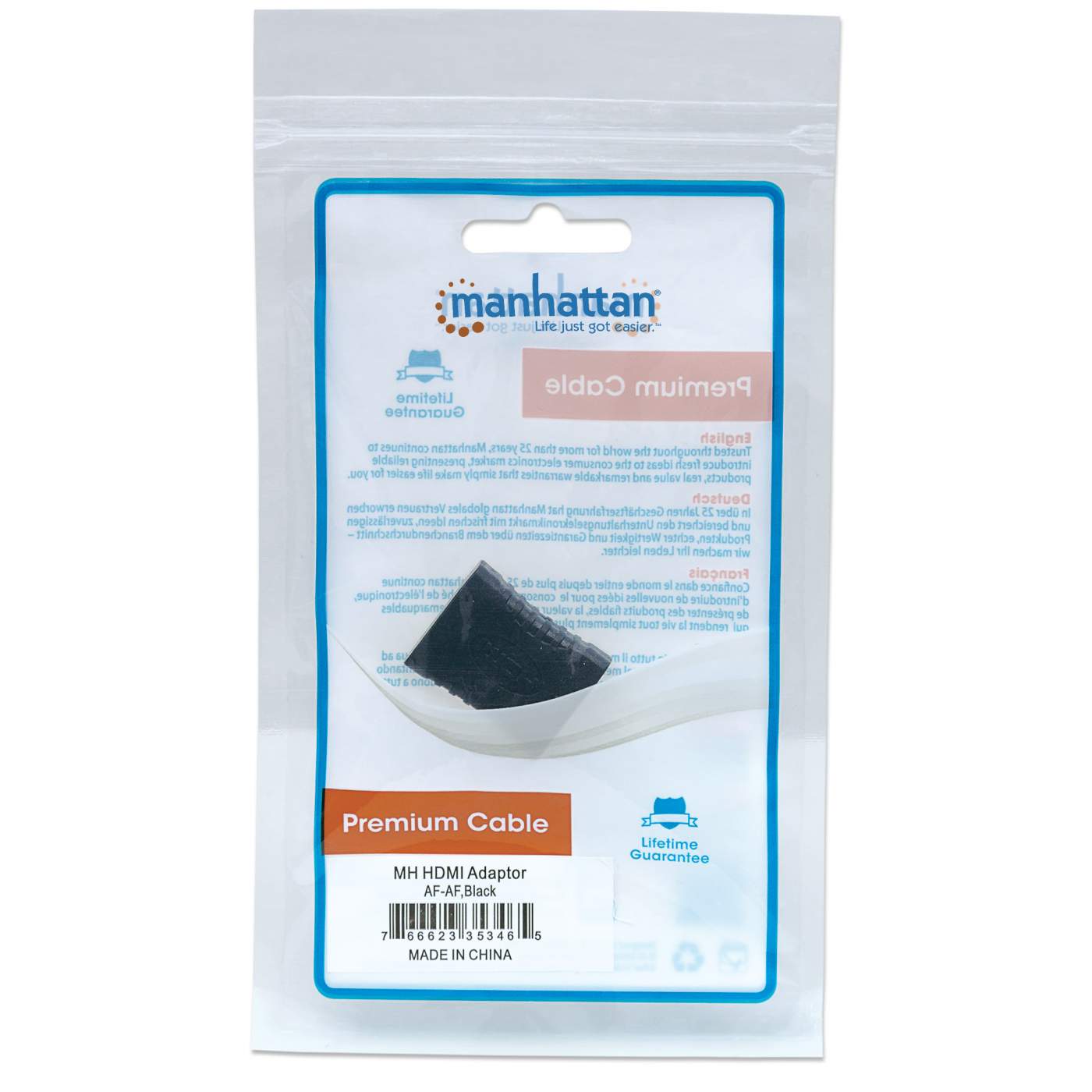

    • Packaging type: Bag
    • Packaging dimensions: 182 x 100 x 12 [mm]
    • Master Carton Quantity: 500
    • Master Carton Weight: 7.70 kg
    • Master Carton Dimensions: 450 x 340 x 180 [mm]

  • Datasheet
    • Datasheet     » Download

    • Declaration of Conformity     » Download
