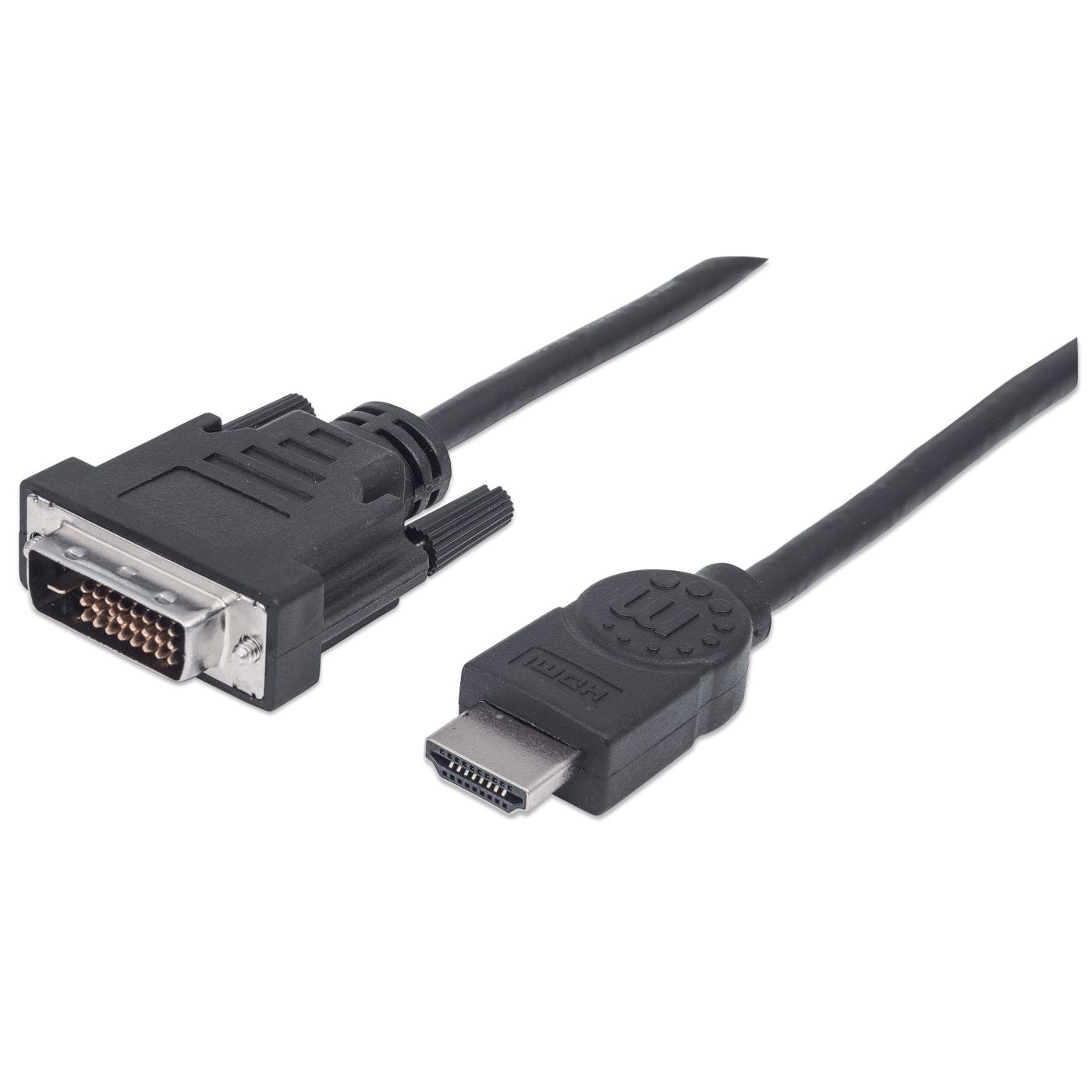

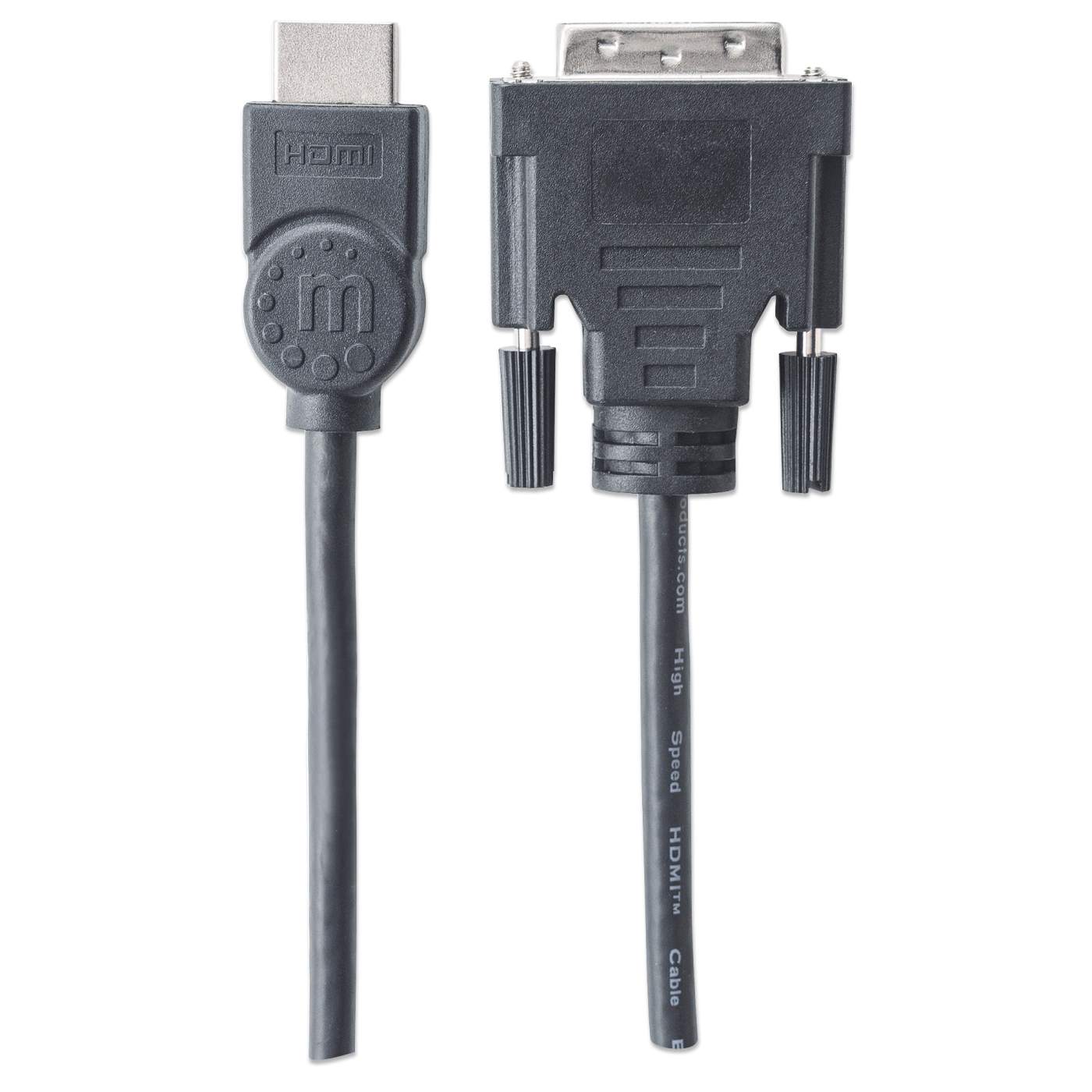

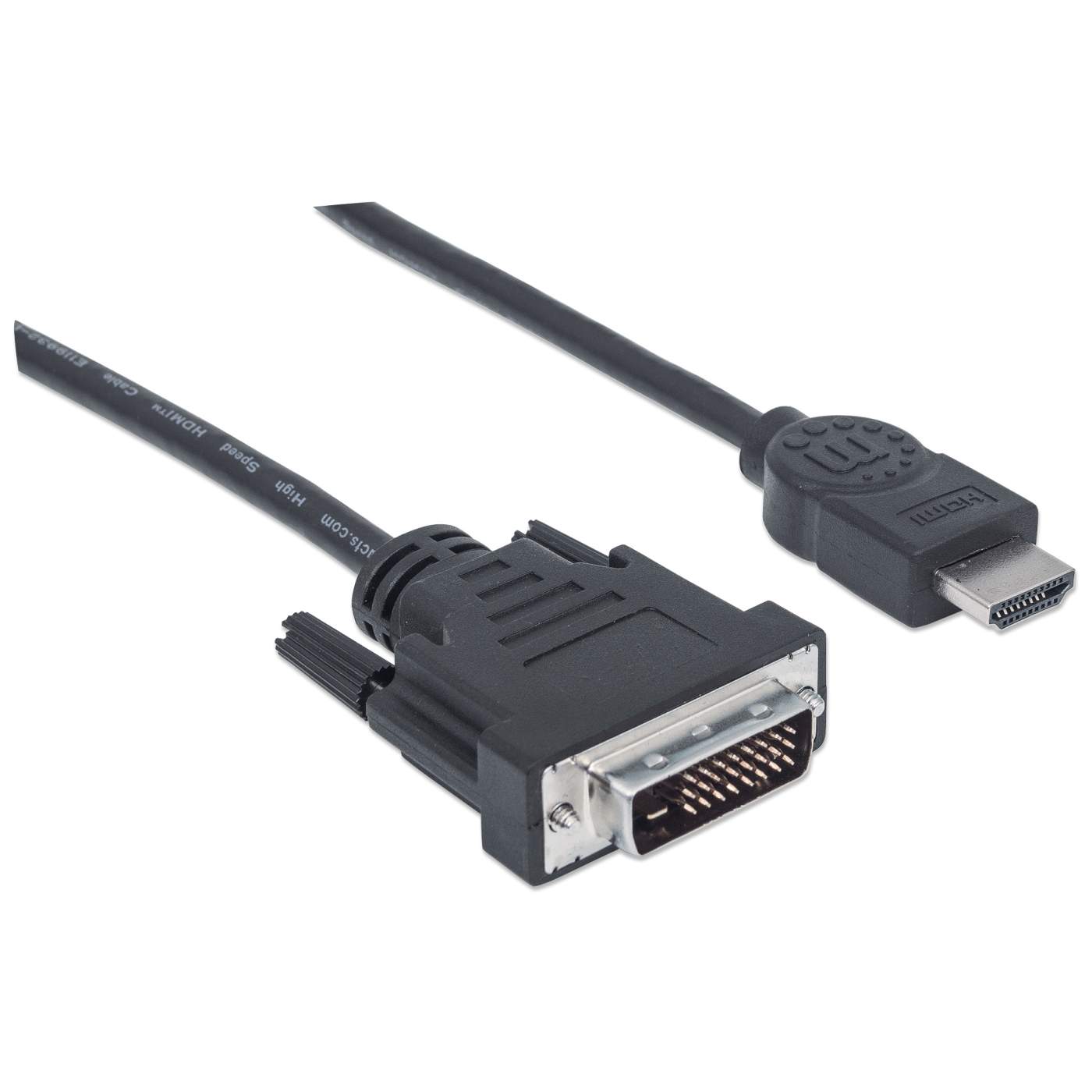

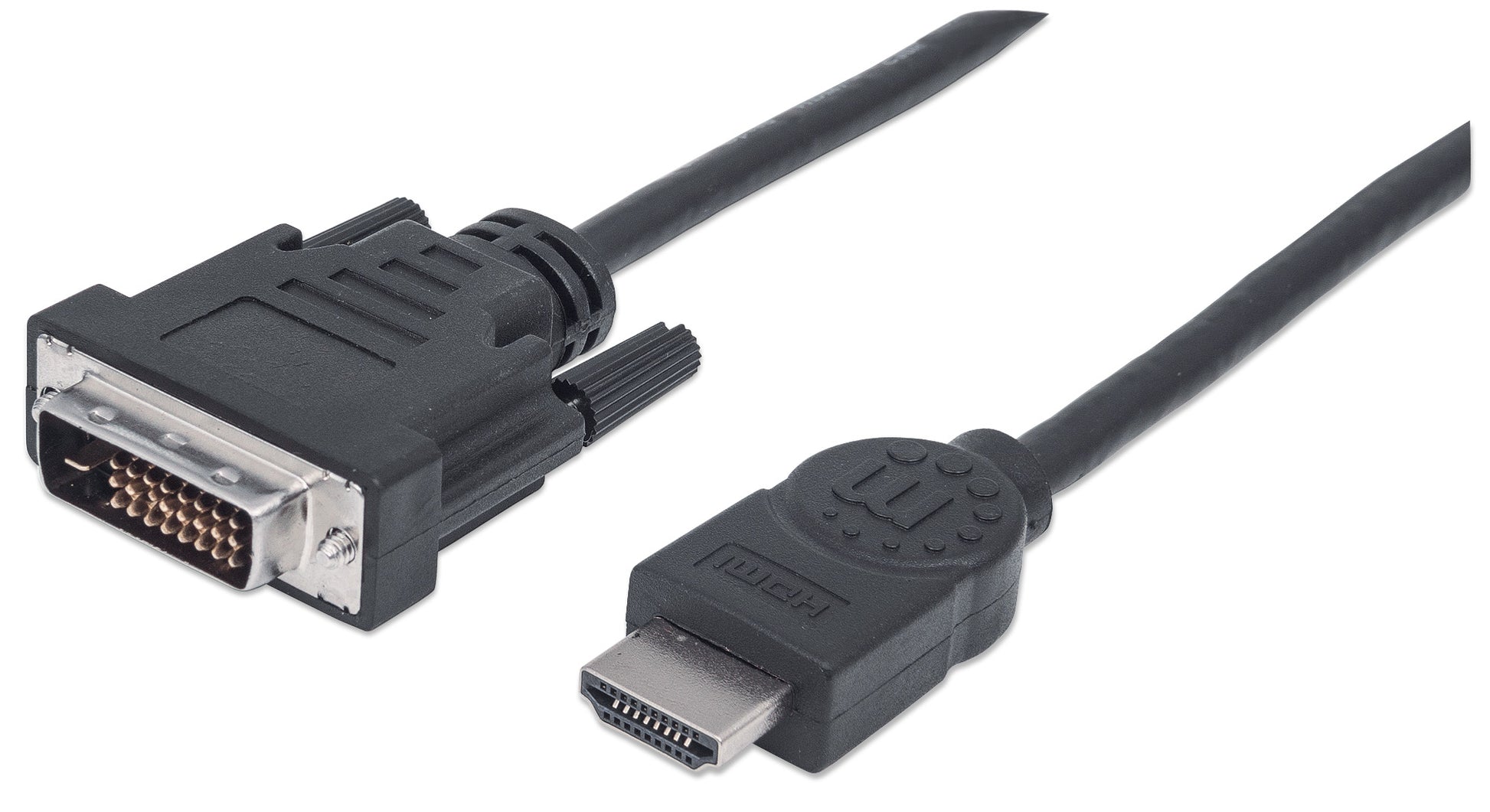

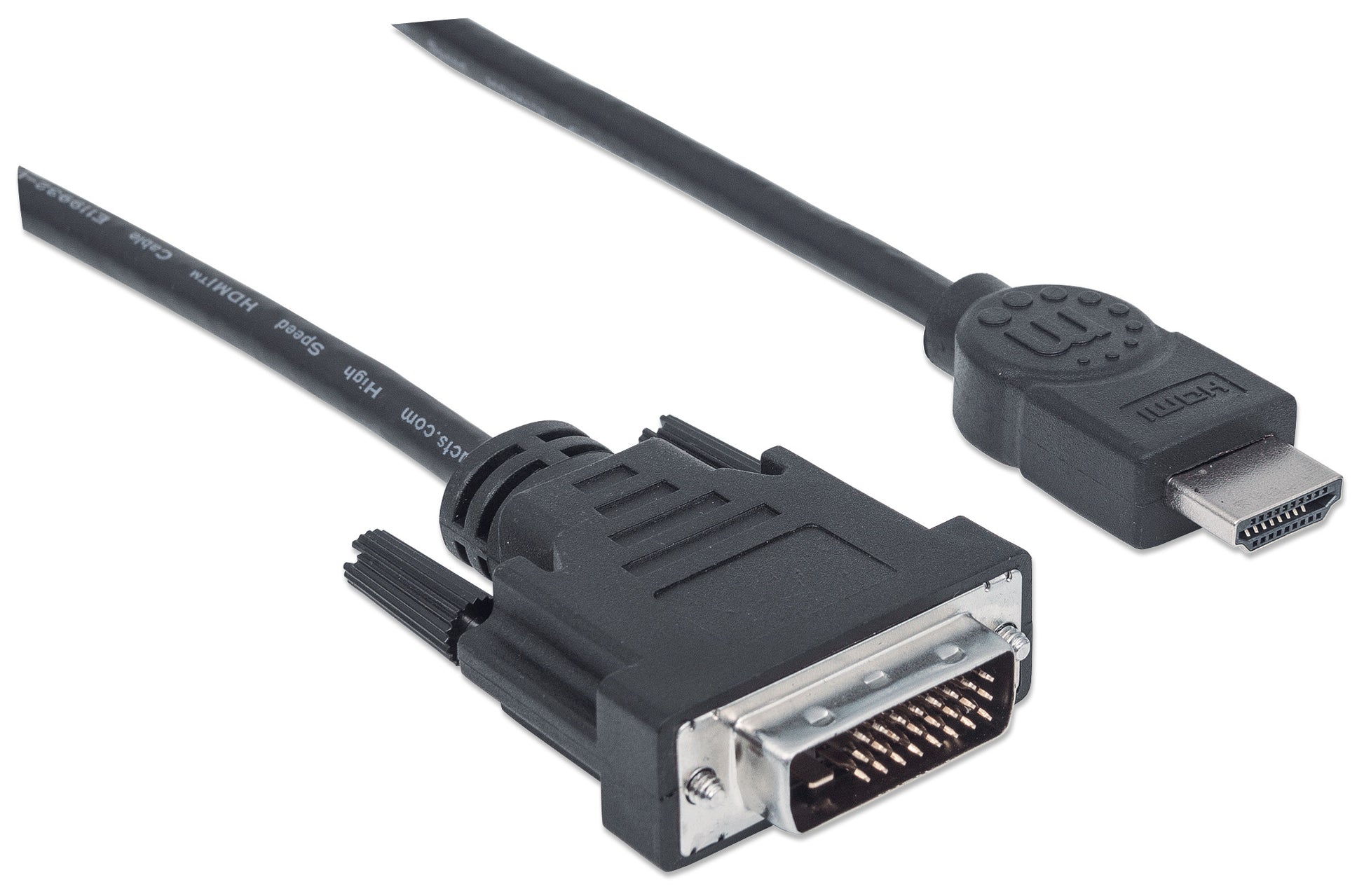

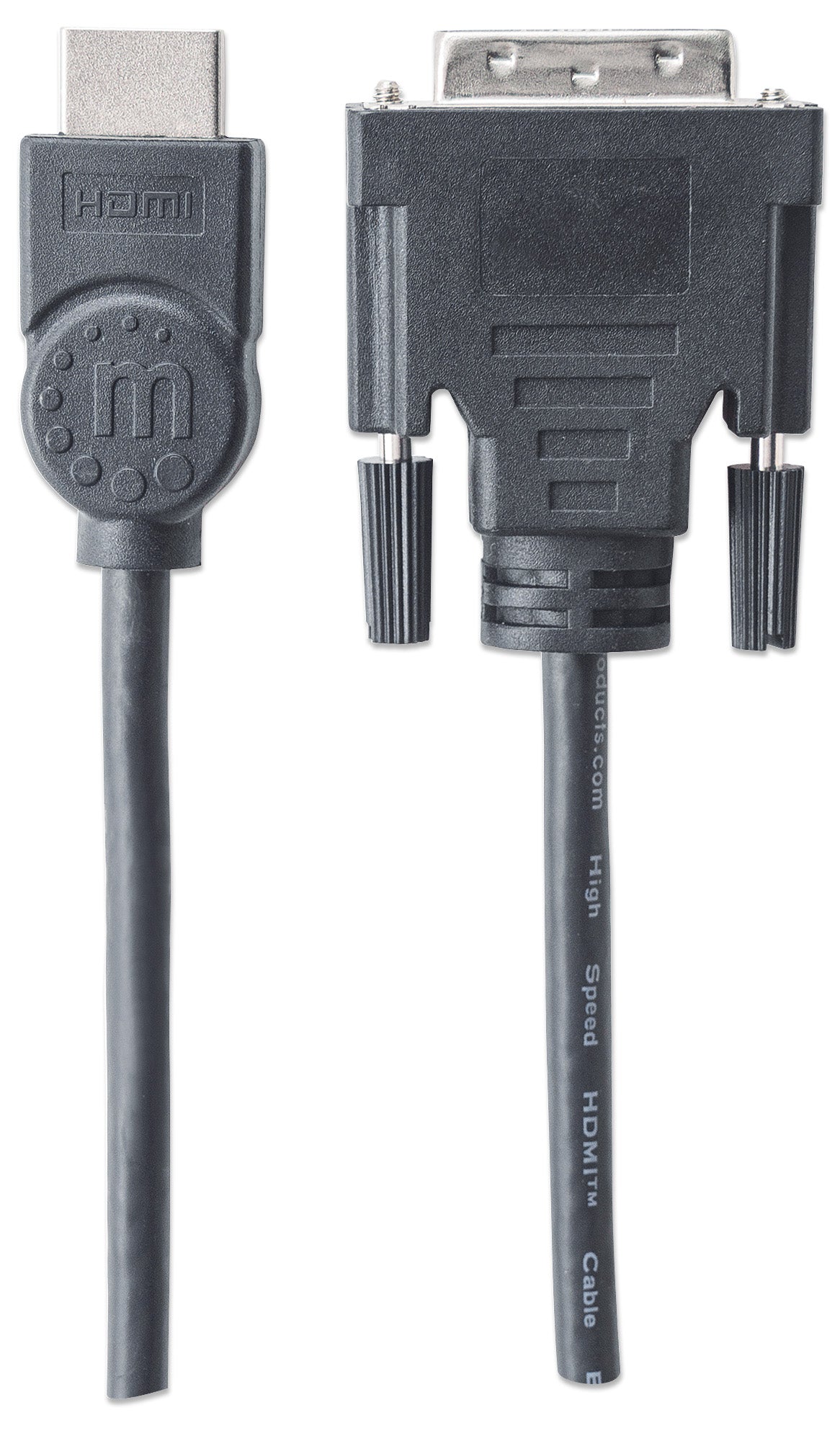

HDMI to DVI-D Cable

HDMI Male to DVI-D 24+1 Male, Dual Link, 1 m (3 ft.), Black

Part-No.: 322782

Highlights

  • HDMI 19-pin male to DVI-D 24+1 male; gold plated connections
  • Connects an HDMI video source to a DVI-D display
  • Fully shielded to reduce EMI and other interference sources

Future arrivals:

#
Quantity
Arrival Date
1
900
2021-07-08


Superior connections for quality digital video performance

The Manhattan HDMI to DVI-D Cable delivers the brightest, most accurate colors and sharpest detail when connecting a high-definition television, LCD or plasma display, digital satellite receiver, DVD player, digital projector or other DVI- or HDMI-equipped display devices. Manhattan HDMI to DVI-D Cable is engineered and constructed of quality materials to deliver dependable transmissions in digital video applications. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections help provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.

  • HDMI 19-pin male to DVI-D 24+1 male; gold plated connections
  • Connects an HDMI video source to a DVI-D display
  • Fully shielded to reduce EMI and other interference sources
  • Supports existing HD (720p, 1080i and 1080p @ 60 Hz), enhanced (480p) and standard (NTSC or PAL) video formats
  • Compatible with DVI-I and DVI-D interfaces
  • Molded PVC boot
  • Lifetime warranty

    Standards and Certifications
  • Meets or exceeds existing HDMI and DVI-D standards
  • Compatible with DVI-I and DVI-D interfaces
  • UL
  • ISO9001

    Contacts
  • One HDMI 19-pin male

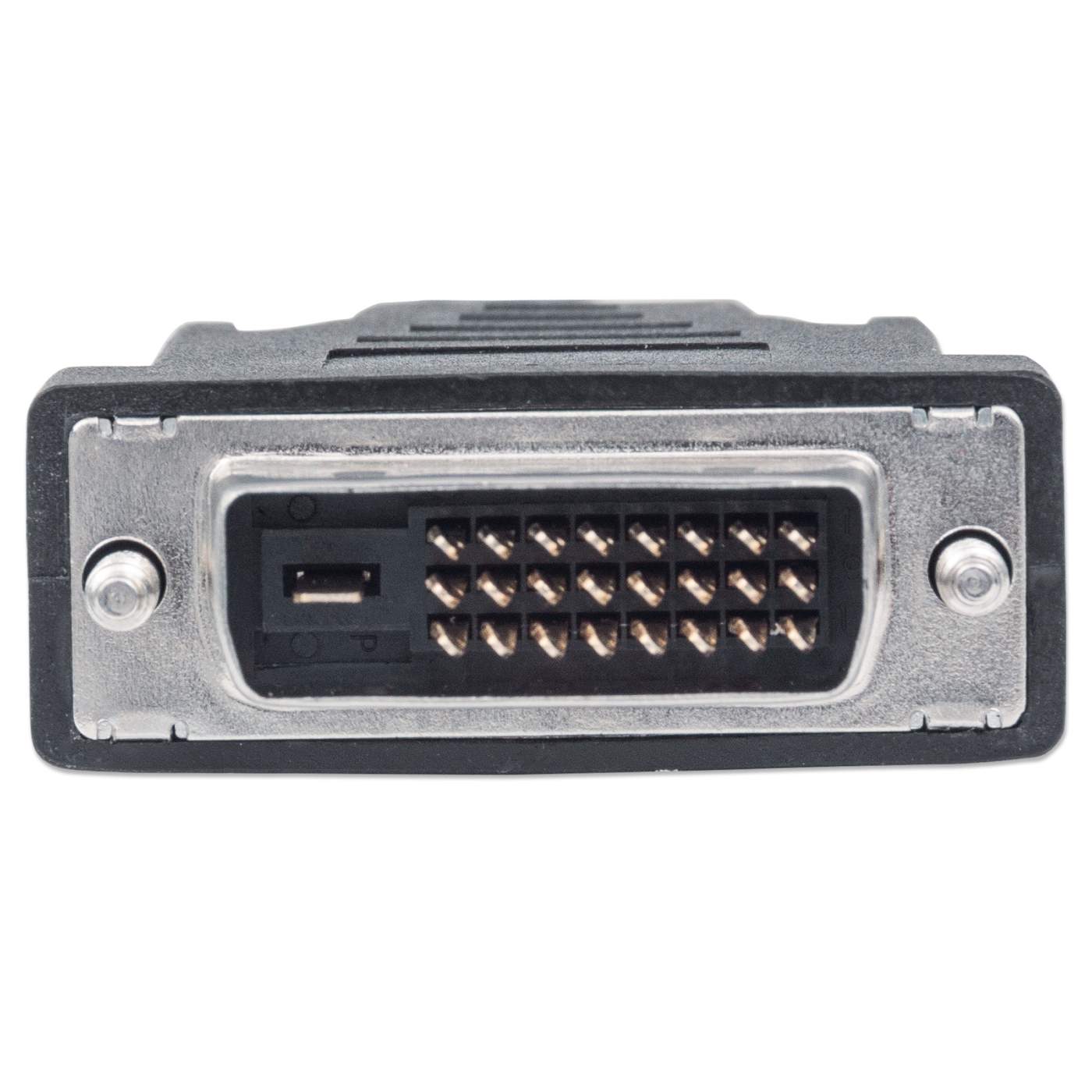

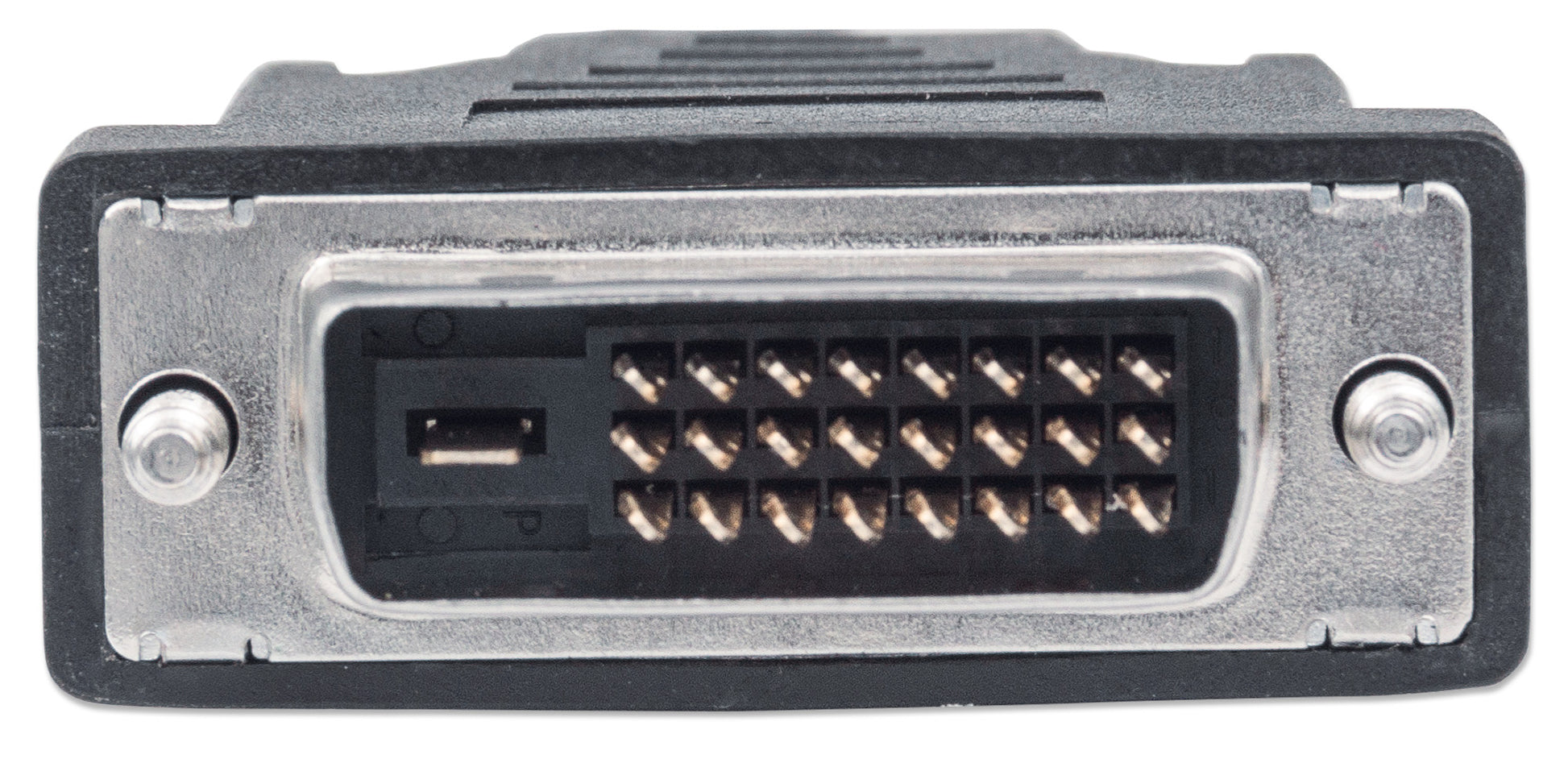

  • One DVI-D 24+1-pin male
  • Molded PVC boot
  • Shielded
  • 30 AWG connectors

    Cable
  • Shielded
  • Length: 1 m (3 ft)
  • Current rating: 0.5 A DC
  • Withstanding voltage: 300 V DC
  • Insulation resistance: 5 MOhms
  • Conductive resistance: 5 Ohms
  • Thermal plastic casing

    Operating Environment
  • Operation Temperature: 0 – 40°C (32 – 104°F)
  • Storage Temperature: -20 – 60°C (-4 – 140°F)
  • Humidity (noncondensing): 5 – 90%

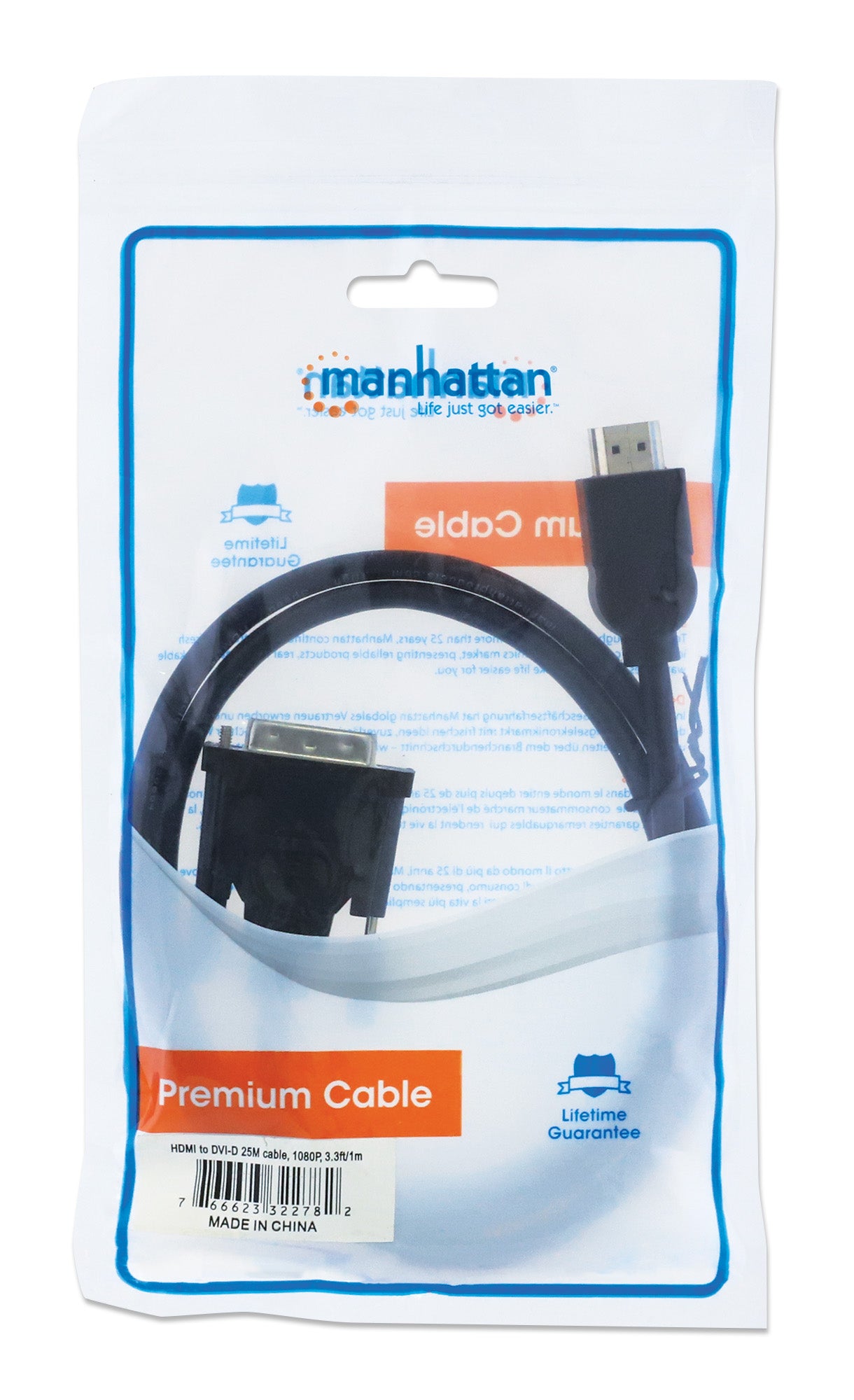

    Package Contents
  • HDMI to DVI-D Cable

  • Additional SKUs

    • Amazon ASIN: B002XOAHTA
    • EAN: 0766623322782
    • UPC: 766623322782

  • Physical Specifications

    • Weight: 0.08 kg
    • Dimensions: 1 (L) x 0.036 (W) x 0.015 (H) [m]

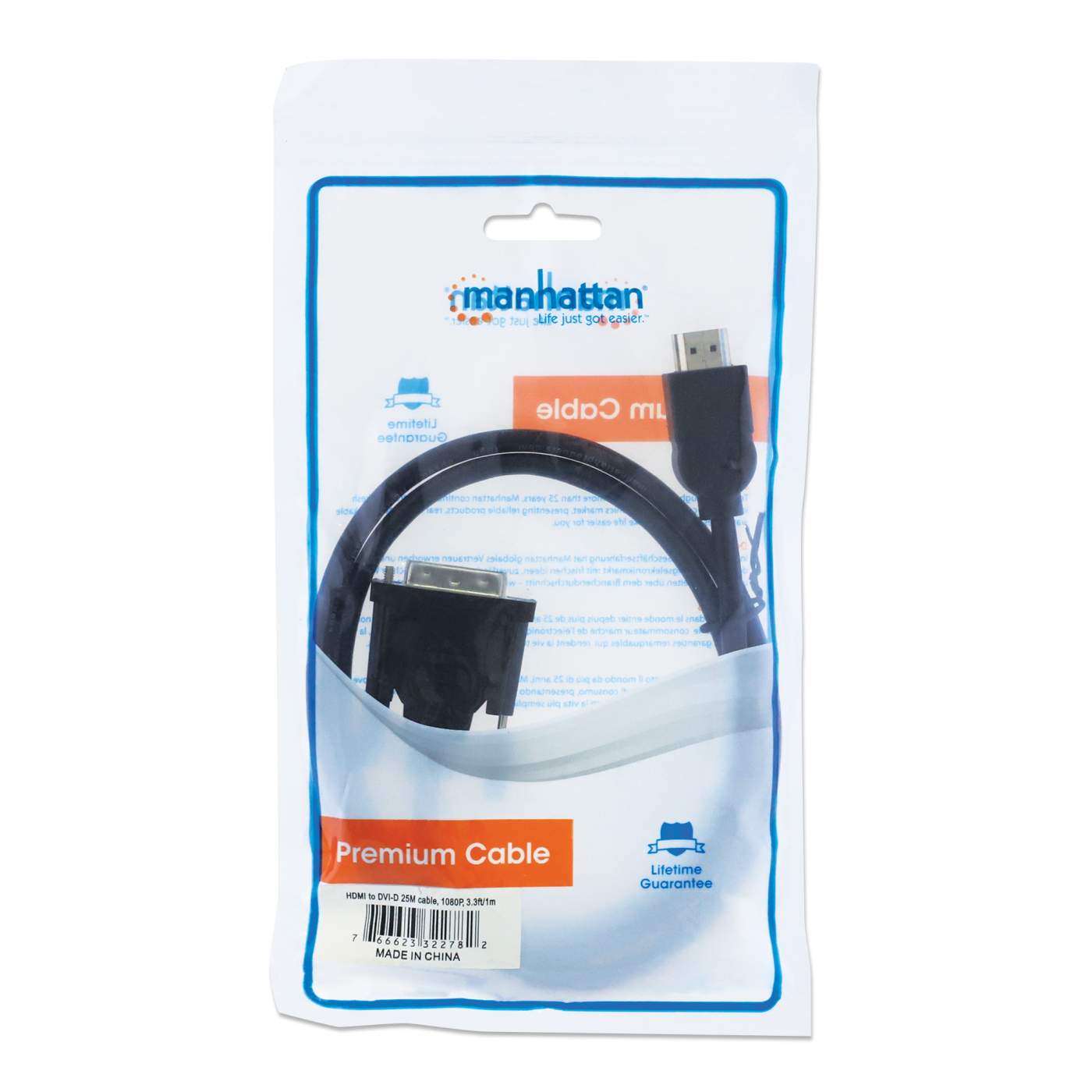

    • Packaging: Bag
    • Carton Quantity: 150
    • Carton Weight: 13.00 kg

  • Datasheet
