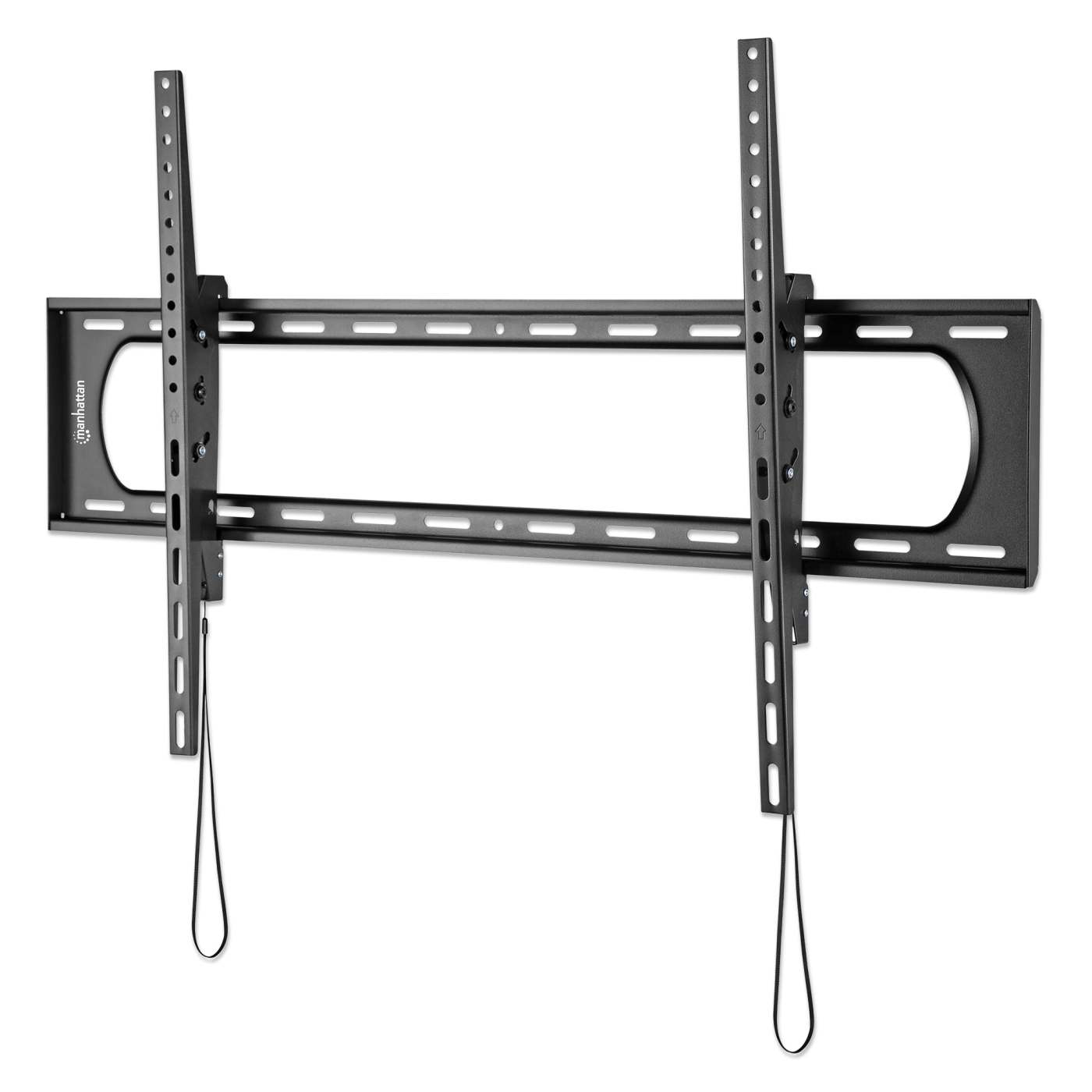

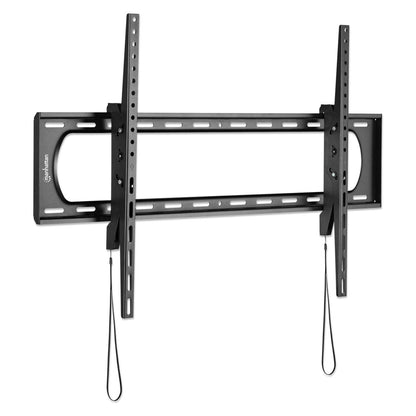

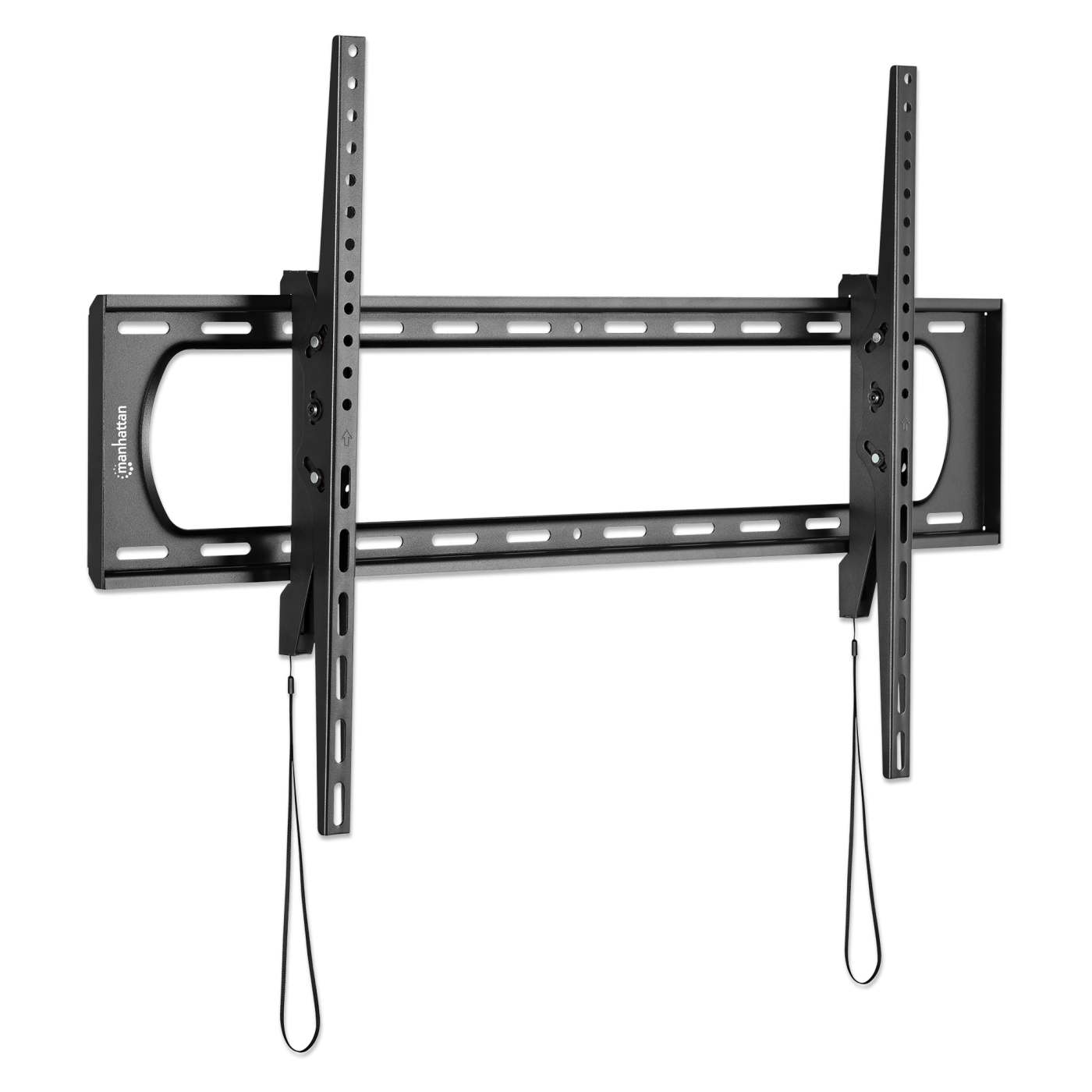

Ultra Heavy-Duty XXL Tilting TV Wall Bracket - adjustable mounting bracket that puts big-screen TVs in the right perspective and avoids annoying glare

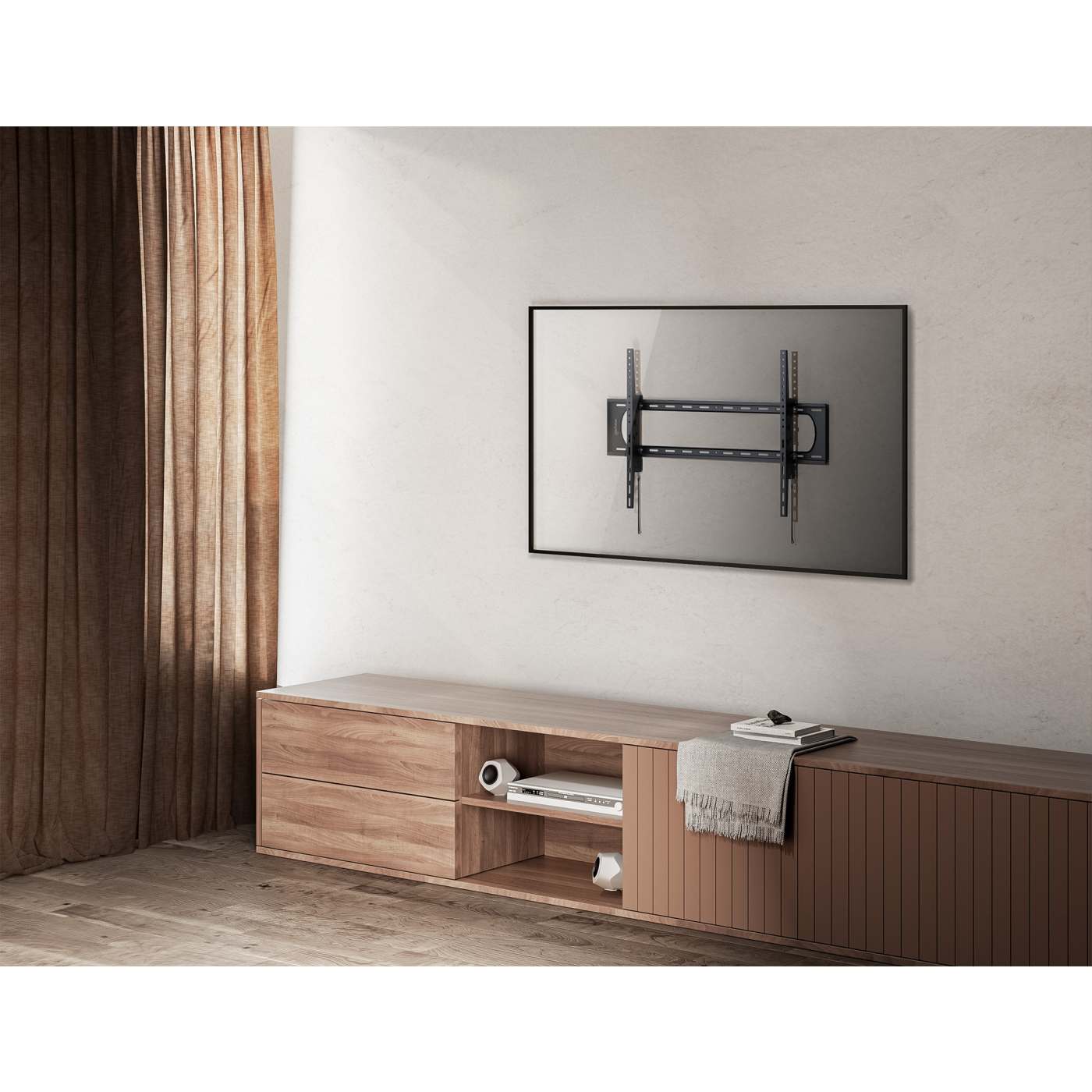

This tilting TV Wall Mount from Manhattan safely holds your TV and offers a toolless -10 to 10° tilt adjustment for optimized views. Constructed of 2 mm thick reinforced powder-coated steel, this sturdy TV bracket fits flat and curved LCD, OLED or plasma TVs up to 120" and weighing up to 120 kg (264 lbs.) with VESA compliance up to 900x600. You're all set for a confident above-the-floor installation with an included bubble level that helps get the mount perfectly horizontal on the wall, and intuitive snap-in spring locks with release cords let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
- Supports one flat or curved 60" to 120" TV up to 120 kg (264 lbs.)

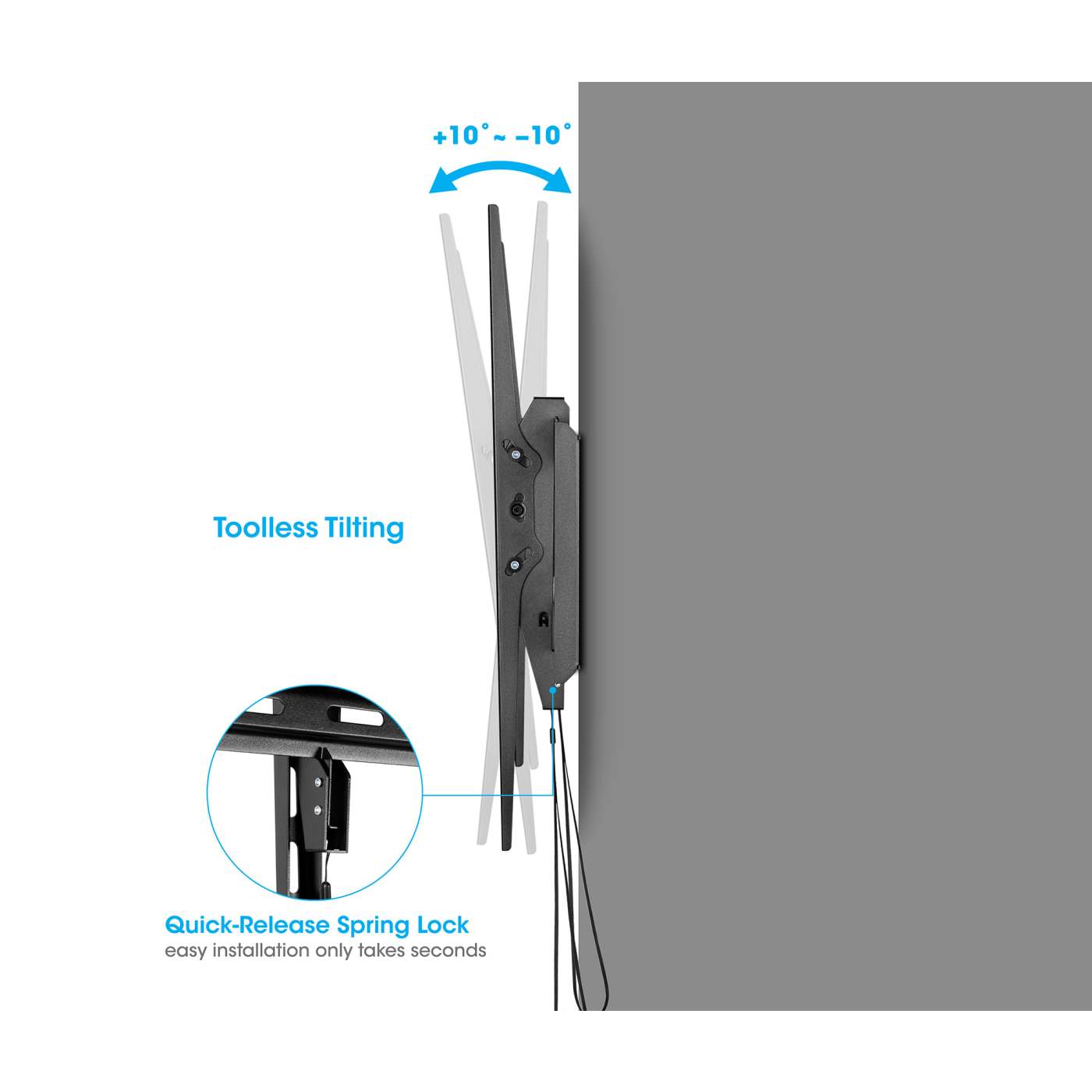

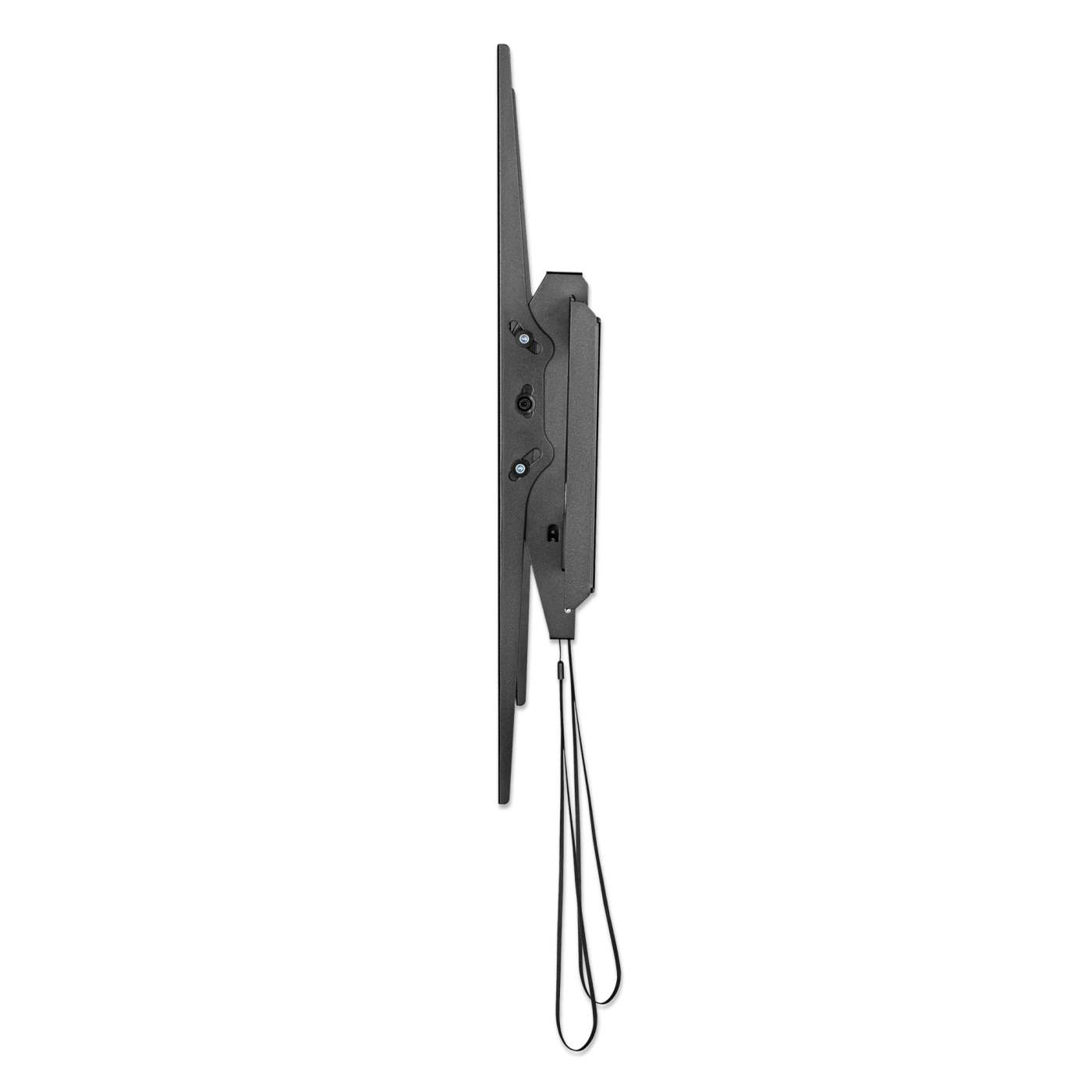

- Optimized views with +10° to -10° tilt and tool-free adjustment
- Ultra heavy-duty construction with 2 mm thick reinforced steel and powder coating
- Includes attachable bubble level

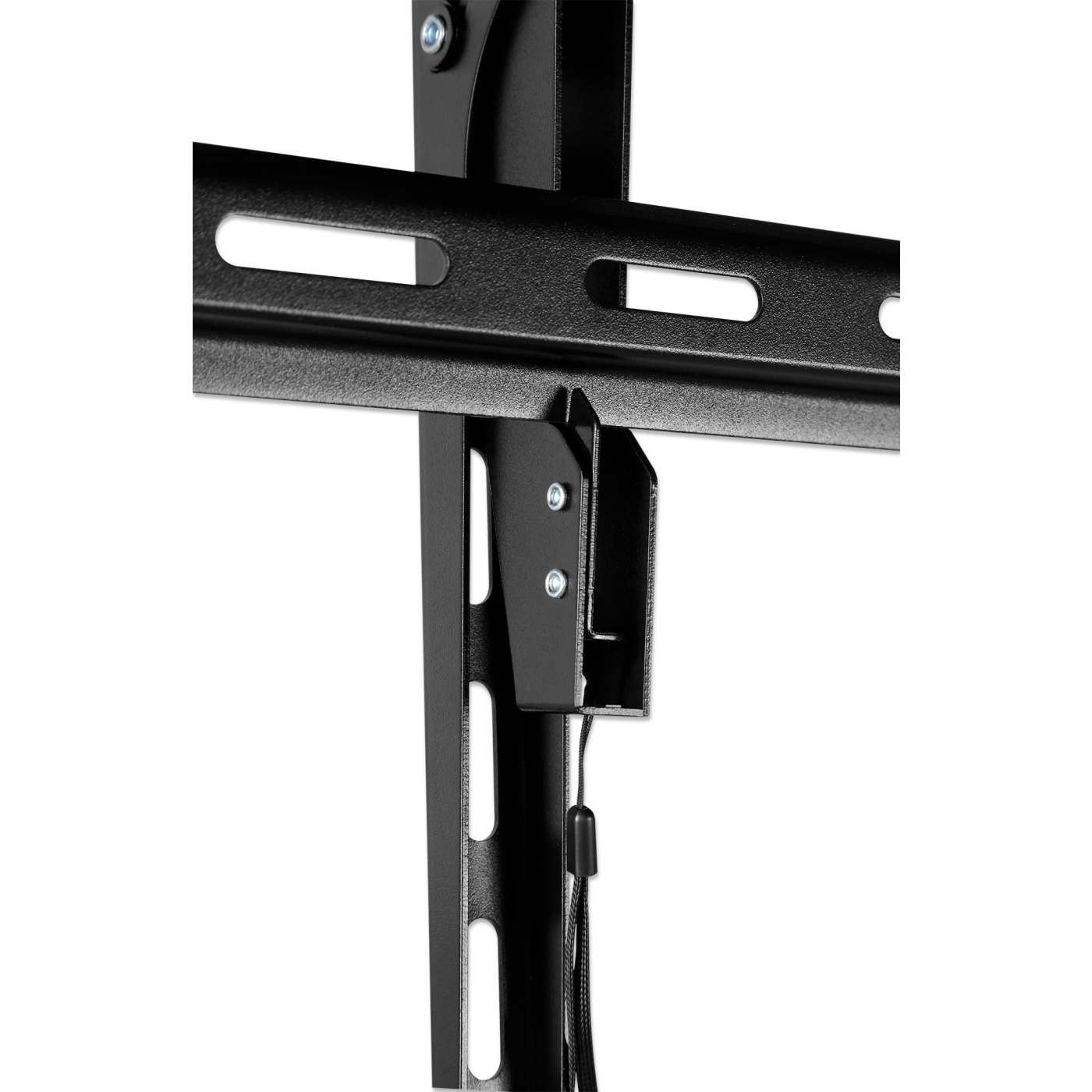

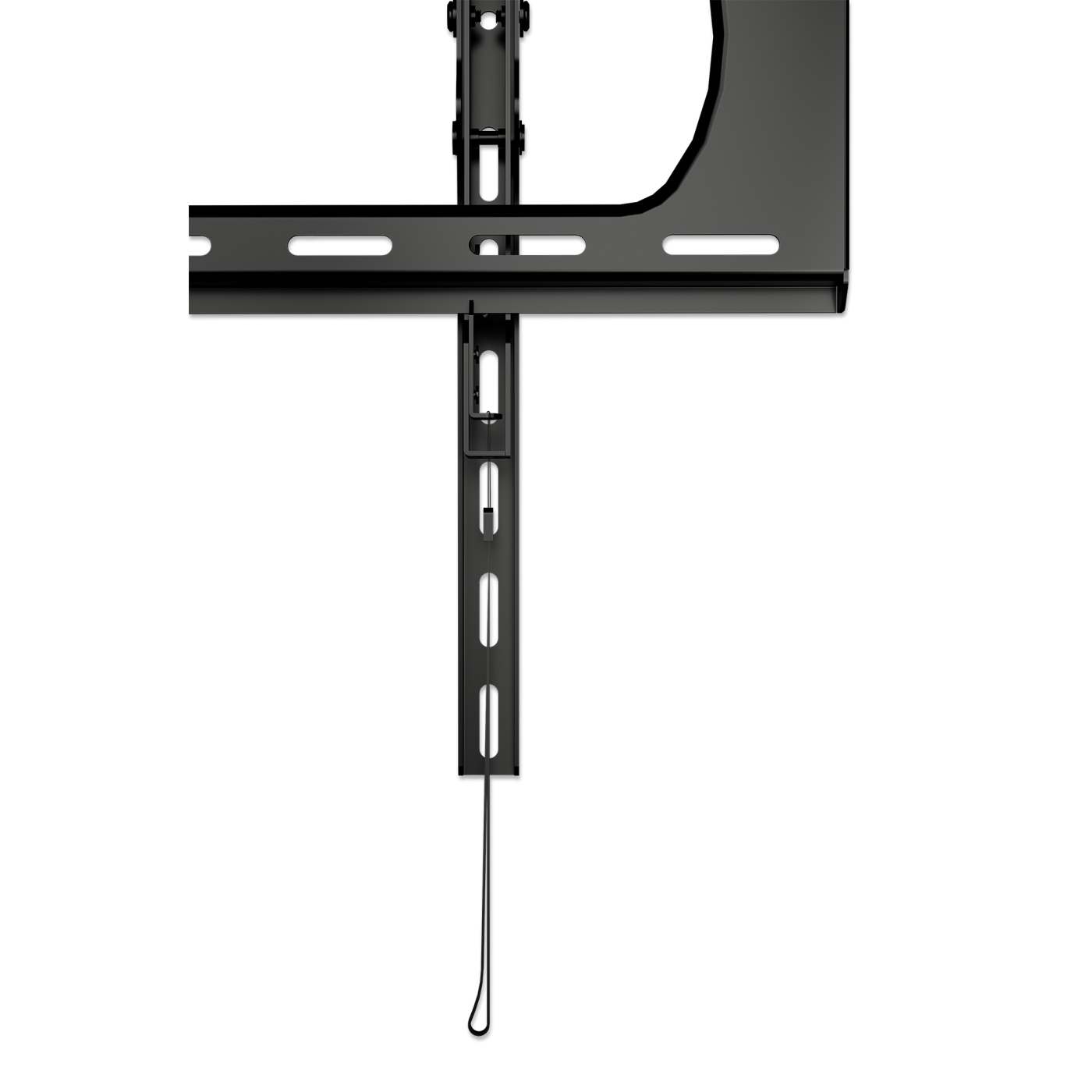

- Snap-in spring locks with release cords for easy installation or removal and additional safety

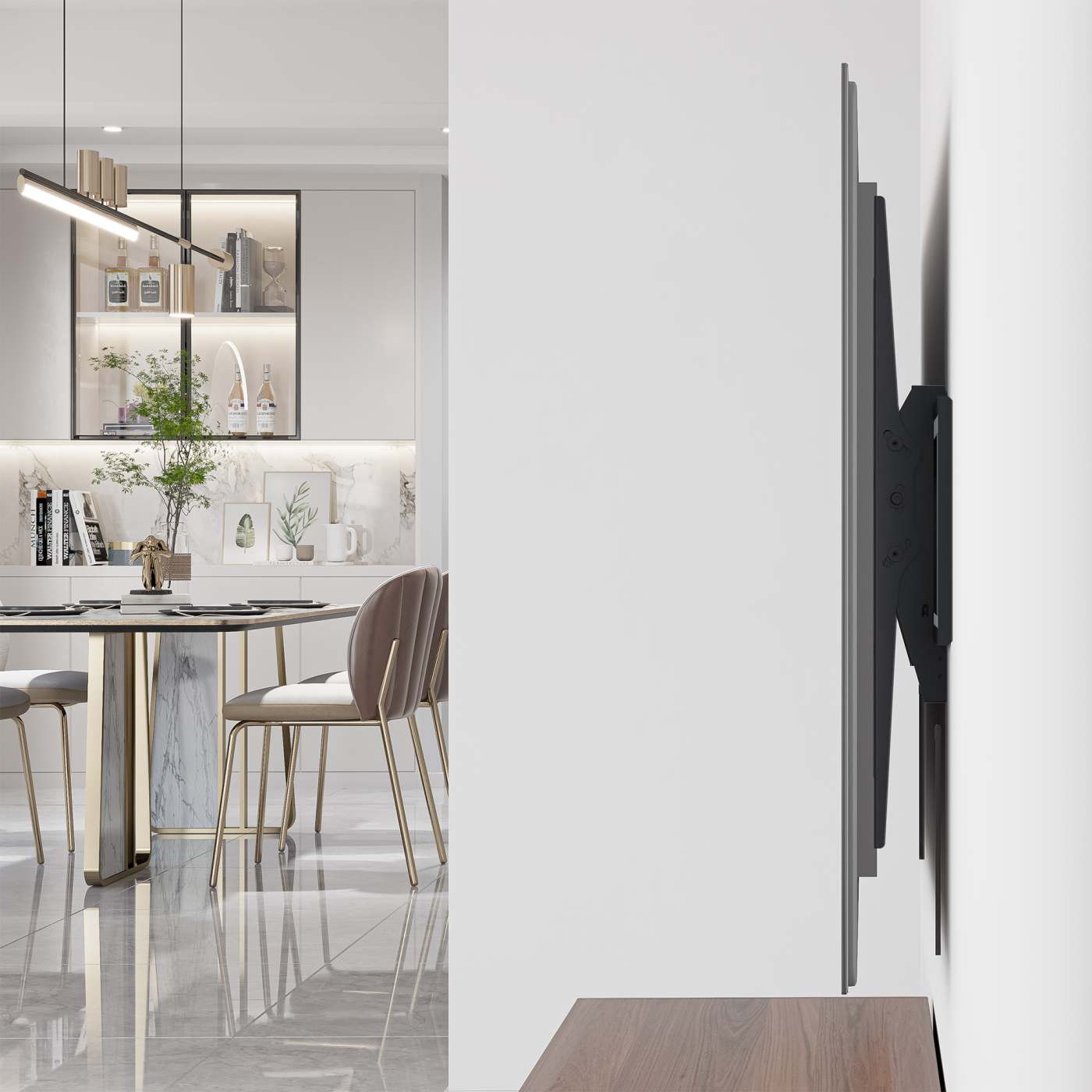

- Holds TV 80 mm (3.15 in.) from wall
- Meets VESA standards 50x50 to 900x600 e.g. 50x50, 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 400x600, 600x400, 700x400, 800x400, 600x600, 800x500, 800x600, 900x600
- Lifetime warranty
- General
- Designed for most 60" - 120" flat and curved screens

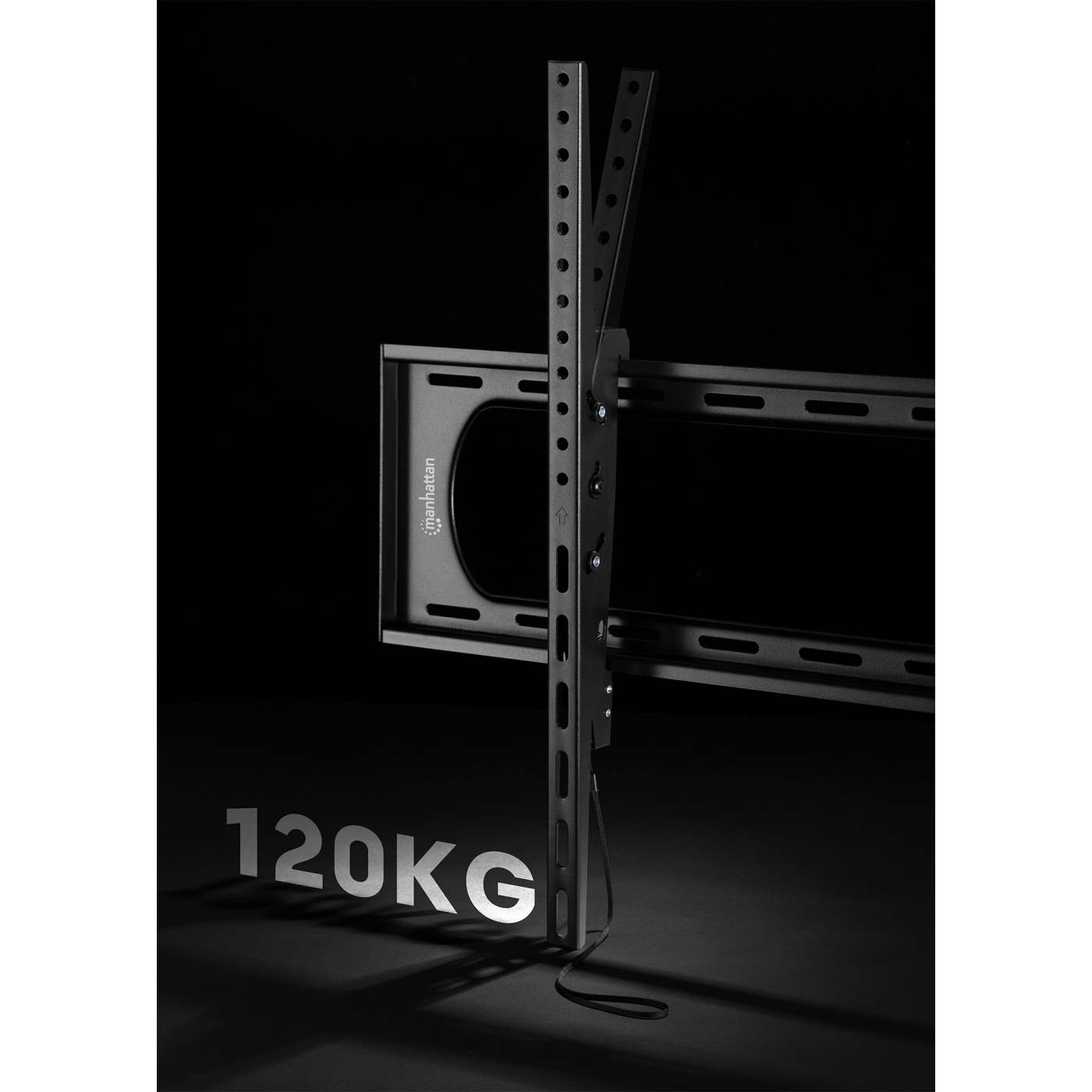

- Weight capacity: 120 kg (264 lbs.)
- Tilt: +10/-10°

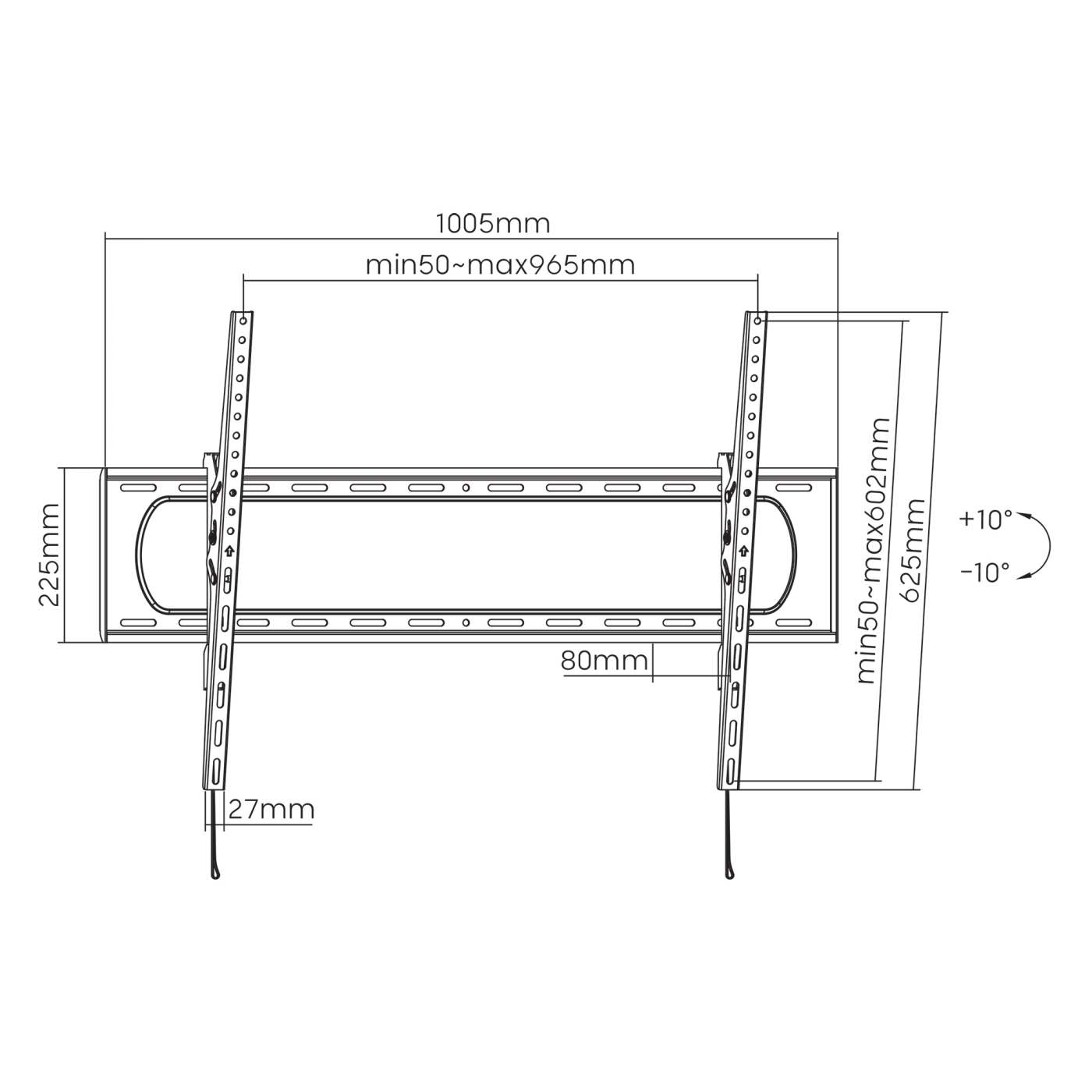

- Dimensions (L x W x H): 602 x 1005 x 80 mm (23.7 x 39.57 x 3.15 in.)
- Net weight: 4.29 kg (9.46 lbs.)
- Gross weight: 4.86 kg (10.71 lbs.)
- Material: steel
- VESA standards: 50x50 to 900x600 e.g. 50x50, 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 400x600, 600x400, 700x400, 800x400, 600x600, 800x500, 800x600, 900x600
Package Contents

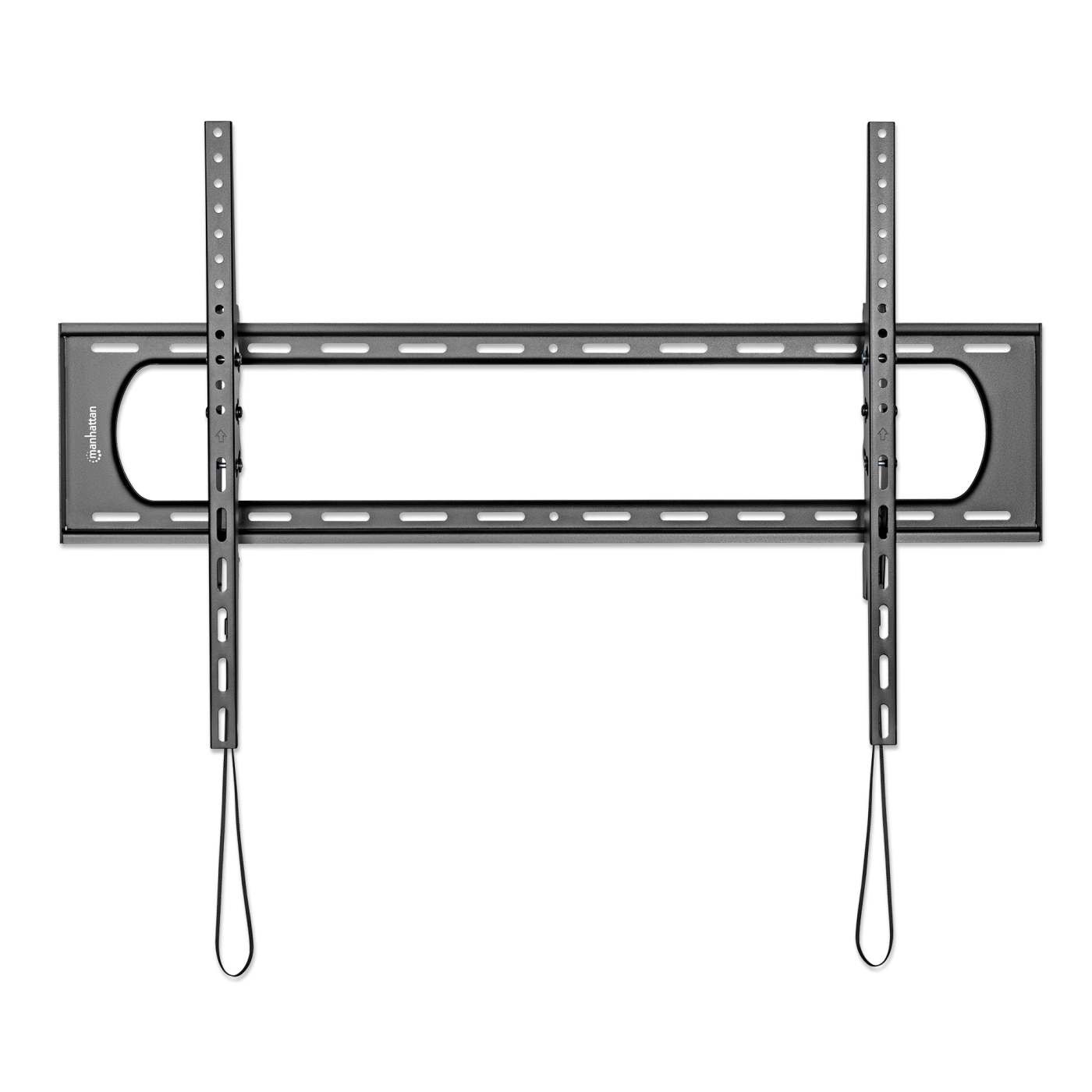

- Heavy-Duty Large-Screen Tilting TV Wall Mount
- Attachable bubble level
- Installation hardware with instructions
This product is part of a group; the complete list of variations follows:
- #461917 - Slim Heavy-Duty Large-Screen Fixed TV Wall Mount
- #461931 - Heavy-Duty Large-Screen Tilting TV Wall Mount
Additional SKUs
- Amazon ASIN: B0CHSLXYDQ
- EAN: 0766623461931
- UPC: 766623461931
Physical Specifications
- Product net weight: 4.29 kg
- Product gross weight: 4.86 kg
- Dimensions: 602 (L) x 1005 (W) x 80 (H) [mm]
- Packaging type: Retail Box
- Packaging dimensions: 1030 x 232 x 46 [mm]
- Master Carton Quantity: 4
- Master Carton Weight: 20.00 kg
- Master Carton Dimensions: 1045 x 250 x 205 [mm]
