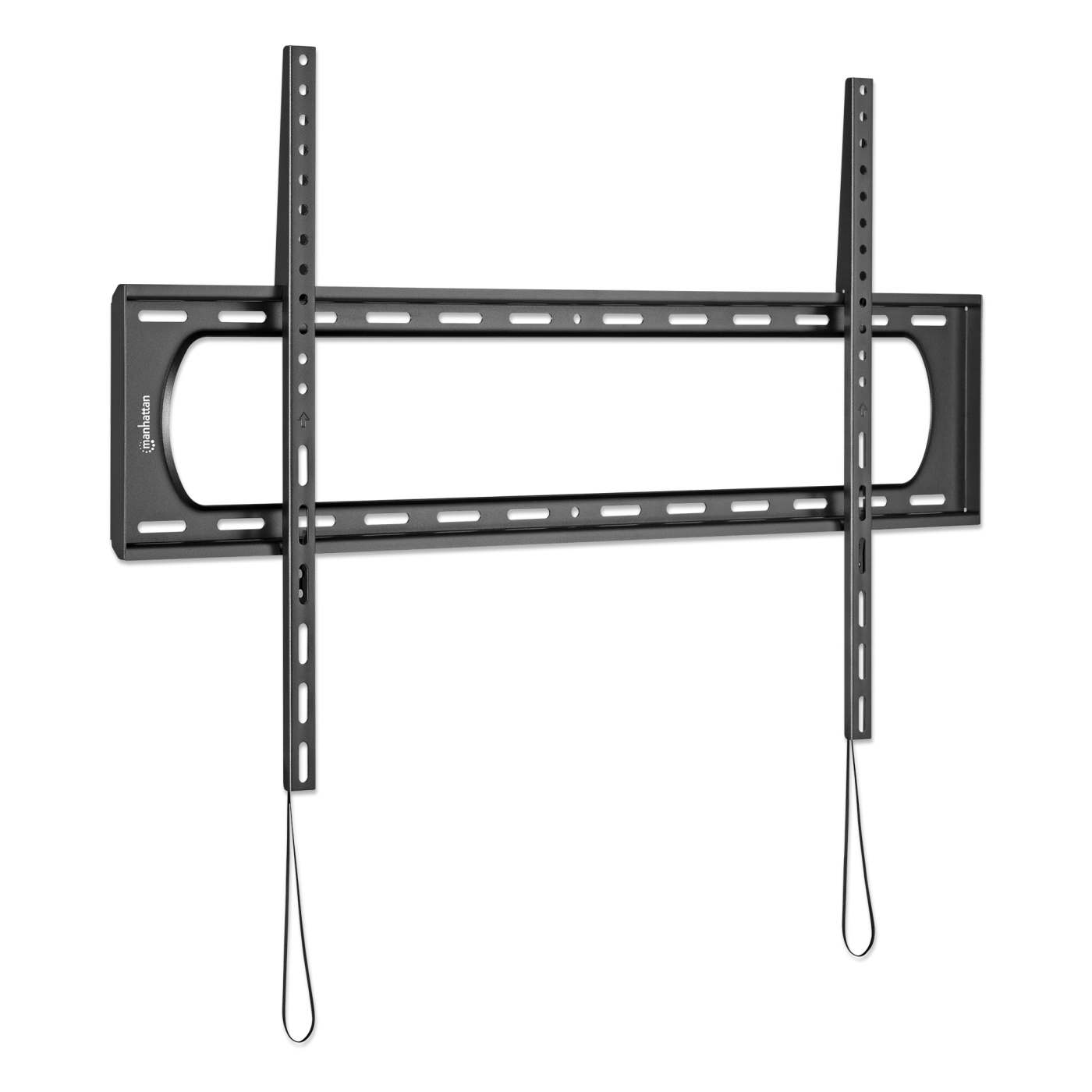

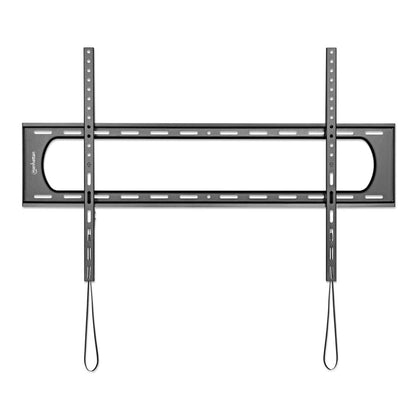

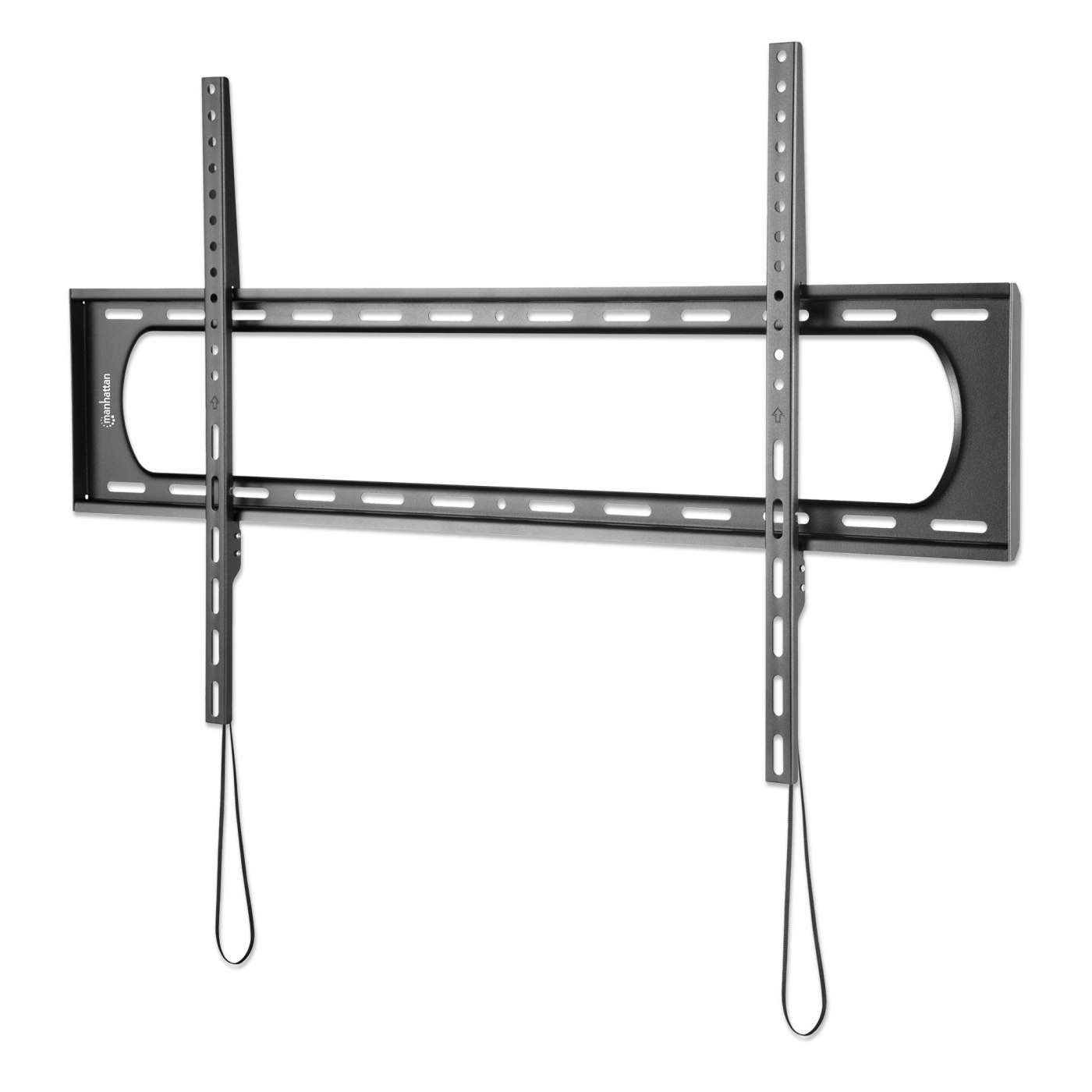

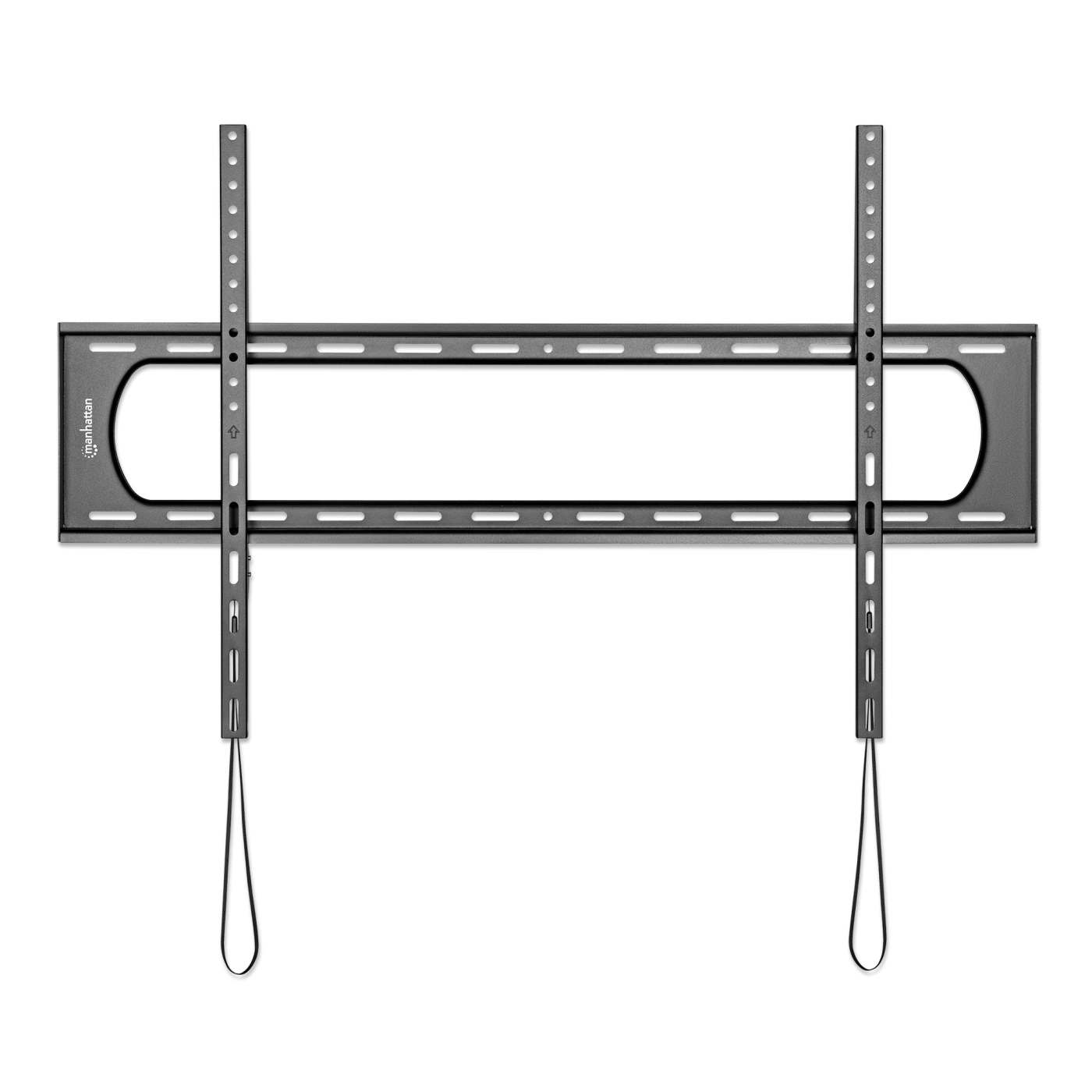

Heavy-Duty Low-Profile Large-Screen Fixed TV Wall Mount

Heavy-Duty Low-Profile Large-Screen Fixed TV Wall Mount

Holds One 60" to 120" TV up to 120 kg (264 lbs.), Fixed TV Bracket, Ultra Slim Design, Black

Part-No.: 461917

Highlights

  • Supports one flat or curved 60" to 120" TV up to 120 kg (264 lbs.)

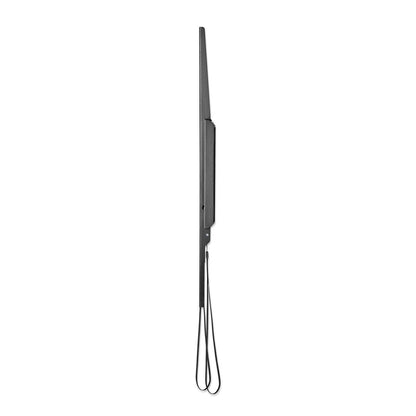

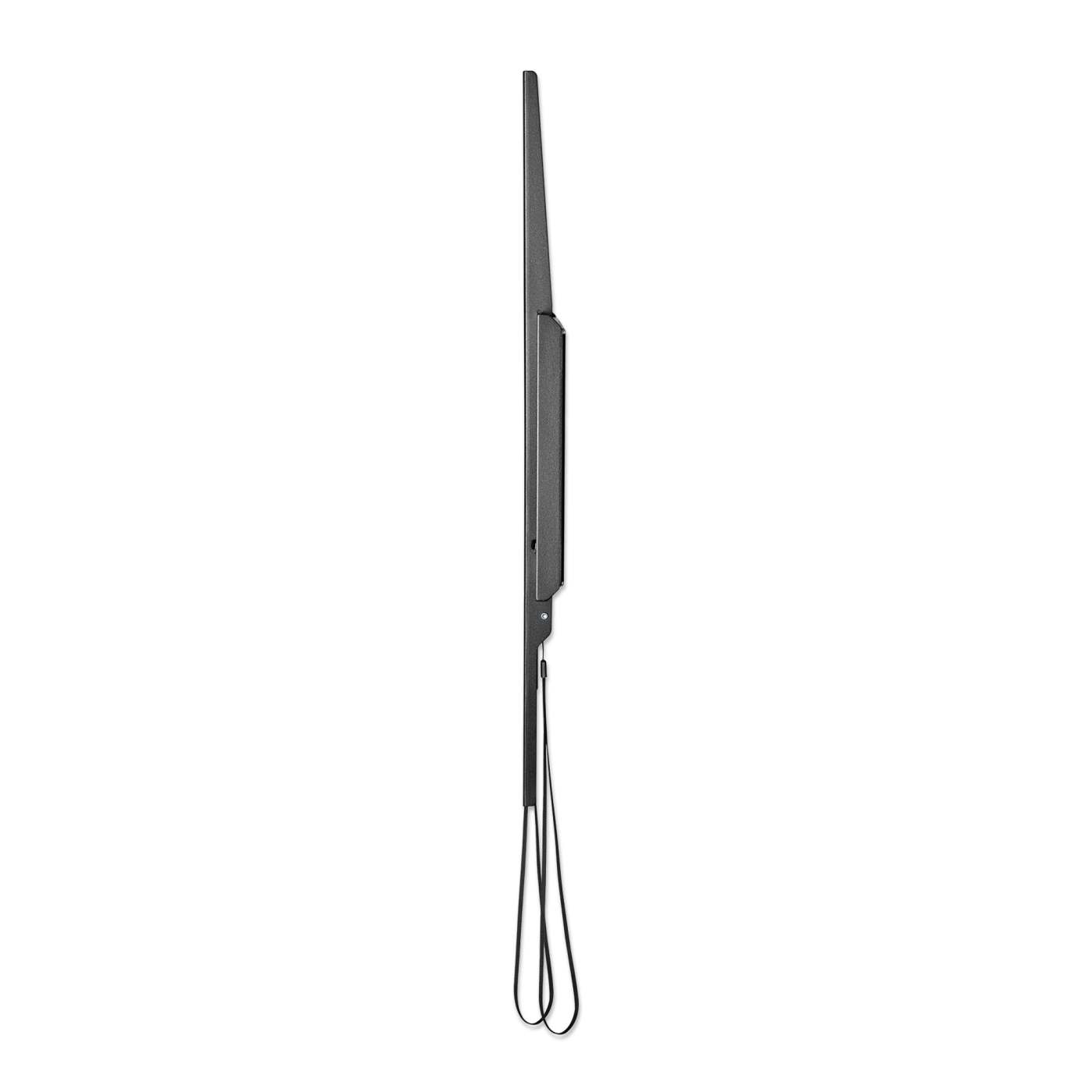

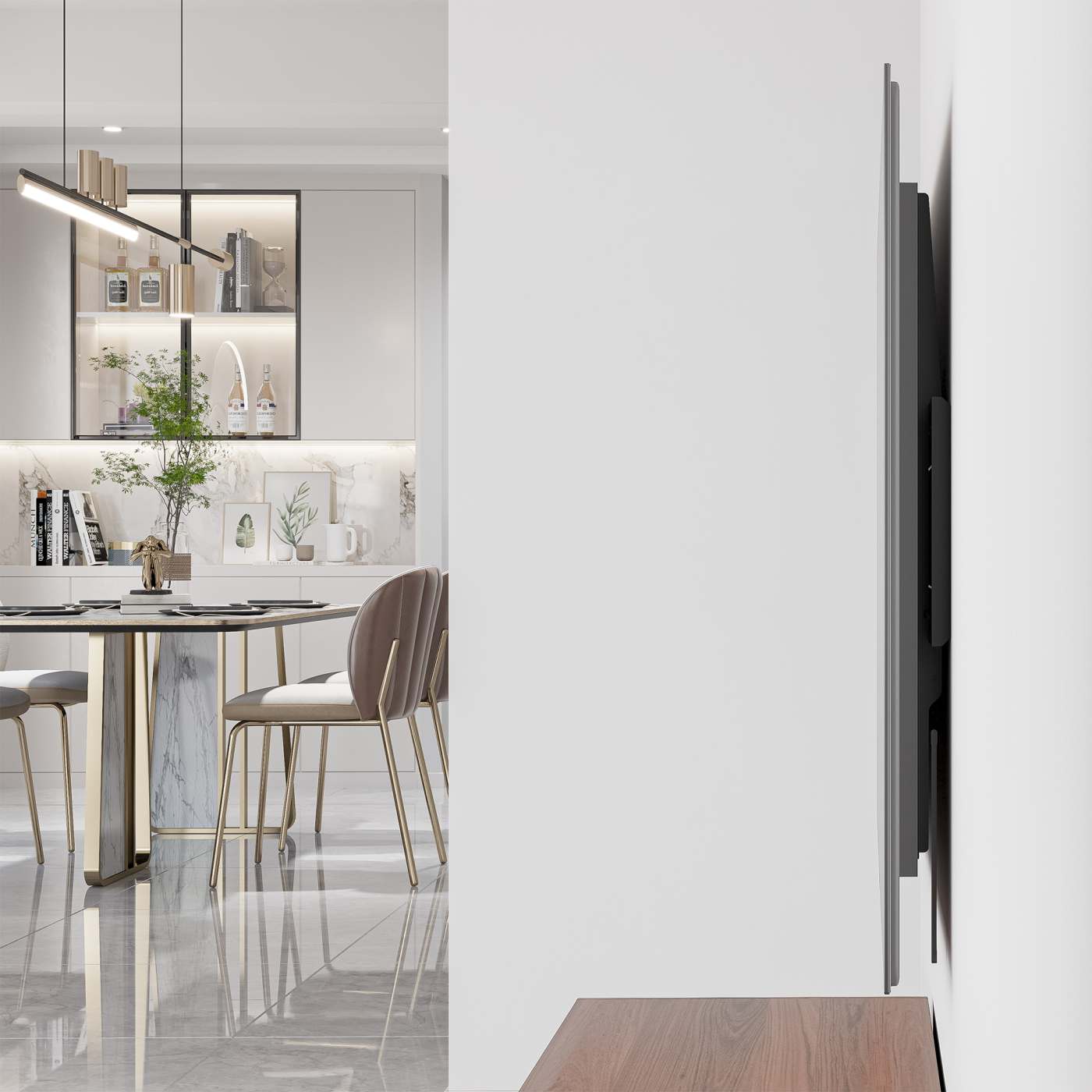

  • Holds TV only 35 mm (1.4 in.) from wall for a nearly flush, close-to-the-wall installation that enhances the thin, modern TV silhouette
  • Ultra heavy-duty construction with 2 mm thick reinforced steel and powder coating
[ view high resolution images ] View full details

Slim Ultra Heavy-Duty XXL TV Mounting Bracket - strong mount for flush-as-possible big-screen TV installations

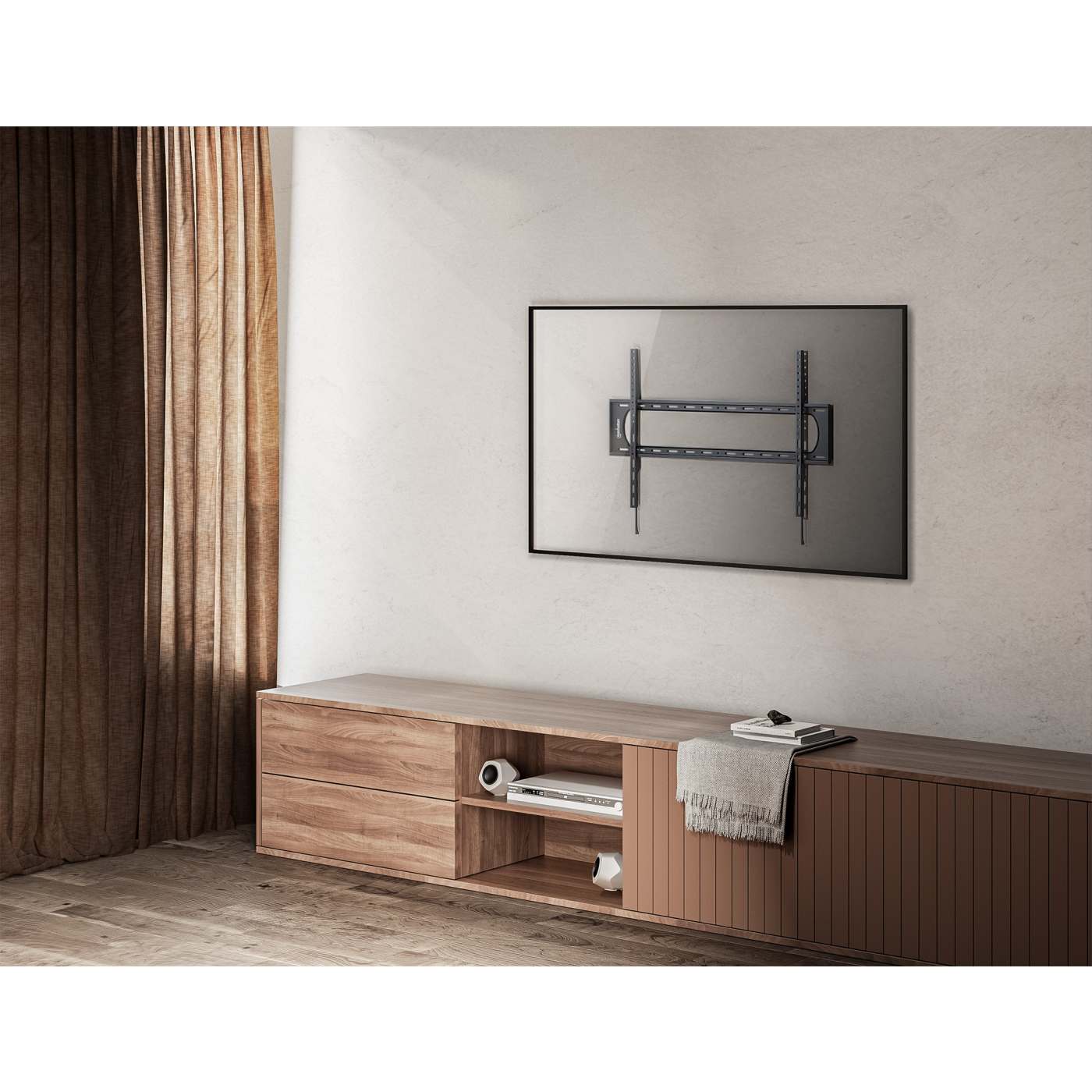

When viewing locations and TV heights are fixed at optimal positions, the Manhattan Heavy-Duty Low-Profile Large-Screen TV Wall Mount creates nearly flush, close-to-the-wall installations that enhance thin, modern TV silhouettes. This ultra-slim TV bracket extends only 35 mm (1.4 in.) from the wall. It's constructed of high-quality, powder-coated steel to fit flat and curved LCD, OLED or plasma TVs up to 120" and weighing up to 120 kg (264 lbs.) with VESA compliance up to 900x600. You're all set for a confident above-the-floor installation with an included bubble level that helps get the mount perfectly horizontal on the wall, and intuitive snap-in spring locks with release cords let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.

  • Supports one flat or curved 60" to 120" TV up to 120 kg (264 lbs.)
  • Holds TV only 35 mm (1.4 in.) from wall for a nearly flush, close-to-the-wall installation that enhances the thin, modern TV silhouette
  • Ultra heavy-duty construction with 2 mm thick reinforced steel and powder coating
  • Includes attachable bubble level

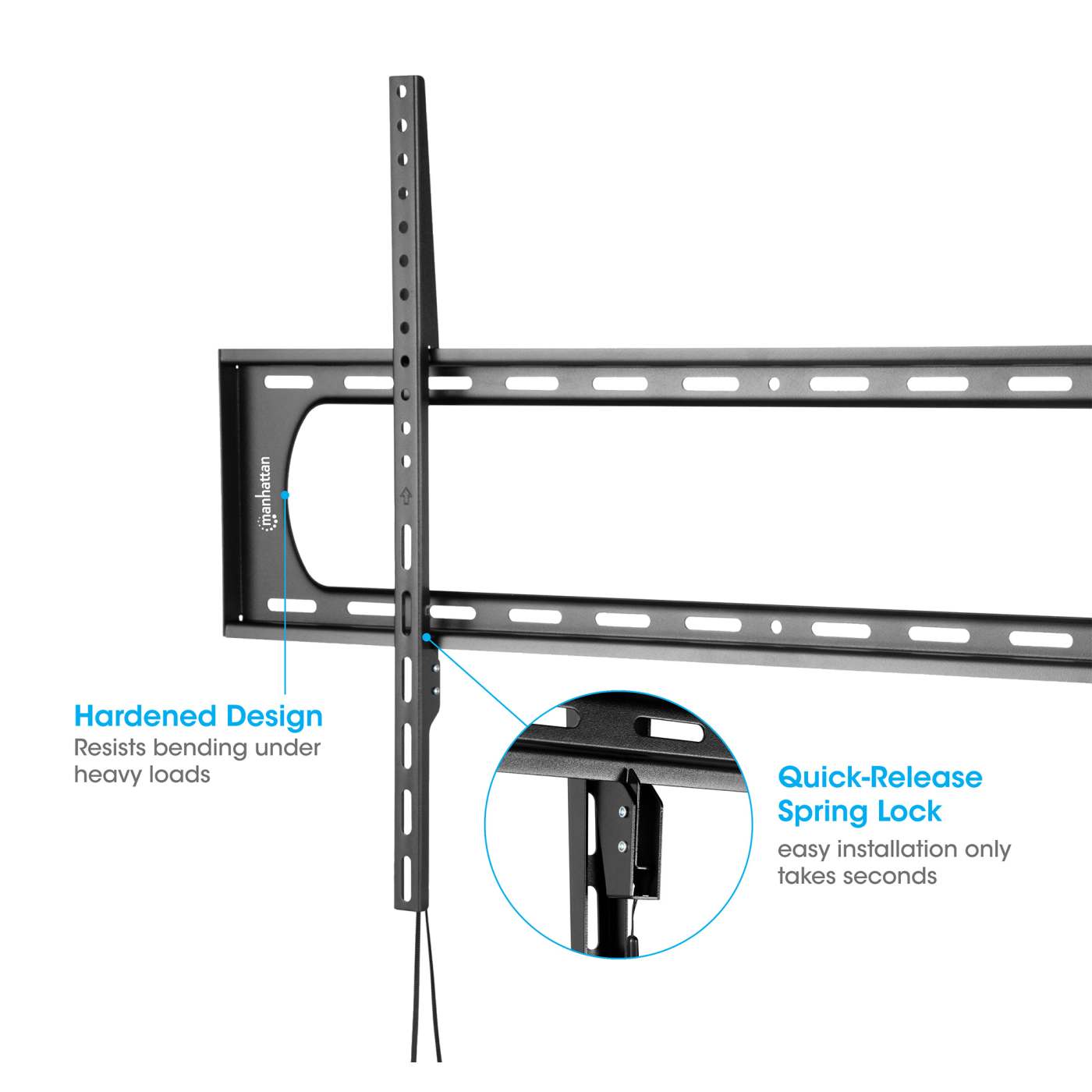

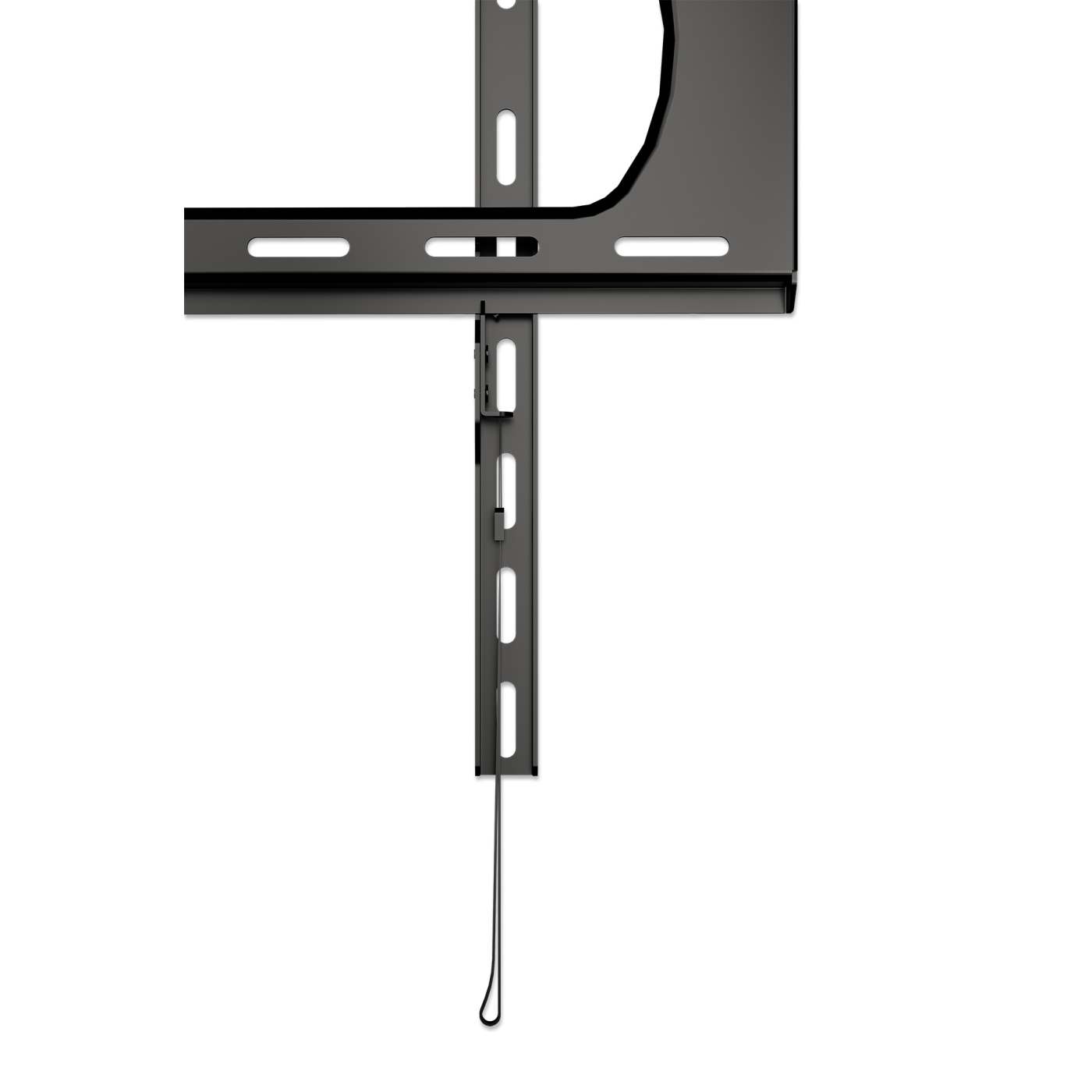

  • Snap-in spring locks with release cords for easy installation or removal and additional safety

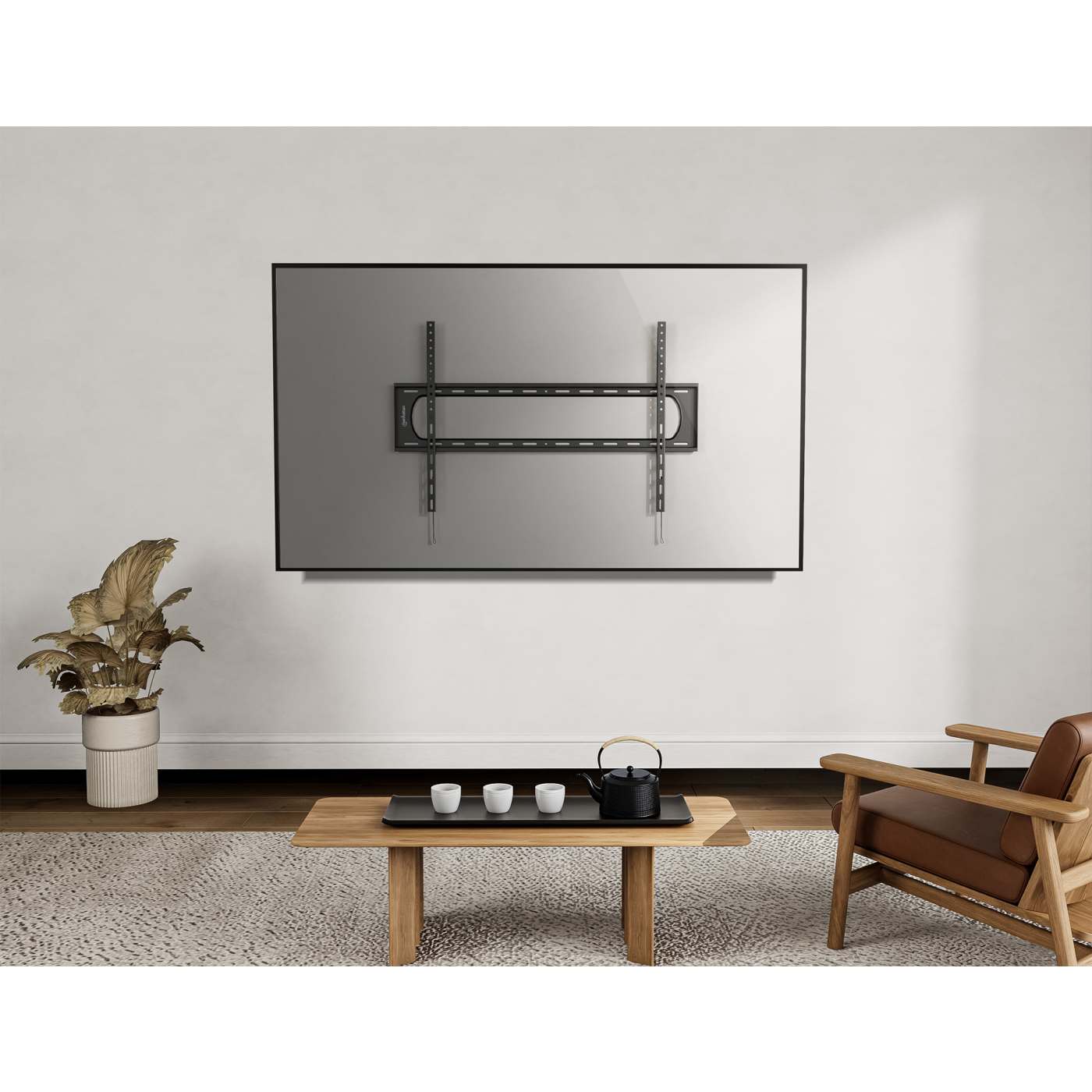

  • Low-profile, fixed installation, ideal for home, office and commercial applications
  • Meets VESA standards 50x50 to 900x600 e.g. 50x50, 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 400x600, 600x400, 700x400, 800x400, 600x600, 800x500, 800x600, 900x600
  • Lifetime warranty

    General
  • Designed for most 60" - 120" flat and curved screens

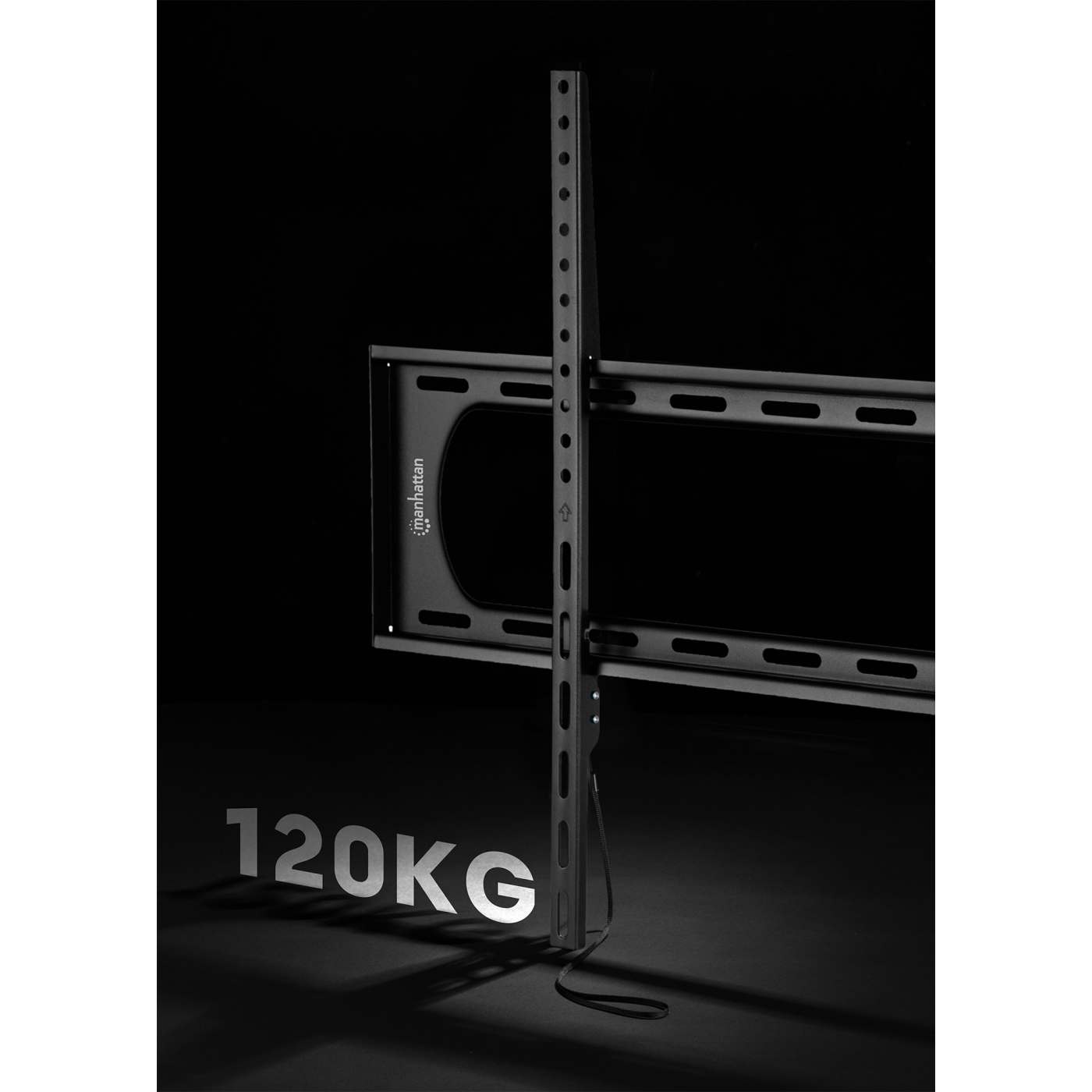

  • Weight capacity: 120 kg (264 lbs.)

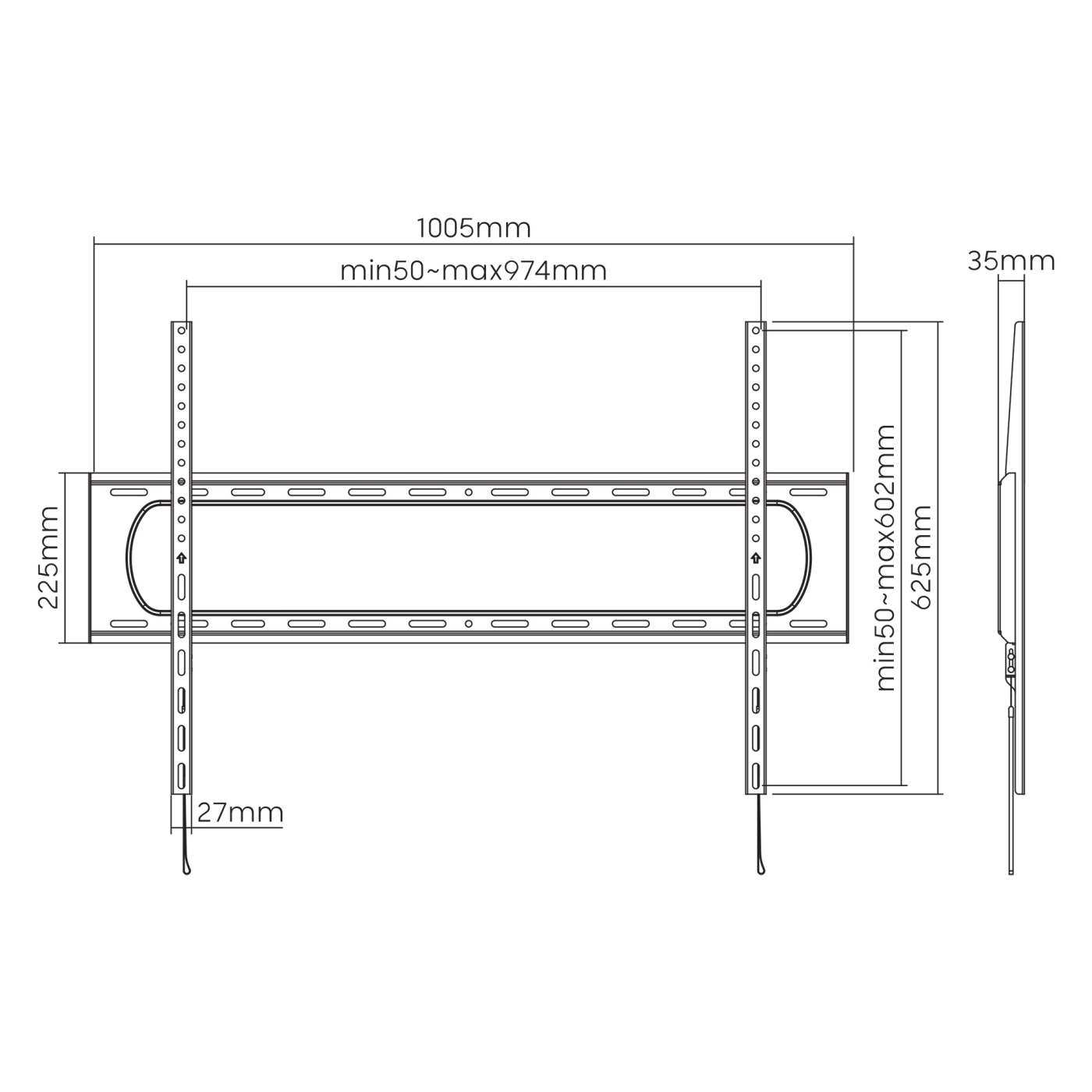

  • Dimensions (L x W x H): 625 x 1005 x 35 mm (24.6 x 39.57 x 1.38 in.)
  • Net weight: 3.16 kg (6.97 lbs.)
  • Gross weight: 3.72 kg (8.2 lbs.)
  • Material: steel
  • VESA standards: 50x50 to 900x600 e.g. 50x50, 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 400x600, 600x400, 700x400, 800x400, 600x600, 800x500, 800x600, 900x600

    Package Contents
  • Heavy-Duty Low-Profile Large-Screen Fixed TV Wall Mount
  • Attachable bubble level
  • Installation hardware with instructions

    This product is part of a group; the complete list of variations follows:
  • #461917 - Slim Heavy-Duty Large-Screen Fixed TV Wall Mount
  • #461931 - Heavy-Duty Large-Screen Tilting TV Wall Mount

  • Additional SKUs

    • Amazon ASIN: B0CHSLJTGN
    • EAN: 0766623461917
    • UPC: 766623461917

  • Physical Specifications

    • Product net weight: 3.16 kg
    • Product gross weight: 3.72 kg
    • Dimensions: 625 (L) x 1005 (W) x 35 (H) [mm]
    • Packaging type: Retail Box
    • Packaging dimensions: 1030 x 232 x 46 [mm]
    • Master Carton Quantity: 4
    • Master Carton Weight: 15.80 kg
    • Master Carton Dimensions: 1045 x 250 x 205 [mm]

  • Datasheet
    • Datasheet     » Download

    • Declaration of Conformity     » Download


  • Manual
    • Quick Instruction Guide     » Download
