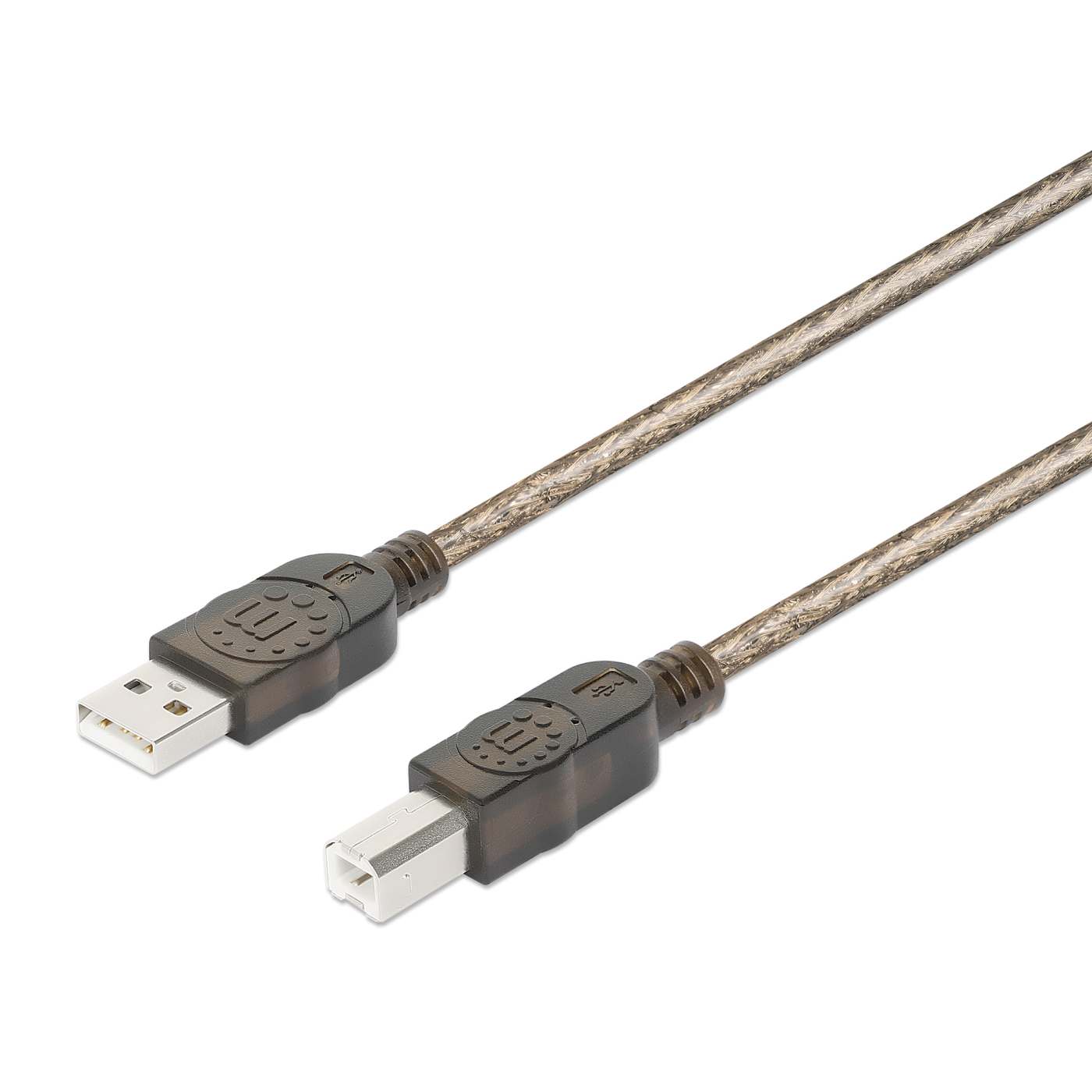

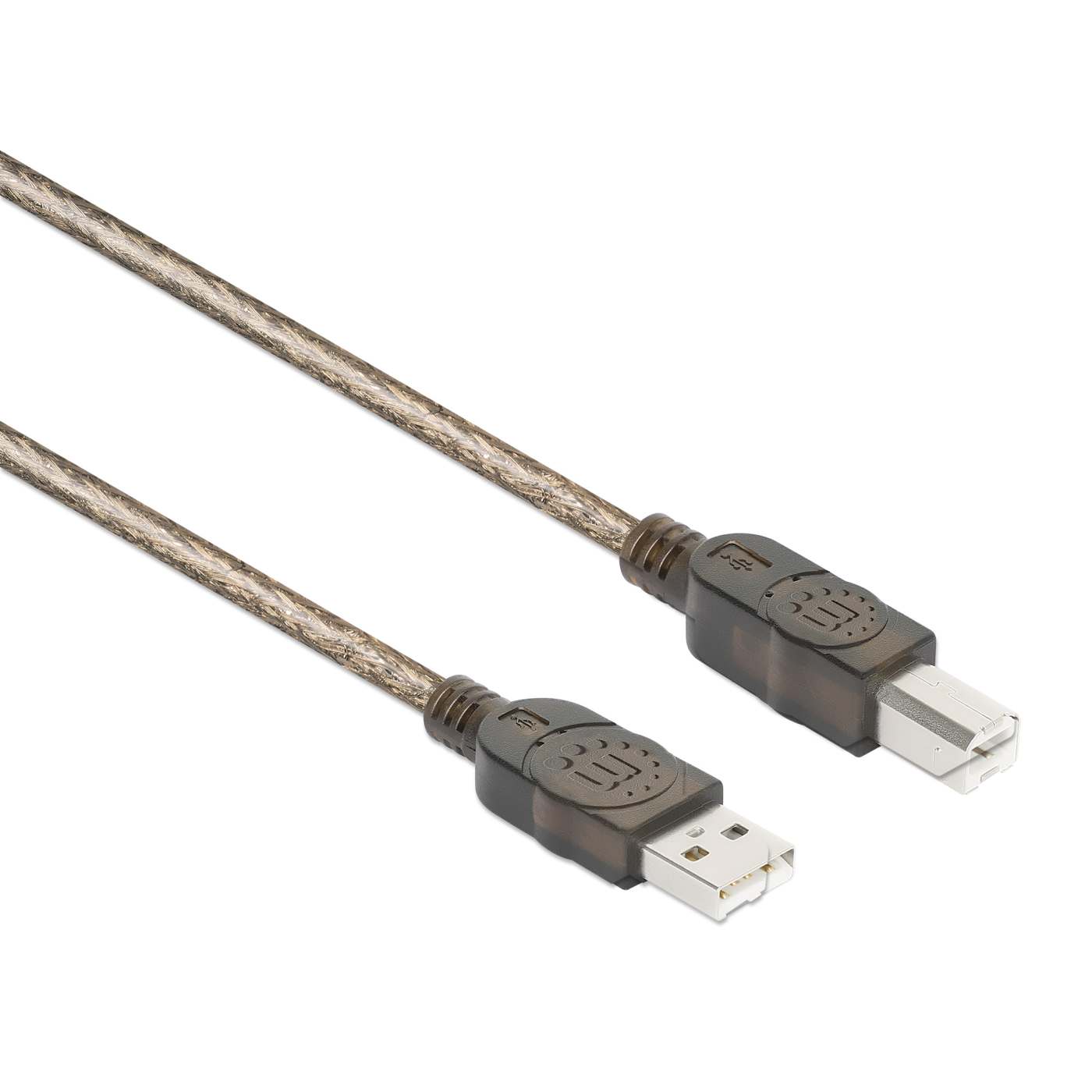

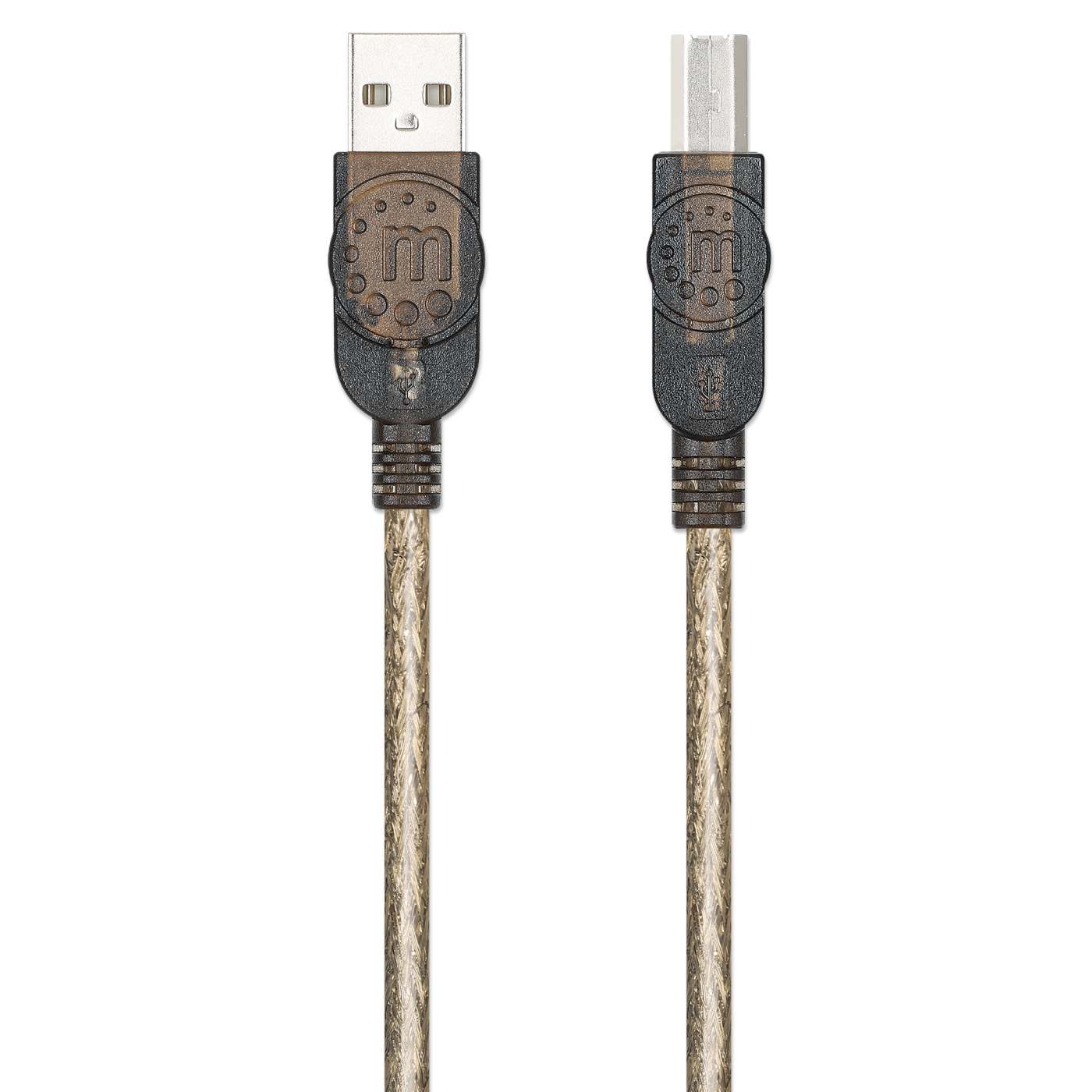

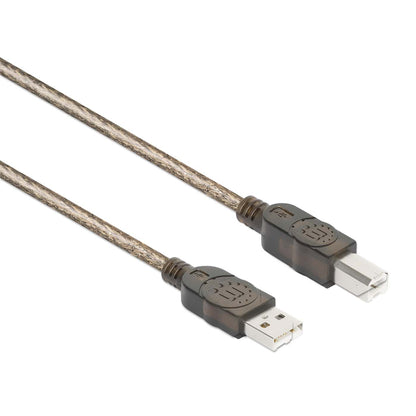

Hi-Speed USB 2.0 Active Cable

USB A Male to B Male, 15 m (50 ft.), Black

Part-No.: 152389

Highlights

  • Extends and boosts the signal to any USB device – supports data transfer speeds up to 480 Mbps
  • Built-in chipset with amplification maintains Hi-Speed, USB 2.0 signal quality, electrical and timing specifications
  • Overcomes the 5 m (16 ft.) USB distance limitation – ideal for connecting most USB printers

Future arrivals:

#
Quantity
Arrival Date
1
300
2021-08-03

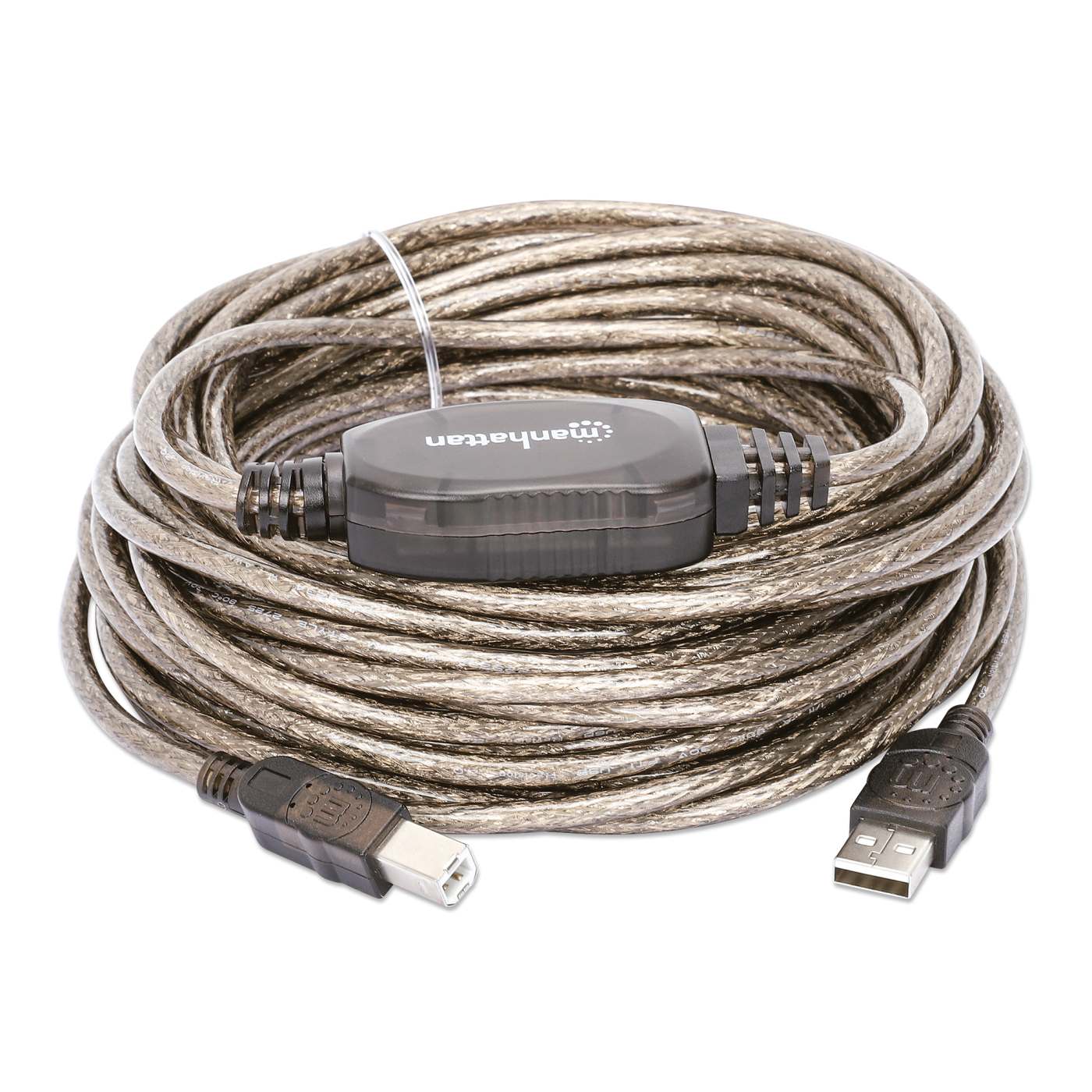

Easily overcome distance limitations to connect USB devices.Use the Manhattan Hi-Speed USB Active Cable to connect a computer USB port to a USB printer or other USB Type-B male device almost anywhere in the room. This single, non-daisy-chainable cable extension provides a convenient, uninterrupted 15 m (50 ft.) connection. The Manhattan Hi-Speed USB Active Cable with built-it repeater is fully-compliant with USB 1.1 and Hi-Speed USB 2.0 specifications to help devices operate at maximum performance. No external power or driver requirements are necessary. Plug-and-play capable and Windows/Macintosh versatility provide greater options in computer and peripheral placement and office layout.

  • Extends and boosts the signal to any USB device – supports data transfer speeds up to 480 Mbps
  • Built-in chipset with amplification maintains Hi-Speed, USB 2.0 signal quality, electrical and timing specifications
  • Overcomes the 5 m (16 ft.) USB distance limitation – ideal for connecting most USB printers
  • Provides a single, non-daisy-chainable extension for maximum distance of 15 m (50 ft.)
  • Plug and Play; Windows and Mac compatible – bus-powered requires no external power supply
  • Three-Year Warranty

    Standards and Certifications:
  • CE
  • FCC
  • USB 2.0
  • RoHS

    General
  • Throughput: 480 Mbps
  • Bus powered
  • Maximum non-daisy-chainable length: 15 m (50 ft.)
  • Power: 5 VDC / 1 A

    Connections

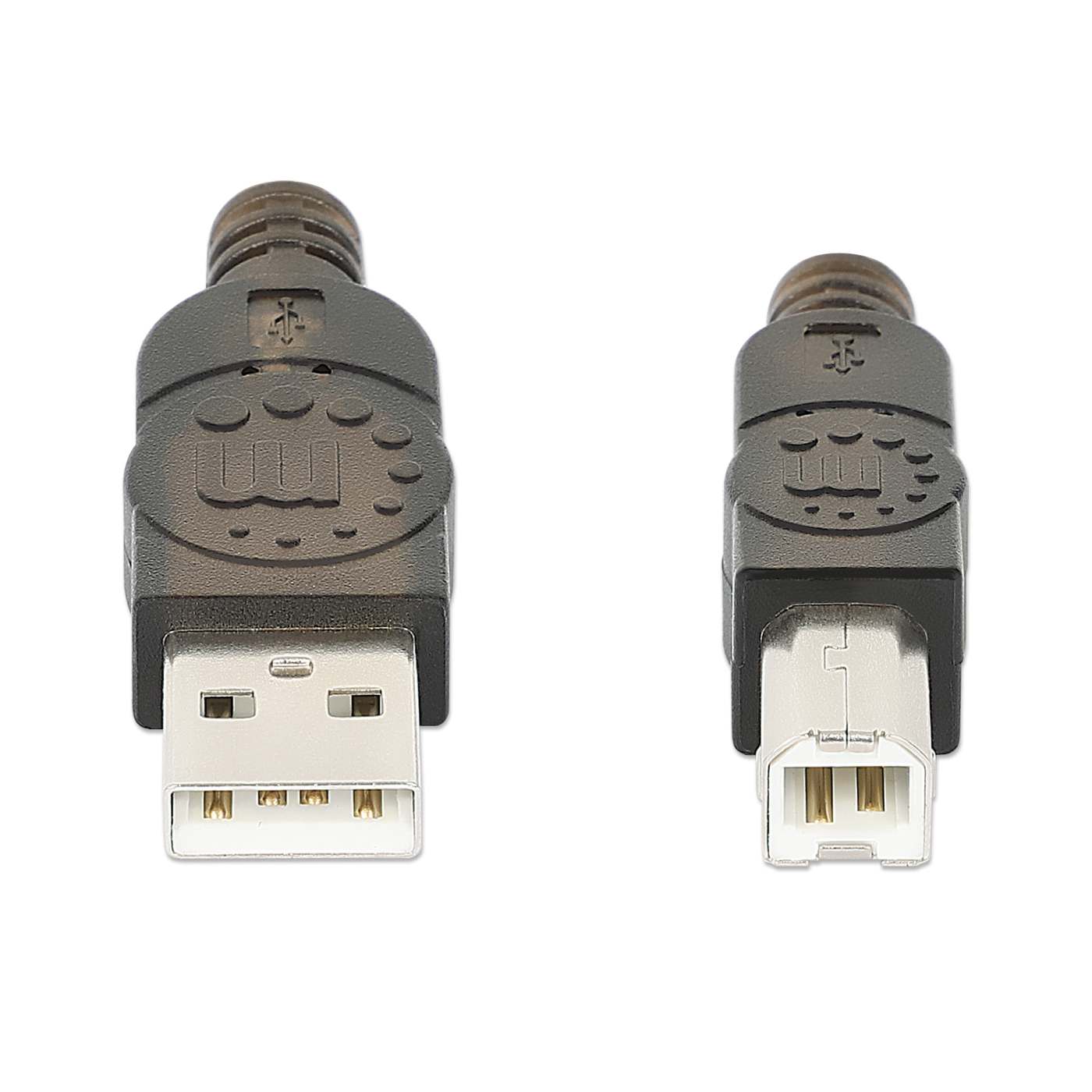

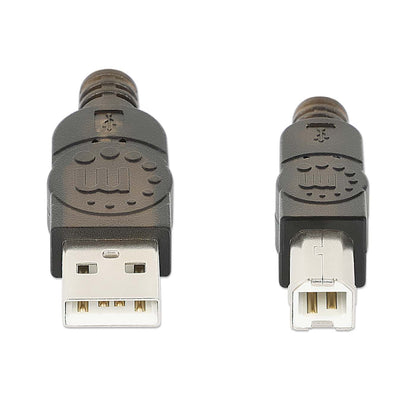

  • One Type-A male
  • One Type-B male

    Physical
  • LED indicators: power and port connection
  • Housing: plastic
  • Length: 15 m (50 ft.)
  • Weight: 0.38 kg (12.2 oz.)

    Operating Environment
  • Operation temperature: 0 – 40°C (32 – 104°F)
  • Storage temperature: -20 – 60°C (-4 – 140°F)
  • Humidity (noncondensing): 0 – 96%

    Package Contents
  • Hi-Speed USB 2.0 Active Cable
  • Quick Instruction Guide

  • Additional SKUs

    • Amazon ASIN: B071LHC6M5
    • EAN: 0766623152389
    • UPC: 766623152389
    • ALSO: 2867350
    • API: 238602

  • Physical Specifications

    • Weight: 0.38 kg
    • Dimensions: 15 mm
    • Packaging: Bag
    • Carton Quantity: 30
    • Carton Weight: 16.00 kg

  • Datasheet


  • Manual

    • Quick Instruction Guide     » Download
