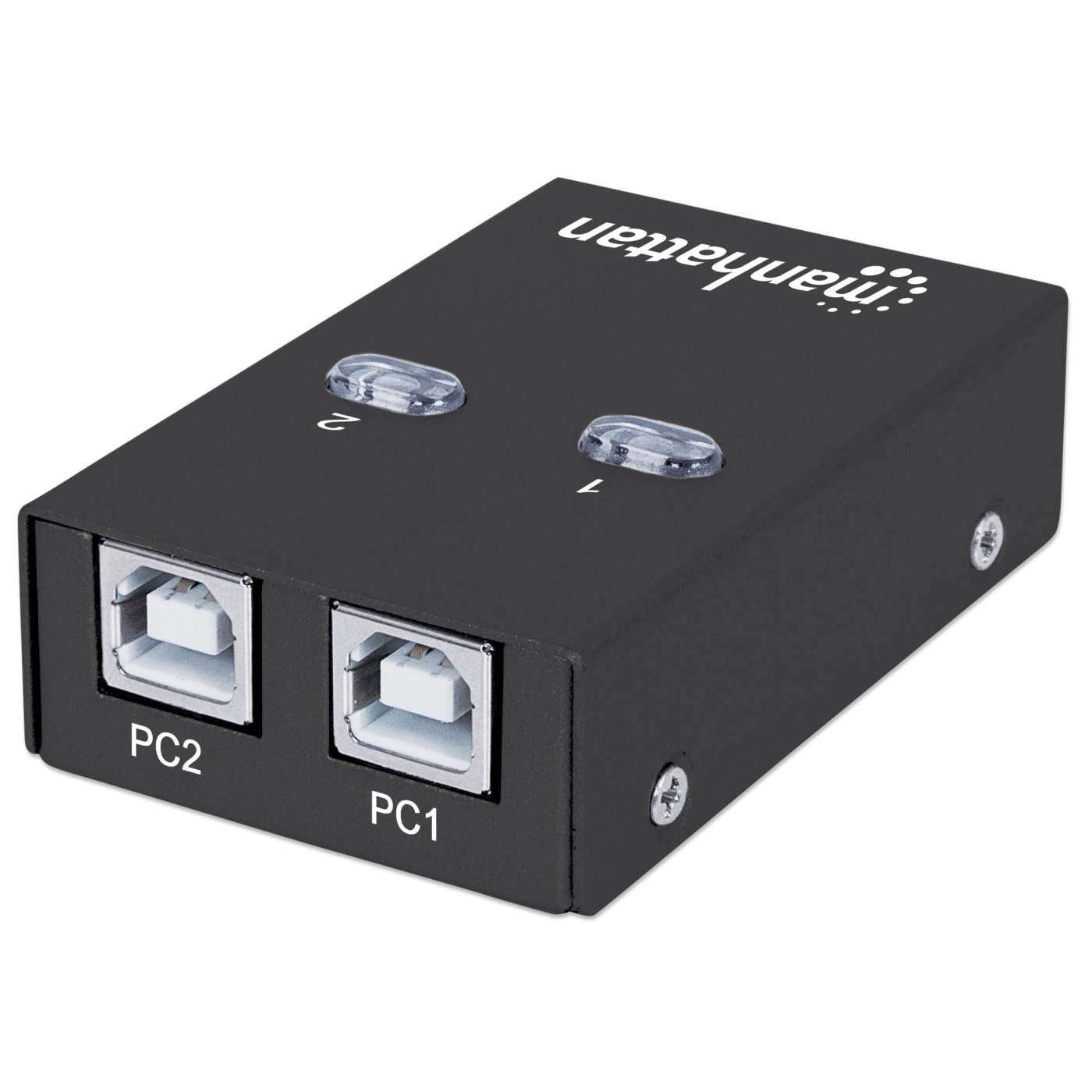

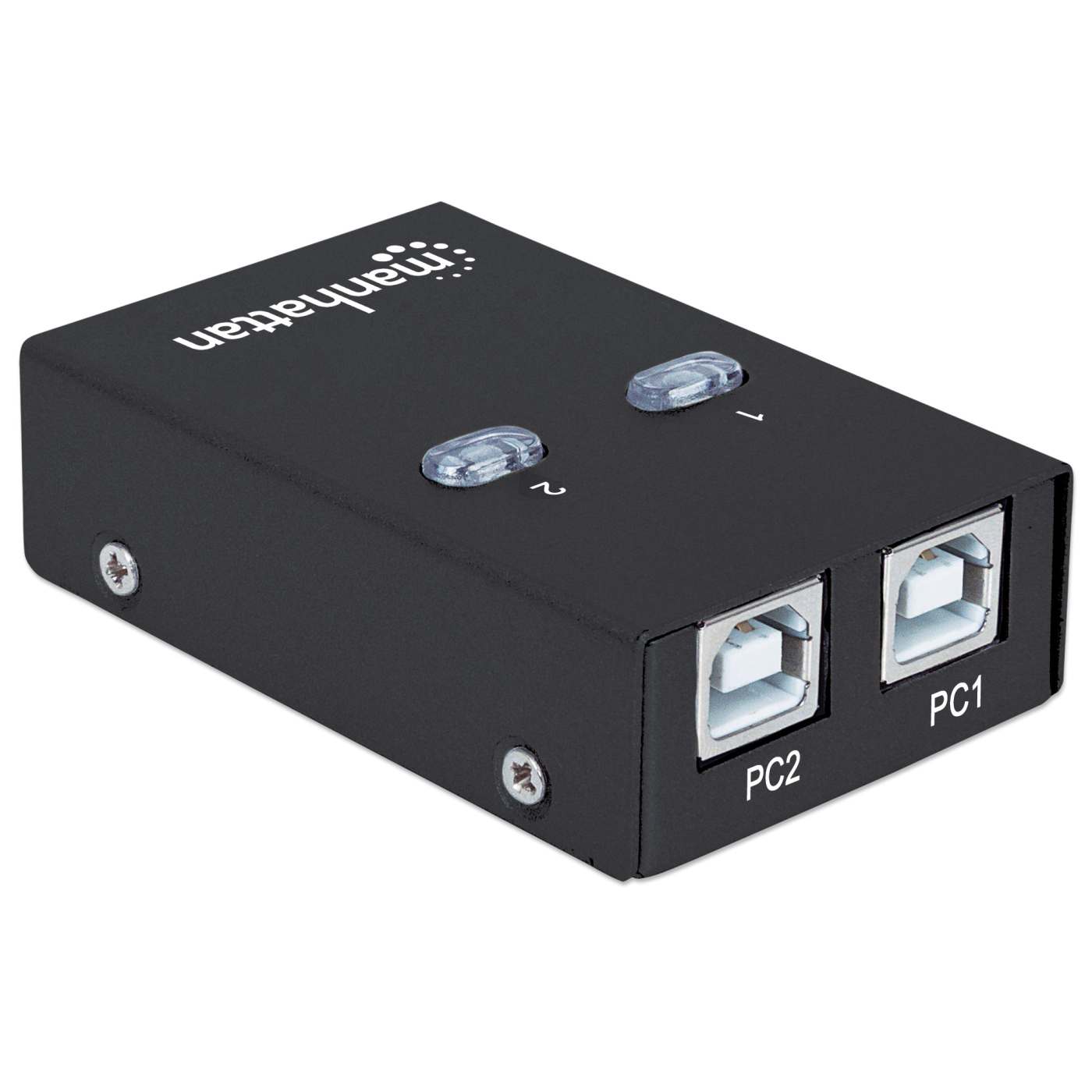

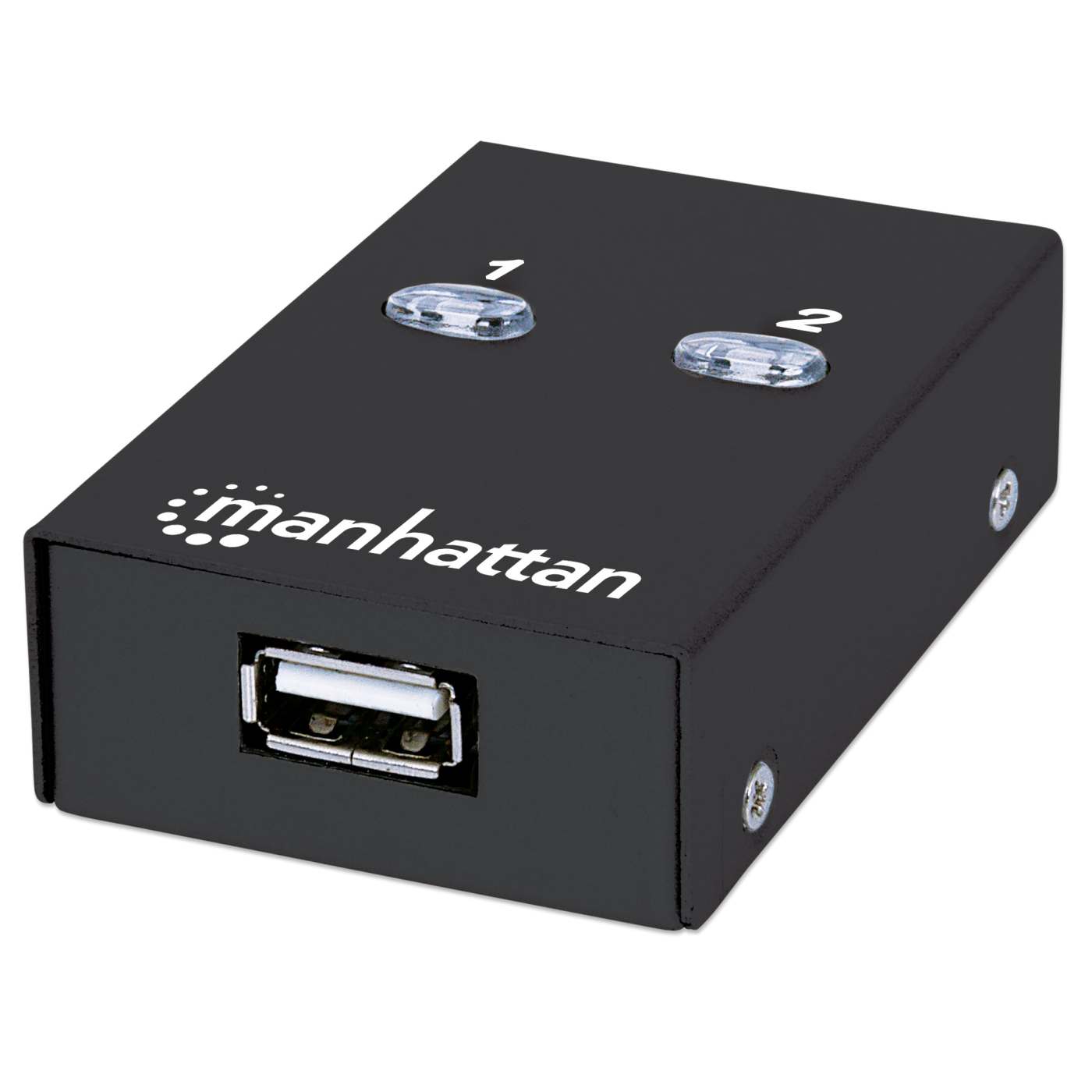

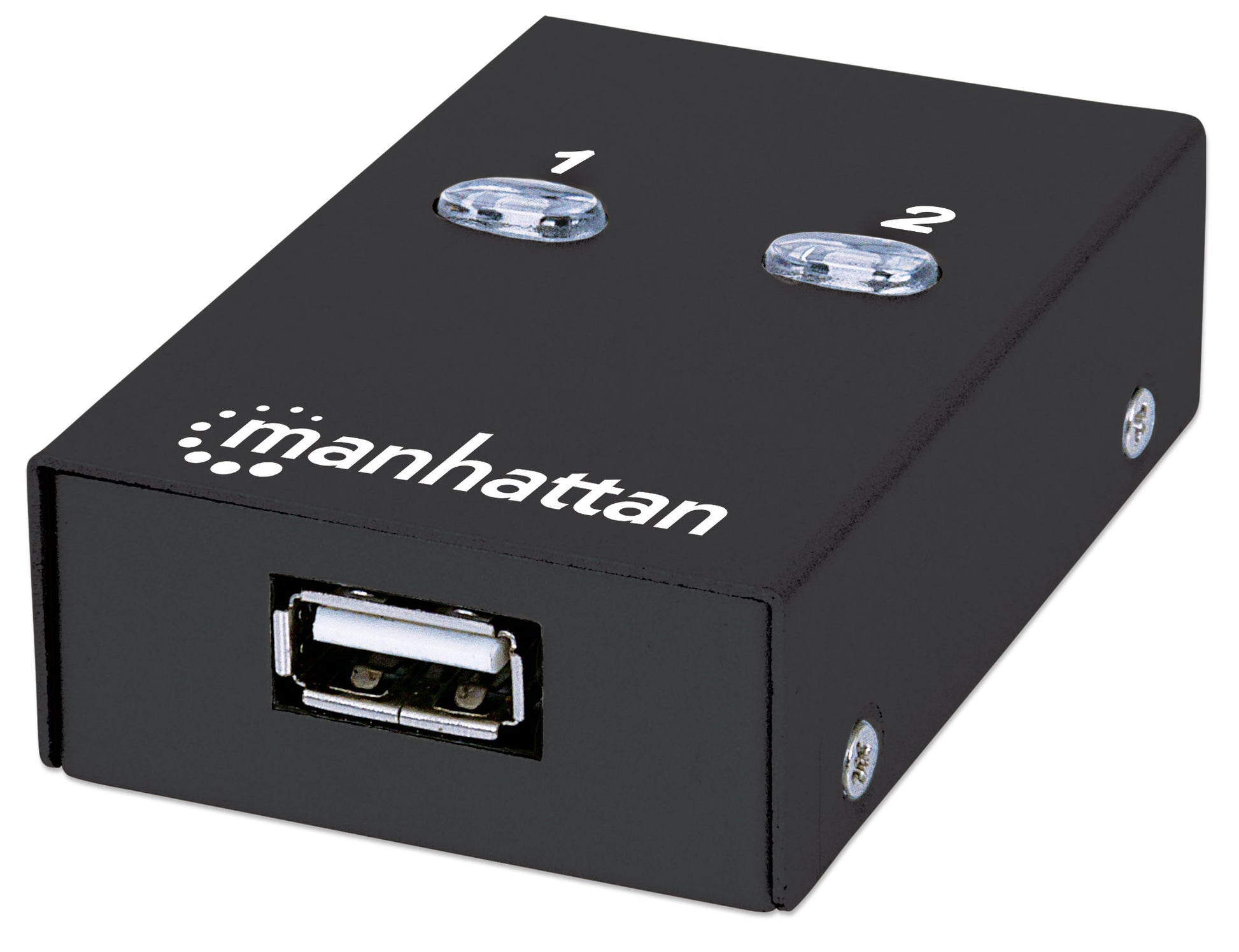

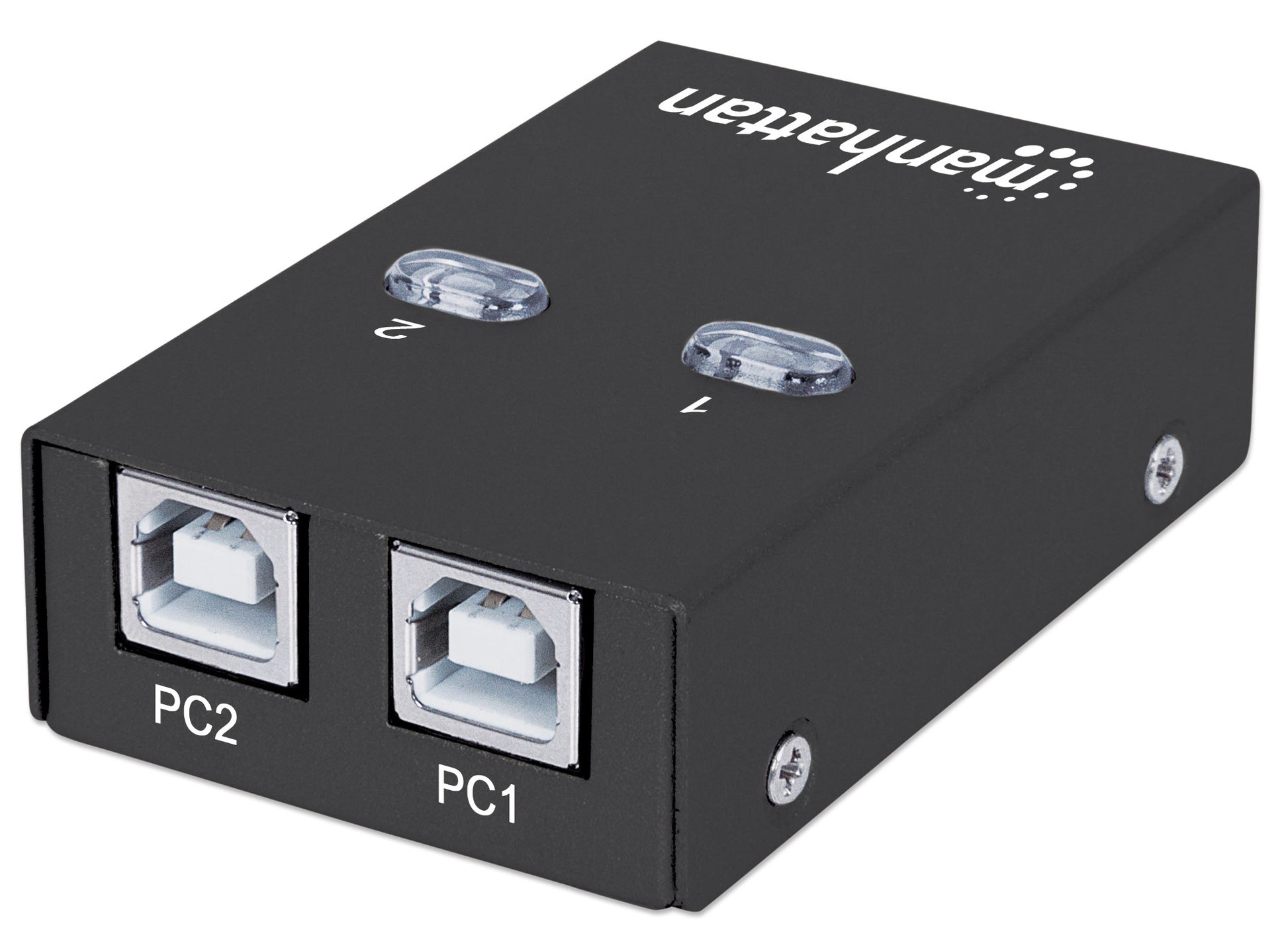

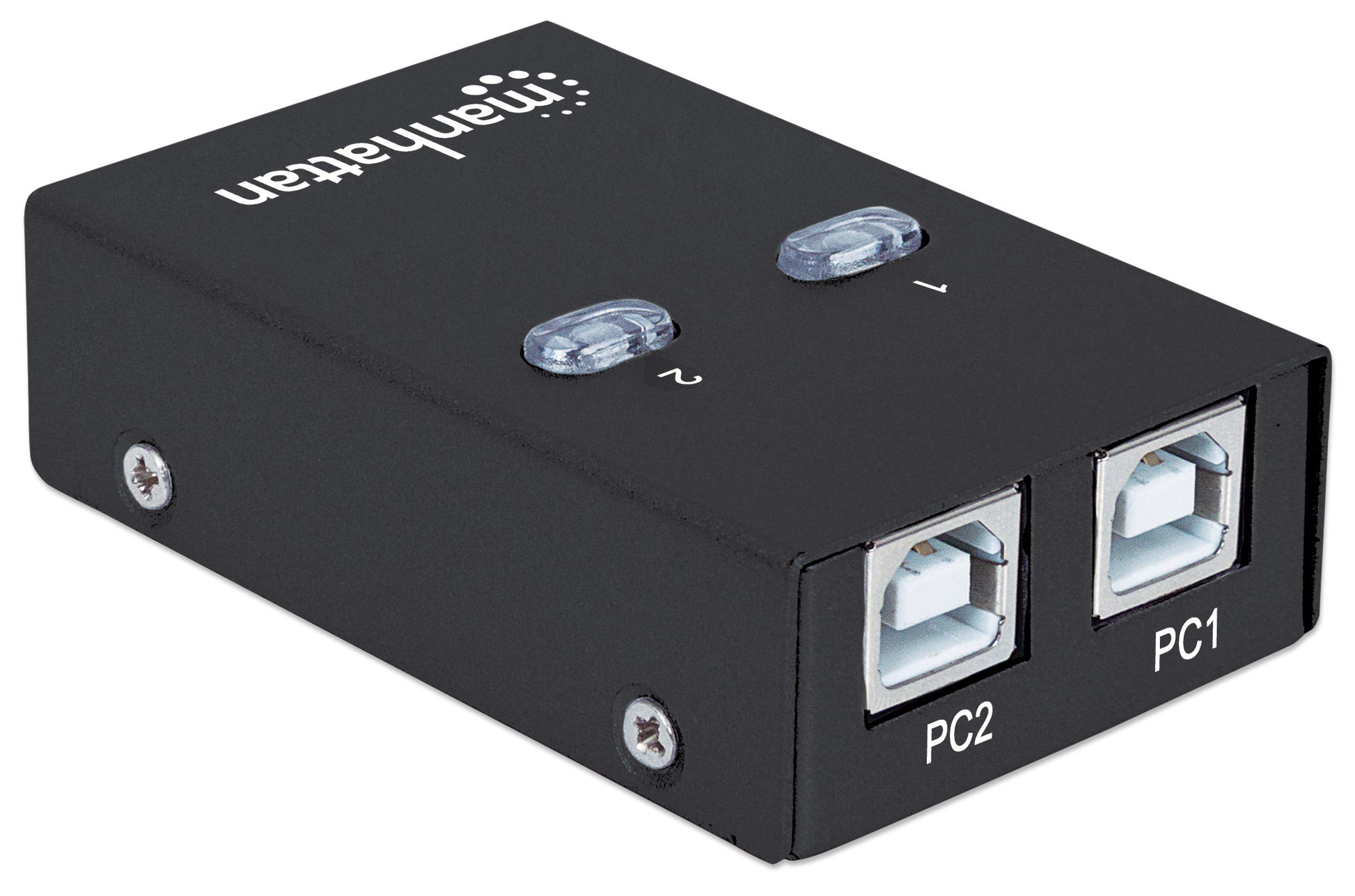

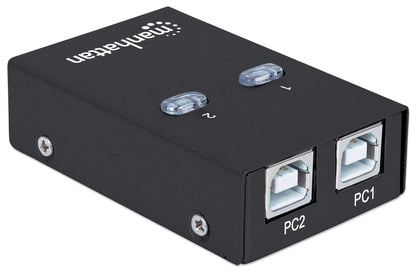

Hi-Speed USB 2.0 Automatic Sharing Switch

1x2 Ports, Dual Control, Auto-Sensing USB 2.0 Type-A to Type-B Switch

Part-No.: 162005

Highlights

  • Share a single USB device between two computers
  • Individual toggle switches select USB devices for each computer
  • Easy-to-read onboard and onscreen LED indicators monitor status


Easily connect and share a USB peripheral

The Manhattan Hi-Speed USB 2.0 Automatic Sharing Switch easily allows two computers to share a USB device. It's ideal for home and office use where users need to share a USB cable modem, printer, digital camera, scanner, external storage drive or other peripheral. Use the convenient access-on-demand switching for activation with a single click of an onscreen button, or use on-board switches to manually select an active computer.

Quick and Easy Installation

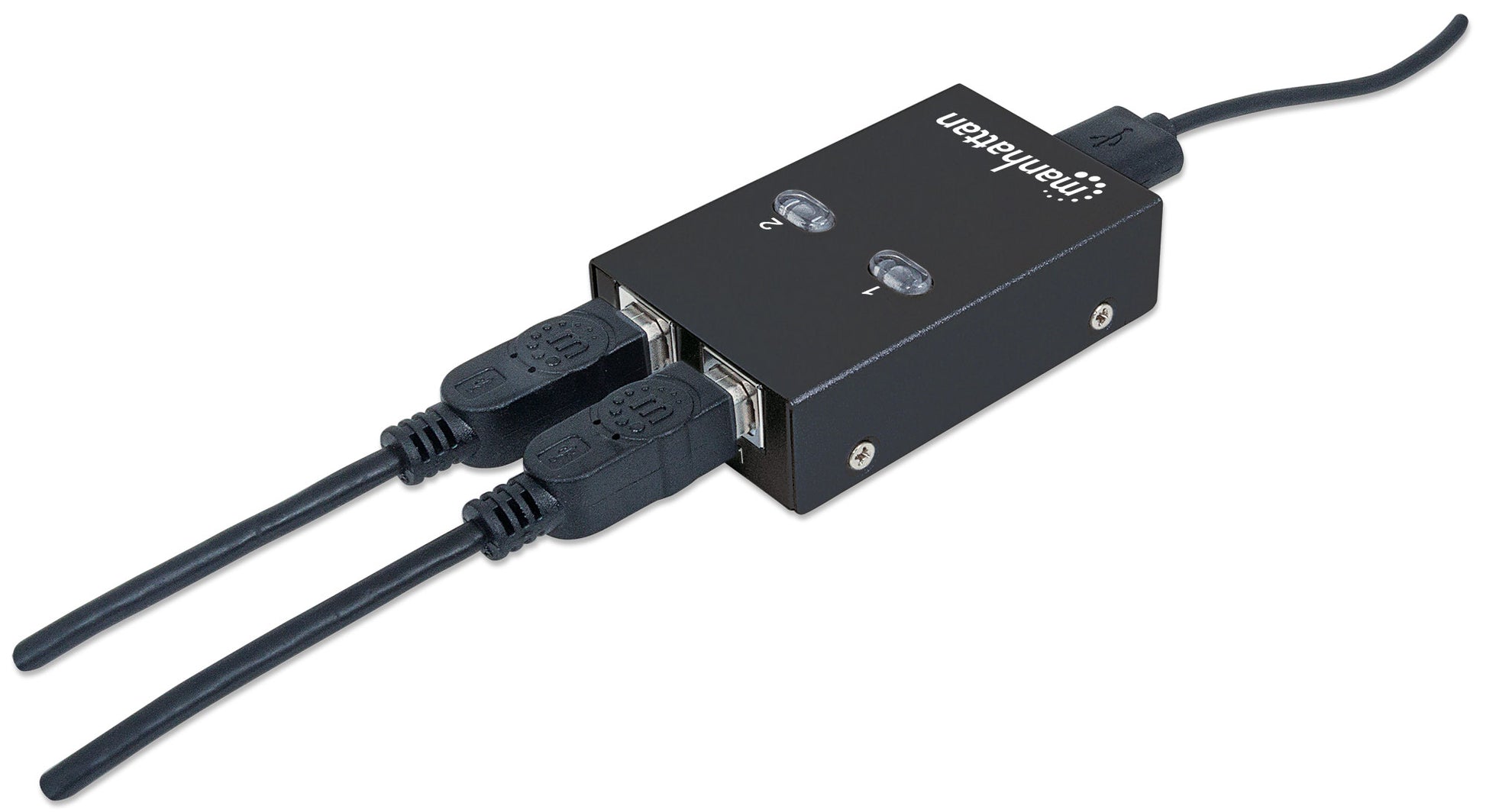

Plug-and-play installation is easy with Windows systems. The Manhattan Hi-Speed USB 2.0 Automatic Sharing Switch requires no special drivers or external power supply. Connect using the included USB cables for fast access to popular devices.

  • Share a single USB device between two computers
  • Individual toggle switches select USB devices for each computer
  • Easy-to-read onboard and onscreen LED indicators monitor status
  • Overcurrent protection and hot-swappable
  • Compatible with all USB-equipped computers
  • Plug and play; Windows compatible; requires no external power supply
  • Three-Year Warranty

    Standards and Certifications
  • USB 2.0
  • FCC
  • CE
  • RoHS
  • WEEE

    General
  • Transfer speeds: 480 Mbps
  • LED indicators (2)
  • Mechanical switches (2)
  • Bus powered

    Ports

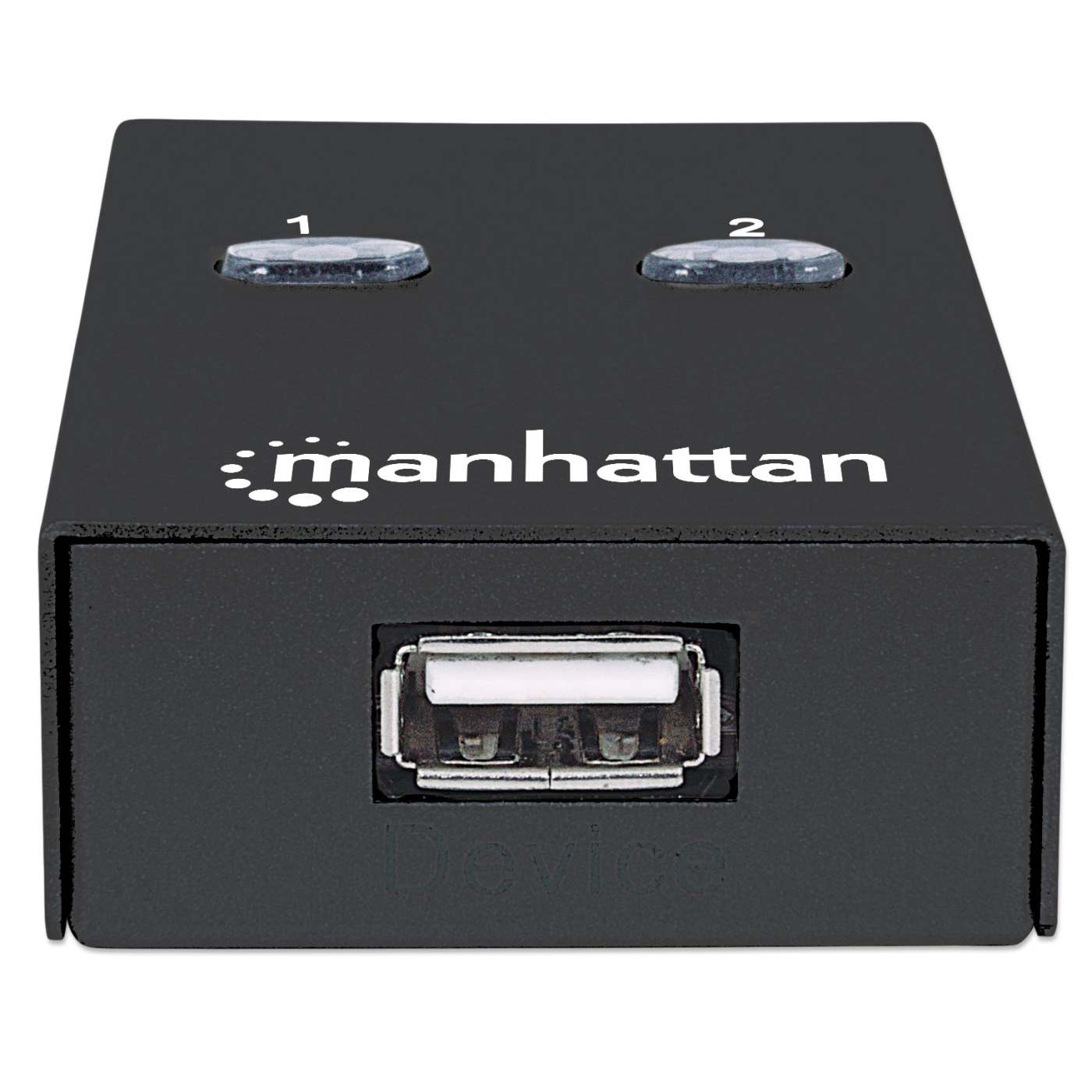

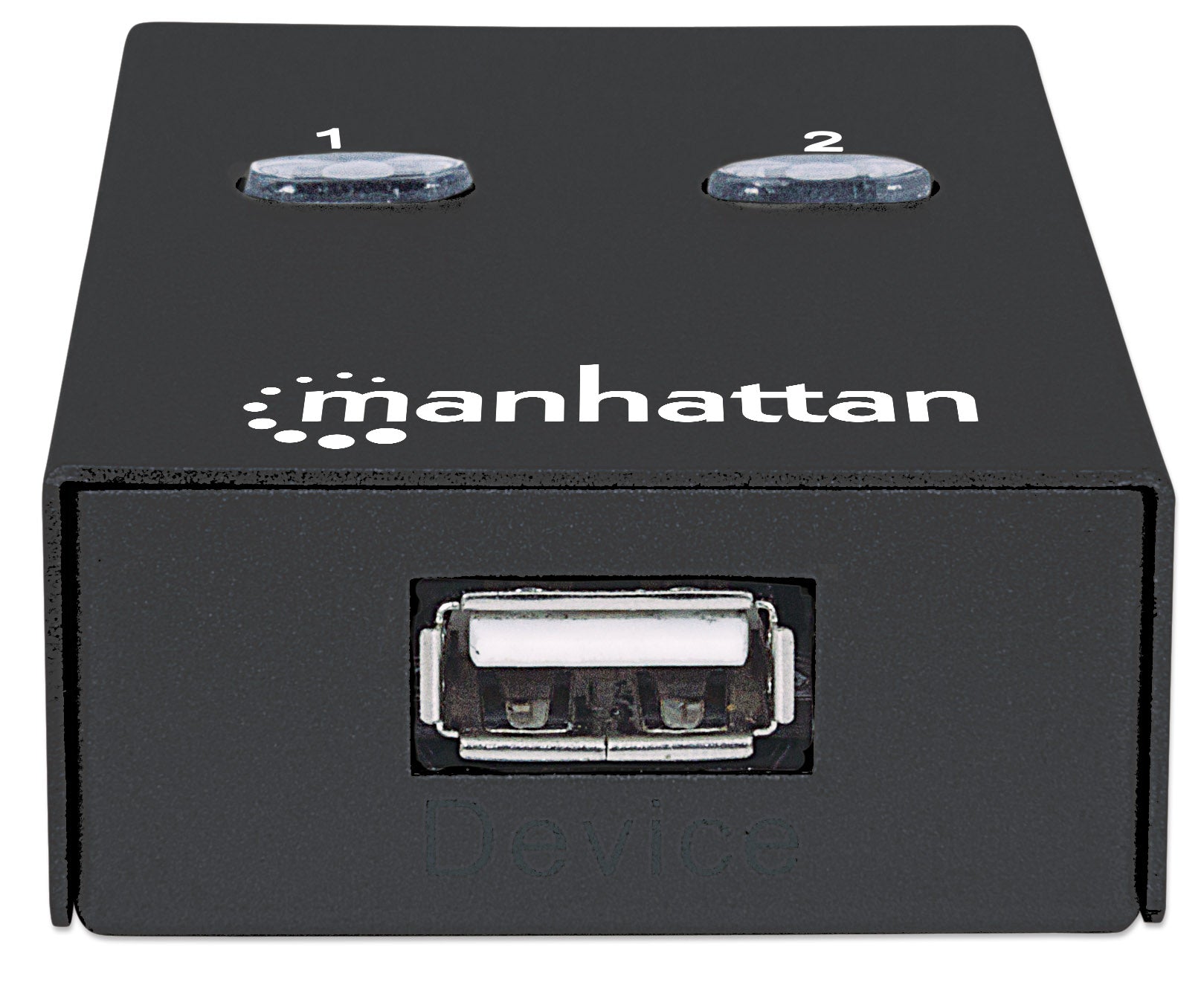

  • Type A (1)

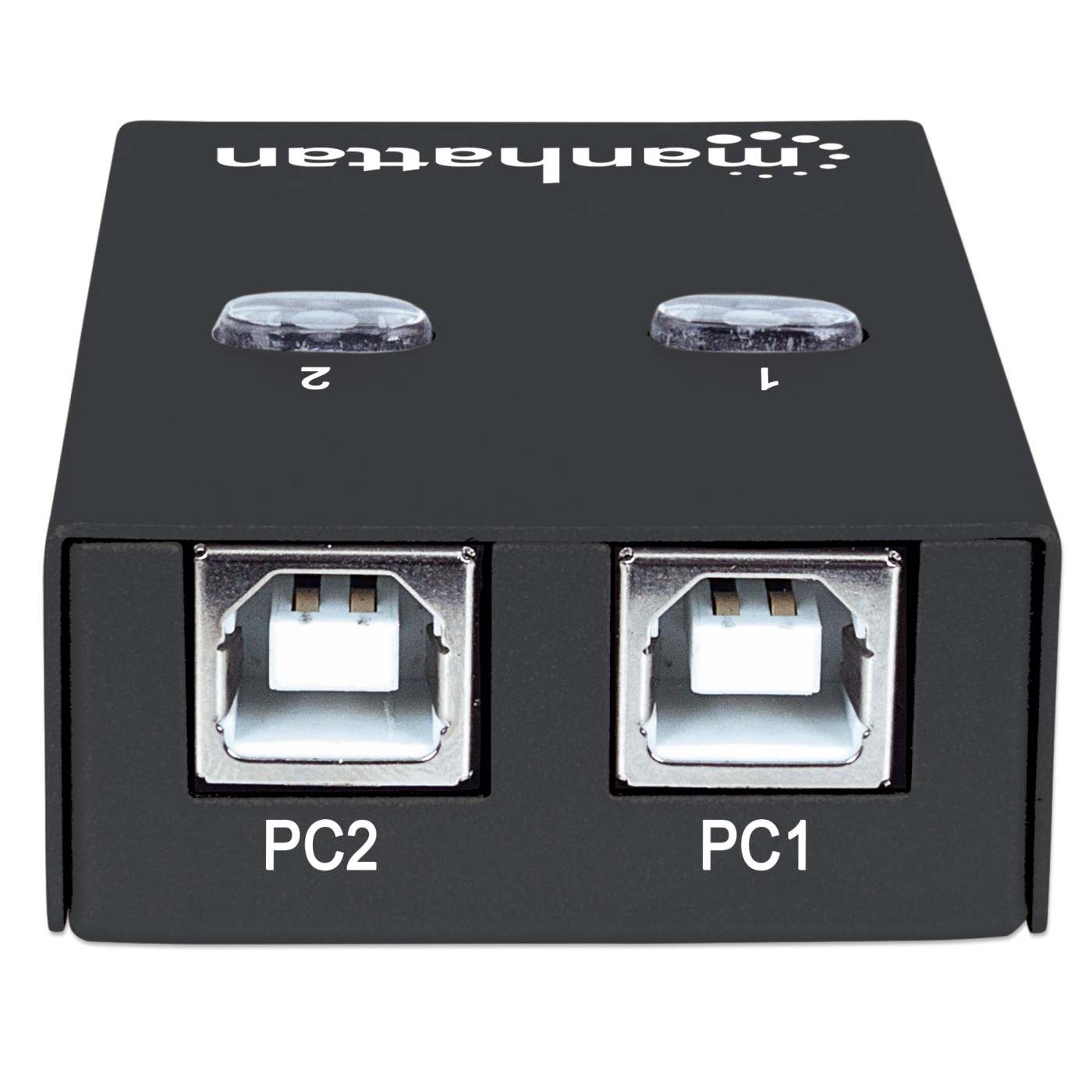

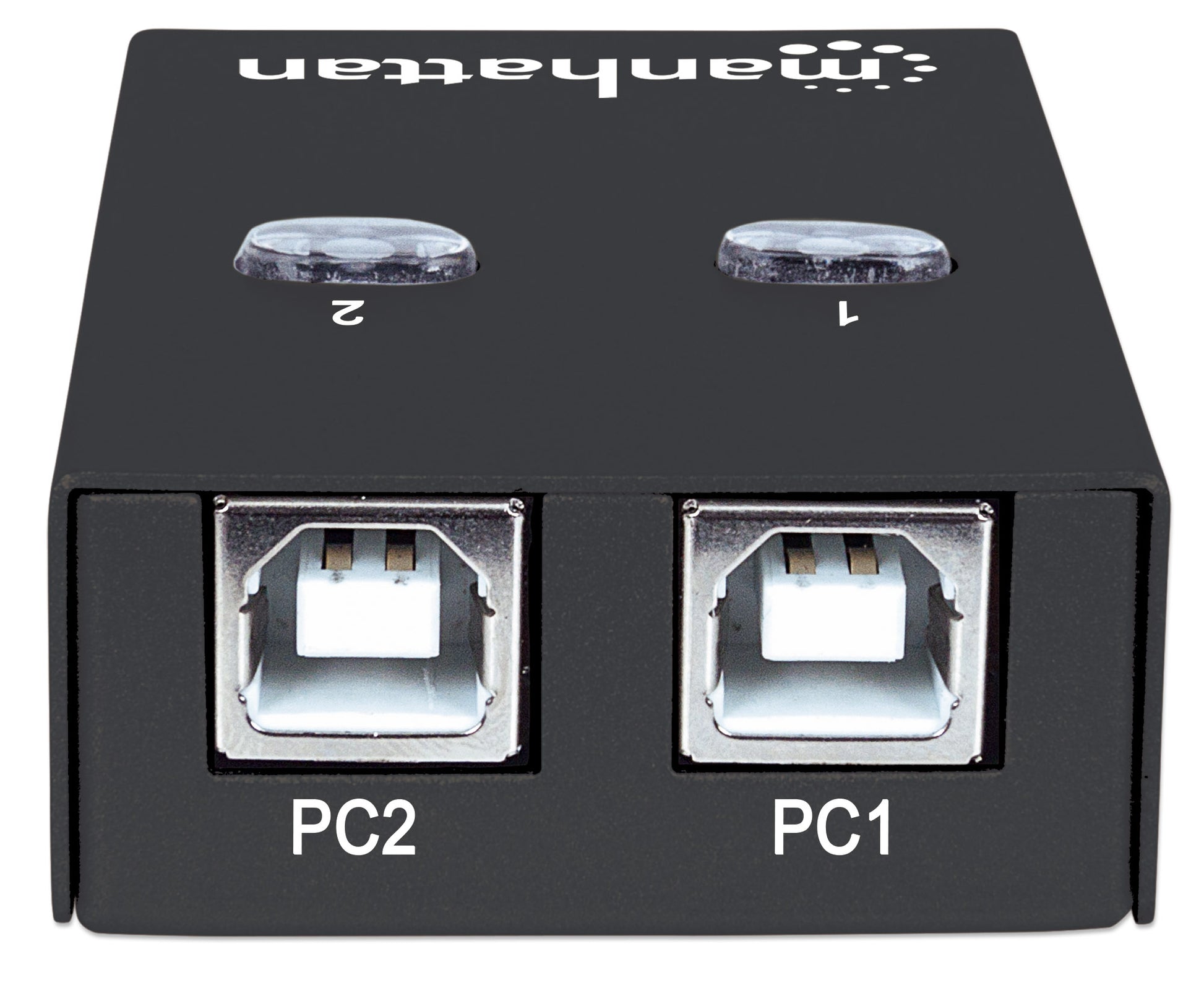

  • Type B (2)

    Physical
  • Dimensions: 68 x 43 x 20 mm (2.7 x 1.7 x 0.8 in.)
  • Weight: 74 g (2.6 oz.)
  • USB type-A to type-B cable length: 0.5 m (1.5 ft.)
  • Housing: ABS plastic

    System Requirements
  • USB-enabled PC system
  • Windows XP/Vista/7/8
  • Available USB port

    Power
  • Supply current from USB: 500 mA

    Package Contents
  • Hi-Speed USB 2.0 Automatic Sharing Switch

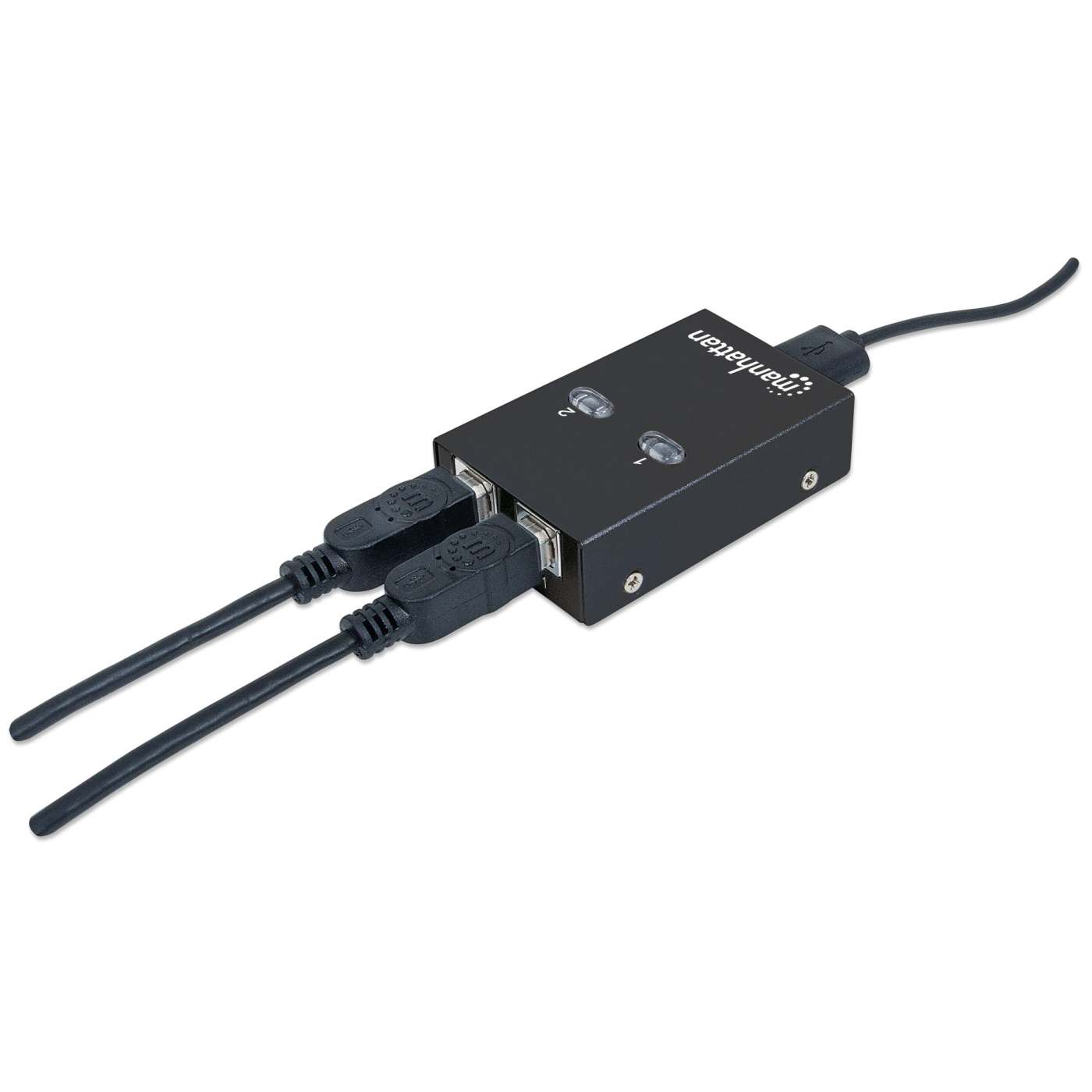

  • USB cable
  • Instructions
  • Software CD

  • Additional SKUs

    • Amazon ASIN: B0026RK8HK
    • EAN: 0766623162005
    • UPC: 766623162005
    • ALSO: 1602726
    • API: 77166

  • Physical Specifications

    • Weight: 0.07 kg
    • Dimensions: 68 (L) x 43 (W) x 20 (H) [mm]
    • Packaging: Blister
    • Carton Quantity: 20
    • Carton Weight: 3.60 kg

  • Datasheet

    • Datasheet (English)     » Download

    • Datasheet     » Download

    • Declaration of Conformity     » Download


  • Driver


  • Manual

    • Quick Installation Guide (ENG)     » Download

    • Multilanguage Instructions     » Download

    • Declaration of Conformity     » Download


  • Software

    • Windows Software (2000/XP/Vista)     » Download
