Connect with confidence
Manhattan Hi-Speed USB 2.0 Device Cables easily connect USB peripherals and accessories with desktop and notebook computers. Ideal for use with many USB external enclosures, hubs and other hot-swap, Plug and Play devices, MANHATTAN Hi-Speed USB 2.0 Device Cables support data transfer rates up to 480 Mbps on Windows and Mac systems for fast, reliable transmissions. Gold-plated contacts, shielding and fully molded boots with strain relief help provide dependable connections, maximum conductivity and minimal data loss with reduced EMI interference.

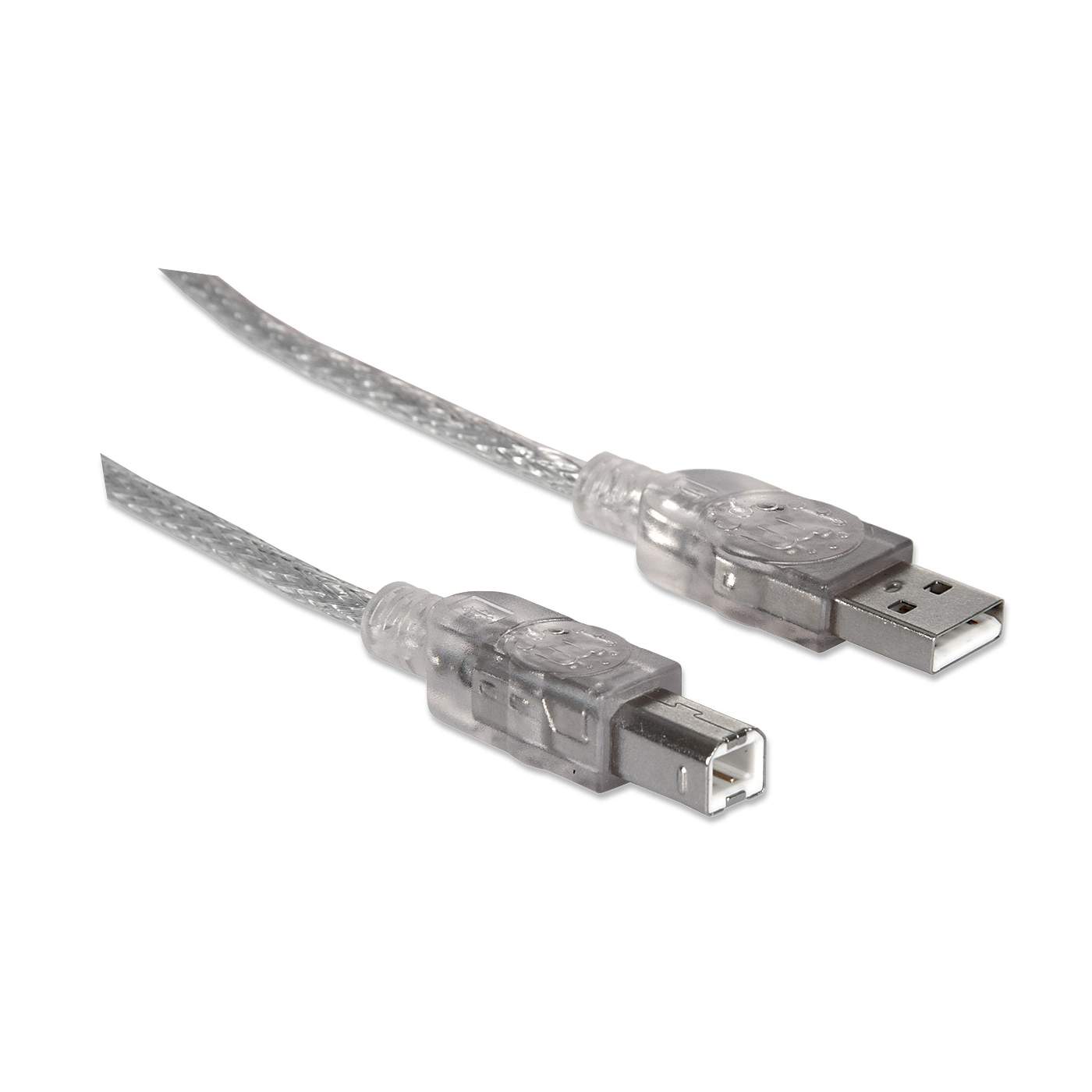

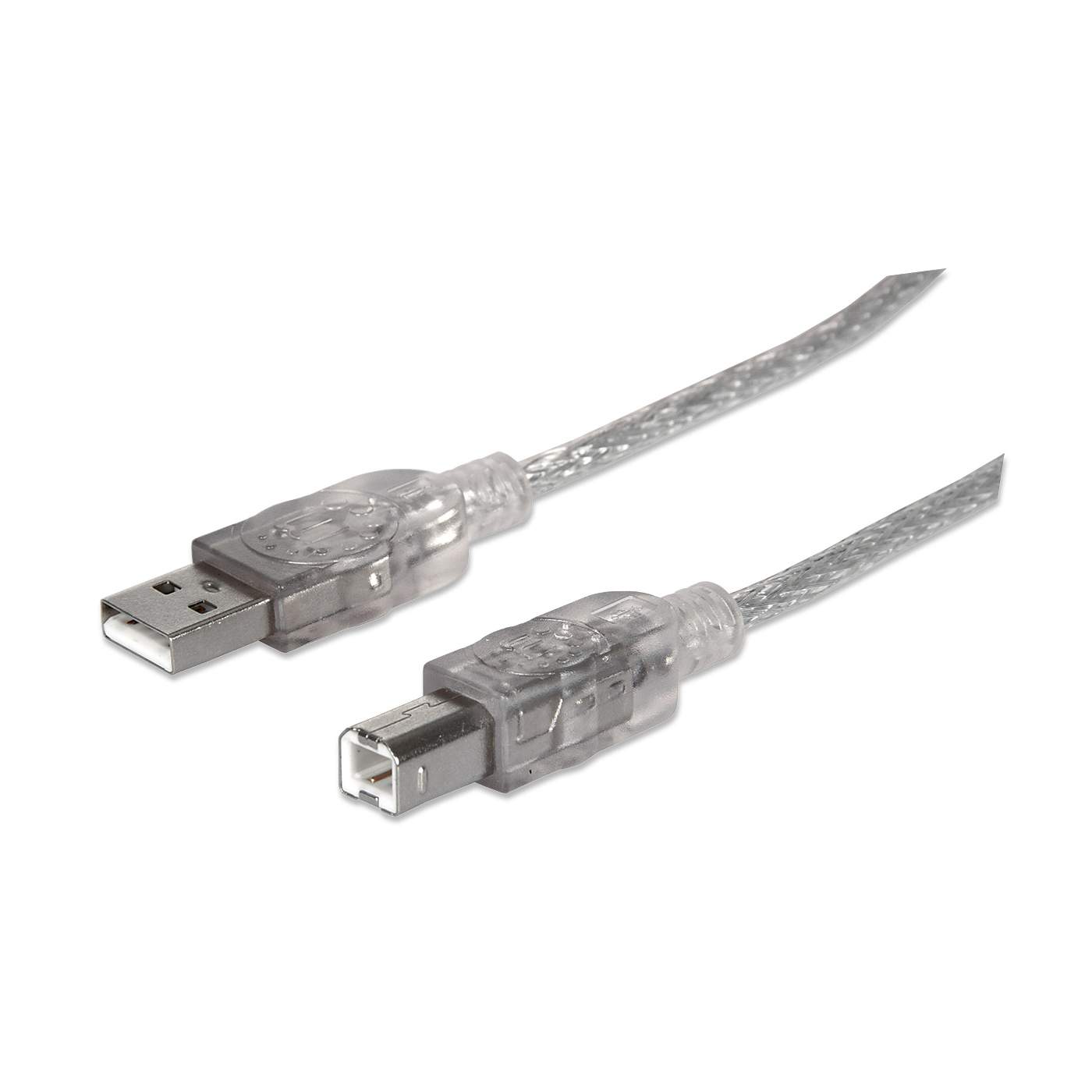

- USB 2.0 Standard-A male to USB 2.0 Standard-B male
- Connects a Hi-Speed USB device to a Hi-Speed USB hub or computer
- Supports speeds of up to 480 Mbps
- Hi-Speed USB for ultra-fast data transfer rates with zero data degradation
- Lifetime Warranty
- Standards and Certifications
- UL 2725
- USB 2.0
Connectors

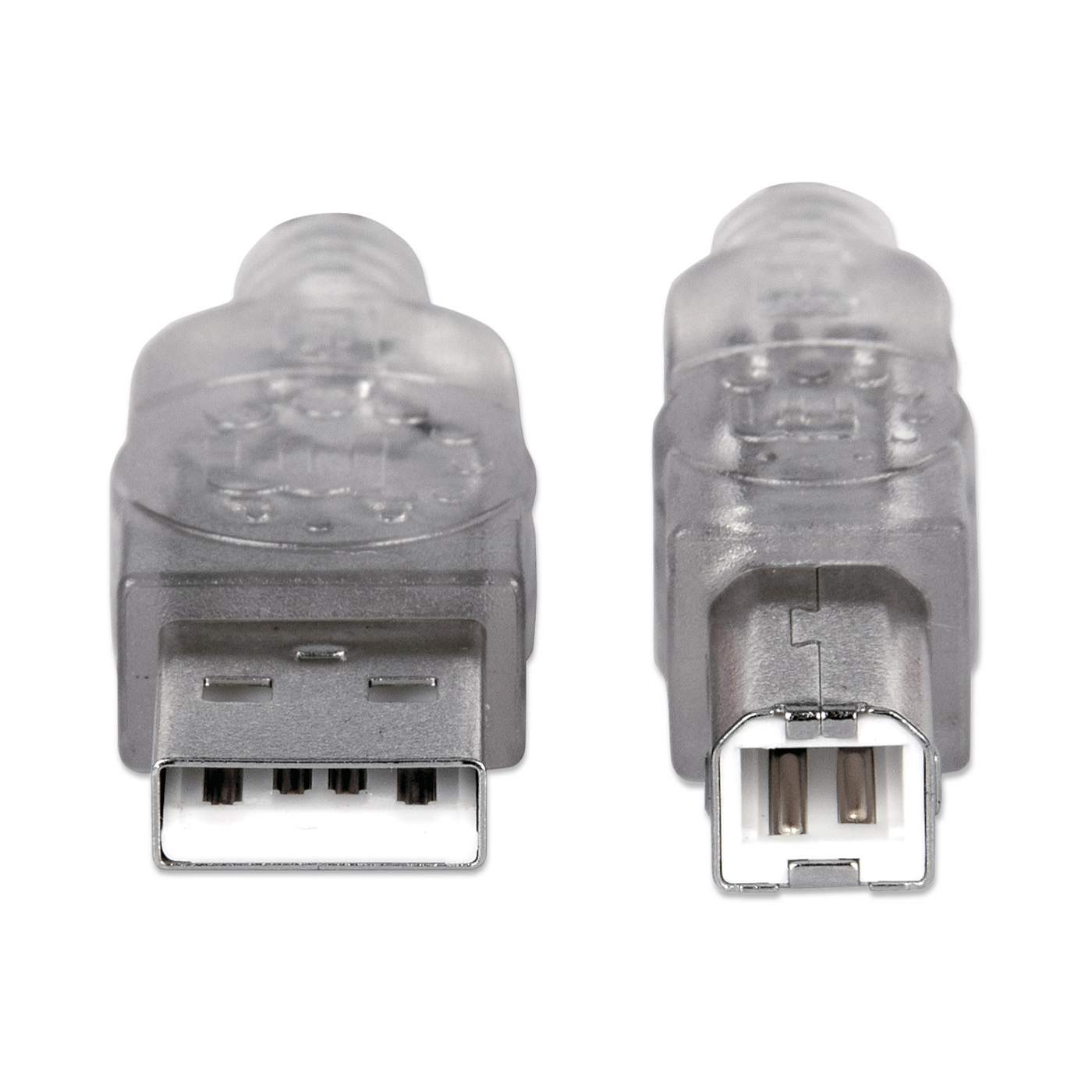

- (1) USB 2.0 Standard-A male
- (1) USB 2.0 Standard-B male
- Gold plated
- Molded PVC boot
Cable
- 28 AWG conductors
- Shielded
- Withstanding voltage: 300 V DC 10 ms
- Insulation resistance: 5 MOhms
- Contact resistance: 10 Ohms
- Thermal plastic casing
Package Contents

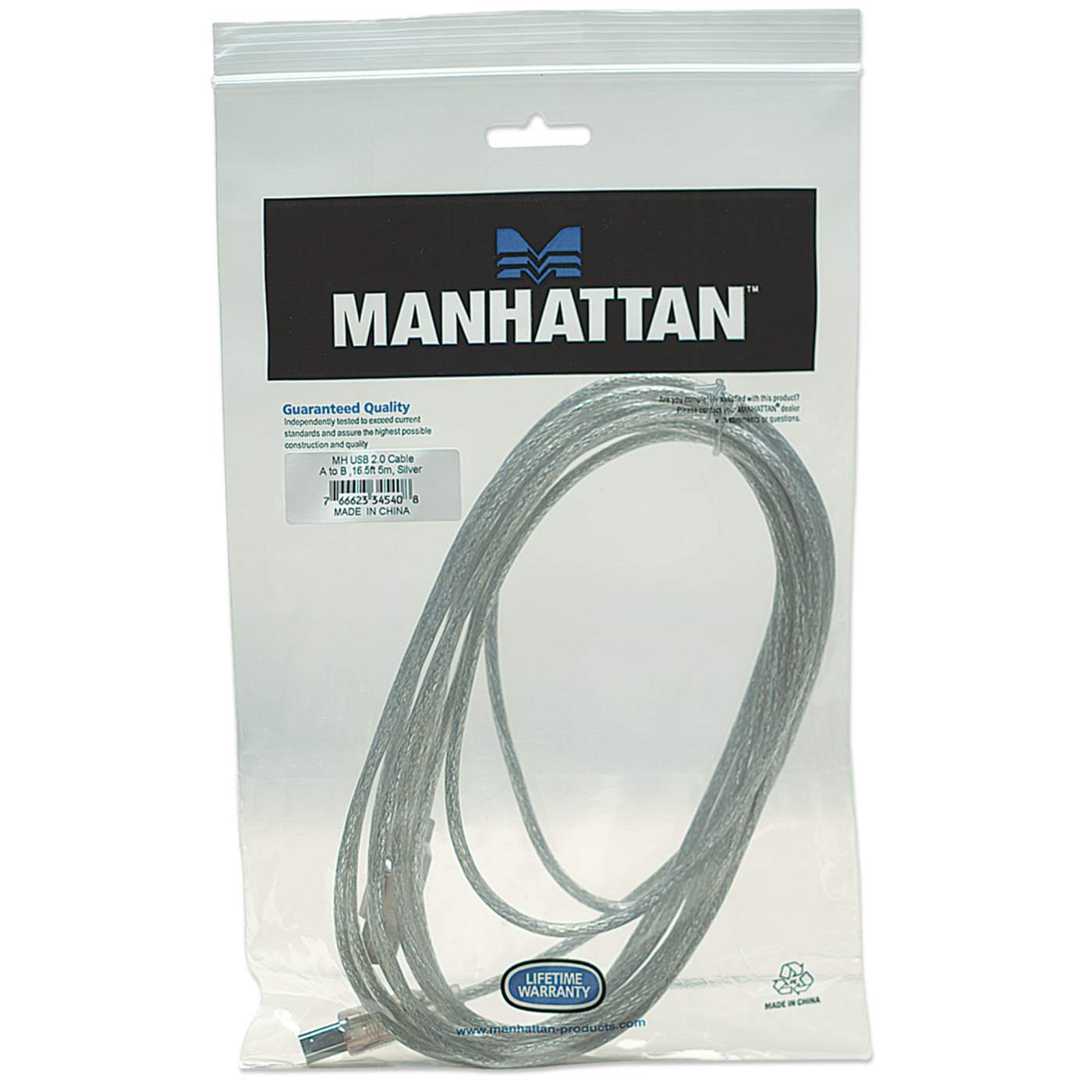

- Hi-Speed USB Device Cable
Additional SKUs
- Amazon ASIN: B00173JJE2
- EAN: 0766623345408
- UPC: 766623345408
- ALSO: 1756924
- API: 77359
Physical Specifications
- Product net weight: 0.11 kg
- Product gross weight: 0.12 kg
- Dimensions: 5 m
- Packaging type: Bag
- Packaging dimensions: 315 x 190 x 15 [mm]
- Master Carton Quantity: 100
- Master Carton Weight: 12.80 kg
- Master Carton Dimensions: 460 x 360 x 240 [mm]
- Datasheet
- Datasheet » Download
