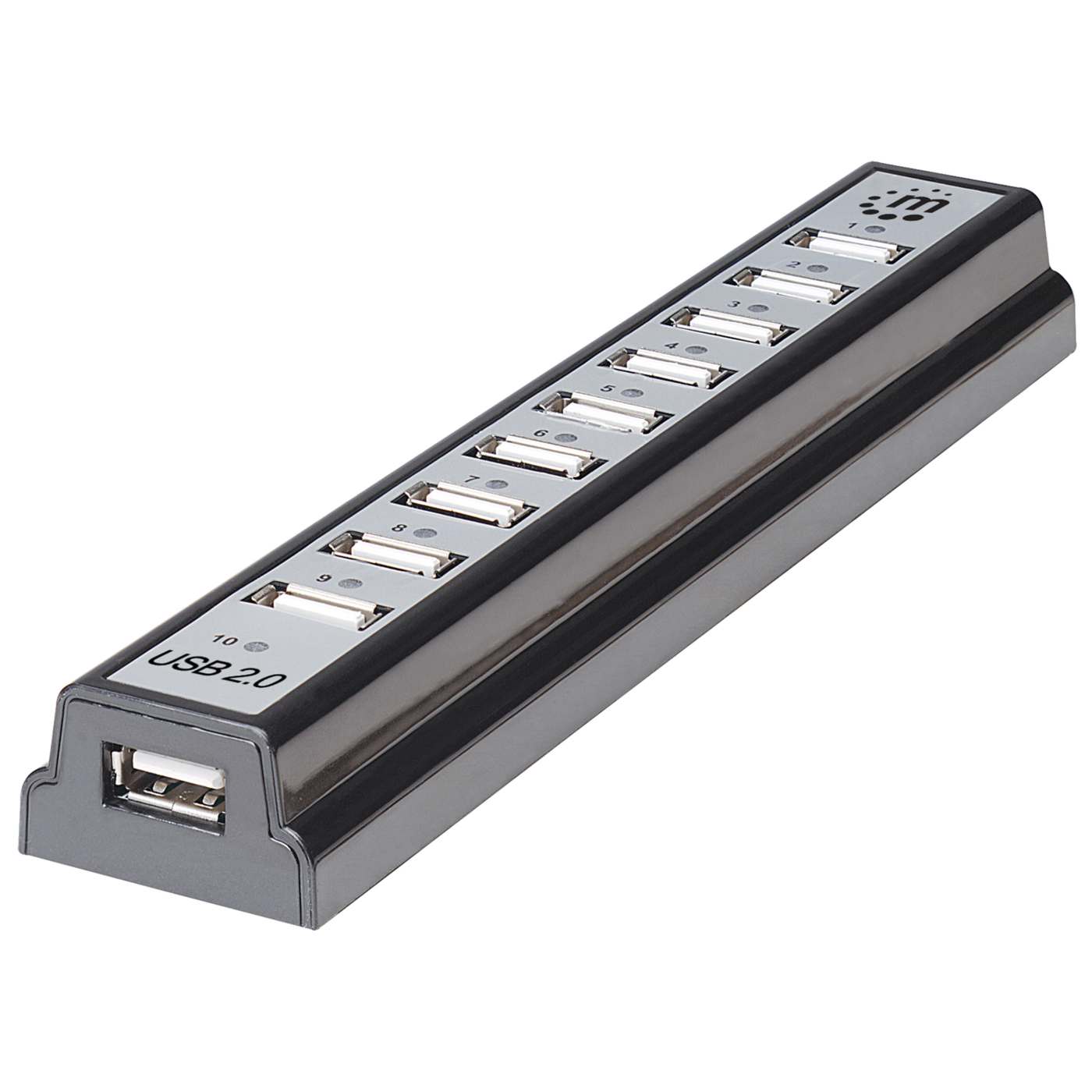

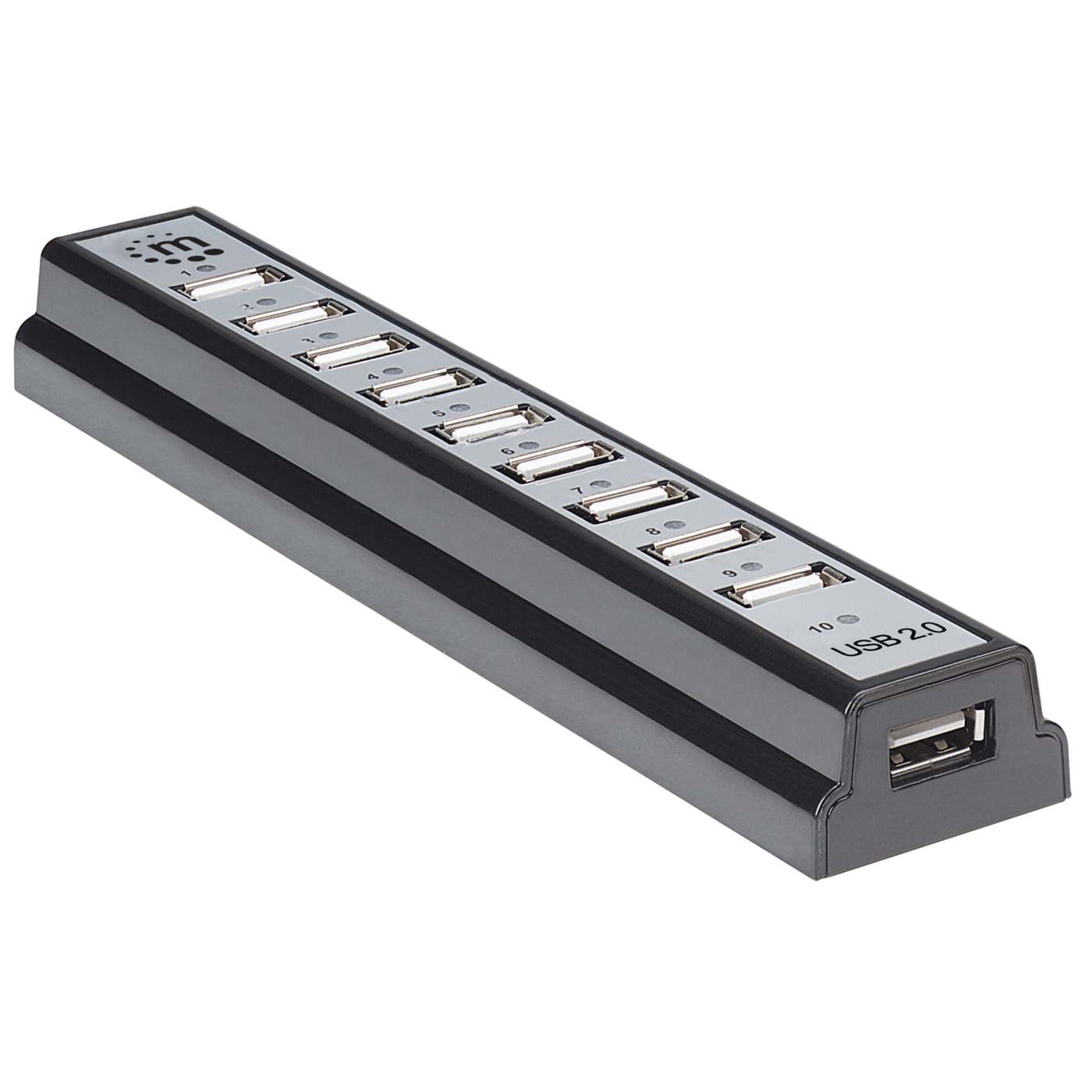

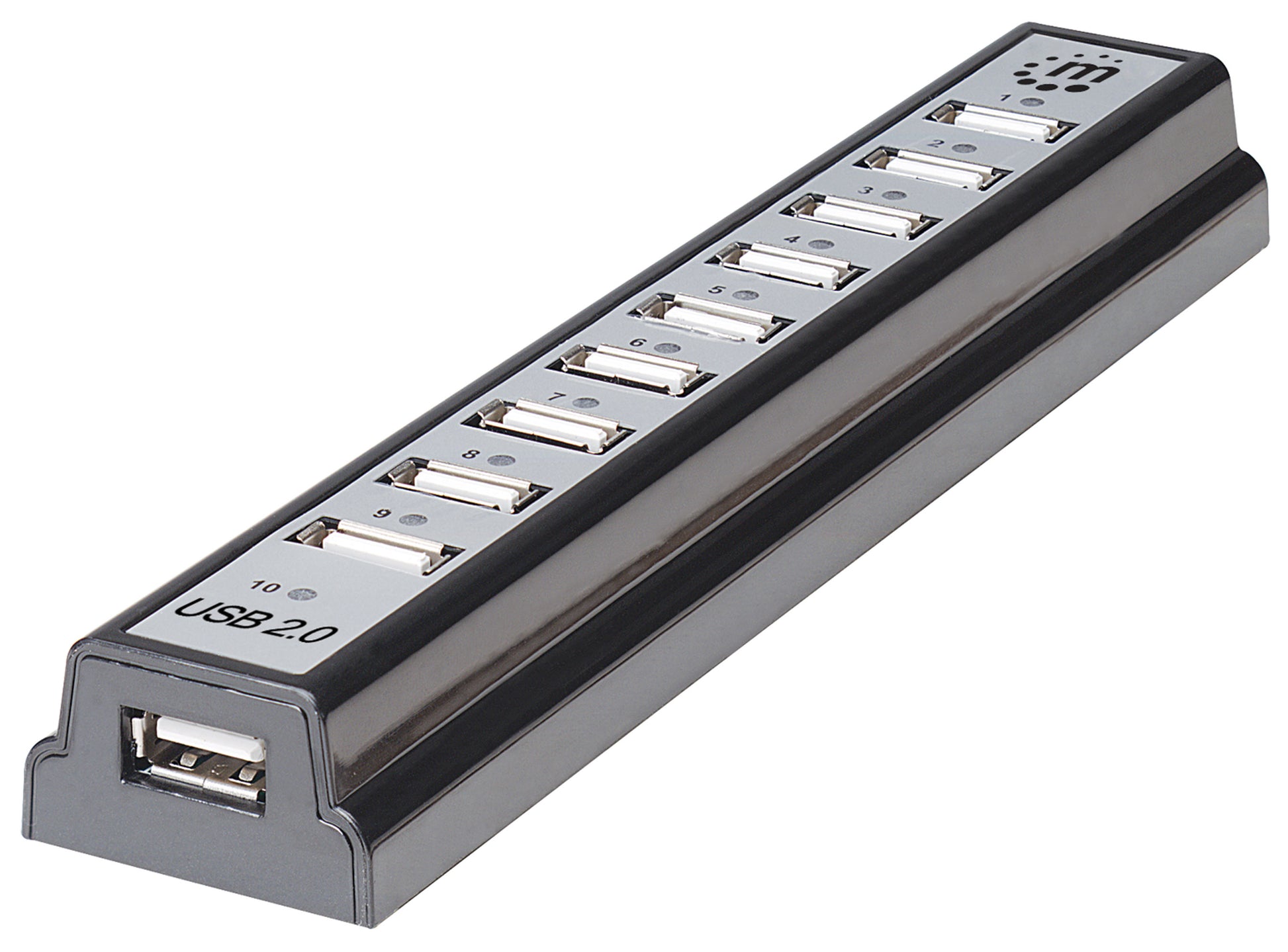

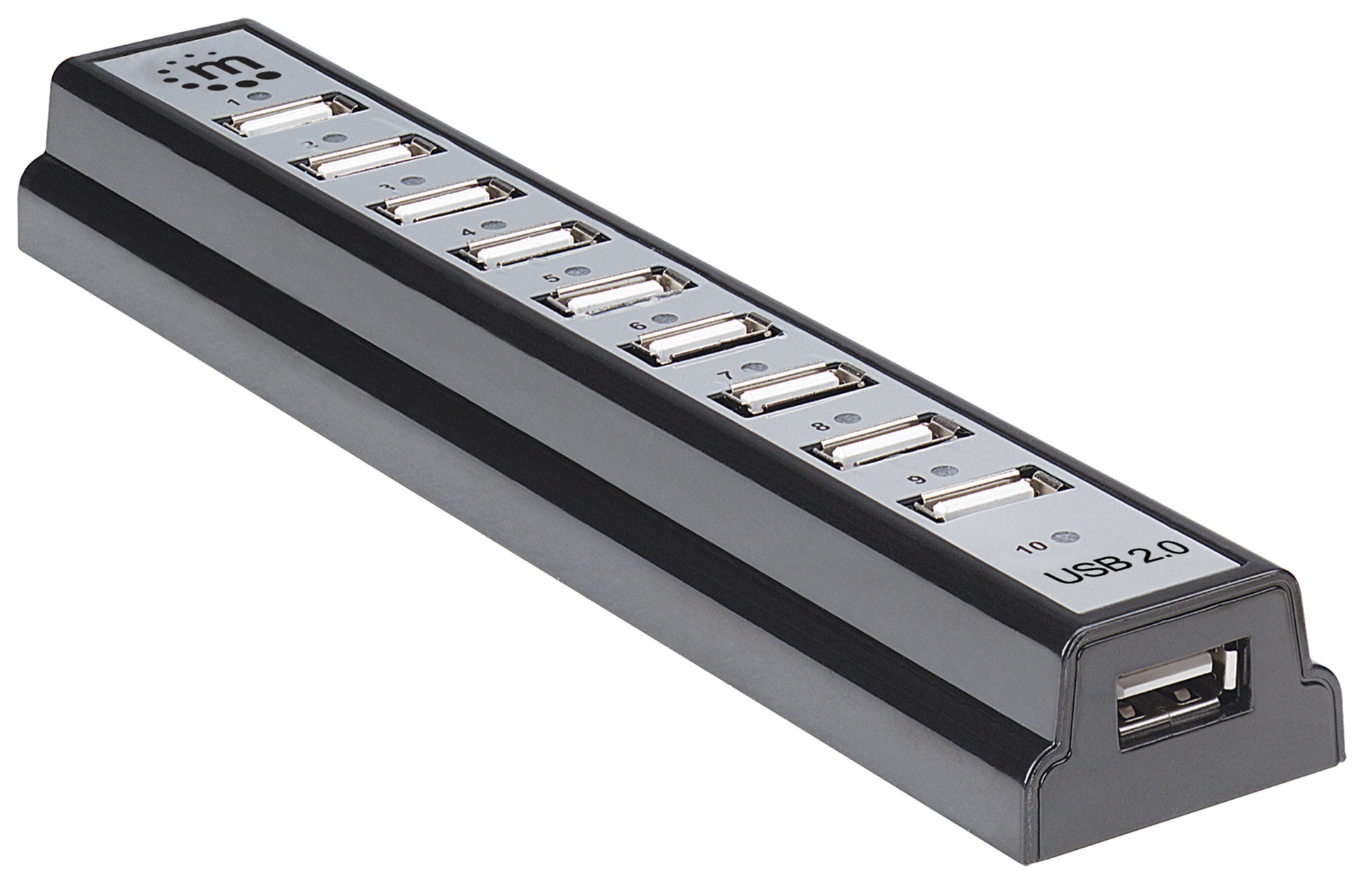

Hi-Speed USB Desktop Hub

10 USB 2.0 Type-A Ports, Bus or AC Power

Part-No.: 161572

Highlights

  • Provides 10 Hi-Speed USB ports for additional peripherals
  • Replaces less-capable hubs with compact, multiport design
  • Conveniently recharges mobile devices and connects flash drives, receivers, card readers and more

Powerful USB performance in a multi-port hub

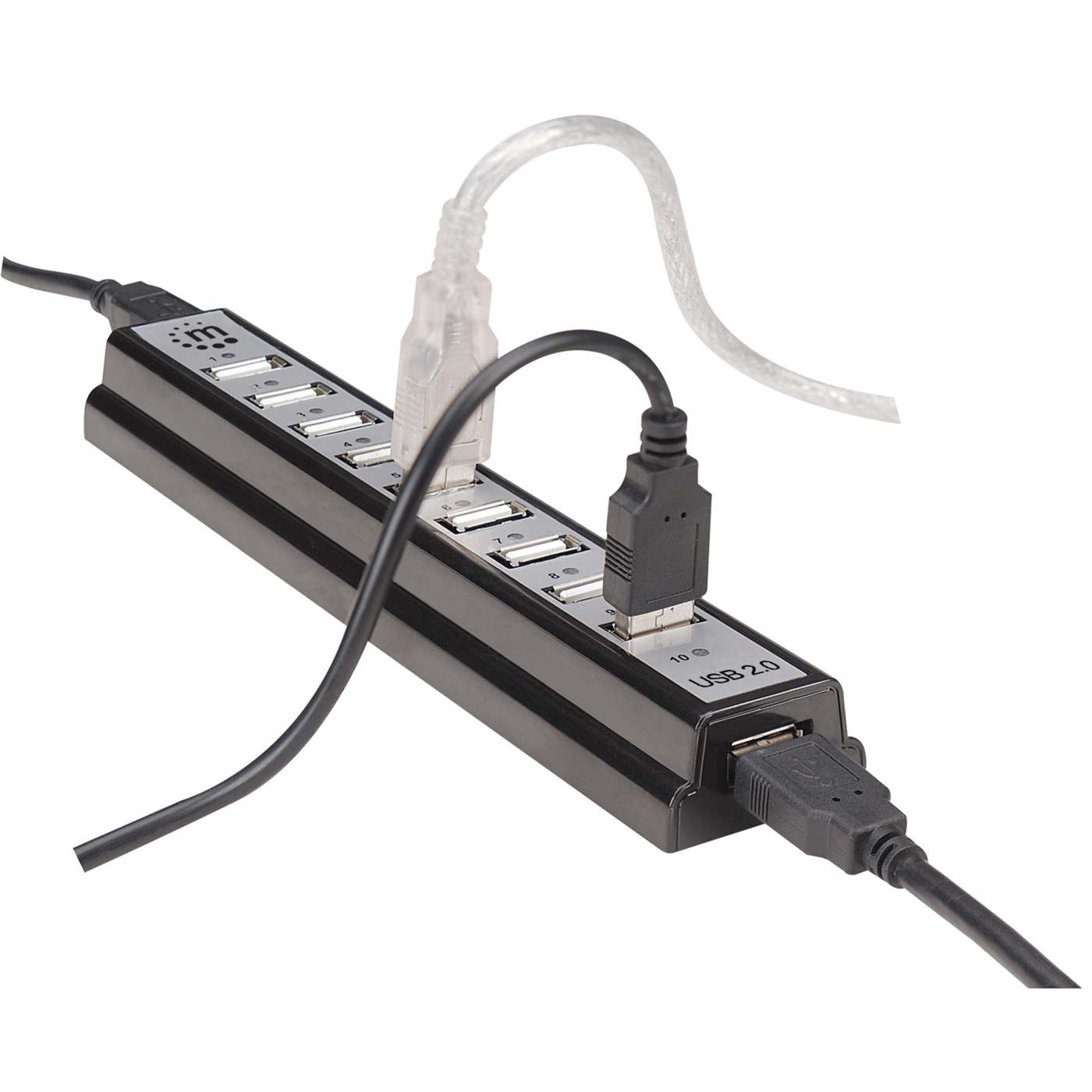

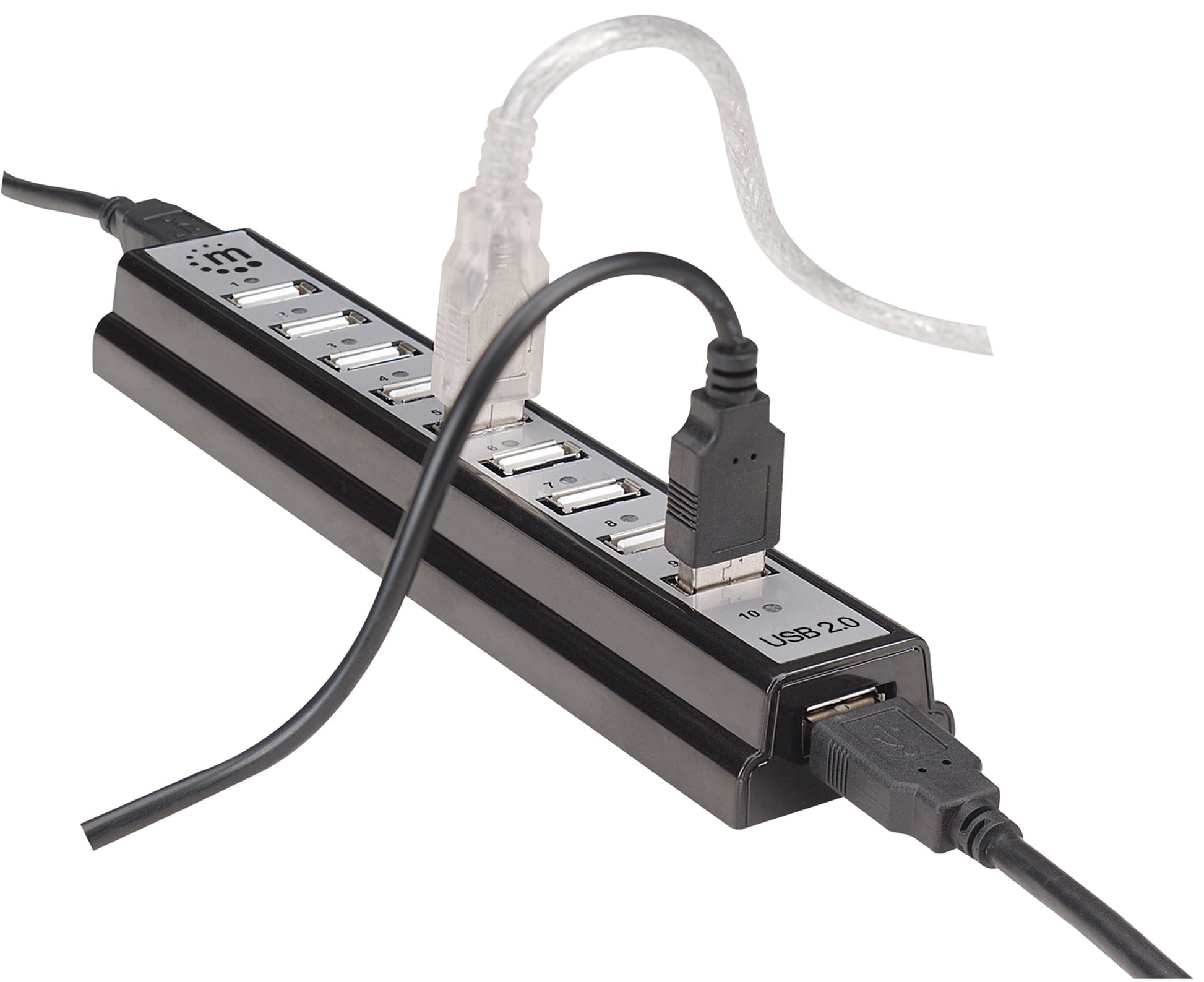

The Manhattan Hi-Speed USB Desktop Hub easily expands USB access for a desktop or notebook computer to connect more peripherals and mobile devices. With 10 extra high-speed, backward-compatible ports, the Manhattan Hi-Speed USB Desktop Hub can manage almost any digital enthusiast’s growing collection of USB-enabled devices. It’s ideal for recharging MP3 players, cell phones, digital cameras and other mobile accessories and connecting keyboards, mice, Web cameras, flash drives, card readers and more. The compact and durable plastic case features the power and hub-to-PC ports on the side panel to help better organize connections and minimize cable clutter. Plug and Play with hot-swap capabilities, Windows 7/8.1/10 and Mac compatibility, and data transfer speeds up to 480 Mbps help the Manhattan Hi-Speed USB Desktop Hub consolidate numerous, less-capable hubs into a single USB solution.

  • Provides 10 Hi-Speed USB ports for additional peripherals
  • Replaces less-capable hubs with compact, multiport design
  • Conveniently recharges mobile devices and connects flash drives, receivers, card readers and more
  • Overcurrent protection; hot-swappable
  • Compatible with all USB-equipped computers
  • Plug and play; Windows 7/8.1/10 and Mac compatible
  • Three-year warranty

    Standards and Certifications
  • USB 2.0, USB 1.1, USB 1.0
  • FCC
  • CE

    Ports
  • Transfer speeds: 1.5 / 12 / 480 Mbps

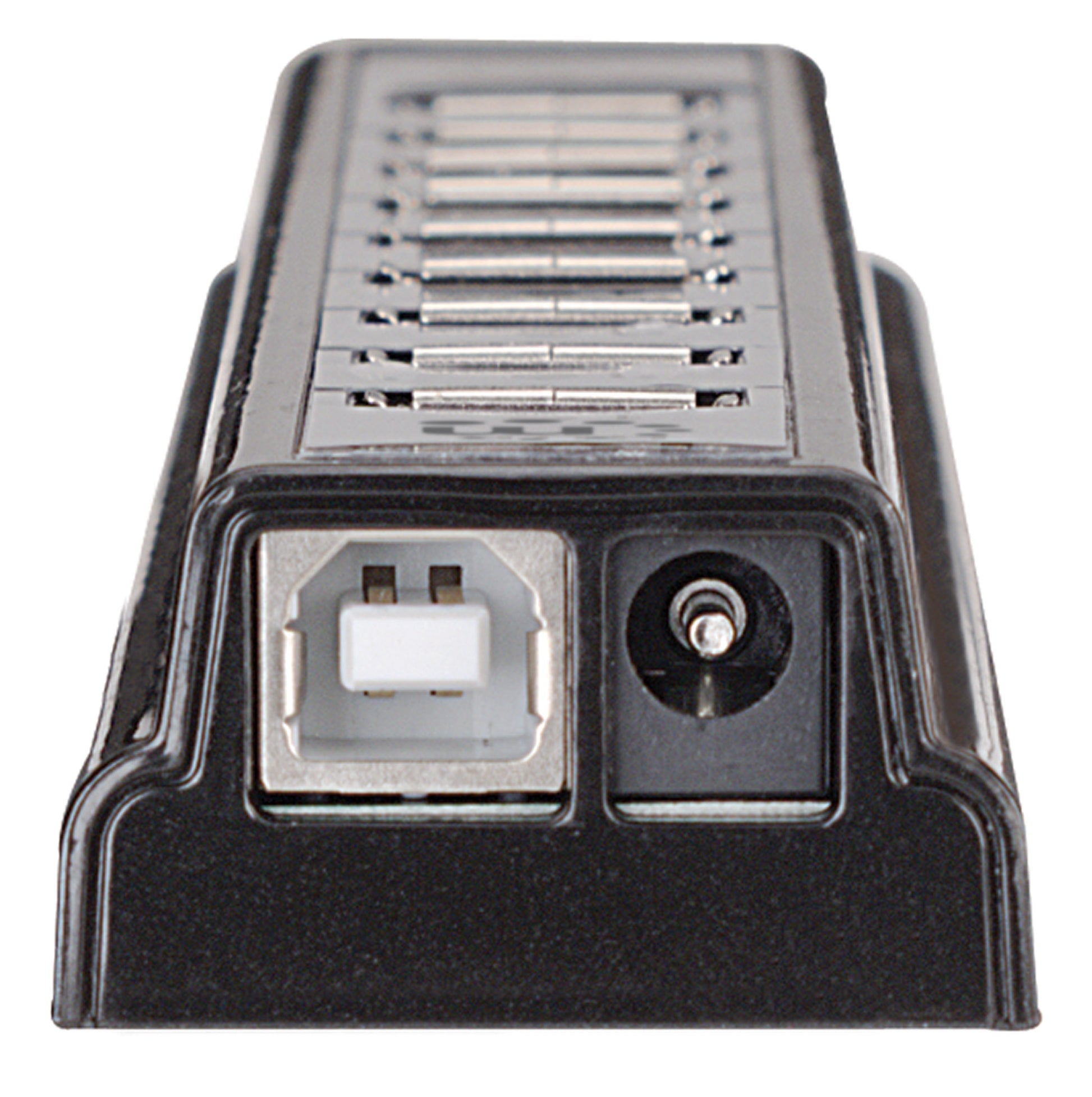

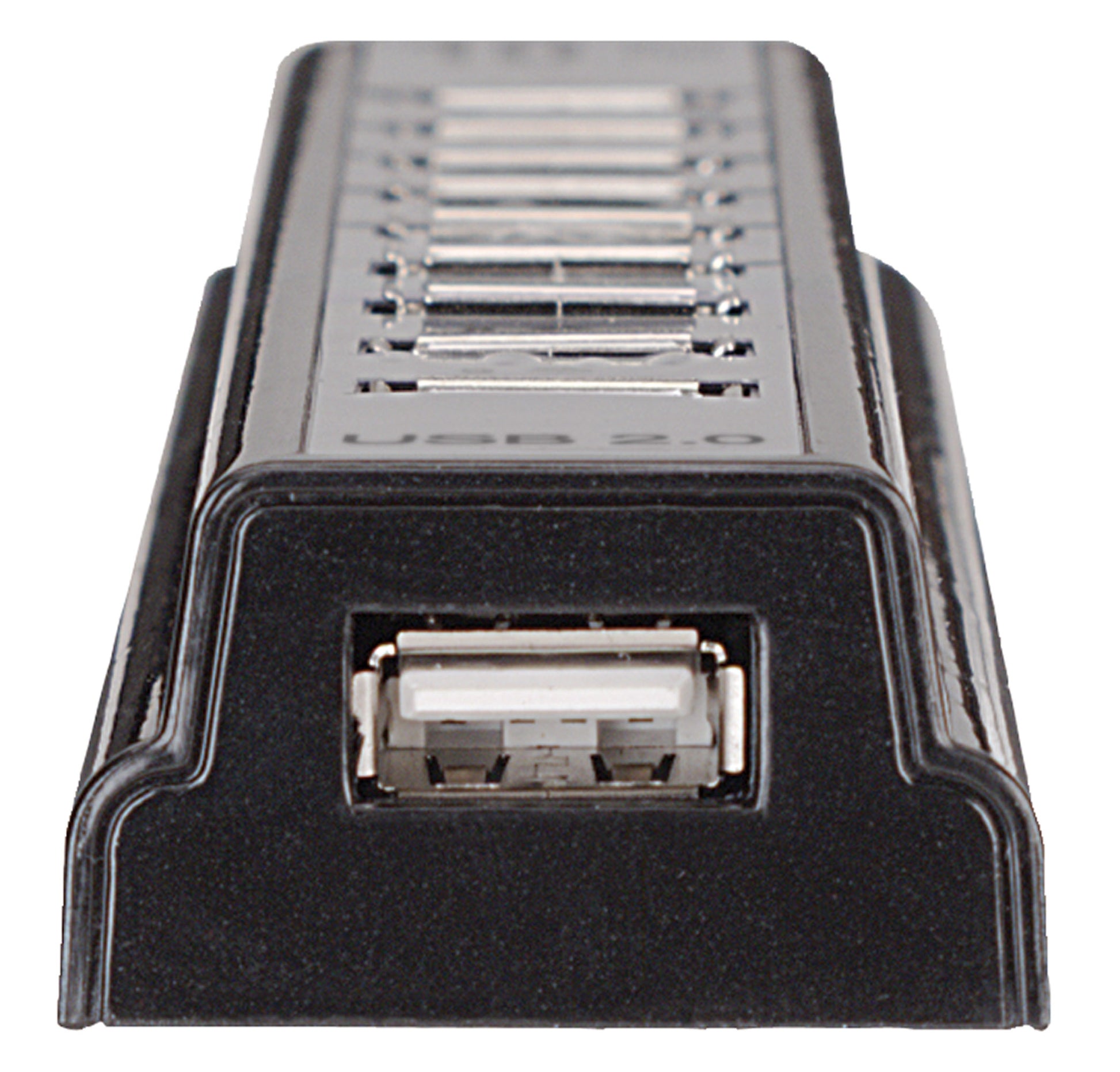

  • One type-B upstream port

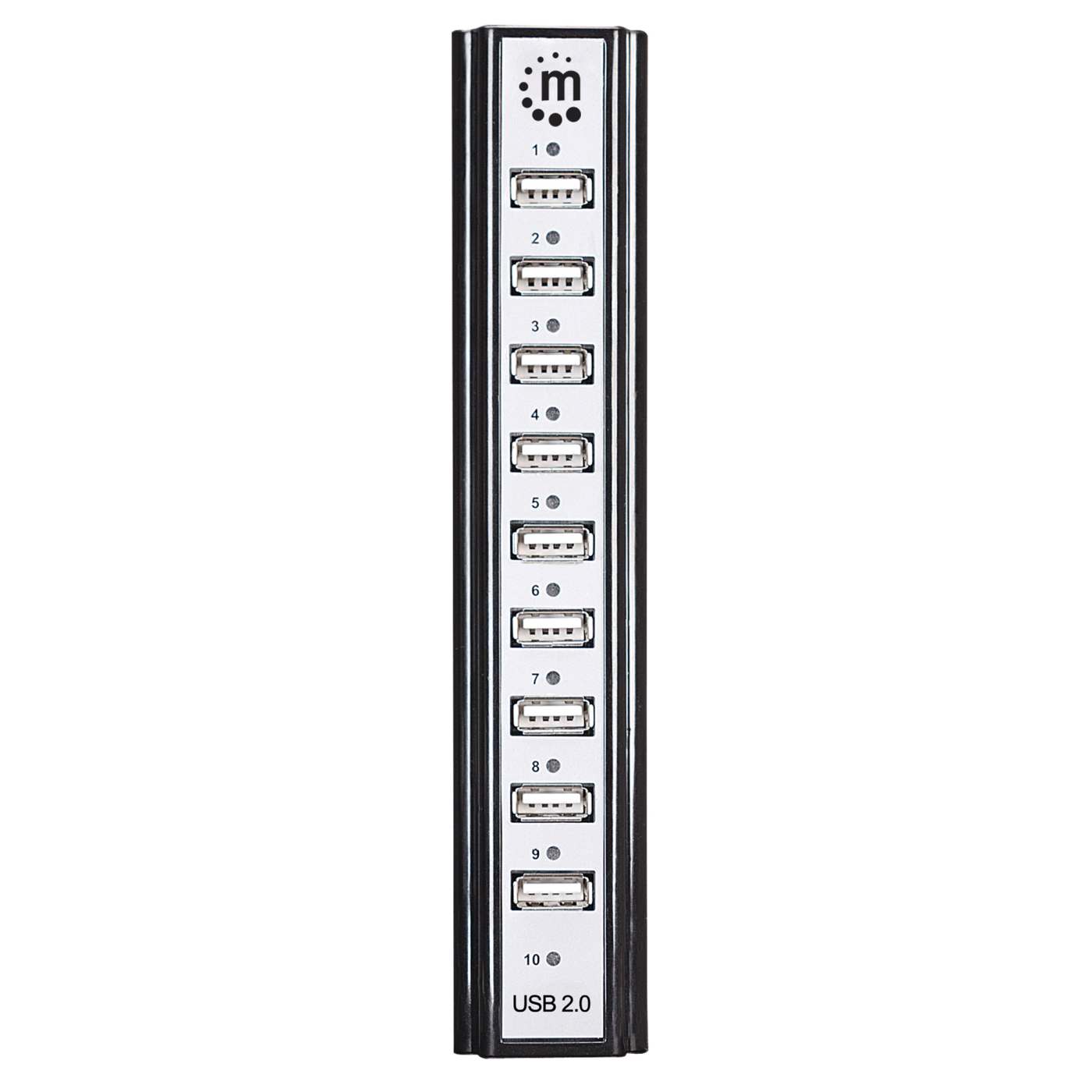

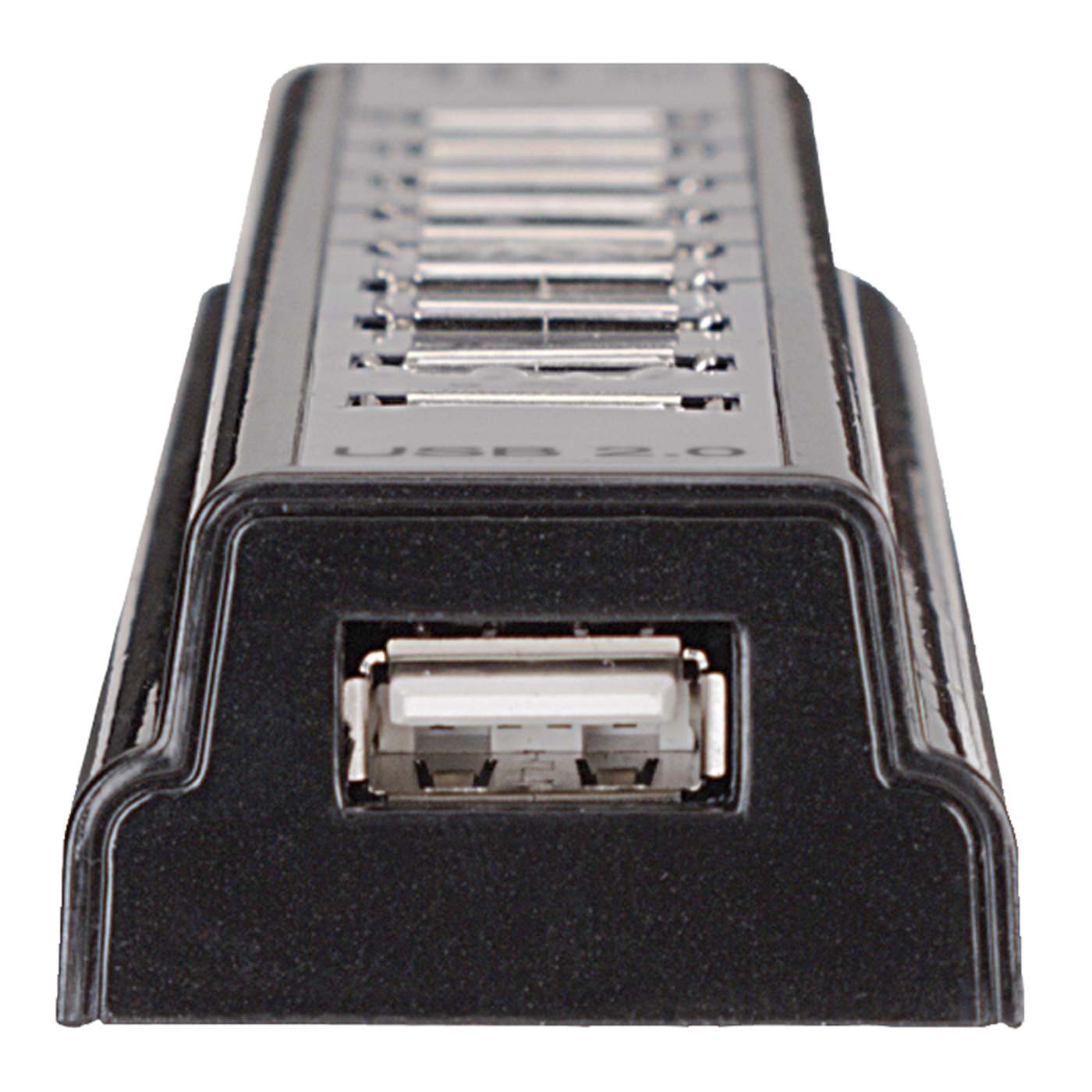

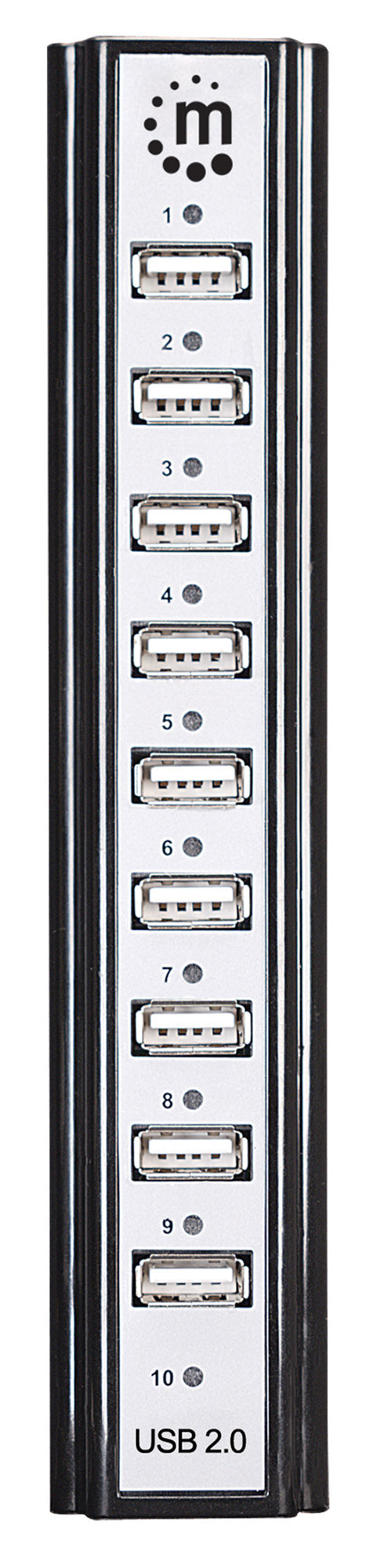

  • 10 type-A downstream ports
  • 5 VDC port
  • Up to 500 mA power, all ports*
    *hub must be plugged into a PC or Mac to charge phones

    Physical
  • Dimensions: 190 (H) x 37 (W) x 21 (D) mm (7.5 x 1.5 x 0.8 in.)
  • Weight: 140 g (4.94 oz.)
  • USB type-A to type-B cable: 150 cm (59 in.)
  • Housing: plastic
  • LED power indicator

    Power Adapter
  • cUL, FCC
  • Input: 100 – 240 V, 50/60 Hz; 0.4 A, maximum
  • Output: 5 V / 2 A
  • Cable: 1.8 m (6 ft.)

    System Requirements
  • USB-enabled PC or Mac system
  • Windows 2000/XP/Vista/7/8.1/10 or Mac OS 9 or above
  • Available USB port

    Package Contents
  • Hi-Speed USB Desktop Hub
  • USB cable
  • Power adapter
  • Instructions

  • Additional SKUs

    • Amazon ASIN: B007PY1HVK
    • EAN: 0766623161572
    • UPC: 766623161572
    • ALSO: 1778234
    • API: 101277

  • Physical Specifications

    • Weight: 0.14 kg
    • Dimensions: 190 (h) x 37 (w) x 21 (d) mm
    • Packaging: Retail Box

  • Datasheet


  • Manual

    • Quick Install Guide (multilanguage)
      English, Deutsch, Español, Polski, Italiano, Français     » Download

    • Declaration of Conformity     » Download

    • Declaration of Conformity     » Download
