High-speed cables deliver high-definition performance
HDMI has become the standard digital connection, delivering the highest-quality audio and video signal over a single cable. Manhattan High Speed HDMI Cables are designed and carefully constructed to meet the evolving needs of the high-definition marketplace. Manhattan High Speed HDMI Shielded Cables provide 1080p resolution and a bandwidth of 10.2 Gigabits per second at 340 MHz. These high-quality cables provide high-definition video and multichannel, digital audio with increased performance characteristics, greater accuracy and expanded features.
- 4K@30Hz resolution supports video resolution beyond 1080p; up to 1080p resolution in 3D and Deep Color
- Compatible with any HDMI device, such as Blu-ray, game consoles, stereos and PCs
- Compliant with High Speed HDMI specifications
- Up to 10.2 Gbps at 340 MHz bandwidth
- Double shielded to reduce EMI and other interference sources
- Molded PVC boot
- Lifetime Warranty
- Standards and Certifications
- CE
- RoHS
- REACH
General
- Bandwidth: 10.2 Gbps
- 340 MHz
- Meets or exceeds existing HDMI standards
- Length: 5 m (16.5 ft.)
Contacts
- 2 HDMI 19-pin male
- Nickel-plated contacts
- Molded PVC boot
- Double shielded
- 30 AWG cable
Electrical
- Current rating: 0.5 A DC
- Withstanding voltage: 300 VDC
- Insulation resistance: 5 MΩ
- Conductive resistance: 5 Ω
Package Contents

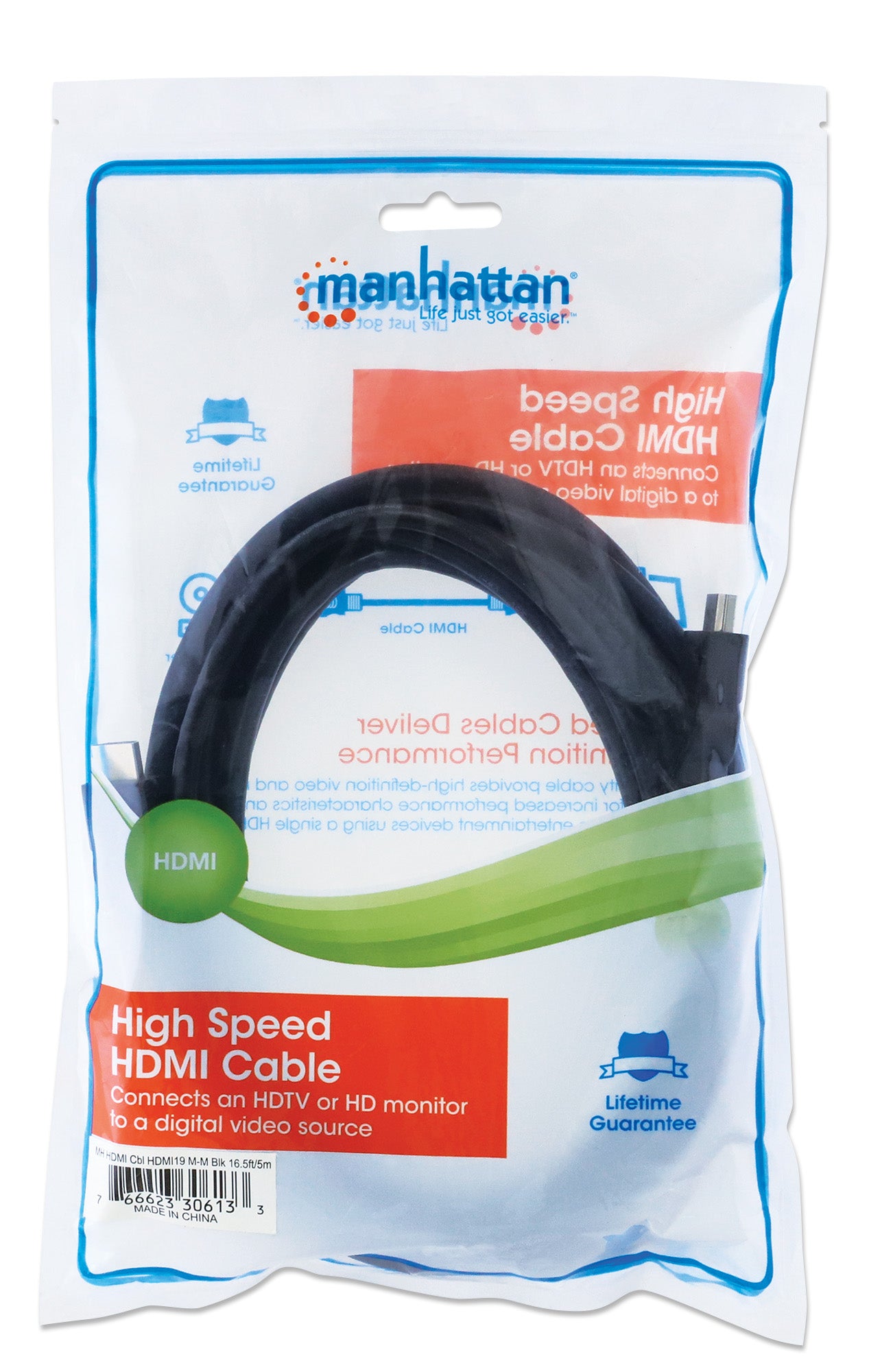

- High Speed HDMI Cable
Additional SKUs
- Amazon ASIN: B001CSCB1A
- EAN: 0766623306133
- UPC: 766623306133
- ALSO: 1601949
- API: 77294
Physical Specifications
- Product net weight: 0.2 kg
- Product gross weight: 0.21 kg
- Dimensions: 5 m
- Packaging type: Bag
- Packaging dimensions: 312 x 190 x 15 [mm]
- Master Carton Quantity: 40
- Master Carton Weight: 9.50 kg
- Master Carton Dimensions: 400 x 400 x 230 [mm]
