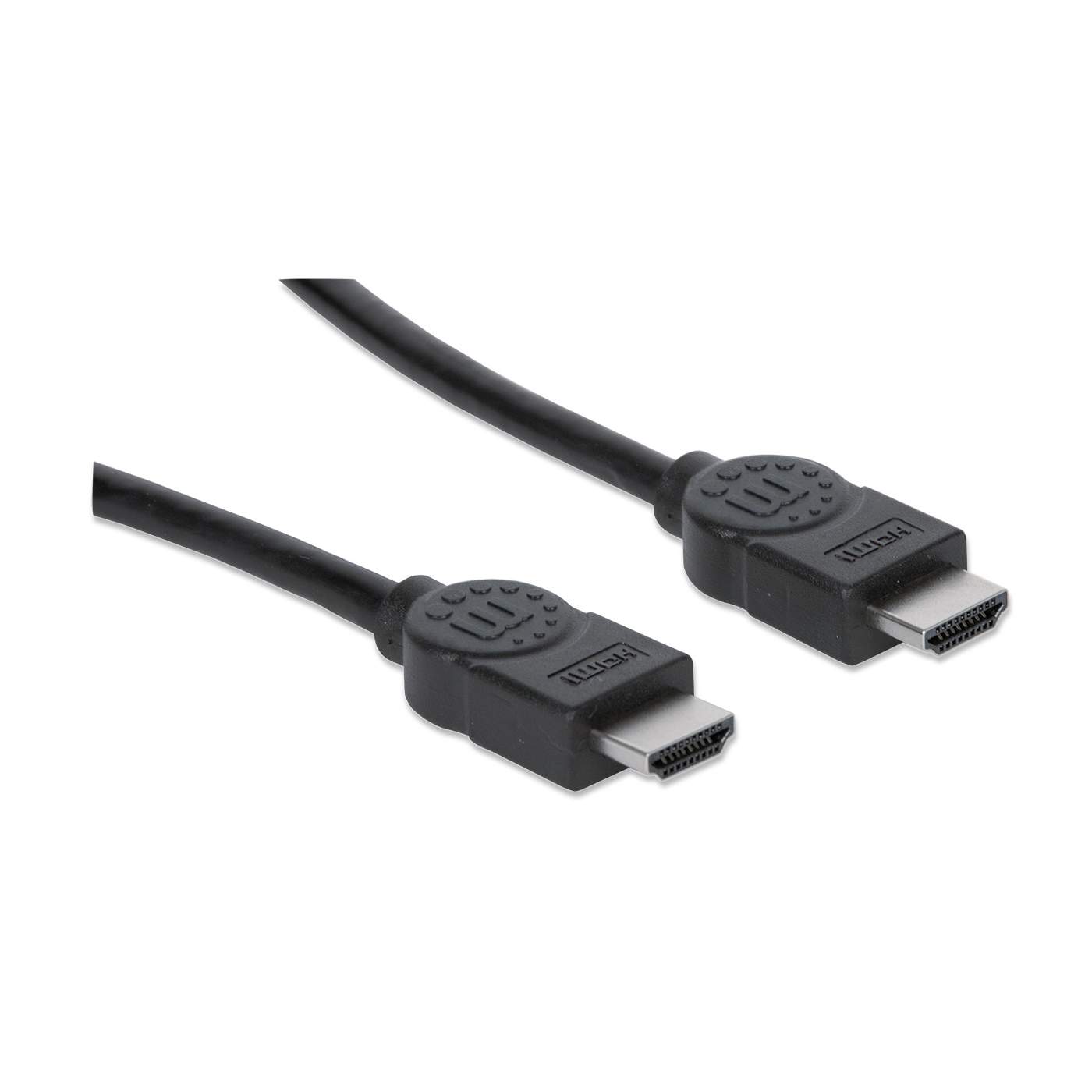

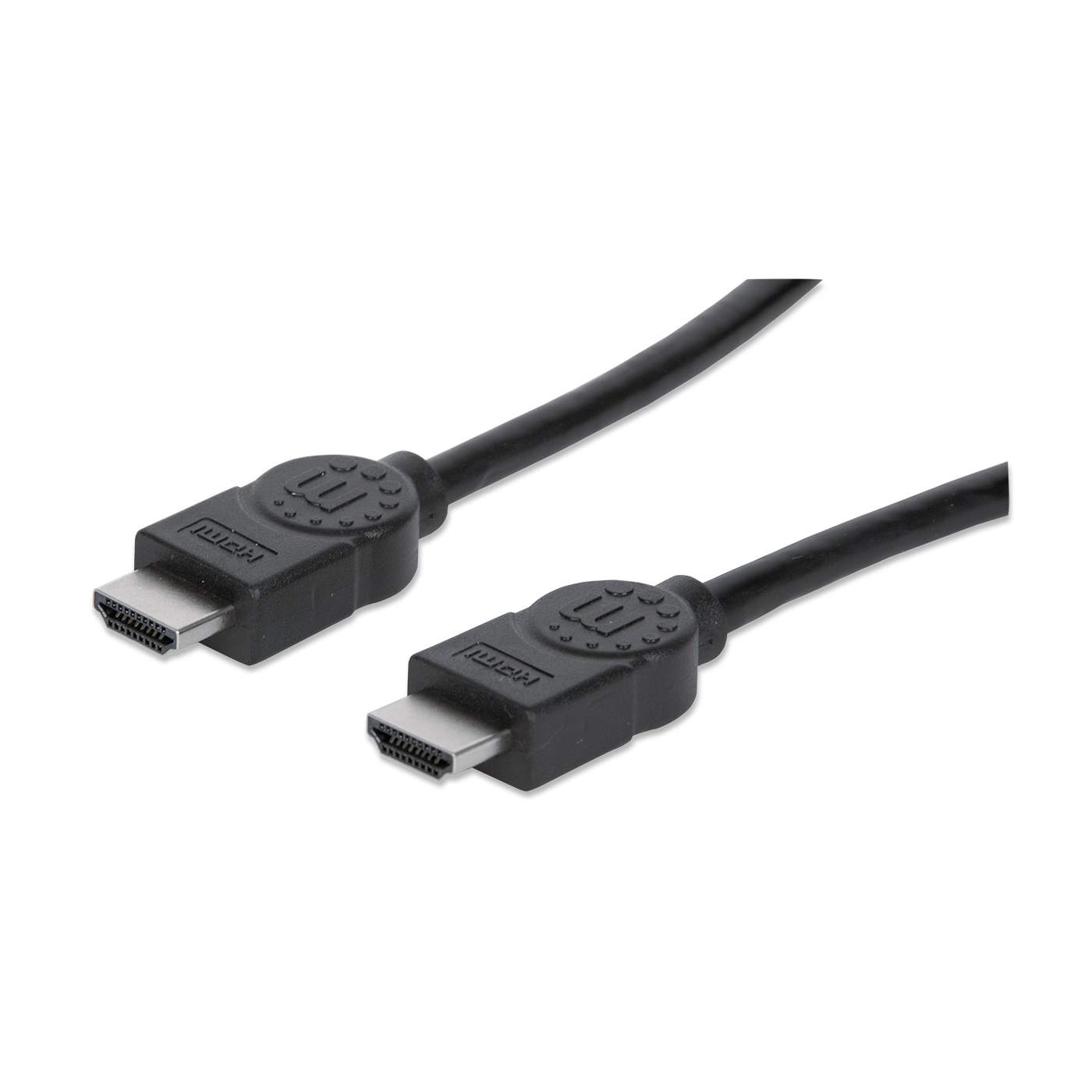

High Speed HDMI Cable

HDMI Male to Male, Shielded, Black, 22.5 m (75 ft.)

Part-No.: 308458

Highlights

  • Supports 1080p resolution and Deep Color
  • Compatible with any HDMI device, such as Blu-ray, game consoles, stereos and PCs
  • Compliant with High Speed HDMI specifications


High-speed cables deliver high-definition performance.
HDMI has become the standard digital connection, delivering the highest-quality audio and video signal over a single cable. Manhattan High Speed HDMI Cables are designed and carefully constructed to meet the evolving needs of the high-definition marketplace. Manhattan High Speed HDMI Shielded Cables provide 1080p resolution and a bandwidth of 10.2 Gigabits per second at 340 MHz. These high-quality cables provide high-definition video and multichannel, digital audio with increased performance characteristics, greater accuracy and expanded features.

  • Supports 1080p resolution and Deep Color
  • Compatible with any HDMI device, such as Blu-ray, game consoles, stereos and PCs
  • Compliant with High Speed HDMI specifications
  • Up to 10.2 Gbps at 340 MHz bandwidth
  • Double shielded to reduce EMI and other interference sources
  • Molded PVC boot
  • Lifetime Warranty

    Standards and Certifications
  • UL 20276
  • ISO 9002

    General
  • Bandwidth: 10.2 Gbps
  • 340 MHz
  • Meets or exceeds existing HDMI standards
  • Length: 22.5 m (75 ft.)

    Contacts

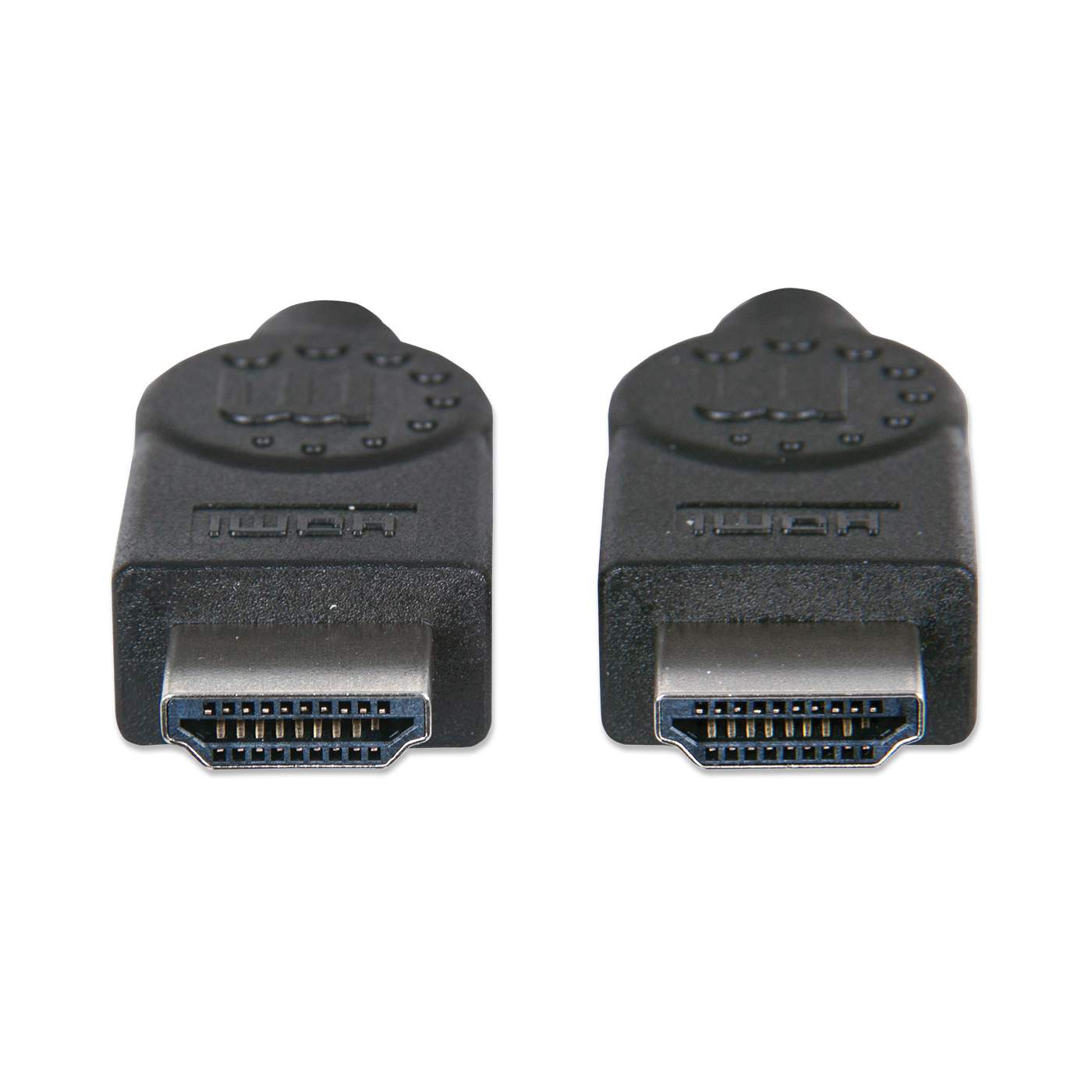

  • 2 HDMI 19-pin male
  • Nickel-plated contacts
  • Molded PVC boot
  • Double shielded
  • 24 AWG cable

    Electrical
  • Current rating: 0.5 A DC
  • Withstanding voltage: 300 VDC
  • Insulation resistance: 5 MΩ
  • Conductive resistance: 8.0 Ω

    Package Contents
  • High Speed HDMI Cable

  • Additional SKUs

    • Amazon ASIN: B002Q79QXW
    • EAN: 0766623308458
    • UPC: 766623308458
    • ALSO: 1601945
    • API: 77291

  • Physical Specifications

    • Weight: 2.22 kg
    • Dimensions: 22.5 m

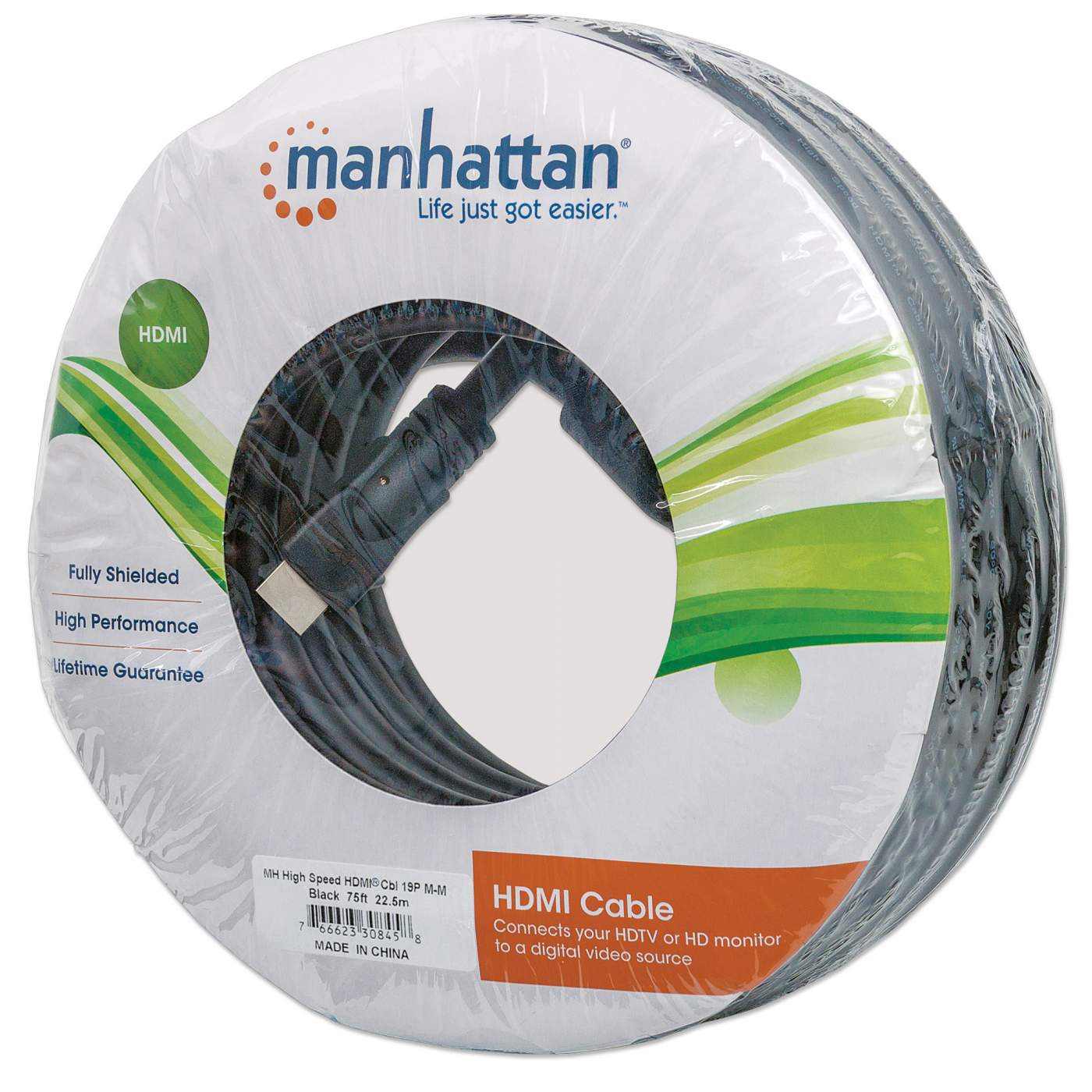

    • Packaging: Sleeve

  • Datasheet


  • Manual

    • RoHS2 Compliance     » Download
