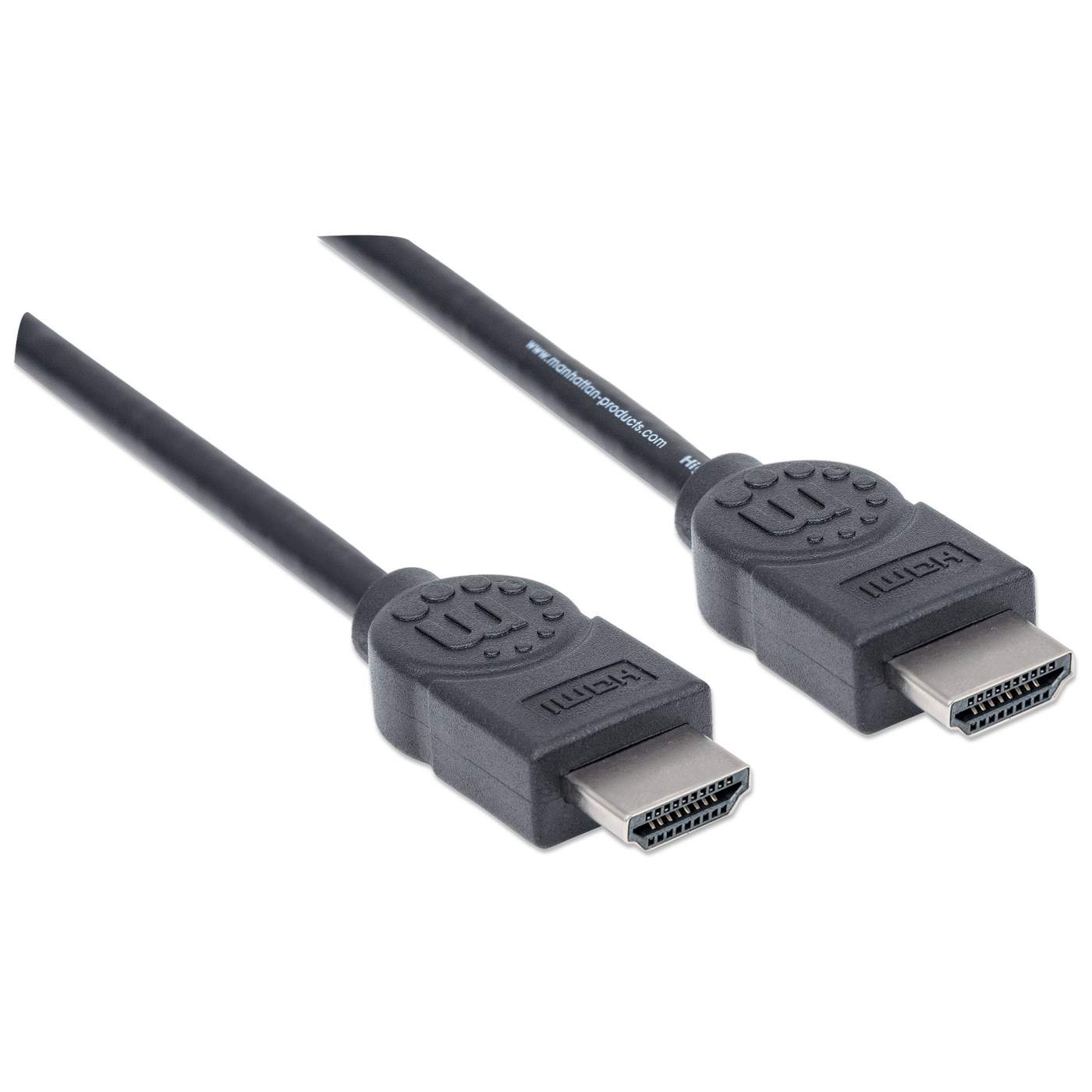

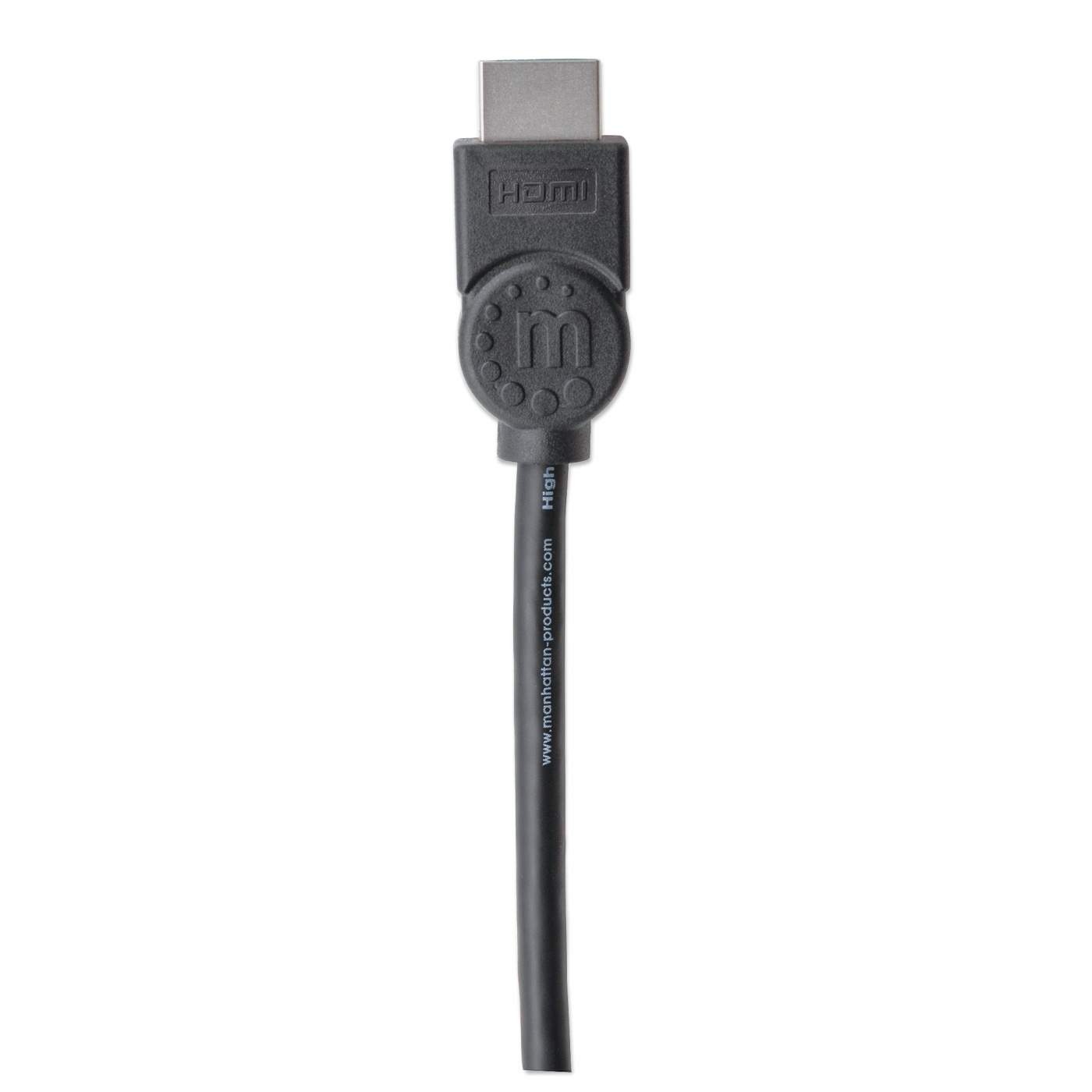

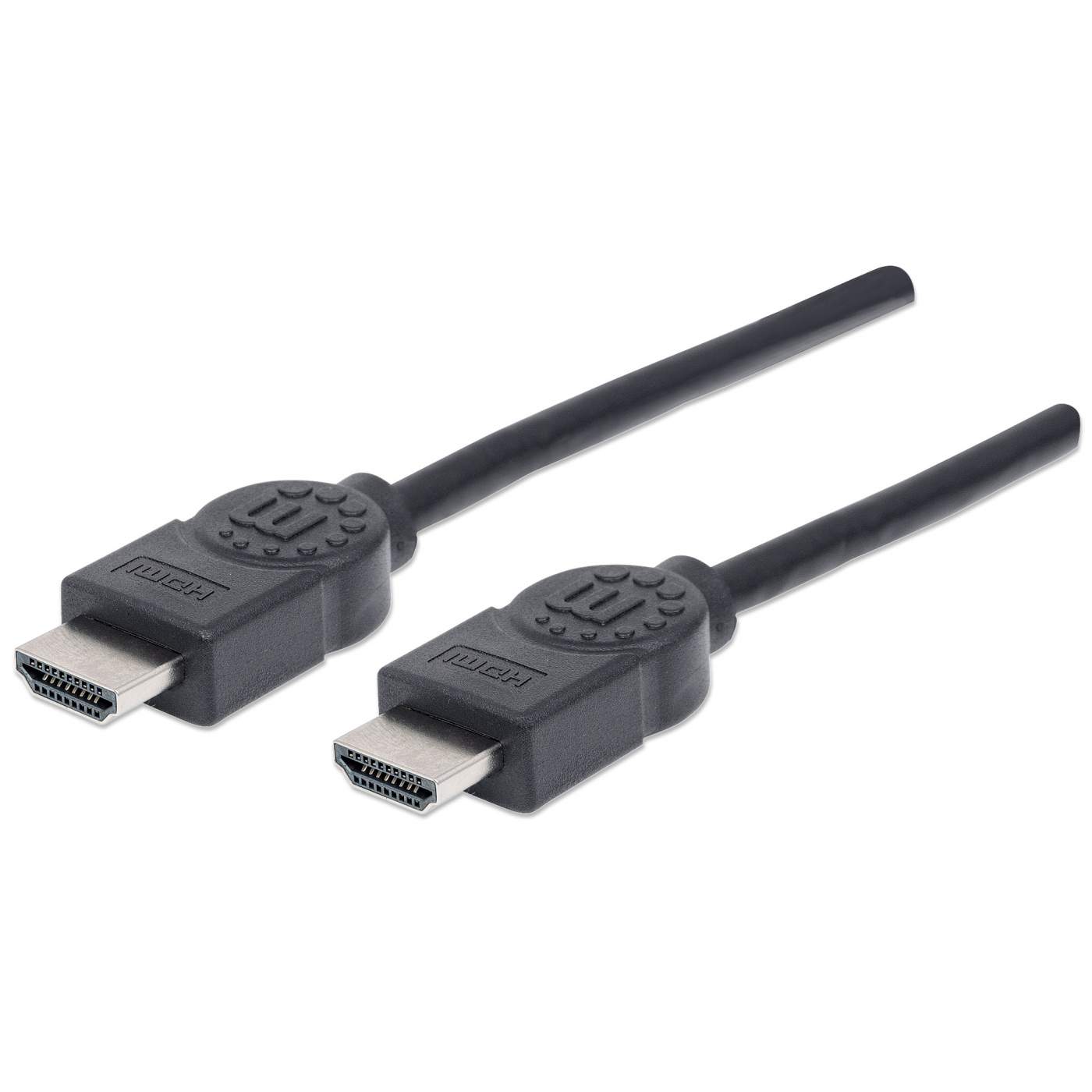

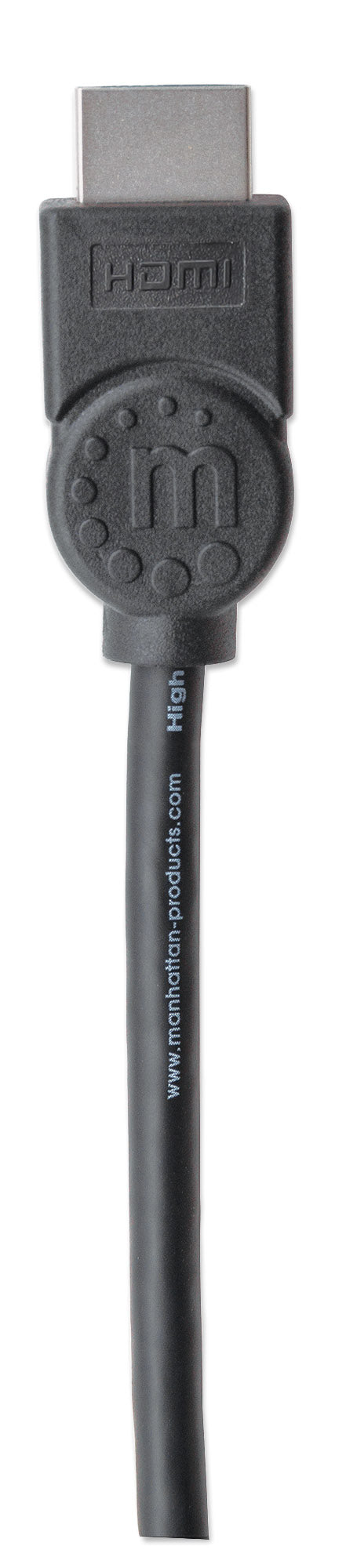

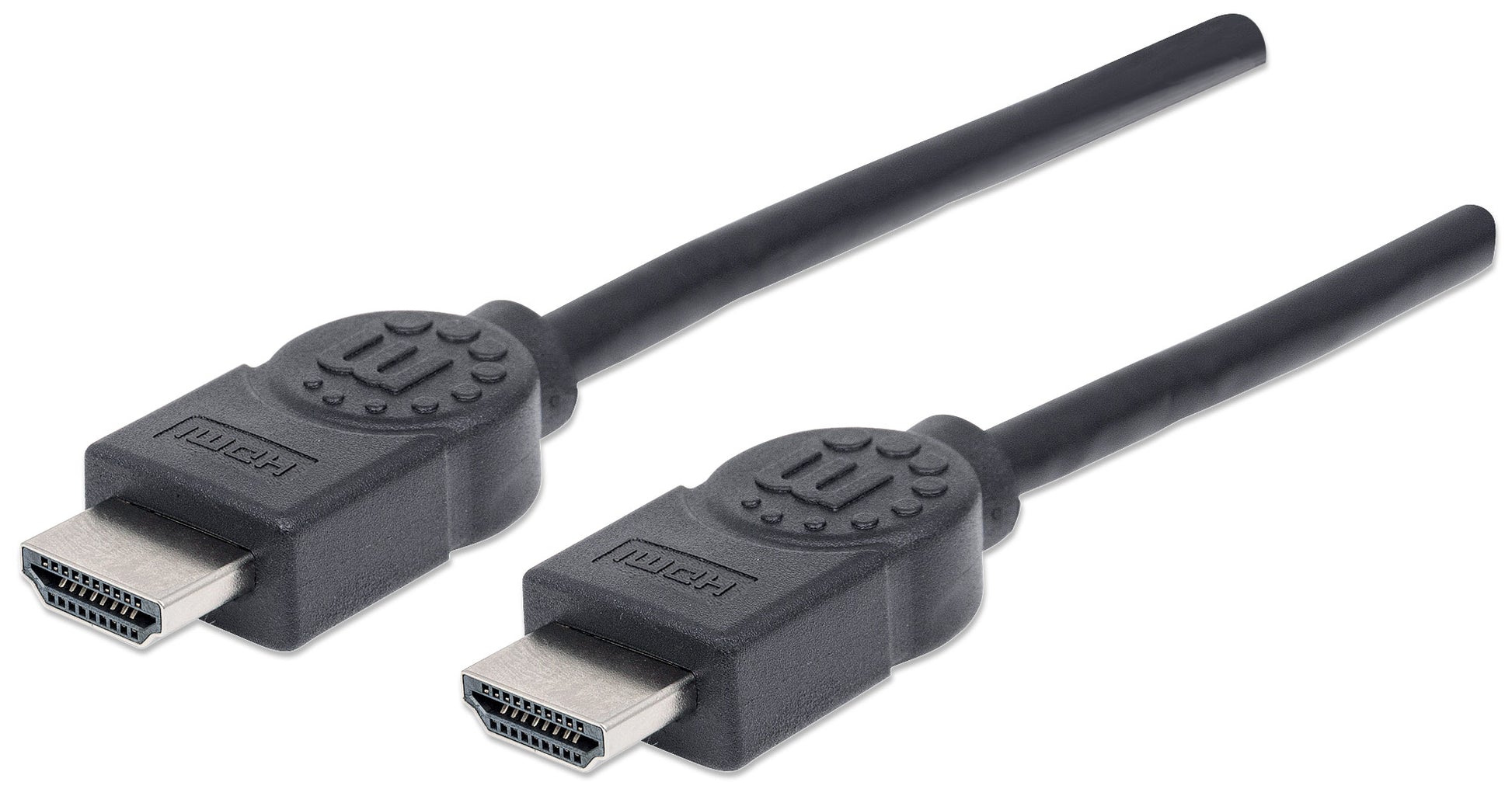

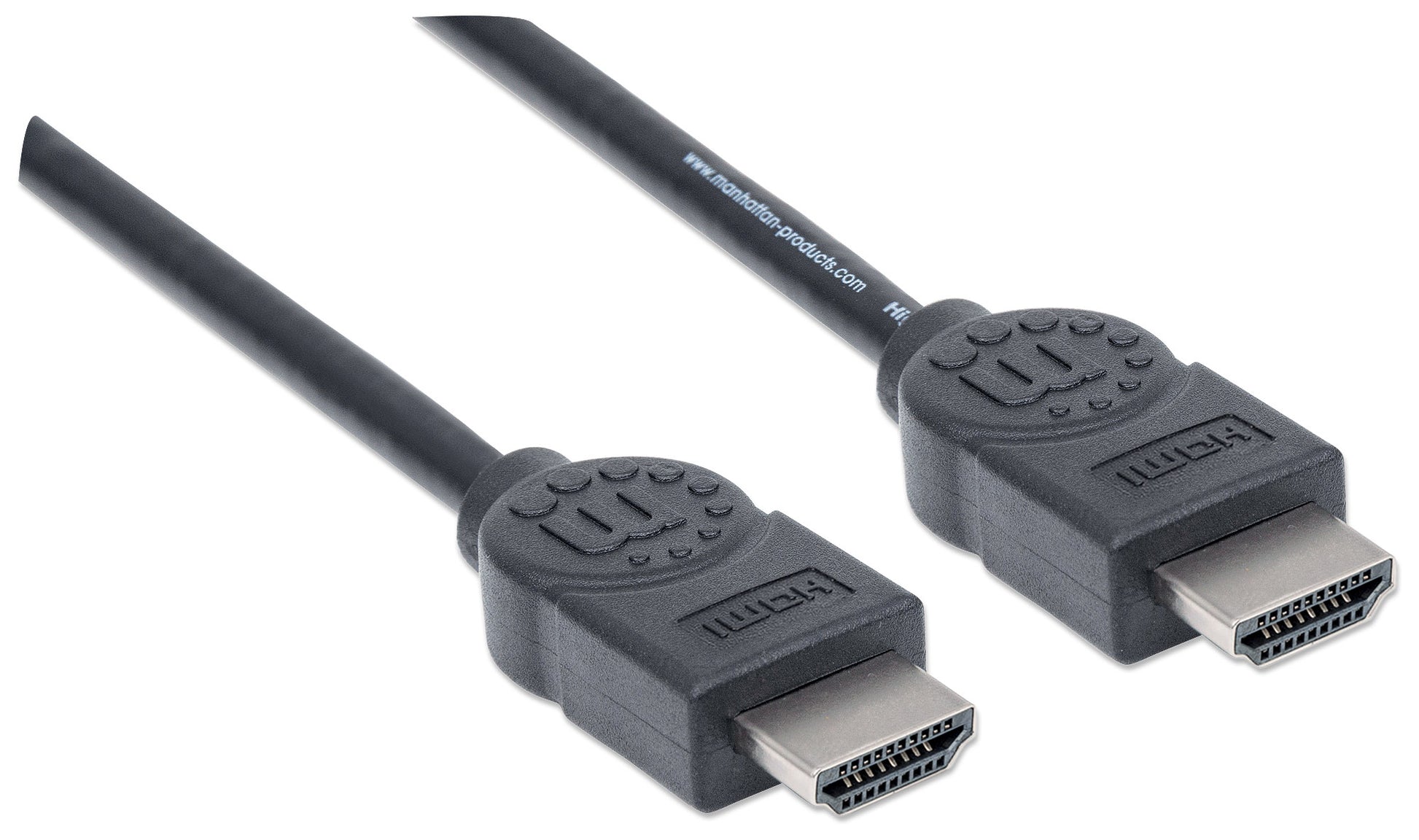

High Speed HDMI Cable with Ethernet

HEC, ARC, 3D, 4K@30Hz, HDMI Male to Male, Shielded, Black, 5 m (16.5 ft.)

Part-No.: 323239

Highlights

  • Supports HDMI Ethernet Channel, Audio Return Channel, 3D Video, 4K Display and Deep Color
  • High-speed Ethernet, bi-directional networking at up to 100 Mbps
  • ARC allows HDMI TV to communicate with home audio systems; no need for additional audio cable

Future arrivals:

#
Quantity
Arrival Date
1
800
2021-04-06


High Speed Cables deliver high-definition performance.
HDMI has become the standard digital connection, delivering the highest-quality audio and video signal over a single cable. Manhattan High Speed HDMI Cables are designed and carefully constructed to meet the evolving needs of the high-definition marketplace. Manhattan High Speed HDMI Cables provide the highest resolution possible at 4K x 2K, an audio return channel and a bandwidth of 10.2 Gbps at 340 MHz. These high-quality cables provide high-definition video and multichannel, digital audio with increased performance characteristics, greater accuracy and expanded features, including Internet connectivity for home entertainment devices using a single HDMI connection.

  • Supports HDMI Ethernet Channel, Audio Return Channel, 3D Video, 4K Display and Deep Color
  • High-speed Ethernet, bi-directional networking at up to 100 Mbps
  • ARC allows HDMI TV to communicate with home audio systems; no need for additional audio cable
  • 4K@30Hz resolution supports video resolution beyond 1080p; up to 1080p resolution in 3D and Deep Color
  • Compatible with any HDMI device, such as Blu-ray, game consoles, stereos and PCs
  • Compliant with High Speed HDMI specifications
  • Up to 10.2 Gbps at 340 MHz bandwidth
  • Double shielded to reduce EMI and other interference sources
  • Molded PVC boot
  • Lifetime Warranty

    Standards and Certifications
  • UL 20276
  • ISO 9002

    General
  • Bandwidth: 10.2 Gbps
  • 340 MHz
  • HEC support
  • Meets or exceeds existing HDMI standards
  • Length: 5 m (16.5 ft.)

    Contacts

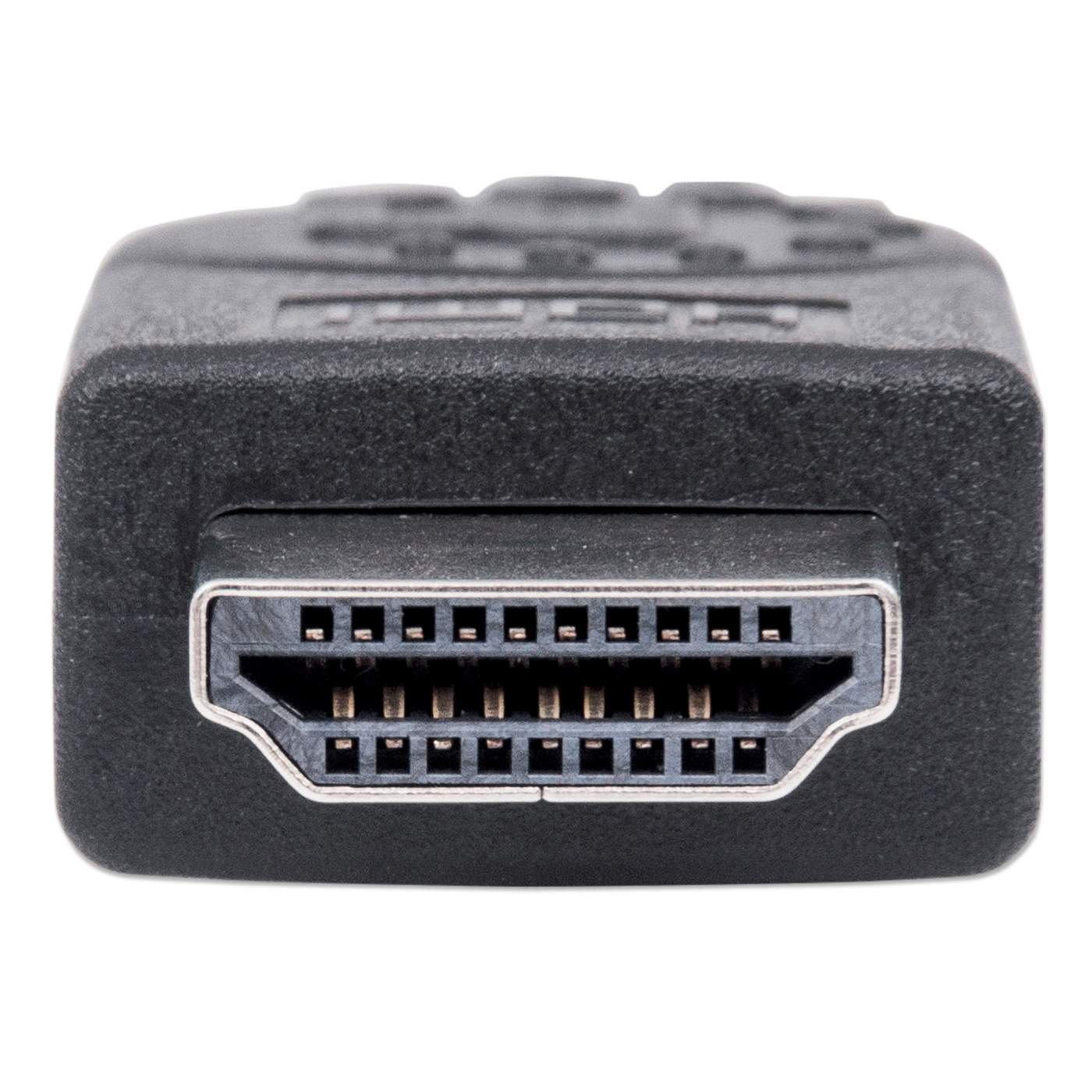

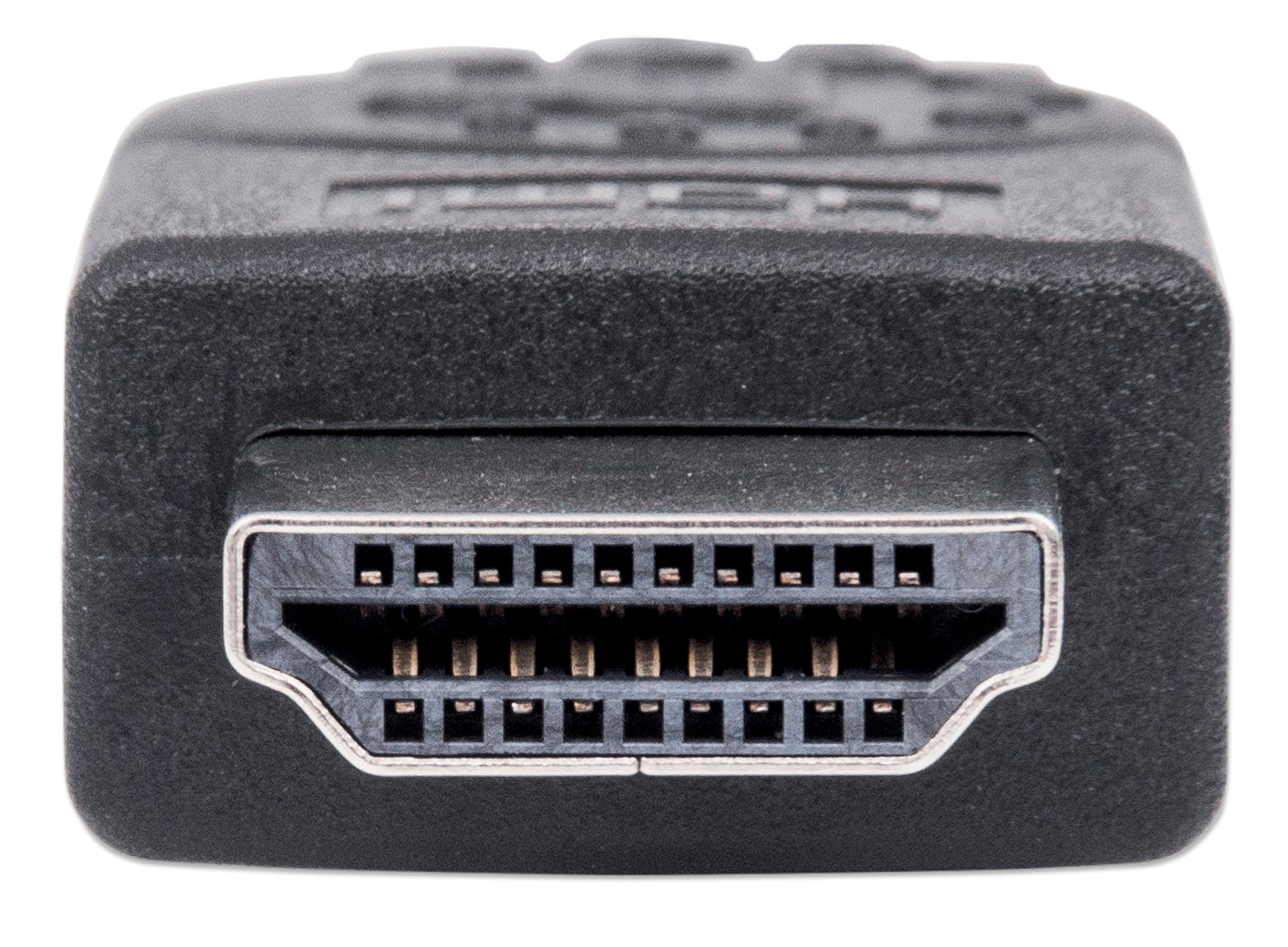

  • 2 HDMI 19-pin male
  • Nickel-plated contacts
  • Molded PVC boot
  • Double shielded
  • 30-AWG cable

    Electrical
  • Current rating: 0.5 A DC
  • Withstanding voltage: 300 VDC
  • Insulation resistance: 50 MΩ
  • Conductive resistance: 2 Ω
  • Thermal plastic casing

    Package Contents
  • High Speed HDMI Cable with Ethernet Channel

  • Additional SKUs

    • Amazon ASIN: B00MYWN52C
    • EAN: 0766623323239
    • UPC: 766623323239
    • ALSO: 1602006
    • API: 77300

  • Physical Specifications

    • Weight: 0.2 kg
    • Dimensions: 5 m
    • Packaging: Bag
    • Carton Quantity: 40
    • Carton Weight: 9.00 kg

  • Datasheet


  • Manual

    • RoHS2 Compliance     » Download
