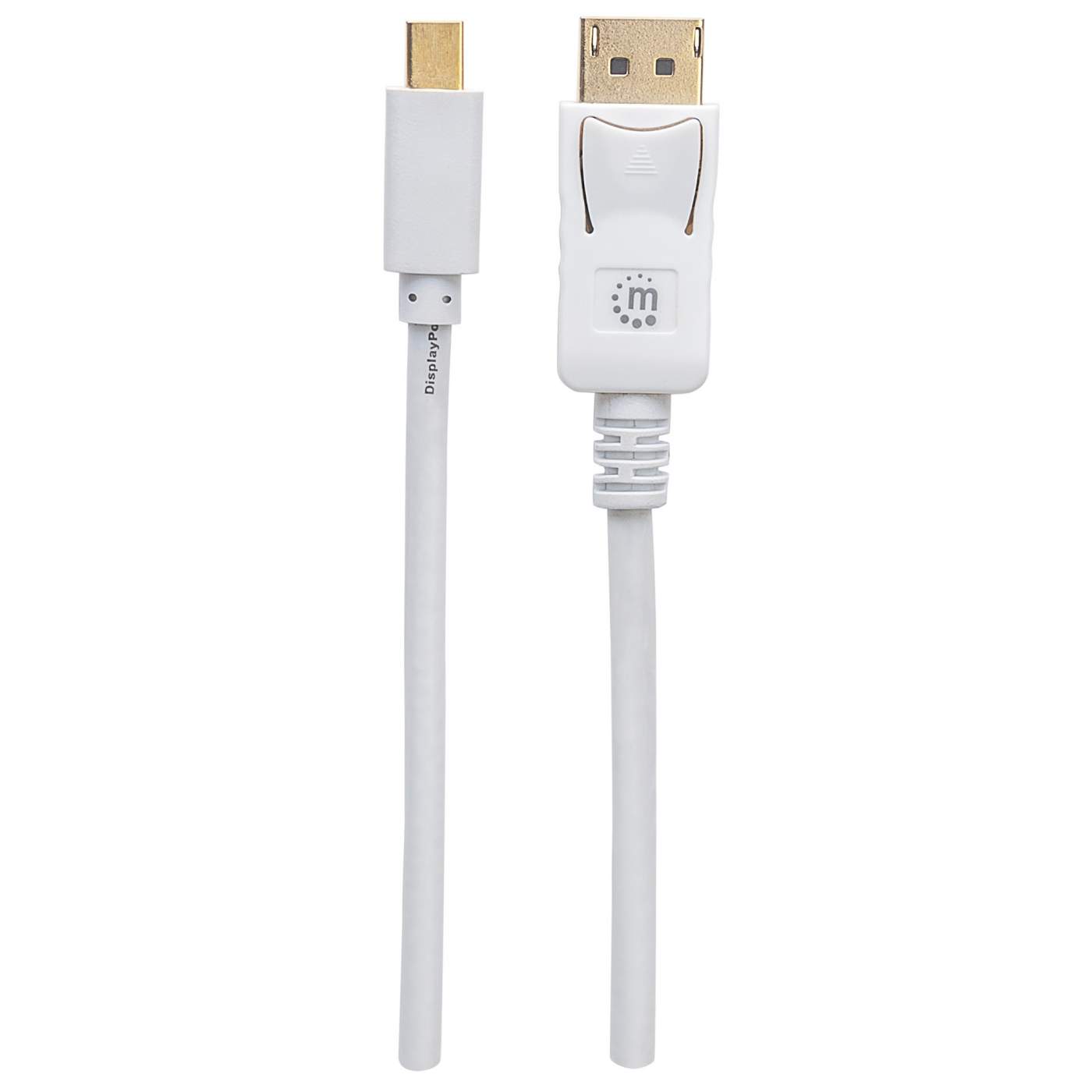

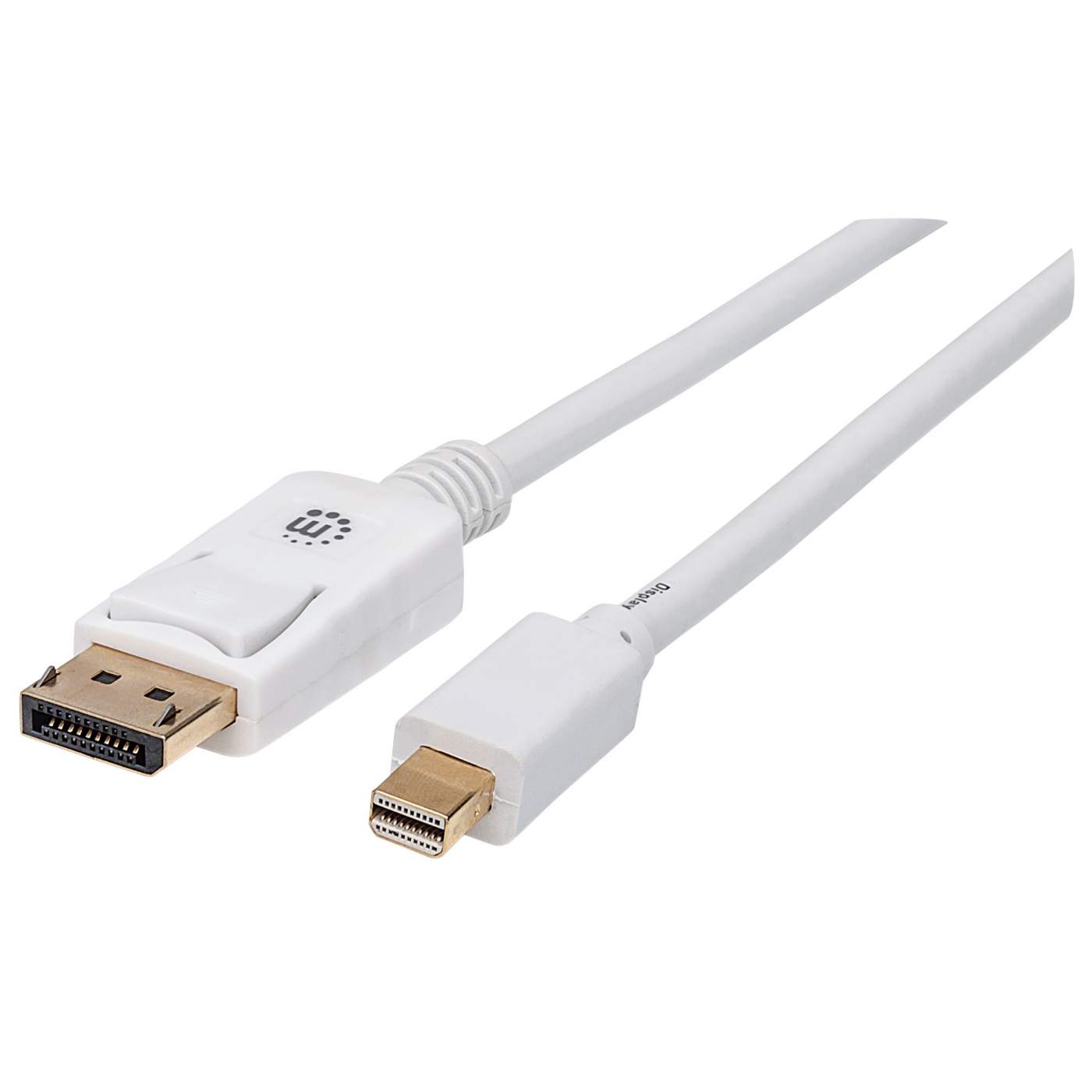

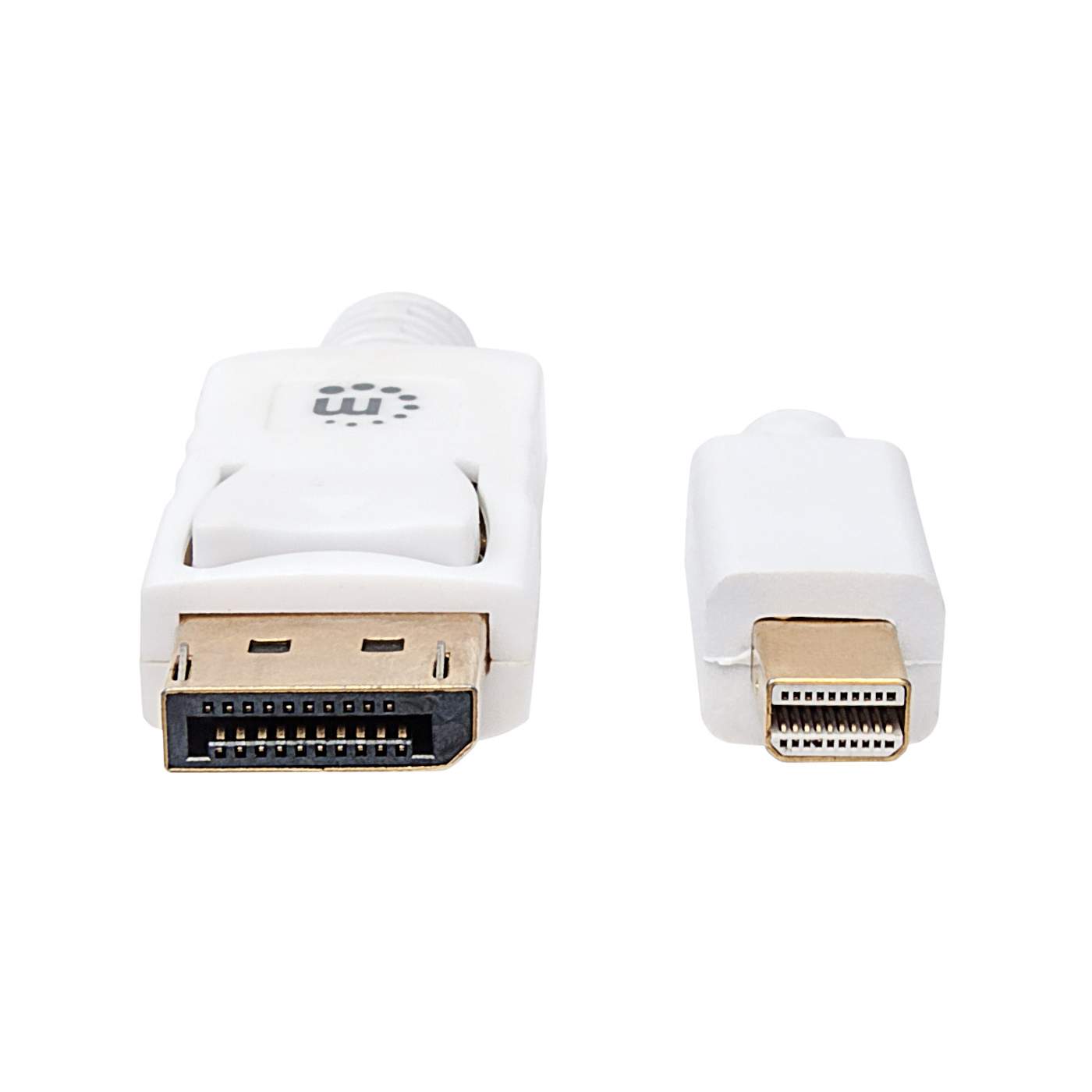

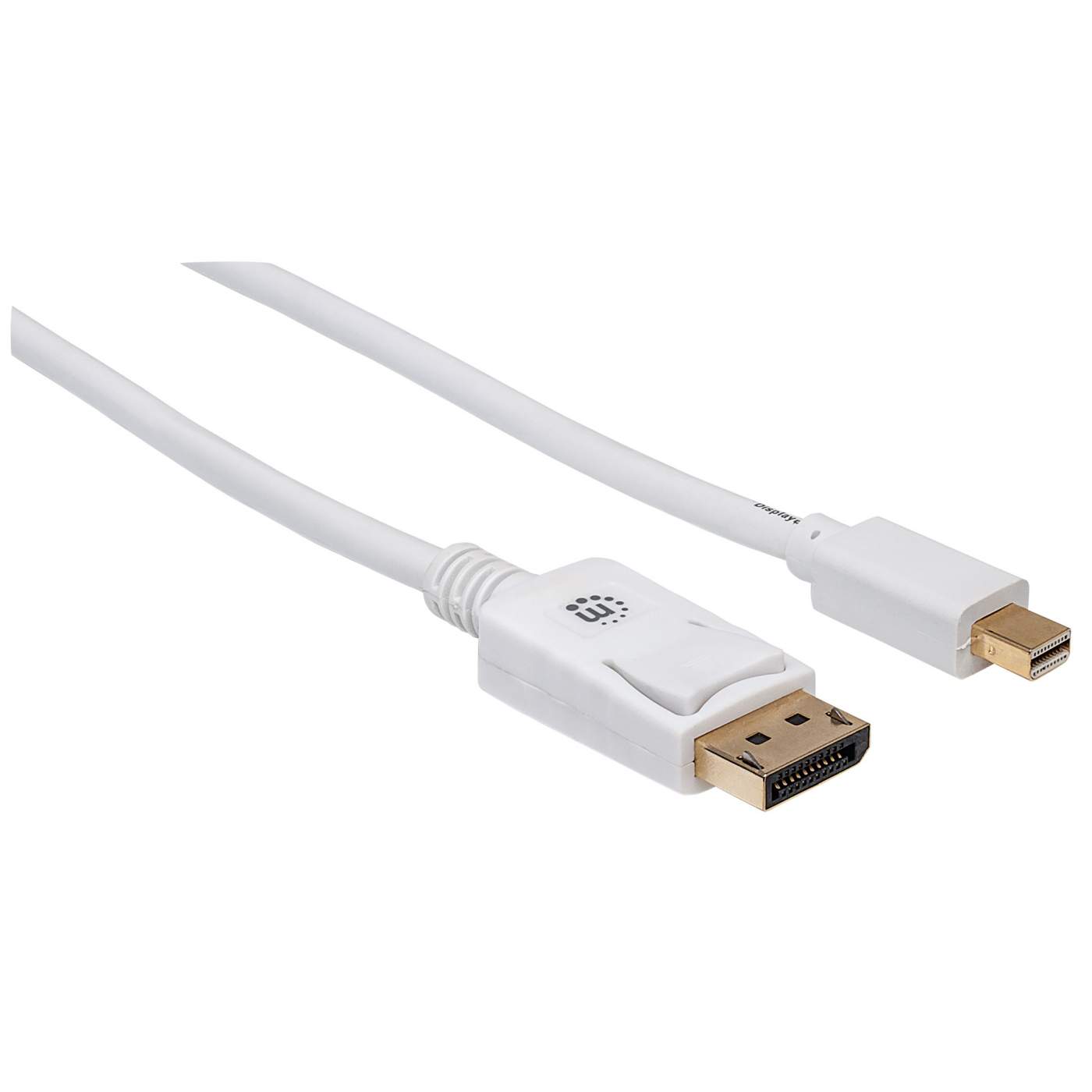

Mini DisplayPort Monitor Cable

Mini DisplayPort Male to DisplayPort Male, 2 m (6.6 ft.), White

Part-No.: 324748

Highlights

  • Provides Mini DisplayPort 20-pin male to DisplayPort 20-pin male connections
  • Delivers high-bandwidth, digital audio/visual signals from Mini DisplayPort and DisplayPort enabled displays and devices - up to 4K@60Hz resolution
  • Fully shielded to reduce EMI and other interference sources


High-definition performance for personal computing.
Manhattan Mini DisplayPort Cables provide a single-cable solution that delivers both high-definition digital audio and video signals between desktop and notebook computers and an output device. With 17.28 Gbps bandwidth (HBR2), DeepColor and 24-bit, eight-channel uncompressed audio capability, the 20-pin connector is small, compact and ideal for use with Mini DisplayPort-equipped devices, flat-panel displays, slim-profile devices and many future consumer electronics. Full foil-and-braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections help Manhattan Mini DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.

  • Provides Mini DisplayPort 20-pin male to DisplayPort 20-pin male connections
  • Delivers high-bandwidth, digital audio/visual signals from Mini DisplayPort and DisplayPort enabled displays and devices - up to 4K@60Hz resolution
  • Fully shielded to reduce EMI and other interference sources
  • Plug and play for box-to-box applications
  • Molded PVC boot and strain relief
  • Lifetime Warranty

    Standards and Certifications
  • UL 20276

    Connectors
  • Mini DisplayPort 20-pin male
  • DisplayPort 20-pin male
  • Gold-plated contacts
  • Molded PVC
  • Built-in strain relief

    Cable
  • Length: 2 m (6.6 ft.)
  • 32-AWG conductors
  • Withstanding voltage: 300 VDC
  • Thermal plastic casing
  • Shielded

    General
  • Meets or exceeds existing DisplayPort 1.2 standards
  • Supports 17.28 Gbps data rate, 4096 x 2160 resolution (WQXGA) and HDCP

    Package Contents
  • Mini DisplayPort Monitor Cable

  • Additional SKUs

    • Amazon ASIN: B004EUZAKM
    • EAN: 0766623324748
    • UPC: 766623324748
    • ALSO: 2205862
    • API: 101297

  • Physical Specifications

    • Weight: 0.08 kg
    • Dimensions: 2 m

  • Datasheet


  • Manual

    • RoHS2 Compliance     » Download
