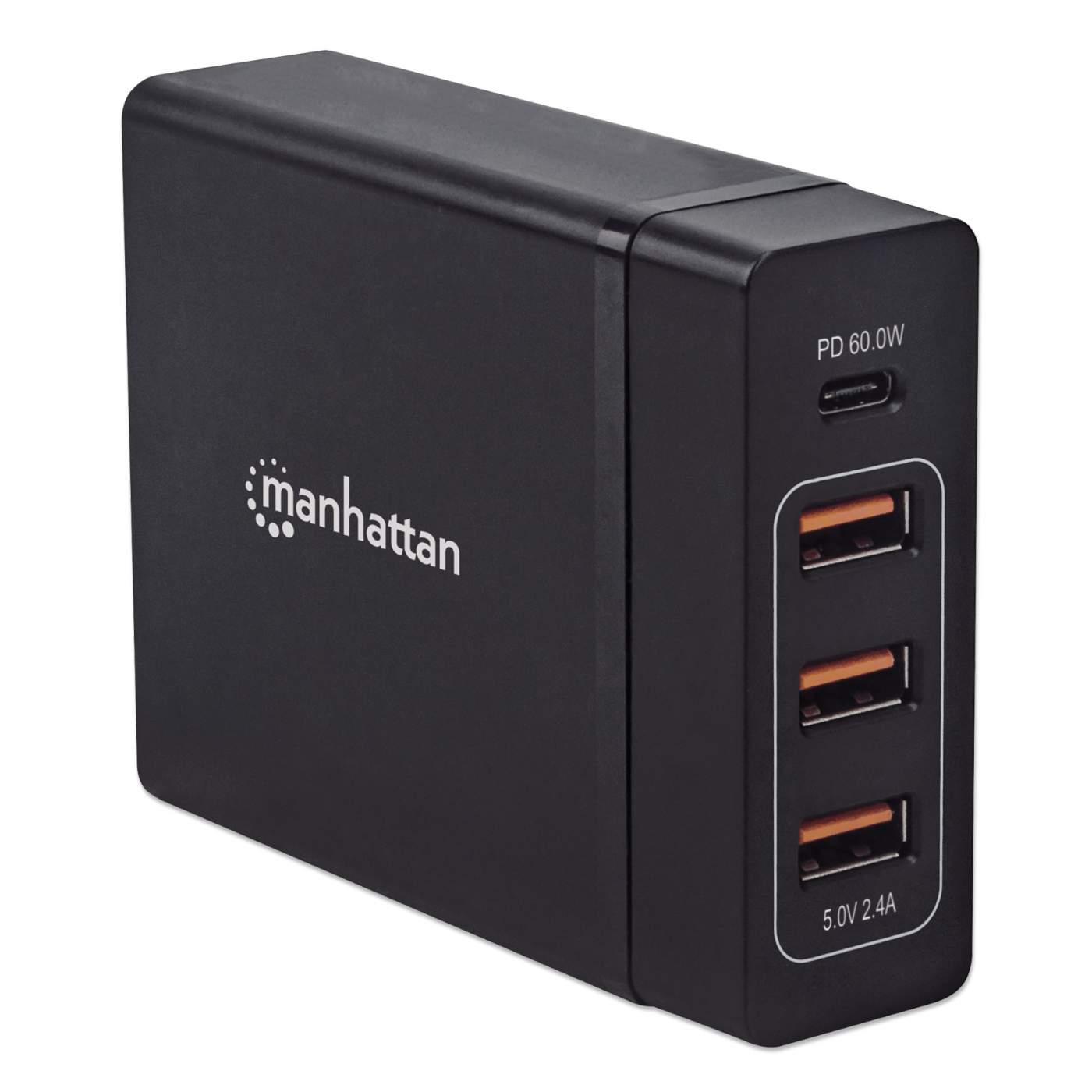

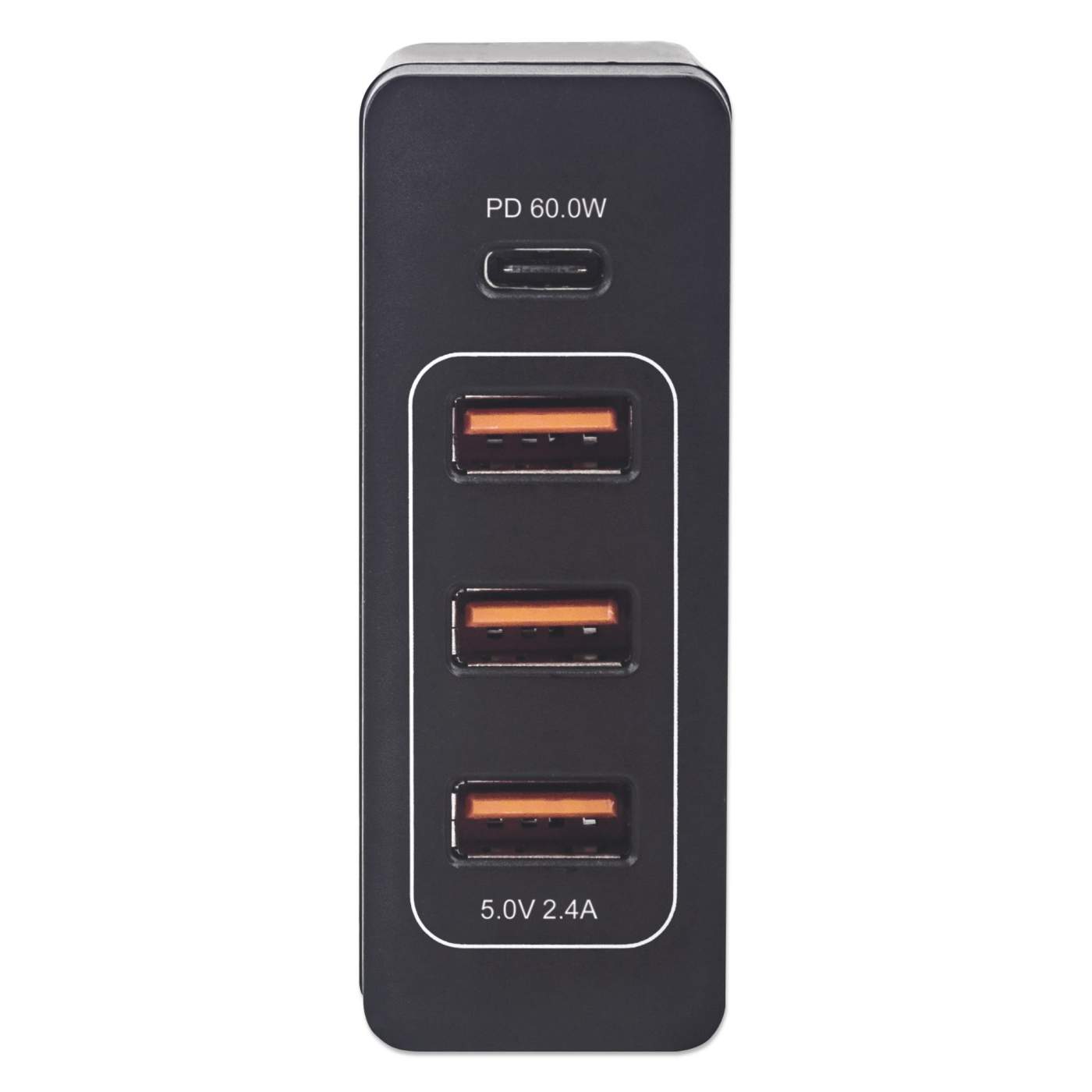

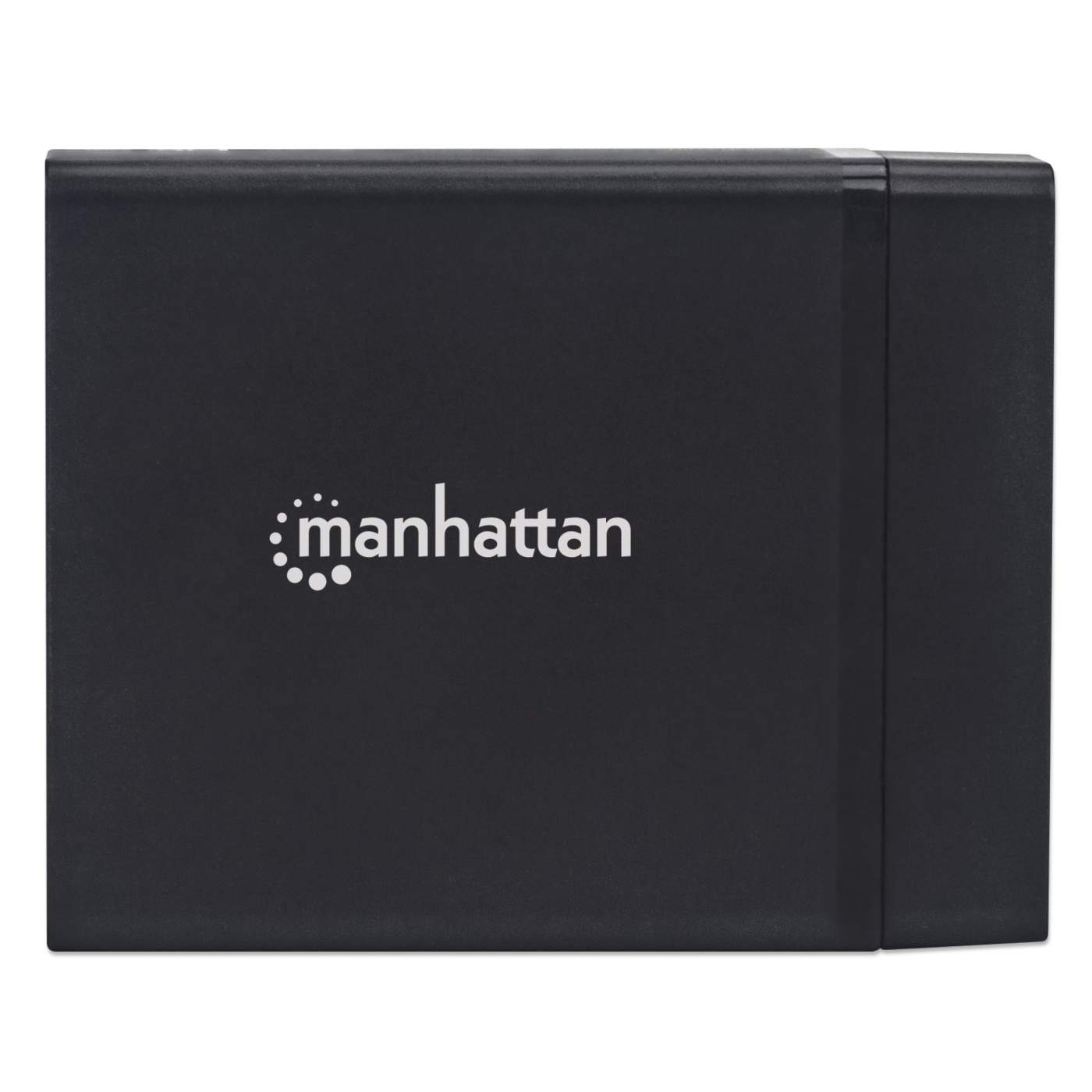

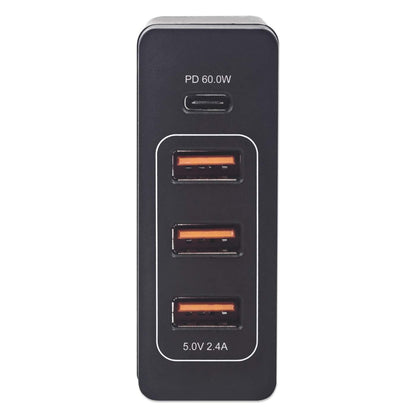

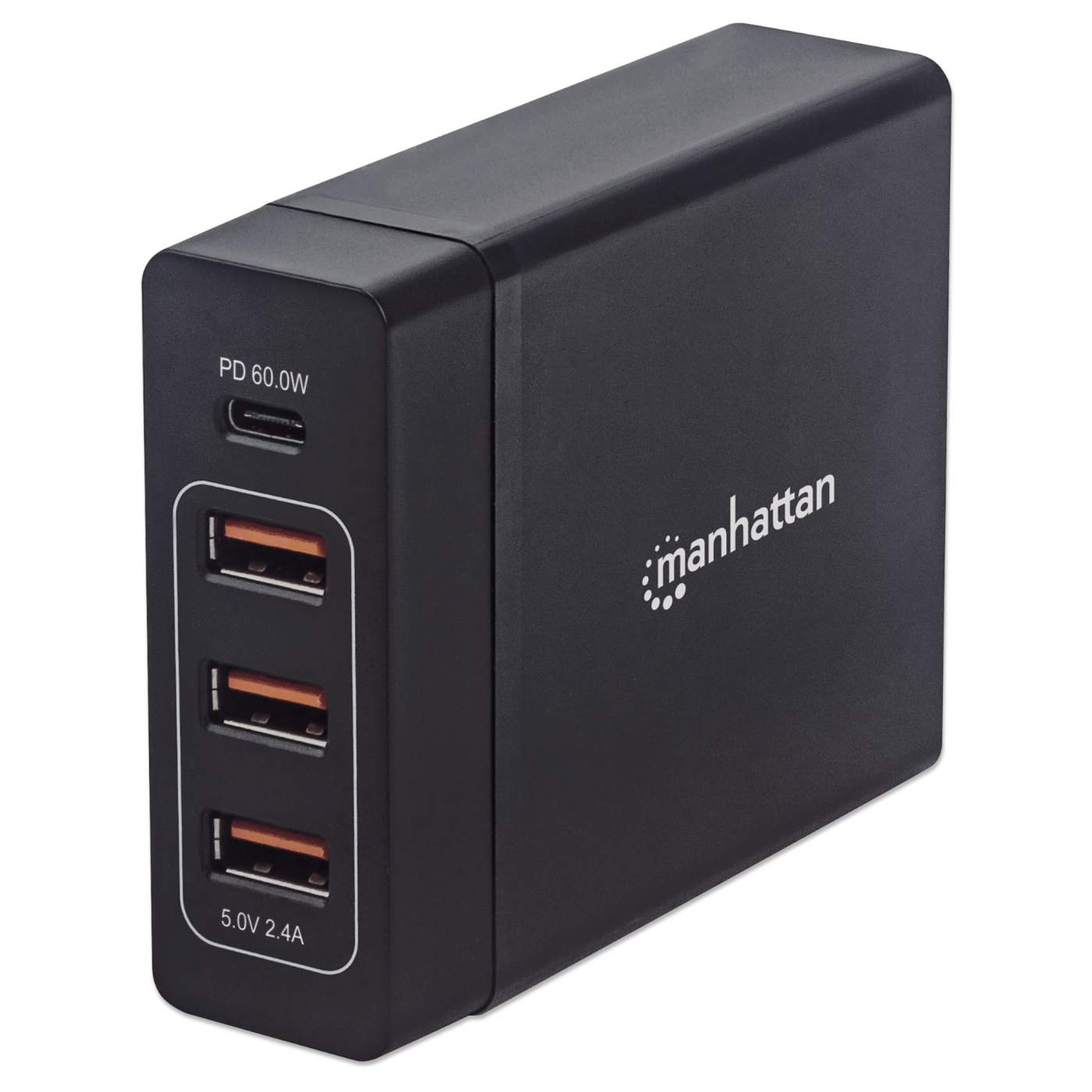

Power Delivery Charging Station - 72 W

One USB-C Power Delivery Port up to 60 W, Three USB-A Charging Ports Sharing up to 12 W / 2.4 A, Black

Part-No.: 102124

Highlights

  • Charging station solution with one USB-C Power Delivery (PD 3.0) and three USB-A charging ports
  • Charges different devices simultaneously with ideal potential energy
  • USB-C PD port delivering up to 60 W to charge a notebook, laptop, Ultrabook™, tablet or other USB-C powered device


Device power with a portable, powerful Power-Delivery charger

Enjoy complete charging power with the Manhattan Power Delivery Charging Station - 72 W. This wall charger's USB-C port uses Power Delivery technology to determine the power needs of your smartphone, tablet or other compatible device and supplies it at the fastest, safest rate it can. The additional USB-A ports supply power at up to 2.4 A to quickly charge your devices. The perfect power companion with its stylish, compact and ultra-modern design, the Manhattan Power Delivery Charging Station - 72 W also intelligently safeguards itself and your devices with its short-circuit-, overvoltage-, overcurrent- and overtemperature-protection functions.

  • Charging station solution with one USB-C Power Delivery (PD 3.0) and three USB-A charging ports
  • Charges different devices simultaneously with ideal potential energy
  • USB-C PD port delivering up to 60 W to charge a notebook, laptop, Ultrabook™, tablet or other USB-C powered device
  • Three USB-A ports sharing 12 W to charge a portable device with each port supporting up to 2.4 A
  • Overload, overcurrent and overheating protection
  • Compact, portable and stylish design for easy travel
  • Three-year warranty

    Standards and Certifications
  • USB 2.0
  • PD 3.0
  • FCC
  • UL 62368
  • CE
  • RoHS
  • WEEE

    Ports
  • One USB-C with Power Delivery (PD 3.0)
  • Three USB-A

    General
  • AC input: 100 – 240 V; 50 – 60 Hz
  • USB-C output: 5 – 20 V; maximum 3 A; 60 W
  • Voltage/current settings (maximum):
    - USB-C:
    - 5 V / 3 A
    - 9 V / 3 A
    - 12 V / 3 A
    - 15 V / 3 A
    - 20 V / 3 A
    - USB-A:
    - up to 5 V / 2.4 A

    Input Characteristics
  • AC rated voltage: 100 – 240 V
  • Frequency range: 50 – 60 Hz (±1 Hz)
  • Current: ≤ 1 A at 100 VAC 60 HZ

    Output Characteristics
  • Rated voltage: 5 / 9 / 12 / 15 / 20 V
  • Current: 3 A maximum (at constant voltage mode)
  • Rated power: 72 watts maximum
  • Overshoot voltage: ≤ 5%

    Protection Characteristics
  • Short circuit (SCP) with auto-recovery mode
  • Overvoltage (OVP) with auto-recovery mode
  • Overcurrent (OCP) — current limit: 150% (max)
  • Overtemperature (OTP)

    Physical
  • Dimensions: 9.1 x 7.5 x 2.75 cm (3.58 x 2.95 x 1.08 in)
  • Weight: 0.22 kg (7.76 oz.)
  • Housing: plastic

    Operating Environment
  • Operation Temperature: 0 – 30°C (32 – 86°F)
  • Storage Temperature: -20 – 65°C (-4 – 149°F)
  • Humidity (noncondensing): 10 – 90%

    Package Contents
  • Power Delivery Charging Station - 72 W

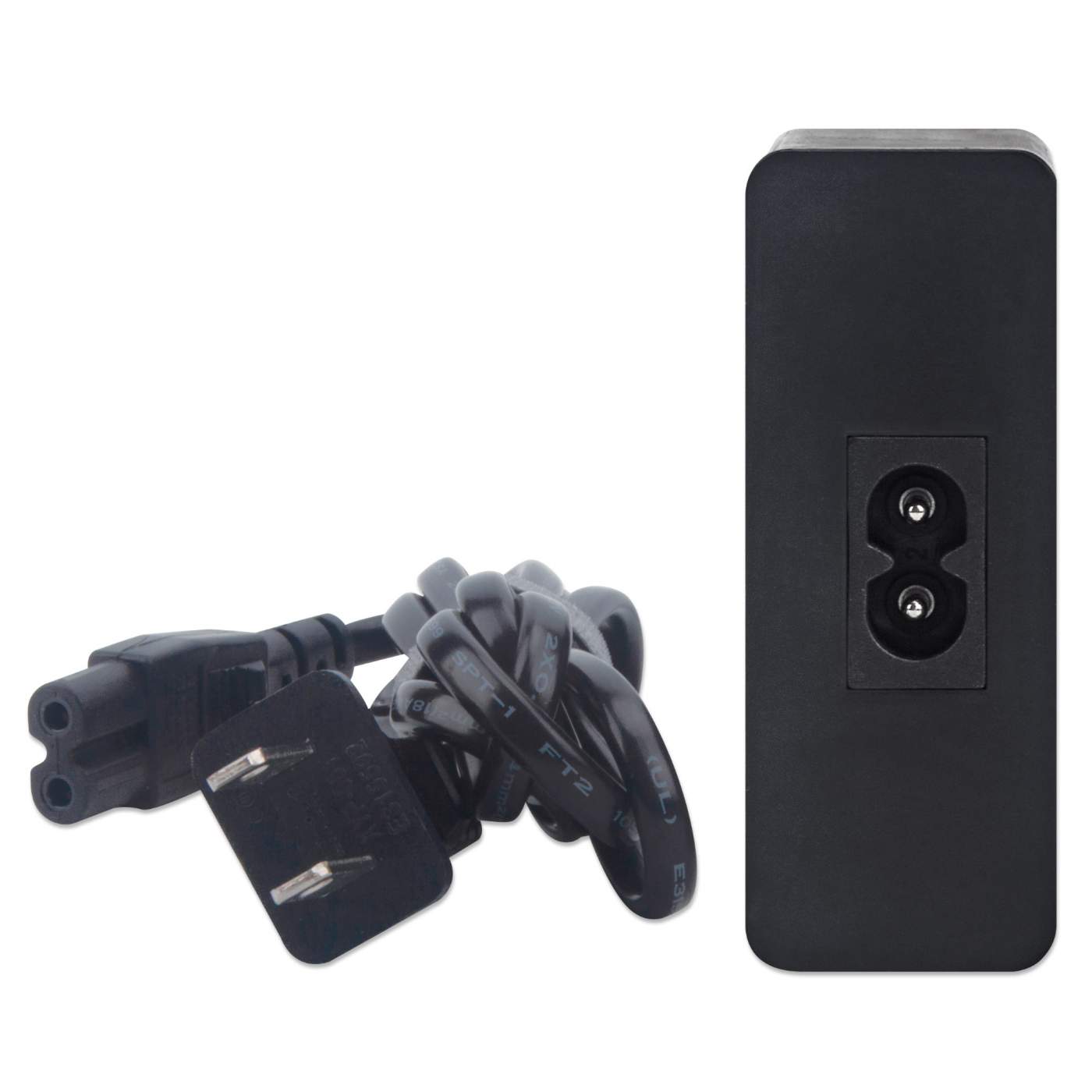

  • Power Cord
  • Quick Instruction Guide

  • Additional SKUs

    • Amazon ASIN: B07VXX35BS
    • EAN: 0766623102124
    • UPC: 766623102124

  • Physical Specifications

    • Weight: 0.28 kg
    • Dimensions: 91 (L) x 75 (W) x 27.5 (H) [mm]
    • Packaging: Retail Box

  • Datasheet


  • Manual

    • Quick Instruction Guide     » Download
