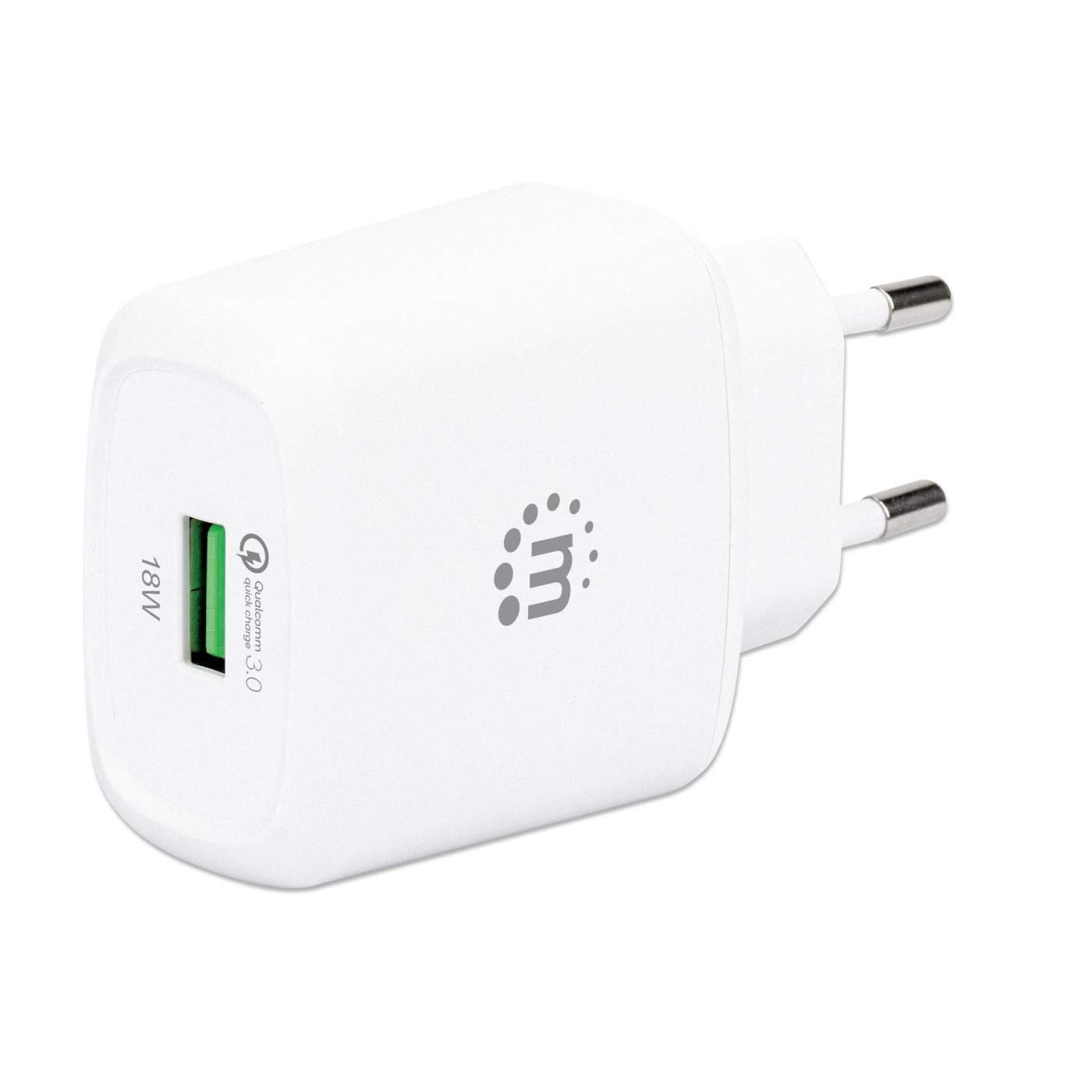

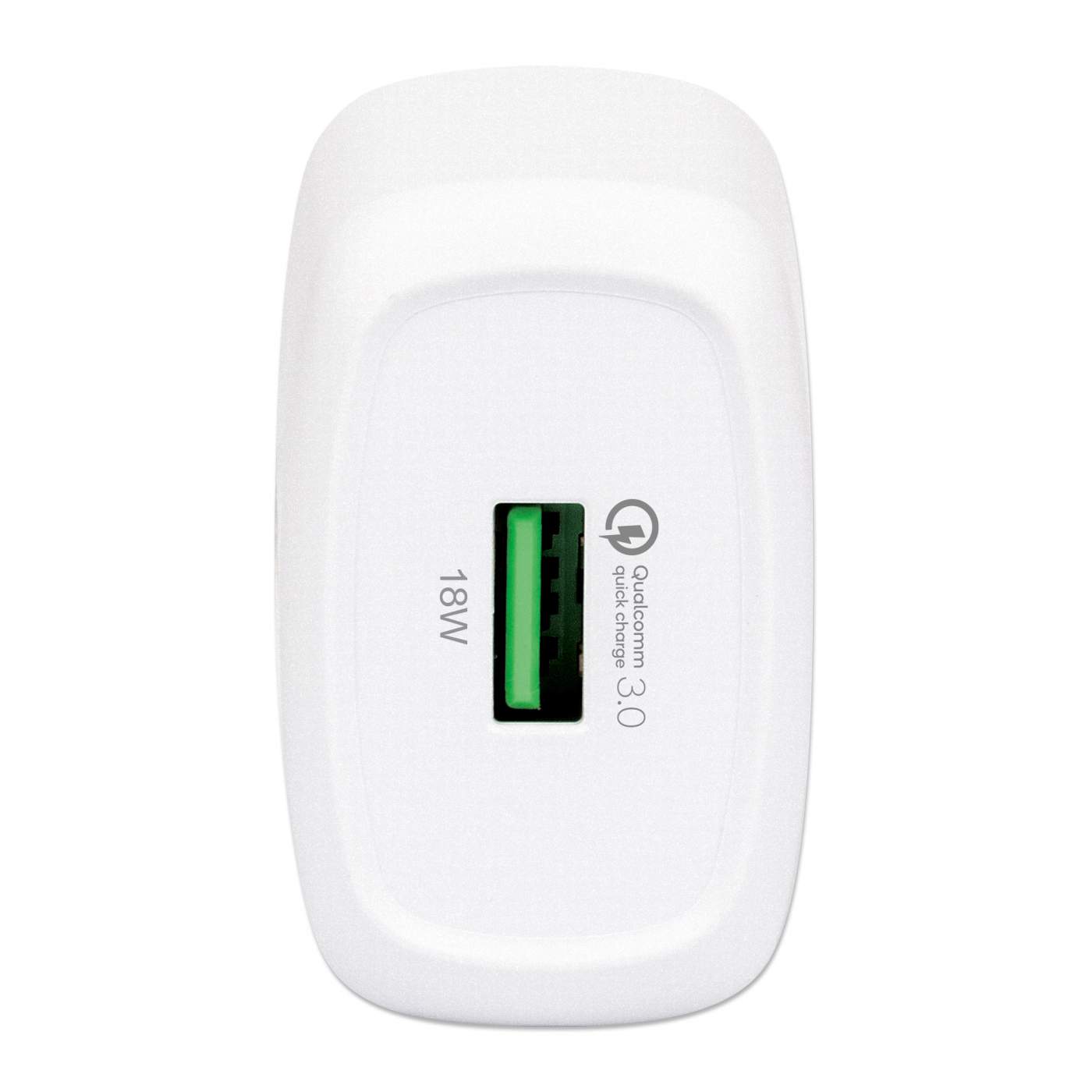

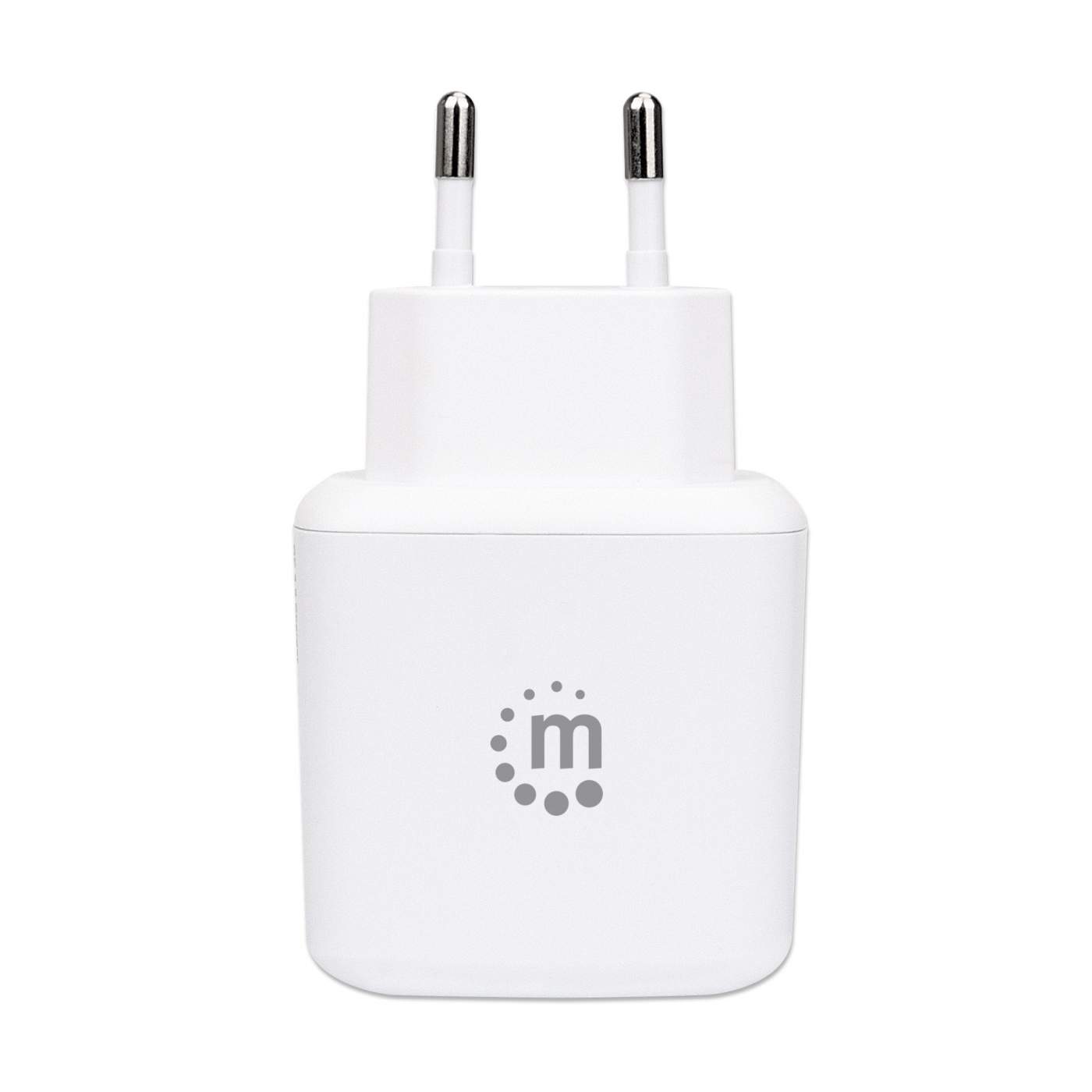

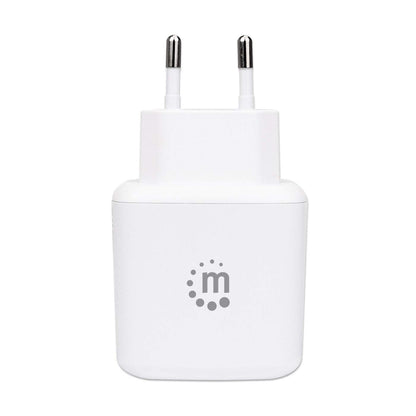

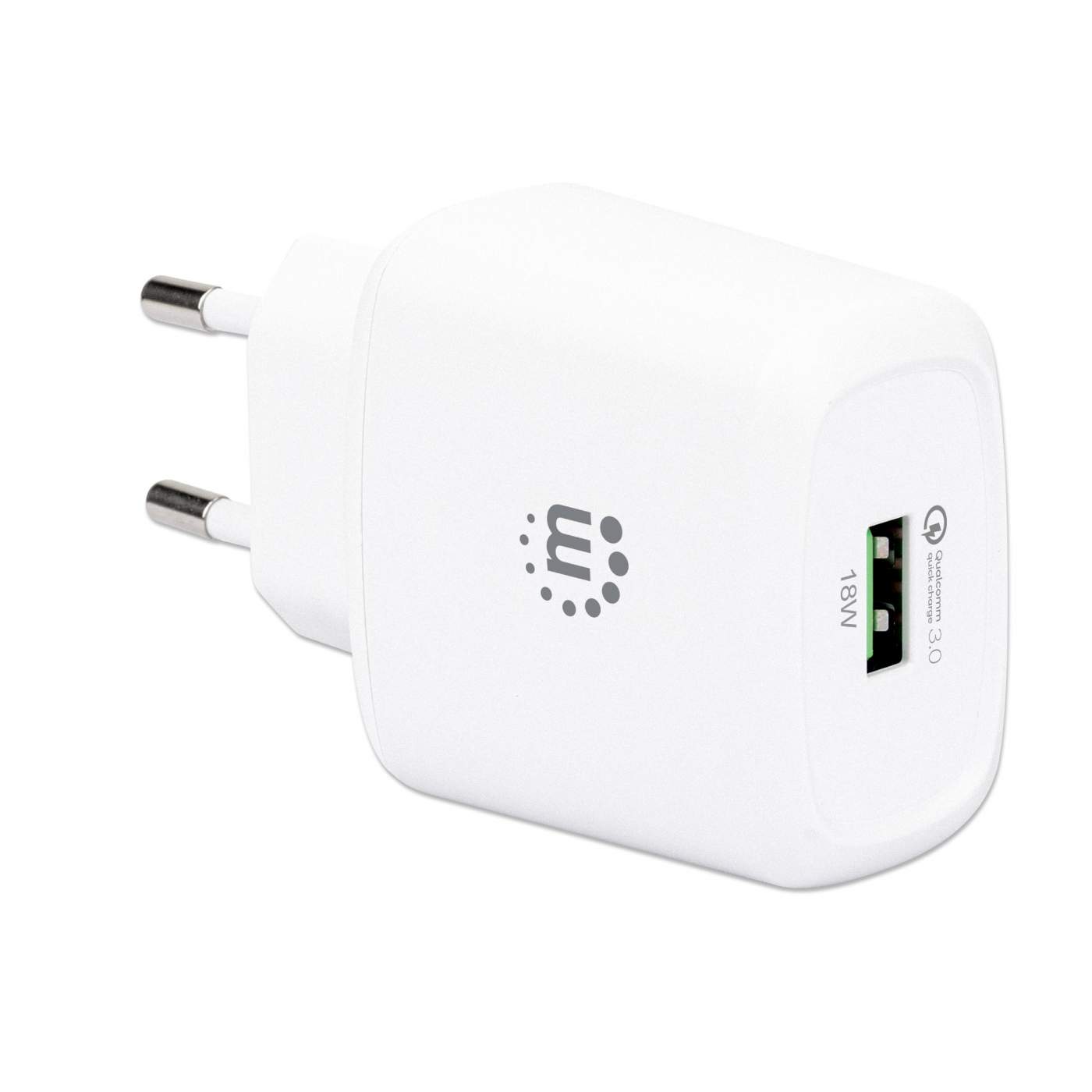

QC 3.0 Wall Charger - 18 W

USB-A Qualcomm® Quick Charge™ 3.0 Port up to 18 W, Europlug, White

Part-No.: 102285

Highlights

  • Qualcomm® Quick Charge™ (QC) 3.0 technology for charging up to four times faster than standard chargers*
  • QC 3.0 USB-A port delivering up to 18 W
  • Overload, overcurrent, overheating and short-circuiting protection

The QC™ 3.0 Wall Charger — portable, powerful charging

Enjoy full charging power with the Manhattan QC 3.0 Wall Charger - 18 W (Europlug). Its USB-A port uses Qualcomm™ Quick Charge 3.0 technology to charge any QC-compatible device up to 75% faster than a standard charger. The stylish, compact and ultra-modern design makes it the perfect power companion. It also protects itself and your devices from short-circuiting, overvoltage, overcurrent and overheating.

  • Qualcomm® Quick Charge™ (QC) 3.0 technology for charging up to four times faster than standard chargers*
  • QC 3.0 USB-A port delivering up to 18 W
  • Overload, overcurrent, overheating and short-circuiting protection
  • Works with non-Quick Charge devices
  • Compact, portable and stylish design for easy travel
  • Three-year warranty
  • *Refer to the documentation of the device to ensure it is supported

    Standards and Certifications
  • USB 2.0
  • Qualcomm® Quick Charge™ 3.0
  • CE
  • RoHS
  • WEEE

    Ports
  • One USB-A with QC 3.0

    Input Characteristics
  • AC rated voltage: 100 – 240 V
  • Frequency range: 50 – 60 Hz (±1 Hz)
  • Current: ≤ 0.6 A at 100 VAC 60 HZ

    Output Characteristics
  • Rated voltage: 3.6 – 12 V
  • Current: 3 A maximum (at constant voltage mode)
  • Rated power: 18 watts maximum
  • Overshoot voltage: ≤ 5%
  • Voltage/current settings (maximum):
    - USB-A QC 3.0 18 W:
    - 3.6 – 6.5 V / 3 A
    - 6.5 – 9 V / 2 A
    - 9 – 12 V / 1.5 A

    Protection Characteristics
  • Short-circuit (SCP) with auto-recovery mode
  • Overvoltage (OVP) with auto-recovery mode
  • Overcurrent (OCP) — current limit: 150% (max)
  • Over-temperature (OTP)

    Physical
  • Dimensions: 6.47 x 4.95 x 3.15 cm (2.55 x 1.95 x 1.24 in.)
  • Weight: 62 g (2.19 oz.)
  • Housing: polycarbonate

    Operating Environment
  • Operation Temperature: 0 – 30°C (32 – 86°F)
  • Storage Temperature: -20 – 65°C (-4 – 149°F)
  • Humidity (noncondensing): 10 – 90%

    Package Contents
  • QC 3.0 Wall Charger - 18 W
  • Quick Instruction Guide

  • Additional SKUs

    • Amazon ASIN: B07ZS2CM7D
    • EAN: 0766623102285
    • UPC: 766623102285

  • Physical Specifications

    • Weight: 0.06 kg
    • Dimensions: 85 (L) x 49.5 (W) x 31.5 (H) [mm]
    • Packaging: Retail Box
    • Carton Quantity: 60
    • Carton Weight: 8.80 kg

  • Datasheet

    • Datasheet     » Download

    • Declaration of Conformity     » Download


  • Manual

    • Quick Instruction Guide     » Download
