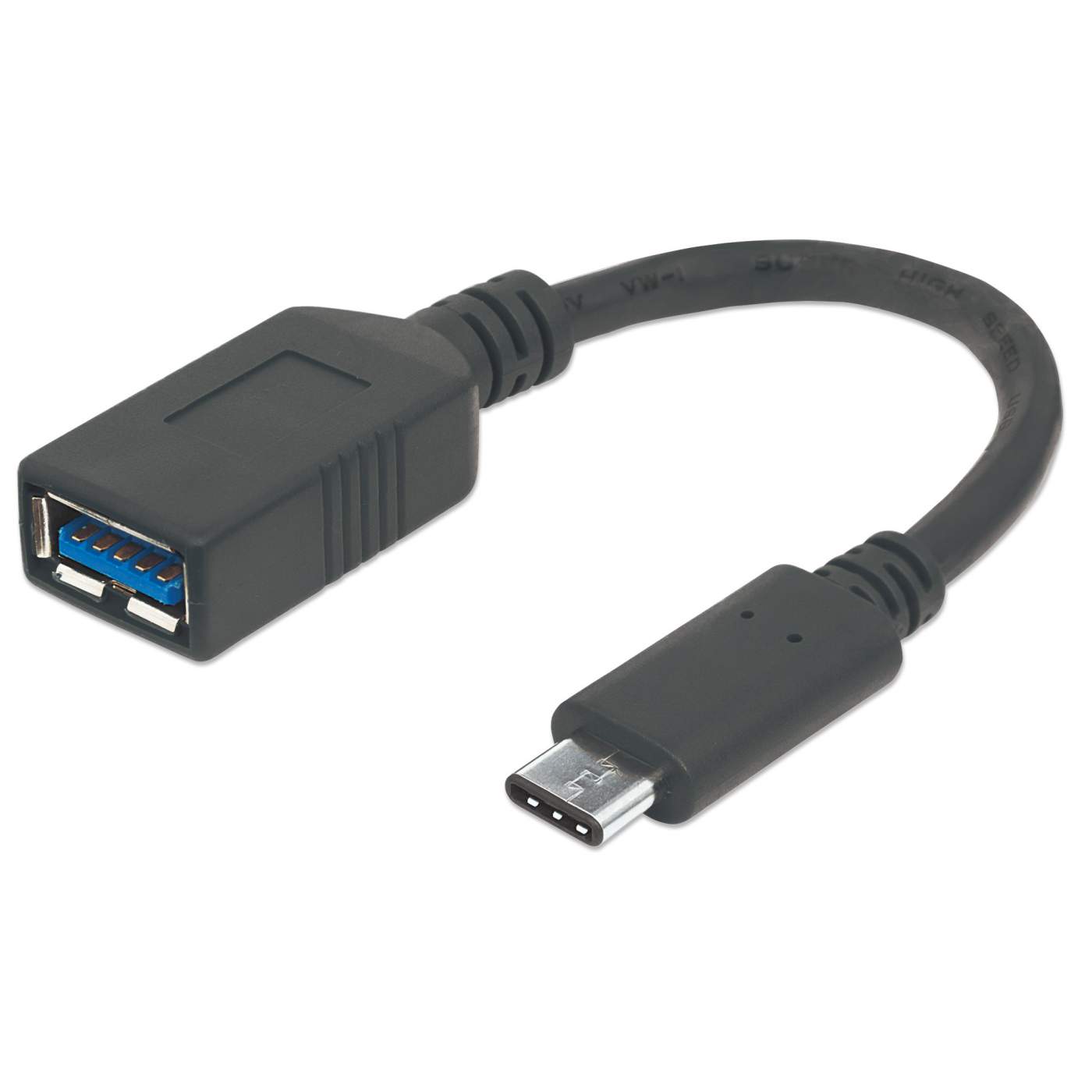

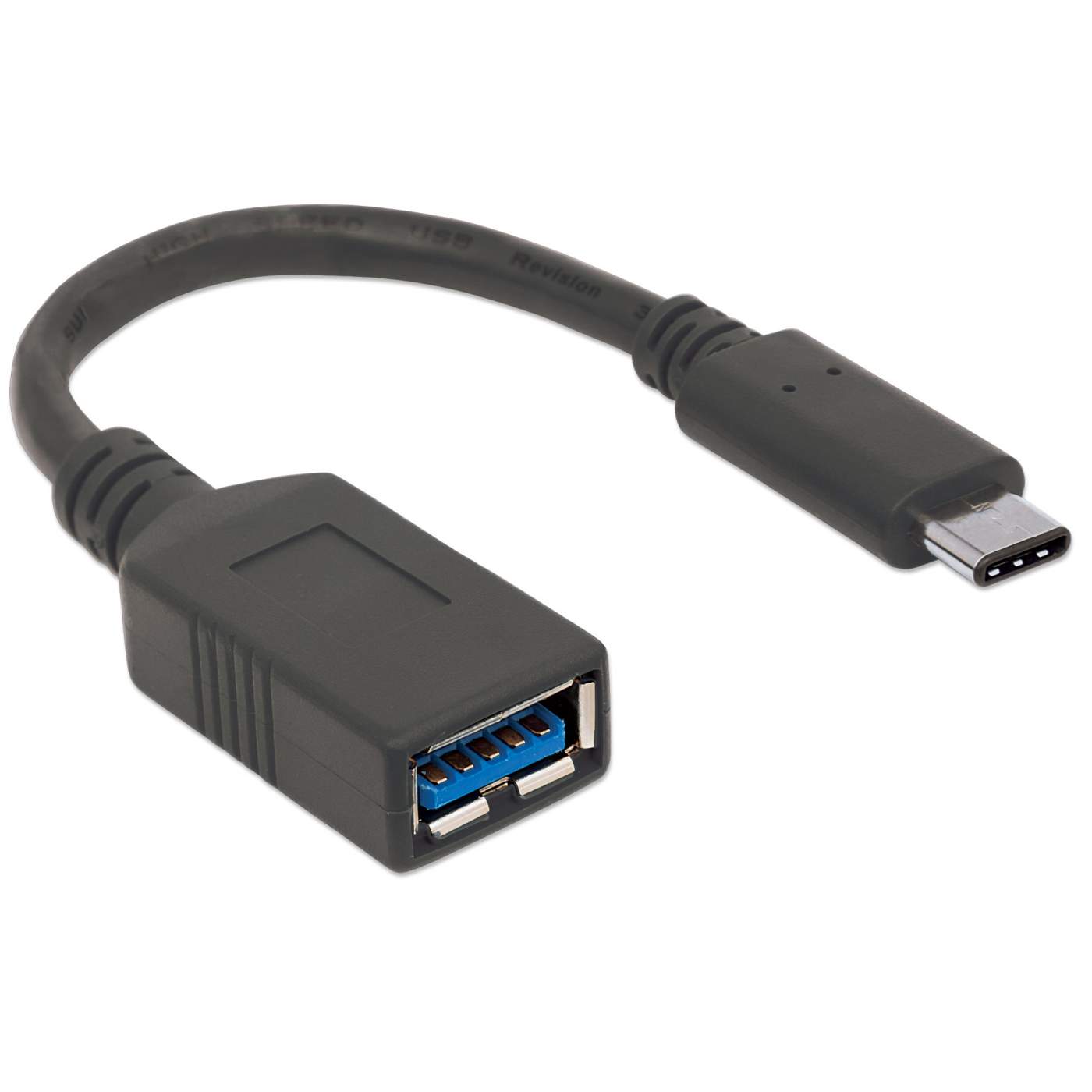

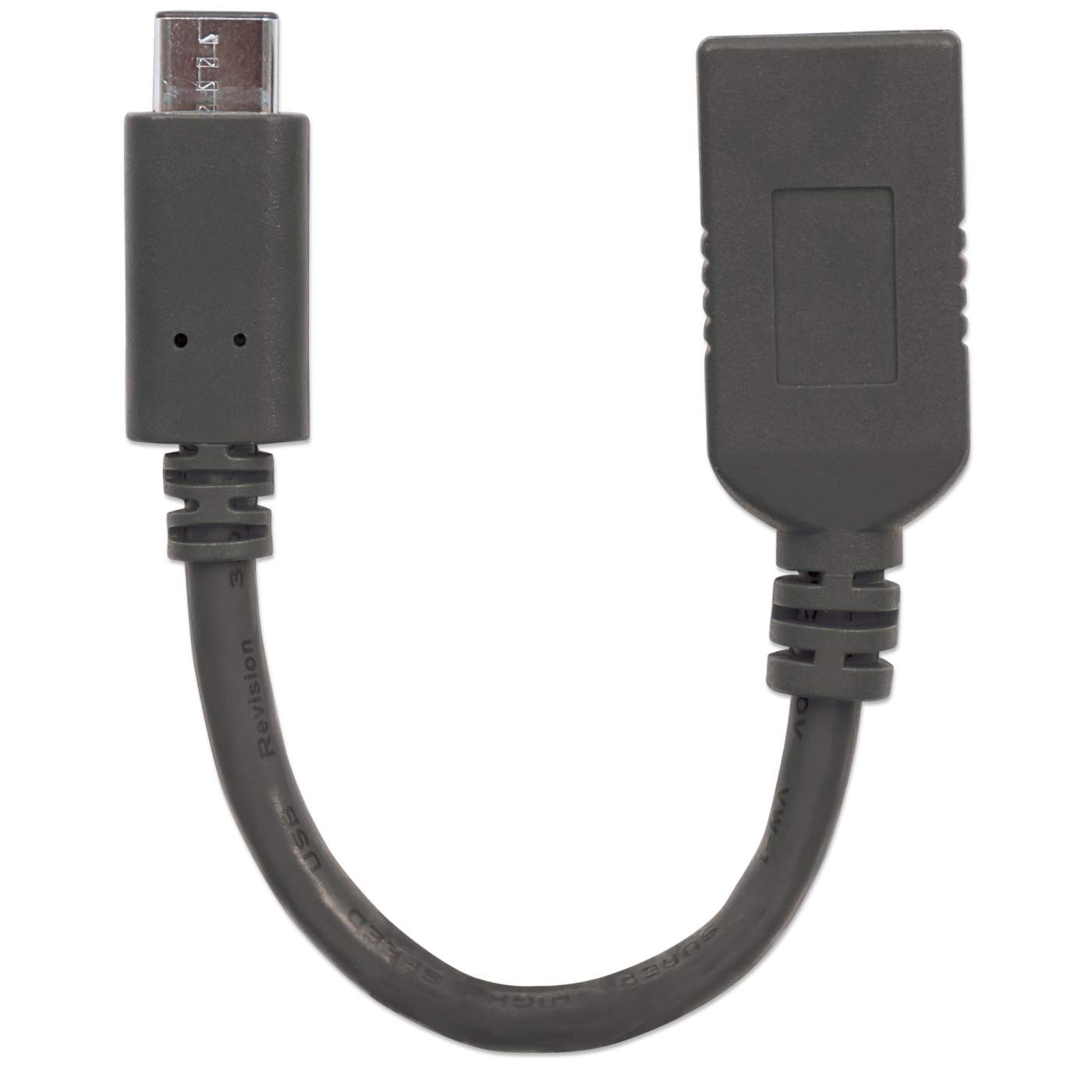

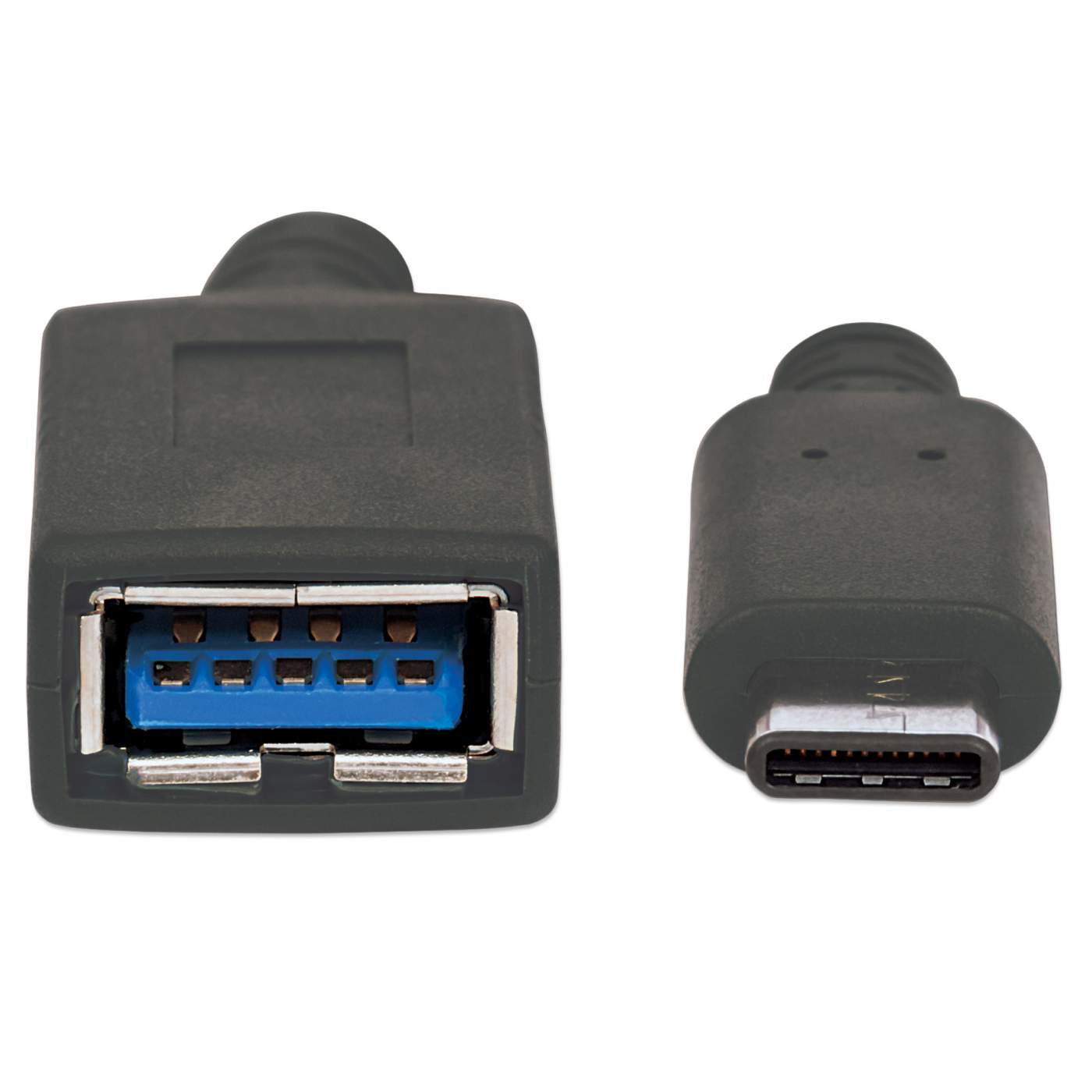

SuperSpeed USB-C Device Cable

USB 3.2 Gen 1, 5 Gbps, Type-C Male to Type-A Female, 15 cm (6 in.), USB-IF certified, Black

Part-No.: 355285

Highlights

  • USB type-C male to type-A female
  • Connects a USB 3.0 or 2.0 type-A device to a SuperSpeed type-C port
  • Supports speeds up to 5 Gbps

Future arrivals:

#
Quantity
Arrival Date
1
200
2021-06-10


The Manhattan USB-IF certified SuperSpeed Type-C Device Cable easily connects a USB type-A peripheral or accessory with a type-C device port. Ideal for use with any USB type-A plug-and-play device, this Device Cable supports full data transfer rates up to 5 Gbps on Windows and Mac systems. It provides fast, reliable transmissions and current up to 3 amps. Nickel-plated contacts, shielding and fully molded boots with strain relief help provide dependable connections, maximum conductivity and minimal data loss with reduced EMI interference.

  • USB type-C male to type-A female
  • Connects a USB 3.0 or 2.0 type-A device to a SuperSpeed type-C port
  • Supports speeds up to 5 Gbps
  • Delivers current up to 3.0 A
  • SuperSpeed USB for ultra-fast data transfer rates with zero data degradation
  • Lifetime warranty

    Standards and Certifications
  • UL 2725
  • USB 3.2 Gen 1
  • USB-IF

    General
  • Data transmission support: 5 Gbps
  • Power standard support: 3000 mA

    Connectors
  • USB-C male, 5.1k resistor
  • USB-A female
  • Nickel plated
  • Molded PVC boot

    Cable
  • 30 AWG conductors
  • Shielded
  • Withstanding voltage: 300 VDC 10 ms
  • Insulation resistance: 10 MΩ
  • Contact resistance: 2 Ω
  • Thermal plastic casing

    Physical
  • Length: 15 cm (6 in.)

    Package Contents
  • SuperSpeed Type-C Device Cable

  • Additional SKUs

    • Amazon ASIN: B07DSZ61DC
    • EAN: 0766623355285
    • UPC: 766623355285

  • Physical Specifications

    • Weight: 0.02 kg
    • Dimensions: 150 (L) x 16 (W) x 10 (H) [mm]
    • Packaging: Bag
    • Carton Quantity: 200
    • Carton Weight: 4.30 kg

  • Datasheet
