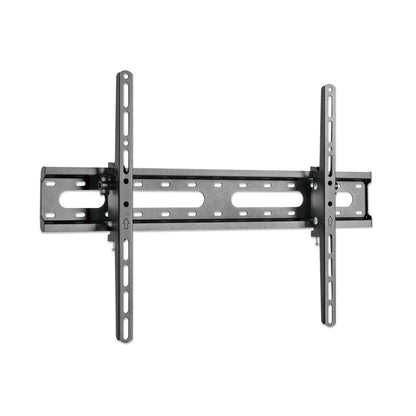

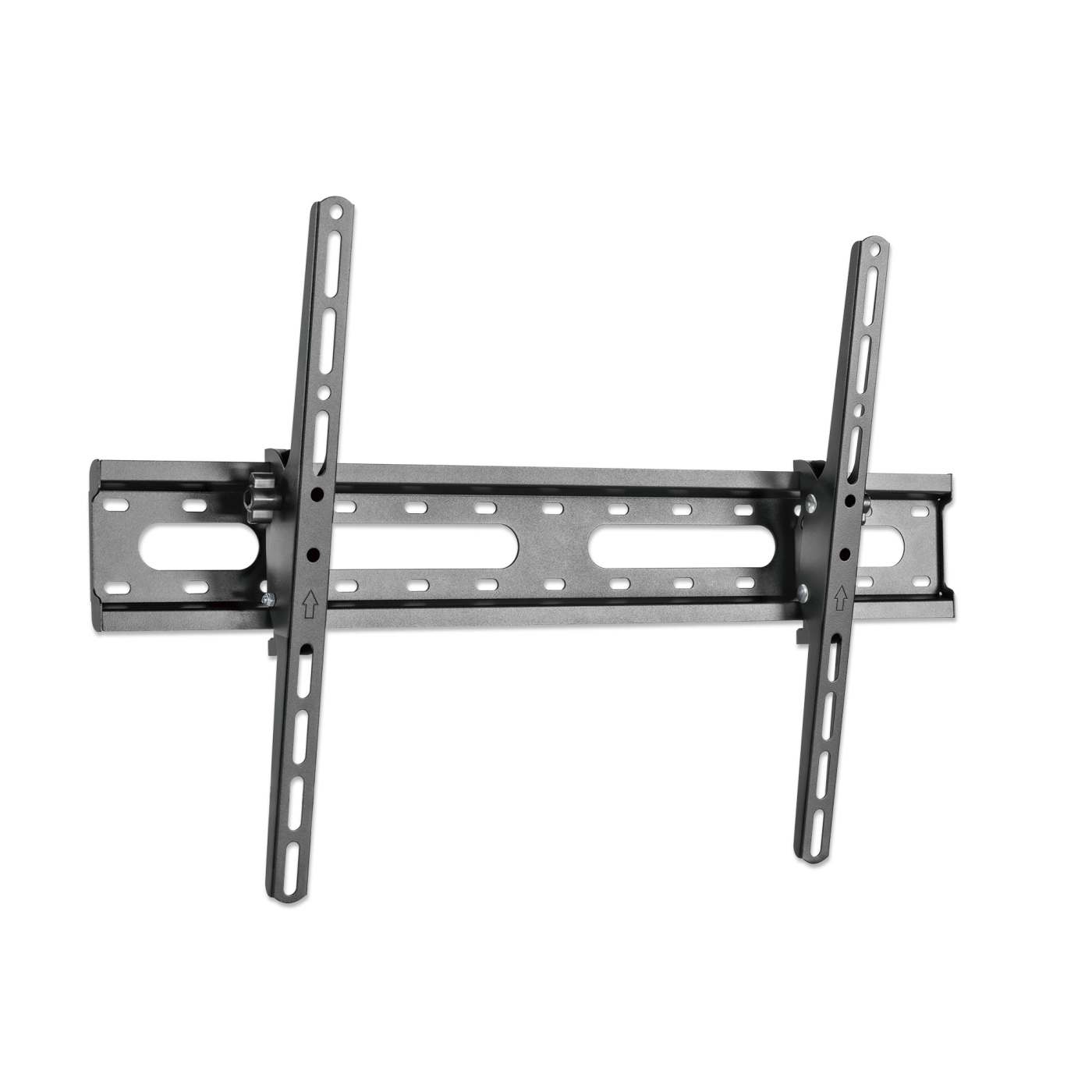

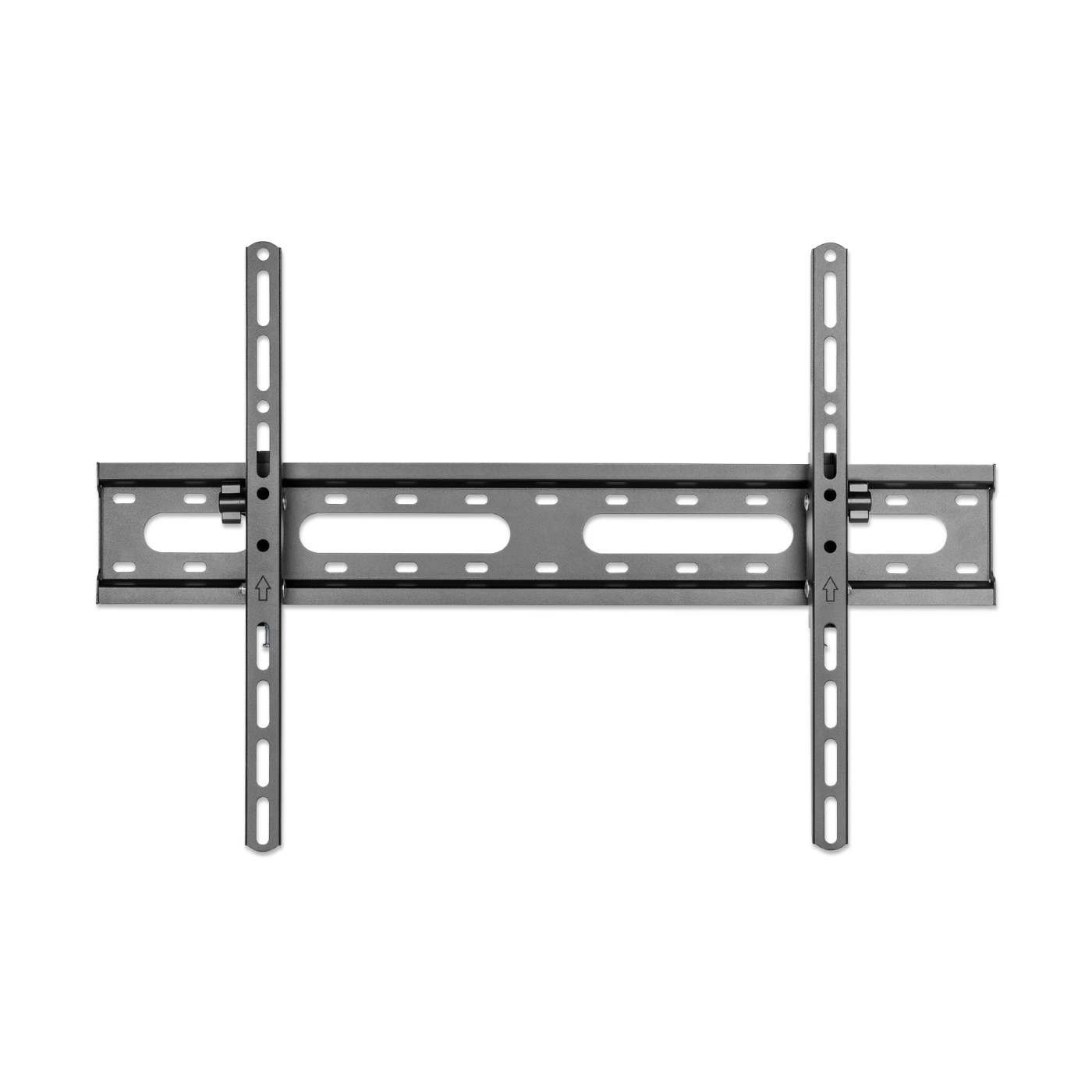

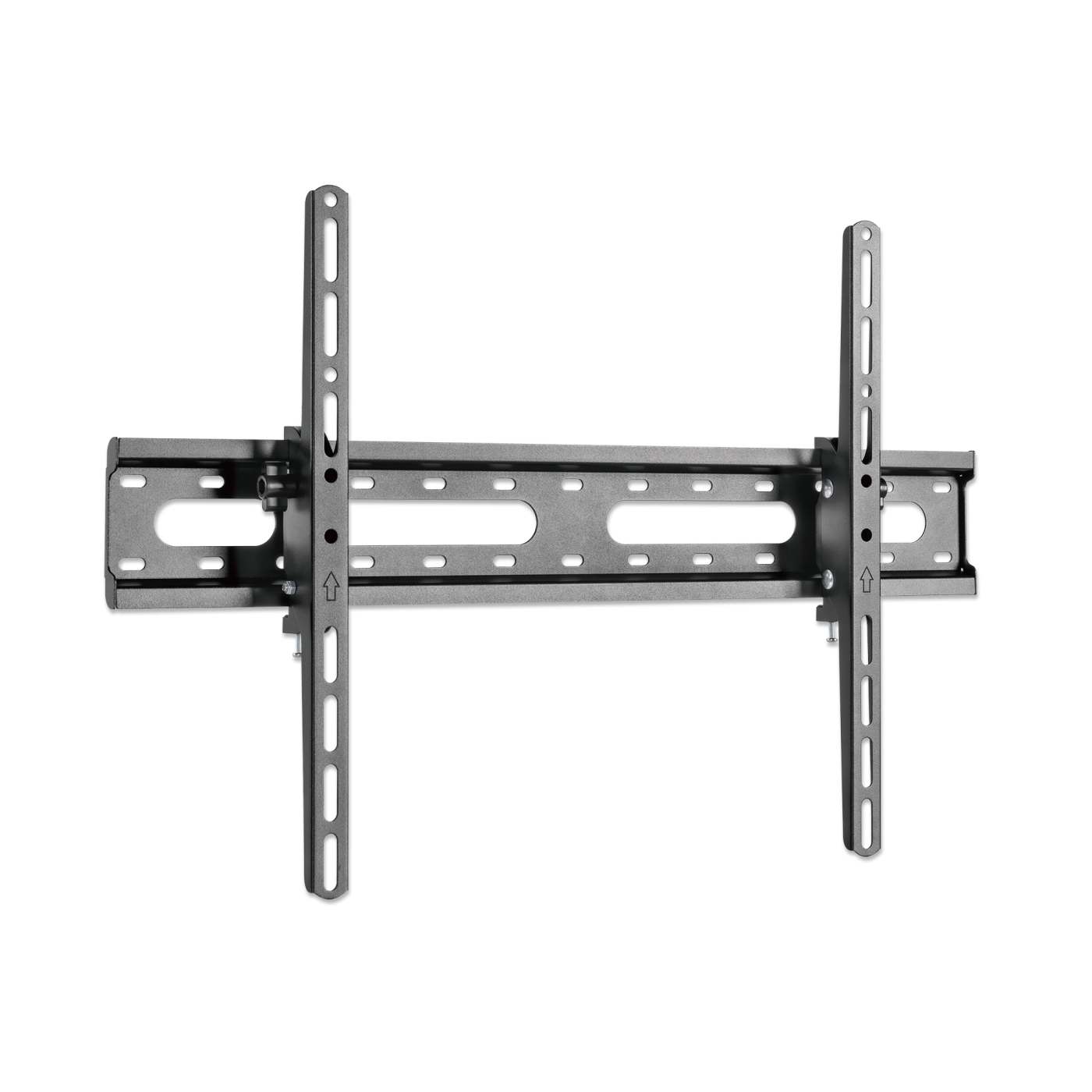

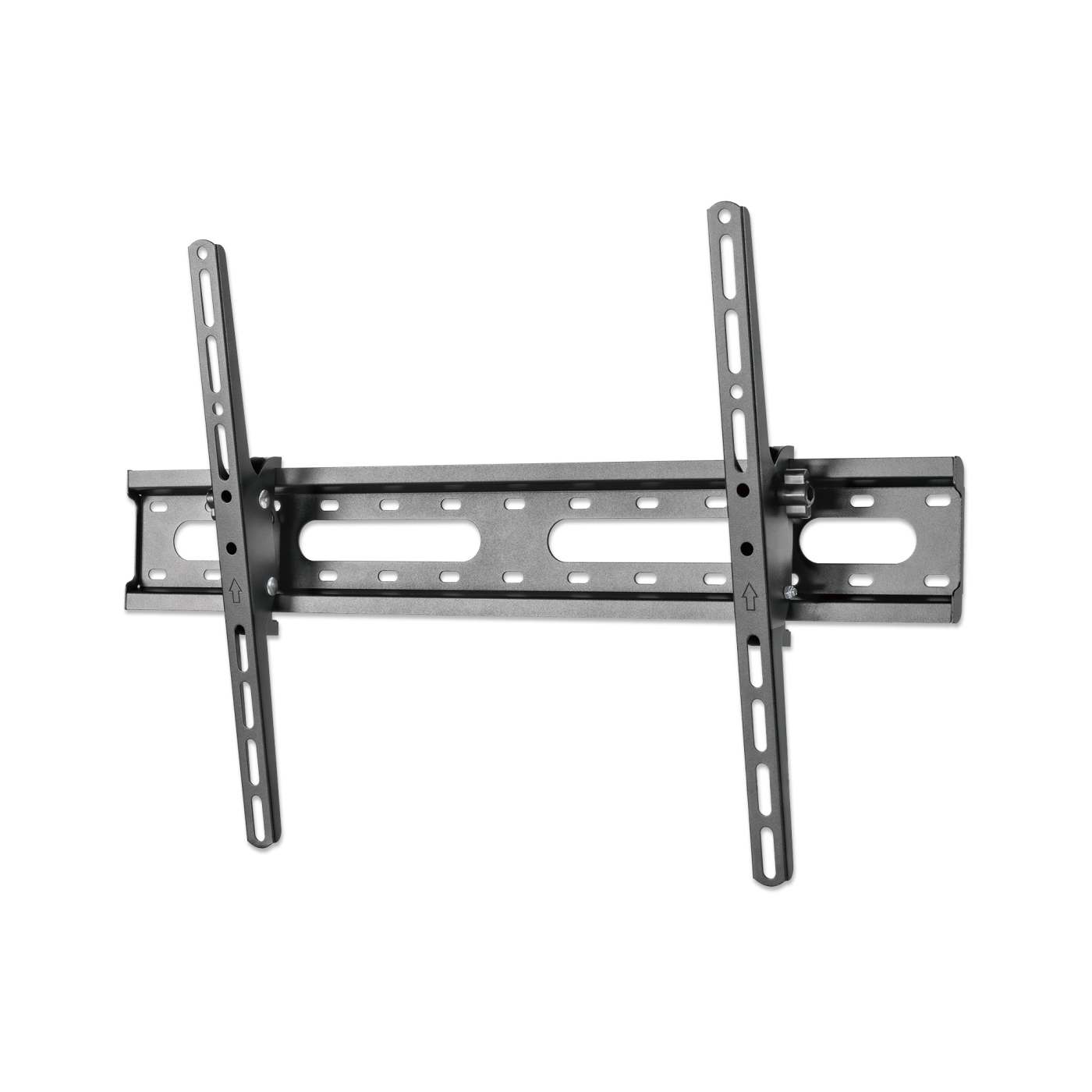

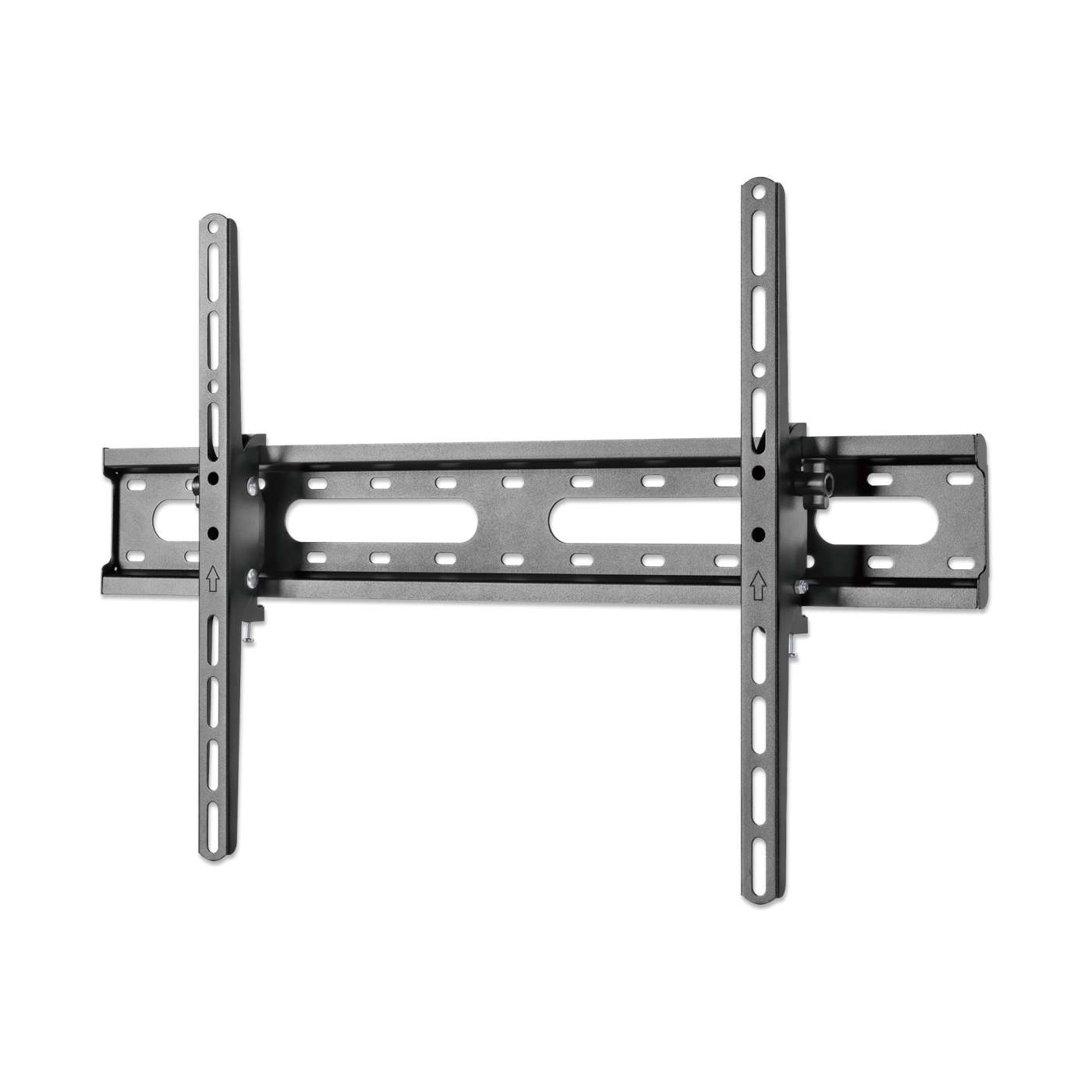

TV Tilting Wall Mount - an adjustable mounting bracket that puts displays in the right perspective and avoids annoying glare
The Manhattan Tilting TV Wall Mount safely holds your TV and offers a tool-free -12 to 12° tilt adjustment with the turn of a knob for optimized views. Constructed of high-quality, powder-coated steel, it fits flat and curved LCD, LED or plasma TVs up to 70" and weighing up to 45 kg (100 lbs.). This TV mount offers VESA compliance up to 600x400, and it's great for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
- Supports one 37" to 70" TV up to 45 kg (100 lbs.)

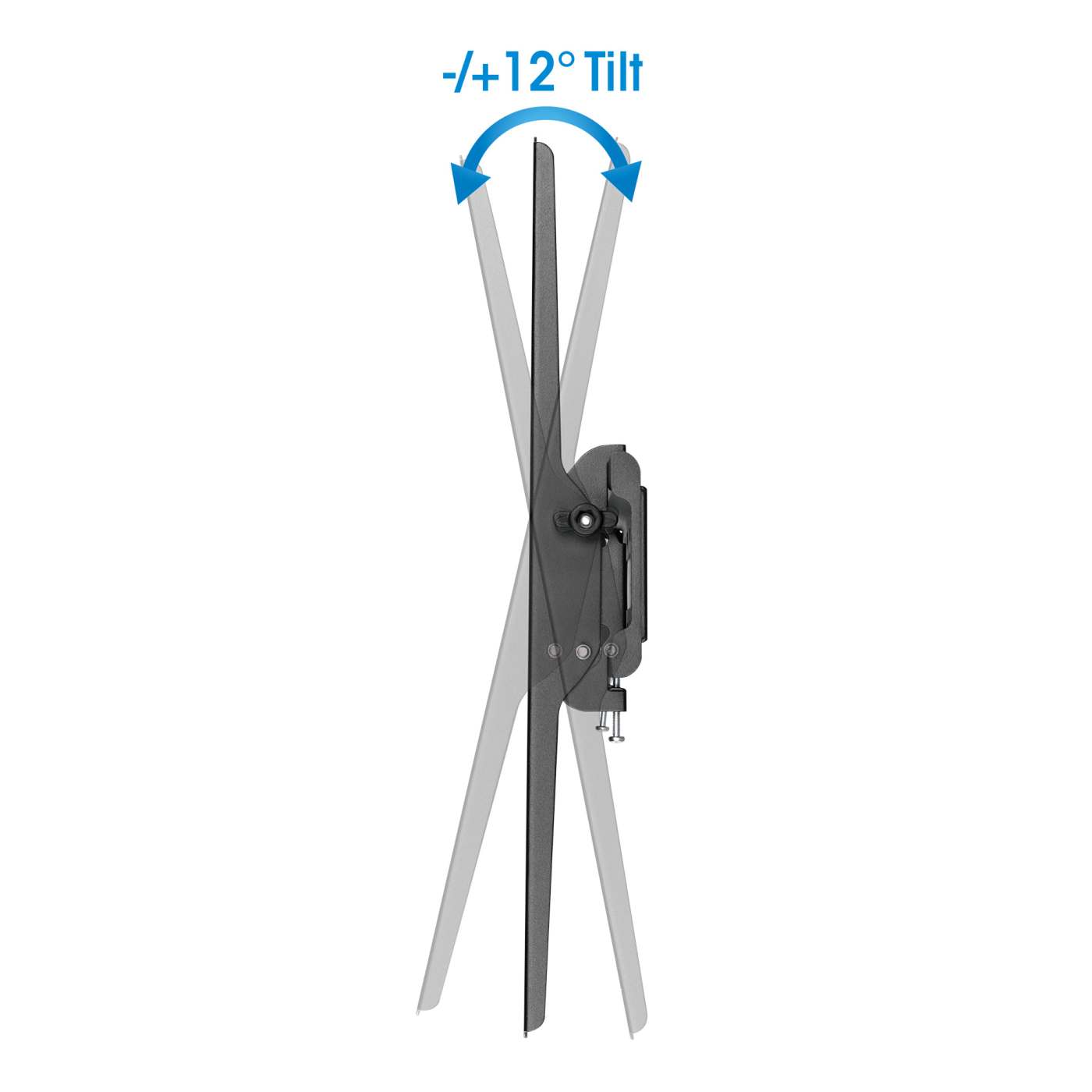

- Optimized views with -12 to 12° tilt and tool-free adjustment

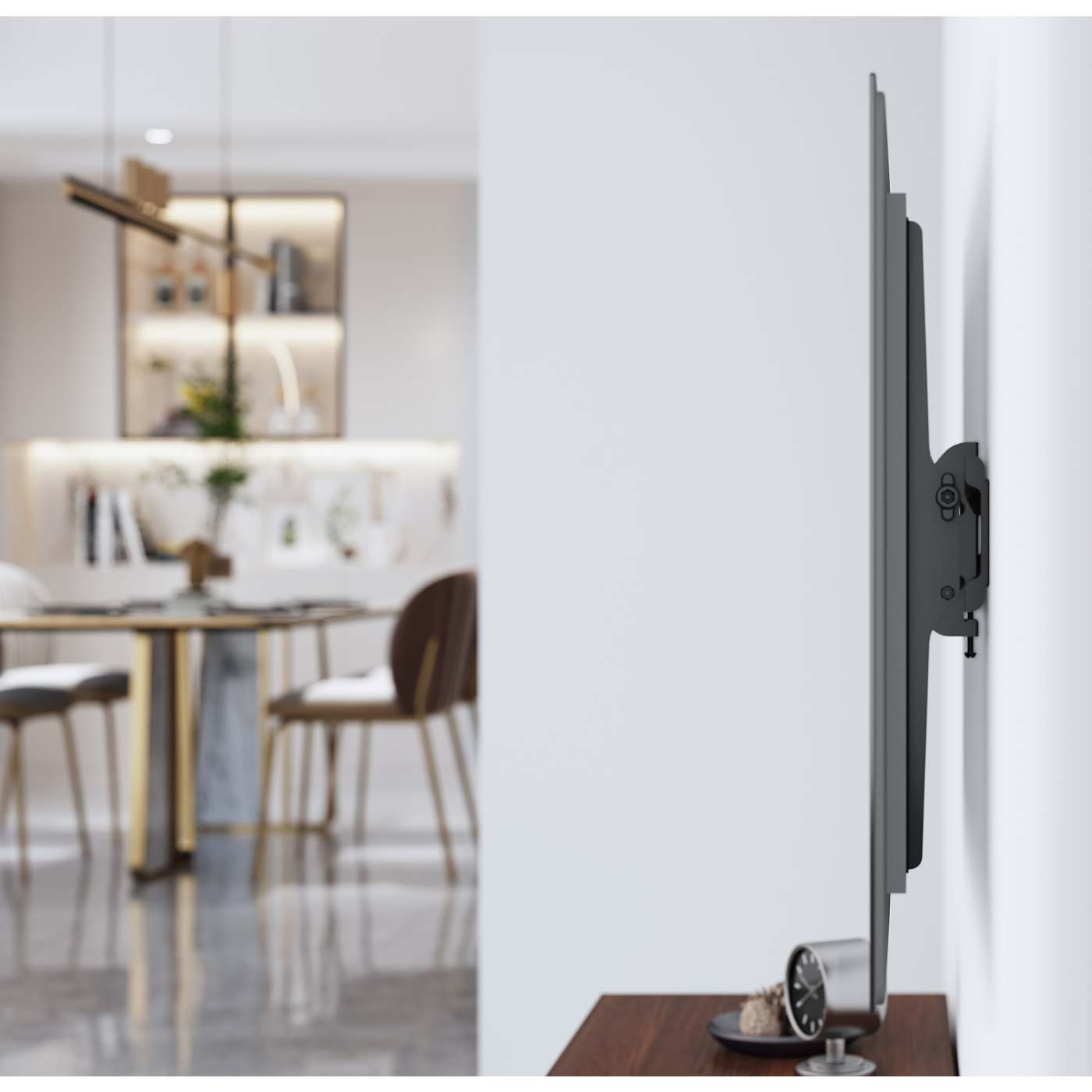

- Holds TV only 53 mm (2 in.) from wall
- Heavy-duty steel construction with powder coating
- Includes attachable bubble level

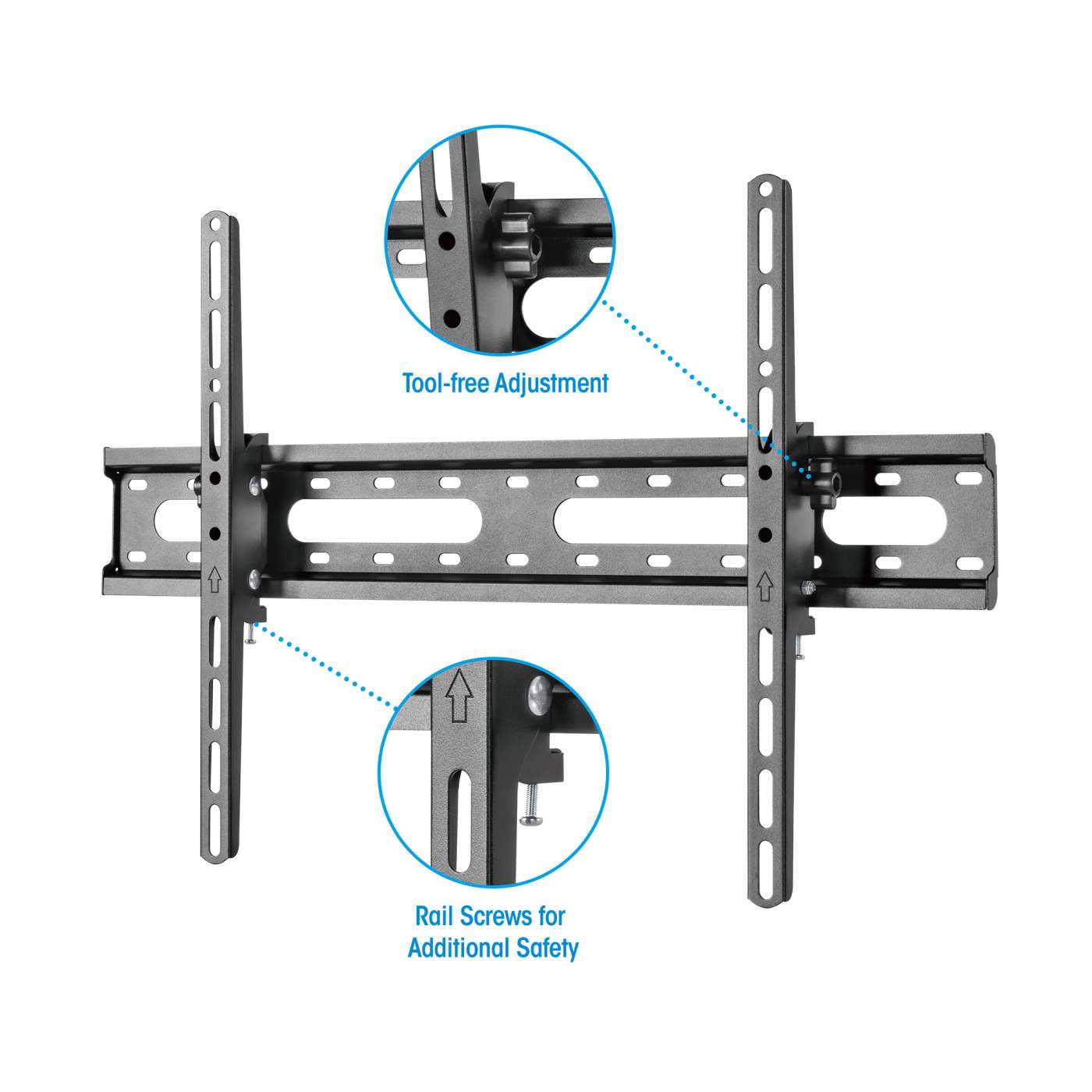

- Rail screws to hold the TV in place for an additional layer of safety
- Meets VESA standards 200x200 to 600x400 e.g. 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400
- Lifetime warranty
- General
- Certifications: RoHS
- Designed for most 37" - 70" flat and curved screens
- Weight capacity: 45 kg (100 lbs.)

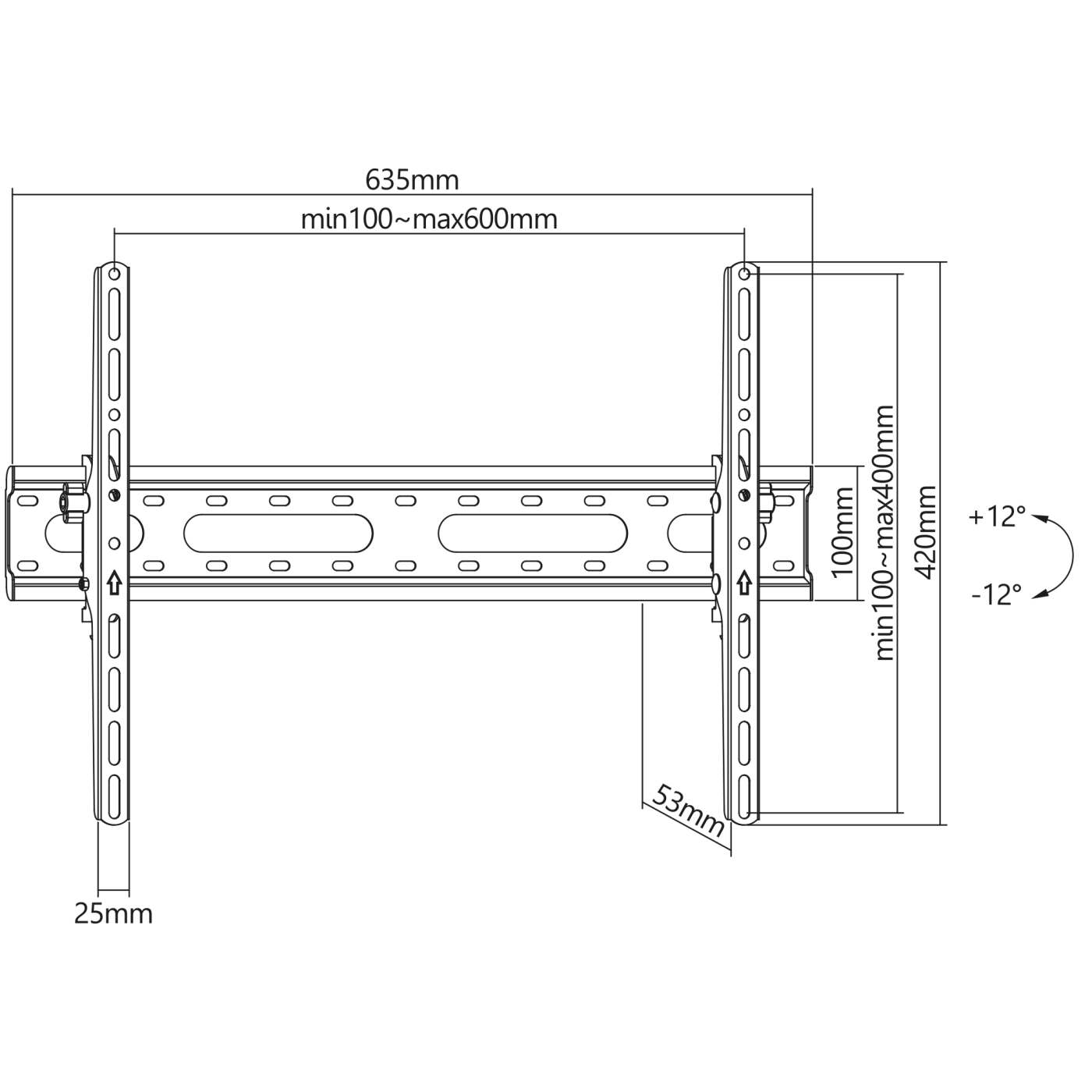

- Dimensions (L x W x H): 420 x 663 x 53 mm (16.54 x 26.1 x 2.09 in.)
- Net weight: 1.45 kg (3.2 lbs.)
- Gross weight: 1.62 kg (3.57 lbs.)
- Material: steel
- VESA standards: 200x200 to 600x400 e.g. 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400
Package Contents
- Tilting TV Wall Mount
- Attachable bubble level
- Installation hardware with instructions
Additional SKUs
- EAN: 0766623462280
- UPC: 766623462280
Physical Specifications
- Product net weight: 1.45 kg
- Product gross weight: 1.62 kg
- Dimensions: 420 (L) x 663 (W) x 53 (H) [mm]
- Packaging type: Retail Box
- Packaging dimensions: 650 x 105 x 50 [mm]
- Master Carton Quantity: 10
- Master Carton Weight: 17.70 kg
- Master Carton Dimensions: 670 x 230 x 285 [mm]
