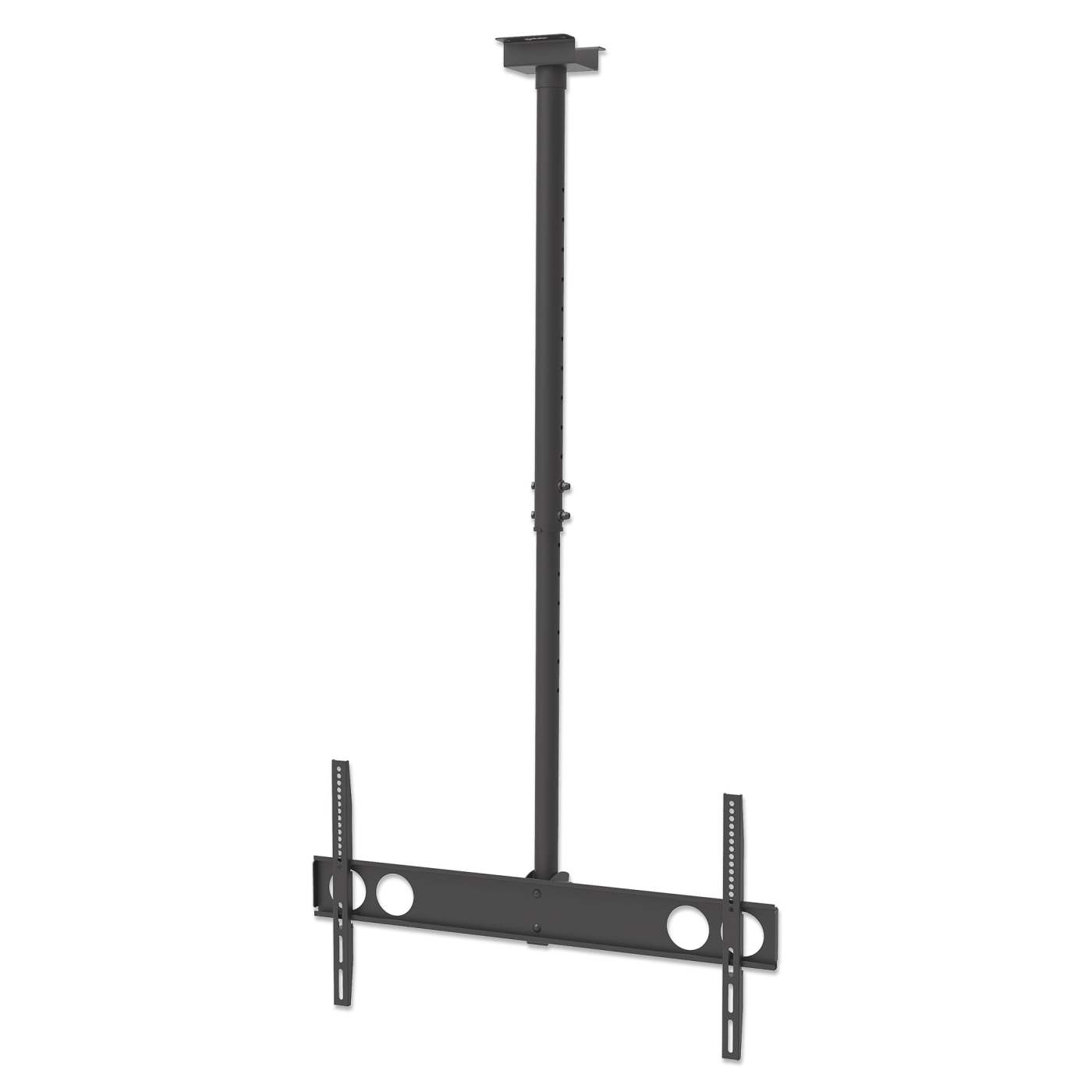

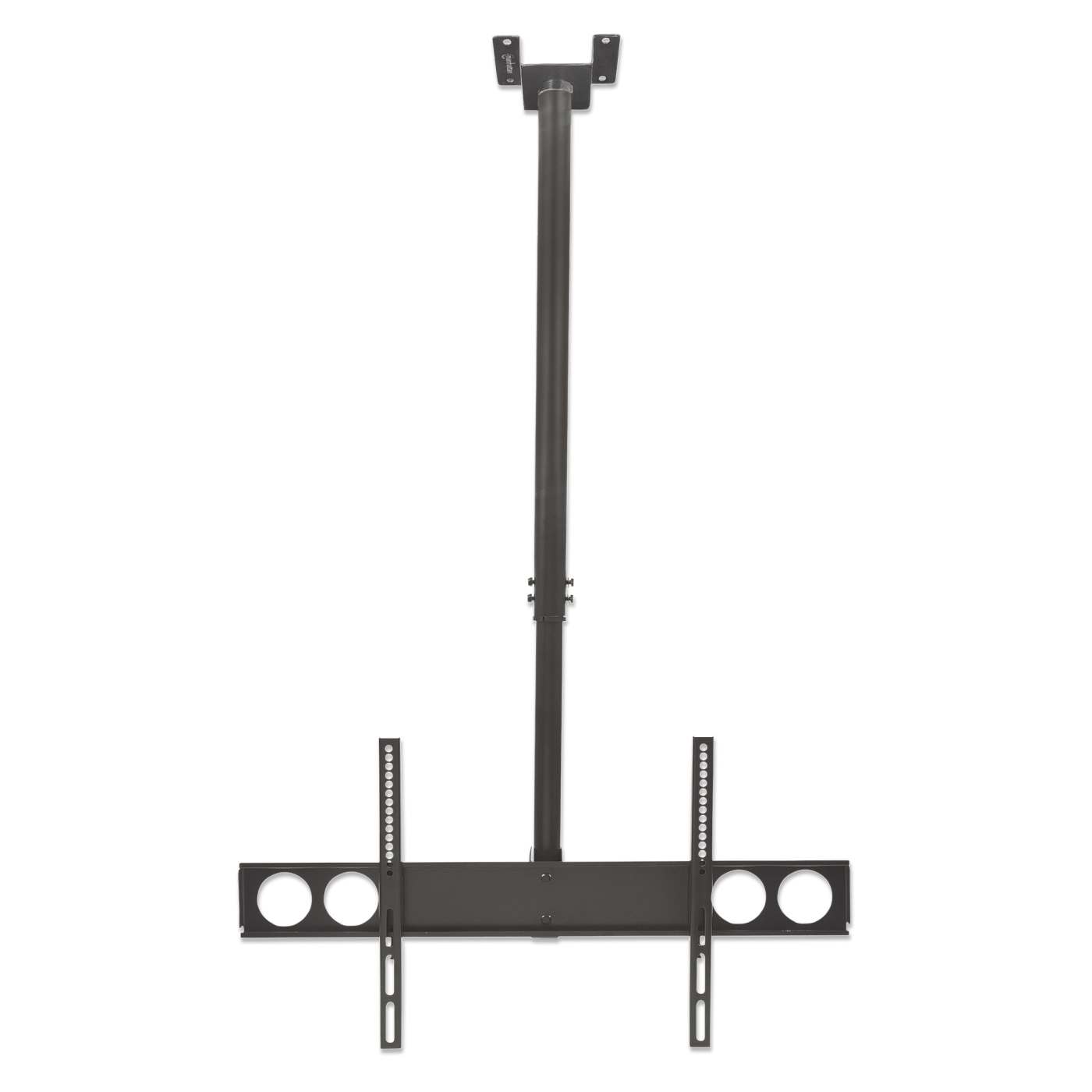

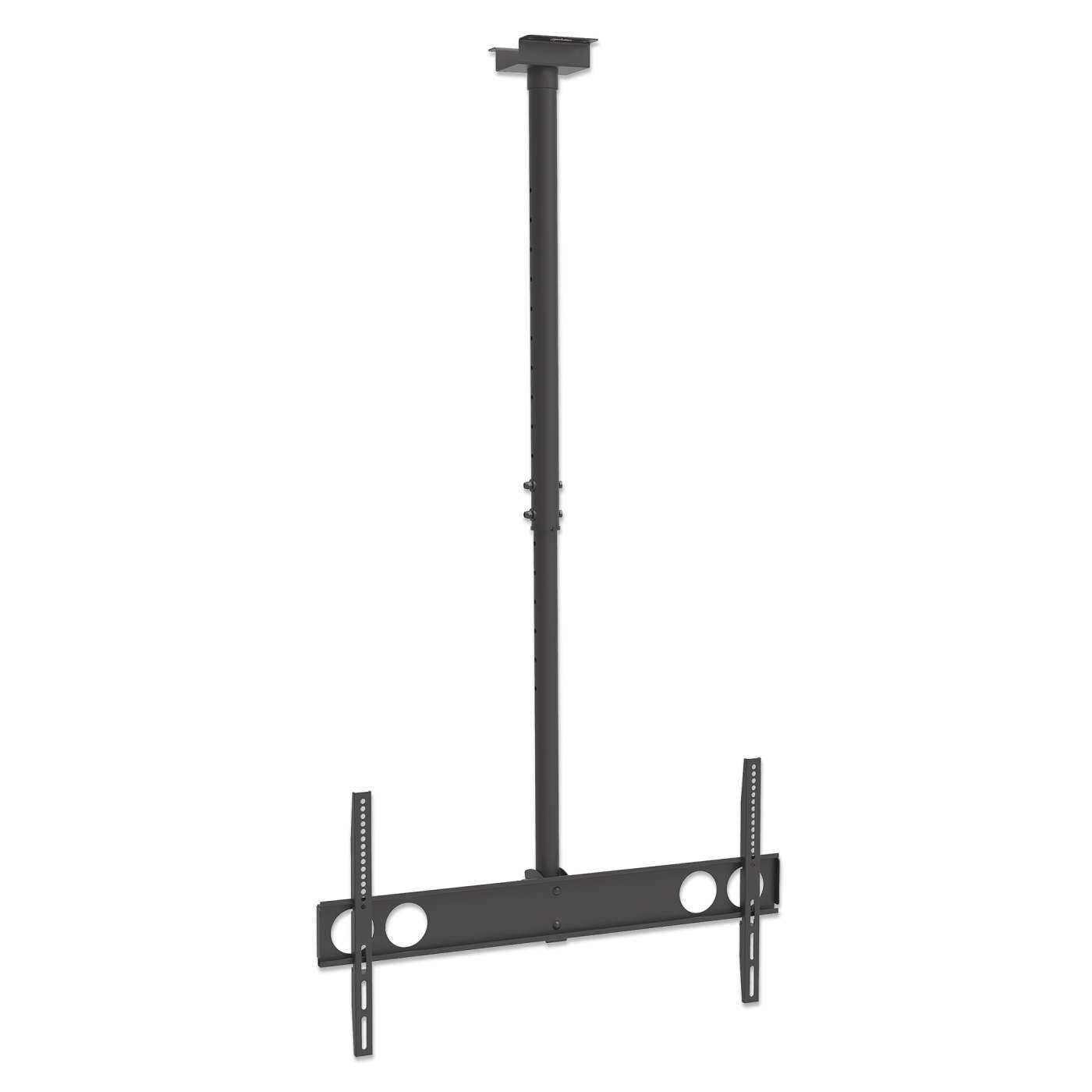

Universal Flat-Panel TV Ceiling Mount

Holds One 37" to 70" Television up to 50 kg (110 lbs.), 0° to -15° Tilt, 360° Swivel, Telescopic Pole Extends 1050 to 1560 mm (41 to 61 in.), Black

Part-No.: 423625

Highlights

  • Securely holds one flat-panel television
  • Optimize views with 0° to -15° tilt and 360° swivel adjustments
  • Heavy-duty steel construction


Elevate and telescope flat-panel TV experiences to higher levels

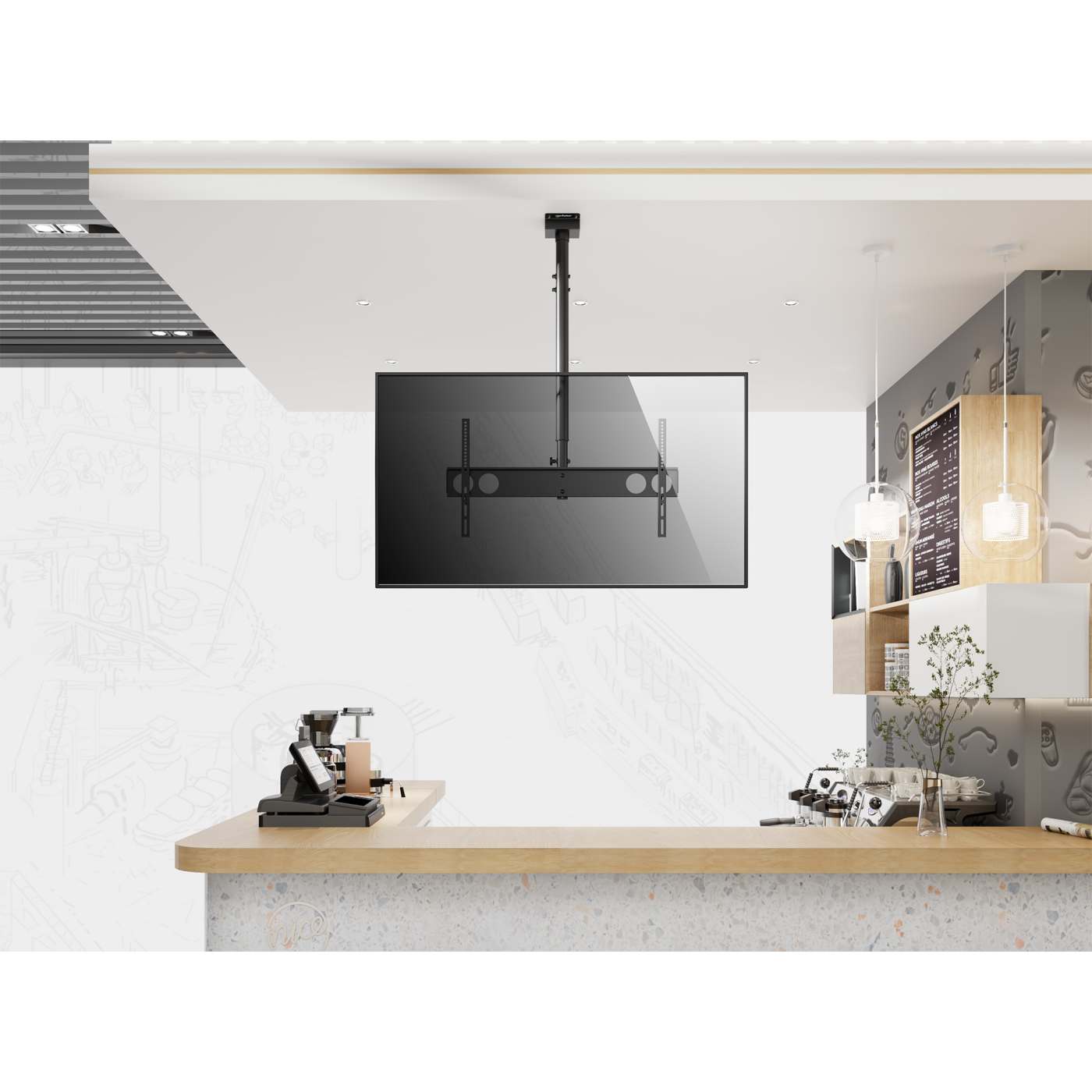

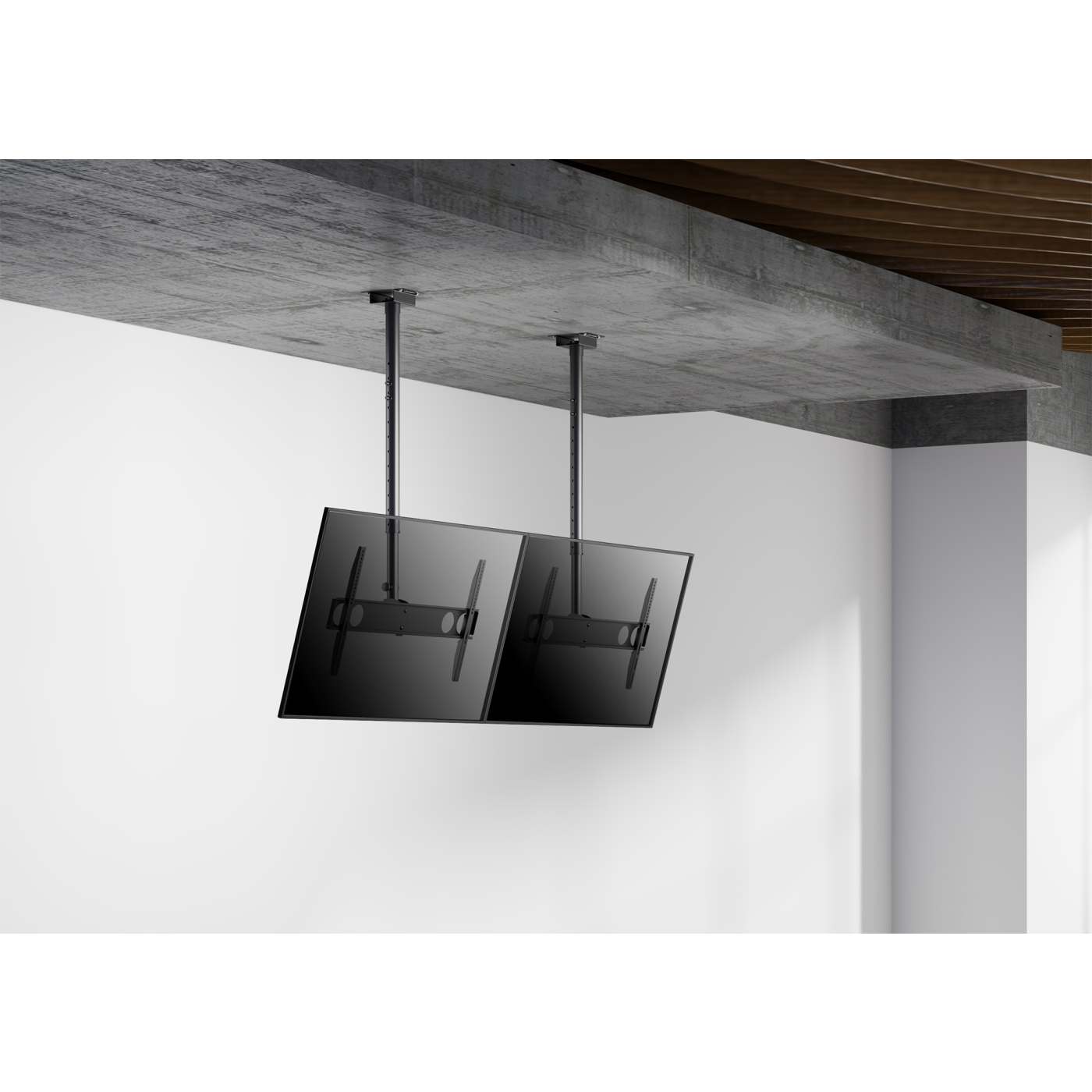

Upgrade viewing perspectives when wall and floor space is limited or low-level installations are impractical. Manhattan Universal Flat-Panel TV Ceiling Mounts help achieve optimal viewing angles from almost anywhere in the room with precise tilt, 360° swivel and height adjustments that keep images, contrasts and colors clear, sharp and defined. VESA-compliant and constructed of quality materials, Manhattan Universal Flat-Panel TV Ceiling Mounts fit a range of display sizes with a secure and confident overhead installation. An integrated locking system provides added security against theft. Ideal for residential, office, retail, hospitality, classroom, digital signage, video conferencing, surveillance and other commercial applications, Manhattan Universal Flat-Panel TV Ceiling Mounts bring high-performance LCD, LED or plasma TV enjoyment front and center.

  • Securely holds one 37" to 70" flat-panel television up to 50 kg (110 lbs.)
  • Optimize views with 0° to -15° tilt and 360° swivel adjustments
  • Extension pole adjusts 105 to 156 cm (41 to 61 in.)
  • Heavy-duty steel construction
  • Easy installation ideal for home, office and commercial applications

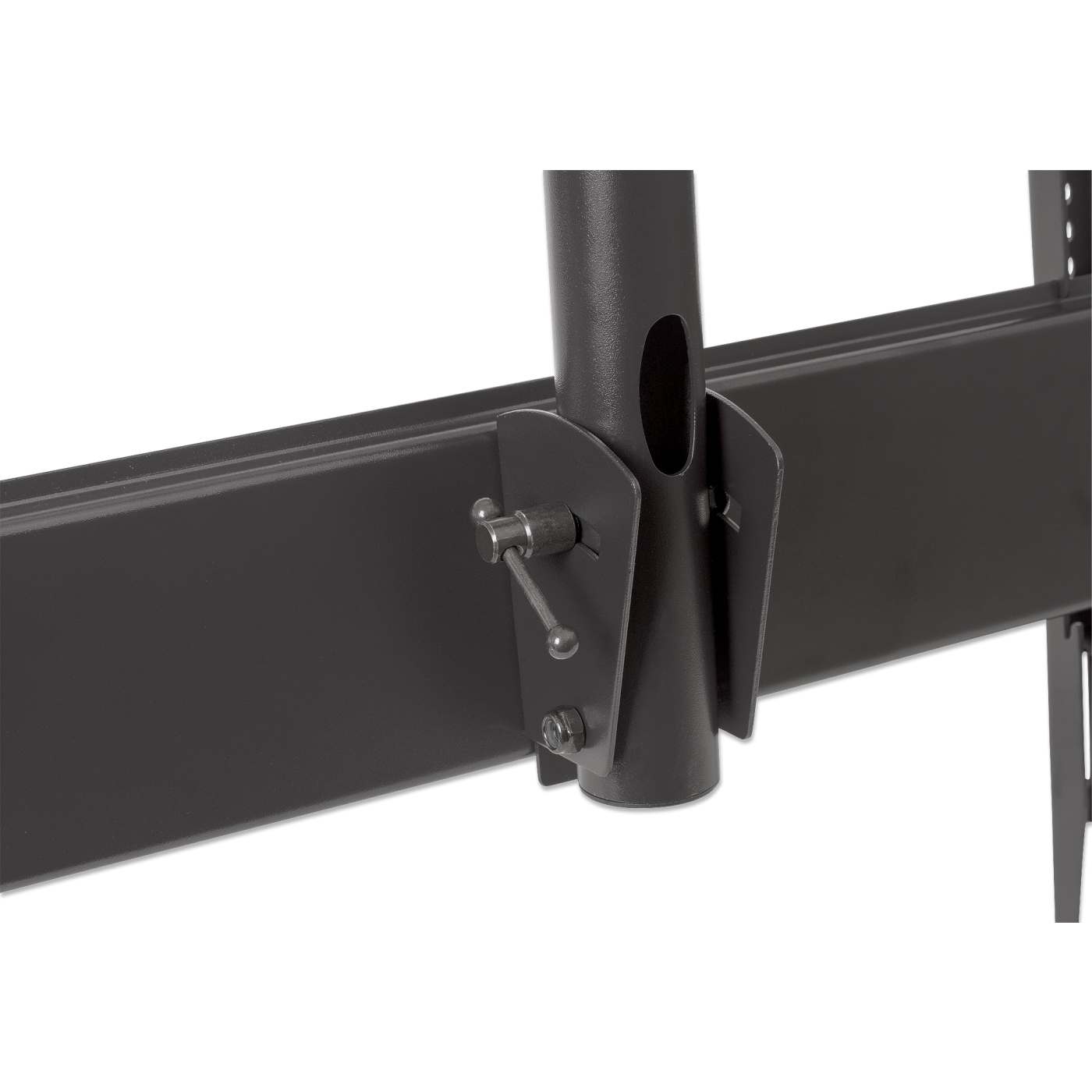

  • Built-in security locking system protects against theft
  • Meets VESA standards: 200x200, 400x200, 300x300, 400x400, 600x400, 800x400
  • Lifetime Warranty

  • Fits a 200x200, 400x200, 300x300, 400x400, 600x400, 800x400 VESA-compliant television
  • Weight capacity: up to 50 kg (110 lbs.)

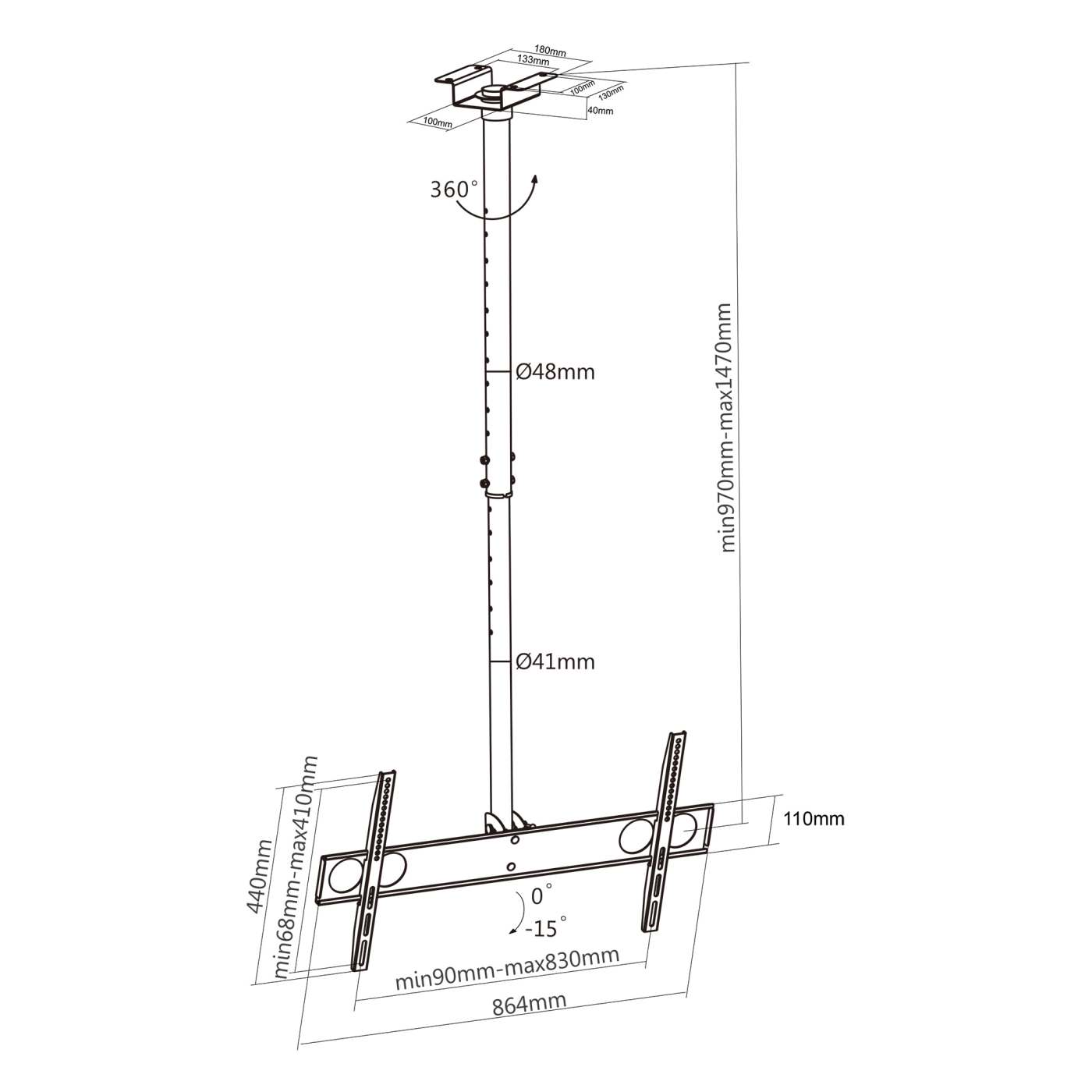

  • Dimensions: 130 (L) x 864 (W) x 1675 (H) [mm] / 5.12 (L) x 34.02 (W) x 65.94 (H) [in]
  • Extension pole: adjusts 105 to 156 cm (41 to 61 in.)

    Package Contents
  • Universal Flat-Panel TV Ceiling Mount
  • Installation hardware with instructions

  • Additional SKUs

    • Amazon ASIN: B005A1F7CK
    • EAN: 0766623423625
    • UPC: 766623423625
    • ALSO: 1702591
    • API: 89975

  • Physical Specifications

    • Weight: 6.74 kg
    • Dimensions: 130 (L) x 864 (W) x 1675 (H) [mm]
    • Packaging: Retail Box
    • Carton Quantity: 1
    • Carton Weight: 7.75 kg

  • Datasheet


  • Manual

    • Quick Instruction Guide     » Download
