Universal Flat-Panel TV Full-Motion Wall Mount

Single Arm Supports One 32" to 55" Television up to 50 kg (110 lbs.)

Part-No.: 461252

Highlights

  • Securely holds one flat-panel or curve television
  • Optimize views with -20° to 10° tilt and 180° swivel adjustment
  • Extends TV up to 47.5 cm (18.7 in.) from wall

Future arrivals:

#
Quantity
Arrival Date
1
471
2021-07-07
2
300
2021-07-07
3
300
2023-05-18


A TV wall mount to fit almost any space

Overcome an odd floor plan, annoying glare or awkward furniture placement that can limit the enjoyment of your flat-panel TV. The Manhattan Universal Flat-Panel TV Full-Motion Wall Mount offers precise adjustments to keep images, contrasts and colors clear, sharp and defined. VESA-compliant and constructed of quality materials, this articulating wall mount fits a range of display sizes for a secure and confident above-the-floor TV installation. It's the perfect fit for mounting a TV in your living room, bedroom or den, as well as for commercial uses in hotels, classrooms, conference rooms, for digital signage and more. Wherever you install it, the Manhattan Universal Flat-Panel TV Full-Motion Wall Mount puts the best TV viewing experience front and center.

  • Securely holds one flat-panel or curve television
  • Optimize views with -20° to 10° tilt and 180° swivel adjustment
  • Extends TV up to 47.5 cm (18.7 in.) from wall
  • Heavy-duty steel construction
  • Easy installation ideal for home, office and commercial applications
  • Meets VESA standards – supports TVs from 32" to 55" up to 50 kg (110 lbs.)
  • Lifetime warranty

  • Fits a 200 x 200, 400 x 200, 300 x 300, 400 x 400 VESA-compliant television
  • Weight capacity: up to 50 kg (110 lbs.)
  • Level adjustment: ±3°
  • Extends 62 to 475 mm (2.4 – 18.7 in.)

    Package Contents
  • Universal TV Full-Motion Wall Mount
  • Installation hardware with instructions

  • Additional SKUs

    • Amazon ASIN: B0711MX13M
    • EAN: 0766623461252
    • UPC: 766623461252
    • ALSO: 2888882
    • API: 238624

  • Physical Specifications

    • Weight: 5.34 kg
    • Dimensions: 62 (L) x 480 (W) x 430 (H) [mm]
    • Packaging: Retail Box
    • Carton Quantity: 3
    • Carton Weight: 17.34 kg

  • Datasheet

    • Datasheet     » Download

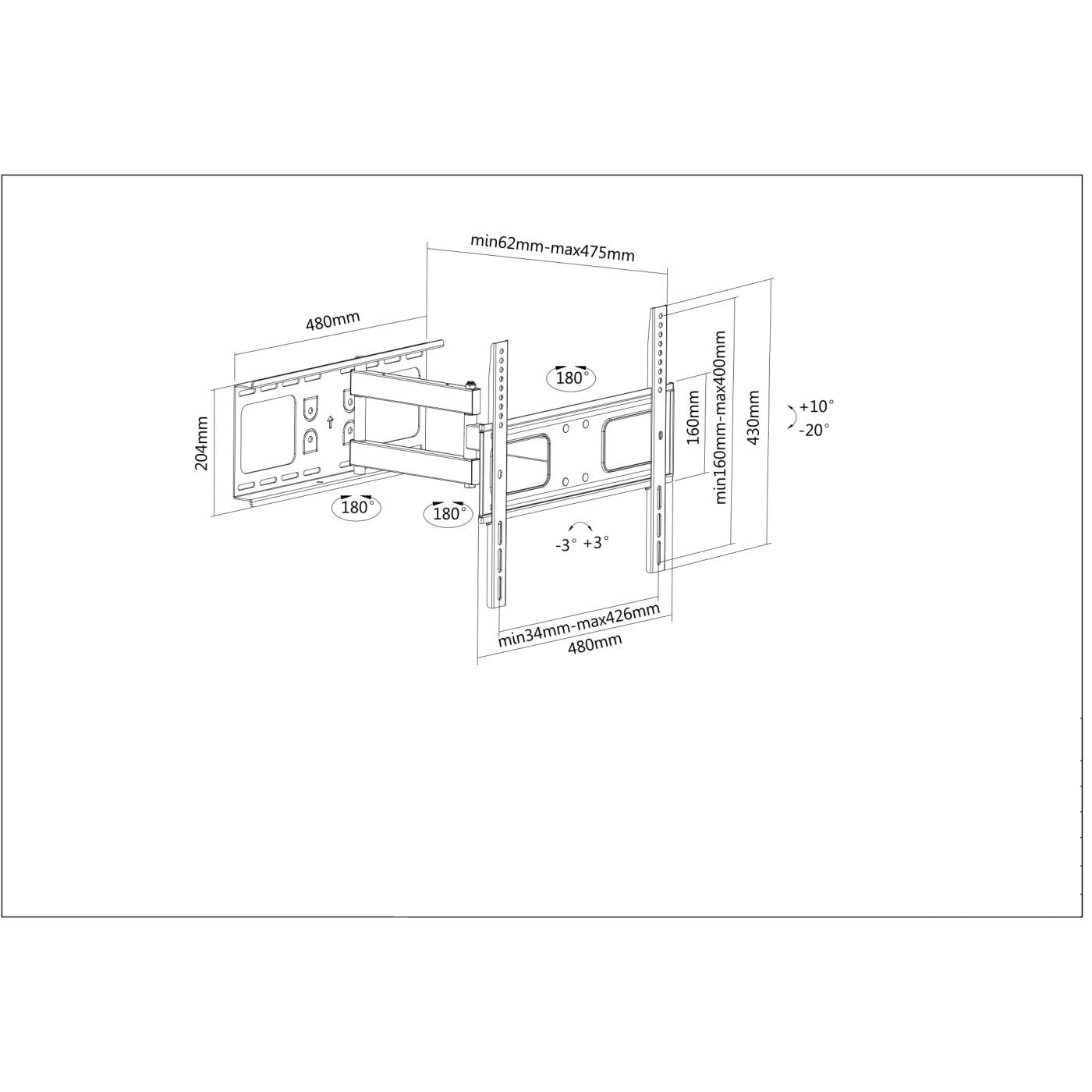

    • Technical Drawing and Datasheet     » Download


  • Manual

    • Quick Instruction Guide     » Download
