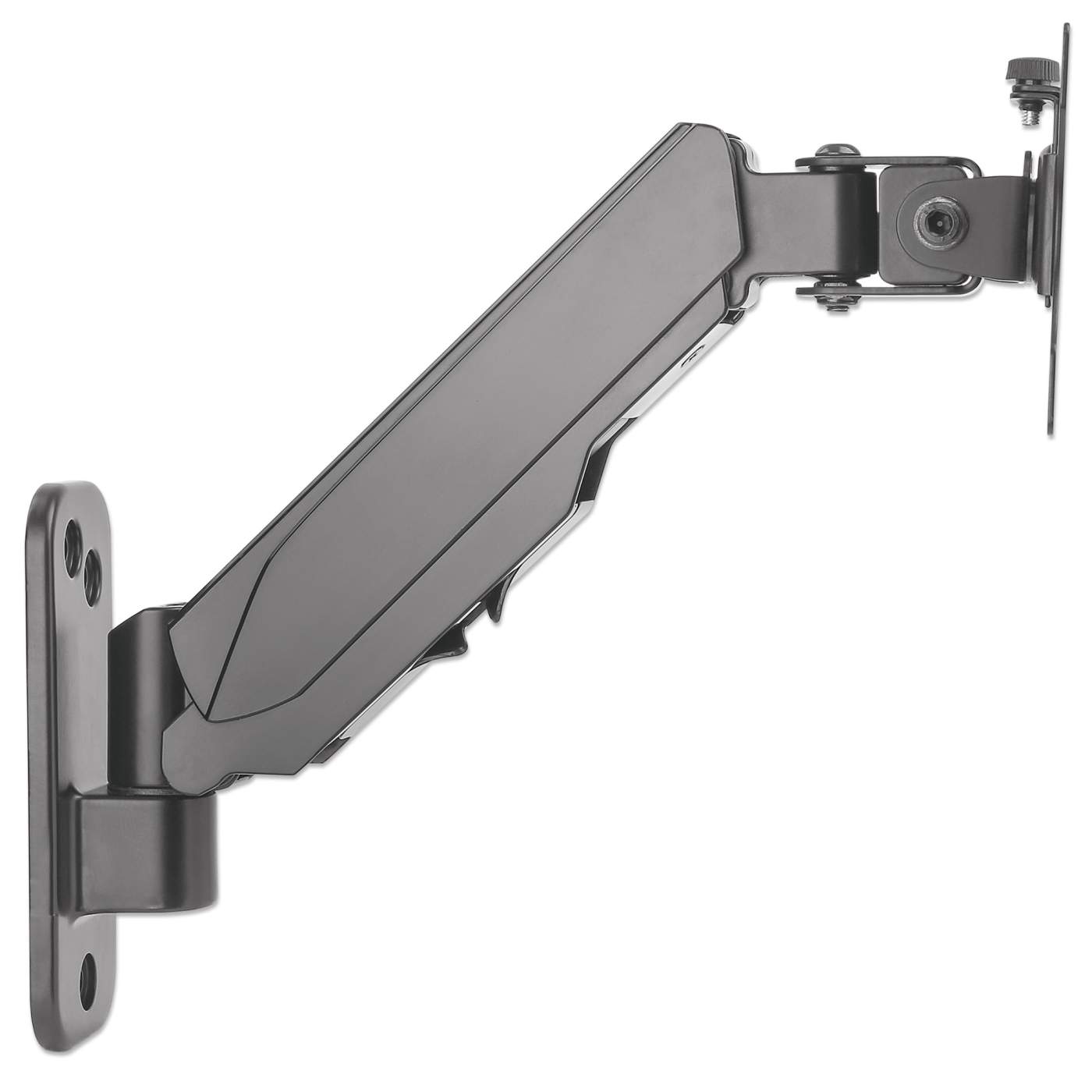

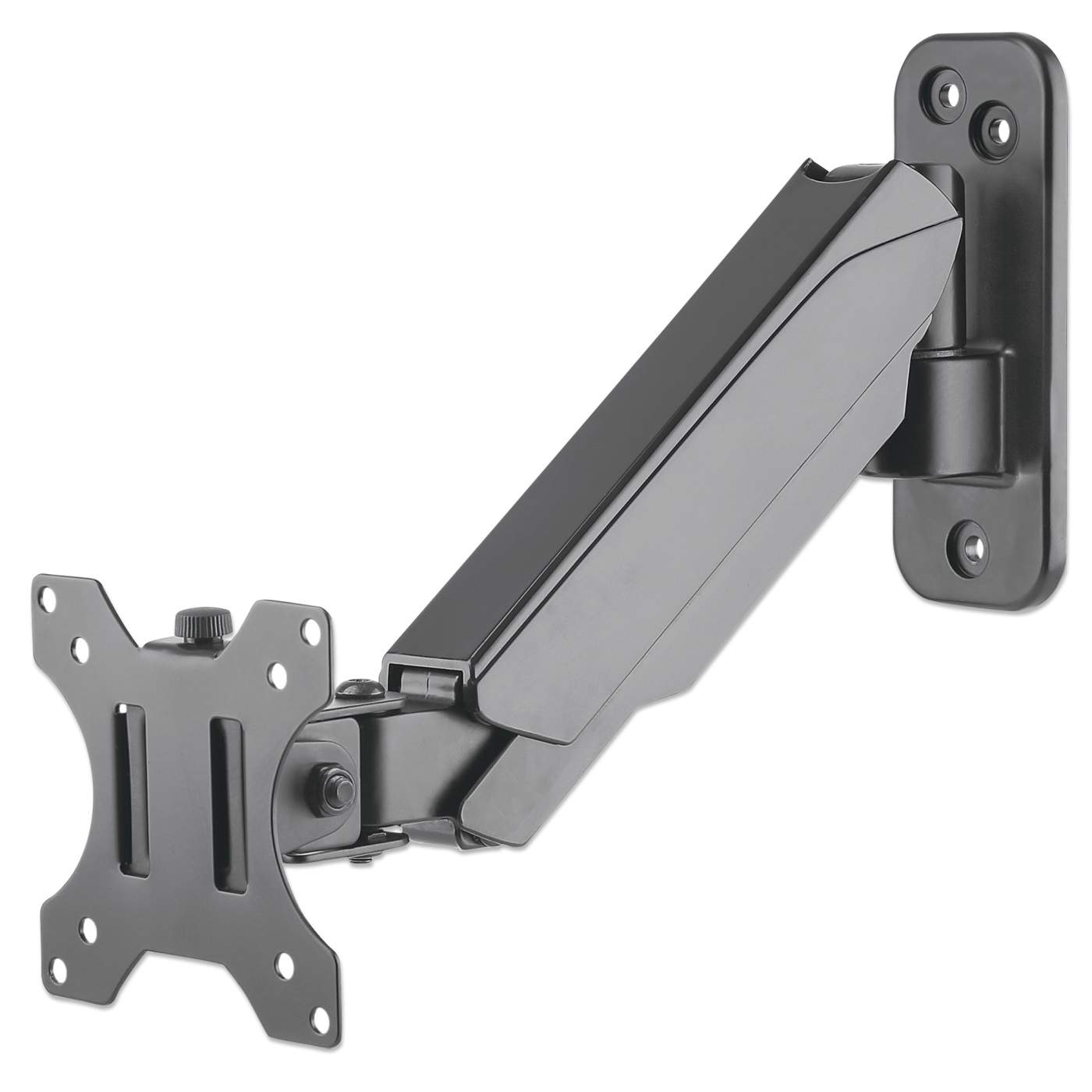

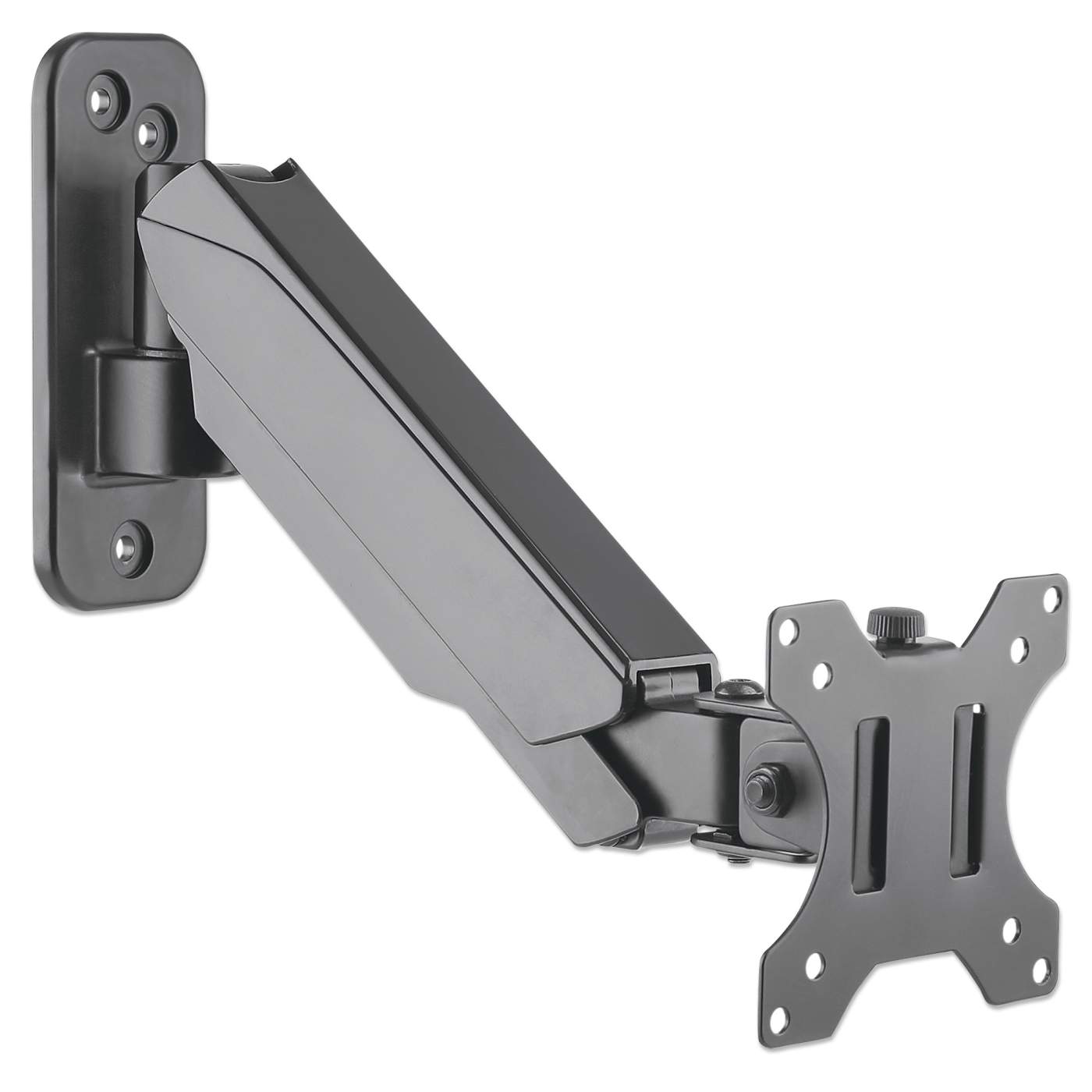

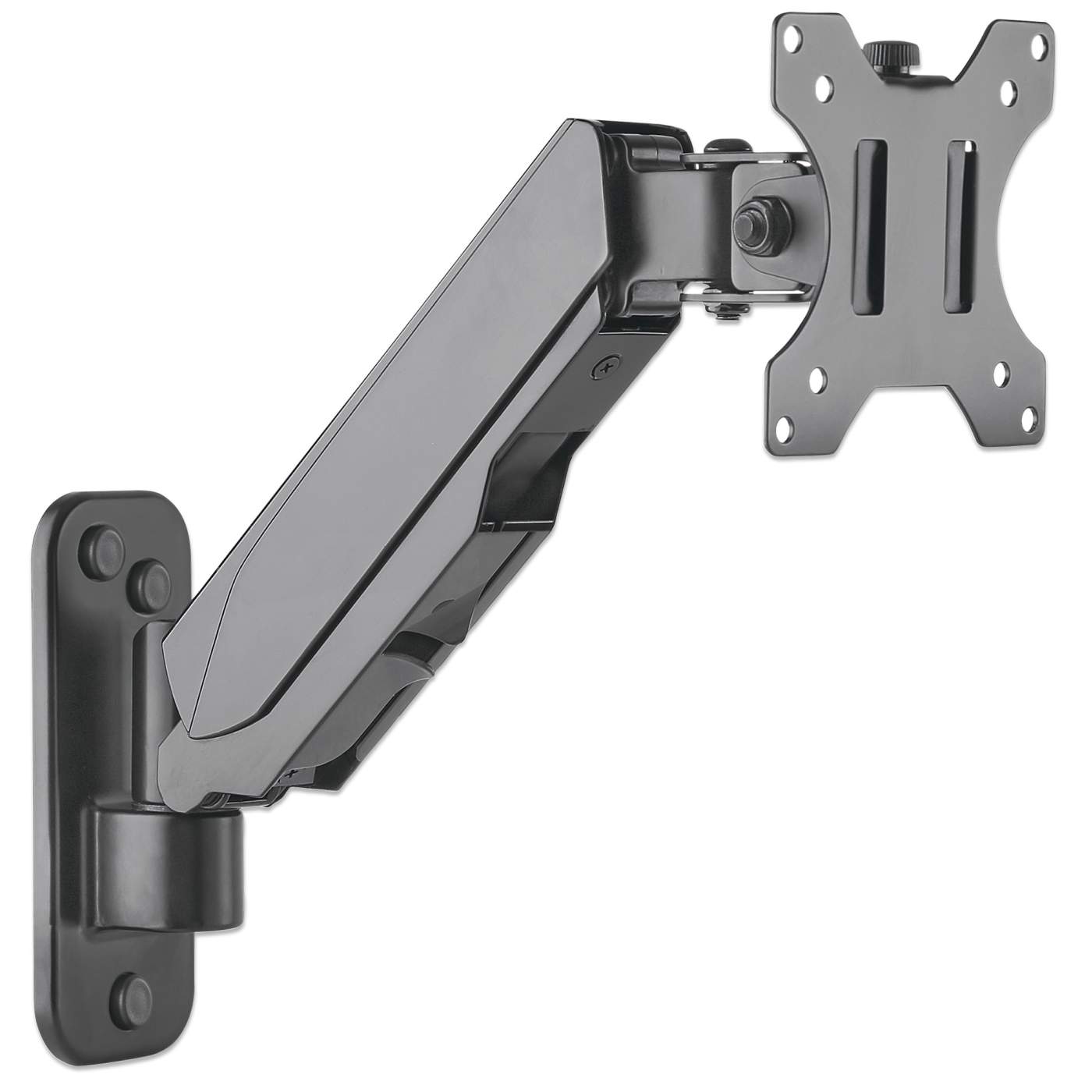

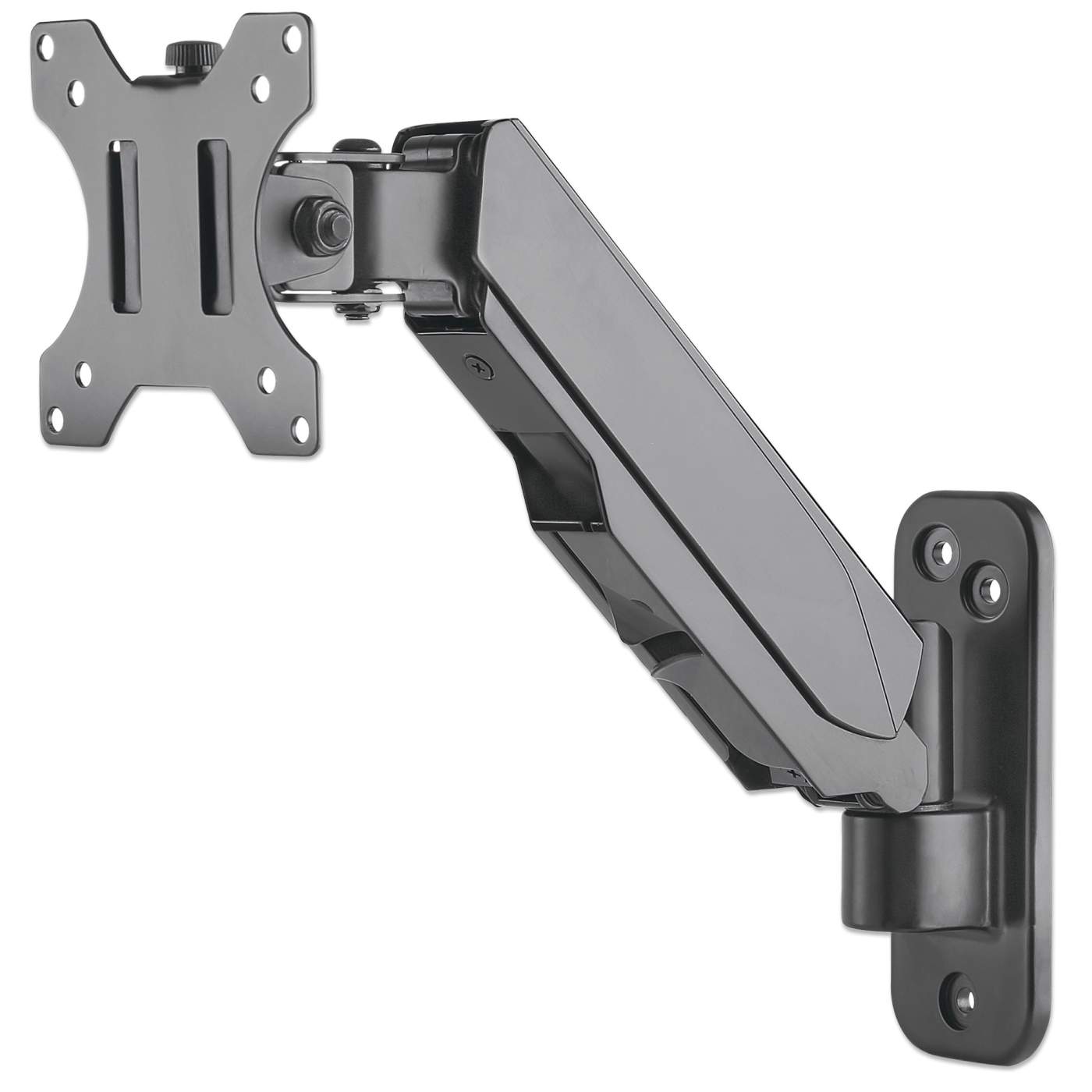

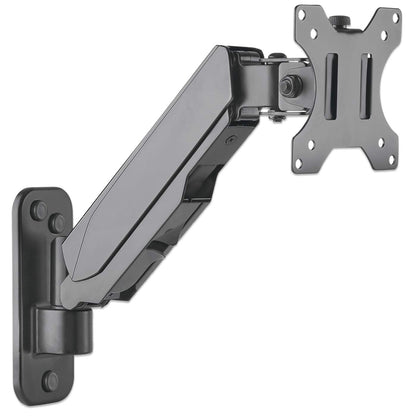

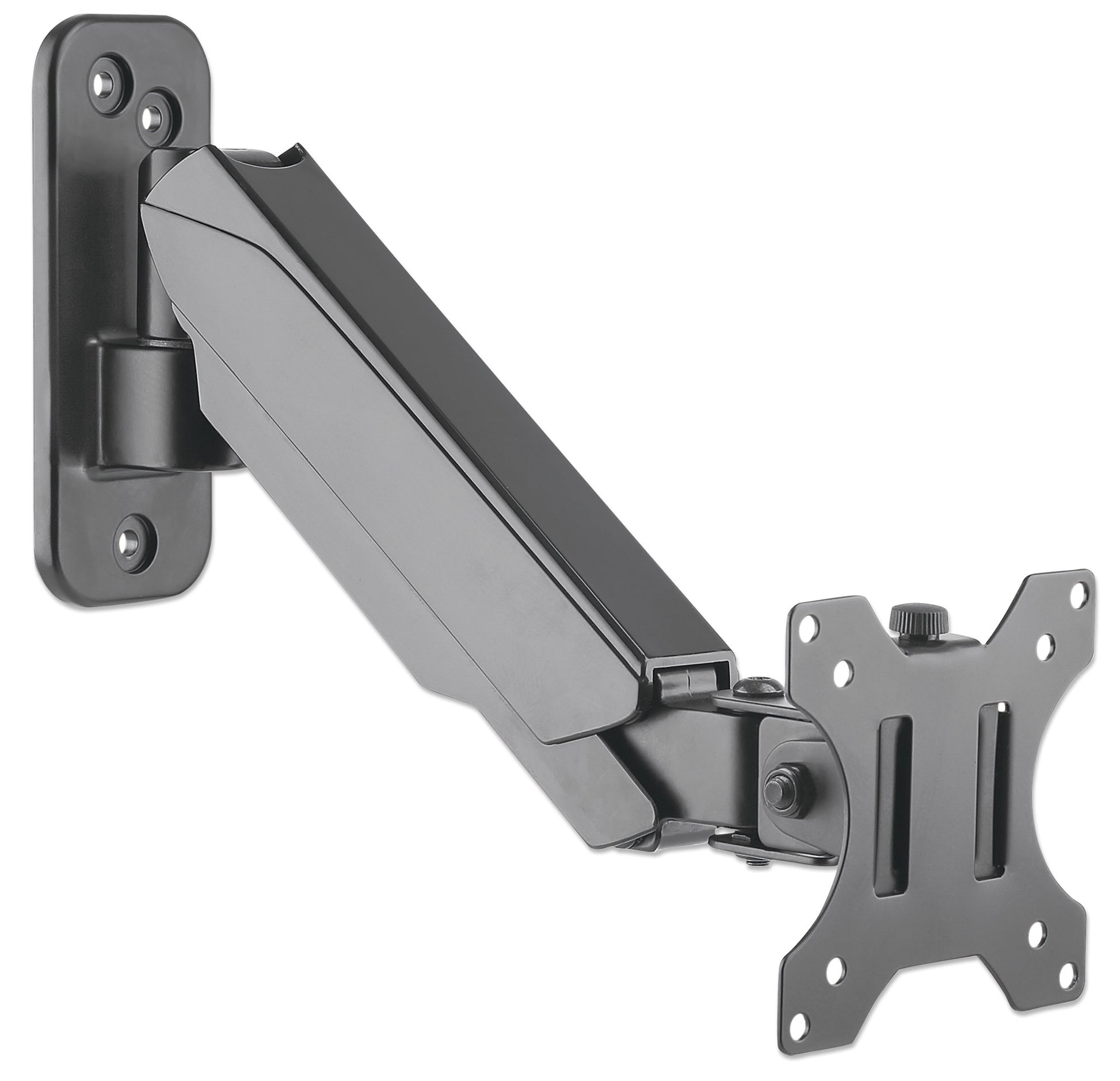

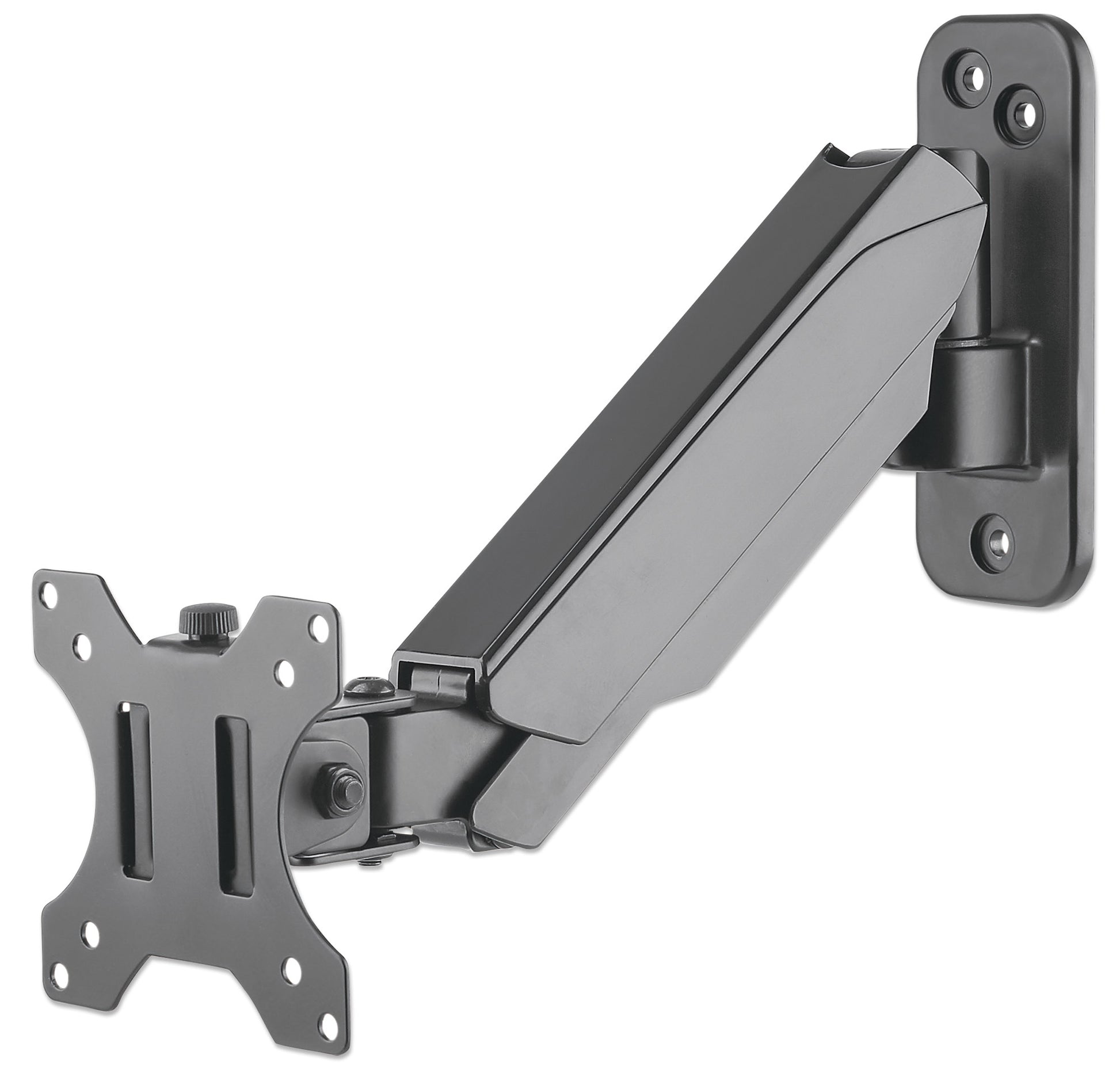

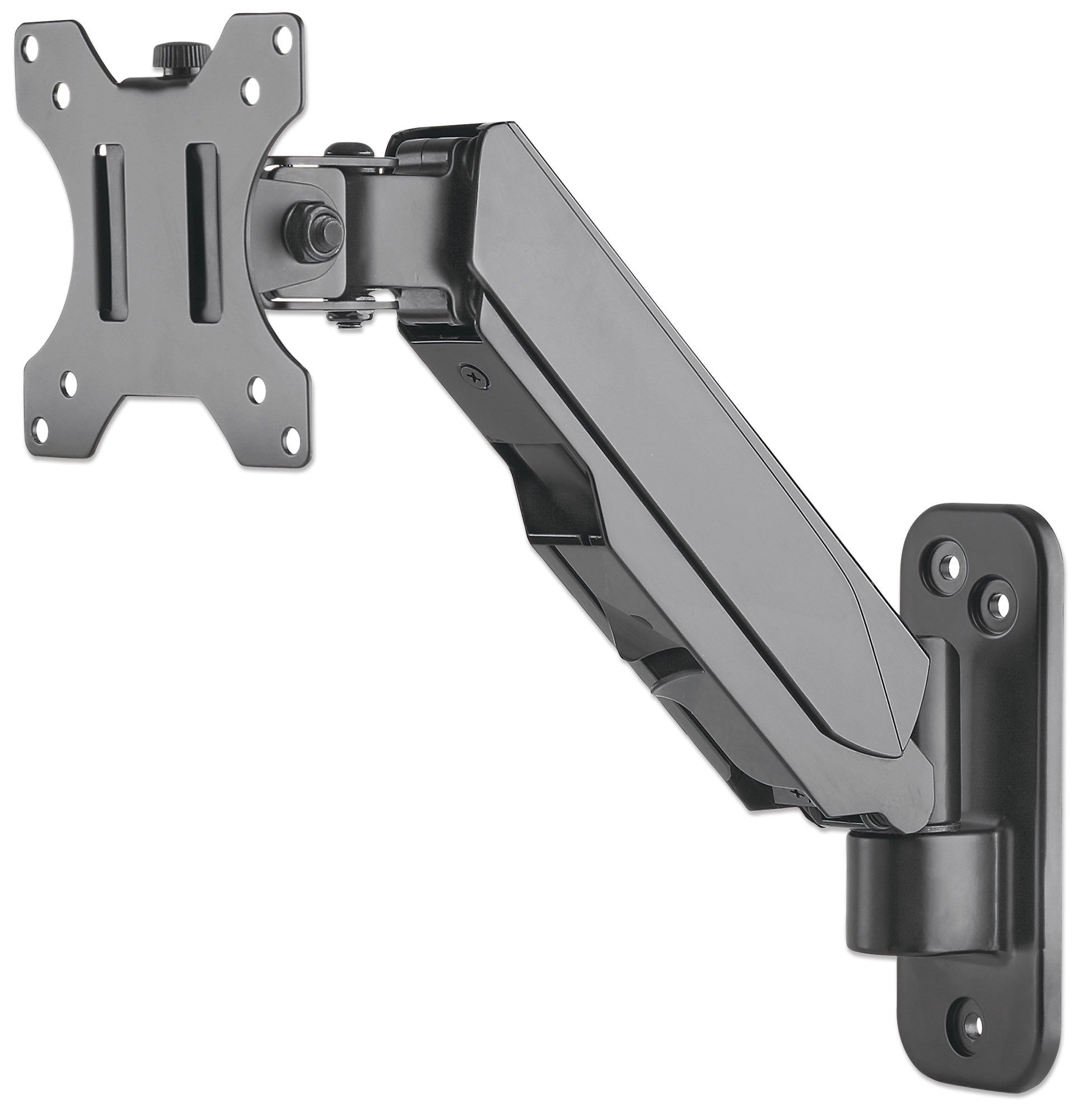

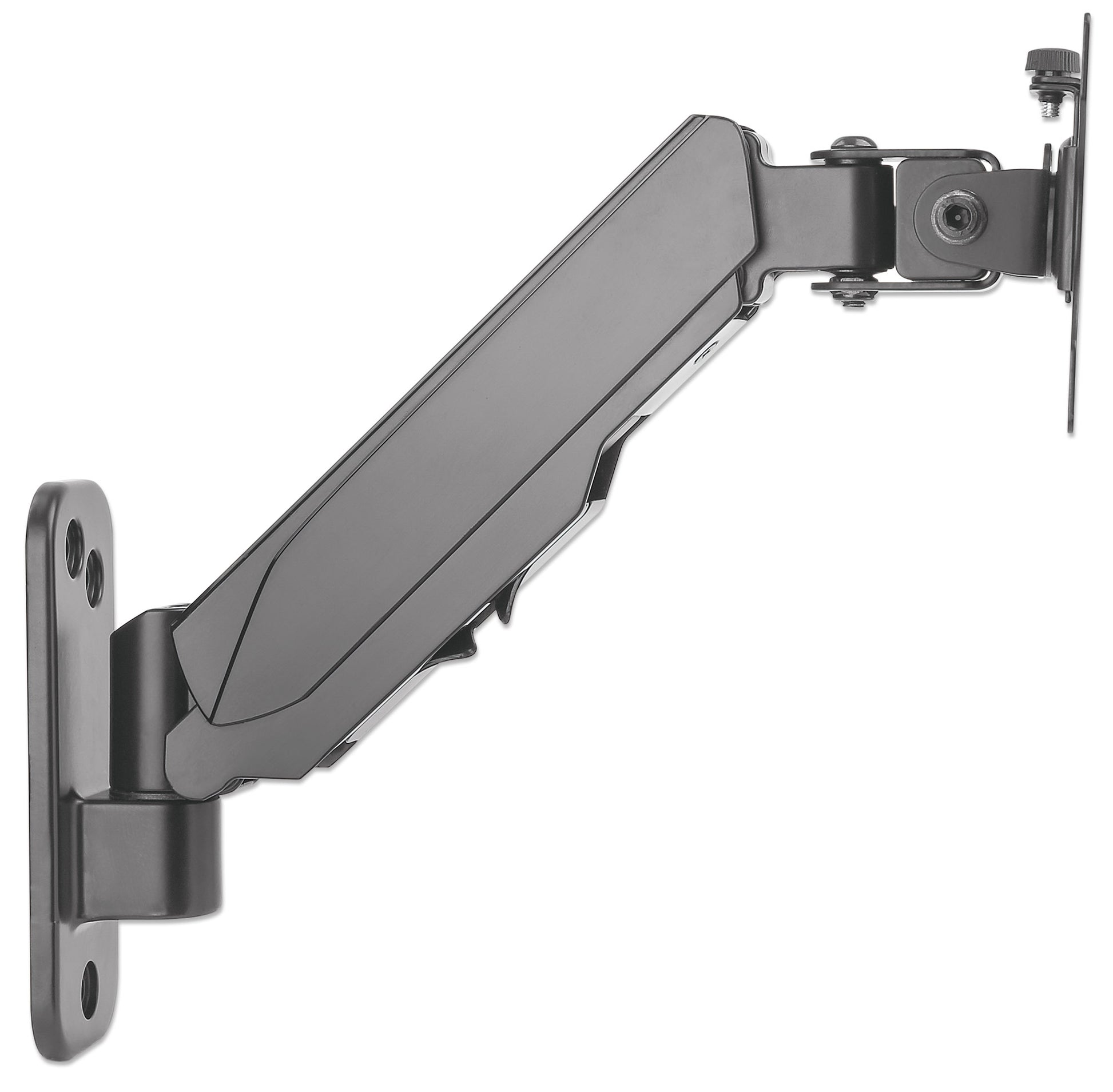

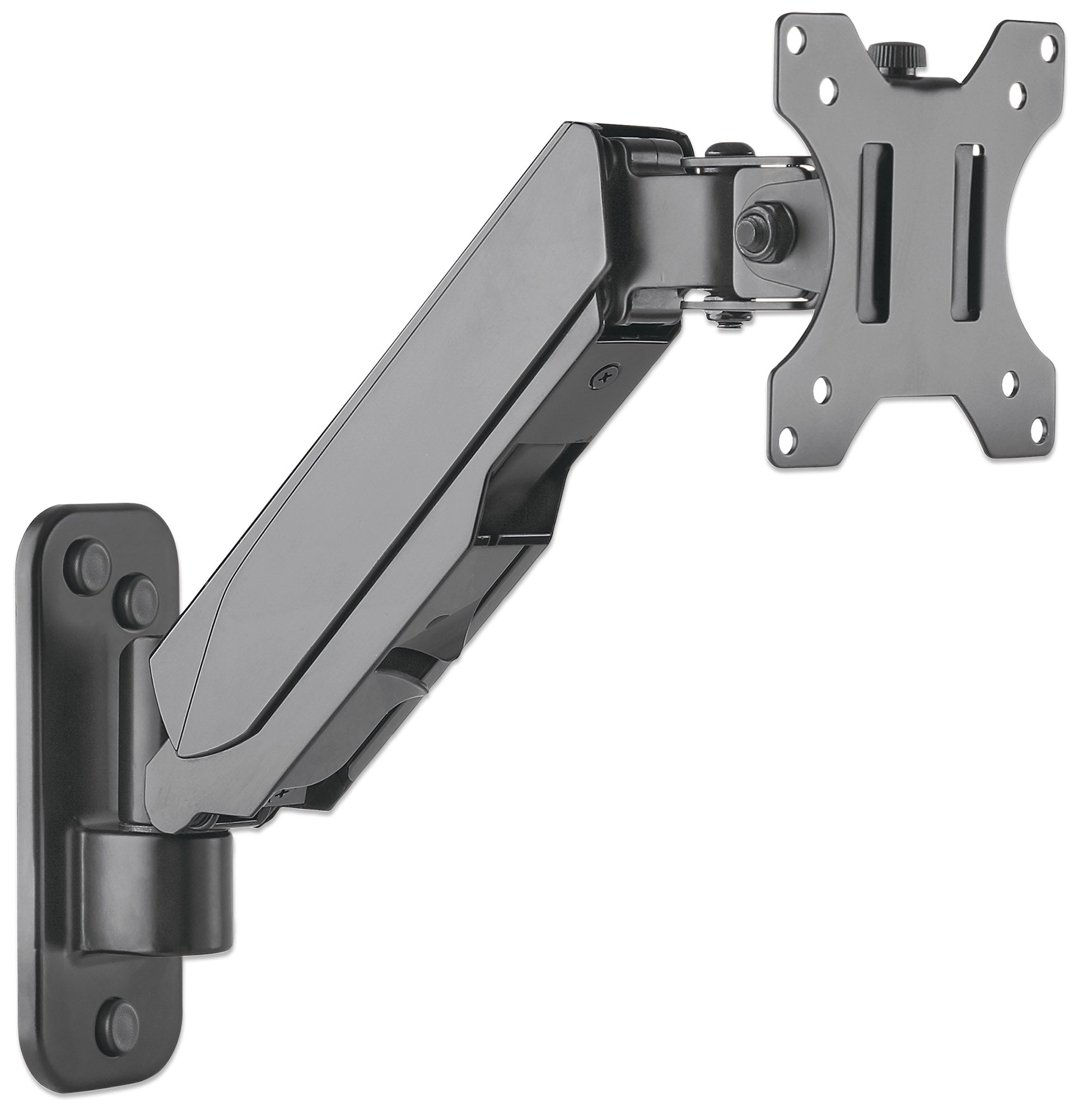

Universal Gas Spring Monitor Wall Mount

Single Gas-Spring Arm, Supports One 17" to 32" TV or Monitor up to 8 kg (17.64 lbs.)

Part-No.: 461603

Highlights

  • Supports one 17" to 32" monitor (recommended)
  • Gas spring provides light-touch adjustment of viewing height
  • Built-in tension adjustment

Future arrivals:

#
Quantity
Arrival Date
1
500
2021-05-12

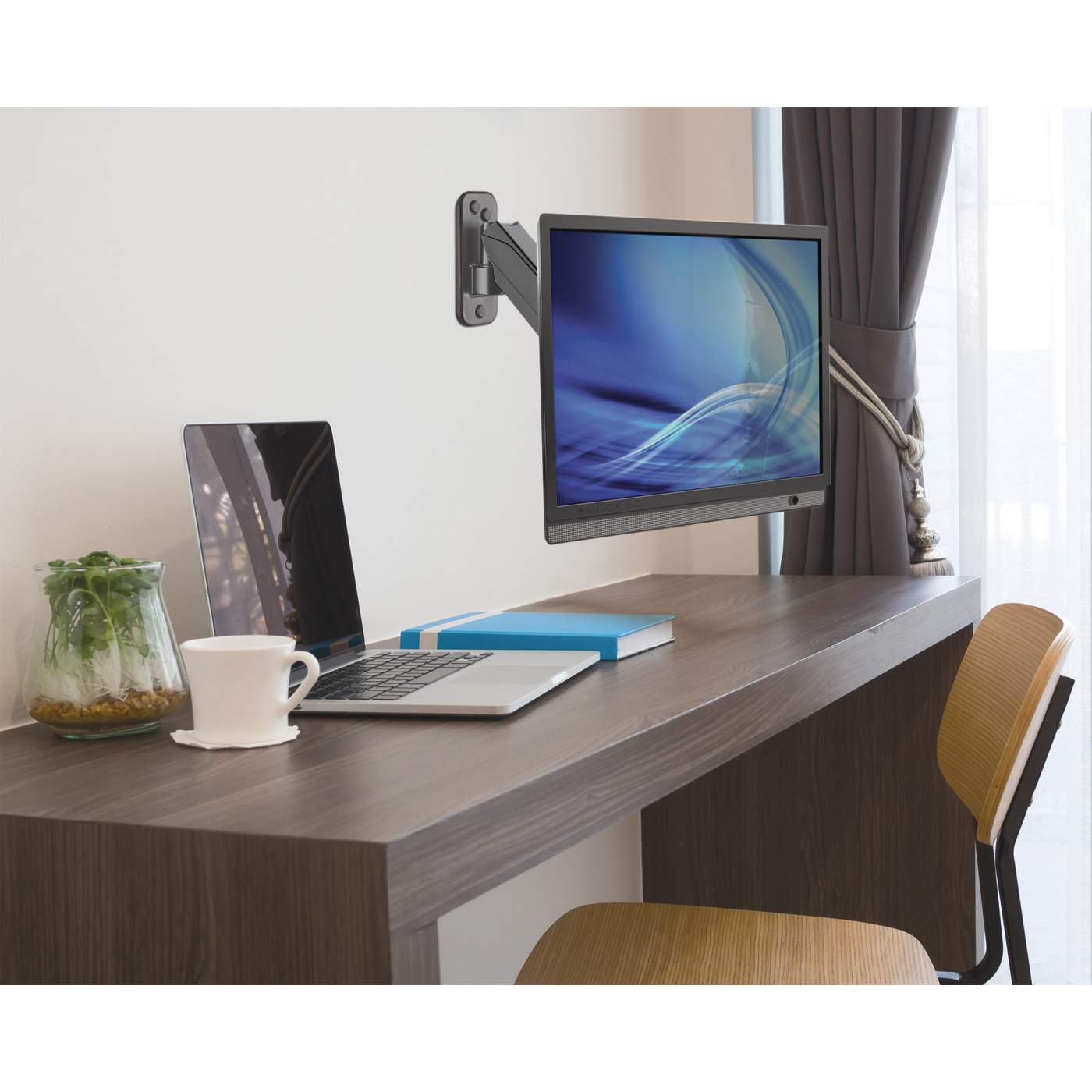

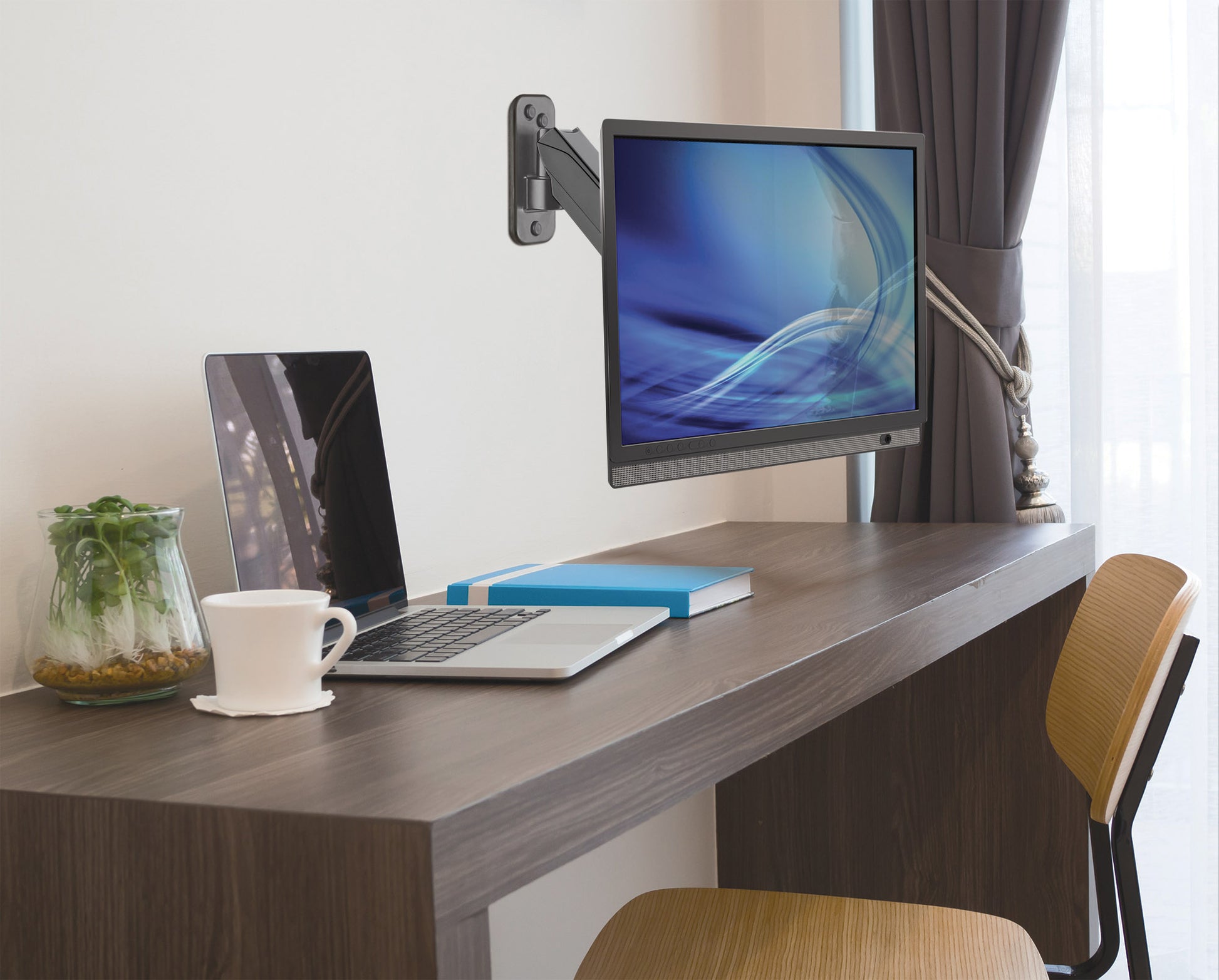

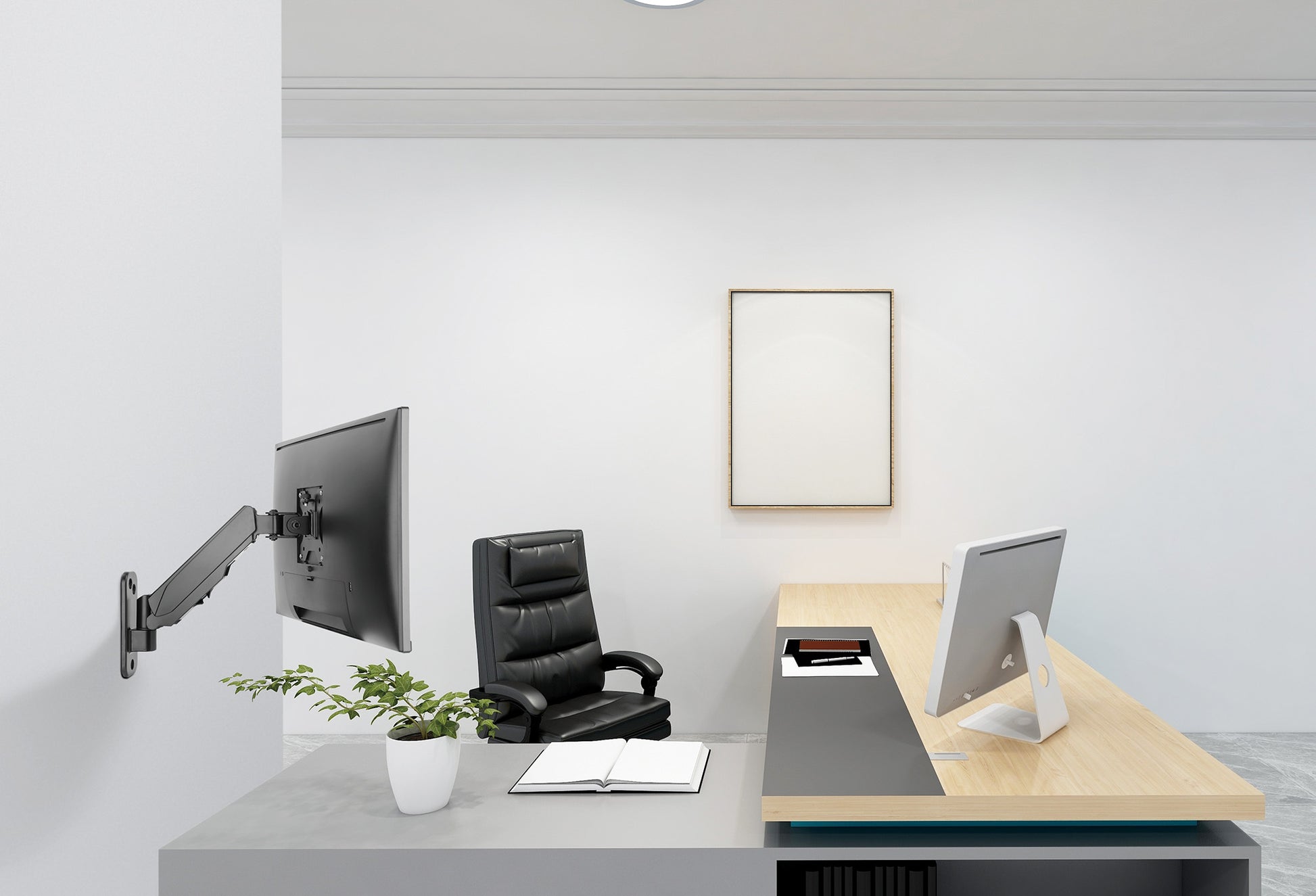

Enjoy easy display movement and more desktop workspace

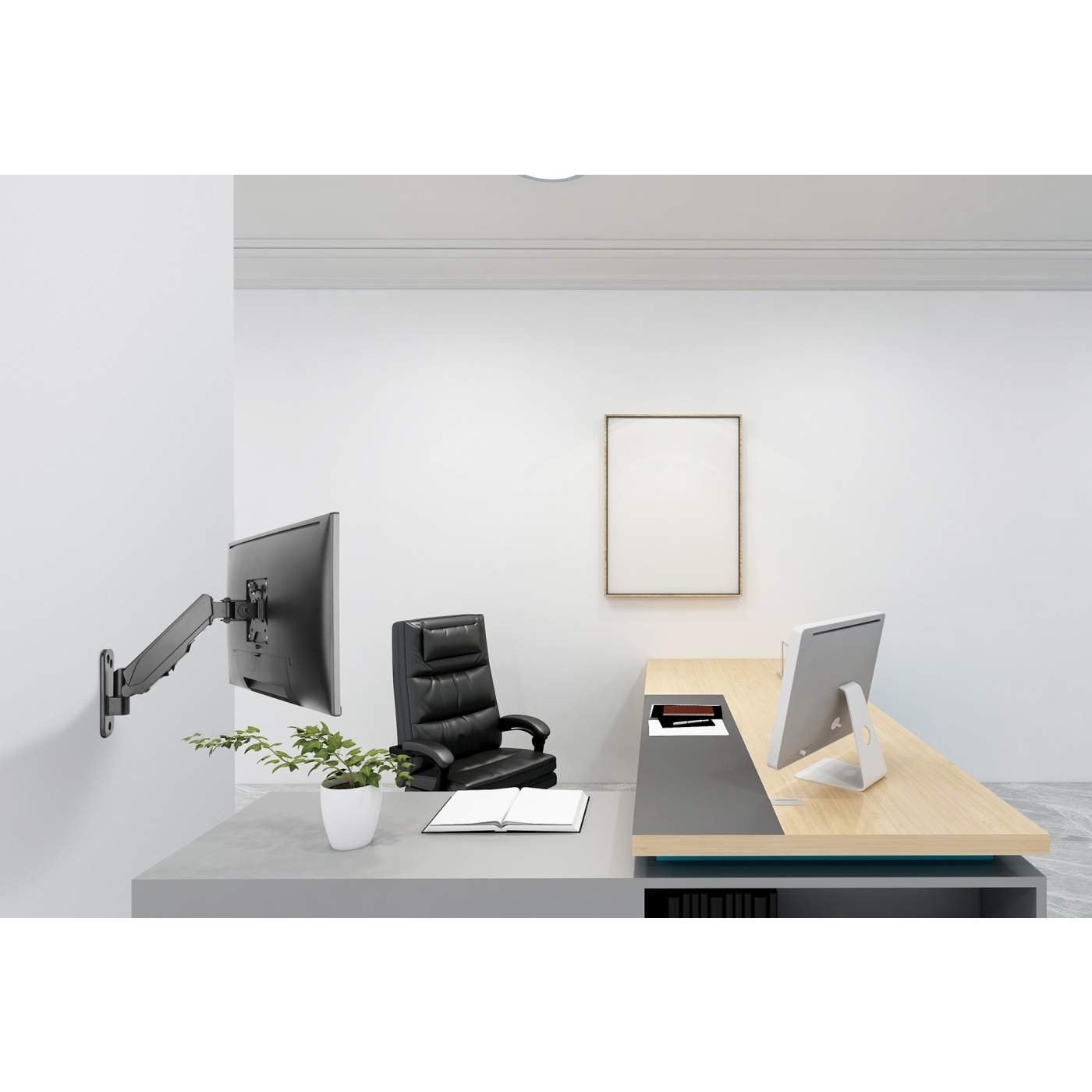

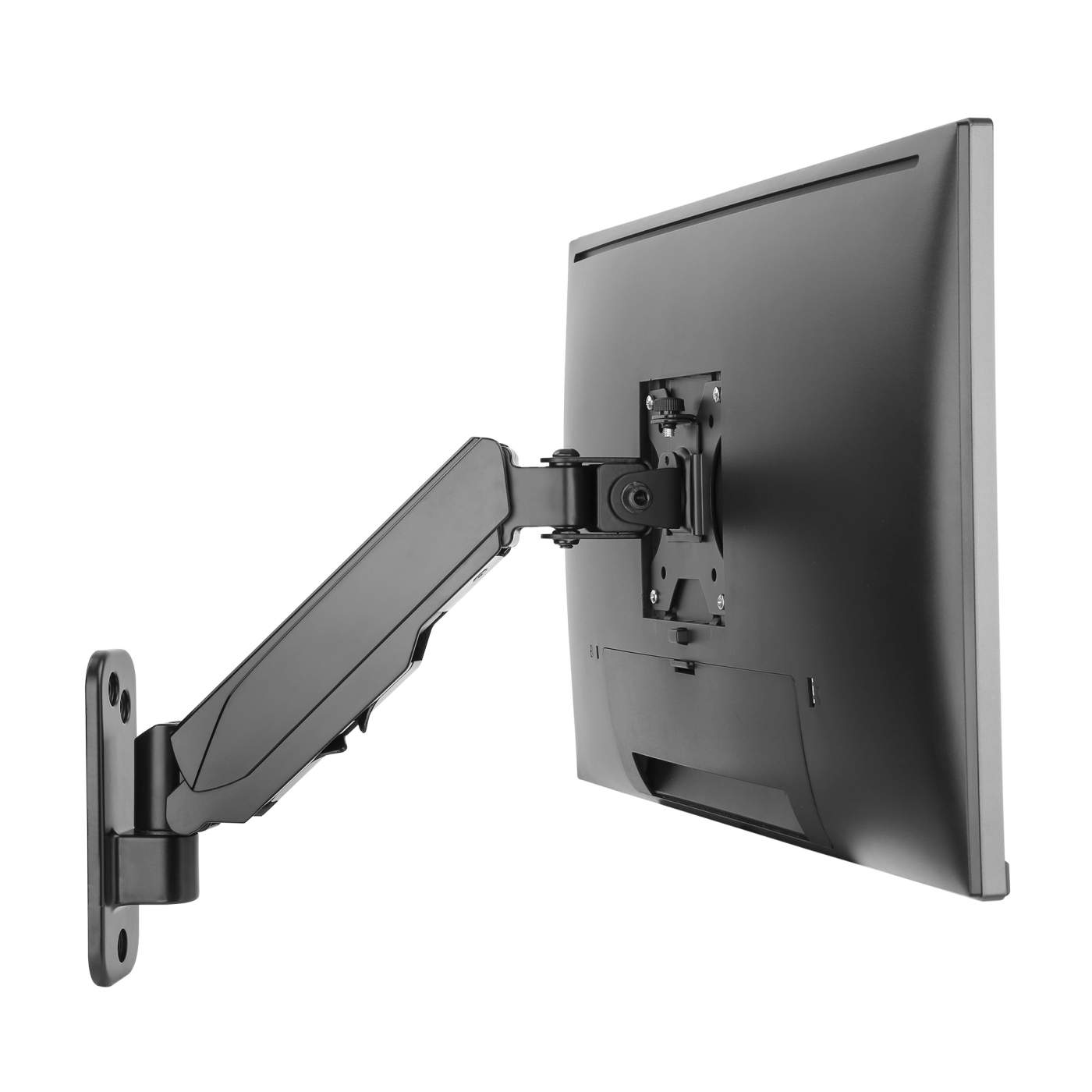

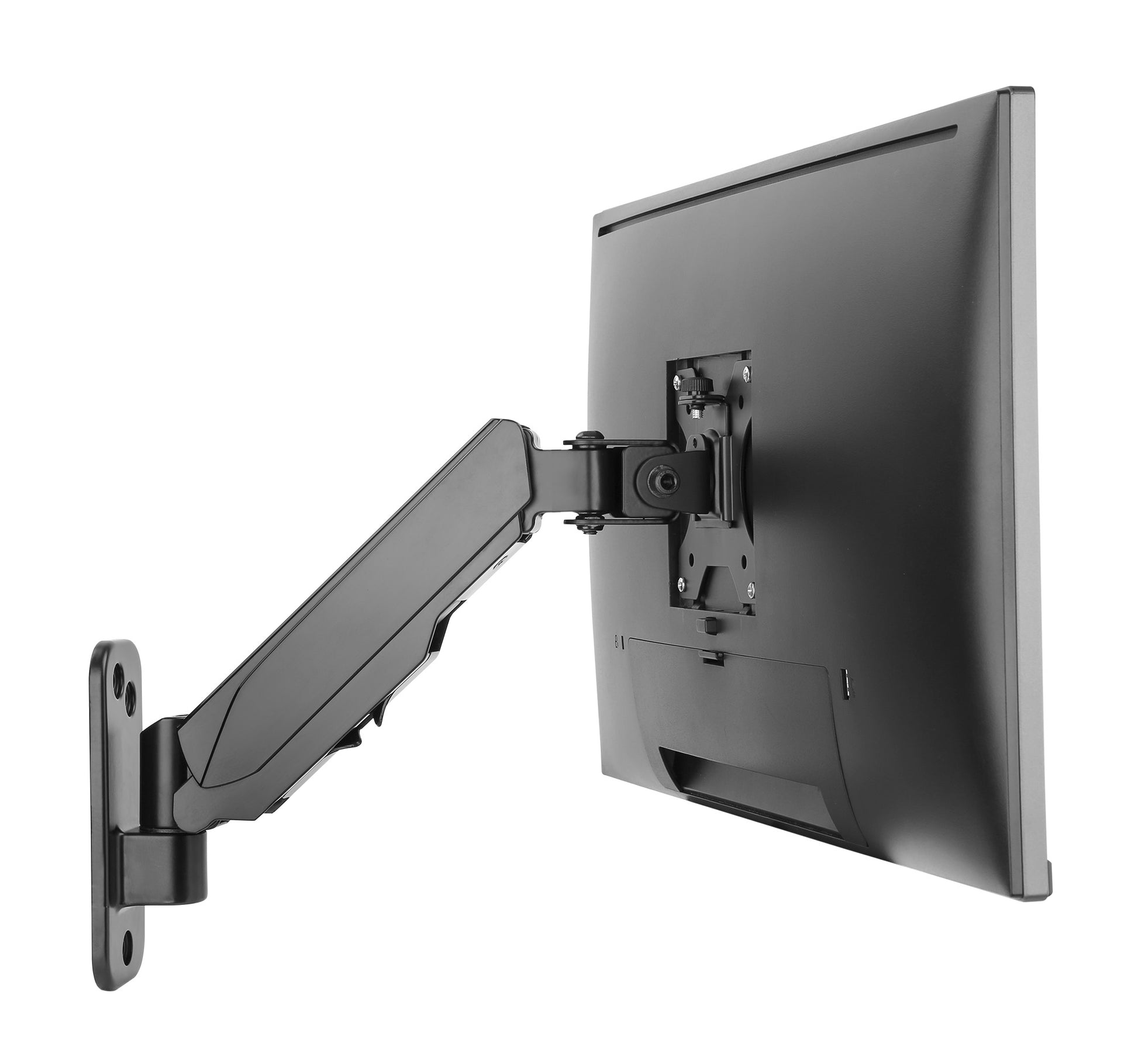

The Manhattan Universal Gas Spring Monitor Wall Mount offers a single-jointed gas-spring arm to securely hold one 17" to 32" TV or monitor. This mount's gas spring promotes easy movement of the monitor or TV to a more comfortable viewing angle with the lightest touch. Designed to be installed on the wall to give back much-needed desktop real estate, the Manhattan Universal Gas Spring Monitor Wall Mount provides more flexibility, reach, and overall enjoyment of whatever task is at hand.

  • Supports one 17" to 32" monitor (recommended)
  • Gas spring provides light-touch adjustment of viewing height
  • Built-in tension adjustment

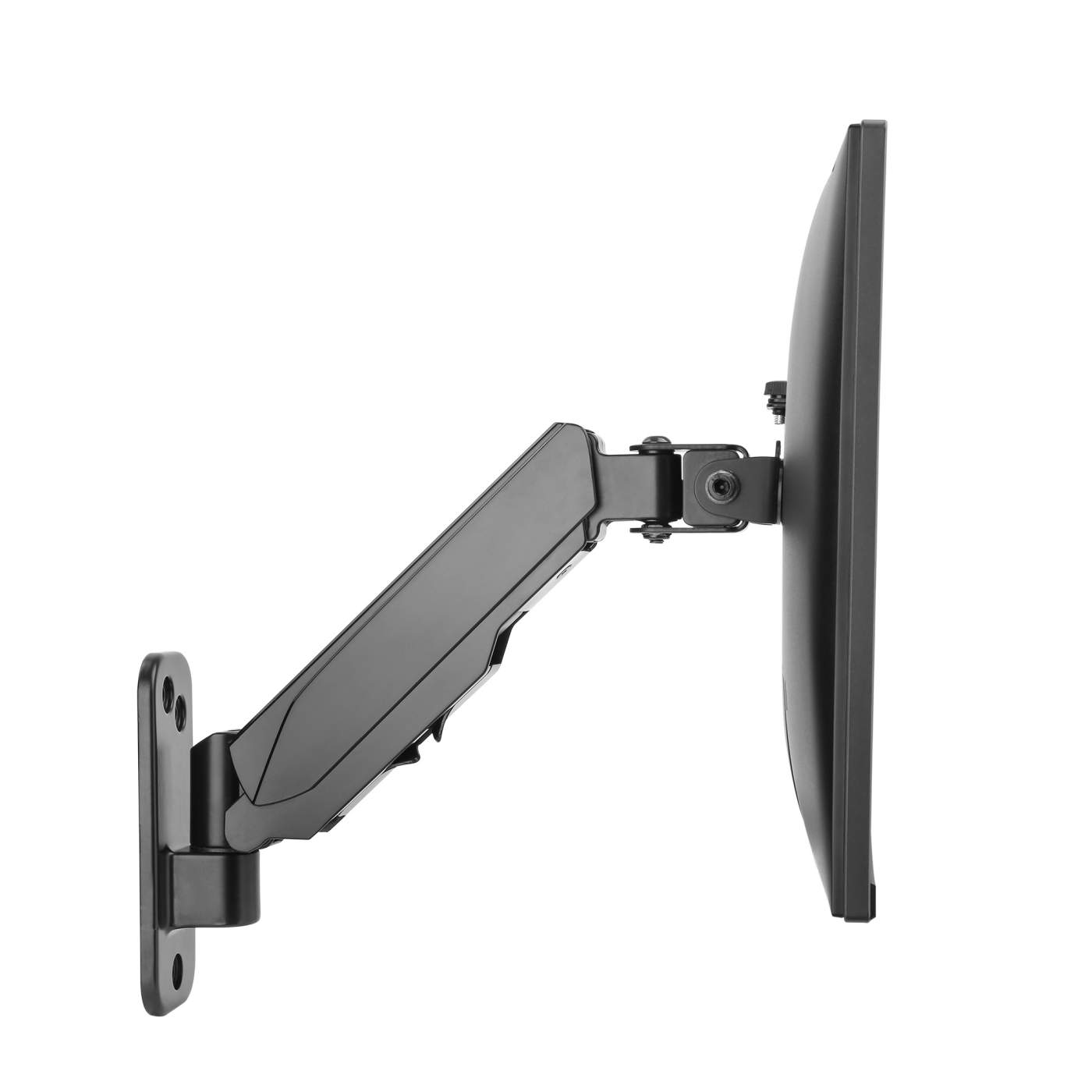

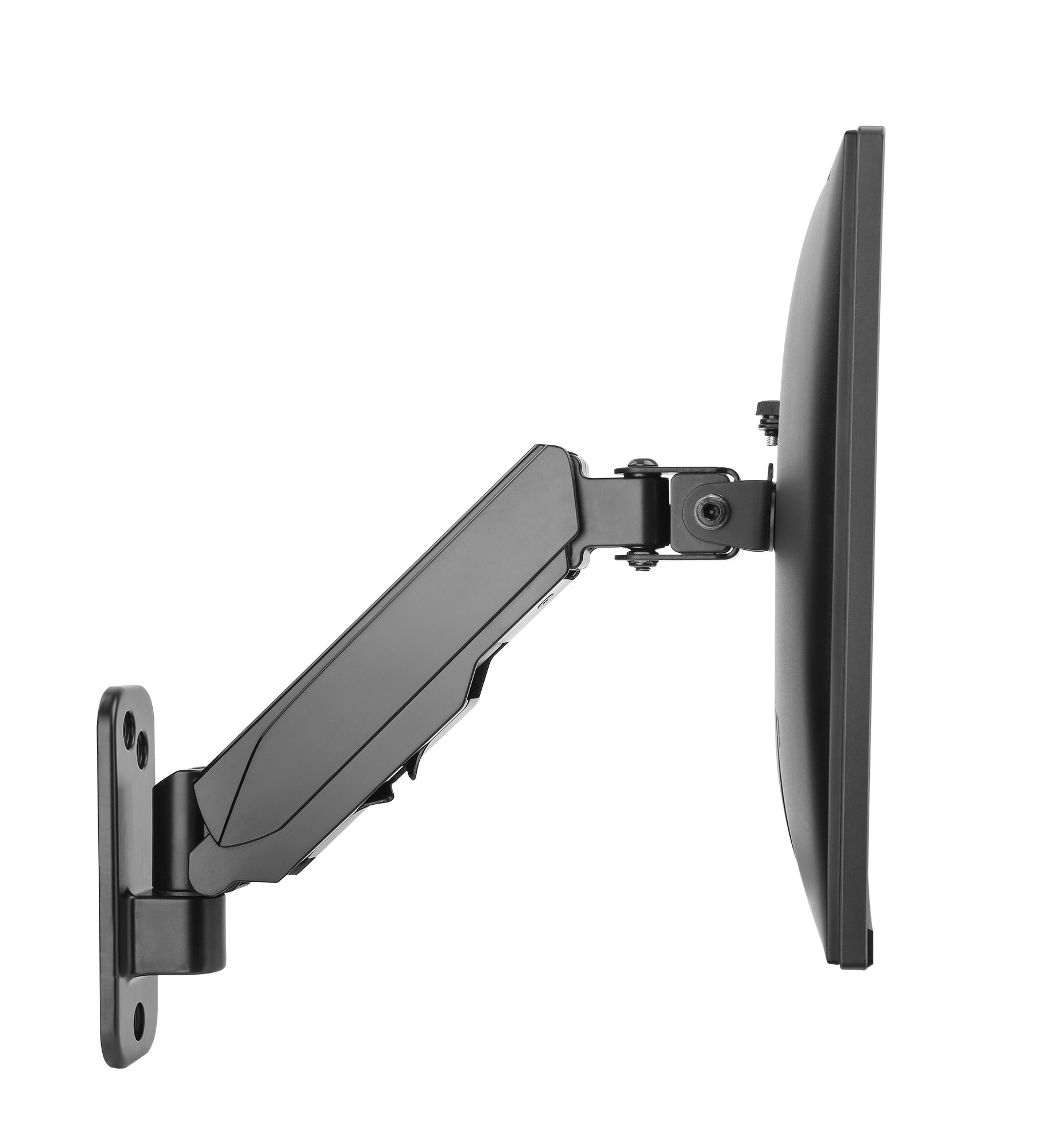

  • Extends monitor 71 mm (2.8 in.) to 304 mm (11.97 in.) from wall
  • Three-year warranty

    General
  • Fits most 17" – 32" flat & curved monitors
  • Material: aluminum, steel, plastic
  • Supports monitors up to 8 kg (17.64 lbs.)
  • VESA support 75 x 75 and 100 x 100

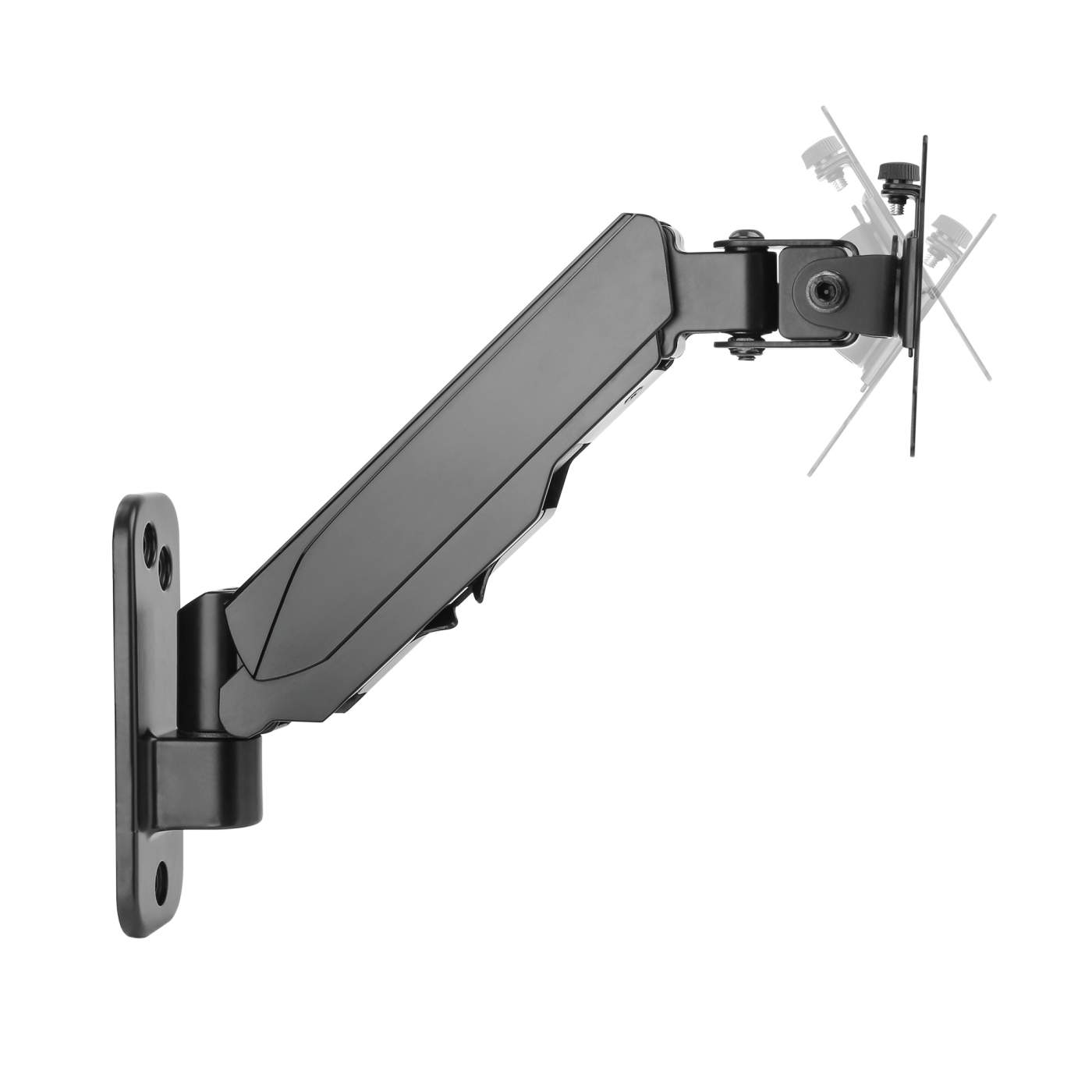

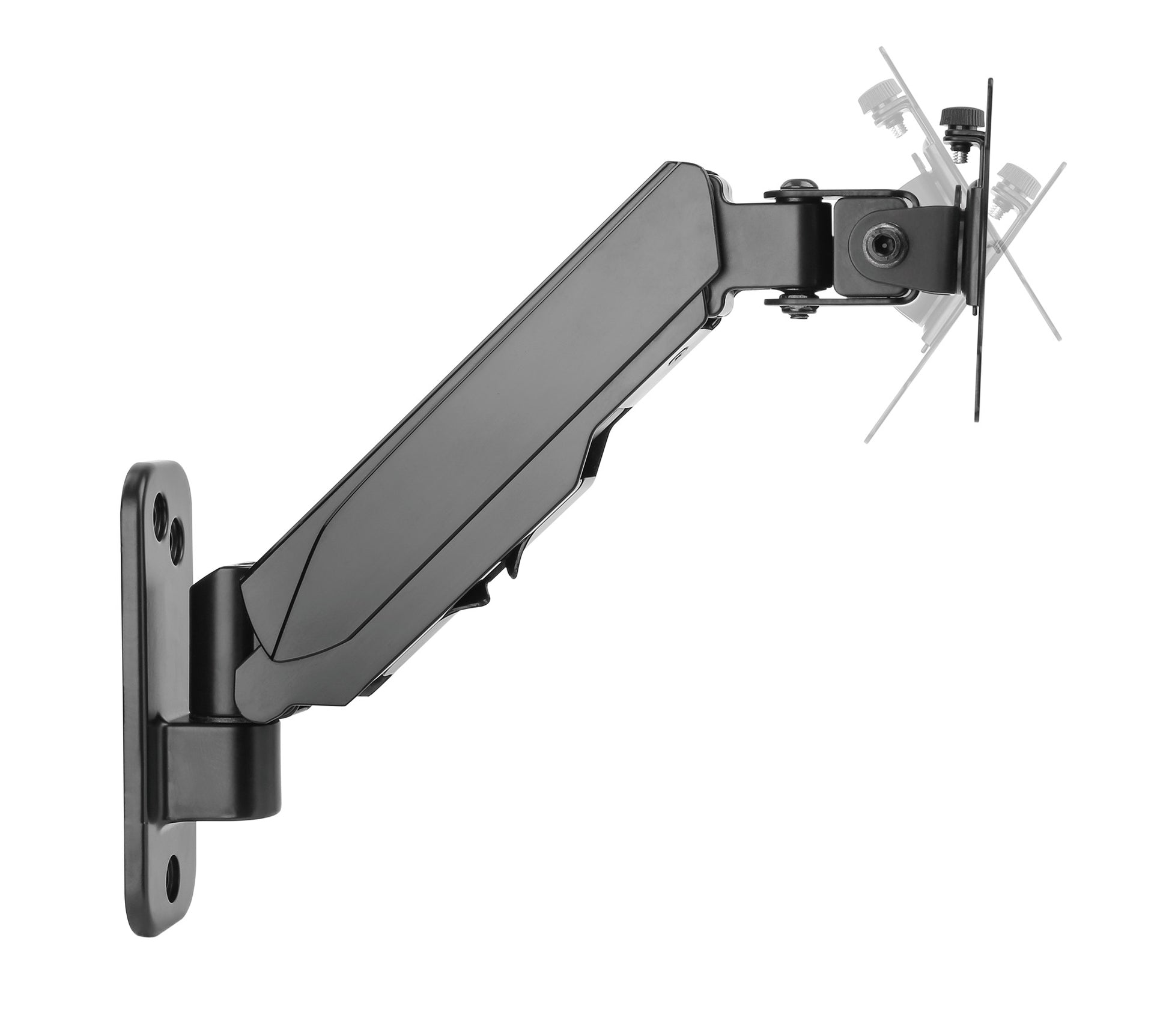

  • Tilt: ±35°
  • Swivel: ±90°
  • Rotate: ±180°

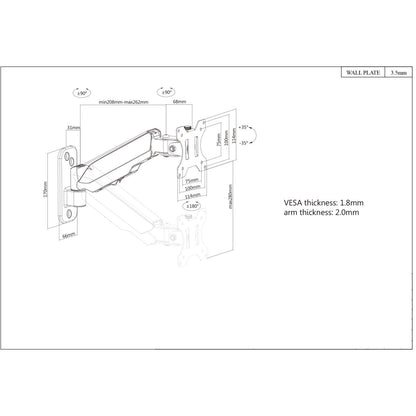

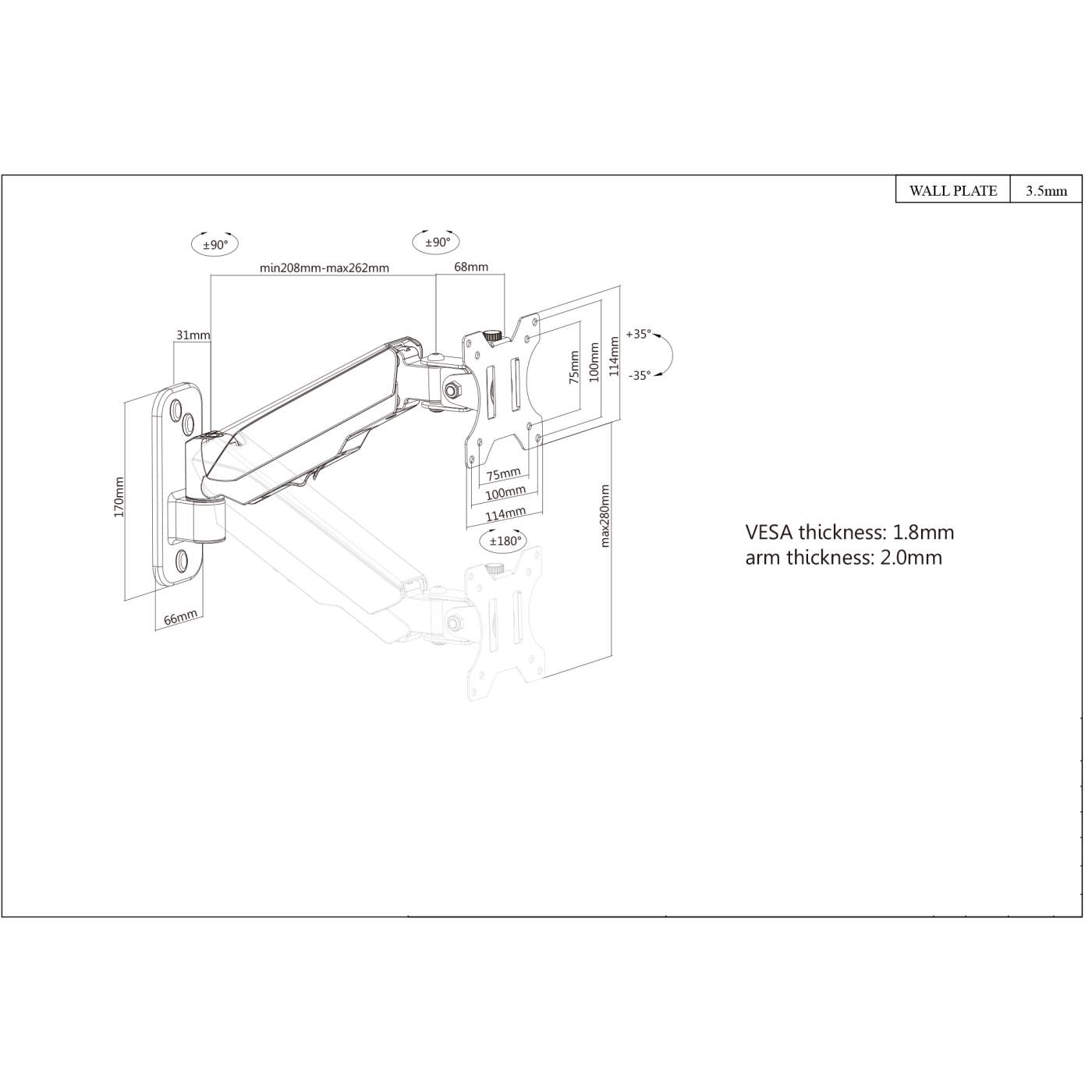

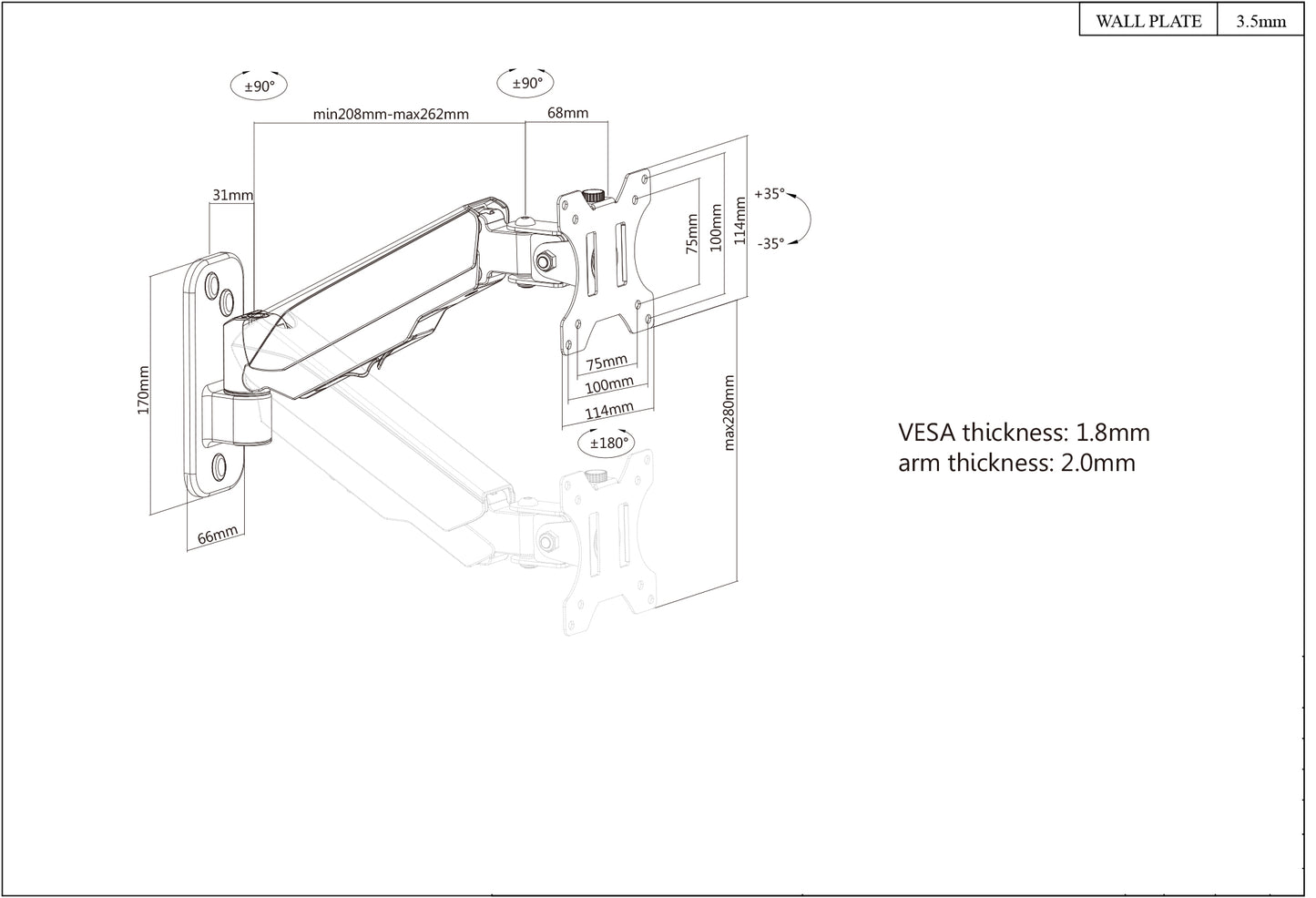

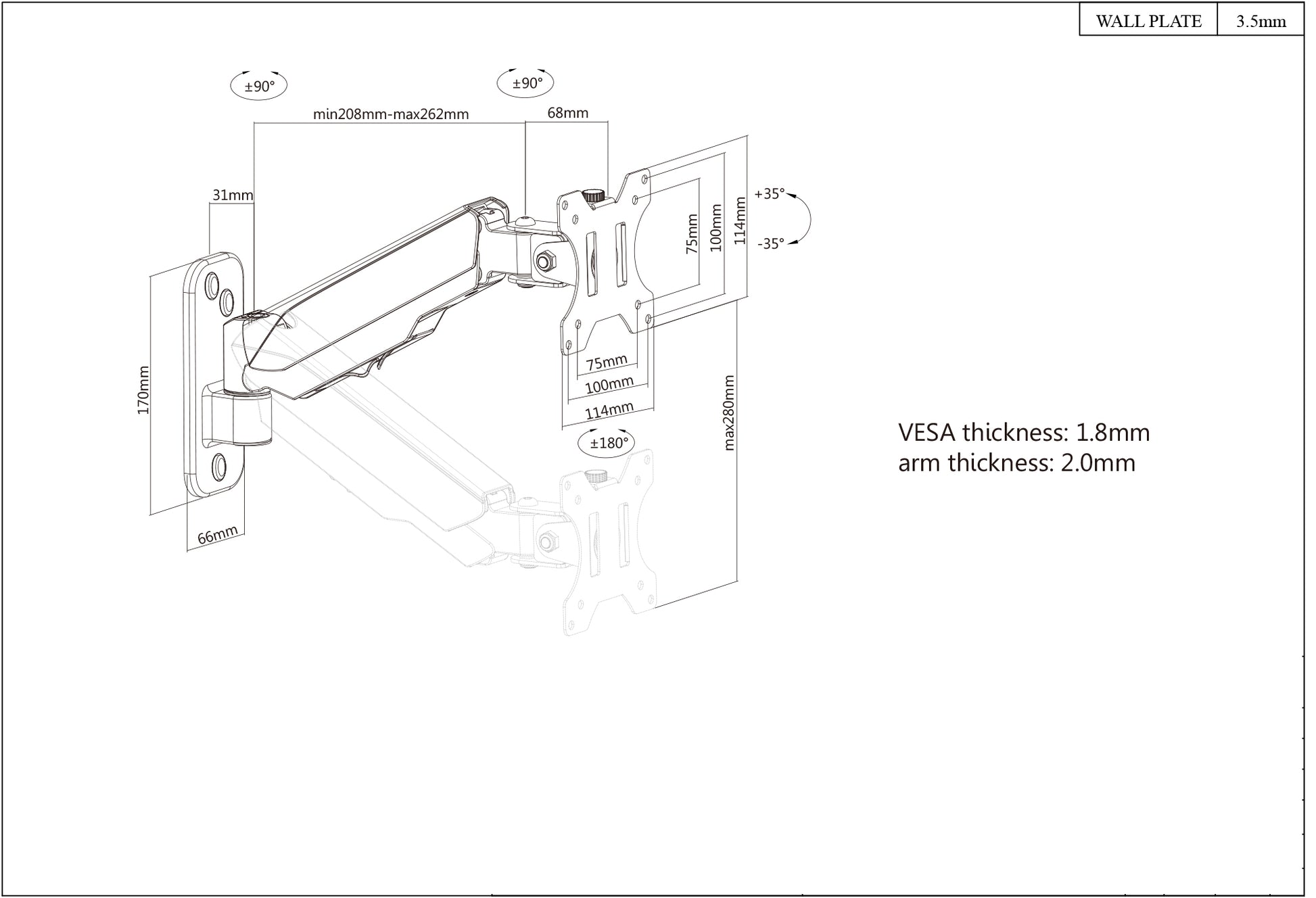

    Product Dimensions (Maximum)
  • 361 (L) x 114 (W) x 280 (H) [mm]
  • 14.21 (L) x 4.49 (W) x 11.02 (H) [in]

    Packaging Contents
  • Universal Gas Spring Monitor Wall Mount
  • Installation hardware with instructions

  • Additional SKUs

    • Amazon ASIN: B07L9TRJKC
    • EAN: 0766623461603
    • UPC: 766623461603

  • Physical Specifications

    • Weight: 1.6 kg
    • Dimensions: 361 (L) x 114 (W) x 280 (H) [mm]
    • Packaging: Retail Box
    • Carton Quantity: 10
    • Carton Weight: 18.94 kg

  • Datasheet


  • Manual

    • Quick Instruction Guide     » Download
