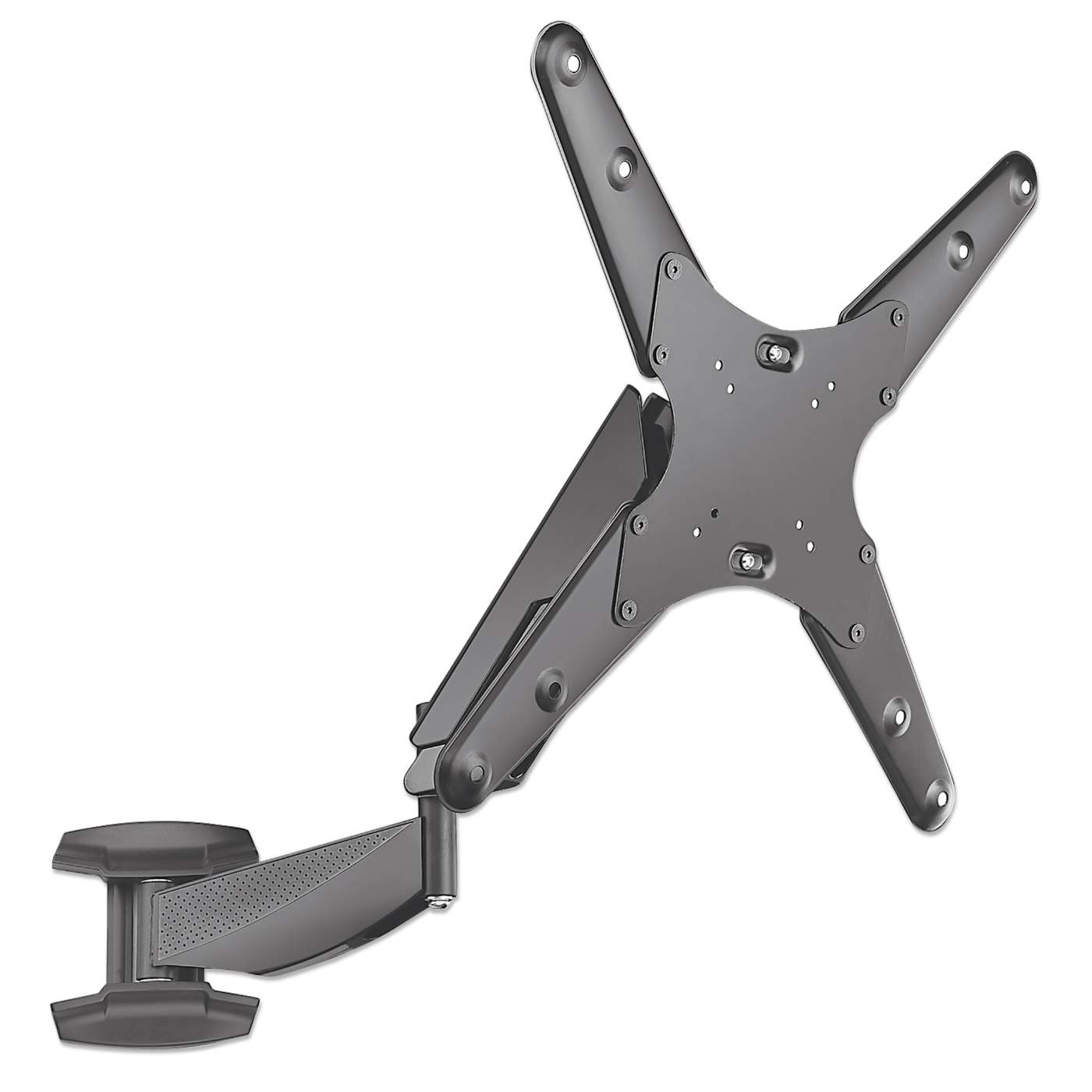

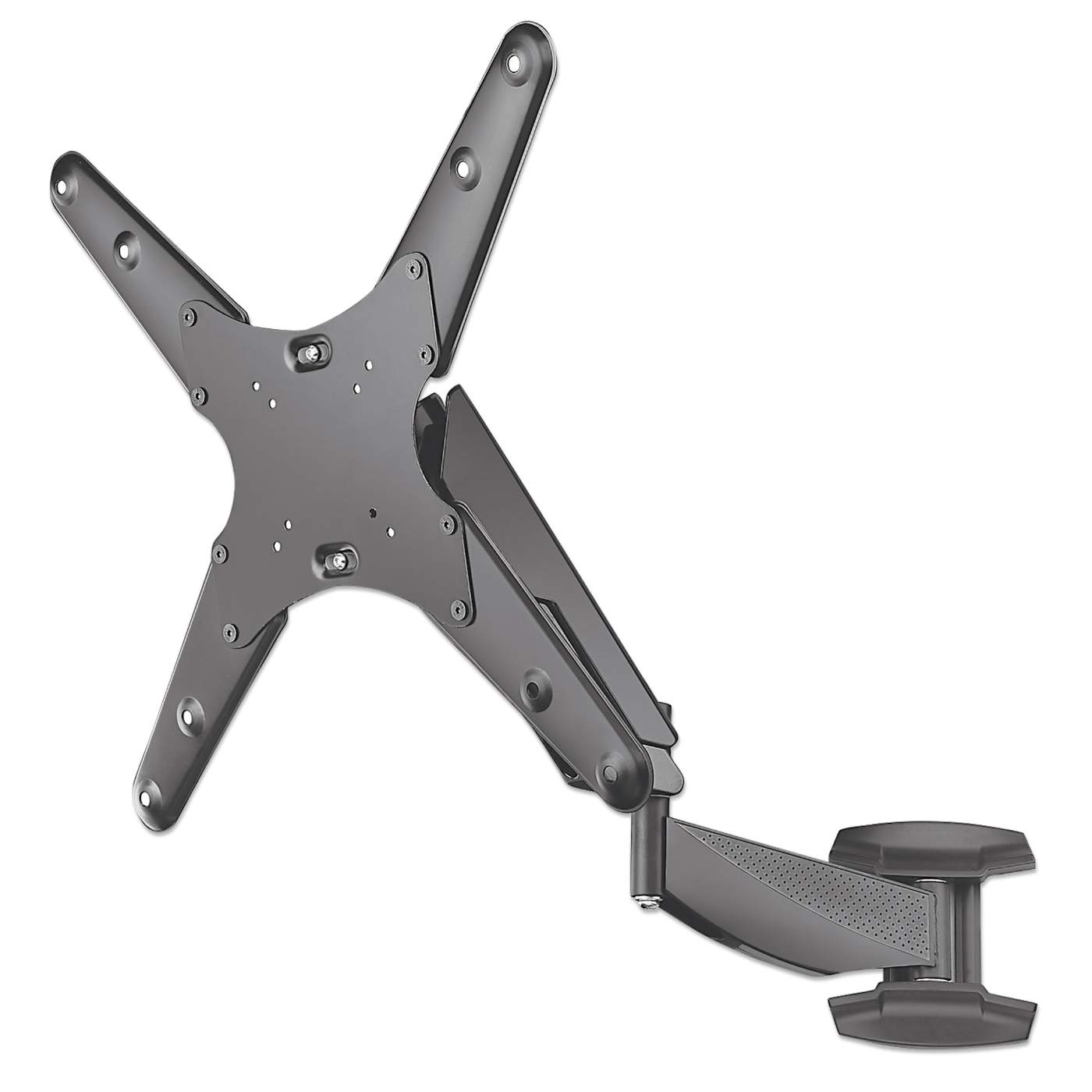

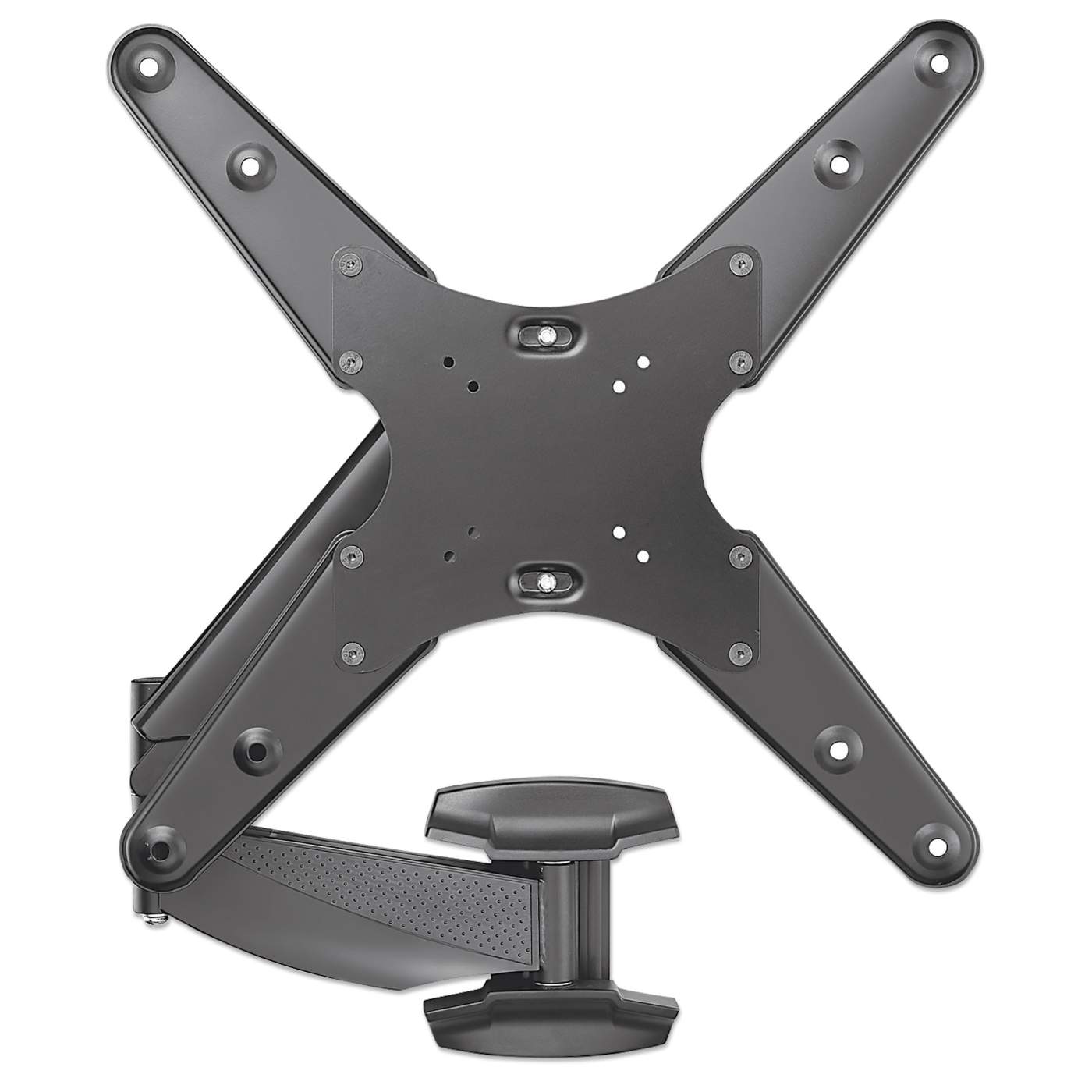

Universal Gas Spring TV Mount

Single Gas-Spring Jointed Arm, Supports One 21" to 60" TV or Monitor

Part-No.: 461641

Highlights

  • Supports one 21" to 60" display up to 30 kg (66 lbs.)
  • Full-motion adjustment for the best TV views
  • Gas spring provides light-touch adjustment of viewing height

Enjoy easy display movement and more desktop workspace

The Manhattan Universal Gas Spring TV Mount provides the ultimate full-motion experience for your TV. Its gas spring allows the lightest of touches to easily move the TV into the perfect viewing position. This mount lets you adjust the display for different seating arrangements, to help you avoid glare or let you stand up during an intense gaming session. The Manhattan Universal Gas Spring TV Mount provides more flexibility, reach, and overall enjoyment of whatever activity is at hand.

  • Supports one 21" to 60" display up to 30 kg (66 lbs.)
  • Full-motion adjustment for the best TV views
  • Gas spring provides light-touch adjustment of viewing height
  • Built-in tension adjustment

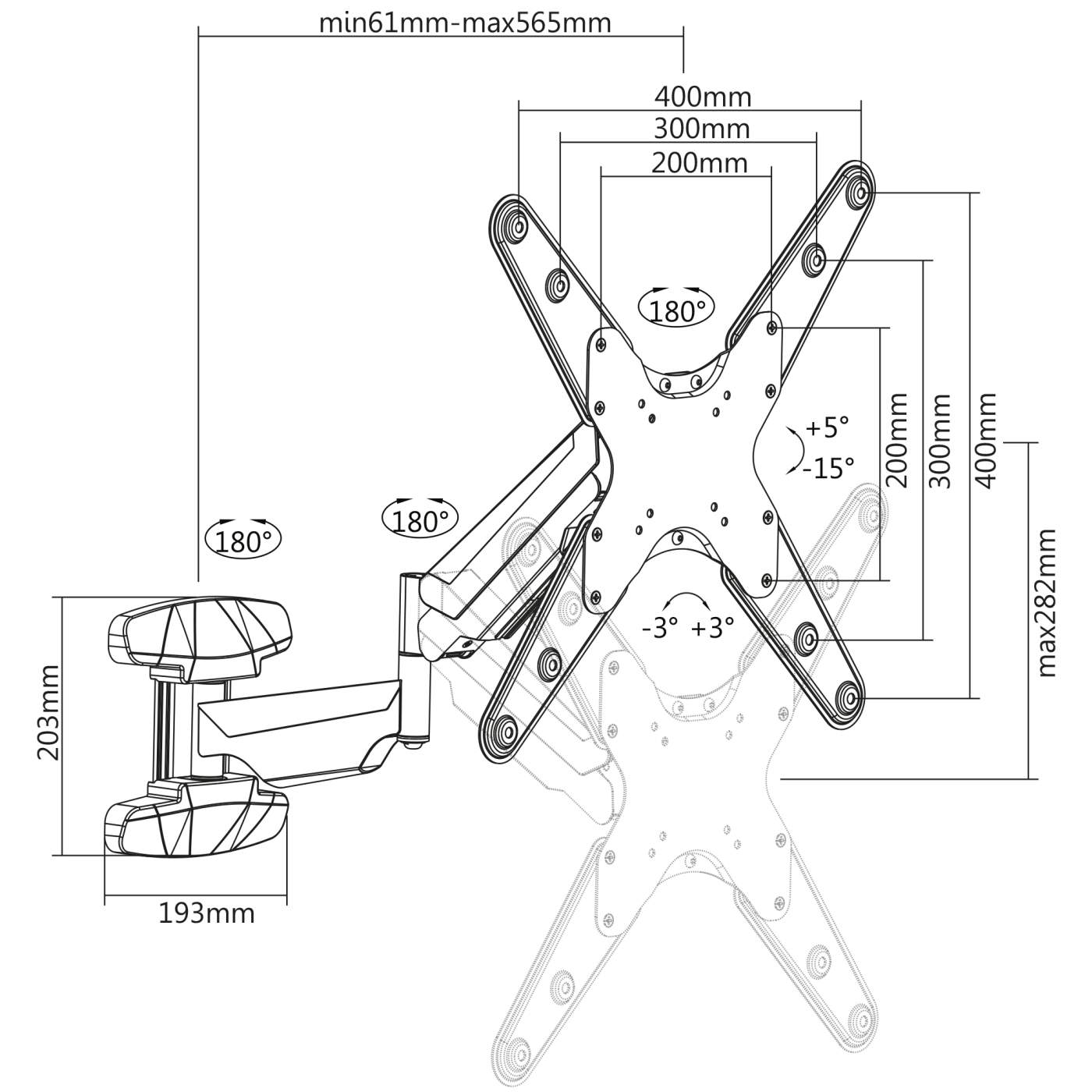

  • Extends display 80 mm (3.15 in.) to 510 mm (20.08 in.) from wall
  • Wall mount only
  • Meets VESA standards: 75x75, 100x100, 200x100, 200x200, 300x300, 400x400
  • Three-year warranty

    General
  • Fits most 21" – 60" flat and curved TVs
  • Material: steel, plastic
  • Supports monitors up to 30 kg (66 lbs.)
  • Minimum weight requirement: 13 kg (28.7 lbs.)
  • VESA support 75x75, 100x100, 200x100, 200x200, 300x300, 400X400
  • Tilt: ±10°
  • Swivel: ±90°
  • Rotate: ±180°

    Product Dimensions (Maximum)
  • 570 (L) x 420 (W) x 370 (H) [mm]
  • 22.44 (L) x 16.54 (W) x 14.57 (H) [in]

    Packaging Contents
  • Universal Gas Spring TV Mount
  • Installation hardware with instructions

  • Additional SKUs

    • Amazon ASIN: B07FQWYX24
    • EAN: 0766623461641
    • UPC: 766623461641

  • Physical Specifications

    • Weight: 4.8 kg
    • Dimensions: 570 (L) x 420 (W) x 370 (H) [mm]
    • Packaging: Retail Box
    • Carton Quantity: 2
    • Carton Weight: 9.00 kg

  • Datasheet


  • Manual

    • Quick Instruction Guide     » Download
