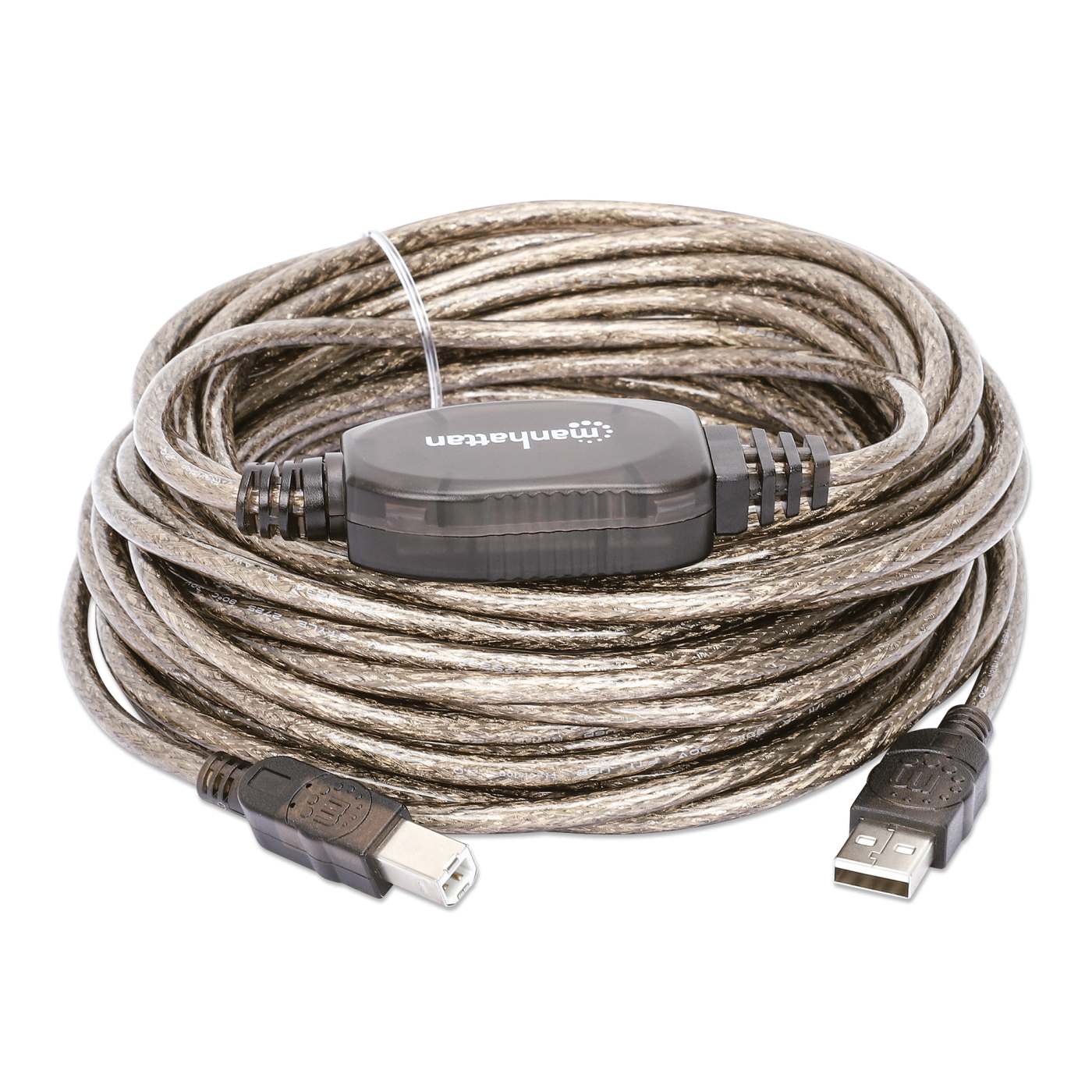

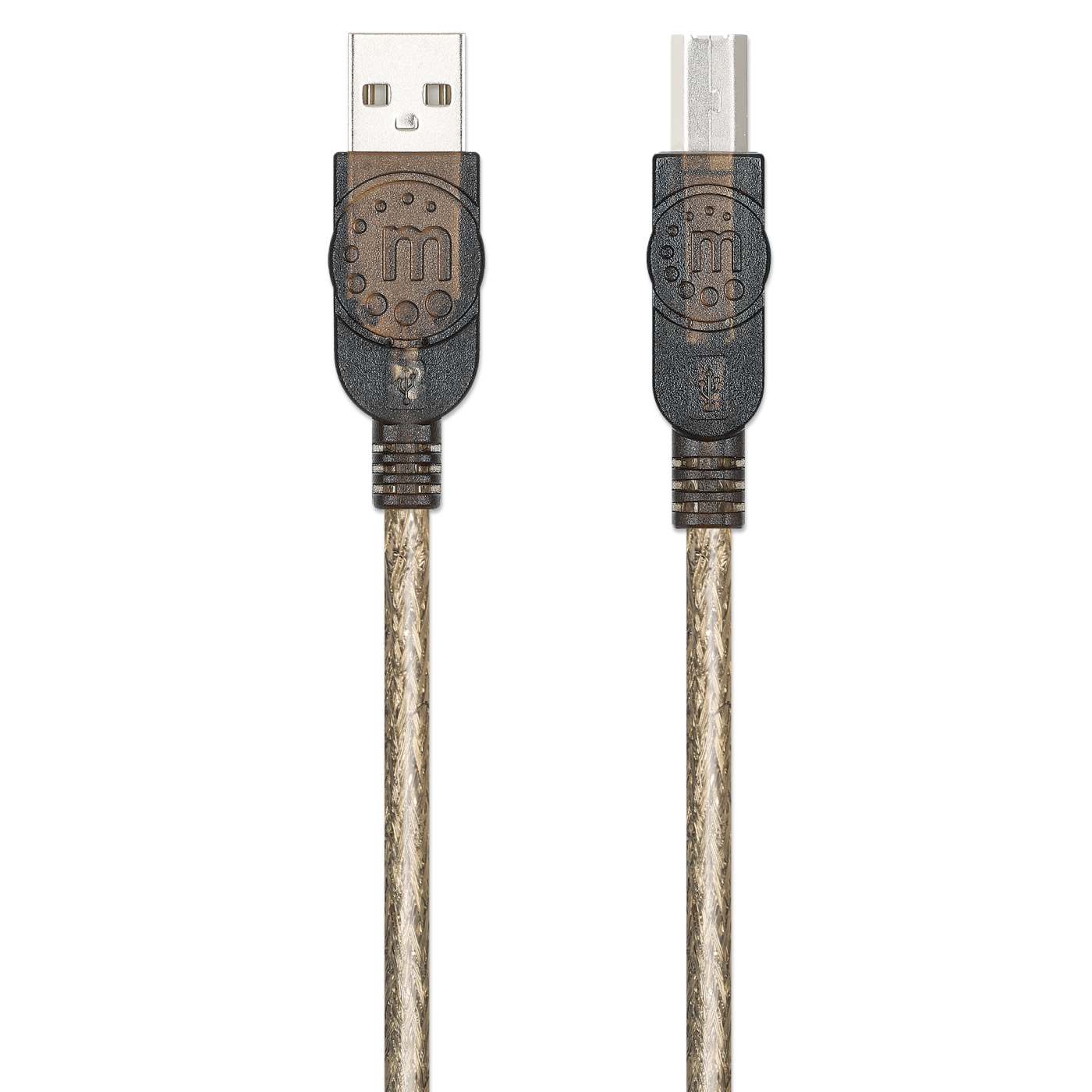

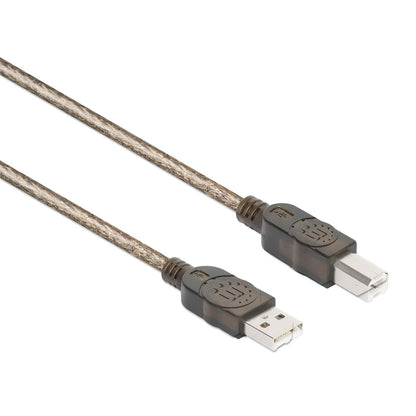

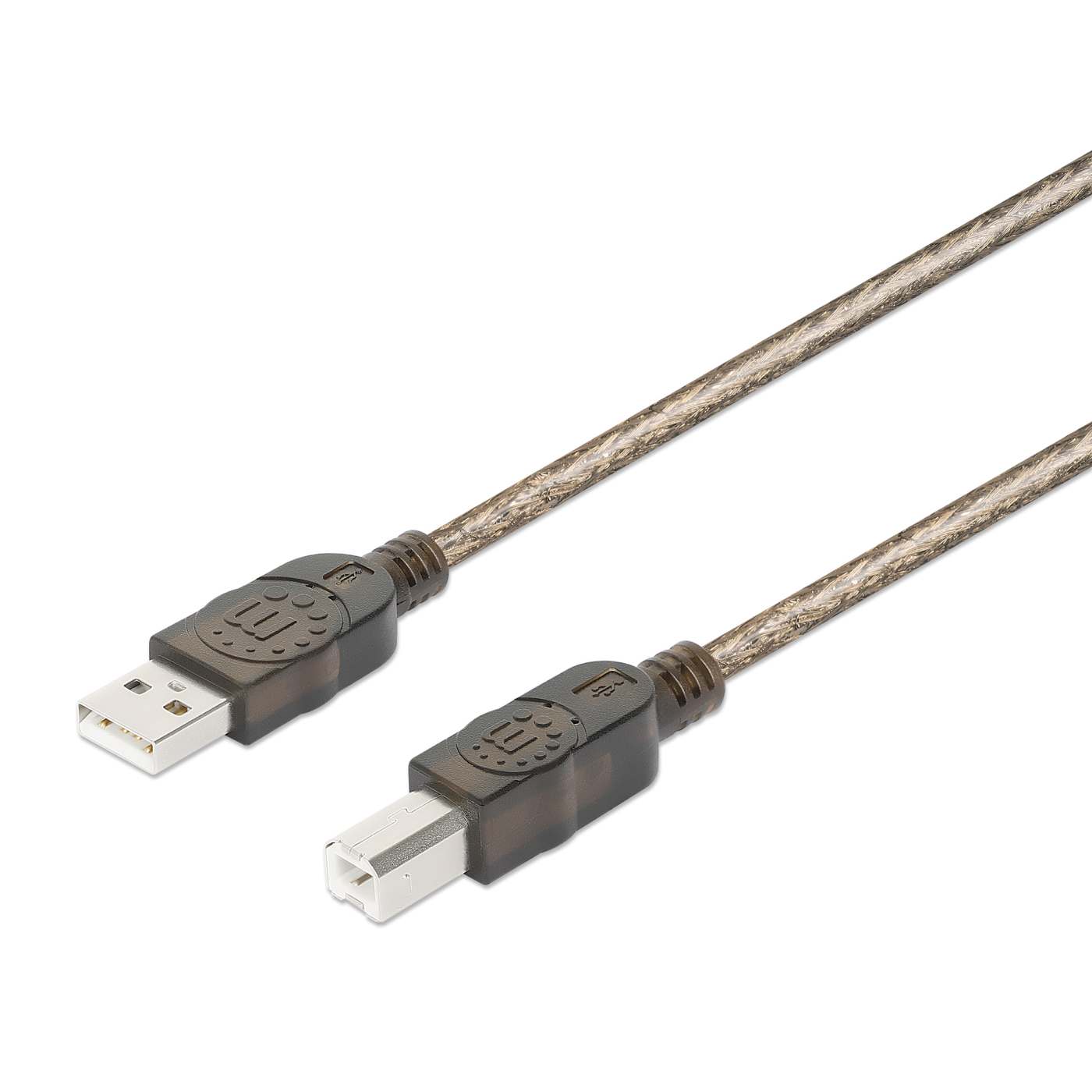

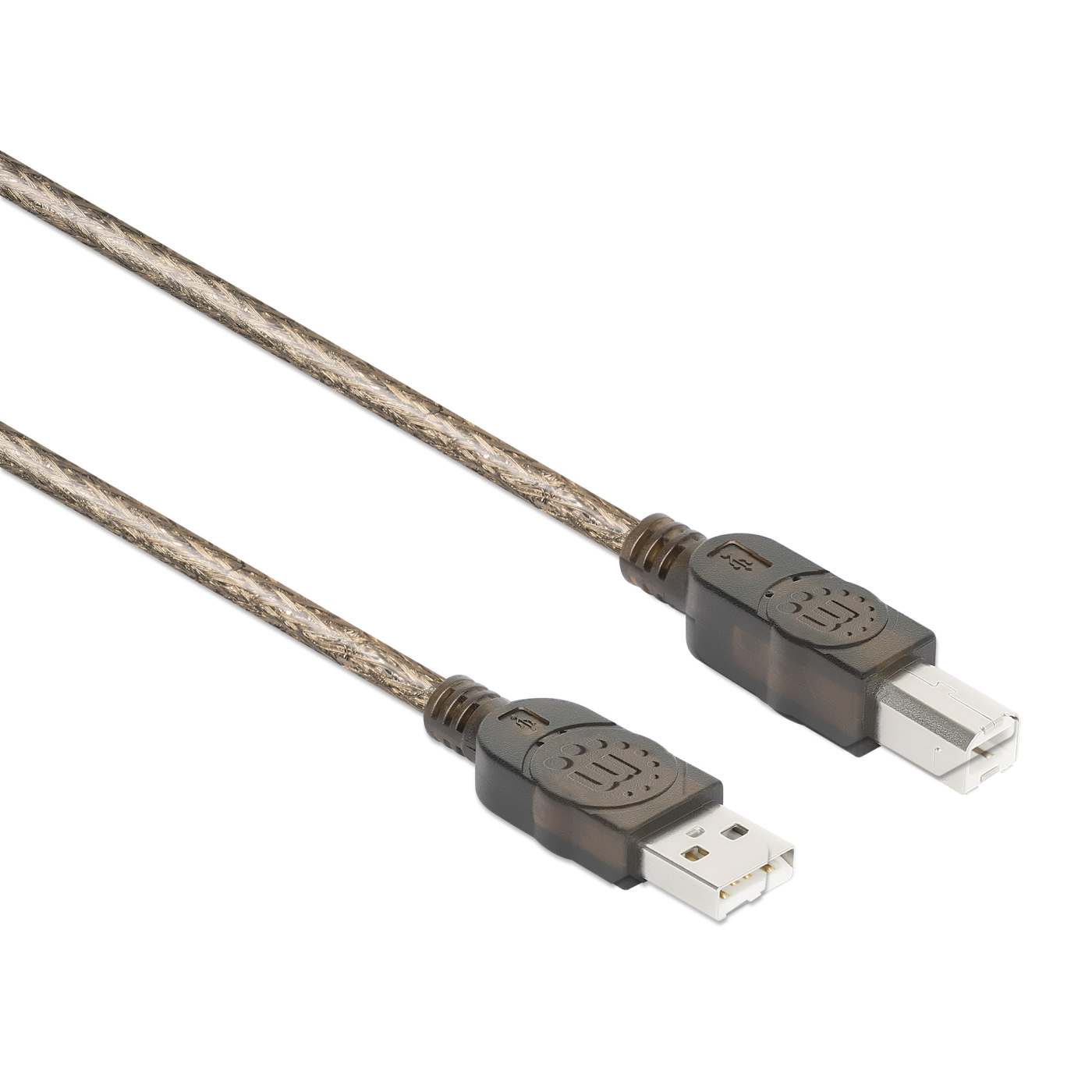

USB 2.0 Active Cable

A Male / B Male, 11.0 m (36 ft.)

Part-No.: 510424

Highlights

  • Extends and boosts the signal to any USB device – supports data transfer speeds up to 480 Mbps
  • Built-in repeater helps maintain Hi-Speed USB signal quality, electrical and timing specifications
  • Overcomes the 5 m (16 ft.) USB distance limitation – ideal for connecting most USB printers


Easily overcome distance limitations to connect USB devices

Use the Manhattan Hi-Speed USB Active Cable to connect a computer USB port to a USB printer or other B-male device almost anywhere in the room. This single, nondaisy-chainable cable extension provides a convenient, uninterrupted 11 m (36 ft.) connection. Manhattan Hi-Speed USB Active Cable with built-it repeater is fully-compliant with USB 1.1 and Hi-Speed USB specifications to help devices operate at maximum performance. Plug and Play capability, Windows7/8/Macintosh versatility and no external power or driver requirements help provide greater flexibility in computer and peripheral placement and office layout.

  • Extends and boosts the signal to any USB device – supports data transfer speeds up to 480 Mbps
  • Built-in repeater helps maintain Hi-Speed USB signal quality, electrical and timing specifications
  • Overcomes the 5 m (16 ft.) USB distance limitation – ideal for connecting most USB printers
  • Provides a single, nondaisy-chainable extension for maximum distance of 11 m (36 ft.)
  • Plug and Play; Windows7/8 and Mac compatible – bus-powered requires no external power supply
  • Three-Year Warranty

    Standards and Certifications:
  • CE
  • FCC
  • USB 1.0
  • USB 1.1
  • USB 2.0

    Electrical:
    USB power output: 5.0 V ±5% / 0.17 A / 0.085 W

    Ports:

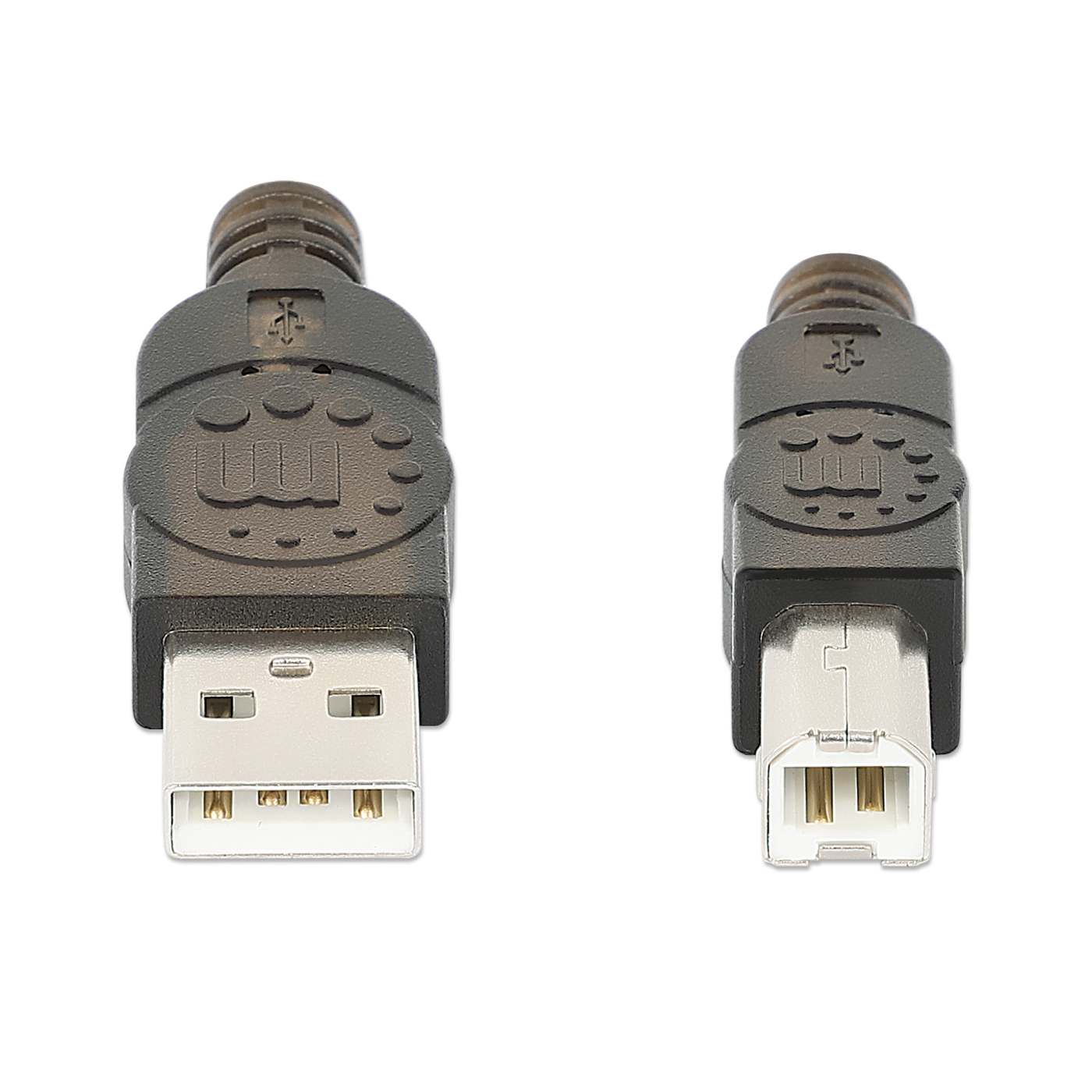

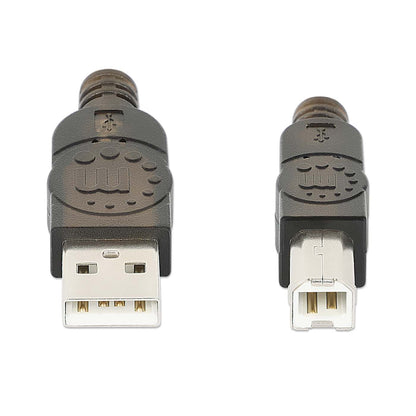

  • A-Type Male
  • B-Type Male

    General
  • Throughput: 480 Mbps
  • Bus powered
  • Max. length: 11 m (36 ft.)
  • All USB Supported Operating Systems

    Physical
  • 5.75 x 3.1 x 2.5 cm (2.25 x 1.25 x 1 in.)
  • Length: 11.0 m (36 ft.)
  • Weight: 432 g (15.2 oz)

    Package contents:
  • Hi-Speed USB Active Cable

  • Additional SKUs

    • Amazon ASIN: B00173E27Q
    • EAN: 0766623510424
    • UPC: 766623510424
    • ALSO: 1602785
    • API: 77172

  • Physical Specifications

    • Weight: 0.32 kg
    • Packaging: Retail Box
    • Carton Quantity: 20
    • Carton Weight: 8.50 kg

  • Datasheet


  • Manual

    • Declaration of Conformity     » Download

    • Quick Instruction Guide     » Download
