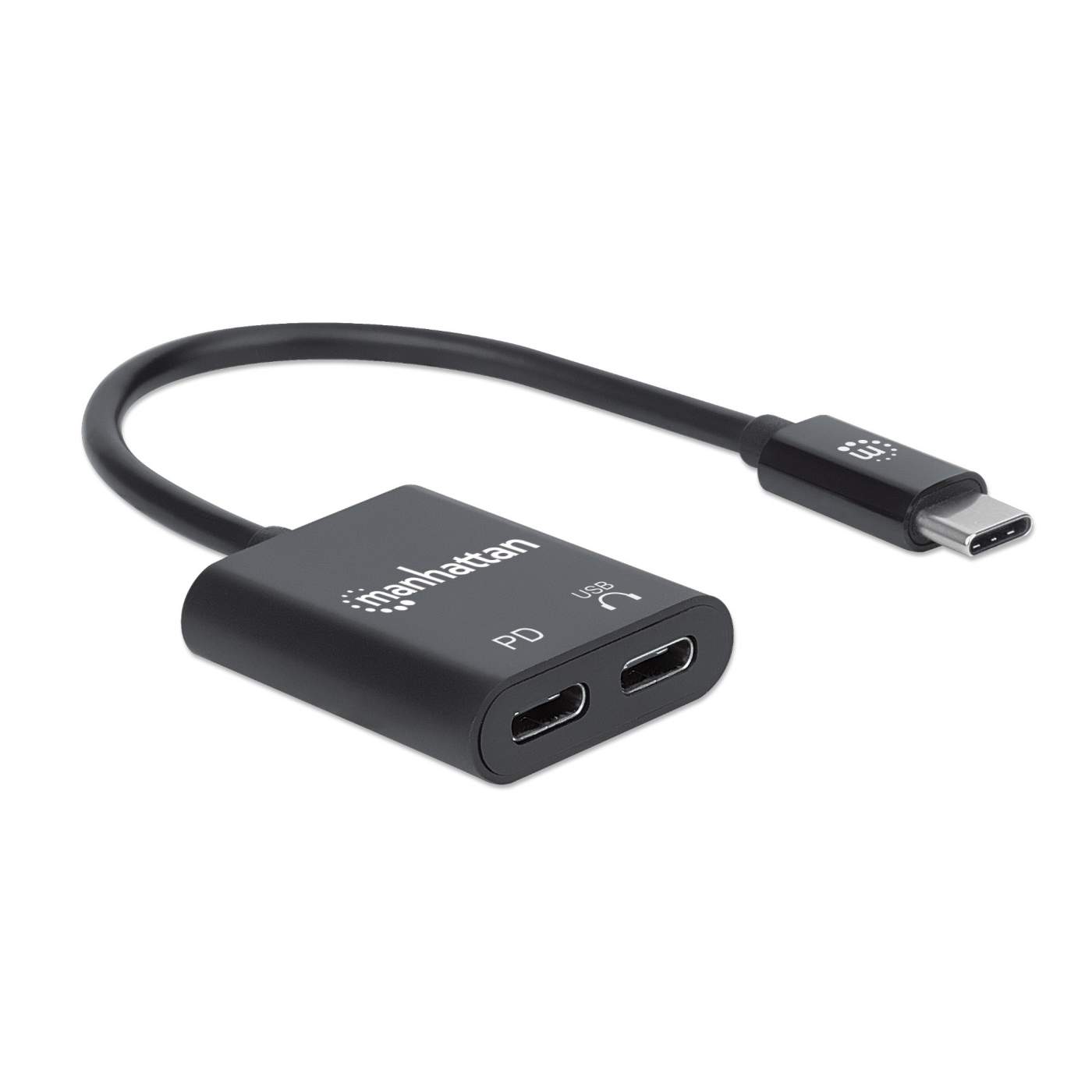

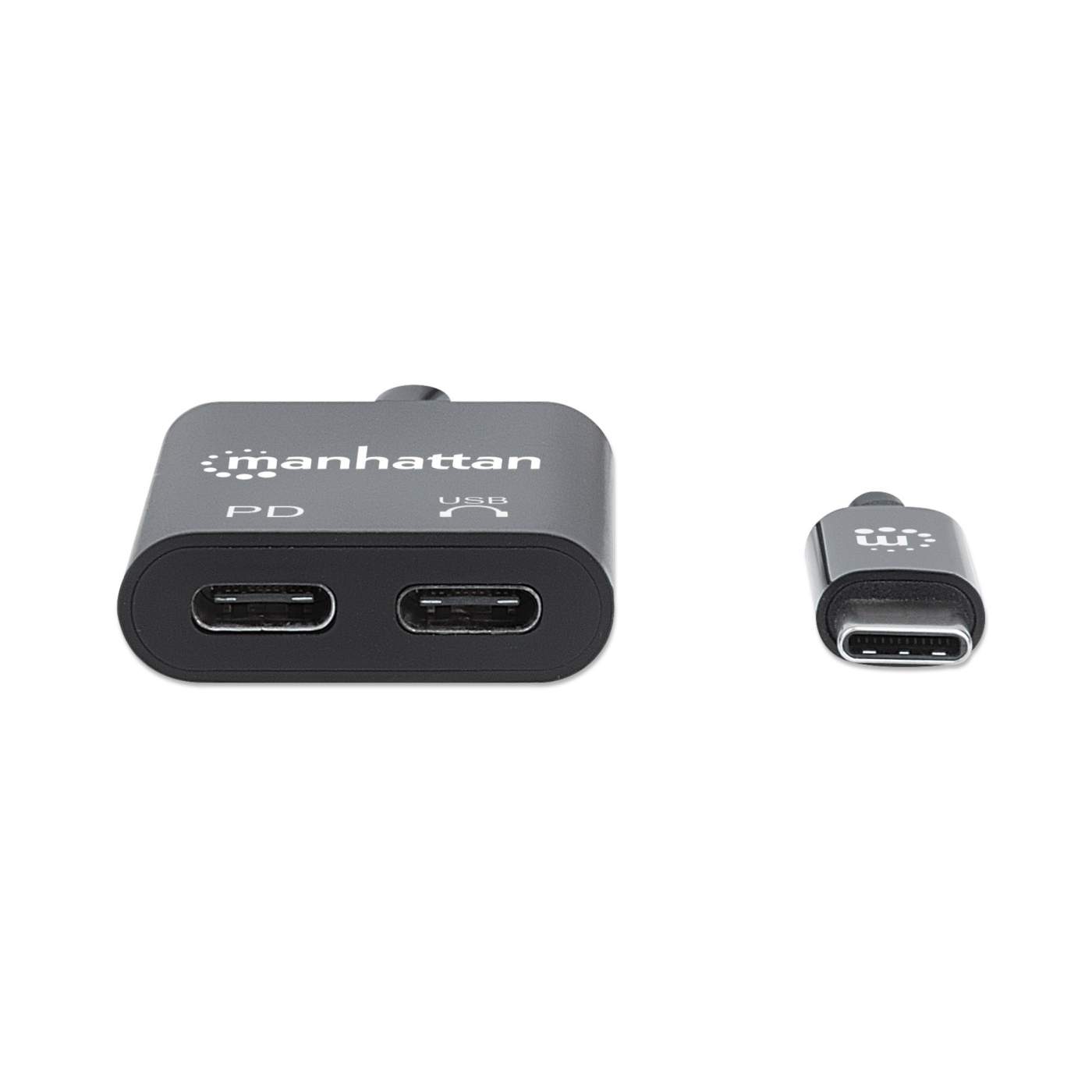

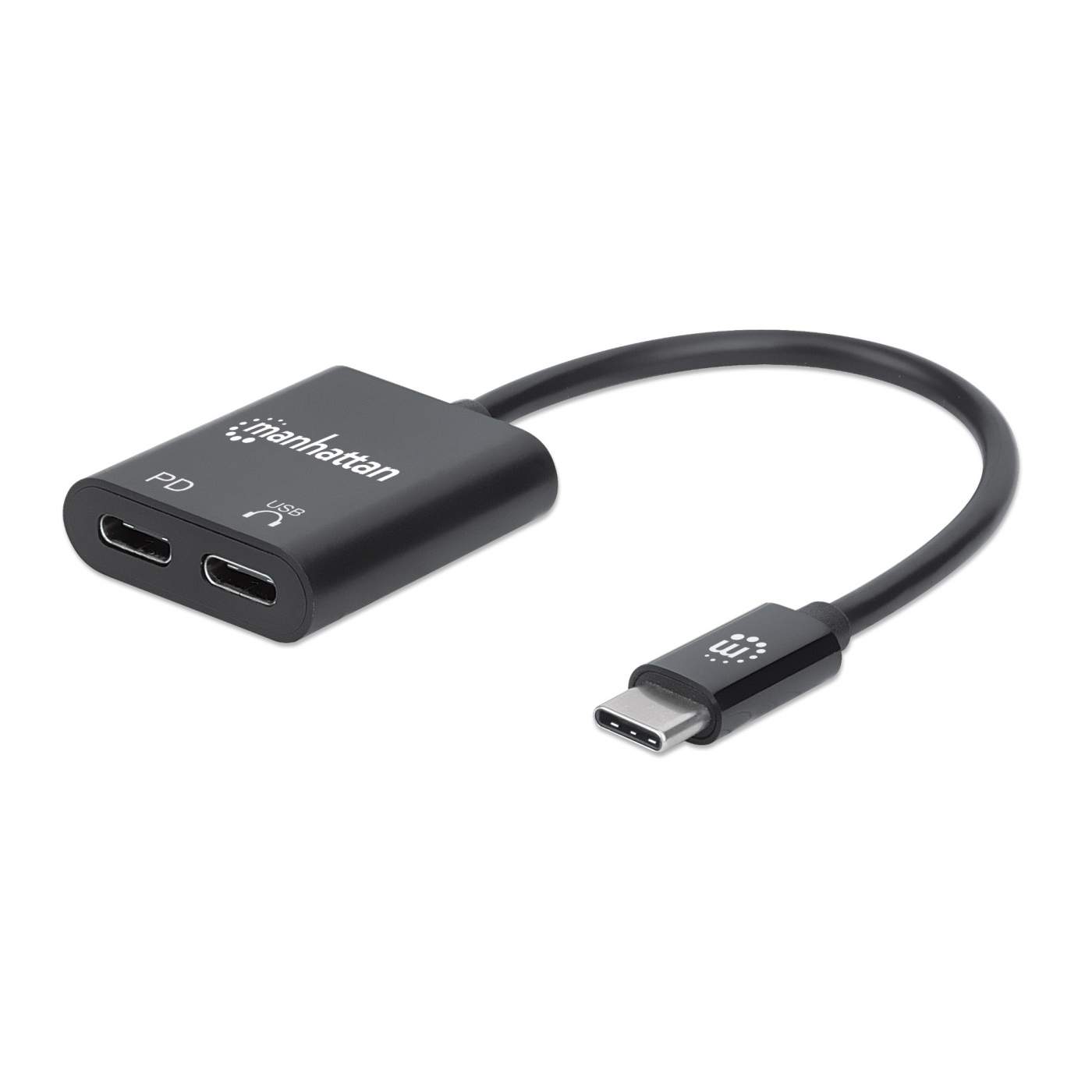

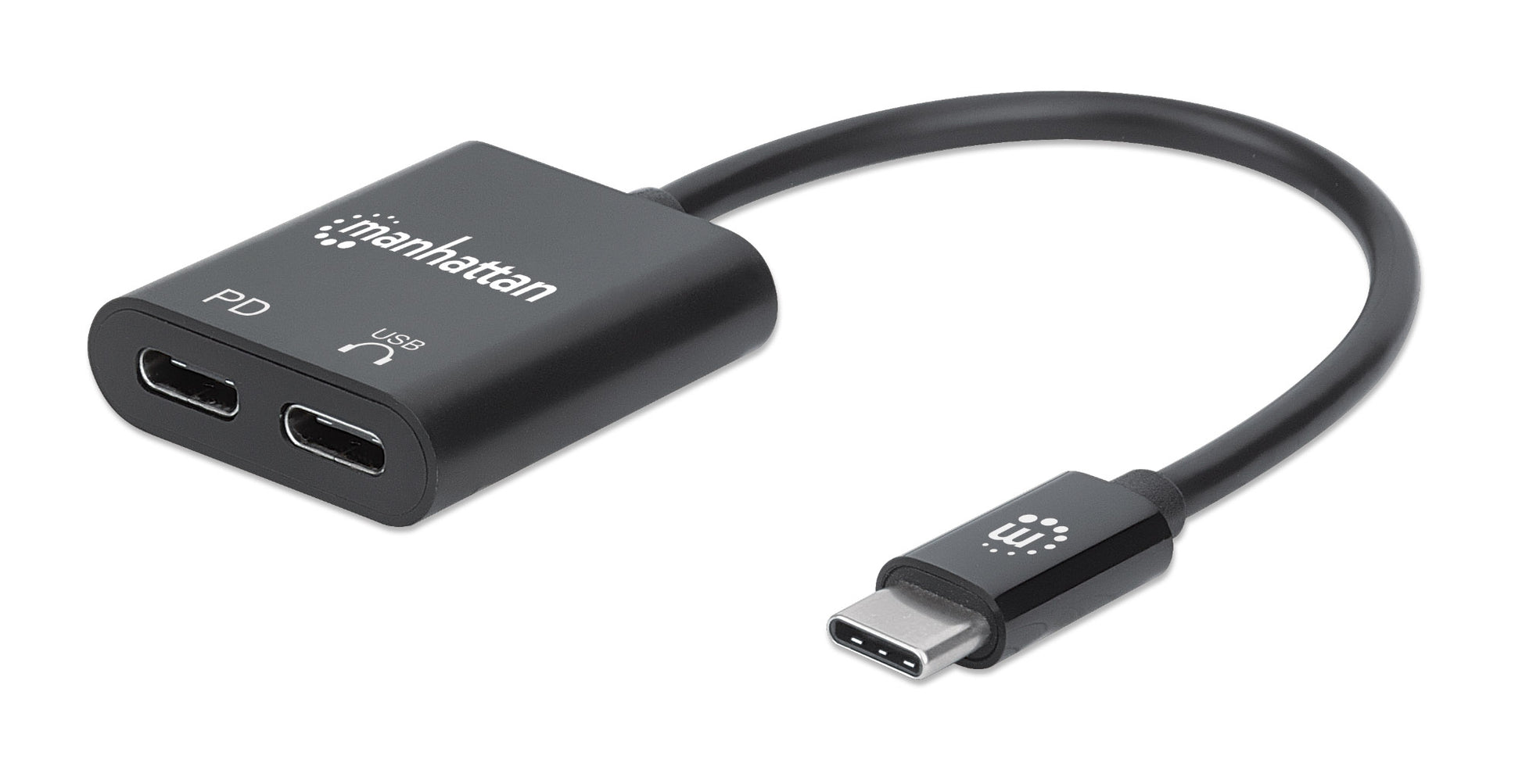

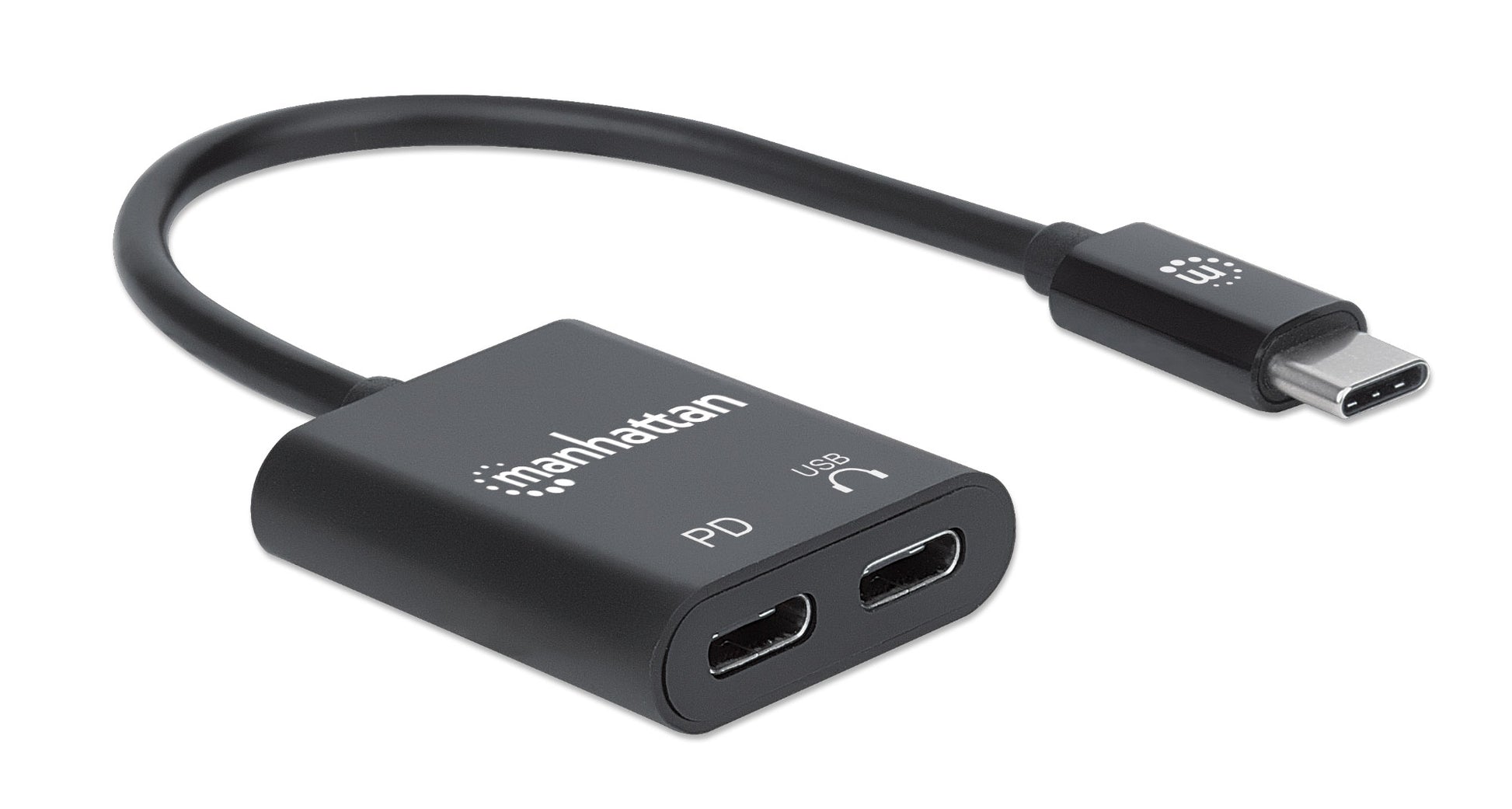

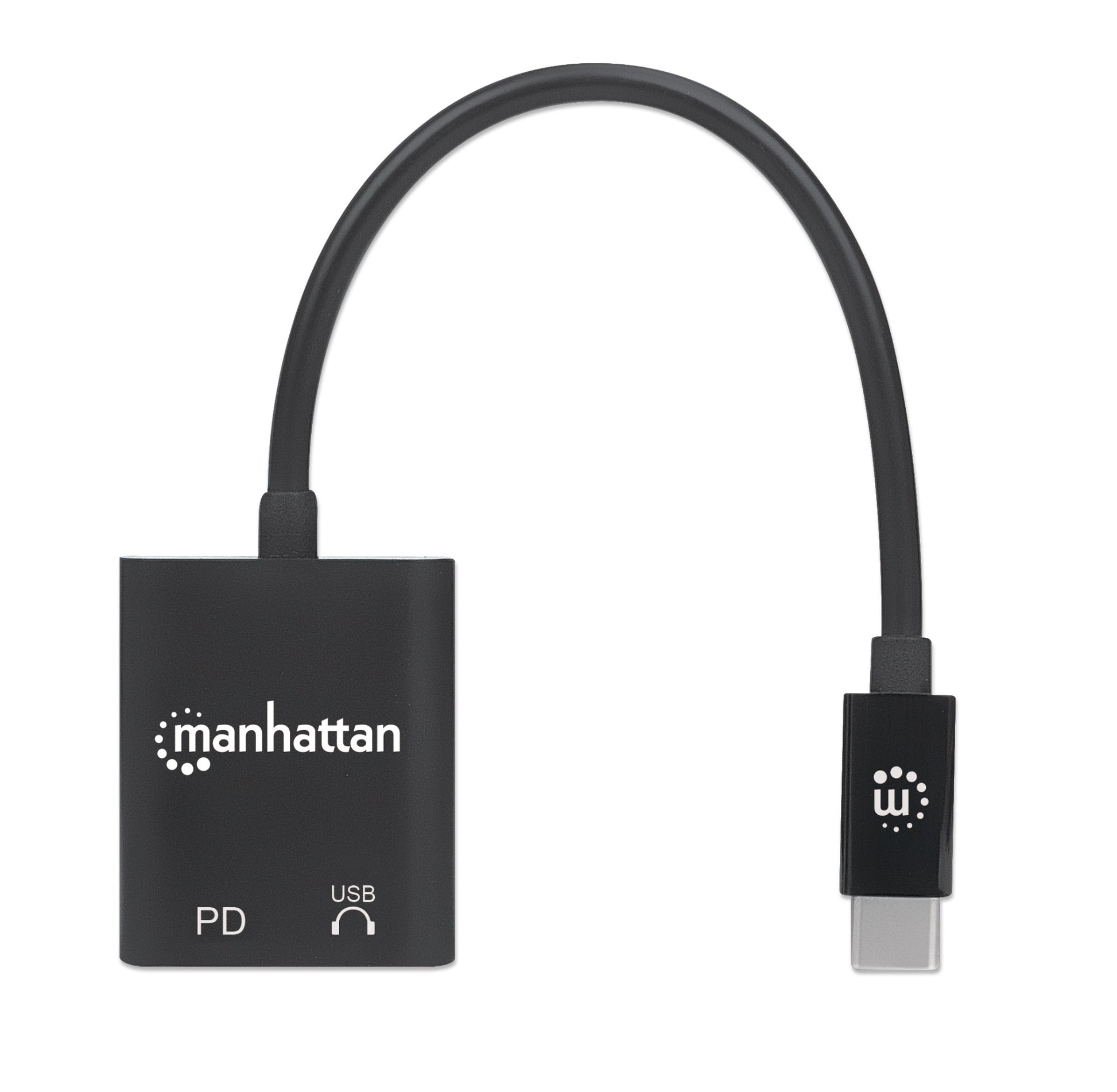

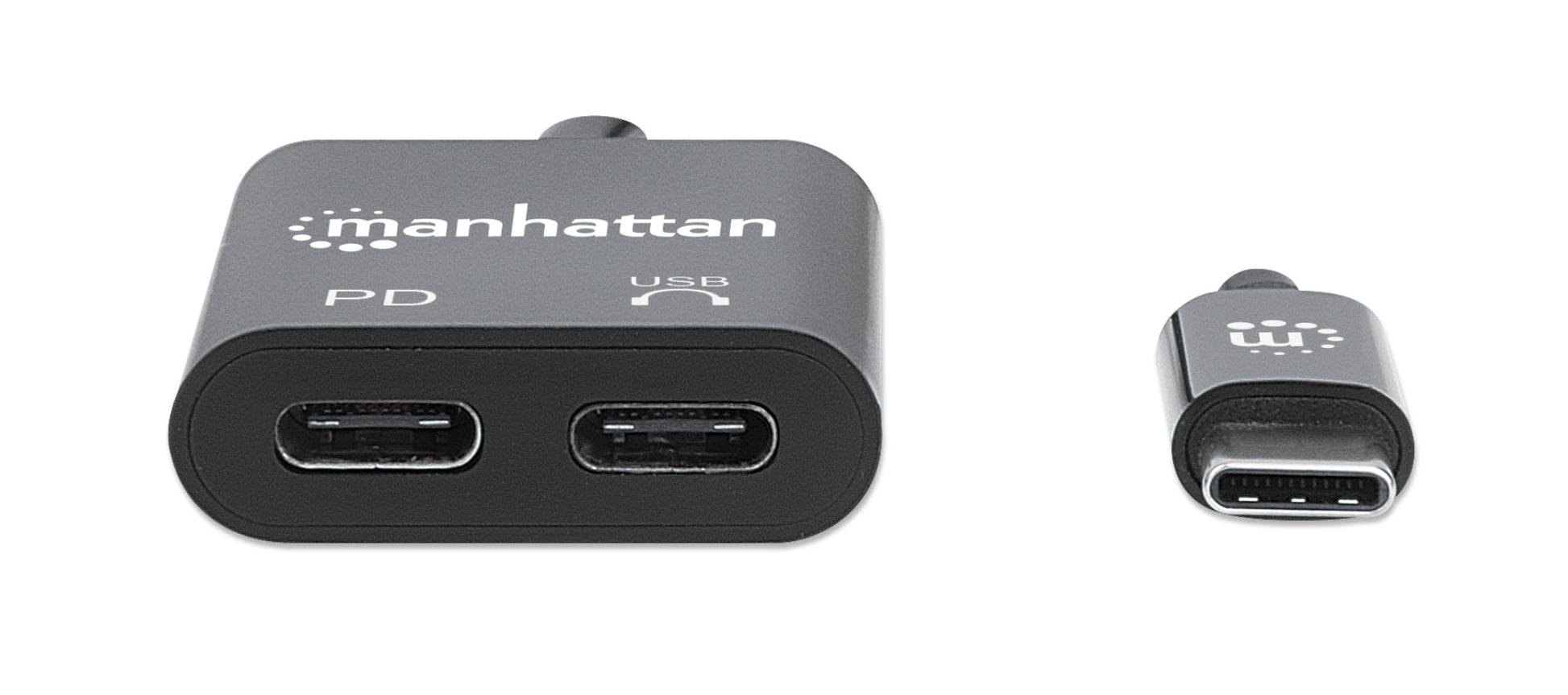

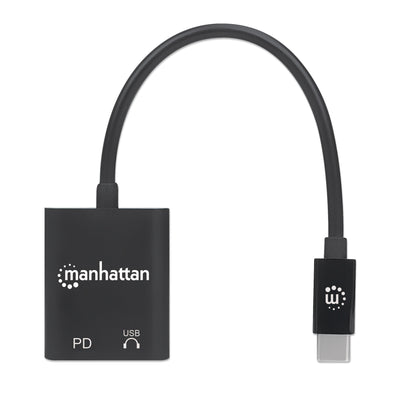

USB-C Audio Adapter

USB-C Male to USB-C Audio and USB-C Power Delivery Females, Black

Part-No.: 153348

Highlights

  • Simultaneous super-fast charging and audio control over a single USB-C connection
  • Durable point of connection so you can enjoy your USB-C headphones on any USB-C device while charging it*
  • Supports USB Power Delivery (PD) function up to 60 W; requires an external PD charger – available from Manhattan

Sound and Power in a USB-C Audio Adapter

Want to listen to your USB-C headset and charging the device it connects to simultaneously? Add one USB-C audio port and get plenty of power for all your attached devices with the Manhattan USB-C Audio Adapter. Simply connect it to your computer's USB-C port, connect your computer's charging cable to the Power Delivery port on the adapter, and plug in your headphones. The adapter's Power Delivery technology charges your computer and all the devices it connects to so you can listen to music, favorite podcast or media program while you get work done. The jack also supports audio input if your headphone cable has a built-in mic so you can be heard and understood better in your online communications. Improve your productivity and get the audio connection you need with this USB-C audio adapter.

  • Simultaneous super-fast charging and audio control over a single USB-C connection
  • Durable point of connection so you can enjoy your USB-C headphones on any USB-C device while charging it*
  • Supports USB Power Delivery (PD) function up to 60 W; requires an external PD charger – available from Manhattan
  • Three-channel Analog-to-Digital Converters (ADC) for enhanced audio output and microphone input
  • Supports microphones and audio playback
  • Plug and play; no drivers or installation required
  • Ultra-slim and lightweight design, ideal for traveling
  • Three-year warranty
  • *On some smartphone models, some of the function keys of a headset cannot be used

    Standards and Certifications
  • USB 2.0
  • USB audio device class V 2.0
  • PD 2.0
  • CE
  • FCC
  • RoHS2
  • WEEE
  • REACH

    General
  • Bus-powered
  • Supports 60 W PD

    Connections
  • USB-C male
  • USB-C female
  • USB-C female PD charging port

    Physical
  • Dimensions: 36.2 x 30.3 x 9.3 mm (1.43 x 1.19 x 0.37 in.)
  • Cable length: 112 mm (4.3 in.)
  • Weight: 11 g (0.38 oz.)
  • Housing: ABS

    Operating Environment
  • Operation Temperature: 0 – 85°C (32 – 185°F)
  • Storage Temperature: -40 – 85°C (-40 – 185°F)
  • Humidity (noncondensing): 0 – 95%

    System Requirements
  • USB-C port

    Package Contents
  • USB-C Audio Adapter
  • Quick Instruction Guide

  • Additional SKUs

    • Amazon ASIN: B07YL47TJW
    • EAN: 0766623153348
    • UPC: 766623153348

  • Physical Specifications

    • Weight: 0.01 kg
    • Dimensions: 36.2 (L) x 30.3 (W) x 9.3 (H) [mm]
    • Packaging: Retail Box
    • Carton Quantity: 80
    • Carton Weight: 4.00 kg

  • Datasheet


  • Manual

    • Quick Instruction Guide     » Download
