USB-C to 4K HDMI Multiport Adapter to connect a laptop, MacBook®, smartphone or tablet to an HDMI monitor - plus USB port, Headset Jack and Power Delivery Charging

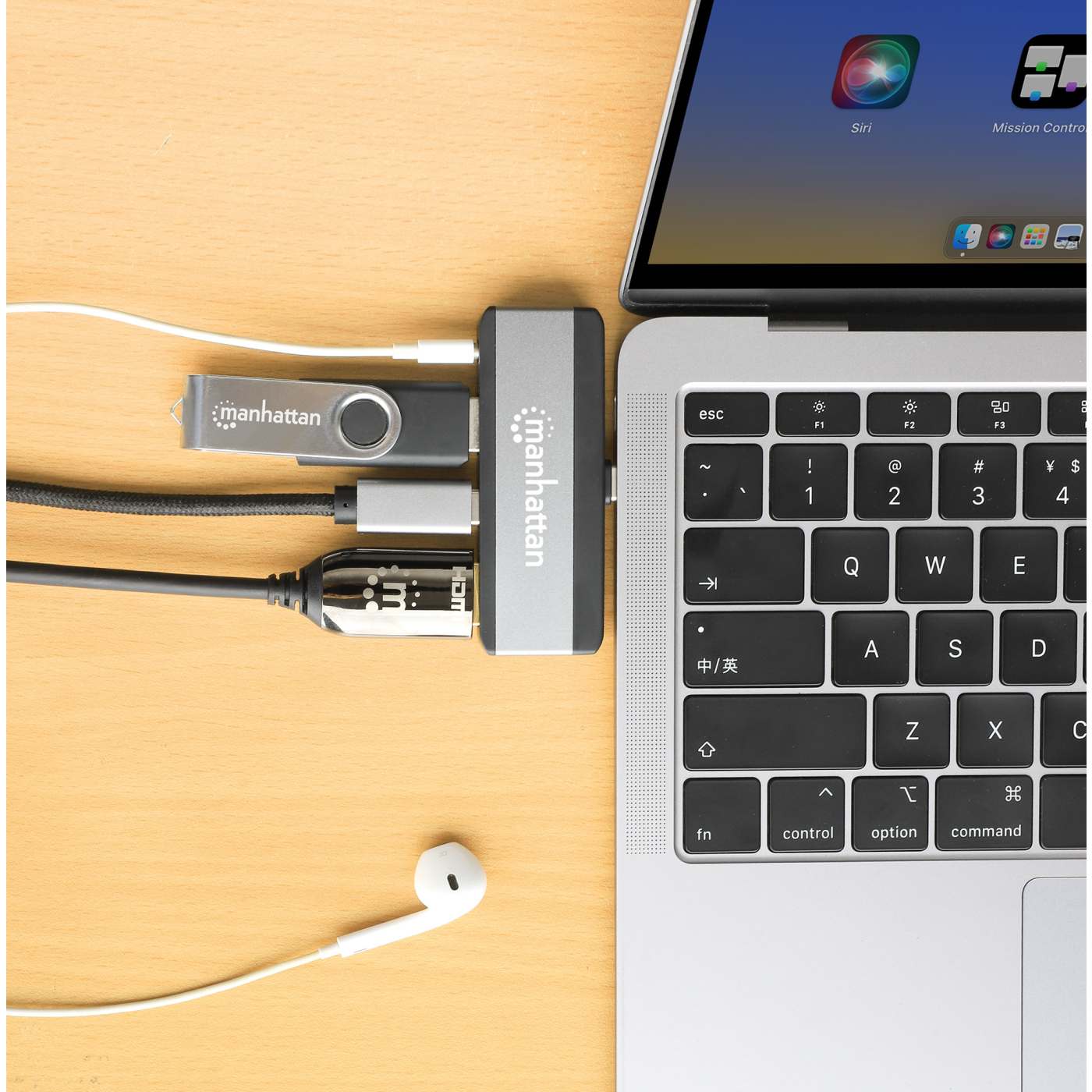

Unlock the full potential of your USB-C device with the Manhattan USB-C to HDMI 4-in-1 Dock. Designed to enhance productivity and convenience, this versatile adapter connects your laptop (or other device) to an HDMI display, a USB-A peripheral, and a headset, all while keeping it charged with up to 100 W of Power Delivery.
Stunning 4K UHD Display Support

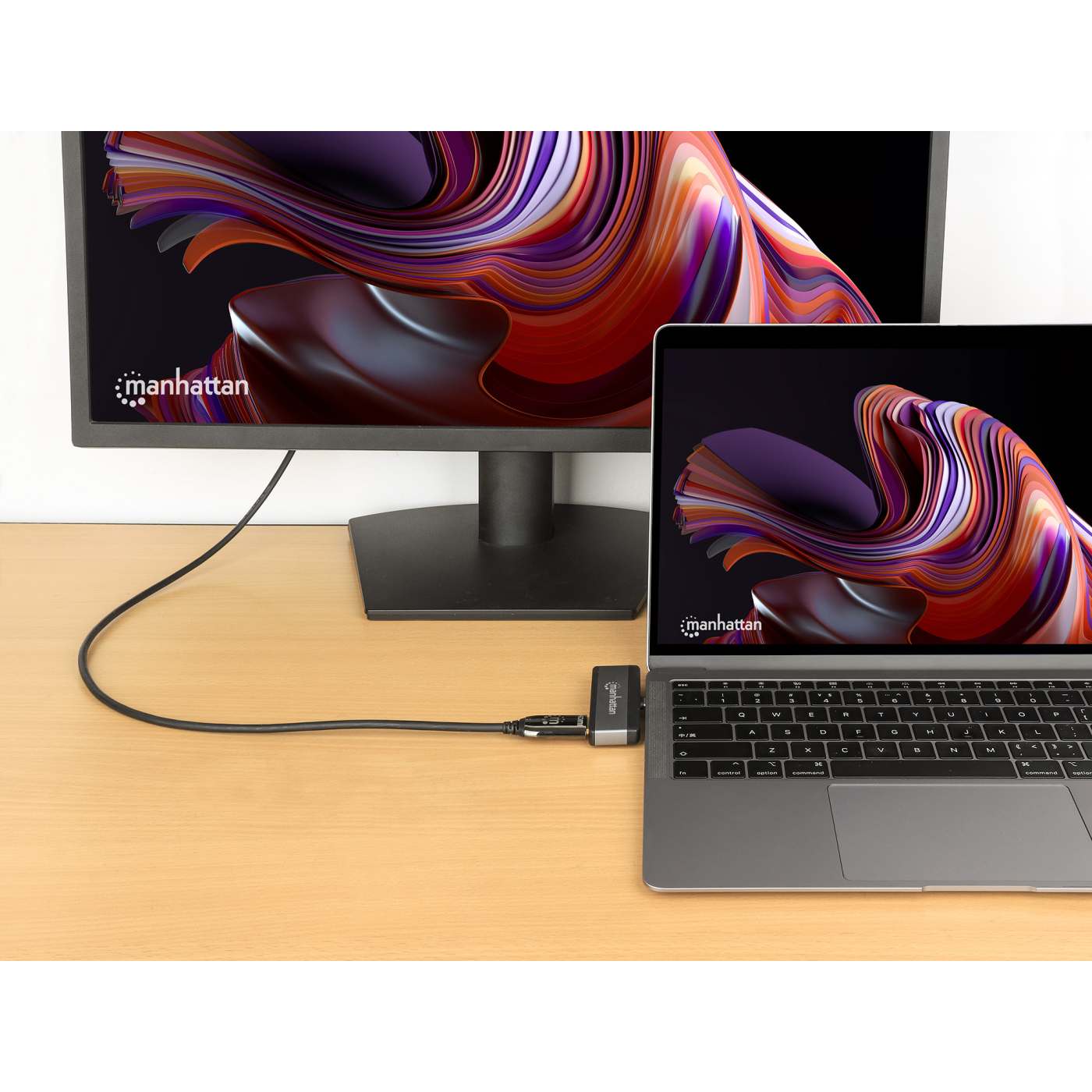

Experience crystal-clear visuals with resolutions up to UHD 4K@30Hz. Whether you're presenting in a meeting, streaming your favorite content, or working on detailed projects, this adapter ensures that everything looks sharp and vibrant.
USB-A Port for Fast Transfers and Peripherals

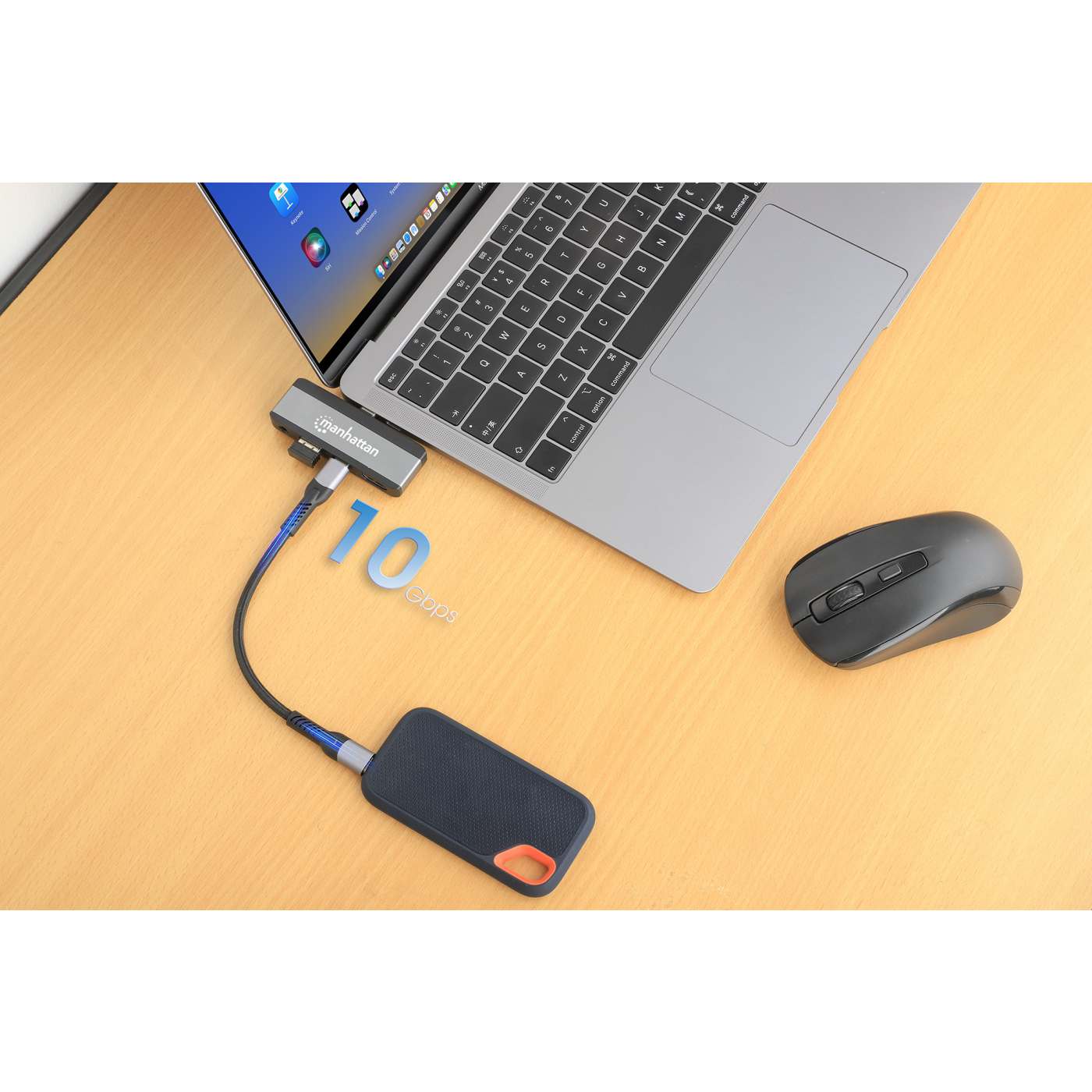

The USB 3.2 Gen 2 Type-A port offers SuperSpeed+ data transfer rates up to 10 Gbps, making it perfect for connecting peripherals like mice, keyboards, and portable memory devices or syncing phones and tablets.
Comprehensive Audio Capabilities for Headsets, Headphones, and Speakers
Enjoy high-quality stereo sound with the 3.5 mm jack, which supports both audio input and output. Whether you're using a headset for calls or headphones for music, this adapter provides crisp, clear audio.
Charge and Connect Simultaneously

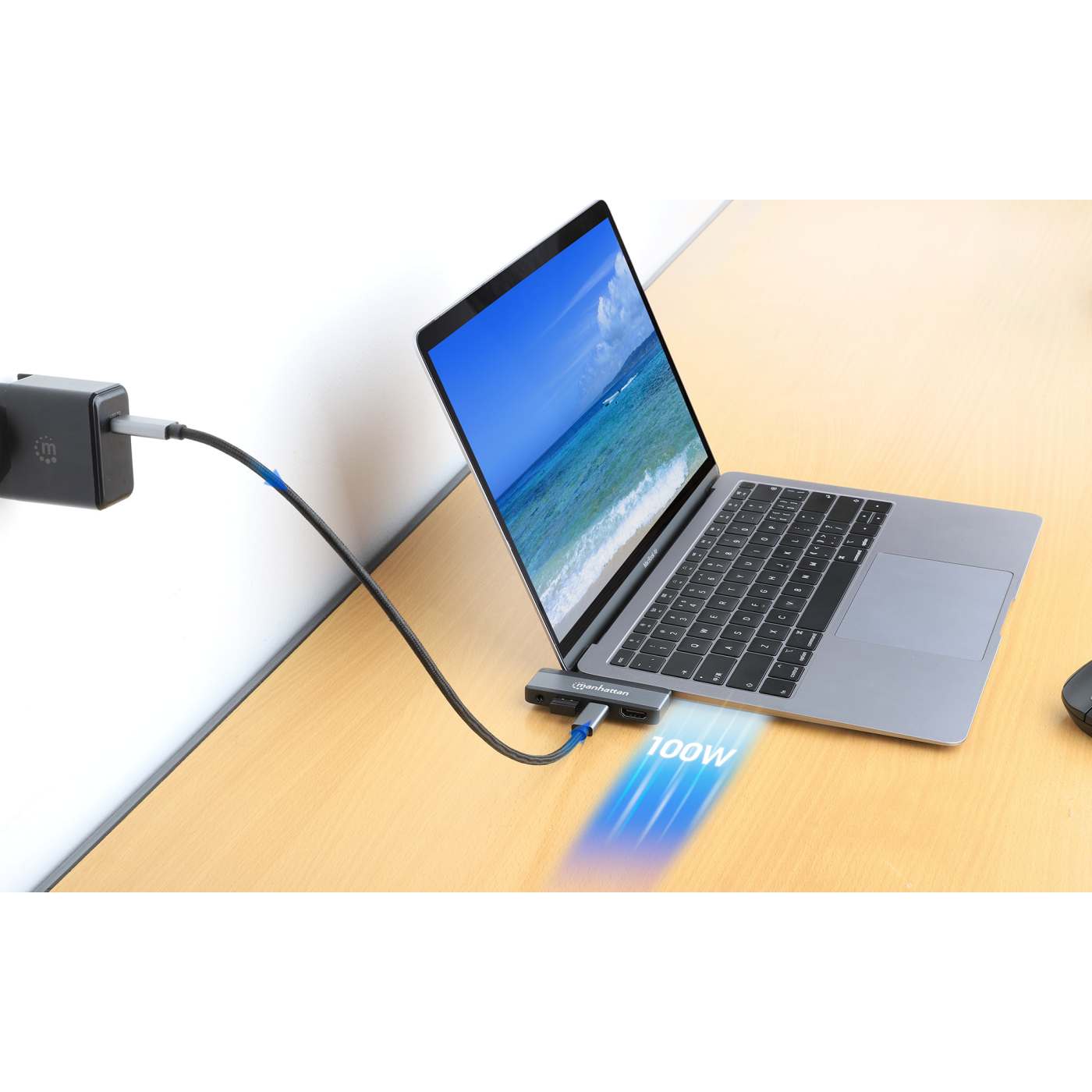

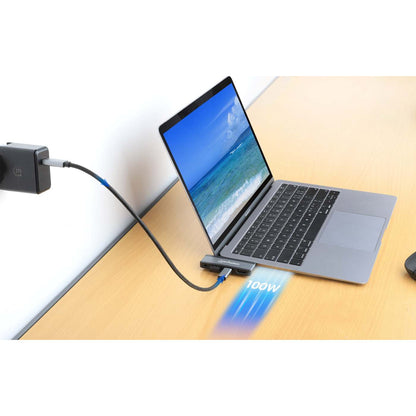

With support for USB Power Delivery (PD) up to 100 W, you can keep your laptop, tablet, or smartphone powered up while using all the adapter’s connectivity features. Just connect an external PD charger and you're set.
Universal Compatibility with Plug-and-Play Simplicity
Compatible with a wide range of USB-C DP-Alt-Mode-supported devices, including Apple® MacBook®, Chromebook™, and Pixel™, this adapter is perfect for any setup. With no drivers or software required, this it offers hassle-free plug-and-play installation. It’s compatible with Windows®, macOS®, Chrome OS™, iPadOS®, iOS®, and Android™, making it a versatile solution for any user.
Transform Your Smartphone into a Desktop PC
For devices that support video output over USB-C, this adapter can turn your smartphone into a desktop-like experience, complete with HDMI display and USB peripherals, all while charging your phone.
- Connects your USB-C device to an HDMI display, USB-A peripheral, and headset while charging it with Power Delivery
- One HDMI port with resolutions up to Ultra-High-Definition (UHD) 4K@30Hz (3840×2160)
- One USB 3.2 Gen 2 Type-A port with SuperSpeed+ transfer rates up to 10 Gbps and charging up to 4.5 W (5 V / 0.9 A)
- USB-A port to connect mice, keyboards or portable memory devices (and more) or to charge and sync a portable electronic device
- Charges your laptop with USB Power Delivery (PD) up to 100 W; requires an external PD charger - available from Manhattan
- 3.5 mm jack for high-quality stereo sound; supports both a mic (audio input) and headphones (audio output)
- Compatible with all USB-C DP-Alt-Mode-supported desktops, notebooks and tablets including Apple® MacBook®, Chromebook™, Pixel™ and more
- Compliant with DisplayPort 1.2 Alternate Mode (DP Alt Mode)
- Lets your smartphone work like a desktop PC while also charging it (desktop setup requires devices that offer video output over USB-C)
- Plug-and-play installation; Windows®, macOS®, Chrome OS™, iPadOS®, iOS®, and Android™ compatible
- Supports PD 3.0 Fast Role Swap (FRS) - the connection between the docking station and laptop is not interrupted when the charger is unplugged
- Compatible with USB4® and Thunderbolt™ 3 / 4 interfaces
- Fully HDCP 1.4 compliant, backward compatible

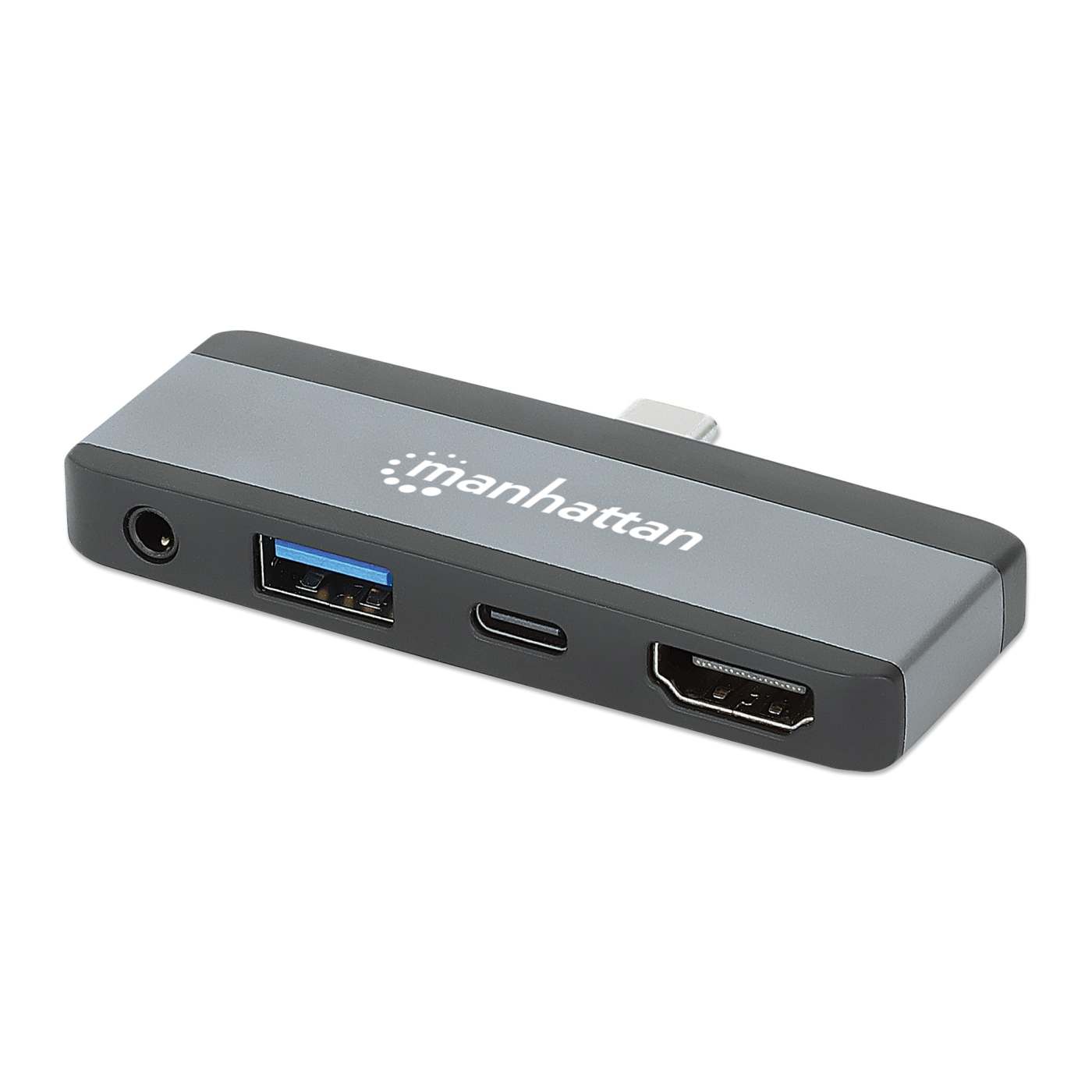

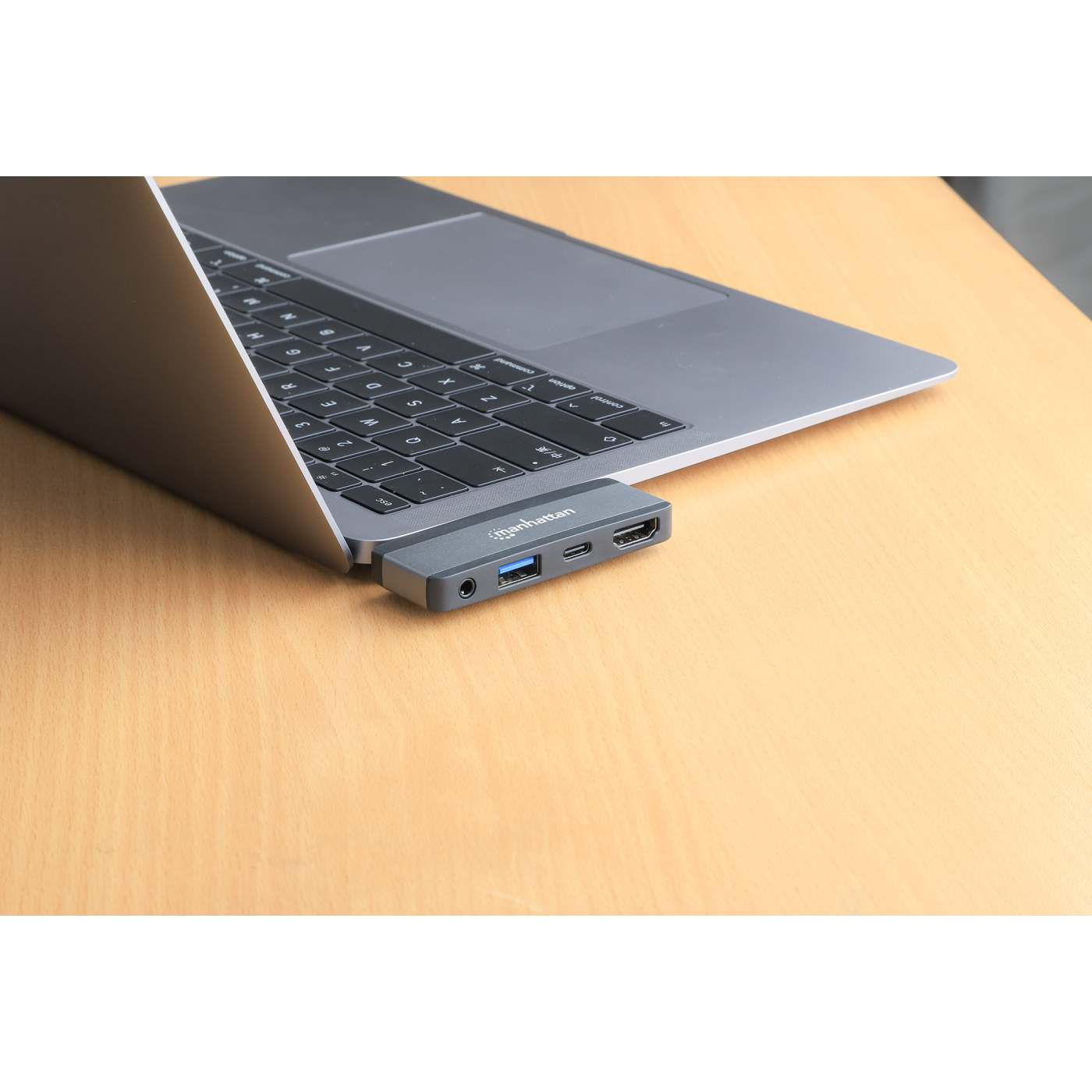

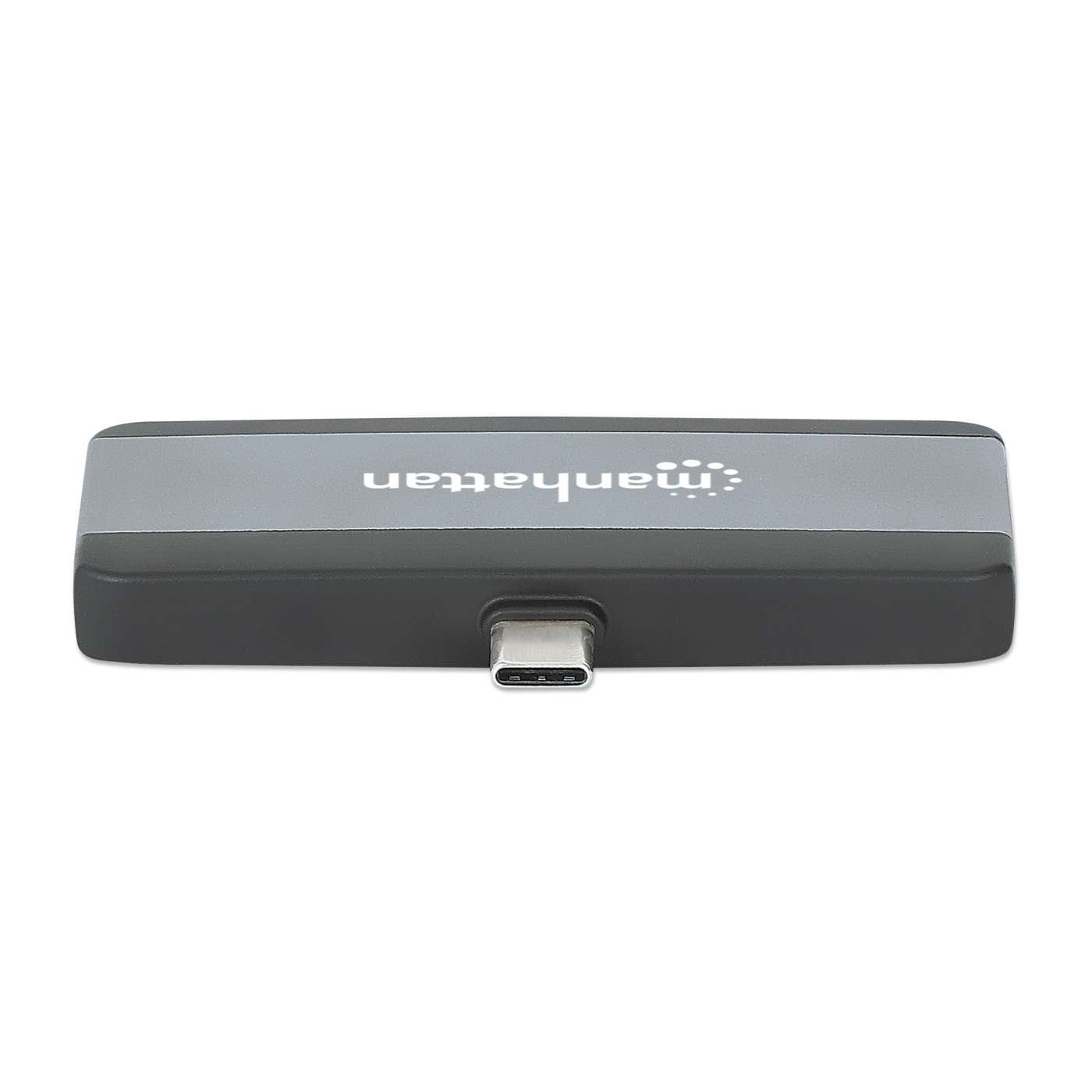

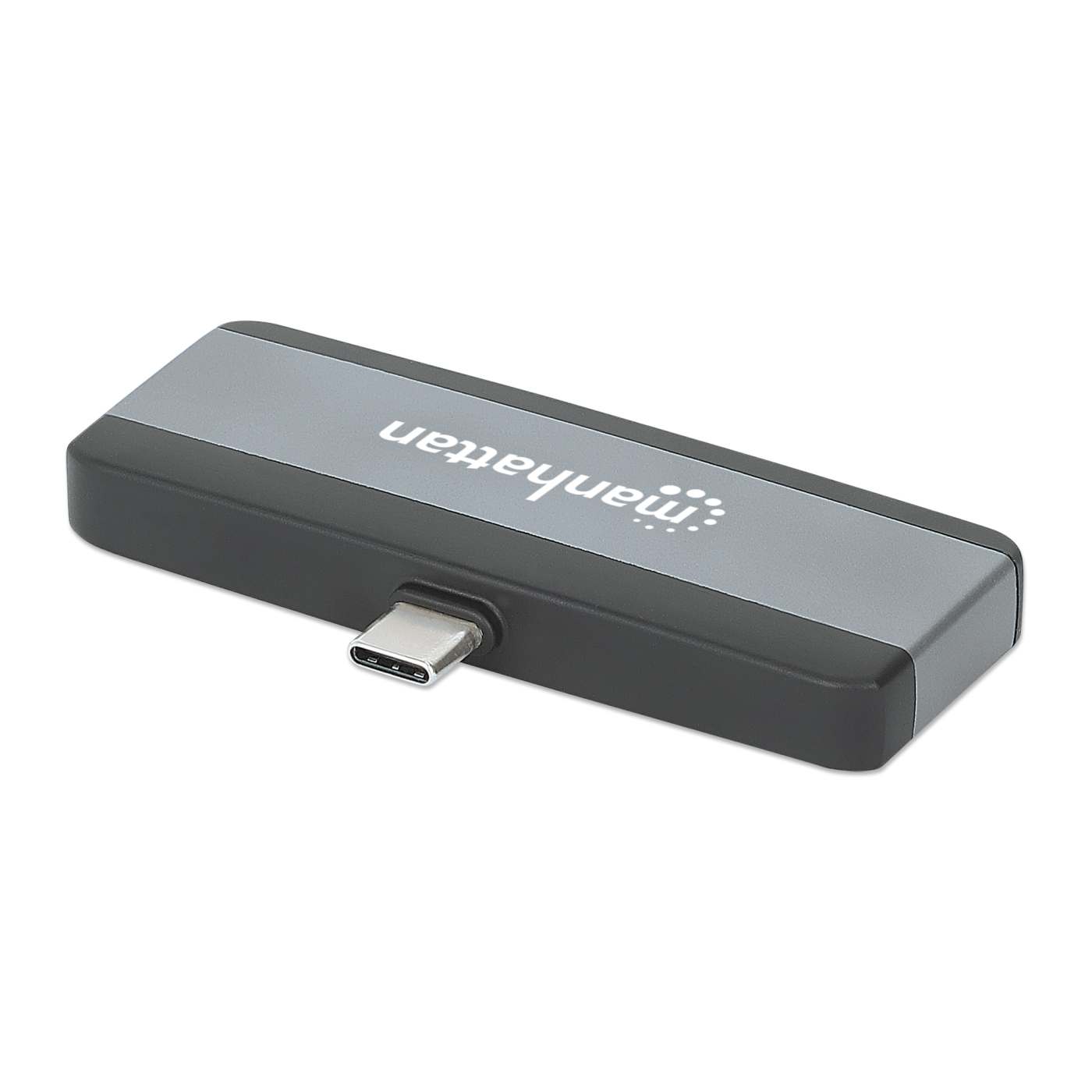

- Sturdy, sleek aluminum housing plugs directly into your device's USB port, great for travel
- Three-year warranty
- Standards and Certifications
- DP 1.2 Alt Mode over USB-C
- USB 3.2 Gen 2
- HDMI 1.4
- HDCP 1.4
- CE
- FCC
- RoHS
- REACH
- UKCA
General
- Available video resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K@30Hz
- USB-A port data transfer speed: 10 Gbps
- Bus powered operation (except charging functions)
- USB-A charging: 4.5 W (5.0 V at 0.9 A) max.
- USB-C PD charging port: 100.0 W (20.0 V at 5.0 A) max.
- Voltage/current settings (maximum):
- 5.0 V / 3.0 A
- 9.0 V / 3.0 A
- 12.0 V / 3.0 A
- 15.0 V / 3.0 A
- 19.0 V / 5.0 A
- 20.0 V / 5.0 A
- 3.5 mm stereo jack for headsets, headphones, and speakers:
- 24-bit stereo DAC for audio playback
- 16-bit ADC for microphone input
- 44.1 KHz/48 KHz sampling rates for playback and recording

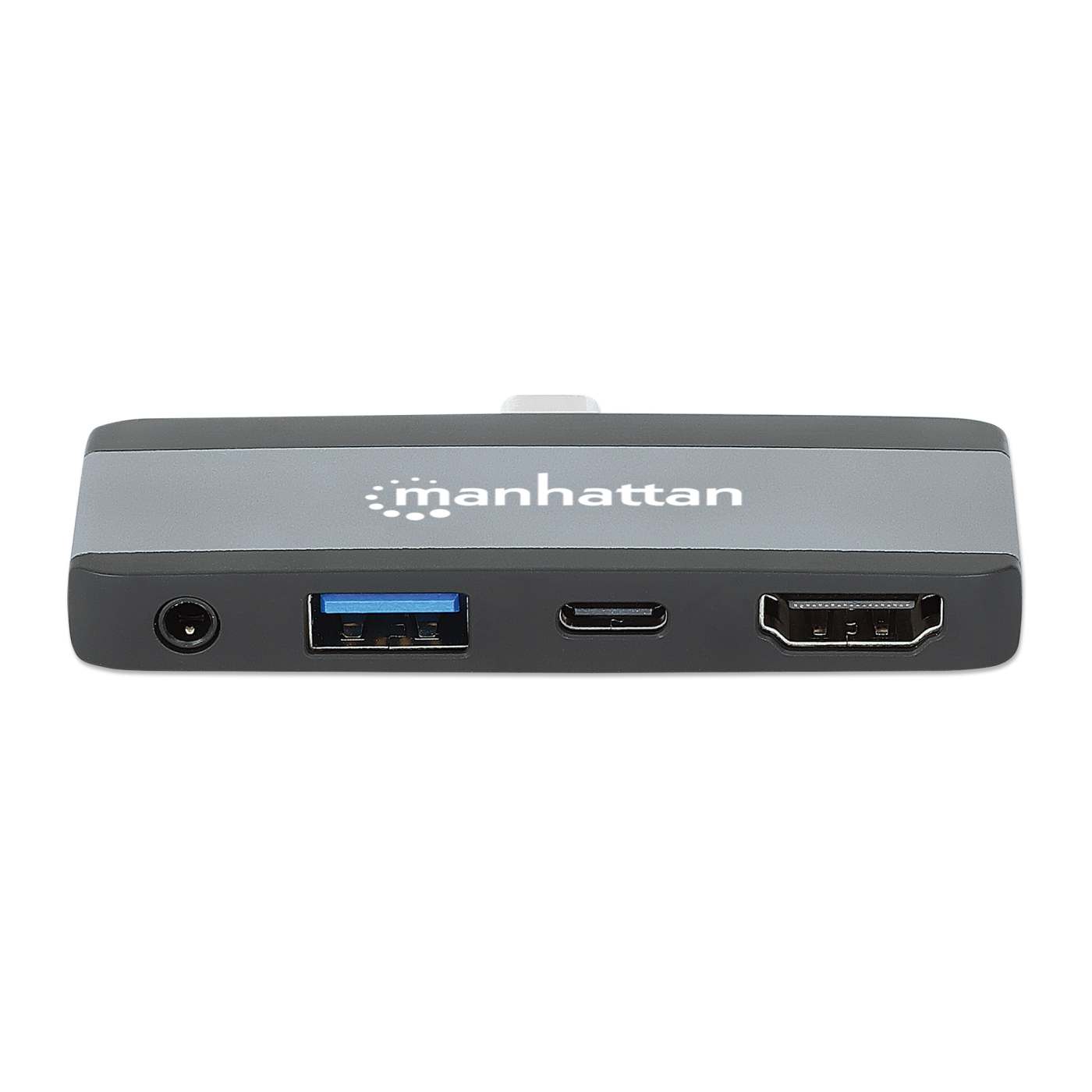

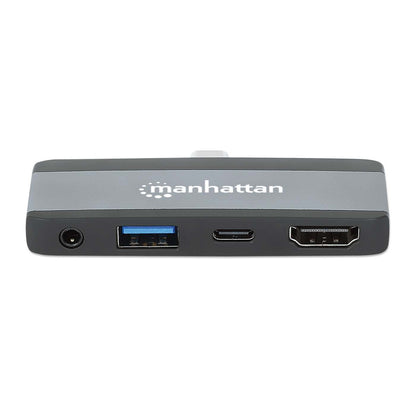

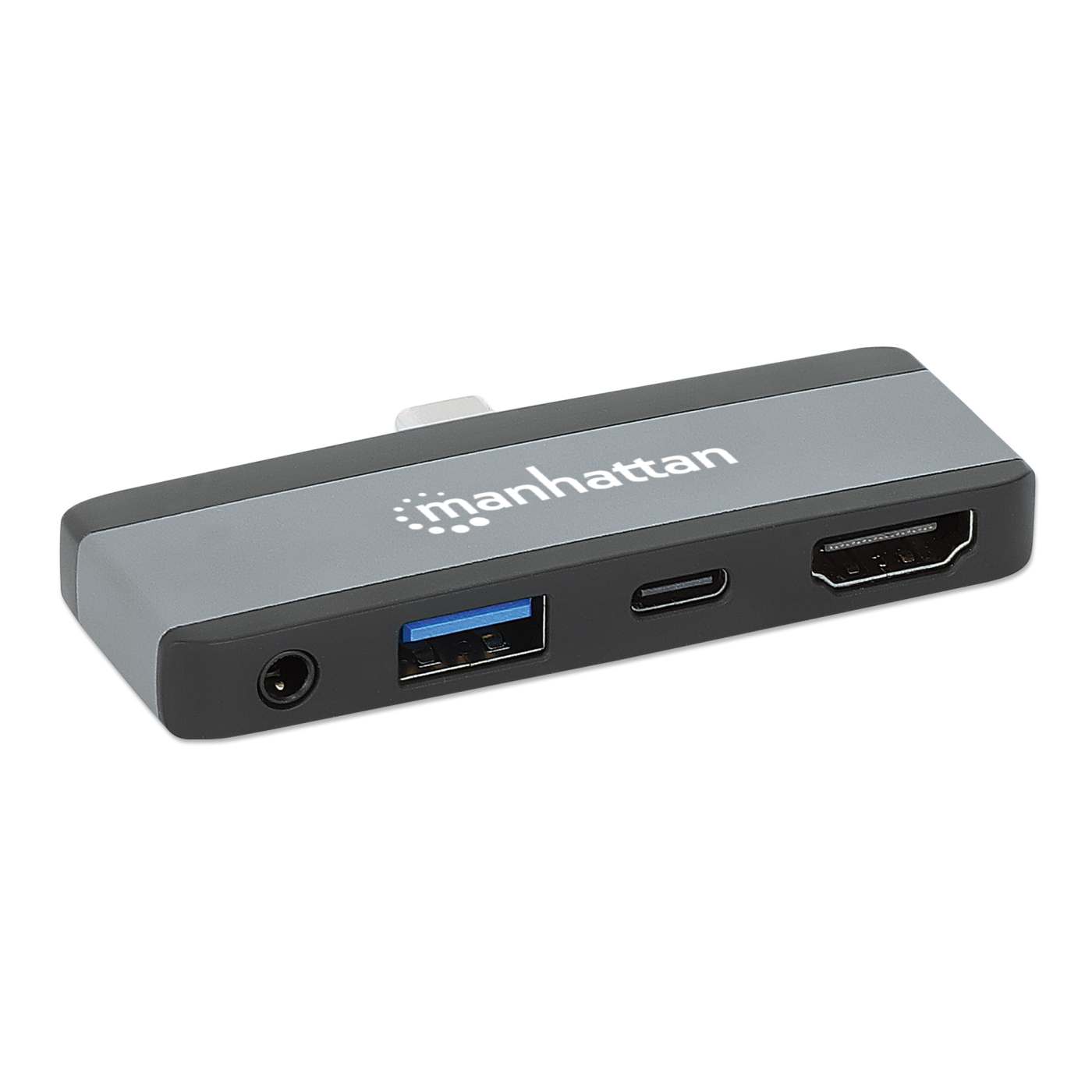

Connections
- One USB-C 24-pin, male
- One USB-C 16-pin, female
- One USB-A 9-pin, female
- One HDMI 19-pin, female
Physical
- Dimensions (L x W x H): 77 x 28 x 10 mm (3.03 x 1.1 x 0.39 in.)
- Net weight: 21 g (0.74 oz.)
- Gross weight: 30 g (1.06 oz.)
- Aluminum housing
Operating Environment
- Operation and storage temperature: 0 - 50°C (32 - 122°F)
- Humidity (non-condensing): 0 - 85% RH
System Requirements
- Windows 7/8.1/10/11, Chrome OS, macOS, iPadOS, iOS or Android
Package Contents
- USB-C PD to HDMI 4-in-1 Laptop and Tablet Travel Docking Station
- Instructions
Additional SKUs
- EAN: 0766623190404
- UPC: 766623190404
Physical Specifications
- Product net weight: 0.02 kg
- Product gross weight: 0.03 kg
- Dimensions: 77 (L) x 28 (W) x 10 (H) [mm]
- Packaging type: Retail Hanging Box
- Packaging dimensions: 120 x 80 x 20 [mm]
- Master Carton Quantity: 100
- Master Carton Weight: 4.80 kg
- Master Carton Dimensions: 565 x 255 x 185 [mm]
