USB to Serial Converter

Connects One Serial Device to a USB Port, Prolific PL-2303RA Chip, 1.8 m (6 ft.), Polybag

Part-No.: 151849

Highlights

  • Quickly converts a USB port to a Serial/RS232/COM/DB9 port
  • The customizable and compatible Prolific PL-2303RA chipset makes it the ideal solution for many OSs and platforms
  • Easily connect most DB9/serial modems, digital cameras, label writers, barcode scanners, palm PCs, GPS, telescopes, CNC machines, embroidery machines, automotive control systems, digital organizers and much more

Easily connect serial devices through a USB port.
Most modern computers and laptops don't have RS232 (DB9) ports, making the use of legacy peripherals and high-tech devices which connect with COM ports almost impossible. The Manhattan USB to Serial Converter — with its serial RS232 (DB9) port and Prolific PL-2303RA chipset — easily expands a single USB port to connect and support serial modems, barcode scanners, digital cameras, card readers, Ham/Amateur Radios, GPS, CNC machines, telescopes, embroidery machines, fuel injection controllers, PDUs, network switches and other devices.
Quality Construction and Easy Installation
Gold-plated contacts and rugged construction combine to offer a reliable connection between the computer and serial peripherals for consistent, trouble-free performance. Windows compatibility with plug-and-play installation and hot-swappability help provide seamless use without inconvenient and frustrating device conflicts.

  • Quickly converts a USB port to a Serial/RS232/COM/DB9 port
  • The customizable and compatible Prolific PL-2303RA chipset makes it the ideal solution for many OSs and platforms
  • Easily connect most DB9/serial modems, digital cameras, label writers, barcode scanners, palm PCs, GPS, telescopes, CNC machines, embroidery machines, automotive control systems, digital organizers and much more
  • Install as a standard COM/RS-232 port to provide serial connectivity for legacy and high-tech. devices
  • Chipsets PL-2303HXD and FTDI FT232RL configurations are also available at ManhattanProducts.com
  • Windows compatible; plug and play; hot-swappable
  • Lifetime Warranty

    Standards and Certifications
  • CE
  • FCC
  • USB 1.0
  • USB 1.1
  • RoHS
  • WEEE

    Connections
  • USB port; type-A male

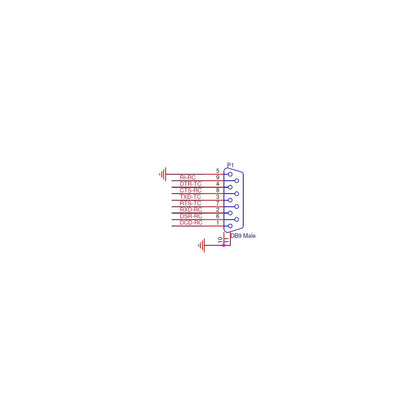

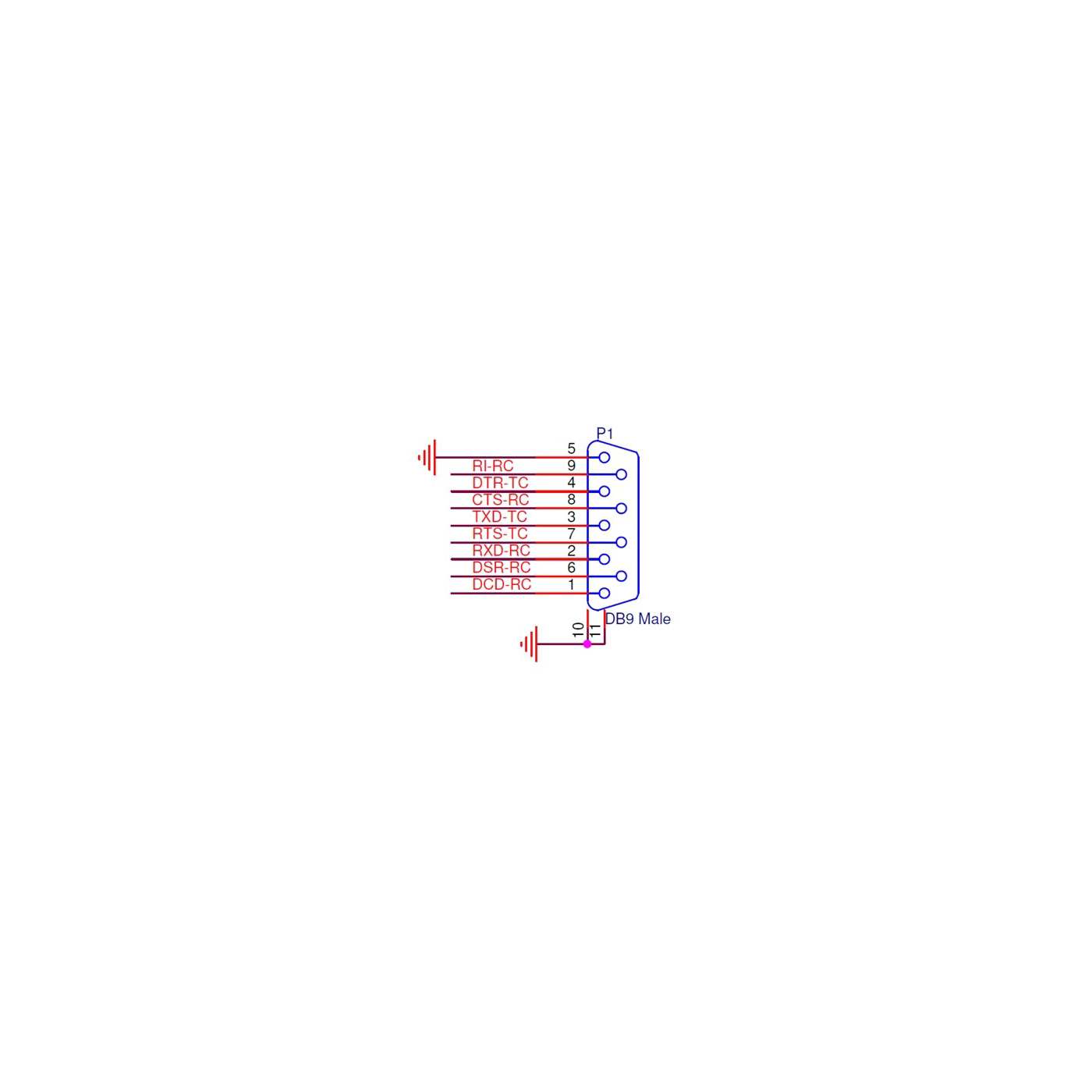

  • Serial/COM/RS232/DB9 port; 9-pin male

    General
  • Transfer rate: up to 115 kbps
  • Bus powered
  • Overcurrent protection
  • Prolific PL-2303RA chipset

    Physical
  • 24 AWG cable gauge
  • Cable length: 1.8 m (6 ft.)
  • Weight: 165 g (5.8 oz.)

    System Requirements
  • Windows XP/Vista/7/8/8.1/10 or Linux or Mac 9.x/10.x or above

    Package Contents
  • USB to Serial Converter
  • Instructions and driver CD

  • Additional SKUs

    • Amazon ASIN: B01E0R8KIM
    • EAN: 0766623151849
    • UPC: 766623151849
    • ALSO: 2591408
    • API: 200735

  • Physical Specifications

    • Weight: 0.07 kg
    • Dimensions: 1.8 (L) x 0 (W) x 0 (H) [m]
    • Packaging: Bag

  • Datasheet

    • Datasheet     » Download

    • Declaration of Conformity     » Download


  • Driver

    • Driver (MAC OS X)
      (10.6 -> 10.12)     » Download

    • Driver (Linux)     » Download

    • Driver Installer for Windows
      - WDF Driver: v3.8.25.0 (7/12/2018) - Windows 7/8.1/10
      - WDM Driver: v3.8.24.0 (7/05/2018) - Windows XP     » Download


  • Manual

    • User Manual     » Download

    • Quick Instruction Guide     » Download


  • Utility

    • Chipset Check
      (identify which chipset the converter uses)     » Download
