USB to Serial Converter

Connects One Serial Device to a USB Port, FTDI FT232RL Chip, 45 cm (18 in.), Polybag

Part-No.: 151856

Highlights

  • Quickly converts a USB port to a Serial/RS232/COM/DB9 port
  • The customizable and compatible FTDI FT232RL chipset makes it the ideal solution for many OSs and platforms
  • Easily connect most DB9/serial modems, digital cameras, label writers, barcode scanners, palm PCs, GPS, telescopes, CNC machines, embroidery machines, automotive control systems, digital organizers and much more


Easily connect serial devices through a USB port

Most modern computers and laptops don't have RS232 (DB9) ports, making the use of legacy peripherals and high-tech devices which connect with COM ports almost impossible. The Manhattan USB to Serial Converter — with its serial RS232 (DB9) port and FTDI FT232RL chipset — easily expands a single USB port to connect and support serial modems, barcode scanners, digital cameras, card readers, Ham/Amateur Radios, GPS, CNC machines, telescopes, embroidery machines, fuel injection controllers, PDUs, network switches and other devices.

Quality Construction and Easy Installation

Gold-plated contacts and rugged construction combine to offer a reliable connection between the computer and serial peripherals for consistent, trouble-free performance. Windows compatibility with plug-and-play installation and hot-swappability help provide seamless use without inconvenient and frustrating device conflicts.

  • Quickly converts a USB port to a Serial/RS232/COM/DB9 port
  • The customizable and compatible FTDI FT232RL chipset makes it the ideal solution for many OSs and platforms
  • Easily connect most DB9/serial modems, digital cameras, label writers, barcode scanners, palm PCs, GPS, telescopes, CNC machines, embroidery machines, automotive control systems, digital organizers and much more
  • Install as a standard COM/RS-232 port to provide serial connectivity for legacy and high-tech devices
  • Chipsets Prolific PL-2303RA and PL-2303HXD configurations are also available at ManhattanProducts.com
  • Windows compatible; plug and play; hot-swappable
  • Three-year warranty

    Standards and Certifications
  • CE
  • FCC
  • USB 1.0
  • USB 1.1
  • RoHS
  • following WEEE standards

    Connections
  • USB port; type-A male

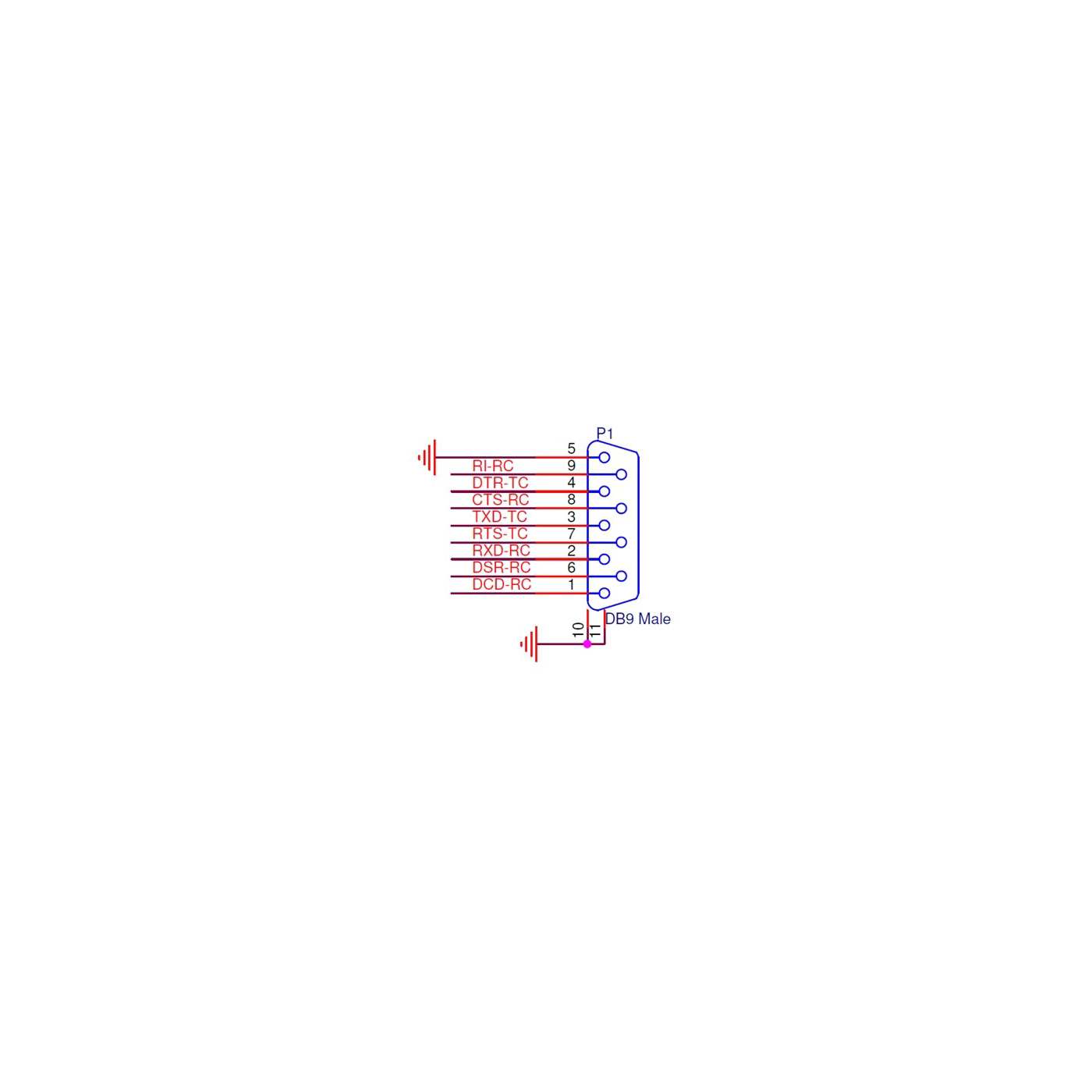

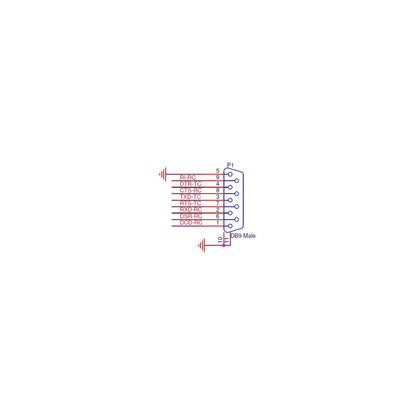

  • Serial/COM/RS232/DB9 port; 9-pin male

    General
  • Transfer rate: up to 256 kbps
  • Bus powered
  • Overcurrent protection
  • FTDI FT232RL chipset

    Physical
  • 24 AWG cable gauge
  • Cable length: 45 cm (18 in.)
  • Weight: 165 g (5.8 oz.)

    System Requirements
  • Windows XP/Vista/7/8/8.1/10 or Linux or Mac 9.x/10.x or above

    Package Contents
  • USB to Serial Converter
  • Instructions

  • Additional SKUs

    • Amazon ASIN: B01E0R8L90
    • EAN: 0766623151856
    • UPC: 766623151856
    • ALSO: 2591409
    • API: 200717

  • Physical Specifications

    • Weight: 0.03 kg
    • Dimensions: 45 cm
    • Packaging: Bag
    • Carton Quantity: 80
    • Carton Weight: 4.50 kg

  • Datasheet


  • Driver

    • Windows, MAC & Linux Drivers     » Download

    • Driver (Linux)     » Download

    • Driver (Mac)     » Download

    • Driver (Windows)     » Download

    • Driver 1.12.0 for Windows
      For Windows 10 (32 & 64-bit), Windows Vista, 7, 8, 8.1 (32 & 64-bit), Windows Server 2008, 2008R2, Server 2012, Server 2012R2 (64-bit), Windows 2000, XP, Server 2003 (32 & 64-bit)     » Download


  • Manual

    • User Manual     » Download

    • Quick Instruction Guide     » Download
