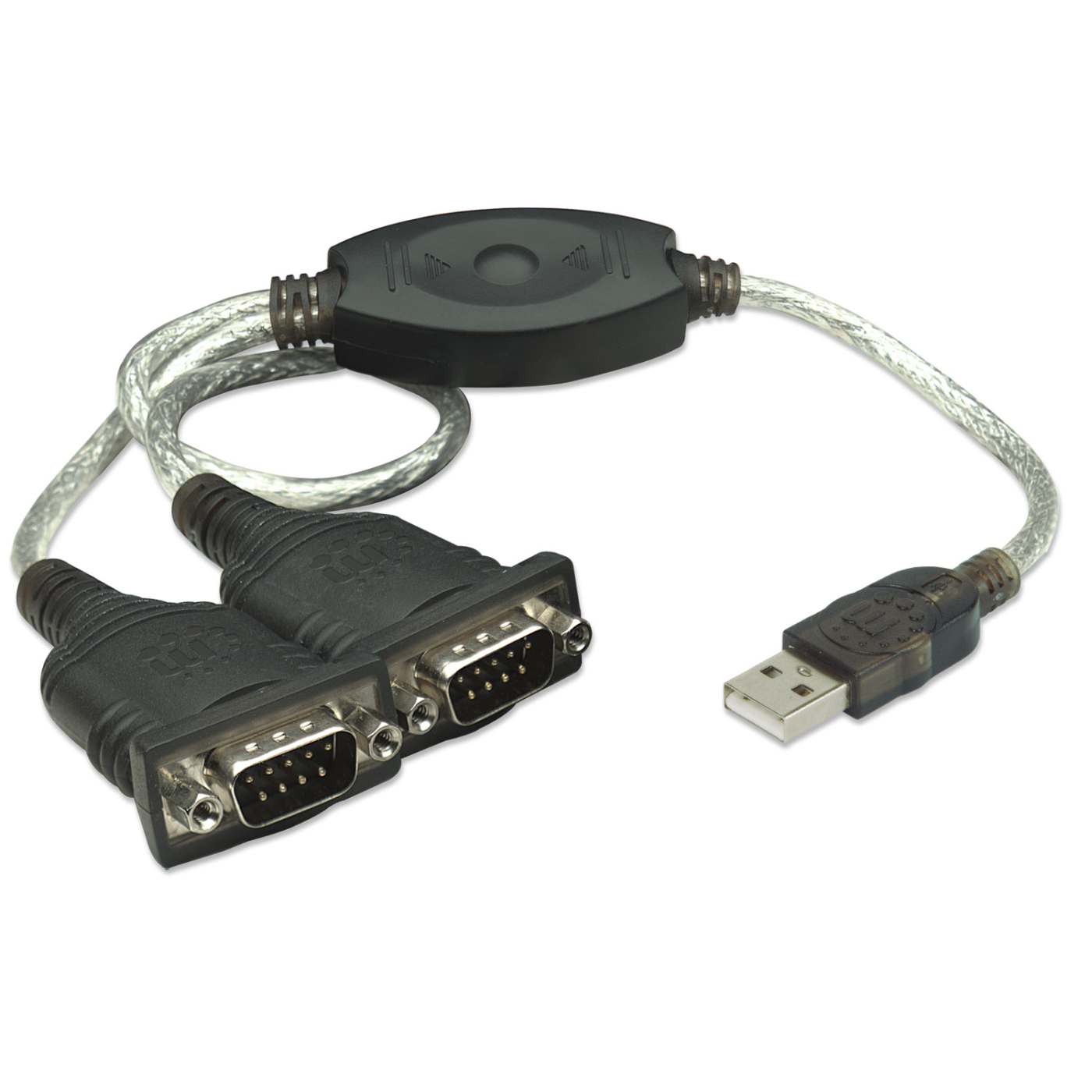

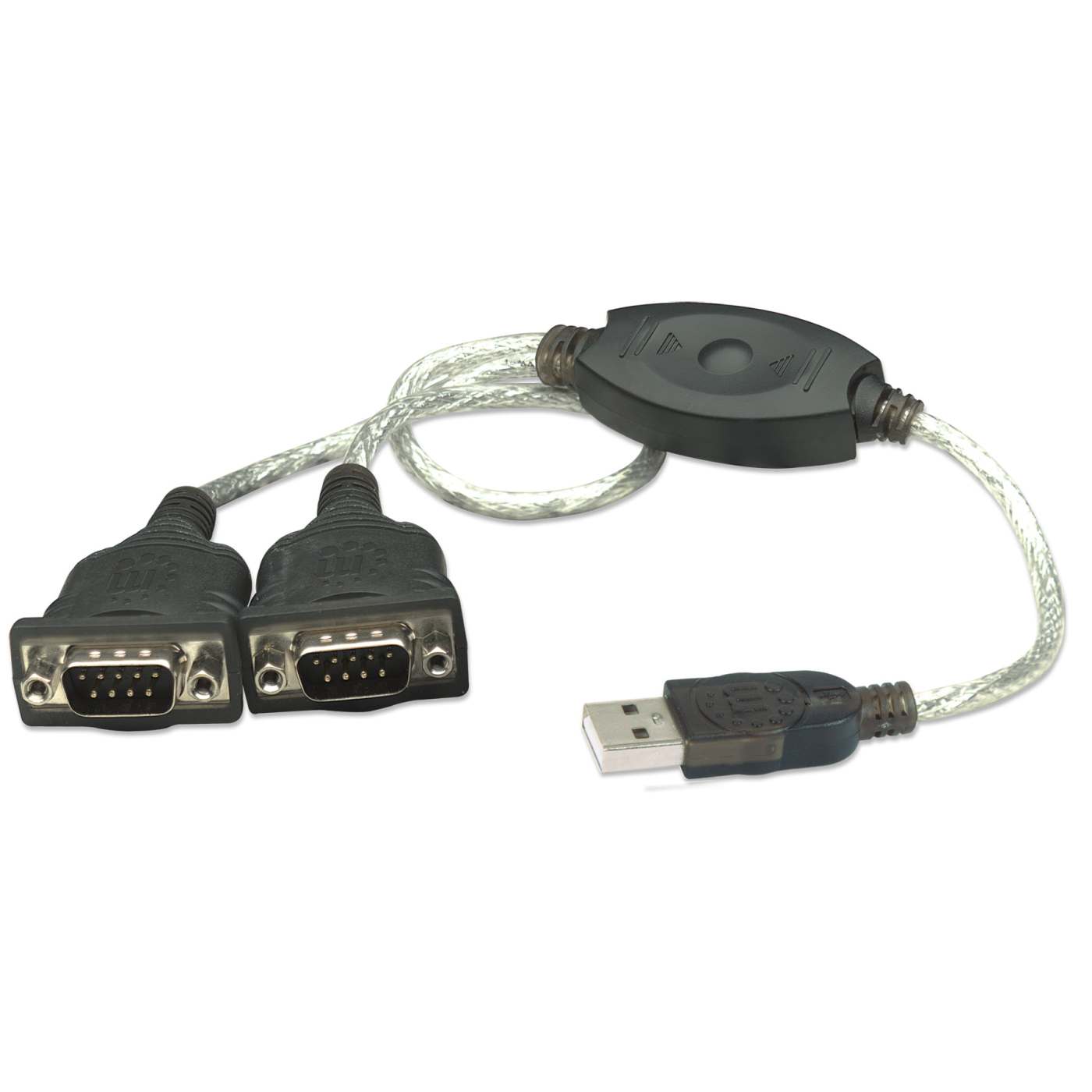

USB to Serial Converter

Connects Two Serial Devices To A USB Port, Prolific PL-2303RA Chip

Part-No.: 174947

Highlights

  • Quickly converts a USB port into two Serial/RS232/COM/DB9 ports
  • The customizable and compatible Prolific PL-2303RA chipset makes it the ideal solution for many OSs and platforms
  • Easily connect most DB9/serial modems, digital cameras, label writers, barcode scanners, palm PCs, GPS, telescopes, CNC machines, embroidery machines, automotive control systems, digital organizers and much more

Easily connect serial devices through a USB port.
Most modern computers and laptops don't have RS232 (DB9) ports, making the use of legacy peripherals and high-tech devices which connect with COM ports almost impossible. The Manhattan USB to Serial Converter — with its serial RS232 (DB9) ports and Prolific PL-2303RA chipset — easily expands a single USB port to connect and support serial modems, barcode scanners, digital cameras, card readers, Ham/Amateur Radios, GPS, CNC machines, telescopes, embroidery machines, fuel injection controllers, PDUs, network switches and other devices.
Quality Construction and Easy Installation
Gold-plated contacts and rugged construction combine to offer a reliable connection between the computer and serial peripherals for consistent, trouble-free performance. Windows compatibility with plug-and-play installation and hot-swappability help provide seamless use without inconvenient and frustrating device conflicts.

  • Quickly converts a USB port into two Serial/RS232/COM/DB9 ports
  • The customizable and compatible Prolific PL-2303RA chipset makes it the ideal solution for many OSs and platforms
  • Easily connect most DB9/serial modems, digital cameras, label writers, barcode scanners, palm PCs, GPS, telescopes, CNC machines, embroidery machines, automotive control systems, digital organizers and much more
  • Install as standard COM/RS-232 ports to provide serial connectivity for legacy and high-tech devices
  • Chipsets PL-2303HXD and FTDI FT232RL configurations are also available at www.ManhattanProducts.com
  • Windows compatible; plug and play; hot-swappable
  • Three-Year Warranty

    Standards and Certifcations
  • CE
  • FCC
  • USB 1.0
  • USB 1.1
  • RoHS
  • WEEE

    Connections
  • USB port; type-A male

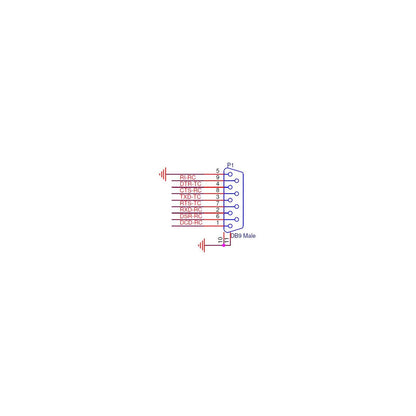

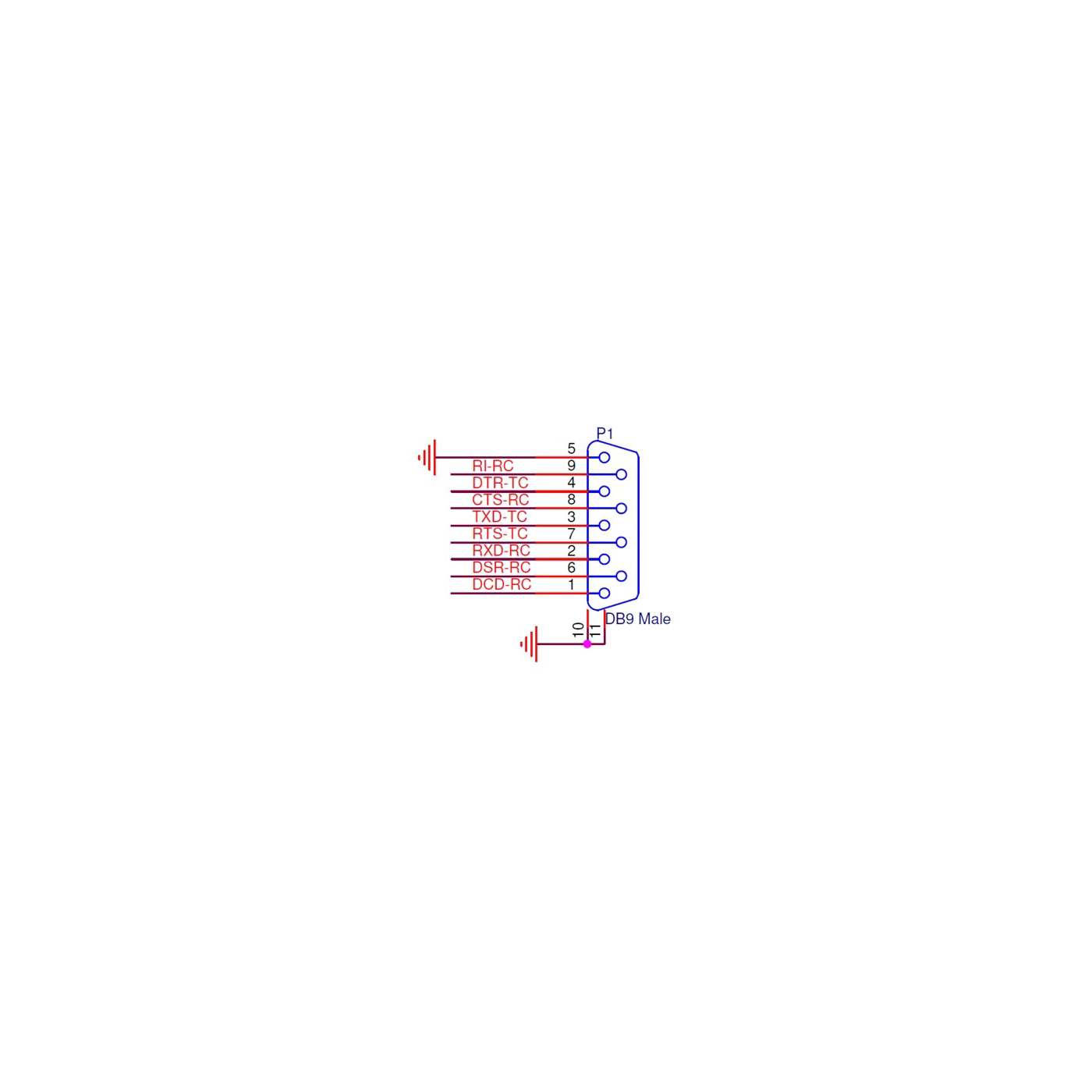

  • 2 Serial/COM/RS232/DB9 ports; 9-pin male(s)

    General
  • Transfer rate: up to 115 kbps
  • Bus powered
  • Overcurrent protection
  • Prolific PL-2303RA chipset

    Physical
  • Cable length: 45 cm (18 in.)
  • Weight: 225 g (7.9 oz.)

    System Requirements
  • Windows XP/Vista/7/8/8.1/10 or Linux or Mac 9.x/10.x or above

    Package Contents
  • USB to Serial Converter
  • Instructionsl and driver CD

  • Additional SKUs

    • Amazon ASIN: B002E4YMV8
    • EAN: 0766623174947
    • UPC: 766623174947
    • ALSO: 1607036
    • API: 77042

  • Physical Specifications

    • Weight: 0.07 kg
    • Dimensions: 45 cm

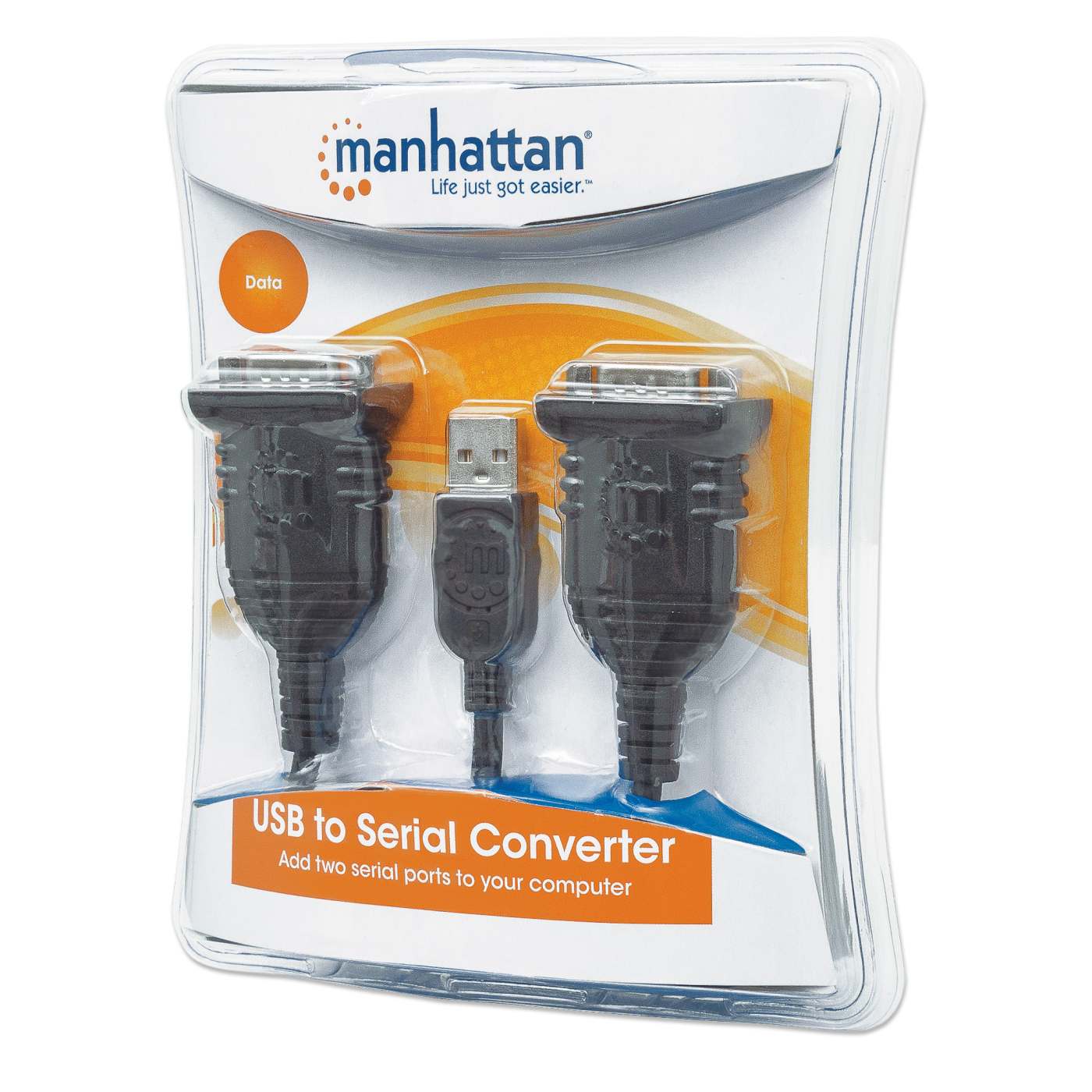

    • Packaging: Blister

  • Datasheet


  • Driver

    • MAC OS 10.x     » Download

    • Windows 98Se/Me/2000/XP
      Install Shield V20026, 08/2004     » Download

    • Linux 2.4 and Above     » Download

    • MAC OS 8.x, 9.x     » Download

    • Windows CE 3.0     » Download

    • WinCE 5.0 Driver for x86
      WinCE 5.0 Driver for x86 Standard SDK     » Download

    • Windows XP 64-bit
      Windows XP 64-bit Non-Logo Driver     » Download

    • Windows 2000/XP/Vista/Server 2003/Server 2008/ Windows 7
      - Windows 98SE - Windows ME - Windows 2000 SP4 - Windows XP SP2 and above (32 & 64 bit) - Windows Server 2003 (32 & 64 bit) - Windows Server 2008 (32 & 64 bit) - Windows Vista (32 & 64 bit) - Windows 7 (32 & 64 bit) NOTE: For Windows 7, please use RC build 7100 or above.     » Download

    • Drivers
      Latest Drivers for
      Mac 8.6 and above
      Linux
      Windows CE
      Windows XP, Vista, 7     » Download


  • Manual

    • Declaration of Conformity     » Download

    • Declaration of Conformity     » Download

    • Declaration of Conformity     » Download

    • User Manual     » Download

    • Quick Instruction Guide     » Download


  • Utility

    • Chipset Check
      (identify which chipset the converter uses)     » Download
