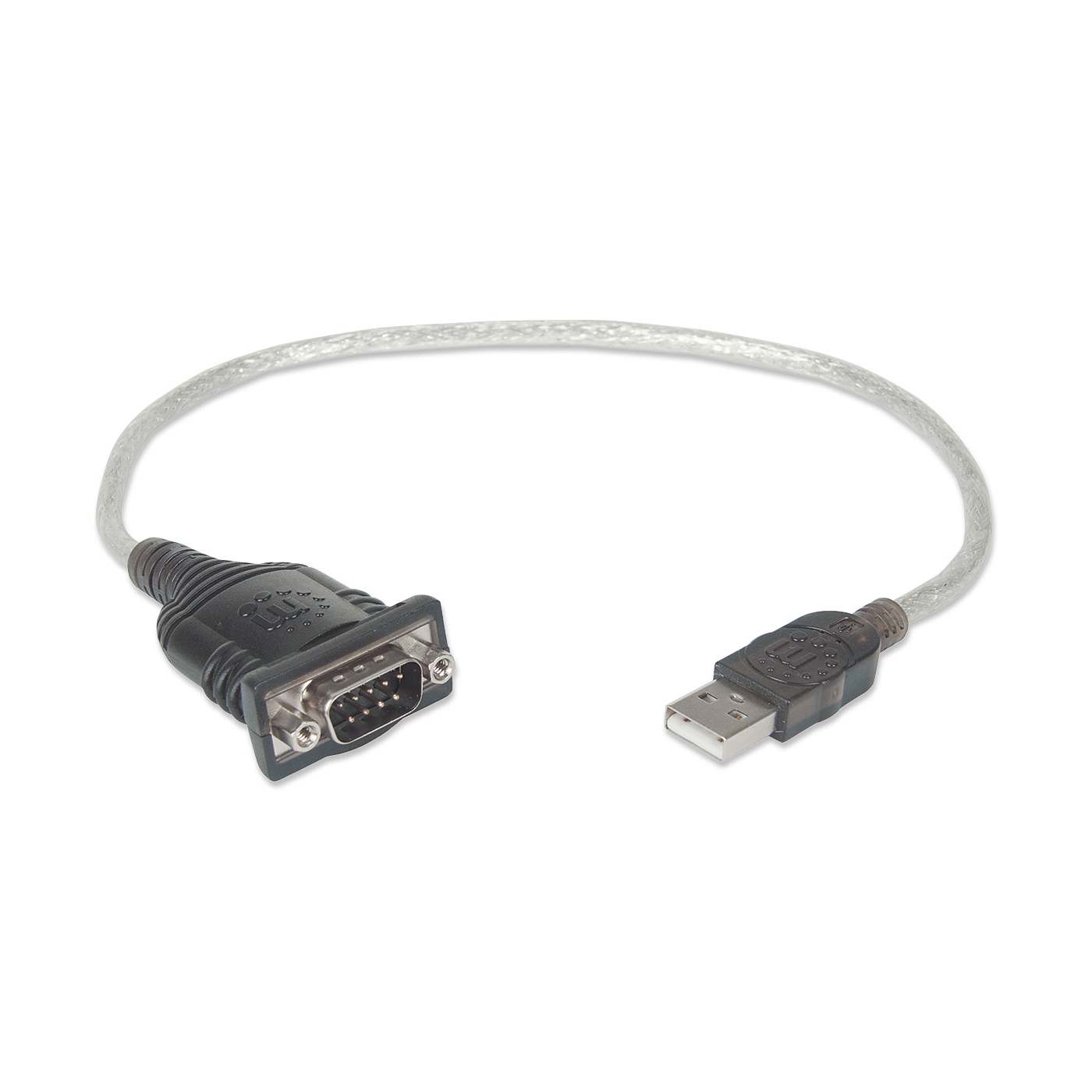

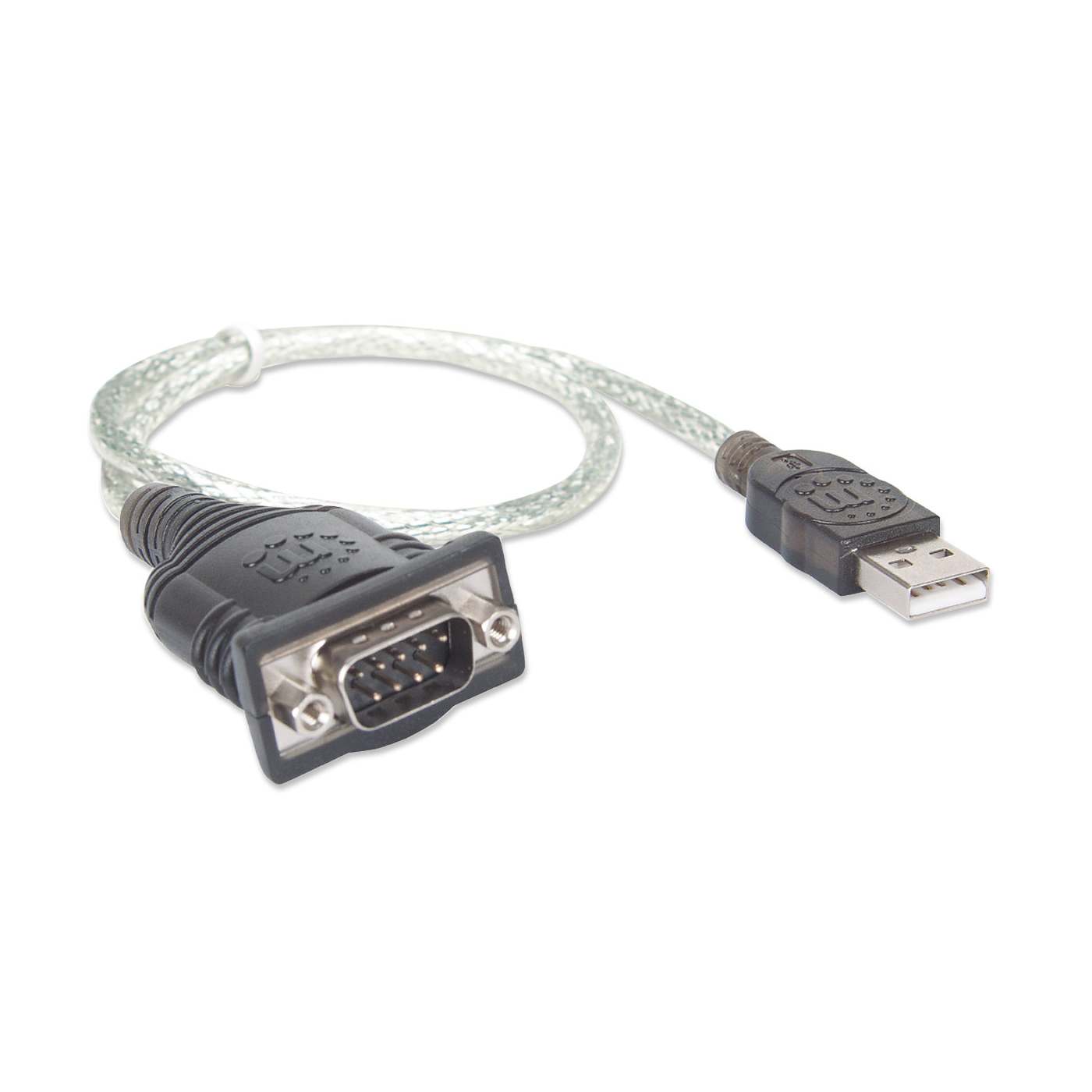

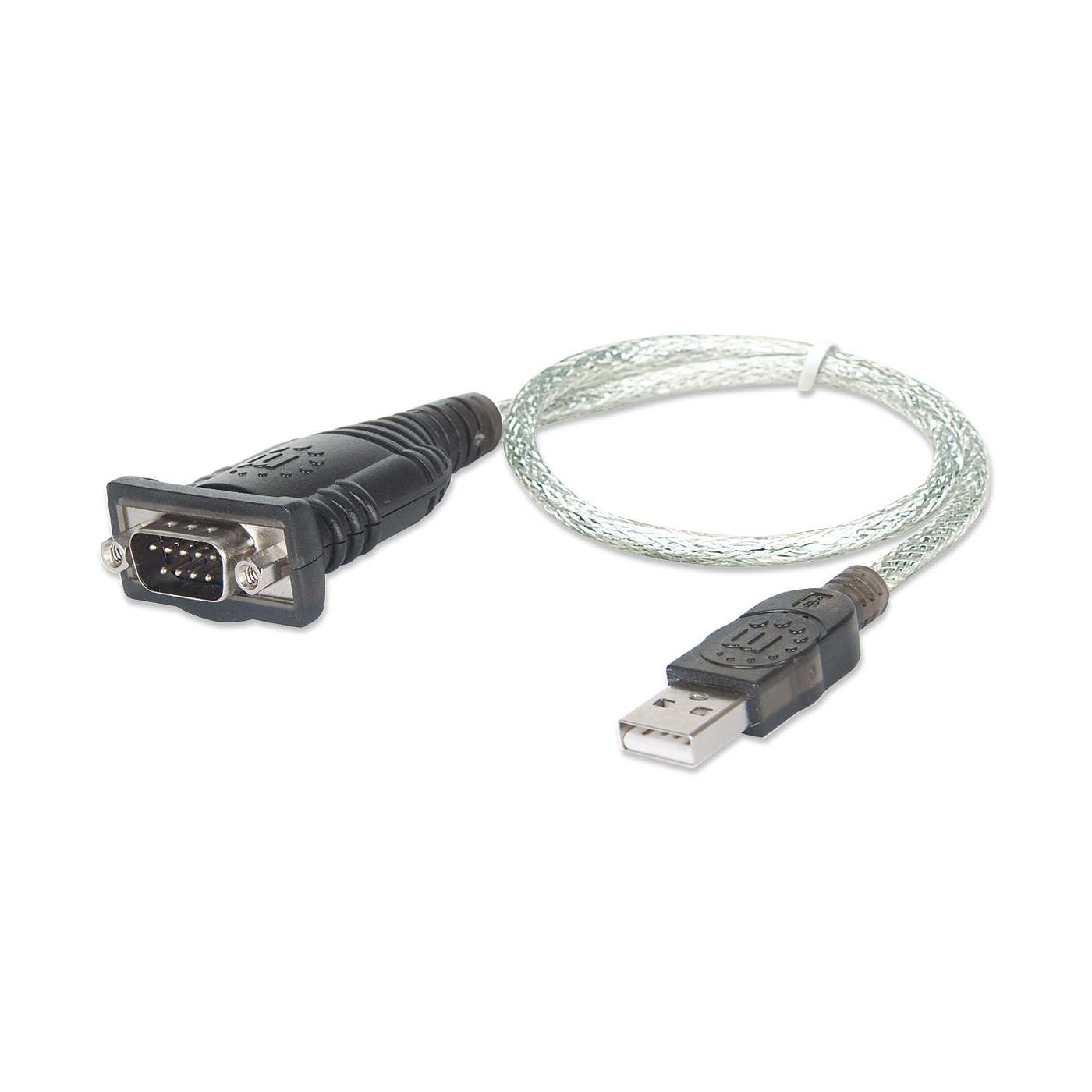

USB to Serial Converter

Connects One Serial Device to a USB Port, Prolific PL-2303RA Chip, 45 cm (18 in.)

Part-No.: 205146

Highlights

  • Quickly converts a USB port to a Serial/RS232/COM/DB9 port
  • The customizable and compatible Prolific PL-2303RA chipset makes it the ideal solution for many OSs and platforms
  • Easily connect most DB9/serial modems, digital cameras, label writers, barcode scanners, palm PCs, GPS, telescopes, CNC machines, embroidery machines, automotive control systems, digital organizers and much more

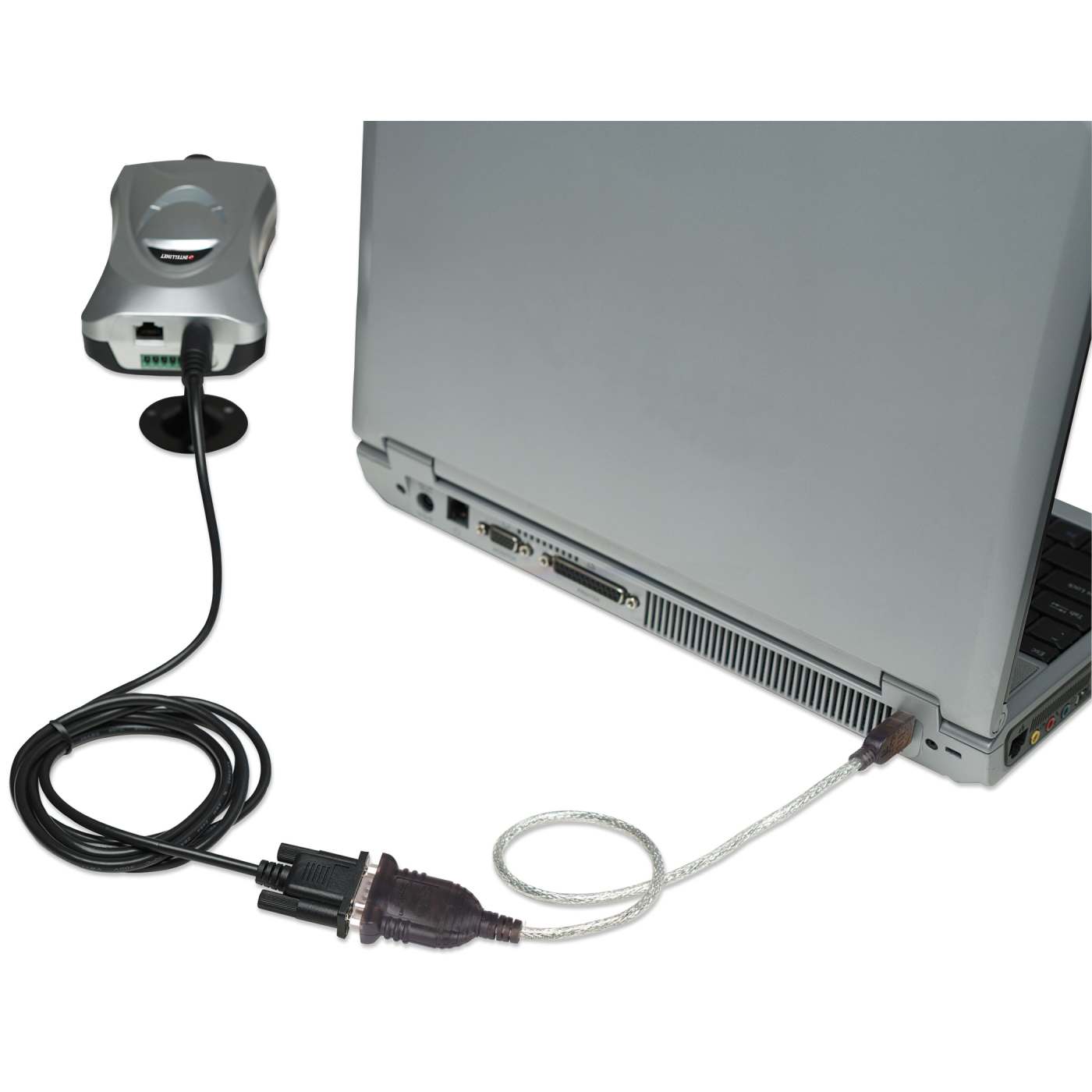

Easily connect serial devices through a USB port

Most modern computers and laptops don't have RS232 (DB9) ports, making the use of legacy peripherals and high-tech devices which connect with COM ports almost impossible. The Manhattan USB to Serial Converter — with its serial RS232 (DB9) port and Prolific PL-2303RA chipset — easily expands a single USB port to connect and support serial modems, barcode scanners, digital cameras, card readers, Ham/Amateur Radios, GPS, CNC machines, telescopes, embroidery machines, fuel injection controllers, PDUs, network switches and other devices.

Quality Construction and Easy Installation

Gold-plated contacts and rugged construction combine to offer a reliable connection between the computer and serial peripherals for consistent, trouble-free performance. Windows compatibility with plug-and-play installation and hot-swappability help provide seamless use without inconvenient and frustrating device conflicts.

  • Quickly converts a USB port to a Serial/RS232/COM/DB9 port
  • The customizable and compatible Prolific PL-2303RA chipset makes it the ideal solution for many OSs and platforms
  • Easily connect most DB9/serial modems, digital cameras, label writers, barcode scanners, palm PCs, GPS, telescopes, CNC machines, embroidery machines, automotive control systems, digital organizers and much more
  • Install as a standard COM/RS-232 port to provide serial connectivity for legacy and high-tech devices
  • Chipsets PL-2303HXD and FTDI FT232RL configurations are also available at www.ManhattanProducts.com
  • Windows compatible; plug and play; hot-swappable
  • Three-Year Warranty

    Standards and Certifications
  • CE
  • FCC
  • USB 1.0
  • USB 1.1
  • RoHS
  • WEEE

    Connections
  • USB port; type-A male

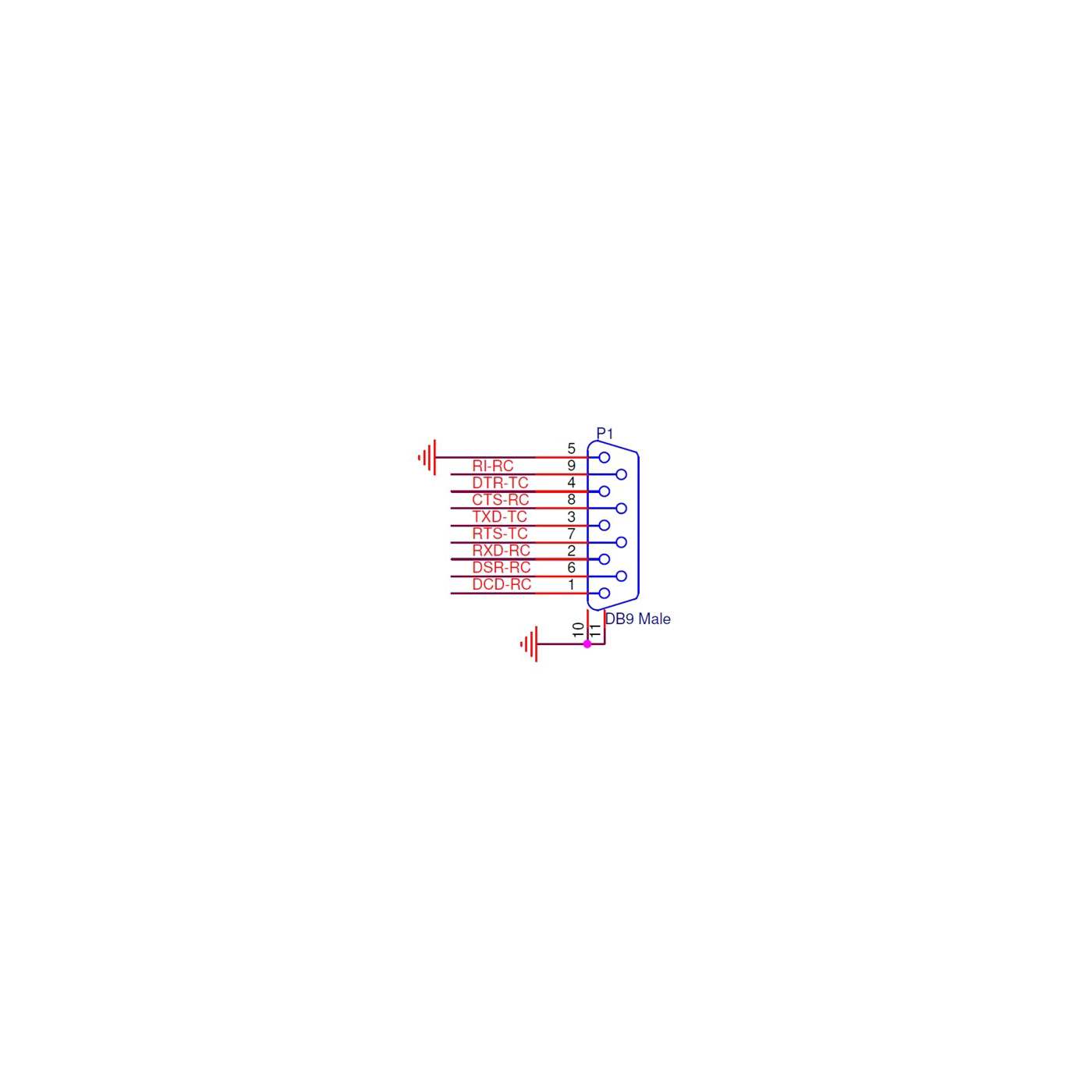

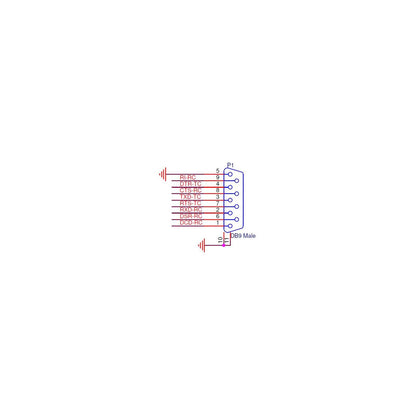

  • Serial/COM/RS232/DB9 port; 9-pin male

    General
  • Transfer rate: up to 115 kbps
  • Bus powered
  • Overcurrent protection
  • Prolific PL-2303RA chipset

    Physical
  • 24 AWG cable gauge
  • Cable length: 45 cm (18 in.)
  • Weight: 165 g (5.8 oz.)

    System Requirements
  • Windows XP/Vista/7/8/8.1/10 or Linux or Mac 9.x/10.x or above

    Package Contents
  • USB to Serial Converter
  • Instructions

  • Additional SKUs

    • Amazon ASIN: B0007OWNYA
    • EAN: 0766623205146
    • UPC: 766623205146
    • ALSO: 1607037
    • API: 77043

  • Physical Specifications

    • Weight: 0.03 kg
    • Dimensions: 45 cm
    • Packaging: Blister
    • Carton Quantity: 60
    • Carton Weight: 7.30 kg

  • Datasheet

    • Datasheet     » Download

    • Declaration of Conformity     » Download


  • Driver

    • MAC OS 10.x     » Download

    • Mac OS 10.1
      UC232a Version     » Download

    • Windows 98Se/Me/2000/XP
      Install Shield V20026, 08/2004     » Download

    • Linux 2.4 and Above     » Download

    • MAC OS 8.x, 9.x     » Download

    • Windows 98SE/Me/2000/XP
      UC232a Version     » Download

    • Windows CE 3.0     » Download

    • WinCE 5.0 Driver for ARM
      WinCE 5.0 Driver for ARM Standard SDK     » Download

    • WinCE 5.0 Driver for x86
      WinCE 5.0 Driver for x86 Standard SDK     » Download

    • Windows 2K/XP/2003/Vista/Server2008
      Windows 2K/XP/2003 (32-bit); Windows Vista and Server 2008 (32-bit and 64-bit) v.1025     » Download

    • MAC OS10.x Intel Base
      For MacOS 10.1 and above for PowerPC based Mac For MacOS 10.4.x and above for PowePC and Intel based Mac For Mac OS X 10.5.x and above for PowerPC and Intel based Mac     » Download

    • 64 bit Vista and Windows 7 update drivers
      Solution for the problem that presents itself as a Device in Device Manager showing *The Device Cannot Start (Code 10)*, unzip the file and install the executable within. To make sure that the new driver take priority over the other one in Windows 7 right click on the device and go to Uninstall and check *Delete the driver software for this device*.     » Download

    • Driver (MAC OS X)
      (10.6 -> 10.12)     » Download

    • Driver (Linux)     » Download

    • Driver Installer for Windows
      - WDF Driver: v3.8.25.0 (7/12/2018) - Windows 7/8.1/10
      - WDM Driver: v3.8.24.0 (7/05/2018) - Windows XP     » Download

    • Mac OS X Driver (High Sierra)
      Release Date: 2017-10-18
      Version 1.6.1     » Download

    • Driver 1.12.0 for Windows
      For Windows 10 (32 & 64-bit), Windows Vista, 7, 8, 8.1 (32 & 64-bit), Windows Server 2008, 2008R2, Server 2012, Server 2012R2 (64-bit), Windows 2000, XP, Server 2003 (32 & 64-bit)     » Download

    • Mac OS X Universal Binary Driver v2.1.0
      For Mac OS Big Sur (version 11) - see NOTE below
      For Mac OS Catalina (version 10.15) .
      For Mac OS High Sierra (version 10.14)
      For Mac OS High Sierra (version 10.13)
      For Mac OS X Sierra (version 10.12)
      For Mac OS X El Capitan (version 10.11)
      For Mac OS X Yosemite (version 10.10)
      For Mac OS X Mavericks (version 10.9)
      For PL2303 H/HX/HXD/EA/RA/SA/TA/TB chip versions
      For Prolific USB VID_067B&PID_2303 Only
      For PL2303GC, GS, GT, GL, GE , GD, GR chip versions
      Includes Driver Installation Manual     » Download


  • Manual

    • Declaration of Conformity     » Download

    • User Manual     » Download

    • Quick Instruction Guide     » Download


  • Utility

    • Chipset Check
      (identify which chipset the converter uses)     » Download
