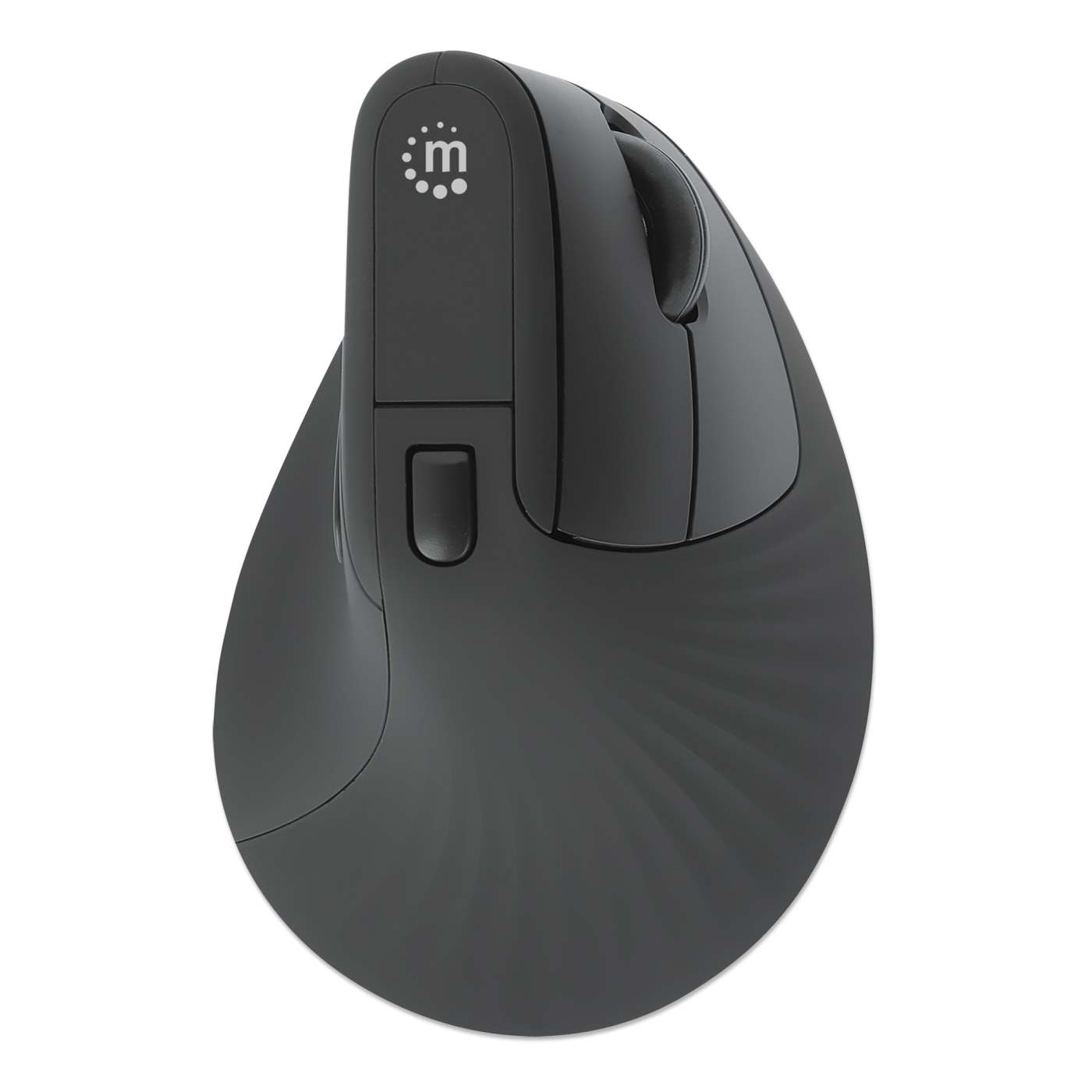

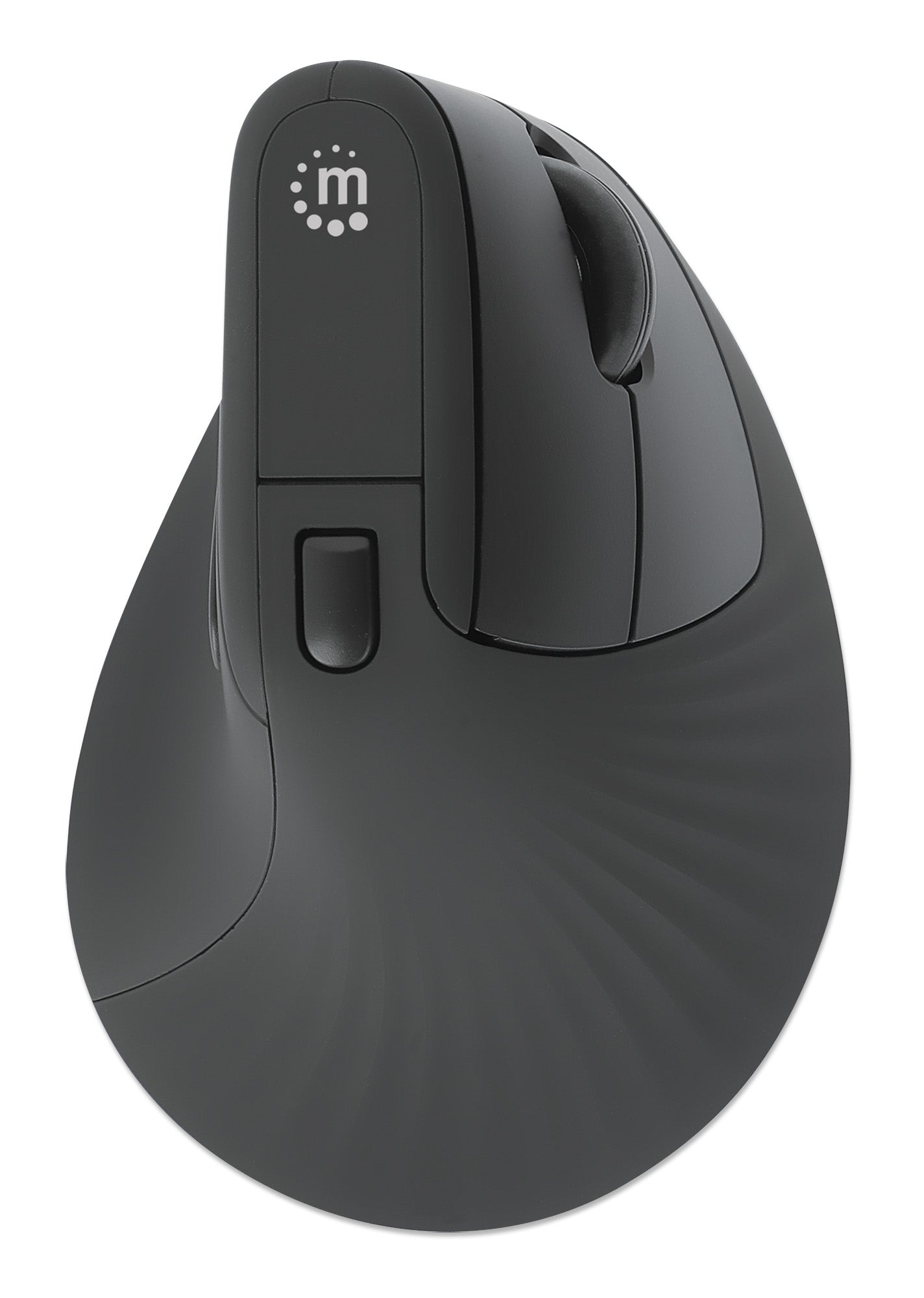

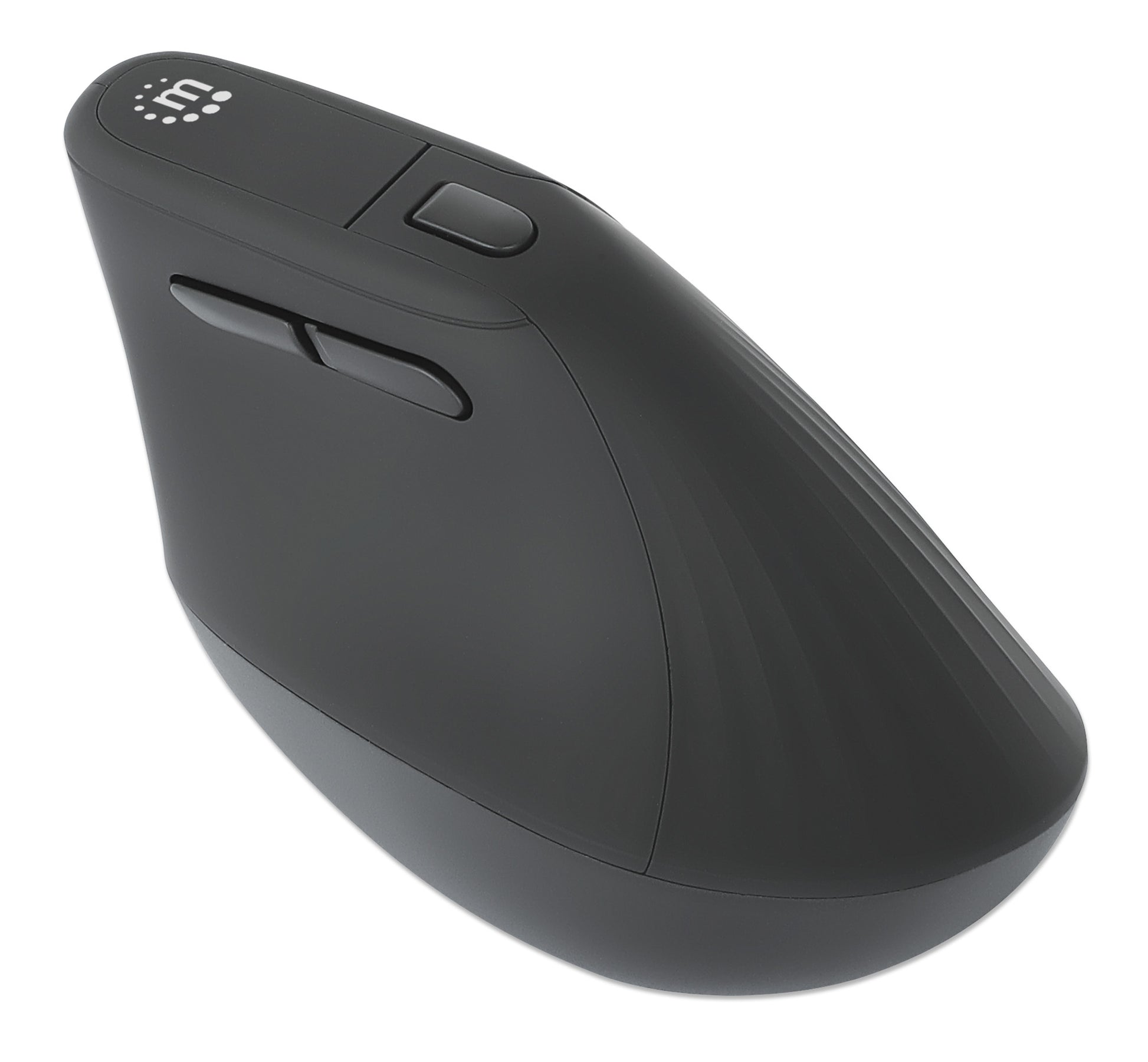

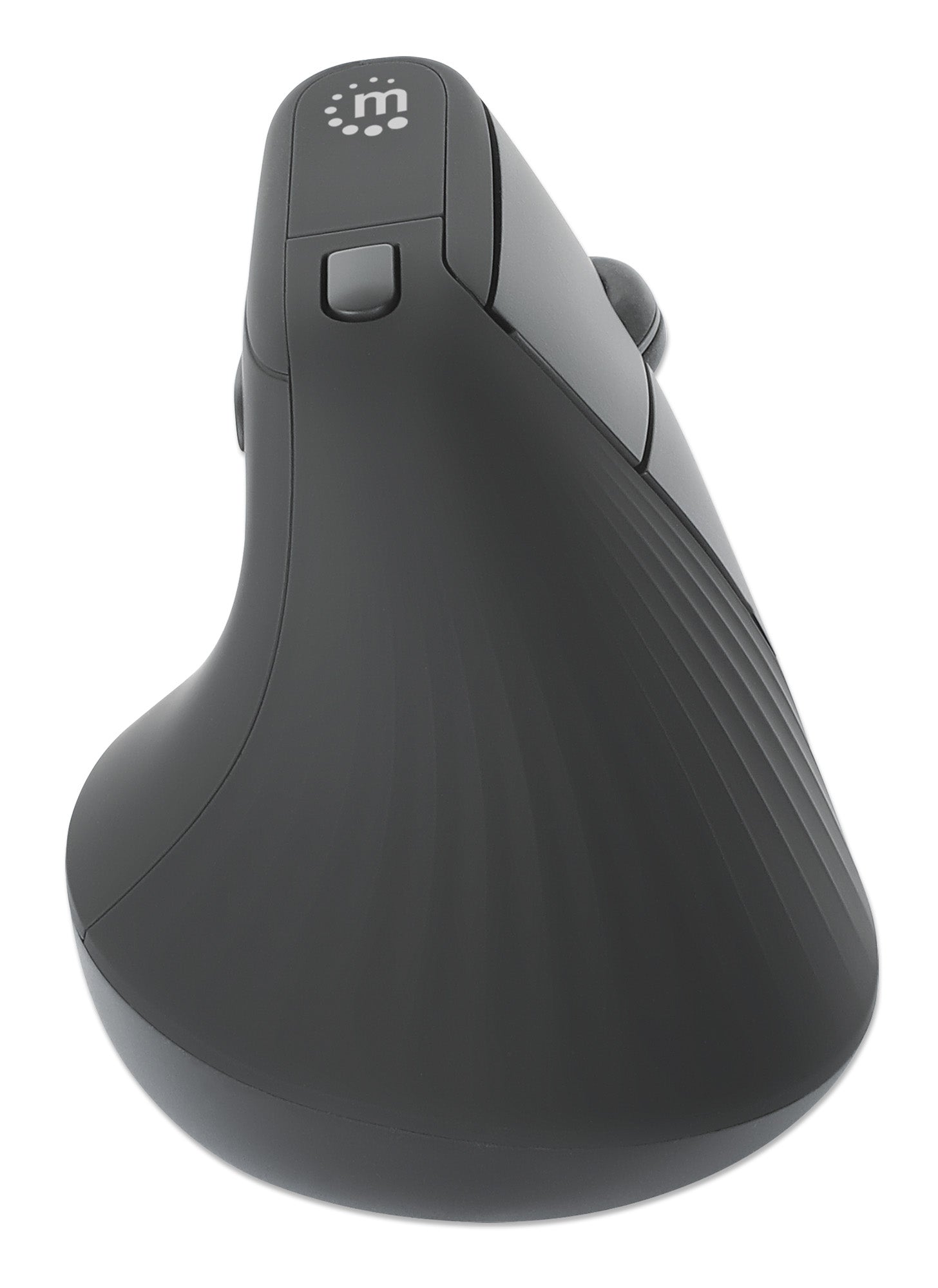

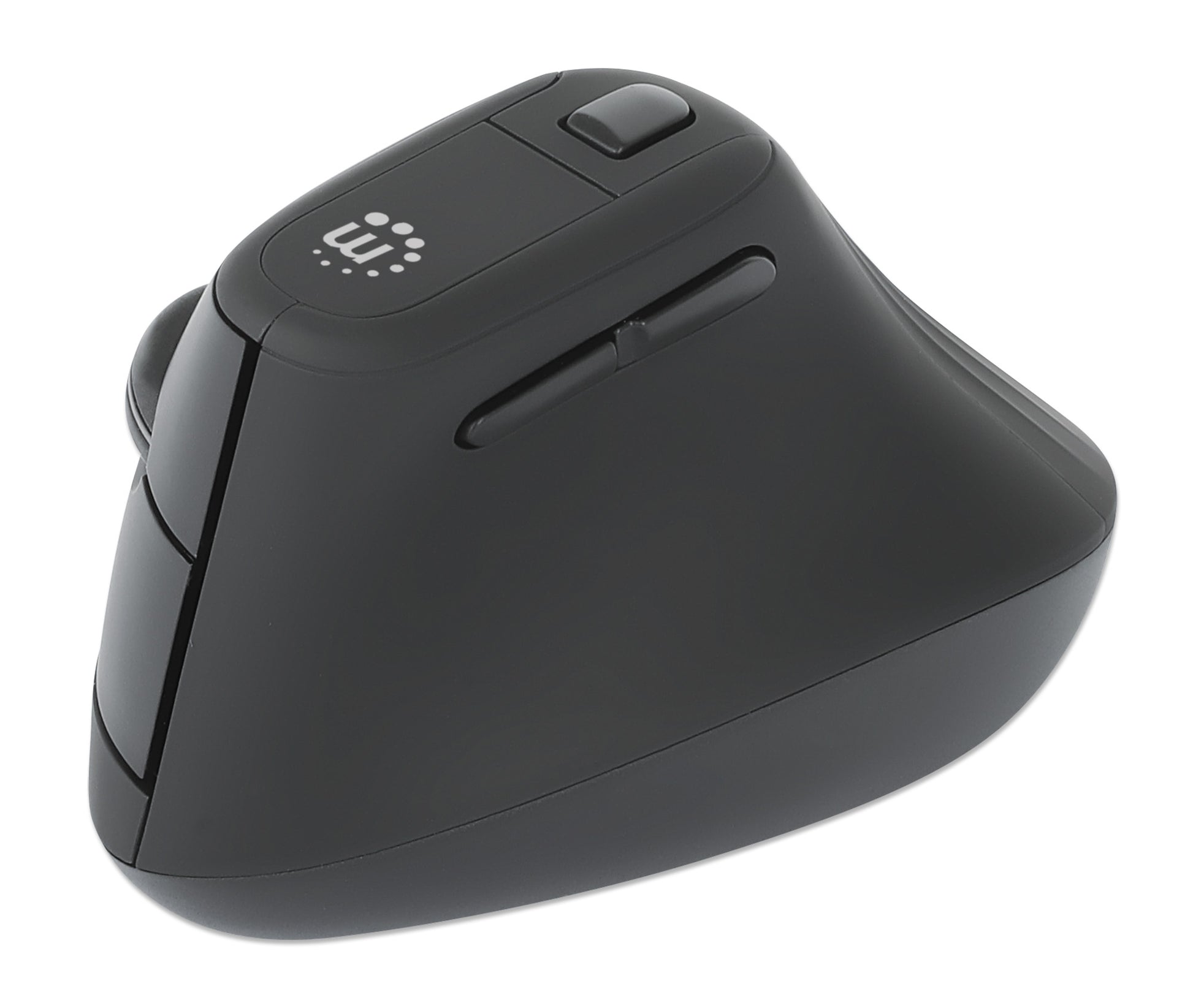

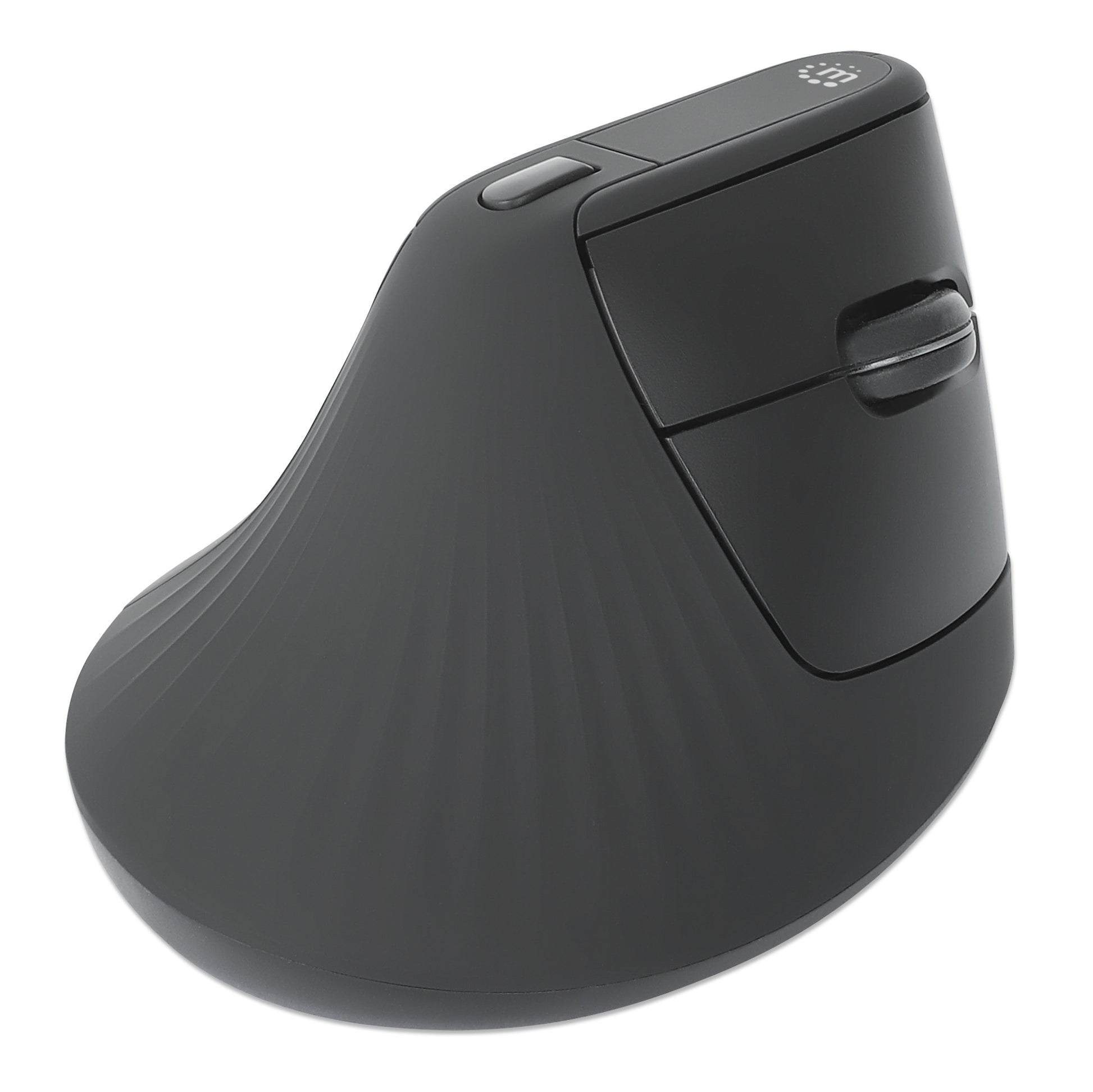

Vertical Ergonomic Wireless USB Mouse

Vertical Ergonomic Wireless USB Mouse

USB-A Nano Receiver, Six Buttons with Scroll Wheel, 800/1200/1600 dpi, Wrist-Friendly Angle, Black

Part-No.: 190336

Highlights

  • Ergonomic, vertical 60-degree shape promotes natural hand position for all-day comfort without wrist pain or muscle fatigue
  • Wireless 2.4 GHz RF nano receiver with USB-A plug for an effective range up to 10 m (33 ft.)
  • Compatible with Windows®, macOS®, Linux®, and Chrome OS™
[ view high resolution images ]
View full details

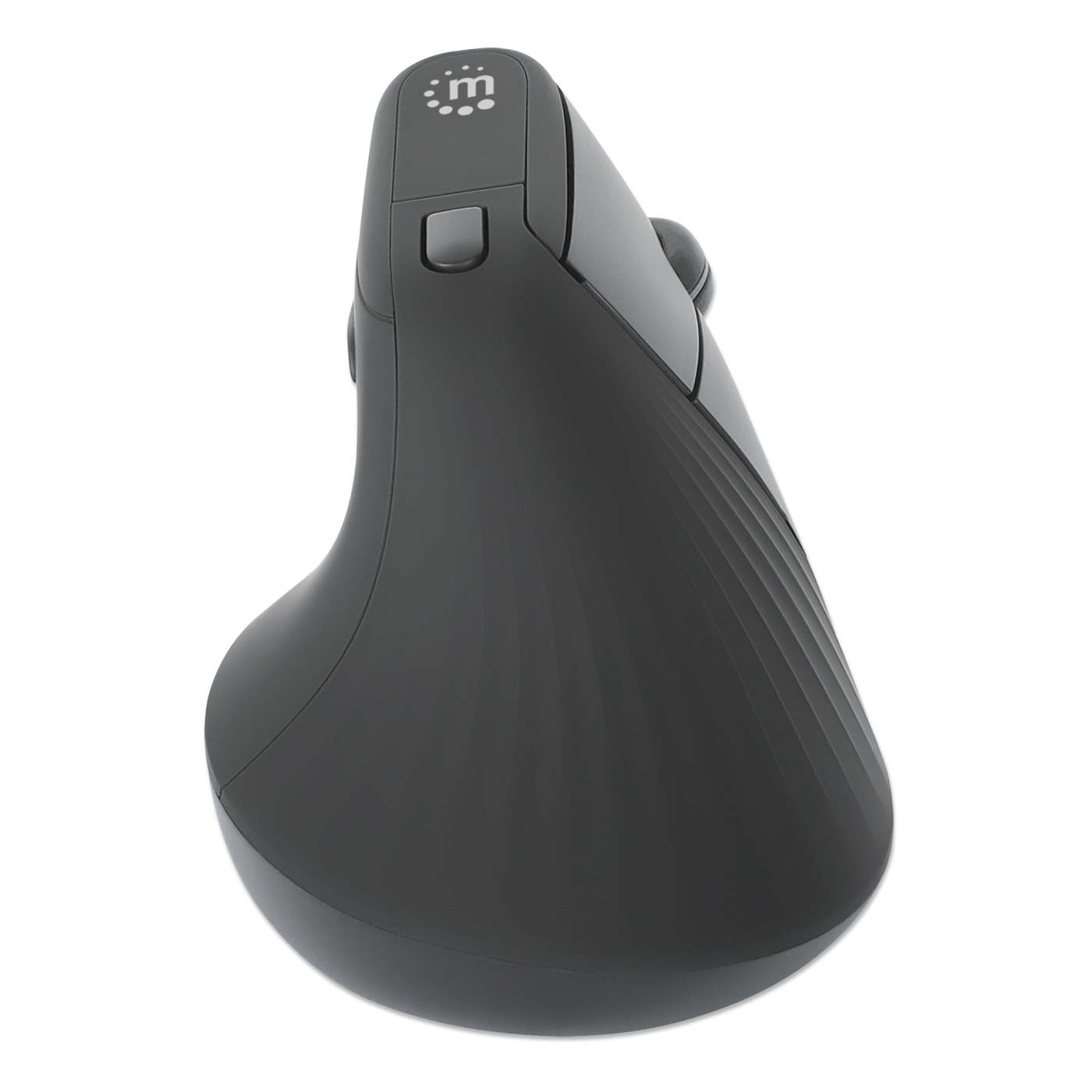

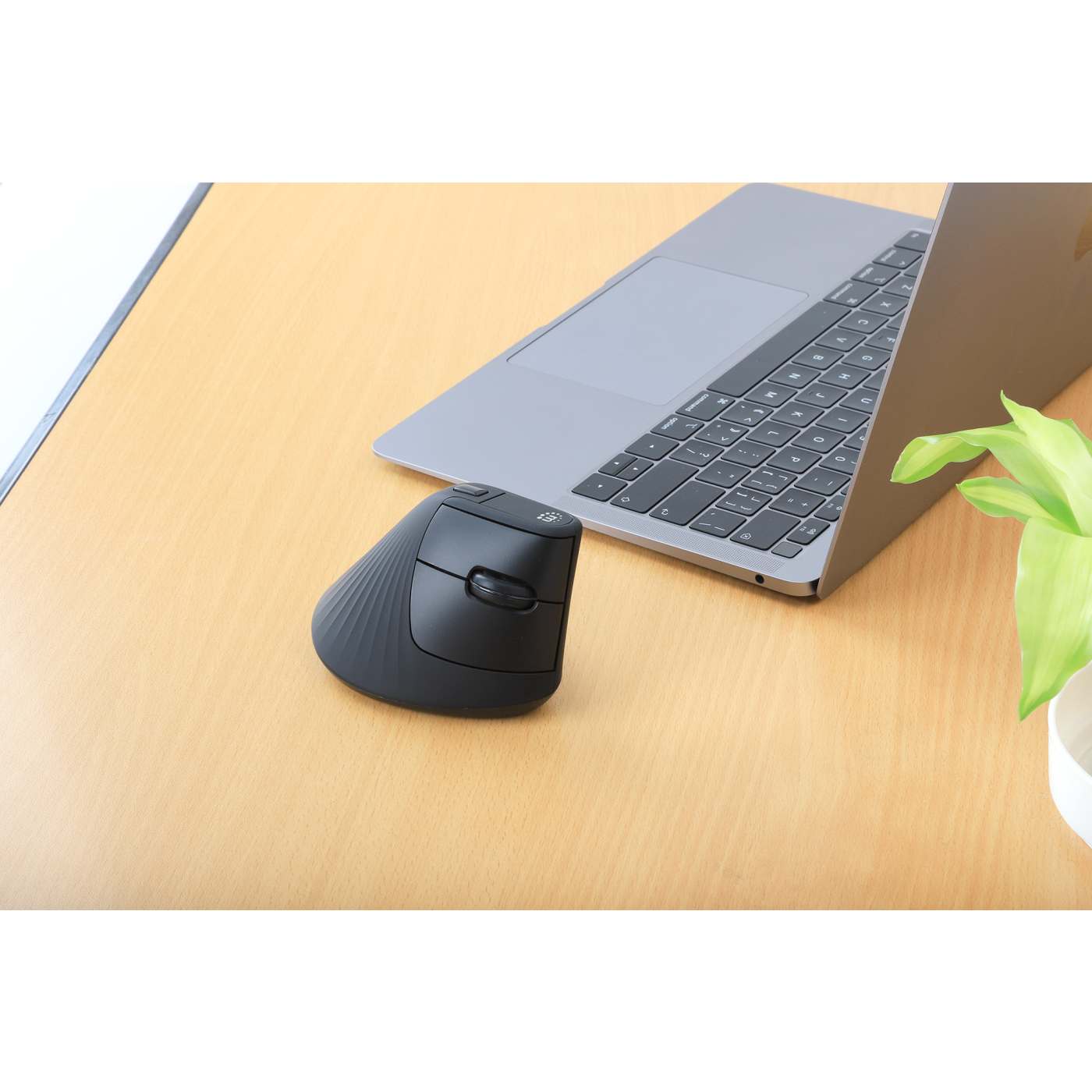

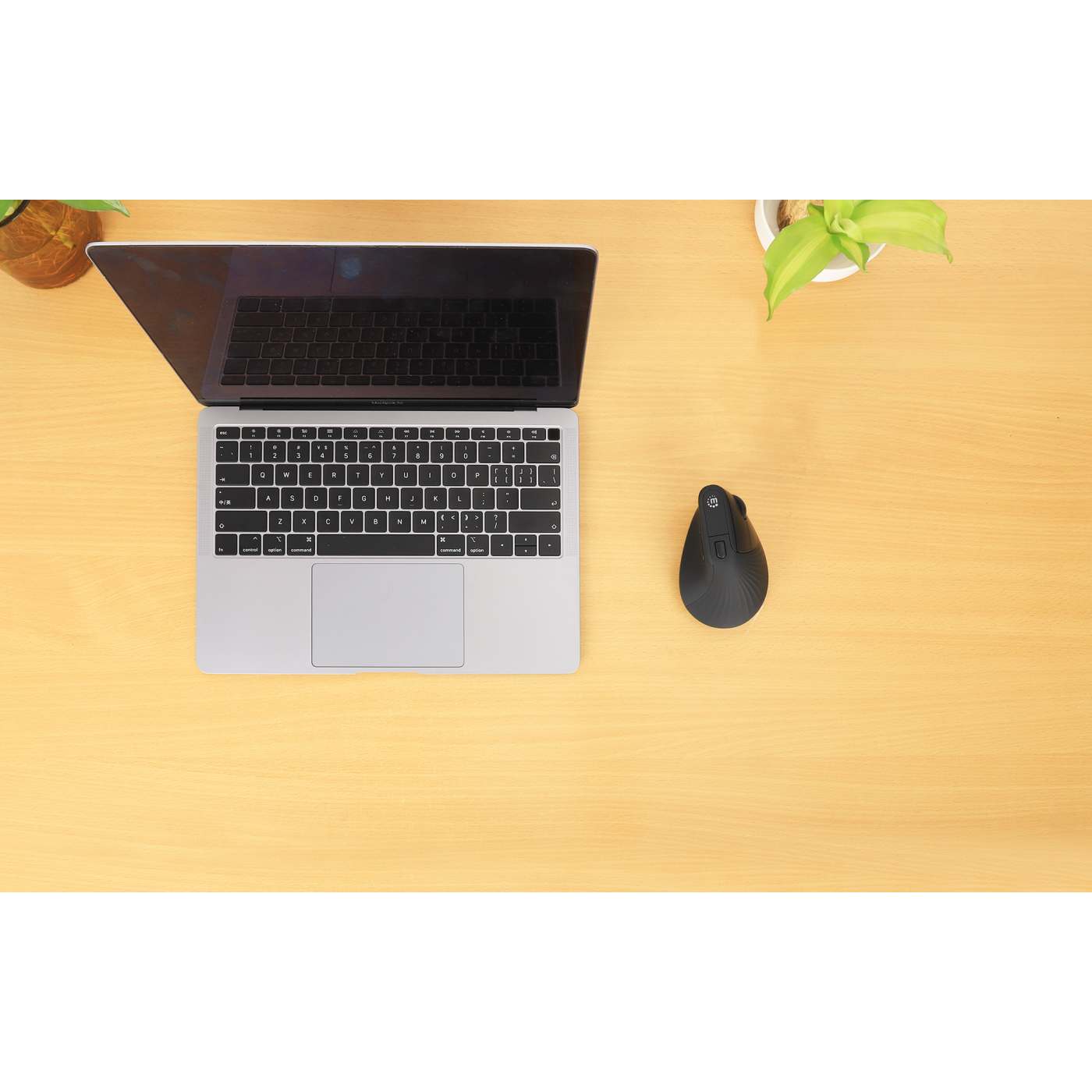

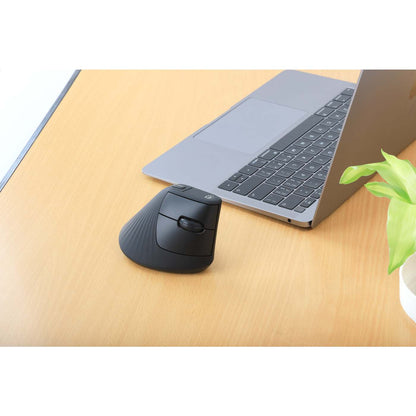

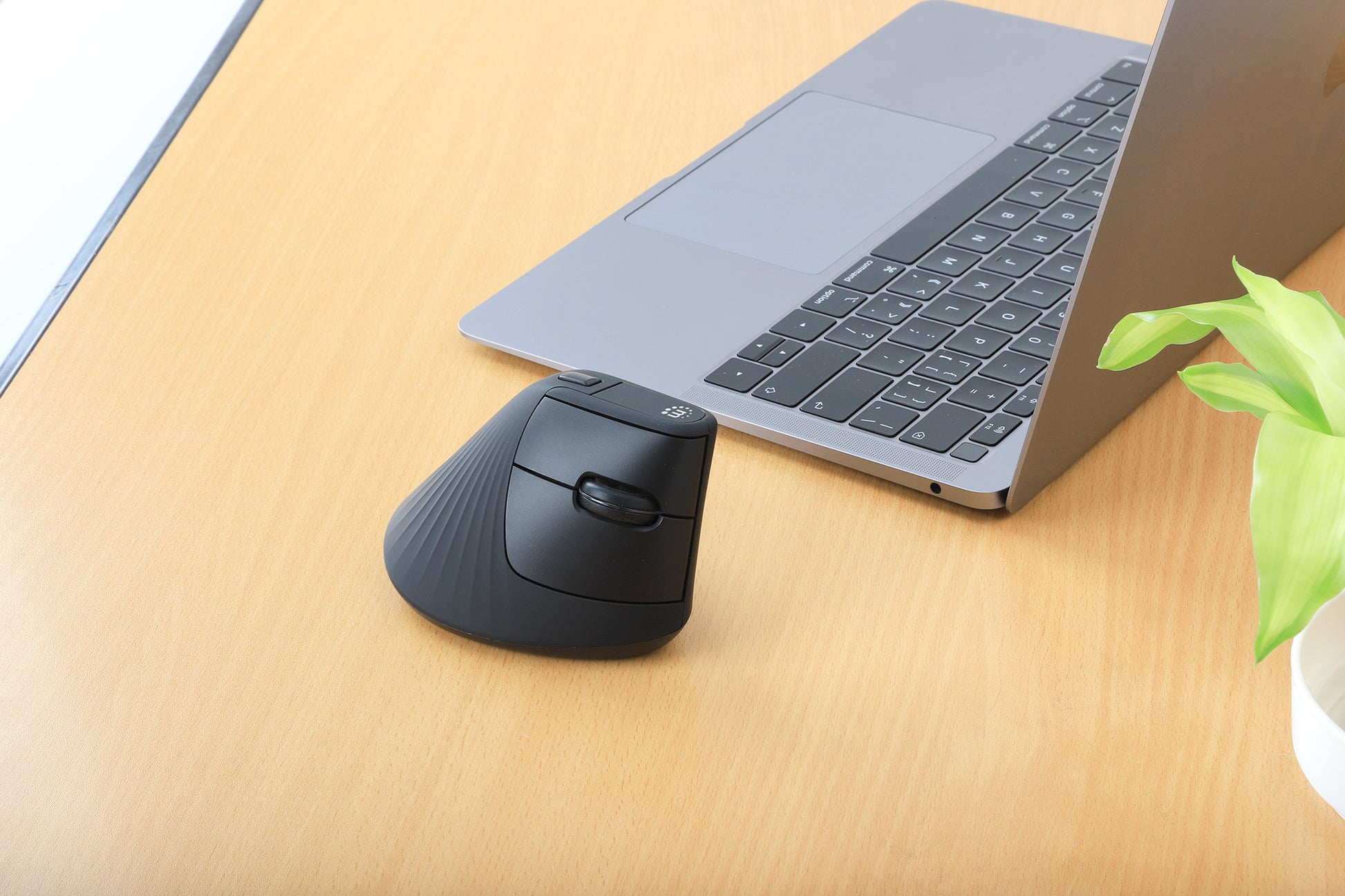

Ergonomic Vertical Wireless USB Mouse - Click in comfort with a wrist-friendly contour

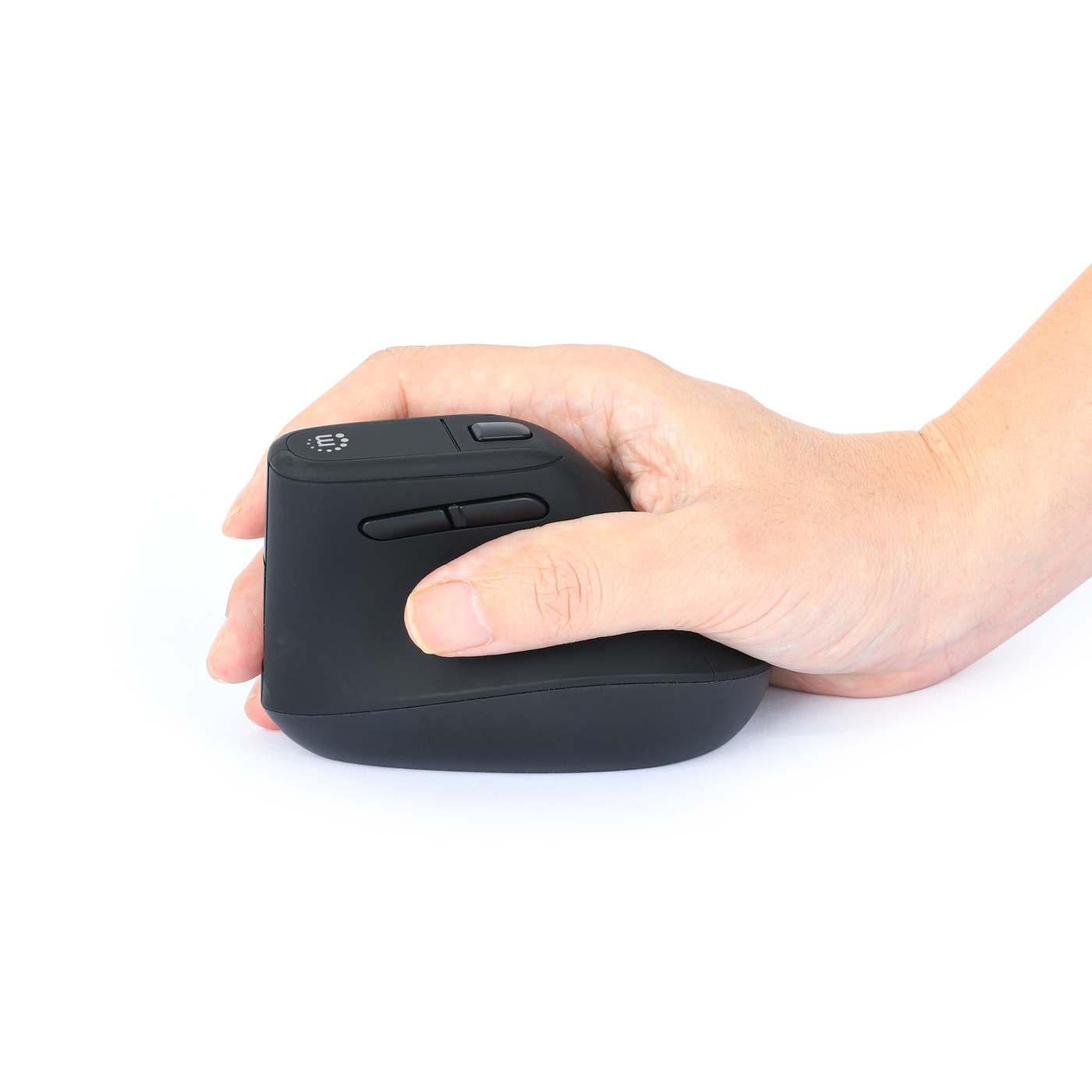

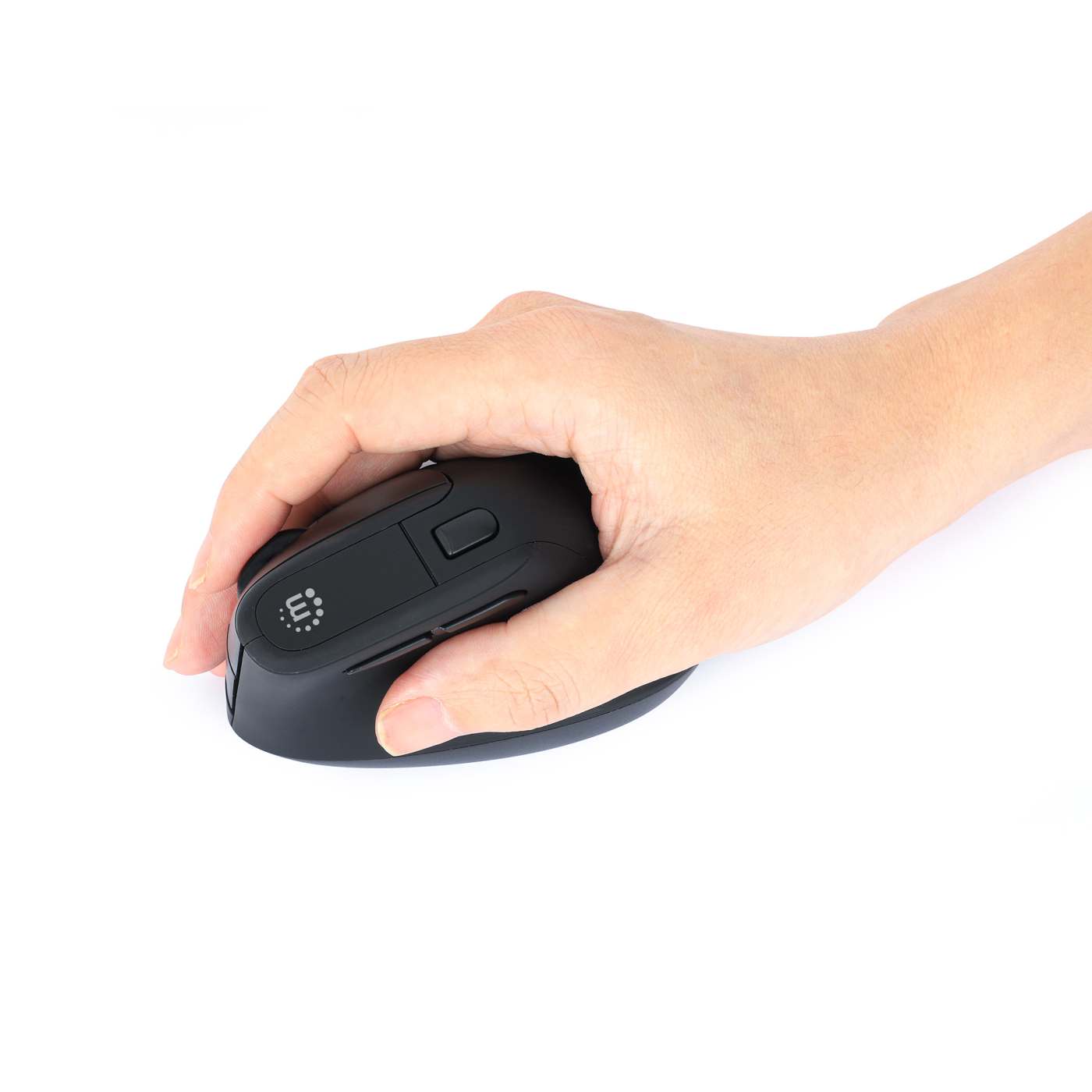

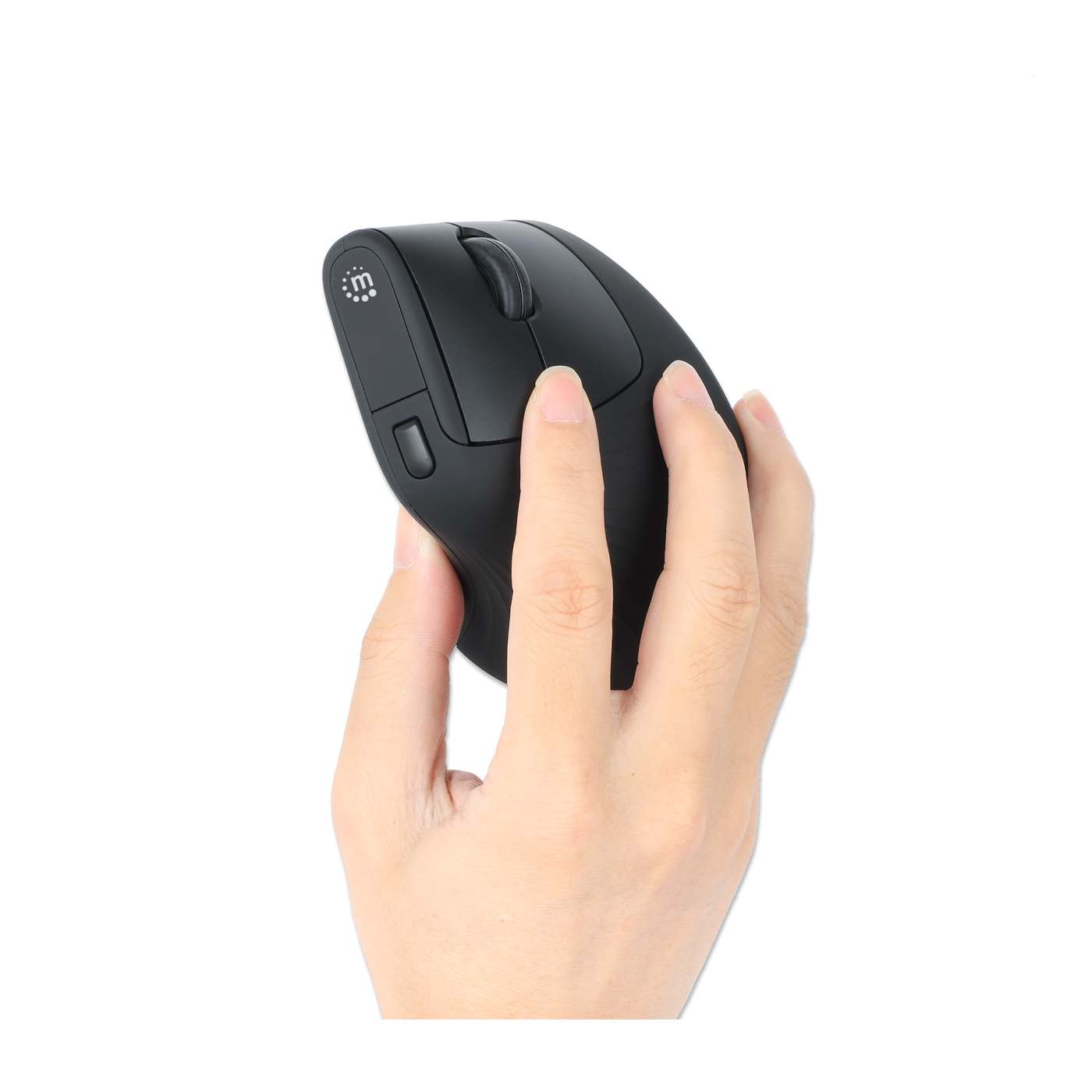

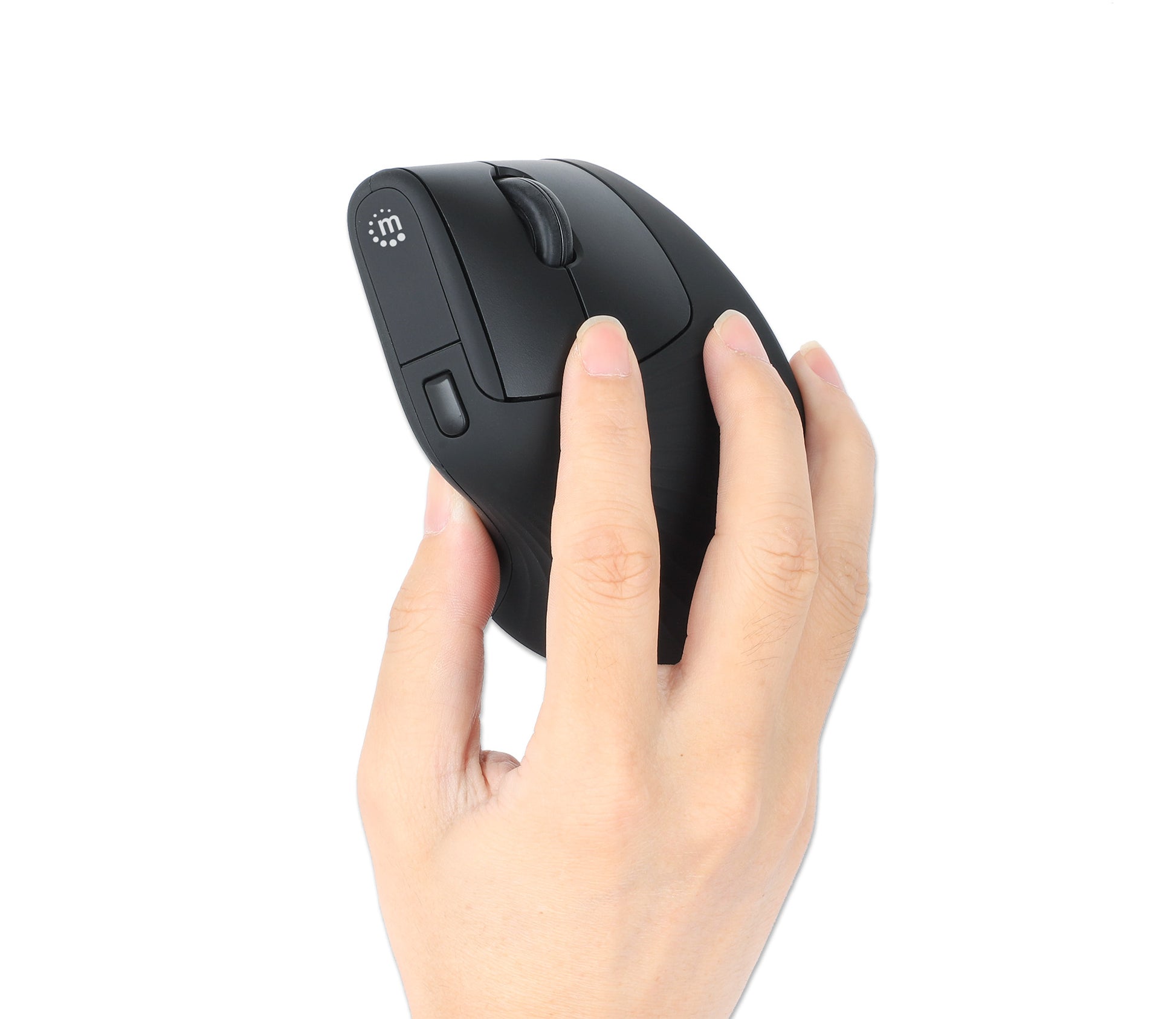

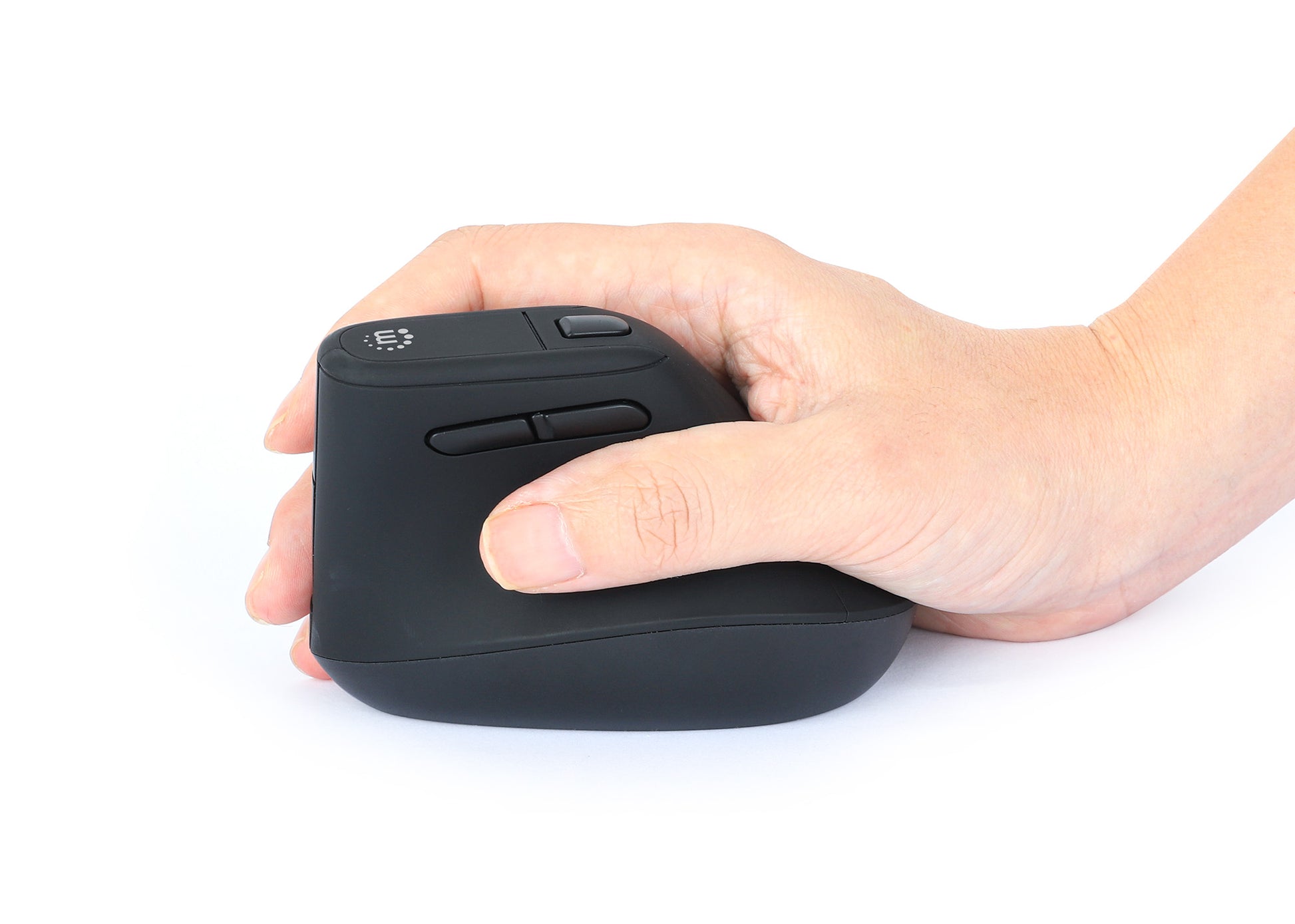

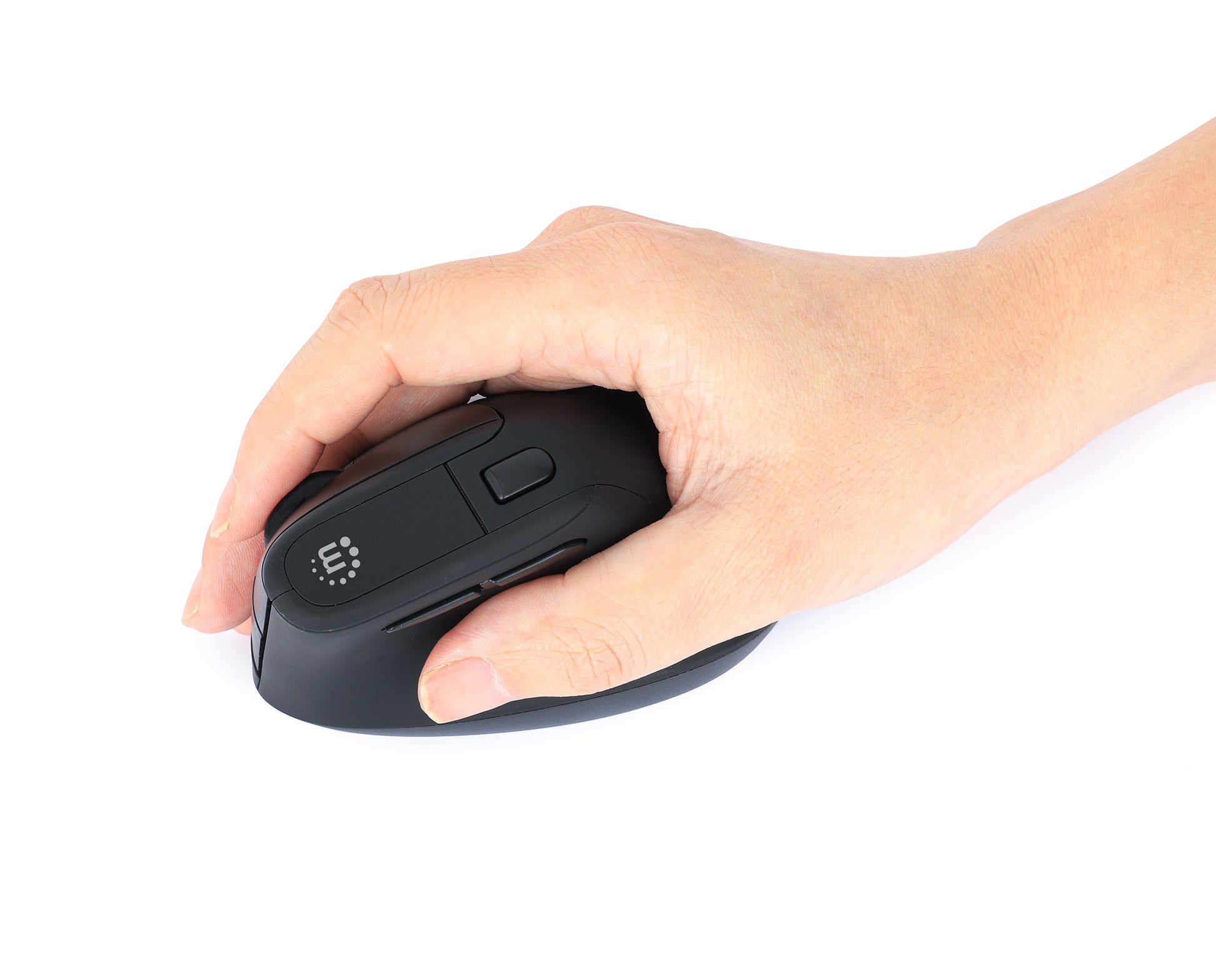

Work in your comfort zone with the vertical ergonomic shape of this Manhattan ergo mouse. Rest your hand on the elevated, smooth grip with easy-to-reach buttons and a snug thumb rest that lets you work without lifting a finger. The natural, 60-degree "handshake" position puts less pressure on your wrist throughout the day and fits your hand like a glove, whether at home or in the office.

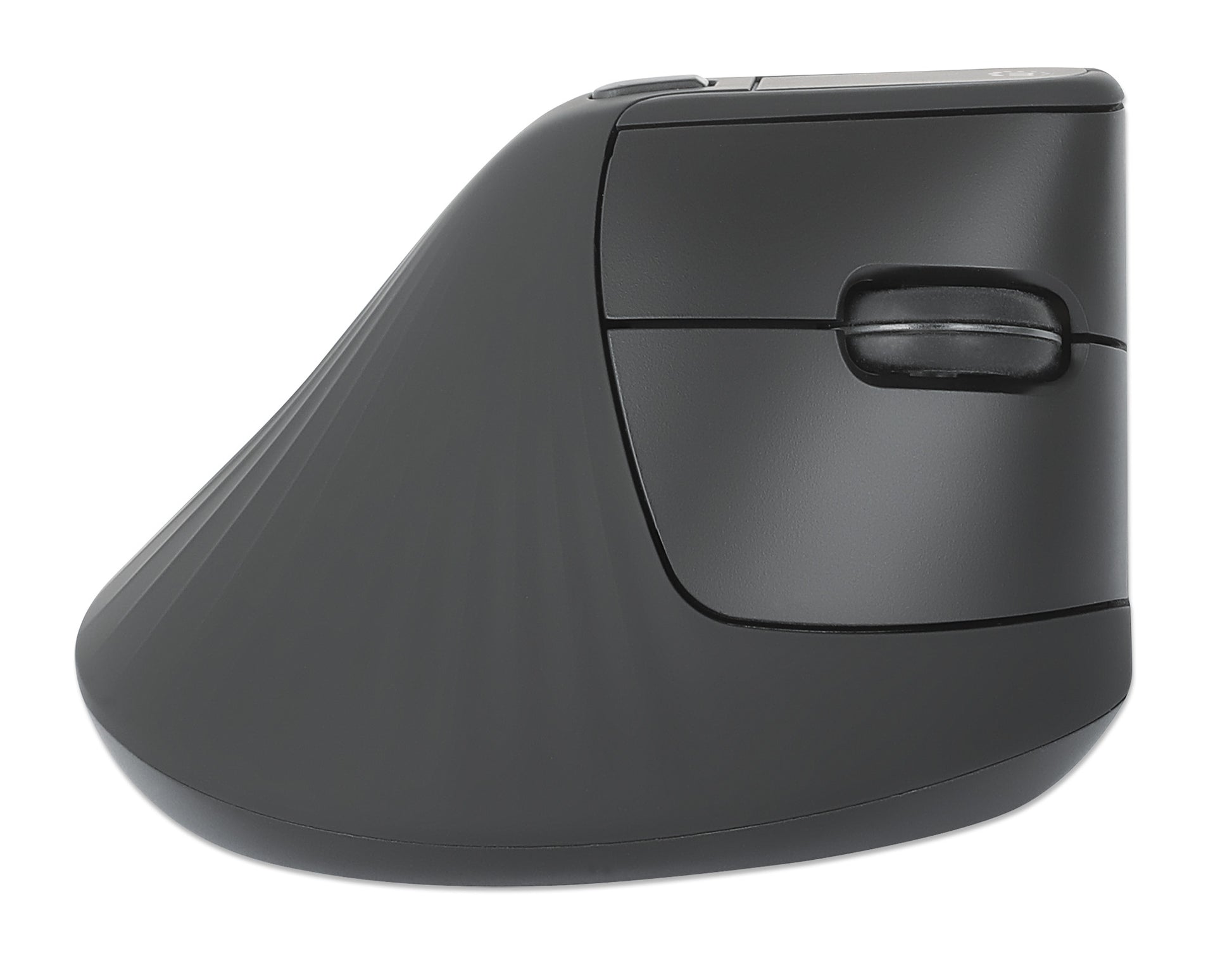

Thumbs up for thumb controls

Moving between folders or web browser pages is a breeze with large Back/Forward thumb buttons, especially with the extra-comfortable thumb rest. A quiet scroll wheel with great tactile response glides smoothly through long lists. All six buttons on this wireless computer mouse are easy to reach.

Advanced, precise tracking with up to 1600 dpi

The high-performance optical sensor provides great accuracy for effortless navigation on almost any surface. Switch instantly between accuracy or speed mode tracking at 800, 1200 or 1600 dpi via the top-mount button.

  • Ergonomic, vertical 60-degree shape promotes natural hand position for all-day comfort without wrist pain or muscle fatigue
  • Wireless 2.4 GHz RF nano receiver with USB-A plug for an effective range up to 10 m (33 ft.)
  • Compatible with Windows®, macOS®, Linux®, and Chrome OS™

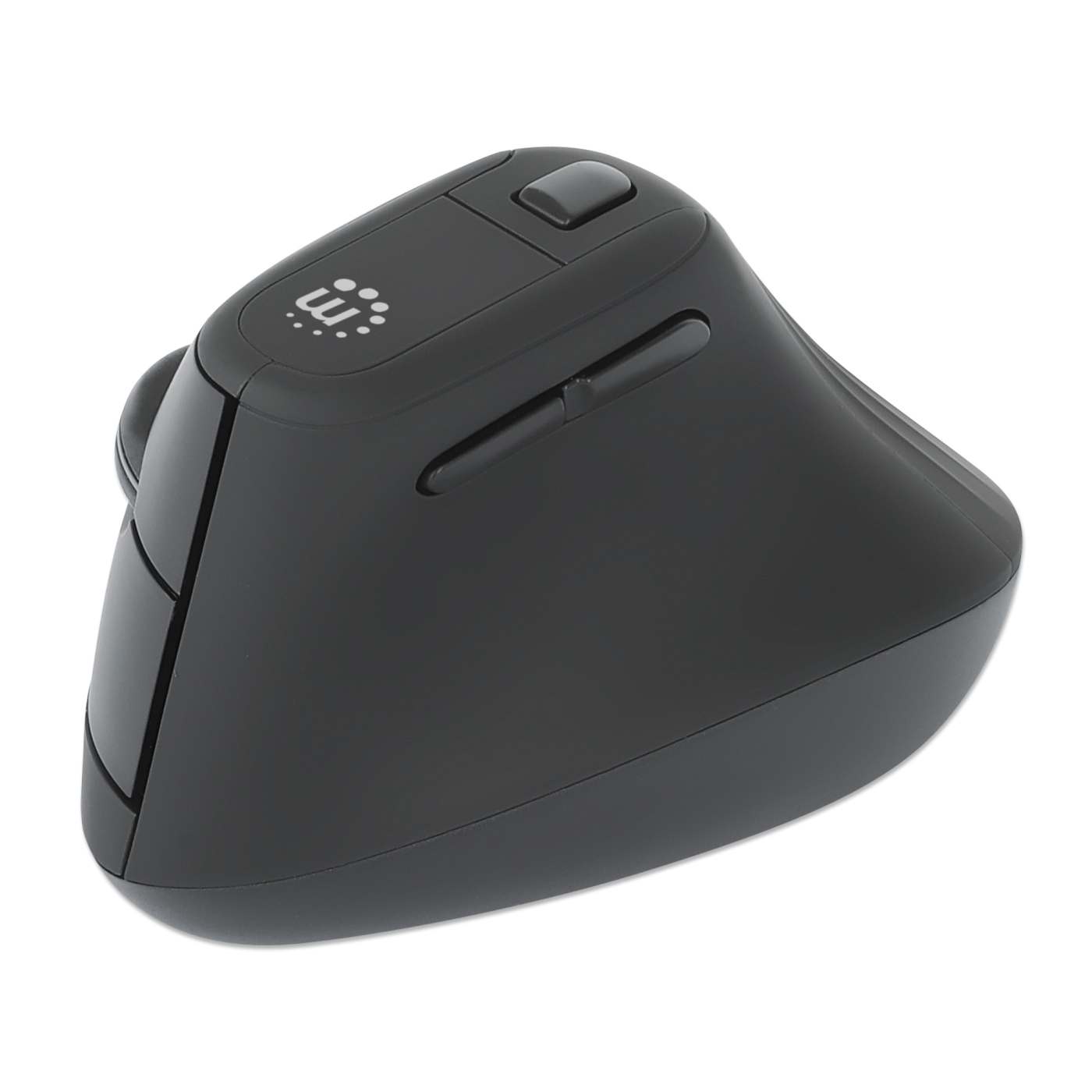

  • Top-mount, push-button control to instantly shift resolution to 800, 1200 and 1600 dpi; ideal for a variety of work tasks

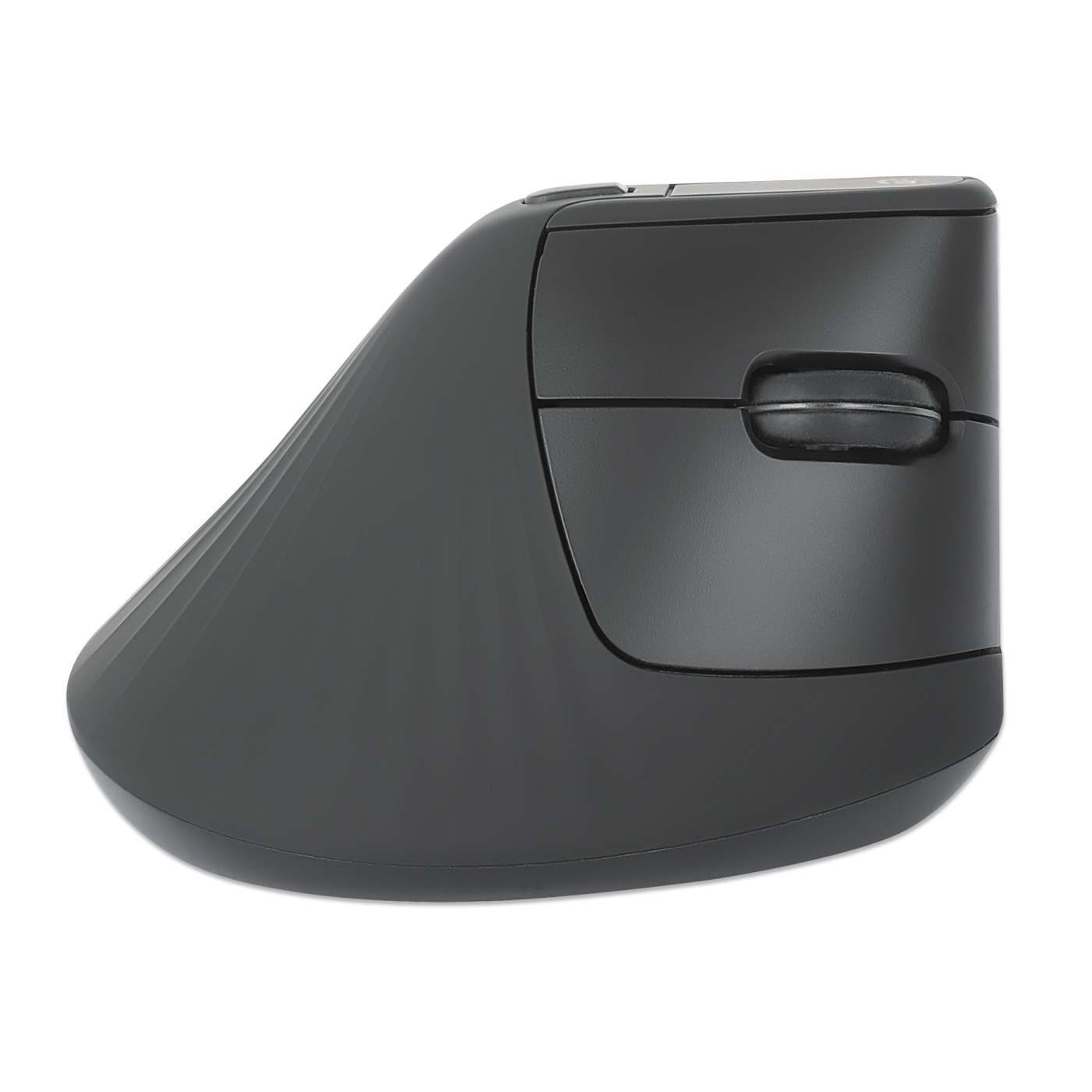

  • Classic left, right and middle mouse buttons with smooth scroll wheel featuring great tactile response

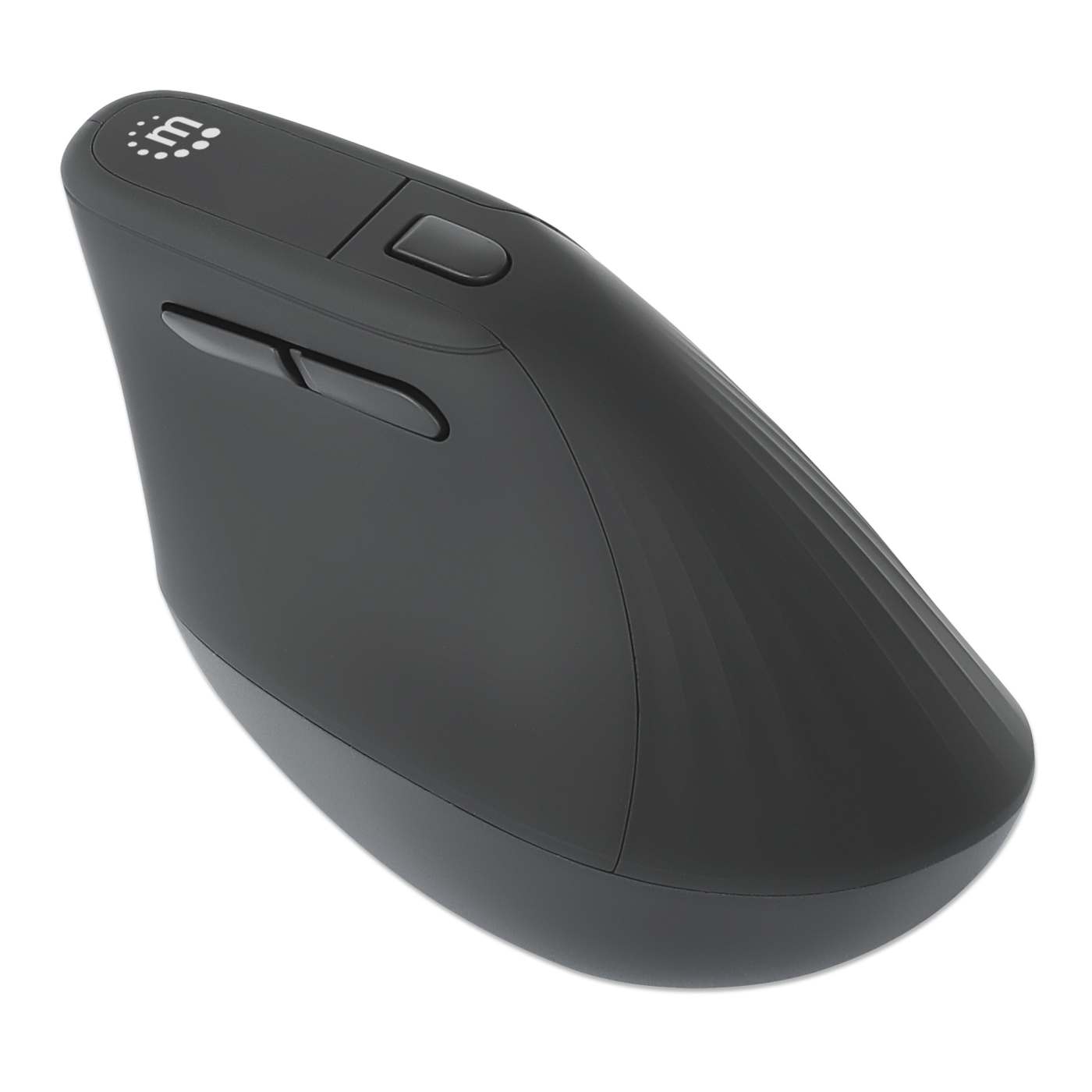

  • Two thumb buttons for convenient Back and Forward web page browsing
  • Thumb rest for added comfort to your grip
  • High-precision optical sensor for lag-free control on almost any surface
  • Auto-power management and on/off switch for a long battery life
  • Plug-and-play installation; no configuration or drivers required

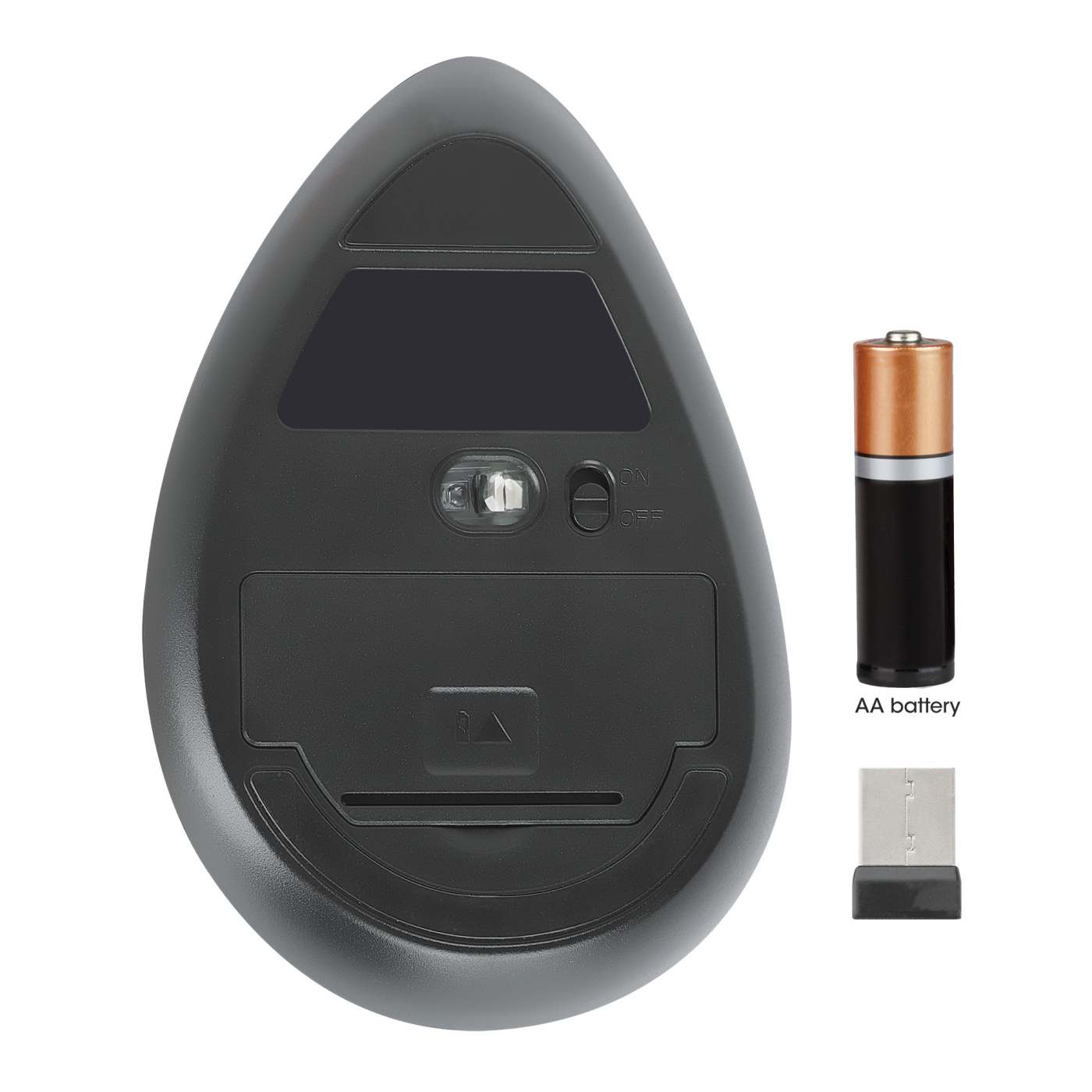

  • On-board storage compartment to protect USB receiver from loss and damage
  • Requires one AA battery (included)
  • Suitable for right-handed users only
  • Three-year warranty

    Standards and Certifications
  • CE
  • FCC
  • RoHS
  • REACH
  • UKCA

    General
  • Range: 2.4 GHz wireless: up to 10 m (33 ft.)
  • Optical sensor: 800 / 1200 / 1600 dpi resolution
  • Key life: ~ 3 million clicks
  • Key cap force: 60 ± 15 g
  • Controls: right and left mouse with scroll wheel (auto-scroll), page forward, page back, resolution adjustment
  • Form factor: right-handed
  • Automatic power save/power off mode
  • On/off switch
  • Battery details:
    - Type: alkaline
    - Battery size: AA
    - Number of batteries required to power product: 1 (included)
    - Battery voltage: 1.5 V DC
    - Working current: ≤25 mA
    - Sleeping current ≤0.3
    - Battery capacity: 1550 mAh
    - Number of battery cells: 1

    Physical
  • Dimensions (L x W x H): 107 x 76 x 71 mm (4.21 x 2.99 x 2.8 in.)
  • Net weight: 95 g (0.21 lbs.)
  • Gross weight: 120 g (0.26 lbs.)
  • Nano receiver/dongle: USB-A, dimensions (L x W x H): 19 x 15 x 7 mm (0.75 x 0.59 x 0.28 in.), weight: 1.6 g (0.06 oz.)
  • Material: ABS plastic

    Operating Environment
  • Operation temperature: 0 - 40°C (32 - 104°F)
  • Storage temperature: -15 - 60°C (5 - 140°F)
  • Operation and storage humidity (non-condensing): <85% RH

    System Requirements
  • Windows XP/Vista/7/8.1/10/11, Linux, Chrome OS or macOS

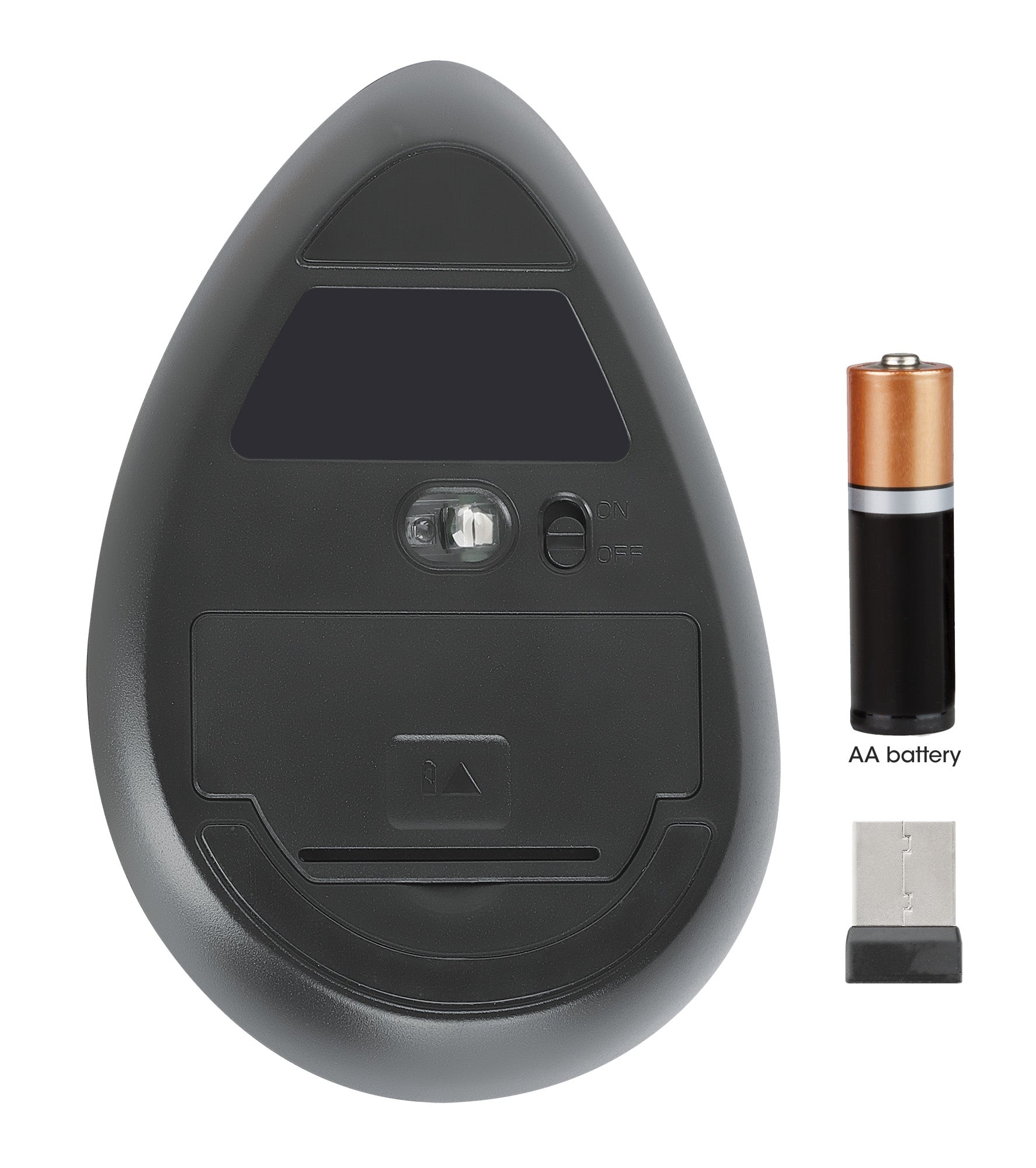

    Package Contents
  • Vertical Ergonomic Wireless USB Mouse
  • AA battery
  • Instructions

  • Additional SKUs

    • EAN: 0766623190336
    • UPC: 766623190336

  • Physical Specifications

    • Product net weight: 0.1 kg
    • Product gross weight: 0.19 kg
    • Dimensions: 107 (L) x 76 (W) x 71 (H) [mm]
    • Packaging type: Retail Hanging Box
    • Packaging dimensions: 140 x 110 x 85 [mm]
    • Master Carton Quantity: 20
    • Master Carton Weight: 4.40 kg
    • Master Carton Dimensions: 450 x 310 x 245 [mm]

  • Datasheet
    • Datasheet     » Download

    • Declaration of Conformity     » Download


  • Manual
    • Safety Instructions – Wireless Peripherals     » Download

    • Quick Installation Guide     » Download
