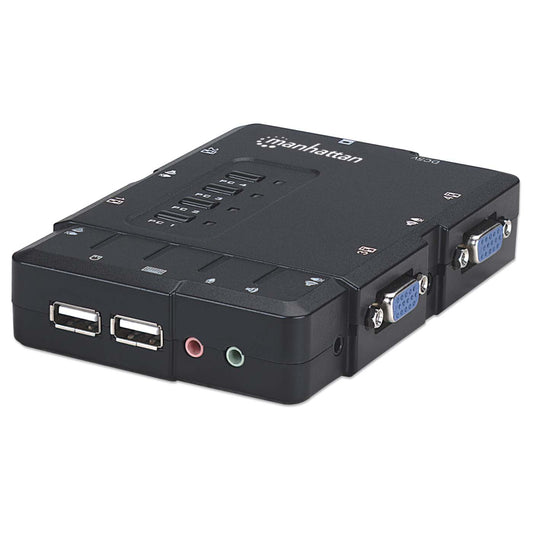

The Manhattan KVM Switch is a four-port compact KVM Switch with audio and mic switching functionality. Its USB support on the console side allows you to use a USB keyboard and mouse. It comes with four sets of detachable USB KVM combo cables and four sets of audio/mic cables for SOHO and office desktop multimedia applications. And it allows you to access, control, boot and reboot four USB-enabled multimedia computers with only one USB keyboard, mouse, monitor and an optional speaker set and microphone.
Audio and Microphone Switching Offers Uninterrupted Multimedia Experience
The audio and microphone switching function of the KVM Switch allows you to leverage the multimedia systems on each of your two computers. You can monitor the audio/mic input/output of each computer without plugging on and off the audio/mic cables. You can also choose to use either independent/simultaneous switching of both PC channel and audio/microphone channel for their maximum convenience. And it takes only one set of speaker and microphone instead of one set for each computer. Furthermore, it offers you user-programmable simultaneous/independent PC and audio/mic switching functionality for flexible multimedia and KVM switching operation.
USB Interface Compatibility for Multiplatform Support
The USB interface technology offers multiplatform support for PC, Macintosh G3/G4 and iMac. (The KVM Switching Software client supports only Windows platforms.)
Zero Cabling Hassles for KVM Users
This KVM Switch saves you cabling troubles with its four 1.5m detachable KVM connection cables. In fact, you have zero cabling troubles since you don’t have to worry about finding suitable cables to fit — they come in the package!

Manage/control four USB computers from one keyboard, monitor and mouse
Audio and microphone switching for uninterrupted multimedia experience across multiple platforms
Hot-plugging PCs for maintenance without powering down the KVM switch or PCs
Channel selection via push buttons and keyboard hotkeys
Supports resolutions up to 1600 x 900 pixels
LED indicators for easy status monitoring
USB bus powered: no external power adapter required
Includes four connection cables for computer, speaker and microphone connection
Lifetime Warranty

USB 1.1

General
PC connections: 4
Console connections: 1
PC port connectors:
- 4 x USB type A (keyboard, mouse), 4 x 3.5 mm audio jacks (for microphone and speaker sound card connection) and 4 x HD15 male (video) through 4 x 1.8m (6-ft.) connection cables
Console port connectors:
- 2 x USB type A (keyboard, mouse)
- 1 x HD15 female (video)
Audio connectors:
- 3.5mm jack (console microphone input)
- 3.5mm jack (console speaker output)
Computer selection:
- Via buttons
- Via hotkeys
Video resolution: max. 1600 x 900
FCC Class B, CE, RoHS

LEDs
1 LED per channel

Power
USB bus powered

Environmental
Plastic housing
Dimensions: 125 (L) x 86 (W) x 26 (H) mm (4.9 x 3.5 x 1.0 in.)
Weight: 0.9 kg (2.0 lbs.)
Operating temperature: -10 – 50°C (14 – 122°F)
Operating humidity: 0 – 90% RH, non-condensing
Storage temperature: -20 – 60°C (-4 – 140°F)

Package contents
4-Port Compact KVM Switch
Quick installation guide
PC and audio connection cables (1.8 m / 6 ft.)

Please note: Mac® computers can only be controlled with a standard PC mouse and keyboard, not with Mac peripherals.

Additional SKUs

Amazon ASIN: B0072IHXOO
EAN: 0766623151269
UPC: 766623151269
ALSO: 1858526
API: 101222

Physical Specifications

Weight: 0.18 kg
Dimensions: 125 (L) x 86 (W) x 26 (H) mm
Packaging: Retail Box
Carton Quantity: 12
Carton Weight: 14.82 kg
